INSTRUCTION MANUAL
ULTRA-STITCH
Sewing Machine
Model: SM-1100white
Your satisfaction is guaranteed. If you are not completely satisfied with our
Ultra-Stitch Sewing Machine and the results it brings, we insist that you let us know.
We’ll help make the Sewing Machine work for you, or we’ll refund your money.

1
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.......................................... 2
INTENDED USE.................................................................................3
BEFORE FIRST USE......................................................................... 3
SEWING MACHINE BASICS.............................................................4
Parts.............................................................................................. 4
Connecting the Foot pedal...........................................................6
Connecting the Power Supply...................................................... 6
THREADING THE MACHINE.............................................................7
Winding the bobbin...................................................................... 7
Inserting the bobbin......................................................................8
Threading the upper thread..........................................................8
Using the needle threader...........................................................10
Drawing up the Bobbin thread....................................................10
Adjusting the thread tension......................................................11
SEWING...........................................................................................13
Selecting the stitch pattern........................................................13
Basic sewing...............................................................................14
Removing the fabric and cutting the threads............................15
Reverse sewing...........................................................................15
Using the seam ripper.................................................................16
Buttonhole sewing......................................................................16
4-Step Buttonhole sewing process............................................17
Button sewing............................................................................. 17
Zipper sewing............................................................................. 18
Replacing the needle.................................................................. 19
Removing or attaching the Presser foot................................... 20
Removing or attaching the Presser foot holder........................21
CLEANING AND MAINTENANCE...................................................22
Cleaning the main unit................................................................22
Cleaning the area inside the bobbin cover................................ 22
Storage........................................................................................ 22
Maintenance............................................................................... 22
TROUBLESHOOTING......................................................................23
SPECIFICATIONS........................................................................... 25

2
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety should always be followed, includ-
ing the following:
Read all instructions before using this sewing machine.
DANGER - To reduce the risk of electric shock:
• Before connecting the power adapter to a power socket, make sure that the
voltage on its rating label corresponds to the voltage in the power socket to which
you wish to connect it.
• The machine should never be left unattended when plugged in.
• Always unplug this machine from the electric outlet immediately after using,
before cleaning, or before performing any maintenance.
• Do not use an extension cord with this product.
• Do not reach for the machine if it has fallen into water. Unplug immediately.
• Do not place or store the machine where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
WARNING - To reduce the risk of fire, electric shock, or injury to persons:
• Do not allow children to play with the machine. The machine is not intended to be
used by children.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowl-
edge unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Use this appliance only for its intended use as described in this instruction
manual.
• Only use attachments provided and recommended by the manufacturer.
• Never operate this sewing machine if it has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or dropped in water. Do not
attempt to repair the appliance yourself. Only a qualified appliance technician
should repair the appliance before re-use.
• Never drop or insert any object into any opening other than the required parts.
• To disconnect, turn OFF the power switch (the symbol "O" on the switch indicates
the "OFF" position), then remove the plug from the outlet.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
• Keep your fingers away from all moving parts. Special care is required around the
sewing machine needle.
• Never look away from the needle while sewing.
• Always use the proper needle plate. The wrong plate can cause the needle to
break.
• Do not use bent, blunt, or damaged needles.
• Do not pull or push fabric while stitching. It may deflect the needle causing it to
break.

3
• This product is intended for sewing fabric and other similar soft materials, such
as thin leather, cotton or synthetic thread.
• This product is intended for household use only. It is not intended for commercial
use.
• This product is intended to be used in dry indoor areas only.
•The product comes pre-threaded. Remove the test cloth on the sewing table by
pulling the Presser foot lifter (33) up to raise the Presser foot (4) and cut the
threads.

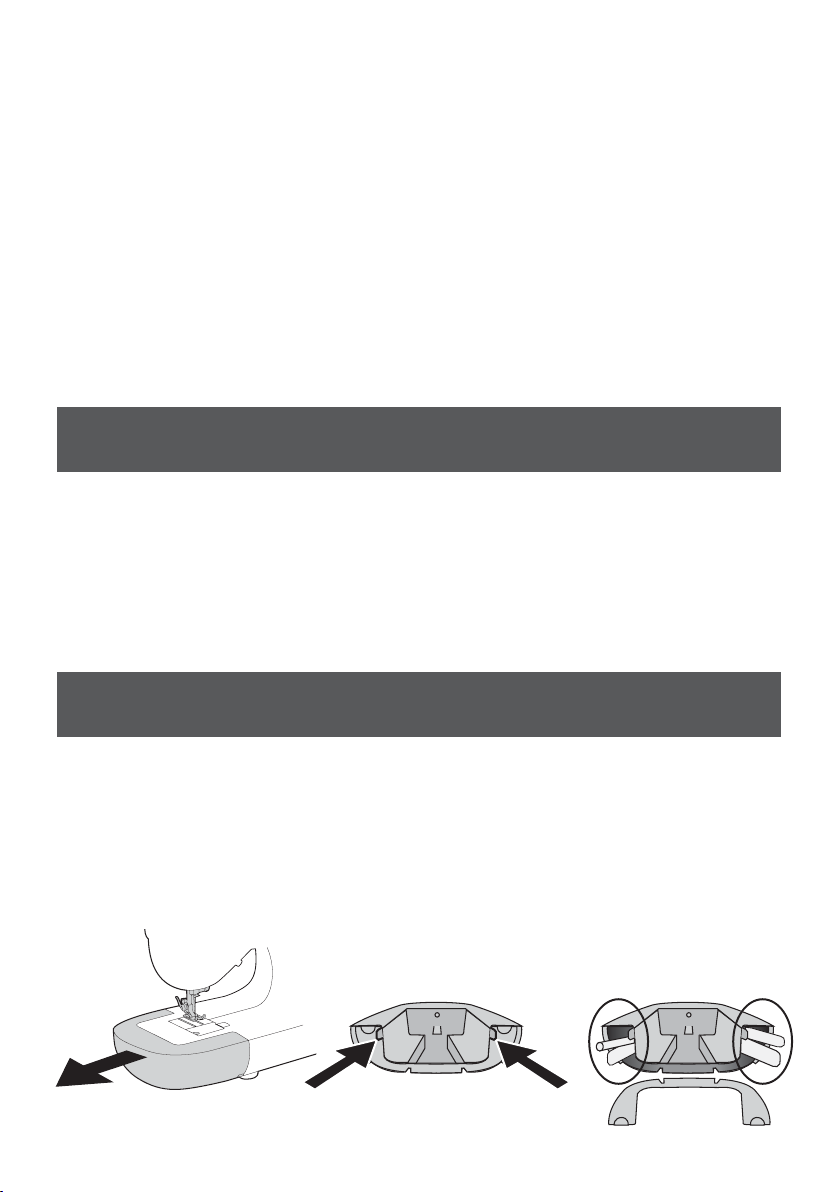

Some of the accessories are shipped inside of the Removable accessory
storage/extension table (13). Hold the base of the accessories storage to pull it
out from the main unit. Then, pull down the cover of the storage compartment
using the two slots on the sides to remove the accessories.
BEFORE FIRST USE
•Switch the sewing machine to OFF position (“O”) when making any adjustments in
the needle area, such as threading the needle, changing the needle, threading the
bobbin or changing the presser foot, etc.
• Do not use the machine if it is wet.
• Do not operate the appliance with wet hands or while standing on a wet floor. Do
not touch the power adapter with wet hands.
• The Foot pedal is used to operate this machine. Do not place objects on the Foot
pedal.
• Always place the appliance on a level, dry and stable surface.
• Do not place the appliance on or near hot surfaces.
• Do not operate where aerosol (spray) products are being used or where oxygen is
being administered.
• Do not use outdoors.
INTENDED USE

4
SEWING MACHINE BASICS

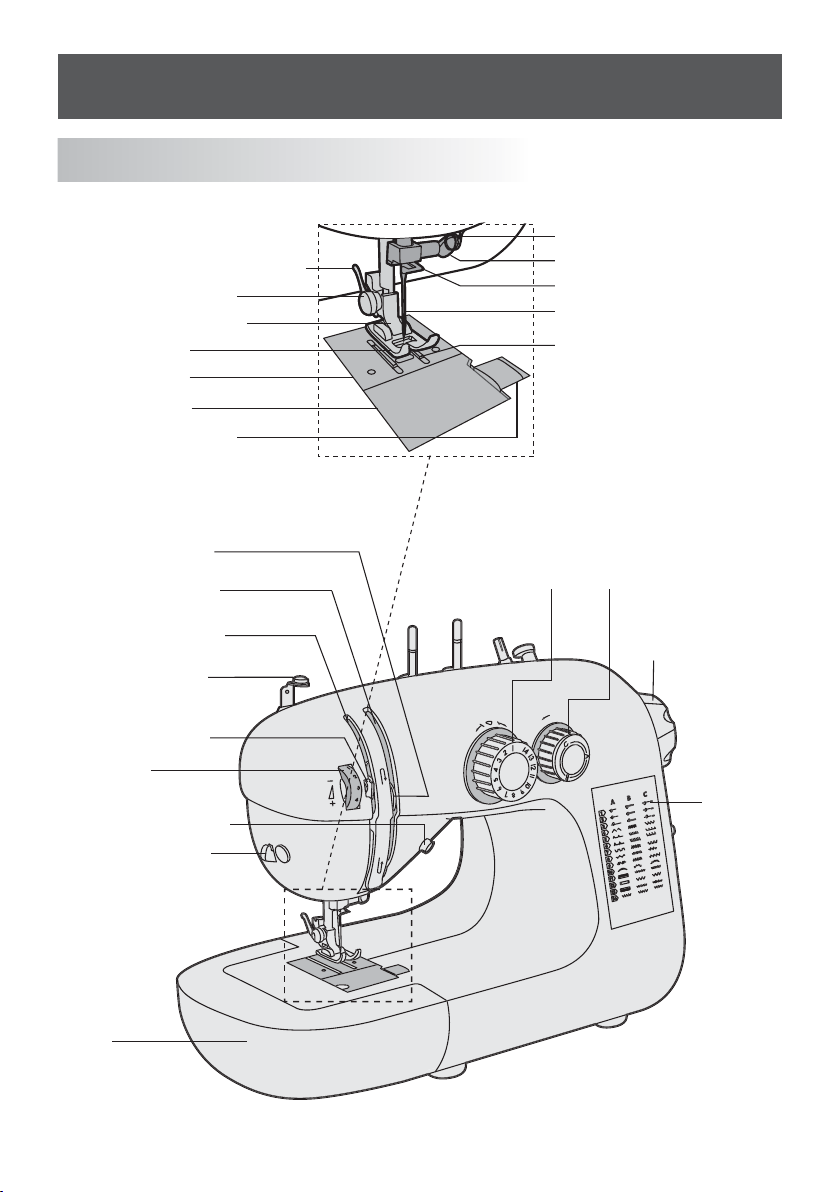

PARTS
1.Presser foot locking lever
2.Presser set screw
3.Presser foot holder
4.Presser foot
5.Needle plate
6.Bobbin cover
7.Bobbin cover lock
8.Thread hole
12.Feed dog
9.Needle clamp screw
10.Needle clamp
11.Needle – size 14 (90)
13.Removable
accessory
storage /
extension
table
14.Thread cutter
15.LED light switch
16.Thread
tension dial
17.Thread clamp
18.Thread guide
19.Tension disk 1
20.Tension disk 2
21.Take-up lever 22.Pattern
selector dial
-primary-
23.Pattern
selector dial
-secondary-
24.Hand wheel
25.Stitch
indication
panel

5
26.Power socket
27.Foot pedal socket
28.Power switch
29.Reverse
sewing lever
30.Bobbin stopper
31.Bobbin winding spindle 32.Spool holders
33.Presser
foot lifter
Parts located in the removable accessories
storage/extension table
36. Buttonhole presser foot 37. Needle threader 38. Zipper presser foot
39. Lint brush 40. Seam ripper
42. Power
adapter
41. Foot
pedal
34. Bobbin (x4) 35. Button sewing plate Pack of 6 needles – size 14 (90)

6
Connecting the Foot pedal
1. Connect the Foot pedal (41) cord to the Foot
pedal socket (27) on the sewing machine.
2. Place the Foot pedal on
the floor unobstructed.
Connecting the Power Supply
• Turn OFF the power switch (28) - The symbol "O"
on the switch indicates the "OFF" position.
• Connect the Power adaptor (42) cord to the
Power socket (26) on the sewing machine, and
then plug the Power adaptor plug into the wall
outlet.
•Turn ON the power switch to turn on the
machine- The symbol "I" on the switch indicates
the "ON" position.
• After use, always turn OFF the power switch and
unplug the machine from the wall outlet.
WARNING: While in operation, always keep your eyes on the sewing area,
and do not touch any moving parts such as the Take-up lever (21), Hand
wheel (24), or Needle (11).
Always turn OFF the power switch and unplug from the power supply:
- when leaving the machine unattended
- when attaching or removing parts
- when cleaning the machine.
Do not place anything on the Foot pedal (41) for risk that the sewing
machine will run intermittently.

7
THREADING THE MACHINE
Winding the bobbin
1. Place a spool of thread (not
included) on one of the Spool hold-
ers (32).
2. Draw the thread from the spool
through the Thread guide (18).
3. Pass the thread through the hole
in the Bobbin (34) from the inside to
the outside. With the thread coming
out from the top, snap the Bobbin
on the Bobbin winding spindle (31).
4. Push the Bobbin winding spindle
(31) to the right towards the Bobbin
stopper (30).
5. While holding the free end of the
thread, step on the Foot pedal (41)
to start winding. After winding a few
layers, release the Foot pedal and
cut off the free end of the thread.
6. Step on the Foot pedal again to
continue filling the Bobbin (34). The
winding motion slows down when
the Bobbin is full. Cut the thread and
push the Bobbin winding spindle
(31) to the left to remove the
Bobbin.
NOTE: Do not move the Bobbin
winding spindle (31) while the
machine is running. The sewing
motion of the sewing product is
disengaged in the winding process.
1
2
3
4
5
6

8

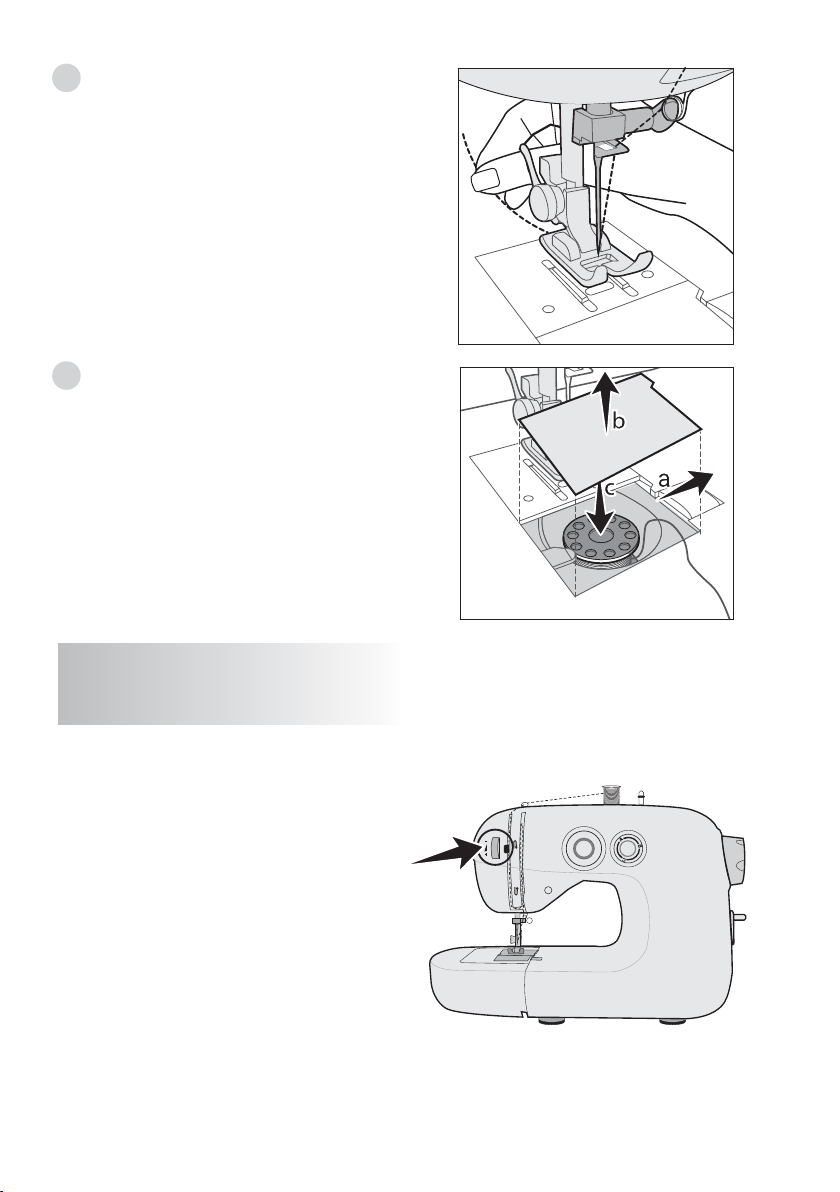

Inserting the bobbin
1. Turn the Hand wheel (23) coun-
terclockwise (toward you) to raise
the Needle (11) to the highest
point.
2. Slide and hold the Bobbin cover
lock (7) to the right to lift and
remove the Bobbin cover (6).
3. Insert a Bobbin (34) in the
bobbin case so that the thread is
running in a clockwise direction.
4. Pull the thread, so there is at
least 4 inches (10 cm) of loose
thread.
NOTE: Do not place the Bobbin
cover back until the full threading
process is complete.
Threading the
upper thread
1. Turn the Hand wheel (24) coun-
terclockwise (toward you) to raise
the needle (11) to the highest
point, and then raise the Presser
foot lifter (33).
NOTE: For safety reasons, it is
strongly suggested that you turn
off the power before threading.
4”
(10 cm)
b
a

9
2. Place the desired thread spool
(not included) onto one of the
Spool holders (32). Draw the
thread from the spool through the
Thread guide (18).
3. Push and hold the Thread
clamp (17) to the left, pass the
thread by the right side of the
Thread clamp and then release
the clamp.
4. Pass the thread down Tension
disk 1 (19) to the bottom and then
pull it up into Tension disk 2 (20).
5. Loop it up to the top of the
Tension disk 2 (20) before pulling
back down and threading through
the slotted eye of the Take-up
lever (21) from left to right.
6. Pull the thread back down and
pass it through the Thread hole
(8) and then behind the Needle
clamp (10) and then down to the
needle, which should be threaded
from front to back.
7. Pull the thread towards the
back, so there is at least 4 inches
(10 cm) of loose thread.

10

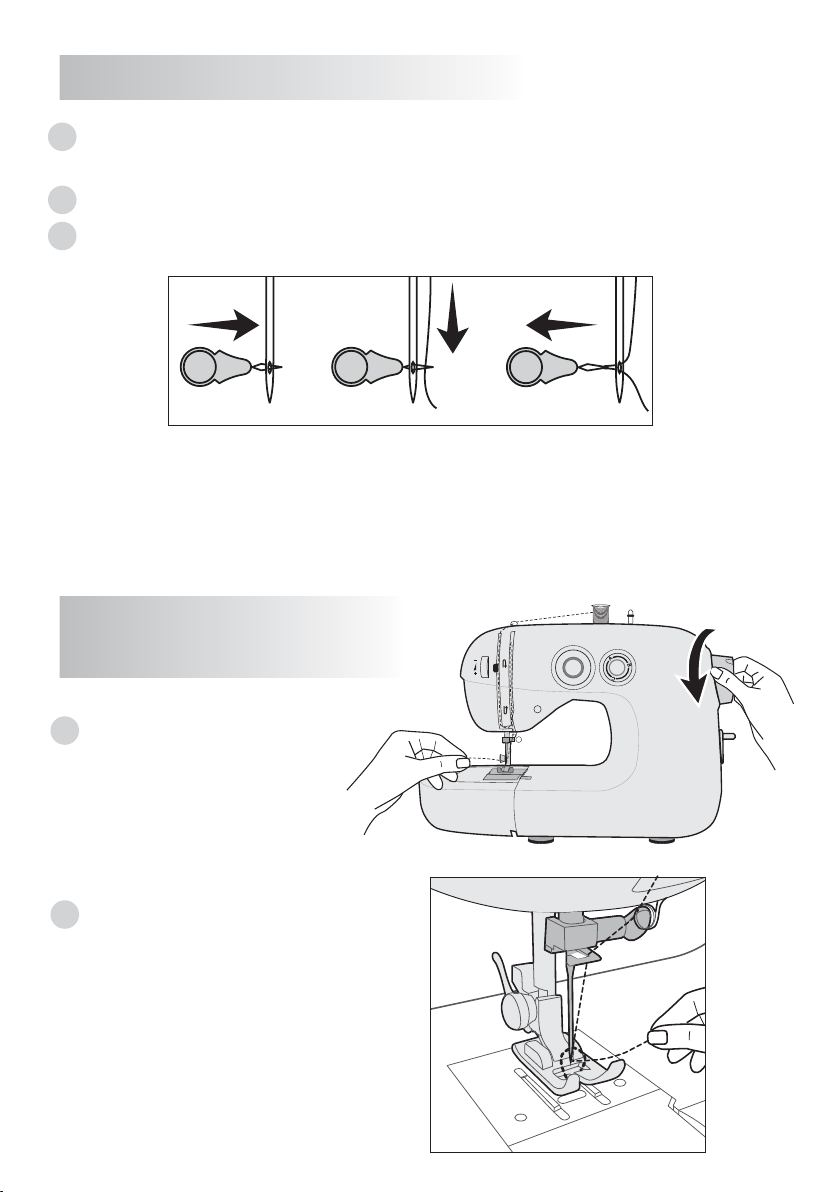

1. Insert the Needle threader (37) through the eye of the Needle (11) from
the back of the needle to the front of the needle.
2. Pass the thread through the wire loop of the Needle threader.
3. Pull out the Needle threader from the needle eye. The needle is now
threaded.
Using the needle threader
1. Hold the end of the upper
thread and turn the Hand
wheel (23) towards you
(counterclockwise) lowering,
then raising the needle.
2. Gently pull on the upper
thread to bring the bobbin
thread up through the stitch
hole of the Presser foot (4).
Drawing up the
Bobbin thread
Note: For safety reasons, it is strongly suggested you turn off the power
before threading.
1
4
1
2
1
2
1
1
1
0
9
8
7
6
5
4
3
2
1
1 2 3

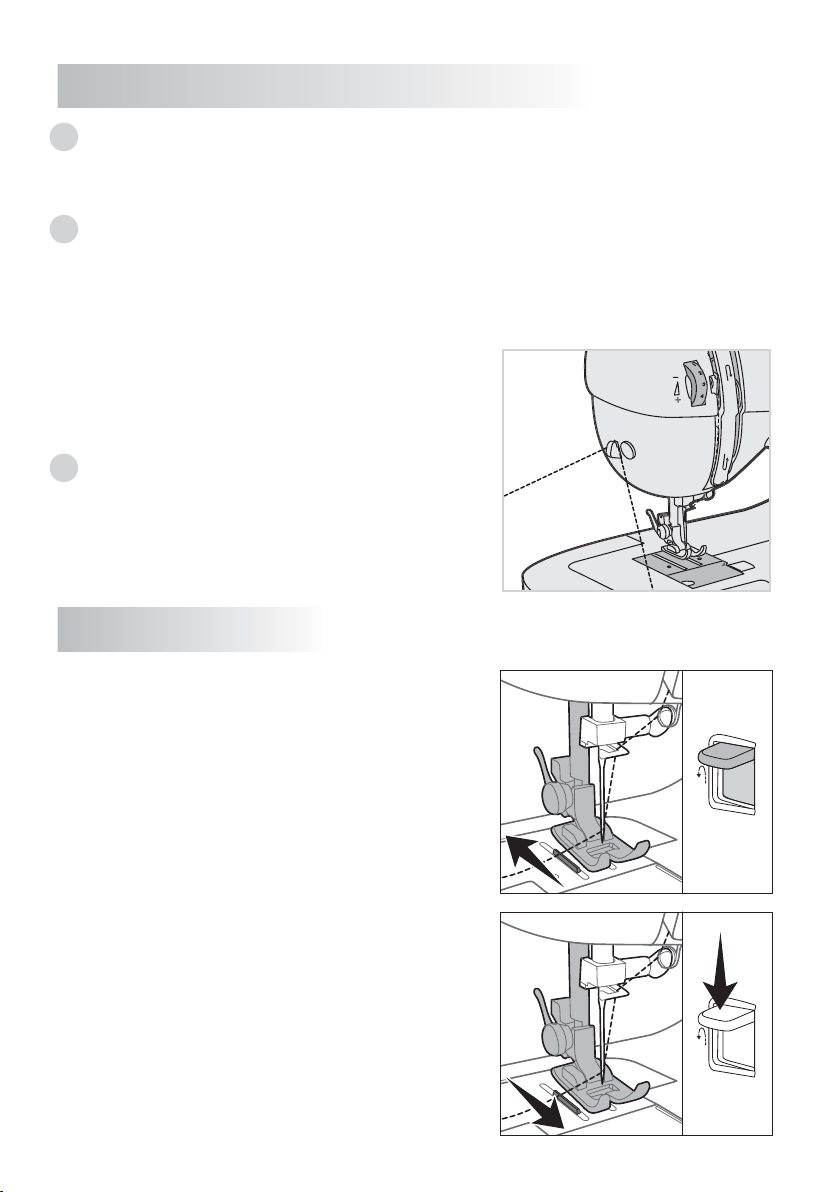

11
3. With the Presser foot (4)
raised, pull out approximately
4 inches (10 cm) of both
threads and lay them to the
back under the Presser foot.
4. Slide and hold the Bobbin
cover lock (7) to the right to
re-insert the Bobbin cover (6).
The thread tension should be
adjusted depending on the
sewing materials, layers of
fabric, and sewing method.
To adjust the tension of the
upper thread, use the Thread
tension dial (16):
- To increase the tension, rotate
the Thread tension dial to a
higher number.
- To reduce the tension, rotate the
Thread tension dial to a lower
number.
Adjusting the
thread tension
1
4
1
2
1
2
1
1
1
0
9
8
7
6
5
4
3
2
1

12
1. Balanced tension: The ideal straight
stitch has threads locked between two
layers of fabric, as illustrated.
2. Upper thread tension is too loose:
The needle thread (upper thread) will
form loops on the wrong side (bottom
side) of the fabric. Tighten the needle
thread tension by rotating the dial to a
higher number.
3. Upper thread tension is too tight:
The bobbin thread (bottom thread) will
appear on the right side (top side) of
the fabric. Loosen the needle thread
tension by rotating the dial to a lower
number.
Useful tips:
Proper setting of tension is important for good sewing.
- There is no single tension setting appropriate for all stitch functions,
thread, or fabric.
- A balanced tension (identical stitches, both top and bottom) is usually
only desirable for straight stitch construction sewing.
- 90% of all sewing should have the thread tension set between "3" and "5".
- For zig-zag stitch patterns, thread tension should generally be less than
for straight stitch sewing.

13

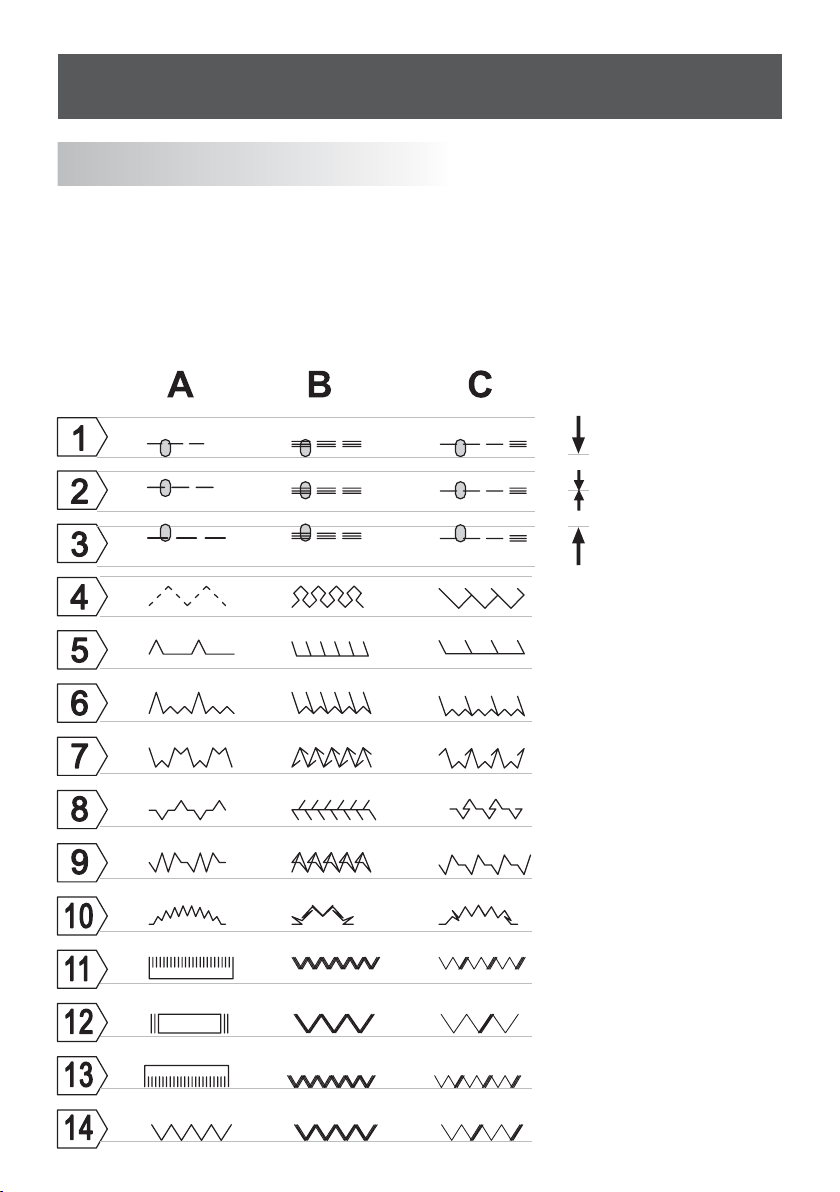

This product includes 42 kinds of stitches you can use for different purpos-
es. Rotate the Pattern selector dial – primary (22) (1 - 14) and the Pattern
selector dial – secondary (23) (A, B, C) to choose the desired stitch pattern.
CAUTION: Do not turn the Pattern selection dials when the needle is down
into the fabric. Otherwise, the needle may bend or break.
SEWING
Selecting the stitch pattern
Needle to the left
Needle to the middle
Needle to the right
If you are not sure
which stitch pattern to
select, we recommend
trying different stitches
on a piece of test
fabric.

14
Press the LED light switch (15)
to switch the light ON or OFF.
For sewing sleeves, waistbands,
pant legs, or socks, remove the
Accessory storage (13) to fit the
tubular garment around the sewing
surface easily.
1. Raise the Presser foot lifter (33).
2. Pull the upper and bobbin
threads back, so there is at least 4
inches (10 cm) of loose thread at
the back of the machine.
3. Place the fabric under the Press-
er foot (4) and set the Presser foot
lifter (33) down to secure the fabric
in place.
4. Rotate the Hand wheel (23) coun-
terclockwise (toward you) to lower
the Needle (11) into the fabric.
5. Turn ON the machine and then
press your foot gently on the Foot
pedal (41) to start sewing, using
your hands to guide the fabric
through.
Basic sewing
1
4
1
2
1
2
1
1
1
0
9
8
7
6
5
4
3
2
1
1
4
1
2
1
2
1
1
1
0
9
8
7
6
5
4
3
2
1
NOTE: Do not pull or push the fabric while sewing as it may deflect the
needle causing it to break - the Feed dog (12) moves as you sew, pulling
the fabric through the machine. The amount of pressure put on the Foot
pedal affects the sewing speed. Press lightly for slow speed, press
harder for higher speed.

15
1. After sewing, rotate the Hand wheel (23) counterclockwise (toward you)
to raise the Needle (11) to the highest point. Raise the Presser foot lifter
(33).
2. Pick up the fabric and pull the threads towards the back, so there is at
least 4 inches (10 cm) of loose thread.
NOTE: If you are having difficulties removing the fabric from underneath the
Feed dog (12), push and hold the Thread clamp (17) to the left while pulling
the fabric at the same time. Alternative-
ly, you can rotate the Hand Wheel (23)
counterclockwise (toward you) until you
pull the thread and take out the fabric.
3. Bring the threads to the Thread cutter
(14) and cut the threads using a down-
ward motion.
Removing the fabric and cutting the threads
Reverse sewing
Reverse sewing is used to secure the
beginning and the end of a seam or to
reinforce places that need extra
strength. The Feed dog's (12) move-
ment reverses to move back the cloth
while sewing to make a locking knot
over the stitches.
- Push and hold down the Reverse
sewing lever (29) to sew in reverse. The
machine will sew in reverse while the
lever is pushed. Release the lever, and
the machine will sew forward again.
Sew a few reverse stitches.
NOTE: Do not add more than 6 reverse
stitches at a time.
forward
reverse

16
Using the seam ripper
The Seam ripper (40) is used to cut the stitches in between fabrics that are
sewn together.
-Gently pull the sewn fabric seam apart, so the stitches are visible and
slightly loosened, then glide the Seam ripper hook in between to cut the
threads.
Buttonhole sewing
1. Turn the Hand wheel (23) counter-
clockwise (toward you) to raise the
Needle (11) to the highest point. Raise
the Presser foot lifter (33).
2. Remove the Presser foot (4) - for
instructions on how to remove the Press-
er foot, refer to the section “Removing or
attaching the Presser foot” on page 20 of
this instruction manual. Attach the
Buttonhole presser foot (36) to the
Presser foot holder (3).
3. Mark the desired length of the buttonhole on the fabric.
4. Place the fabric under the Presser foot (4) and set the Presser foot lifter
(33) down to secure the fabric in place, aligning the distance set on the
presser foot to the length of the marked fabric.
5. Follow the 4-Step Buttonhole sewing sequence (instructions in the next
section of this manual) changing from one step to another with the Pattern
selector dial – primary (22) and the Pattern selector dial – secondary (23).
6. Raise the Needle (11) to the highest point then raise the Presser foot lifter
(33).
7. Pull out the fabric and cut the threads. Cut the buttonhole opening with
the Seam ripper.
NOTE: If you are having difficulties removing the fabric from underneath the
Feed dog (12), push and hold the Thread clamp (17) to the left while pulling
the fabric at the same time. Alternatively, you can rotate the Hand Wheel
(23) counterclockwise (toward you) until you pull the thread and take out
the fabric.

17
4-Step Buttonhole sewing process
1. Set the pattern to 11A, then sew
at low speed to the marked length.
2. Change the pattern to 12A for
sewing 5-6 stitches at low speed.
3. Change the pattern to 13A at
low speed to the marked length.
4. Change the pattern to 12A for
sewing 5-6 stitches at low speed.
NOTE: When moving from step to step through the buttonhole process, be
sure that the needle is raised before turning the Pattern selector dials to the
next step. Take care not to sew too many stitches in steps 1 and 3 of this
4-step Buttonhole sequence.
Button sewing
1. Rotate the Hand wheel (23)
counterclockwise (toward you) to
raise the needle (11) to the high-
est point. Raise the Presser foot
lifter (33).
2. Attach the Button sewing plate
(35) to the holes on the Needle
plate (5). Attaching the Button
sewing plate stops the fabric and
button from moving up while
sewing.
3. Place the fabric and the button in position on the Button sewing plate
(35). Lower the Presser foot lifter (33) to secure.
4. As the width between the holes on buttons differs, with no thread in the
Needle (11), rotate the Hand wheel (23) counterclockwise (toward you) to
test the stitch width with different zig-zag stitch patterns (11B, 12B, 13B,
14B, 11C, 12C, 13C, 14C) to find the matching width.
5.Thread the upper thread through the needle and then sew 8-10 stitches to
1234

18
Zipper sewing
secure the button.
6. Rotate the Hand Wheel (23) to raise the Needle to the highest point then
raise the Presser foot lifter (33).
7. Pull out the fabric and cut the threads.
NOTE: If you are having difficulties removing the fabric from underneath the
Feed dog (12), push and hold the Thread clamp (17) to the left while pulling
the fabric at the same time. Alternatively, you can rotate the Hand Wheel
(23) counterclockwise (toward you) until you pull the thread and take out
the fabric.
8. To ensure that the button stays attached to the fabric, bring all the loose
threads to the back of the fabric. You can do that by passing them (one by
one) through the eye of a regular sewing needle and pushing the needle
through to the back of the fabric.
9. Tie a knot with the loose threads to secure the button and then cut off the
excess threads.
10. Repeat steps 5-9 on the remaining holes if the button has more holes.
1. Pin or baste the zipper (not included)
to the fabric.
2. Remove the Presser foot (4) - for
instructions on how to remove the
Presser foot, refer to the section
“Removing or attaching the Presser
foot” on page 20 of this instruction
manual
3. Attach the right side of the Zipper
presser foot (38) to the Presser foot
holder (3).
4. Set the sewing machine to stitch pattern 1A, 2A, or 3A.
5. Align the teeth of the zipper next to the right edge of the Zipper presser
foot (38).
6. Sew a seam all the way down the zipper. Take out the fabric and cut the
threads.

19
NOTE: If you are having difficulties removing the fabric from underneath the
Feed dog (12), push and hold the Thread clamp (17) to the left while pulling
the fabric at the same time. Alternatively, you can rotate the Hand Wheel
(23) counterclockwise (toward you) until you pull the thread and take out
the fabric.
Change the needle regularly. Bent, blunt or damaged needles can cause
damage to the machine or fabric. To achieve optimal sewing results, the
needle should be straight and sharp.
1. Turn the Hand wheel (23) coun-
terclockwise (toward you) to raise
the Needle (11) to the highest point
and then lower the Presser foot
lifter (33).
2. Turn the Needle clamp screw (9)
counterclockwise to loosen it and
remove the needle from the Needle
clamp (10).
7. Attach the left side of the Zipper
presser foot (38) to the Presser foot
holder (3).
8. Set the product to stitch pattern
1A, 2A, or 3A.
9. Align the teeth of the zipper next
to the left edge of the Zipper presser
foot (38).
10. Sew a seam all the way down
the zipper. Take out the fabric and
cut the threads.
11. Remove the basting (if any)
from the finished zipper using the
Seam ripper (40).
Replacing the needle
3. Insert a new needle into the Needle clamp (10) with the flat side of its
shank facing towards the back of the product.
4. Push the needle all the way into the Needle clamp (10) and tighten the
Needle clamp screw (9) to secure the needle.
