MultiTouch MultiTaction Cell MT550 User manual

MultiTaction Cell 55"
MT550 User Manual
(v.1.1)

Notice to Users
This user manual is intented for the owners and operators of MultiTouch Multi-
Taction Cell products. It contains guidelines for the proper usage of the prod-
ucts. Information in this manual is subject to change without prior notice to
product owners. For the latest product details and guidelines please visit the
product website.
Copyright © 2011 Multitouch. All rights reserved.
NOTE: MultiTaction and MultiTouch Cornerstone are trademarks of Multi-
touch. All other trademarks are the property of their respective owners.

Trademarks
MultiTaction and MultiTouch Cornerstone are trademarks of Multitouch.
All other trademarks are the property of their respective owners.

Safety Information
Read carefully through and comprehend all the given safety information before
installing or using the product. Follow instructions found on this manual and
marked on the MultiTaction Cell. Take careful notice of all the warnings and
safety related instructions to install and use the product safely.
Safety Signal Word Explanation
DANGER Indicates a hazard with a high level of risk which,
if not avoided, will result in death or serious injury
AND / OR property damage.
WARNING Indicates a hazard with a medium level of risk
which, if not avoided, could result in death or
serious injury AND / OR property damage.
CAUTION Indicates a hazard with a low level of risk which, if
not avoided, could result in minor or moderate
injury AND / OR property damage.
NOTICE Indicates important information.

Regulatory information
European Union Directive on Restriction of Hazardous Substances (RoHS)
This MultiTaction Cell complies with the following regulatory standards:
•RoHS
• EN 55022
• EN 55024
• IEC 61000-3-2
• IEC 61000-3-3
• IEC 62471
• IEC60950:2005+A1:2009
More information on the complience can be acquired from Multitouch by
delivering the S/N of the MultiTaction Cell in question.

Disposal Guidelines
The Cell complies with the European RoHS -directive. Please consult local
authorities and professionals when planning to dispose the Cell.

Table of Contents
Introduction .................................................................................................................... ........ 1
Device Overview .............................................................................................................. ........ 2
Dimensions .......................................................................................................................... ......... 3
Connection Panel................................................................................................................. ......... 4
Warning Labels ................................................................................................................... ......... 5
Technical Specifications...................................................................................................... ......... 6
Box Contents .................................................................................................................... ........ 10
Unpacking the Cell .......................................................................................................... ........ 11
Installing the Cell ............................................................................................................. ........ 13
Proper Environment............................................................................................................ ......... 13
Ventilation and Heat Control ............................................................................................ ......... 14
VESA Mount Installation.................................................................................................... ......... 15
Custom Installation ............................................................................................................. ......... 17
Desk Stand Installation ....................................................................................................... ......... 20
Multi-Cell Installation......................................................................................................... ......... 22
Display wall installations....... ............................................................................................. ......... 23
Connecting the Cell .......................................................................................................... ........ 26
Normal Operating Conditions.......................................................................................... ........ 27
Guidelines for Maximum Performance........................................................................... ........ 28
Software Setup ................................................................................................................. ........ 29
Operations on the MultiTaction Cell................................................................................ ......... 29
Operations on the Application PC .................................................................................... ......... 30
Finalizing the Setup ............................................................................................................. ......... 31
More information ................................................................................................................ ......... 31
Computer Recommendations ............................................................................................ ......... 32
Installation of Cornerstone................................................................................................. ......... 33
Calibration ........................................................................................................................... ......... 34
Tuning of the Tracking Parameters.................................................................. .........34
Finger Tracking................................................................................................ .........34
Marker Tracking .............................................................................................. .........34
Automatic Geometry calibration 34
On-line Resources................................................................................................................ ......... 35
Maintenance and Cleaning............................................................................................... ........36
Warranty Information ..................................................................................................... ........ 37

INTRODUCTION
1
Introduction
MultiTaction Cells are multi-touch, modular LCD displays intended for (but in
no way limited to) retail businesses, advertising, exhibitions, museums, educa-
tion, and design installations. ‘MultiTaction’ means that Cells can track and
react to several people interacting with them simultaneously. Moreover, the
system tracks a person’s hands instead of points of contact only, further
enhancing interactive possibilities.
The LCD displays deliver Full HD picture quality, have a long life-span, and
need hardly any maintenance. ‘Modular’ means that Cells can be easily
connected to each other to create a single large display array showing interactive
content split into the various screens, while reacting to multiple users’ touch.
The system welcomes customization. Work on Linux, Mac, or Windows envi-
ronments, and create your own tailored apps through the MultiTouch Corner-
stone SDK or many other supported methods.
This manual contains the installing and operating instructions for
MultiTaction Cell 55”.

DEVICE OVERVIEW
2
Device Overview
MultiTaction is an innovative way to build an integrated multi-touch LCD
display. The front glass and LCD package is tuned to allow the integrated optical
imaging system to work effectively through it. Imaging logic and processing
power are embedded in the display unit. The illustration below shows the main
technologies used in MultiTaction.

DIMENSIONS
3
Dimensions
The Cell enclosure holds the following dimensions:

CONNECTION PANEL
4
Connection Panel
Connection panel of the Cell is located at the back of the device. It contains
power switch and the following sockets for connecting the Cell to approriate
devices and to the mains.
Socket Purpouse
3 USB Sockets USB sockets are intended for peripherals of
the Cell (for example keyboard and mouse)
USB B For control input
Ethernet For control input
DisplayPort Display signal input
DVI-D Display signal input
Mains Power connection to the mains supply

WARNING LABELS
5
Warning Labels
The following warning labels can be found on the Cell:
• CLASS 1 LED PRODUCT (IEC 60825-1 A2:2001) -label attached to the
back of the enclosure
• CLASS 2 LED RADIATION -warning label (IEC 60825-1 A2:2001)
attached to metal structure within the enclosure of the Cell.

TECHNICAL SPECIFICATIONS
6

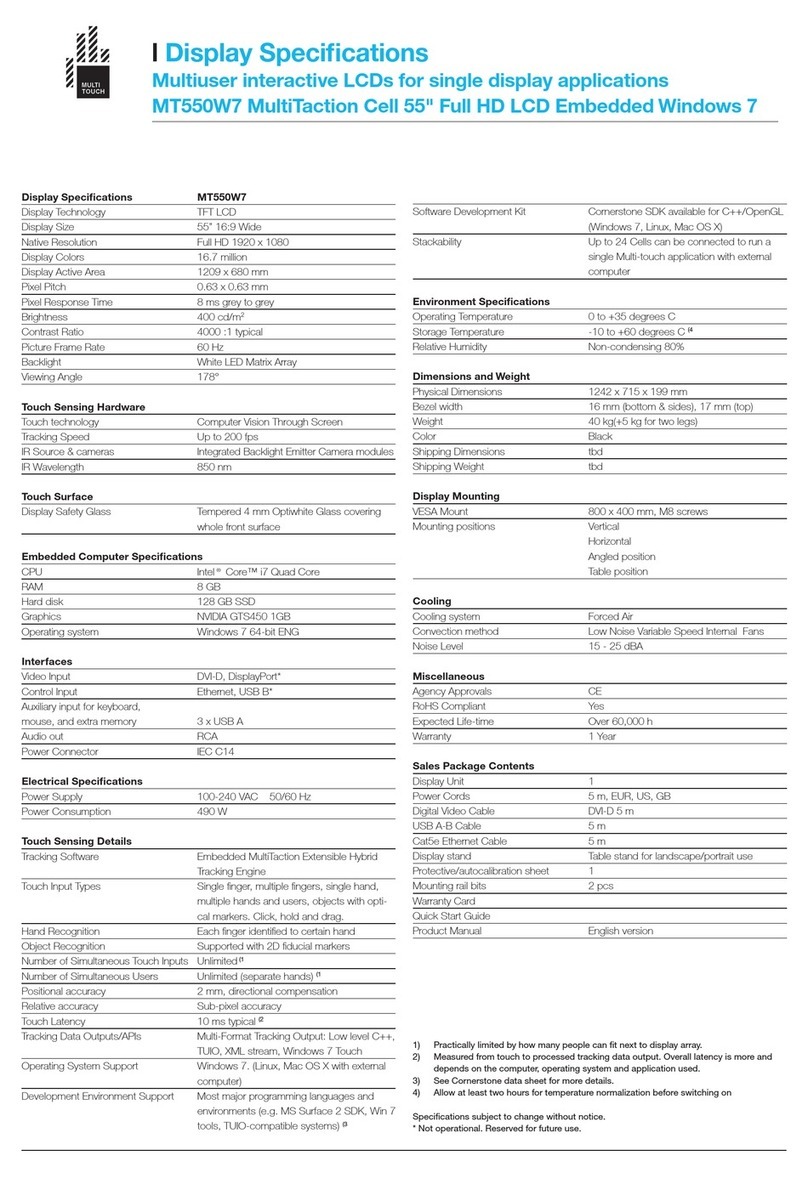

Technical Specifications
Table 1: Display Specification
Table 2: Touch Sensing Hardware
Table 3: Touch Surface
Table 4: Interfaces
Display Technology TFT LCD
Display Size 55" 16:9 Wide
Native Resolution Full HD 1920 x 1080
Display Colors 16.7 million
Display Active Area 1209 x 680 mm
Pixel Pitch 0.63 x 0.63 mm
Pixel Response Time 8ms grey to grey
Brightness 250 cd/m2
Contrast Ratio 4000:1 typical
Picture Frame Rate 60 Hz
Backlight White LED Matrix Array
Viewing Angle 178
Touch technology Computer Vision Through Screen
Tracking Speed Up to 200 fps
IR Source & cameras Integrated Backlight Emitter Camera
modules
IR Wavelength 850 nm
Display Safety Glass Tempered 4 mm Optiwhite Glass
covering whole front surface
Video Input DVI-D, DisplayPort

TECHNICAL SPECIFICATIONS
7
Table 5: Electrical Specifications
Table 6: Touch Details
Control Input USB B, Ethernet
Auxiliary input for keyboard, mouse
and extra memory
USB A
Power Connector IEC C14
Power Supply 100-240 VAC 50/60 Hz
Power Consumption 450W
Tracking Software Embedded MultiTaction Extensible
Hybrid Tracking Engine
Touch Input Types Single finger, multiple fingers, single
hand, multiple hands and users,
objects with optical markers. Click,
hold and drag.
Hand Recognition Each finger identified to certain hand
Object Recognition Supported with 2D fiducial markers
Number of Simultaneous Touch
Inputs
Unlimited
Number of Simultaneous Users Unlimited (separate hands)
Positional accuracy 2mm, directional compensation
Relative accuracy Sub-pixel accuracy
Touch Latency 10 ms typical. Measured from touch to
processed tracking data output.
Overall latency is greater and depends
on the computer, operating system,
and application used.
Tracking Data Outputs / APIs Multi-Format Tracking Ouput: Low
level C++, TUIO, XML stream,
Windows 7 Touch
Operating System Support Windows 7, Linux, Mac OS X

TECHNICAL SPECIFICATIONS
8
Table 7: Enviroment Specifications
Table 8: Dimensions and Weight
Table 9: Display Mounting
Table 10: Cooling
Development Environment Support Most major programming languages
and environments (MS surface 2 SDK,
TUIO-compatible systems). See
MultiTouch Cornerstone for further
details.
Software Development Kit Cornerstone SDK available for
C++/OpenGL (Windows 7, Linux,
Mac OS X)
Stackability Up to 24 Cells can be connected to
run a single multitouch application.
Operating Temperature 0 to +35 degrees C
Storage Temperature -10 to +60 degrees C (Allow at least
two hours for temperature
normalization before switching on the
unit.)
Relative Humidity Non-condensing 80%
Physical Dimensions 1242 x 713 x 199 mm
Bezel width 16 mm (bottom & sides), 17 mm (top)
Weight 40 kg (90 lbs)
Color Black
VESA Mount 800 x 400 mm, M8 screws
Mounting positions Vertical, Horizontal, Angled position,
Table position, Display Array (2-24
units), Symmetric or asymmetric
layouts
Cooling system Forced Air

TECHNICAL SPECIFICATIONS
9
Table 11: Ventilation
Table 12: Miscellaneous
Table 13: Sales Package Contents
Convection method Low Noise Variable Speed Internal
Fans
Noise Level 15-25 dBa
Air passing through the Cell:
Typical amount 220 m3 / hour
Maximum amount 250 m3 / hour
Agency Approvals CE
RoHS Compliant Yes
Expected Life-time Over 60,000 h
Warranty 1 year limited (See warranty details in
this manual)
Display Unit 1
Power Cords 5 m, EUR, US, GB
Digital Video Cable DVI-D 5 m
USB A-B Cable 5 m
Cat5e Ethernet Cable 5 m
Display Stand Table stand for landscape/portrait use
Protective/autocalibration sheet 1
Alignment rail bits 4 pcs
Warranty Card 1
Quick Start Guide 1
Product Manual English version

BOX CONTENTS
10
Box Contents
MultiTaction Cell product box contains the following items:
• MultiTaction Cell
• AC Power Cords (US, GB and German)
• DVI-D Monitor cable
•USBcable
• Ethernet cable
• Production Test Report
• User guide
• Alignment rail bits (4 pcs)
Carefully check that you have received all the items before proceeding with the
installation of the Cell. If your product box is missing items, please contact your
dealer.

UNPACKING THE CELL
11
Unpacking the Cell
Follow these steps to unpack the Cell from its shipping box:
The Cell is delivered in a specially designed container to secure it during the
transportation. Place the container on a clean floor. Make sure to have enough
space around the container to remove the Cell and place it to the desired loca-
tion. The Cell is to be removed by two persons, one lifting from each side.
TASK
1. Bend all the metal tabs on the bottom of the box (1).
2. Remove the container top by lifting it up (2).

UNPACKING THE CELL
12
3. Remove the protective padding on the top of the Cell (1).
4. Remove the Cell from the container with help from another person, one
lifting from each side (2).

INSTALLING THE CELL
PROPER ENVIRONMENT
13
Installing the Cell
The MultiTaction Cell must be installed before use. Follow one of the four
installation guidelines:
1) VESA Mount Installation
2) Custom Install
3) Multi-Cell Installation
4) Desk Stand Installation
Before installing ensure that the installation and usage environment is suitable
the the MultiTaction Cell.
Proper Environment
Choose a well-ventilated, cool space for setting up the display.
CAUTION: Infrared sources (like halogen spots) may harmfully
interfere with the tracking sensors.
• Keep the Cell away from strong spot-light areas.
CAUTION: Intense sunlight can damage the display.
• Place the Cell in a space where intense sunlight does not hit the
display area (front panel).
