mundoclima MUPO-07-C4 COOL ONLY Operating manual

CL20080
MUPO-07-C4 COOL ONLY
User and installation
English
manual
This unit must be installed by a professional according CE 795/2010.

  
2
CONTENT
REMOTE CONTROLLER .............................................................................................19
USER AND INSTALLATION MANUAL ..........................................................................3
Thank you for selectiong super quality Air Conditiones. To ensure satisfactory operation for many ears to come,
this manual should be read carefully before the installation and before using the air conditioner. After reading,
store it a safe place. Please refer to the manual for questions on use or in the event that any irregularities occur.
This Air Conditioner should be used for hosehold use.
This unit must be installed by a professional according CE 795/2010.
The power supply must be SINGLE-PHASE (one phase (L) and one neutral (N)) with his grounded power (GND)
and his manual switch. Any breach of these specifications involve a breach of the warranty conditions provided by
the manufacturer.
In line with the company's policy of continual product improvement, the aesthetic and dimensional characteristics,
technical data and accessories of this appliance may be changed without notice.
IMPORTANT:
WARNING:
NOTE:

 
USER AND INSTALLATION MANUAL
3
Inside you will find many helpful hints on how to use and maintain your air conditioner
properly.Justalittlepreventivecareonyourpartcansaveyouagreatdealoftime
and money over the life of your air conditioner. You'll find many answers to common
problems in the chart of troubleshooting tips.If you review our chart of Troubleshooting
Tips first, you may not need to call for service at all.
Read This Manual
CAUTION
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
the appliance. Cleaning and user maintenance shall not be made by children without
supervision. ( be applicable for the European Countries )
This appliance is not intended for use by persons (including children) with reduced
physical ,sensory or mental capabilities or
the authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. (be applicable for other countries except the
European Countries )
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
Donot operateyour air conditioner in a wet room such as a bathroom or laundry room.
The appliance with electric heatershall haveatleast 1 meter space to the combustible
materials.
Contact
!

CONTENTS
4
SOCIABLE REMARK
Sociable remark..................................................................................................................................
SAFETY PRECAUTIONS
Safety rules.........................................................................................................................................
Operating condition.............................................................................................................................
Electrical information...........................................................................................................................
Accessories........................................................................................................................................
Names of parts....................................................................................................................................
Electronic control operating instructions.............................................................................................
Operating instructions........................................................................................................................
Location..............................................................................................................................................
Window kit installation........................................................................................................................
Exhaust hose installation.....................................................................................................................
Water drainage....................................................................................................................................
Care and maintenance........................................................................................................................
Troubleshooting..................................................................................................................................
AIR CONDITIONER FEATURES
CARE AND MAINTENANCE
TROUBLESHOOTING TIPS
OPERATING INSTRUCTIONS
INSTALLATION INSTRUCTIONS
IDENTIFICATION OF PARTS
5
6
.6
7
7
8
.9
.10
12
.12
15
16
17
18
The rating data indicated on the energy label is based
on the testing condition of installing the un-extended
air exhaust duct without adaptor A & B (The duct and
the adaptor A & B are listed in the accessories chart
of the Instruction Manual). See the right figure.
NOTE
CONTENTS
MUPO-07-C4

5
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of
such waste separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
A) The municipality has established collection systems, where electronic waste can be
disposed of at least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least free
of charge.
C) The manufacture will take back the old appliance for disposal at least free of charge
to the user.
D) As old products contain valuable resources, they can be sold to scrap metal dealers.
Wild disposal of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground-water and find their way into the food chain.
When using this air conditioner in the European countries, the following informa-
tion must be followed:
CAUTION:
This appliance is not intended for use by persons (including children) with
reduced physical,sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
SOCIABLE REMARK MUPO-07-C4

6
SAFETY PRECAUTIONS
To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
Your air conditioner should be used in such a way
that it is protected from moisture. e.g. condensation,
splashed water, etc. Do not place or store your air
conditioner where it can fall or be pulled into water
or any other liquid. Unplug immediately.
Always transport your air conditioner in a vertical
position and stand on a stable, level surface during
use.
Turn off the product when not in use.
Always contact a qualified person to carry out
repairs. If the supply cord is damaged it must be
repaired by a qualified repairer.
Keep an air path of at least 30cm all around the
unit from walls, furniture and curtains.
If the air conditioner is knocked over during use,
turn off the unit and unplug from the mains supply
immediately.
!
Always do this
Do not operate your air conditioner in a wet room
such as a bathroom or laundry room.
Do not touch the unit with wet or damp hands or
when barefoot.
Do not press the buttons on the control panel with
anything other than your fingers.
Do not remove any fixed covers. Never use this
appliance if it is not working properly, or if it has
been dropped or damaged.
Never use the plug to start and stop the unit.
Always use the switch on the control panel.
Do not cover or obsturct the inlet or outlet grilles.
Do not use hazardous chemicals to clean or come
into contact with the unit. Do not use the unit in the
presence of inflammable substances or vapour such
as alcohol, insecticides, petrol,etc.
Do not allow children to operate the unit
unsupervised.
Do not use this product for functions other than
those described in this instruction manual.
Never do this
Energy Save
Use the unitintherecommendedroomsize.
Locate the unit where furniture cannot obstruct the air flow.
Keep blinds/curtains closed during the sunniest part of the day.
Keep the filters clean.
Keep doors and windows closed to keep cool air in and warm air out.
The air conditioner must be operated within the temperature range indicated below:
Operating condition
Suggested tools for window kit installation
1. Screwdriver(medium size Phillips)
2. Tape measure or ruler
3. Knife or scissors
4. Saw(In the event that the window kit needs to be cut down in size because
the window is too narrow for direct installation)
MODE ROOM TEMPERATURE
COOL
DRY
17 C(62 F)~35
OO OO
C(95 F)
13 C(55 F)~35
OO OO
C(95 F)
MUPO-07-C4

7
IDENTIFICATION OF PARTS
Be sure the electrical service is adequate for the model you have chosen. This information can be found
on the serial plate, which is located on the side of the cabinet and behind the grille.
Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is
important. The power cord is equipped with a three-prong grounding plug for protection against shock
hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you intend
to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified
electrician install the proper receptacle.
Ensure the receptacle is accessible after the unit installation.
WARNING For your safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove
any prong from the power cord.
WARNING Electrical Information
Accessories
Check all the accessories are included in the package and please refer to the installation instructions for
their usage.
PARTS :
PARTS NAME :
Exhaust hose and Apaptor and Adaptor B
(flat mouth or round mouth :depending on models)
I
Wall Exhaust Adaptor A( )
Adaptor B(round mouth)( )
Expansion Plug and wooden screw( )
QUANTITY :
1set
1p
c
1pc
4/ pc
Window Slider Kit and bolt
Foam seal
3/pc
NOTE: Optional parts( ), some models without.
or
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
ECONOMY
ON/OFF
TIMER OFF
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME LED
DISPLAY
ION
TURBO
Remote Controller and Battery
(For remote control models only)
1pc
Drain hose and drain hose adaptor( )
1pc
All the illustrations in this manual are for explanation purpose only. Your air conditioner
may be slightly different. The actual shape shall prevail.
NOTE:
MUPO-07-C4

8
IDENTIFICATION OF PARTS
NAMES OF PARTS
Front
Operation Panel
Horizontal Louver Control Lever
(adjust manually)
Carrying Handle
(both sides)
1
2
3
Fig.1
Fig.2
Rear
6
7
8
9
10
11
Upper Air Filter
(Behind the grille)
Air Outlet
Drain Outlet
Wheel
Air intake
Air intake
Lower Air Filter
(Behindthegrille)
12
4Remote signal receptor
55 Panel
13
Bottom tray drain outlet
13
2
5
4
8
9
12
11
6
7
13
10
MUPO-07-C4

9
AIR CONDITIONER FEATURES
Before you begin, thoroughly familiarize yourself with the control panel and remote controller
and all its functions, then follow the symbol for the functions you desire.
The unit can be controlled by the unit control panel alone or with the remote controller .
ELECTRONIC CONTROL OPERATING INSTRUCTIONS
NOTE: This manual does not include Remote Controller Operations, see the <<Remote
Controller Instruction>> packed with the unit for details.
OPERATION PANEL OF THE AIR CONDITIONER
Selects the appropriate operating mode.
Each time you press the button, a mode
is selected in a sequence that goes from
AUTO, COOL, DRY and FAN .The mode
indicator light illuminates under the different
mode setting.
NOTE: The control is capable of displaying
temperature in degrees Fahrenheit or degrees
Celsius. To convert from one to the other, press
and hold the Up and Down buttons at the same
time, for 3 seconds.
Used to initiate the AUTO ON start time
and AUTO OFF stop time program, in
conjuction with the & buttons.
3
UP( ) and DOWN( ) button
Used to adjust (increasing/decreasing)
temperature settings(1 C/2 F increments)
in a range of 17 C(62 F) to 30 C(88 F) or
the TIMER setting in a range of 0~24hrs.
Used to initiate the SLEEP operation.
2
SLEEP button
1
MODE select button
4
Power switch on/off.
ON-OFF button
6
FAN button
TIMER button
5
7
-Shows the set temperature in C
O
or
Fand theAuto-timer settings.
While on DRYand FAN modes, it shows
the room temperature.
O
LED Display
Fig.3
Press to select the fan speed in three steps-
LOW , HIGH and AUTO. The fan speed
indicator light illuminates under different fan
settings except AUTO speed. When select
AUTO fan speed, all the fan indicator lights
will turn dark.
MUPO-07-C4
6
1
2
3
5
43
7
ON
OFF
8
POWER MANAGEMENT feature
8
When the ambient temperature is lower than the setting
temperature for a period of time, the unit will
be automatically operate power management
feature. T
he power management indicator light
When the ambient temperature is higher than the
setting temperature, the unit will be automatically
quit the power management feature. The power
management indicator light
he compressor and fan motor stop and
t illuminates.
turns dark and the
compressor and (or) fan motor run.

10
OPERATING INSTRUCTIONS
Operating Instructions
- Press the "MODE" button until the "COOL"
indicator light comes on.
- Press the ADJUST buttons " " or " " to
select your desired room temperature. The
temperature can be set within a range of
17 C-30 C/62 F-88 F.
- Press the "FAN" button to choose the fan speed.
OOO O
- Press the "MODE" button until the
"DRY" indicator light comes on.
COOL operation
DRY operation
- Press the "MODE" button until the
"FAN " indicator light comes on.
- Press the "FAN" button to choose the
fan speed. The temperature cannot be
adjusted.
- Do not put the duct to window.
FAN operation
TIMER operation
- When the unit is on, first press the
Timer button, the TIMER OFF
indicator light illuminates. It indi-
cates theAuto Stop program is
initiated.Press the Timer button
again,the TIMER ON
-
- Press or hold the UP or DOWN
button to change theAuto time by
0.5 hour increments, up to 10 hours,
then at 1 hour increments up to 24
hours. The control will count down
the time remaining until start.
- The selected time will register in 5
seconds and the system will autom-
atically revert back to display the
previous temperature setting.
- Turning the unit ON or OFF at any
time or adjusting the timer setting
to 0.0 will cancel theAuto Start/
Stop timed program.
- When the malfunction (E1 or E2)
occurs, theAuto Start/Stop timed
program will also be cancelled.
indicator light
illuminates. It indcates theAuto
Start program is initiated.
When the unit is off, first press the
Timer button, the TIMER ON indic-
ator light illuminates. It indicates
theAuto Start program is initiated.
When the unit.Press the Timer button
again,the TIMER OFF indicator light
illuminates. It indcates theAuto
Stop program is initiated.
- The air conditioner will control room
temperature automatically round the
temperature point set by you.
- Under AUTO mode, you can not select
the fan speed.
- Under this mode, you cannot select a
fan speed or adjust the temperature.
- Keep windows and doors closed for
the best dehumidifying effect.
- Do not put the duct to window.
E2-
E4-
Protection codes:
P1-
Evaporator temperature sensor error-
Unplug the unit and plug it back in.
If error repeats, call for service.
error-
Unplug the unit and plug it back in.
If error repeats, call for service.
Bottom tray is full - Connect the
drain hose and drain the collected
water away. If error repeats, call
for service.
Display panel communication
Error codes:
E1- Room temperature sensor error-
Unplug the unit and plug it back in.
If error repeats, call for service.
AUTO operation
- When you set the air conditioner in
AUTO mode, it will automatically select
cooling, fan only operation depending
on what temperature you have selected
and the room temperature.
NOTE: When more than one codes occur,
the priority of the code display order is:
E4--E2--E1--P1.
MUPO-07-C4

11
OPERATING INSTRUCTIONS
Other features
If the unit breaks off unexpectedly due to the
power cut,it will restart with the previous
function setting automatically when the powe
resumes..
Auto-Restart(on some models)
After the unit has stopped, it can not be restarted
operation in the first 3 minutes. This is to protect
the unit. Operation will automatically start after
3 minutes.
Wait 3 minutes before resuming operation
Fig.4
SLEEP operation
Press this button, the set temperature will increase
(cooling) or decrease(heating) by 1 in 30
minutes.The set temperature will then increase
(cooling) or decrease (heating) by another 1
after an additional 30 minutes. This new temper-
ature will be maintained for 7 hours before it returns
to the originally selected temperature. This ends
the Sleep mode and the unit will continue to ope-
rate as originally programmed.
This feature is unavailabe under FAN or
DRY mode.
OO
OO
C/2 F
C/2 F
NOTE:

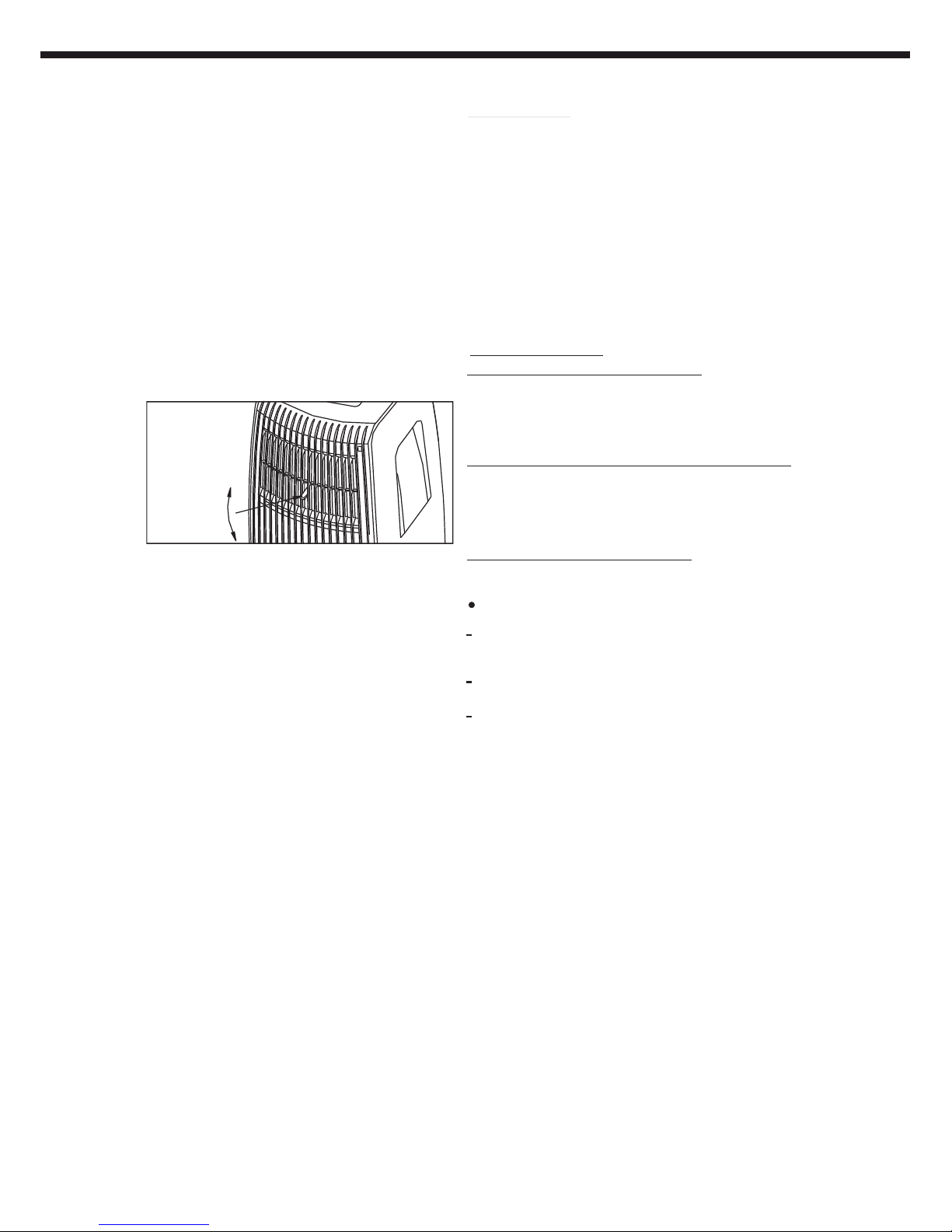

The louver can be set to the desired position
manually.
Do not place any heavy objects or other loads
on the louver, doing so will cause damage to
the unit.
Adjust the air flow direction manually
(Fig.4):
Ensure the louver is fully opened under
heating operation.
Keep the louver fully opened during
operation.
Air flowdirection adjustment
Adjust
manually
MUPO-07-C4

12
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
Location
30cm
Window Slider kit Installation
If the window opening is less than the mentioned
minimum length of the window slider kit, cut that one
with a hole in it short to fit for the window opening. Do
never cut out the hole in window slider kit.
Note:
Fig.5
30cm
30cm
or
bolt
Window slider kit
bolt
Window
slider kit
or
Horizontal
window
Horizontal
window
30cm
Horizontal
window
or
Horizontal
window
Window Slider Kit
Minimum:67.5cm(2.22ft).
Maxmum:123cm(4.04ft).
or
Fig.7a
Fig.6
Fig.7

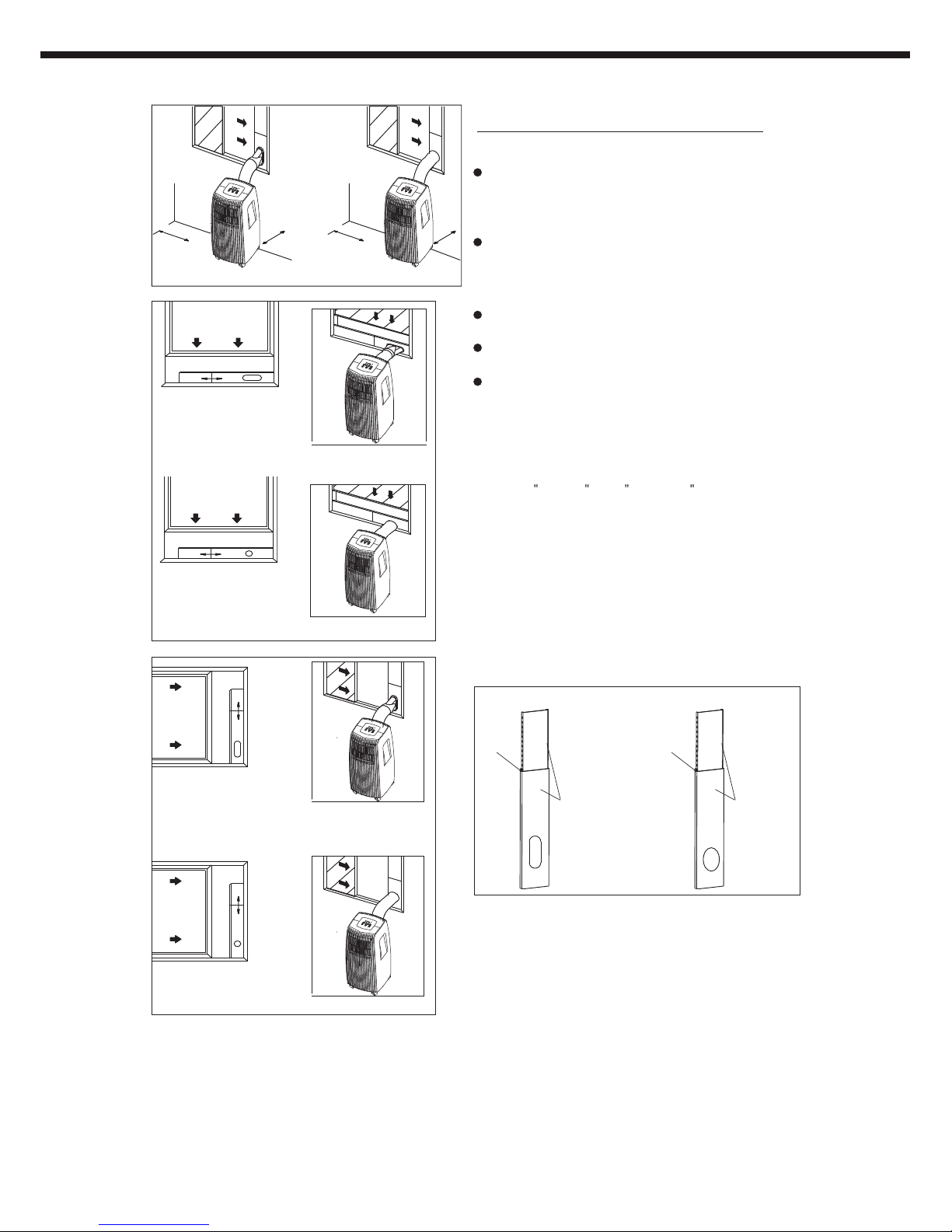

The air conditioner should be placed on a firm
foundation to minimize noise and virbration. For
safe and secure positioning, place the unit on a
smooth, level floor strong enough to support the unit.
The unit has casters to aid placement, but it should
only be rolled on smooth, flat surfaces. Use caution
when rolling on carpet surfaces. Do not attempt to
roll the unit over objects.
The unit must be placed within reach of a properly
rated grounded socket.
Never place any obstacles around the air inlet or
outlet of the unit.
Allow at least 30cm of space from the wall for
efficient air-conditioning.
Your window slider kit has been designed to fit most
standard Vertical and horizontal window
applications, However, it may be necessary for you to
improvise/modify some aspects of the installation
procedures for certain types of window. Please refer
to Fig. 6& Fig.7 for minimum and maximum window
openings.Window slider kit can be fixed with a bolt
(see Fig.7a).
Window Slider Kit
Minimum:67.5cm(2.22ft).
Maxmum:123cm(4.04ft).
Window Slider Kit
Minimum:67.5cm(2.22ft).
Maxmum:123cm(4.04ft).
Window Slider Kit
Minimum:67.5cm(2.22ft).
Maxmum:123cm(4.04ft).
MUPO-07-C4

13
INSTALLATION INSTRUCTIONS
Installation in a double-hung sash
window

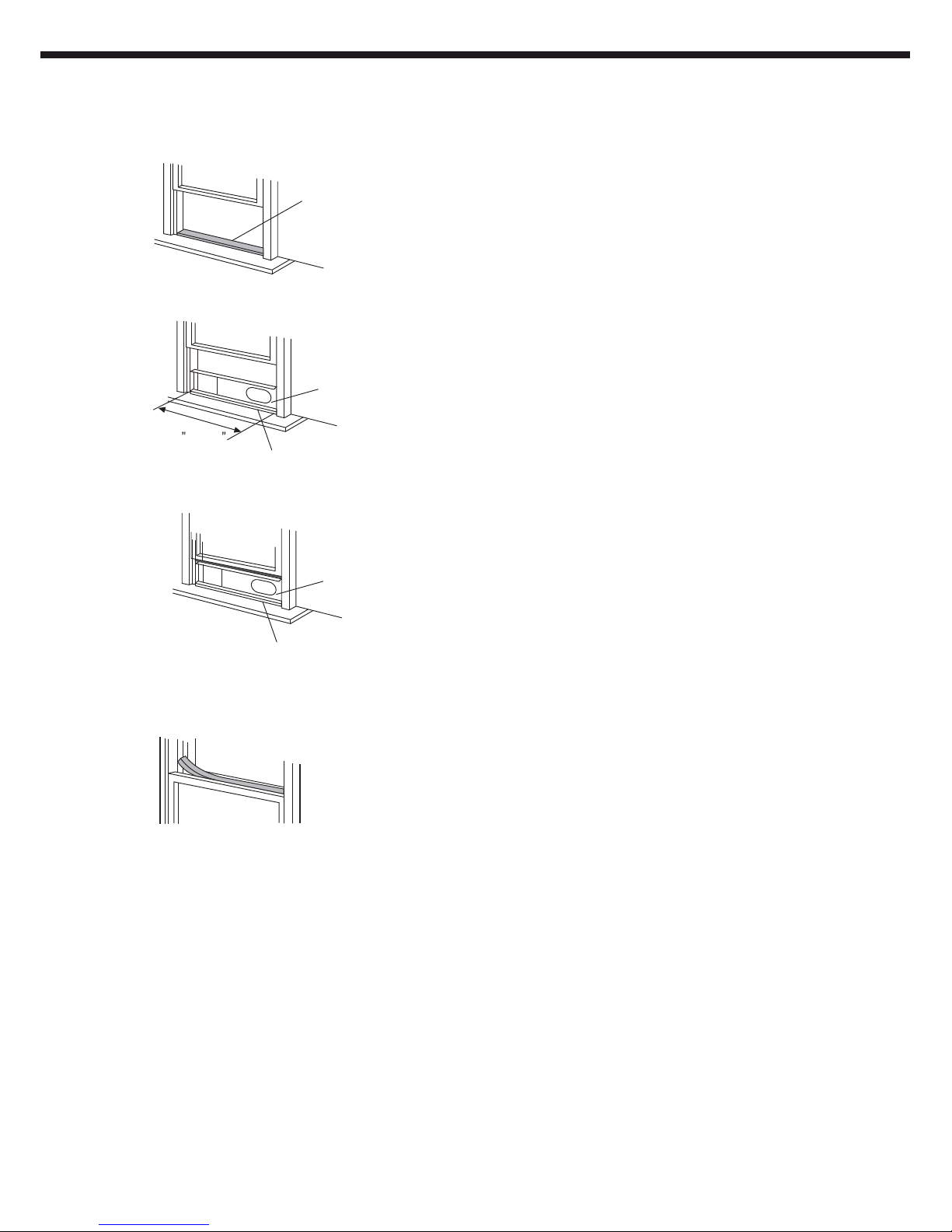

1. Cut the foam seal(adhesive type) to the proper length and
attach it to the window stool. Fig.8
2. Attach the window slider kit to the window stool. Adjust the
length of the window slider kit according to the width of
window, shorten the adjustable window kit if the width of
window is less than 26.5 inches
Open the window sash and place the window slider kit on
the window stool. Fig.9
3. Cut the foam seal(adhesive type) to the proper length
and attach it on the top of the window. Shown as in Fig.10
4. Close the window sash securely against the window.
5. Cut the foam seal to an appropriate length and seal the
open gap between the top window sash and outer window
sash. Shown as in Fig.11.
Foam seal A
(adhesive type)
Foam seal
Fig.8
Fig.9
Fig.10
Fig.11
Window kit
Window stool
Window kit
Window stool
26.5 ~ 48.0
MUPO-07-C4

14
INSTALLATION INSTRUCTIONS
Installation in asliding sash window
1. Cut the foam seal(adhesive type) to the proper length and
attach it to the window frame. See Fig.12.
2. Attach the window slider kit to the window stool. Adjust the
length of the window slider kit according to the width of
window, shorten the adjustable window kit if the width of
window is less than 26.5 inches.
Open the window sash and place the window slider kit on
the window stool. See Fig.13.
3. Cut the foam seal(adhesive type) to the proper length
and attach it on the top of the window. Shown as in Fig.14.
4. Close the sliding sash securely against the window.
5. Cut the foam seal to an appropriate length and sea the
open gap between the top window sash and outer window
sash. Shown as in Fig.15.

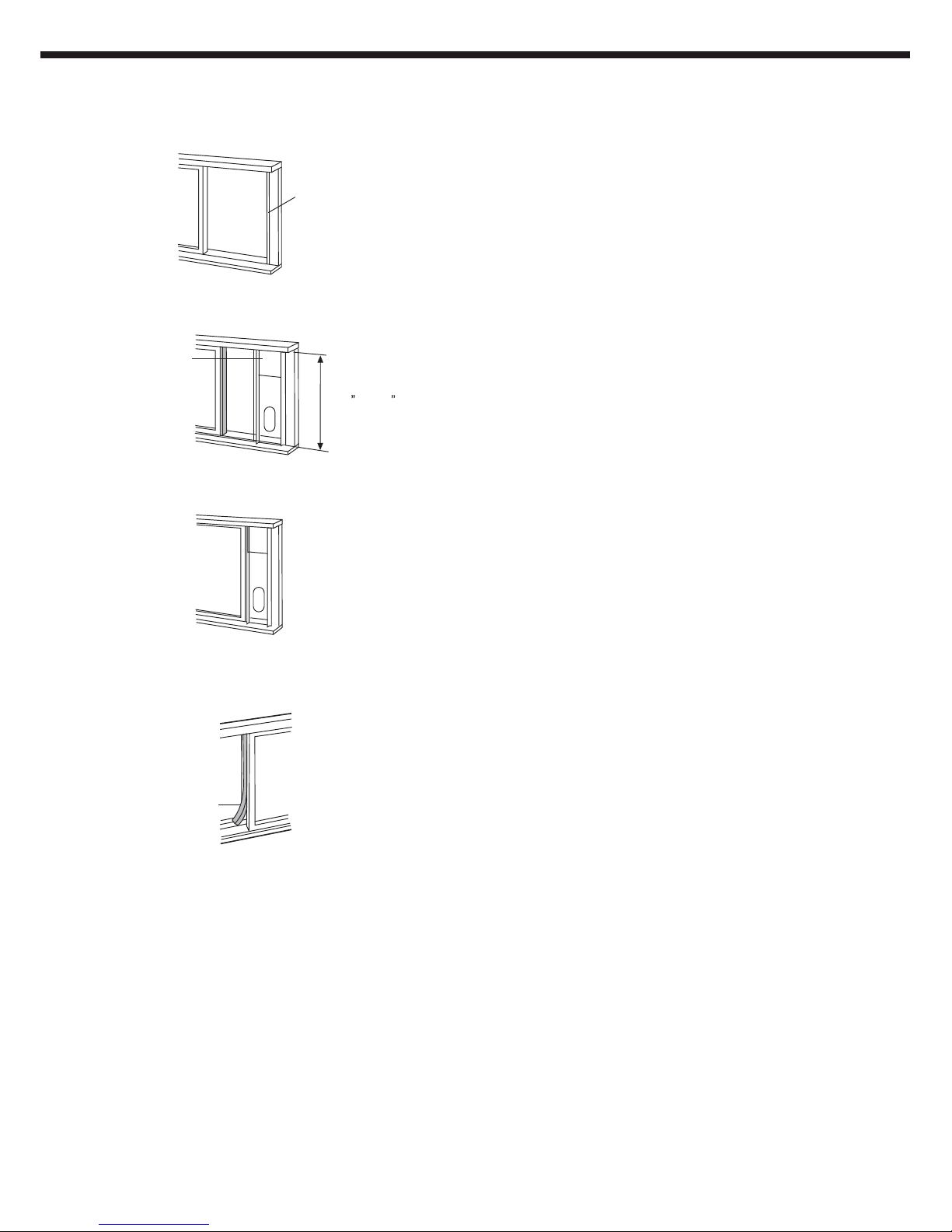

Foam seal
Foam seal A
(adhesive type)
Fig.12
Fig.13
Fig.14
Fig.15
Window
panel
NOTE:All the illustrations in this manual are for explanation
purpose only.Your unit may be slightly different. The
actual shape shall prevail.
26.5 ~ 48.0
MUPO-07-C4

15
INSTALLATION INSTRUCTIONS
Exhaust hose installation:
The exhaust hose and adaptor must be installed or removed
in accordance with the usage mode.
Theductcan becompressed orextended moderately
accordingtothe installationrequirement, butit is
desirabletokeep theduct lengthto aminimum.
IMPORTANT:
DO NOT OVER BEND THE DUCT (SEE Fig.20)
Fig.17
Fig.20
(Not applicable to the units without adaptor A, expansion
plugs and wooden screws of Accessories )
1. Prepare a hole in the wall. Install the wall Exhaust adaptor A
onto the wall(outside) by using 4 expansion plugs and
wooden screws, be sure to fix thoroughly. (See Fig.19)
2. Attach the Exhaust hose installed adaptor B(round mouth)
to wall Exhaust adaptor A.
The exhaust hose can be installed into the wall
.
Fig.19
max 120CM
min 30CM
Adaptor A
Expansion plug
position
Adaptor
cap
Note:
Cover the hole using the adaptor cap when not in use.
Fig.16
COOL, AUTO mode
FAN,DEHUMIDIIFY mode
Install
Remove
Fig.18
1. Install the window Exhaust adaptor B onto the exhaust
hose as shown in Fig.16. or Fig.17. Refer to the previous
pages for window kit installation.
2. Push the Exhaust hose into the airoutlet opening along the
the arrow direction(See Fig.18).
CAUTION:
Make sure that there is no obstacle around the air outlet of
the exhaust hose (in the range of 500mm) in order to the
exhaust system works properly.
MUPO-07-C4

16
INSTALLATION INSTRUCTIONS

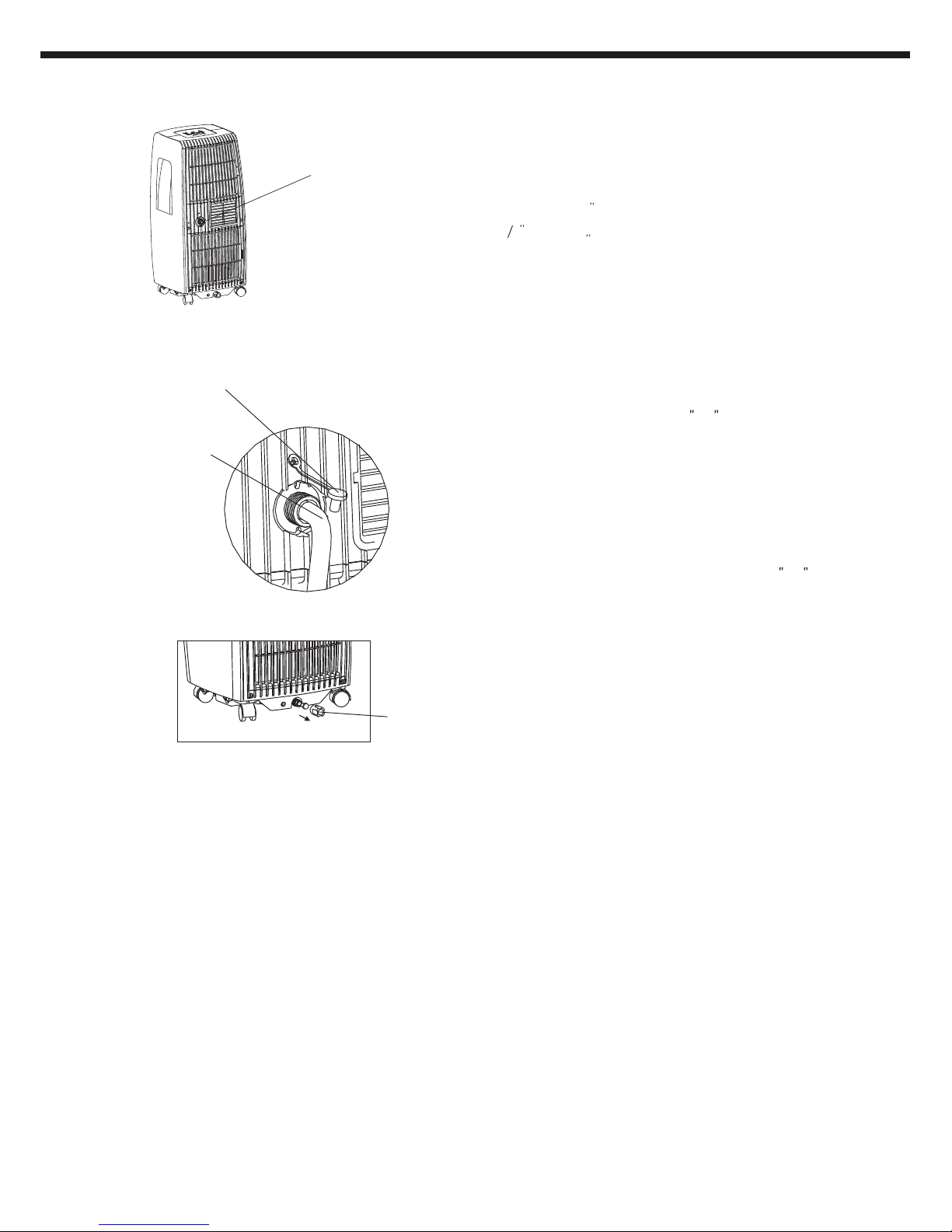

Water drainage:
- During dehumidifying modes, remove the drain
plug from the back of the unit, install the drain
connector(5/8 universal female mender) with
3 4 hose(locally purchased). For the models
without drain connector, just attach the drain
hose to the hole. Place the open end of the
hose directly over the drain area in your
basement floor. Please refer to Fig.21 & 22.
-
When the water level of the bottom tray reaches
a predetermined level,
Carefully move the unit to a drain location,
remove the bottom drain plug and let the
water drain away (Fig.23). Re-install the bottom
drain plug and Restart the machine until the P1
symbol disappears. If the error repeats, call for
service.
the unit beeps 8 times,
the digital display area shows P1 . At this time
the air conditioning/dehumidification process will
immediately stop. However, the fan motor will
continue to operate(this is normal).
Remove the
drain plug
Fig.21
Fig.22
Fig.23
Continuous
drain hose
Drain plug
Bottom drain plug
NOTE: Be sure to reinstall the bottom drain plug
before using the unit.
MUPO-07-C4

17
CARE AND MAINTENANCE
Fig.24
CARE AND MAINTENANCE
1) Be sure to unplug the unit before cleaning or servicing.
2) Do not use gasoline, thinner or other chemicals to clean
the unit.
3) Do not wash the unit directly under a tap or using a hose.
It may cause electrical danger.
4) If the power cord is damaged, it should be repaired by
manufacture or its agency.
IMPORTANT:

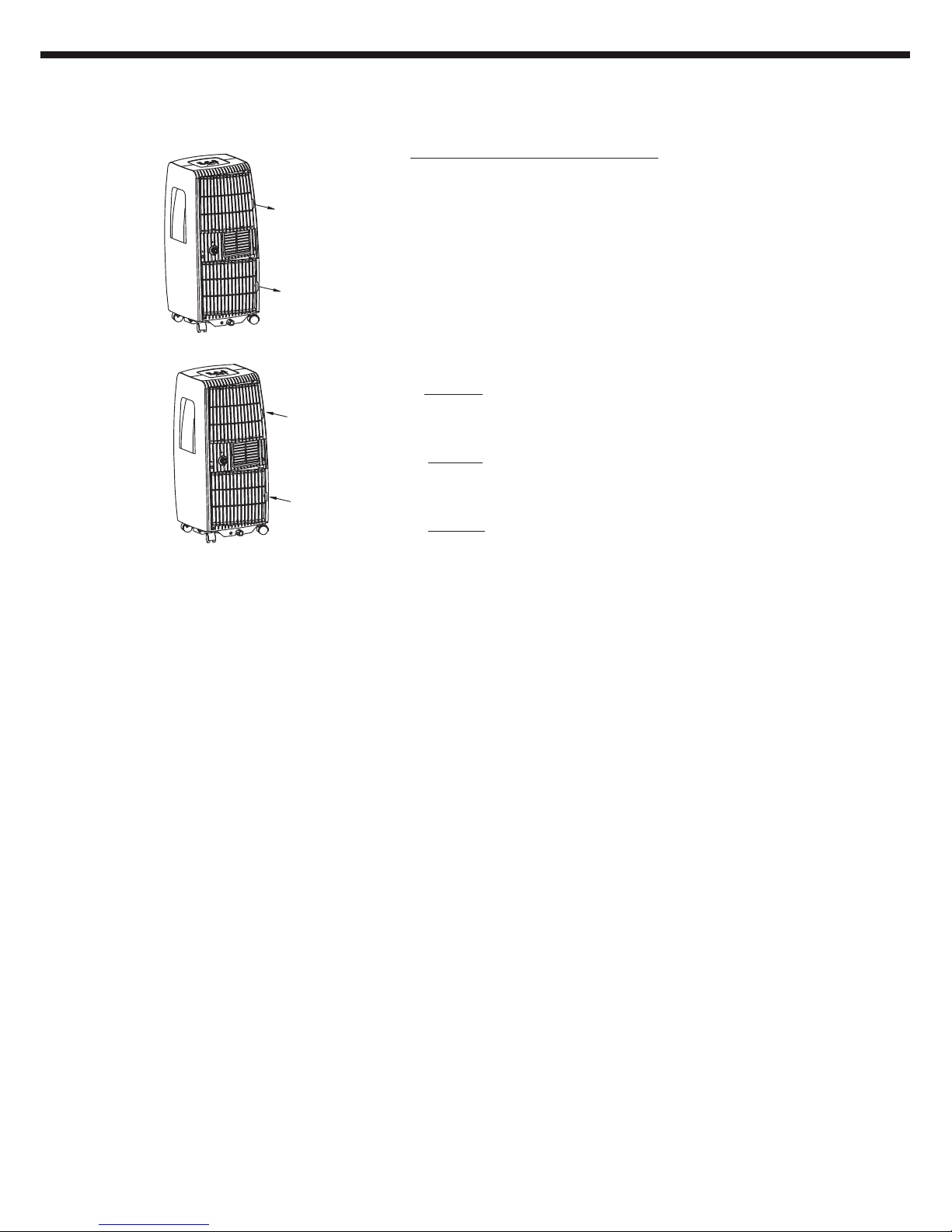

1. Air filter
- Clean the air filter at least once every two weeks to prevent
inferior fan operation because of dust.
-This unit has two filters. Take the upper and lower filters out
along the the arrow direction (Fig.24),then take the filter
down.
-Wash the air filter by immersing it gently in warm water
(about 40 C/104 F) with a neutral detergent. Rinse the filter
and dry it in a shady place.
-Install the upper and lower air filters after cleaning
(see Fig.25).
Removal
Cleaning
Mounting
OO
2. Unit enclosure
- Use a lint-free cloth soaked with neutral detergent to clean
the unit enclosure. Finished by a dry clean cloth.
3. Unit idle for a long time
- Remove the rubber plug at the back of the unit and attach
a hose to drain outlet
(See Fig.22 & 23).
- Remove the plug from the bottom drain outlet, all the water
in the bottom tray would drain out (See Fig.24).
- Keep the appliance running on FAN mode for half a day in
a warm room to dry the appliance inside and prevent mold
forming.
- Stop the appliance and unplug it, wrapped the cord and
bundle it with the tape. Remove the batteries from
the remote controller.
- Clean the air filter and reinstall it.
. Place the open end of the hose
directly over the drain area in your basement floor
NOTE: The upper (lower) grills and the upper (lower)air filters
are connected and can be separated.
Fig.25
Upper filter
(install)
Upper filter
(take out)
Lower filter
(take out)
Lower filter
(install)
MUPO-07-C4

18
TROUBLESHOOTING
TROUBLESHOOTING
1. Unit does not
Start when
Pressing on/off
Button
- P1 appears in the display window
Drain the water in the bottom tray.
TROUBLES
POSSIBLE CAUSES
SUGGEST REMEDIES
Reset the temperature.
Make sure all the windows and
doors are closed.
Remove the heat sources if possible.
Connect the duct and make
sure it can function properly.
Decrease the set temperature.
Clean the air filter.
- Room temperature is lower than
the set temperature.(Cooling mode)
- The windows or doors in the room
are not closed.
- There are heat sources inside the
room.
- Exhaust air duct is not connected or
blocked.
- Temperature setting is too high.
- Air filter is blocked by dust.
2. Not cool enough
Place the unit on a flat, level
ground if possible.
It is normal.
-The ground is not level or not flat
enough.
- The sound comes from the flowing
of the refrigerant inside the
air-conditioner.
3. Noisy or vibration
4. Gurgling sound
MUPO-07-C4

19
REMOTE CONTROLLER
Please read this Owner's Manual carefully before operation.
Save this manual in a safe place for future reference.

20
REMOTE CONTROLLER
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E, RG51M3/BG(C)E,
RG51M8/(C)E,RG51M9/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M(3)/BG(C)E models)
Fig. 1
(C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY TURBO
*
*
*
*
**
**
NOTE:
: Indicates optional
button.
Models RG51M2/(C)E.
Models RG51M3/(C)E
and RG51M3/BG(C)E.
Models
R51M/(C)E and
R51M/BG(C)E.
4 ,6 ,7 ,14 ,15 buttons
are not available for
Models RG51M9/(C)E.
14 and 15 buttons
are not available for
7,14 and15
buttons are not available
for
15 button is not
available for
6 ,7 ,14 ,15 buttons
are not available for
Models RG51M8/(C)E.
CLEAN
AIR
15
*
*
*
*
*****
** * *
MUPO-07-C4
