mundoclima MUP-07X2CN User manual

MUND CLIMA®
Series 2000
Multisplit 2x1
User's manual
COOL ONLY:
HEAT PUMP:
MUP-07X2CN
MUP-09X2CN
MUP-12X2CN
MUP-12+9CN
MUP-07X2HN
MUP-09X2HN
MUP-12X2HN
MUP-12+9HN

–1–
The instructions before use
Don’t damage the power
cord or use an extended cord.
It can cause electric shock or
fire.
Electric wiring must be ins-
talled according to relevant
electrical safety rules and
regulations.
Don’t operate the unit with
wet hands.
It can cause electric shock.
WARNING
Don’t apply the cold wind
to the body for a longtime.
It cause the physical condition
deterioration and health pro-
blems.
When having a burning
smell or smoke, please turn off
the power supply and contact
with the Service center of
MUNDOCLIMA.
Don’t attempt to repair the
air conditioner by yourself.
You may cause further mal-
functions.
Don’t insert your hands or
something else into the air
intake or outlet vents.
It can cause danger.

–2–
Be sure to shut down power
supply if not using the Air
Conditioner for a longtime.
Don’t use fuse excluding the
fuse of correct capacity.
Improper wire could cause the
break down or fire.
Keep combustible spray
away from the units.
It is likely to ignite.
Don’t place a space heater
near the unit.
Air flow from the outlet can
cause incomplete combustion.
Don’t block the air intake
or outlet vents of both the
outdoor and indoor units.
It can decrease the air condi-
tioning capacity or cause a mal-
function.
Don’t step on the top of the
outdoor unit.
As falling off the outdoor unit
can be dangerous.
Please note whether the ins-
talled stand is firm enough or
not.
It leads to the fall of the unit
causes the injury etc. occasio-
nally.

–3–¡ª
Indoor unit
Outdoor unit
NAME AND FUNCTION OF EACH PART

–4–
Name and Function-Remote control
MODE button
Press this button to
change the operation
mode in order of
FAN button
Press this button to
change the fan speed of:
“ ” COOL mode
“ ” DRY mode
“ ” FAN mode
“ ” HEAT mode
Remote control operation procedure
SWINGbutton
When it is pressed, the
louvers start to rotate au-
tomatically and stop when
repressed.
TEMP.button
SET TEMP. increases 1°C by
pressingbuttononce, and
decreases 1°C by pressing
button once.
At COOL mode operation,
SET TEMP. can be selected
from16°C to 30°C.
At DRY mode operation, SET
TEMP. can be selected from
16°C to 30°C.
At HEAT mode operation. SET
TEMP. can be selected from
16°C to 30°C.
1/0 button
Press this button to turn
on or turn off the unit
•Be sure that there are no obstructions.
•The remote controlsignal canbe received atadistance of uptoabout10m.
•Don’t drop or throw the remote control.
•Don’t place the remote controlin alocation exposed todirect sunlight.
Note:

–5–
Liquid crystal displayer.
It shows all set contents.
SLEEP button
Press this button to set
SLEEP operation.
TIMER ON button
At stopping, press TIMER ON
button, set ON TIME in range of
0 to 24 hour to start the unit auto-
matically.

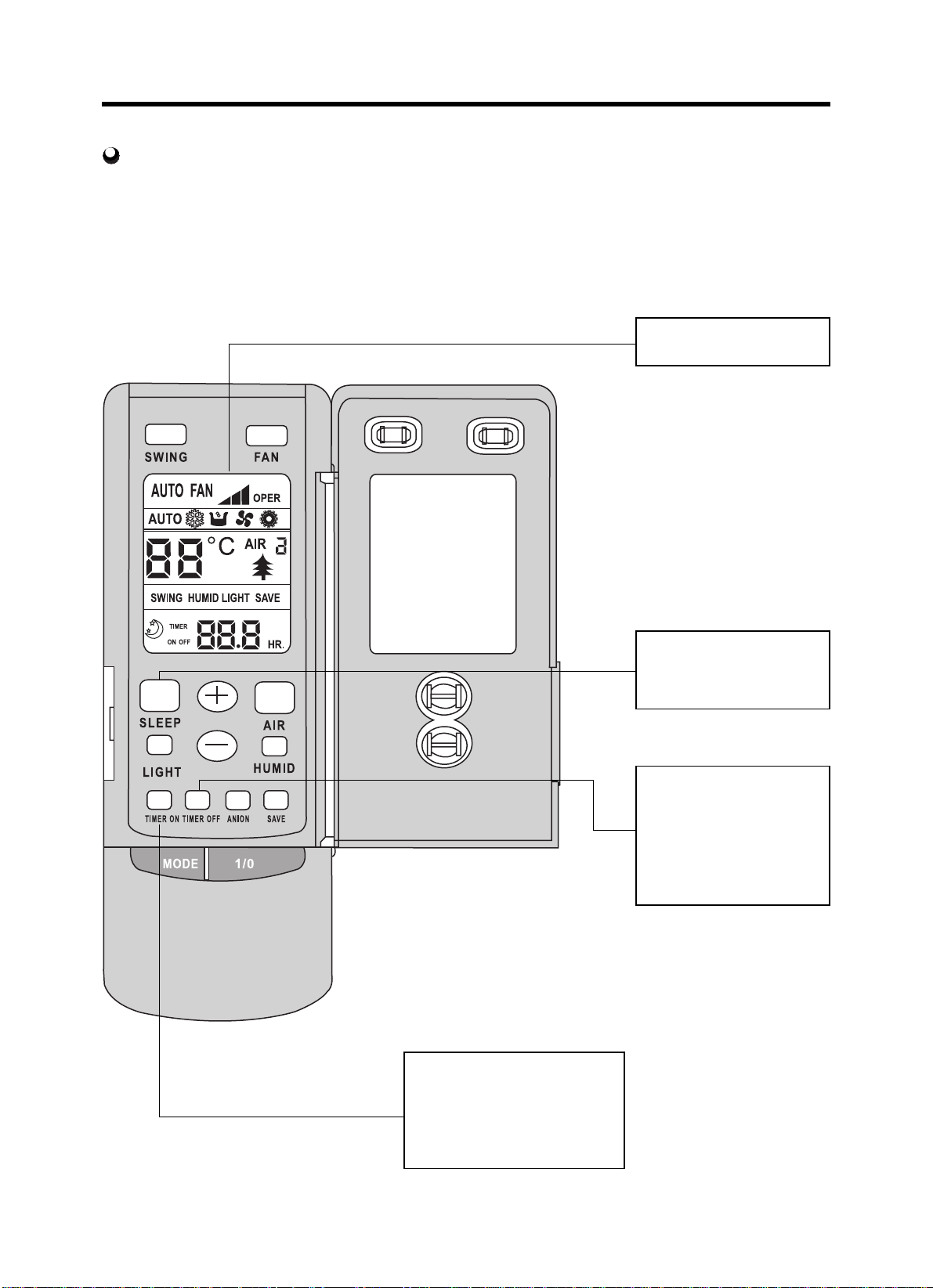

Name and Function-Remote control. (Remove the cover)
Note: This type of remote controller is a kind of new current controller. some
buttons of the controller which are not available to this Air conditioner will
not be described below.
TIMER OFF button
At operating, press TIMER
OFF button, set OFF
TIME in range of 0 to 24
hour to stop the unit auto-
matically.

–6–¡ª

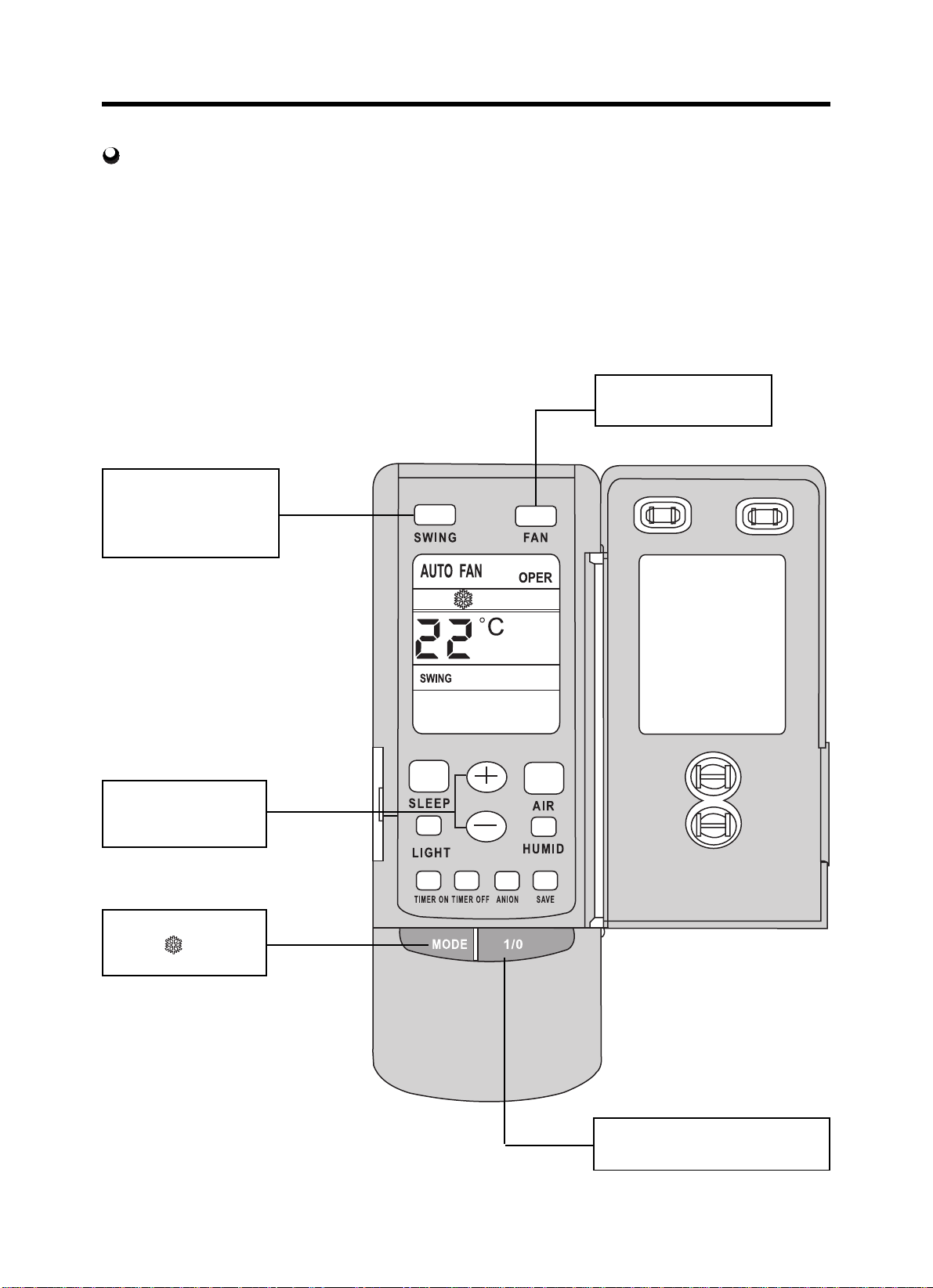

COOL mode operation procedure
4.Press FAN button, set
fan speed.
5.Press TEMP. but-
ton, set suitable SET
TEMP.
2.Press MODE button,
set operation
mode.
3.Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress.
1.Plug in, press 1/0 button,then air
conditioner is turned on.
•According to difference between room temp. and set temp., microcomputer can control
coolingonornot.
•If room temp. ishigher thanset temp.,compressor runsat COOLmode.
•If roomtemp. islower than settemp.,compressorstopsand onlyindoor fan motor
runs.
•SETTEMP. shouldbe inrange of 16°C to 30°C.

–7–
HEAT mode operation procedure
•If room temp. is lower than set temp., compressor runs at HEAT mode;
•If roomtemp. is higherthan settemp., compressorand outdoorfanmortorstop,only
indoorfanmotorruns.
•SET TEMP.should bein rangeof16°C to 30°C.
2.Press MODE button,
set operation
mode.
3.Press SWINGbutton, the
louvers start to rotate au-
tomatically, and stop
when repress it.
4.Press FAN button, set
fan speed.
5.Press TEMP button, set
suitable SET TEMP.
1.Plug in, press 1/0
button,then air condi-
tioner is turned on.

–8–¡ª
DRY mode operation procedure
•If room temp. is lower than set temp., compressor, outdoor and indoor fan mortor
stop. If room temp. is between ±2°C of set temp., air conditioner is drying. If room
temp.ishigher than set temp.,it’sat COOL mode.
•SETTEMP. shouldbe inrange of 16°C to 30°C.
3.Press SWING button,
the louvers start to ro-
tate automatically, and
stop when repress it.
4.Press TEMP. button,
set suitable SET TEMP.
2.Press MODE button, set
operation mode.
1.Plug in,press 1/0 button,
then air conditioner is turned
on.

–9–¡ª

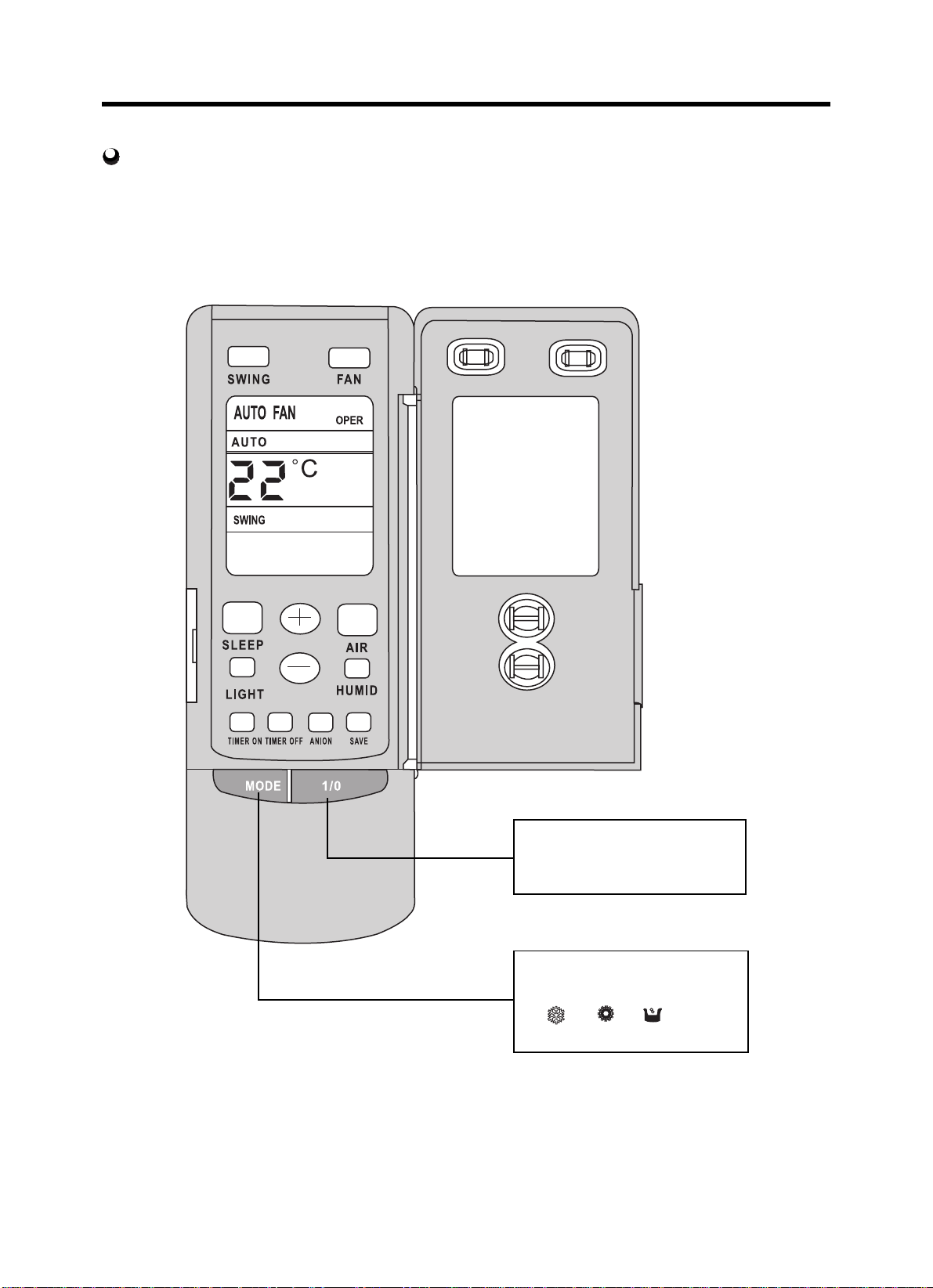

AUTO mode operation procedure
•At AUTO mode operation, standard SET TEMP. is 25°C for COOL mode and 20°C
for HEATmode.
2.According to room temp. micro-
computer can automatically set
,or operation
mode,so asforbesteffect.
1.Plug in,Press 1/0 button, then
air conditioner is turned on.

–10–¡ª

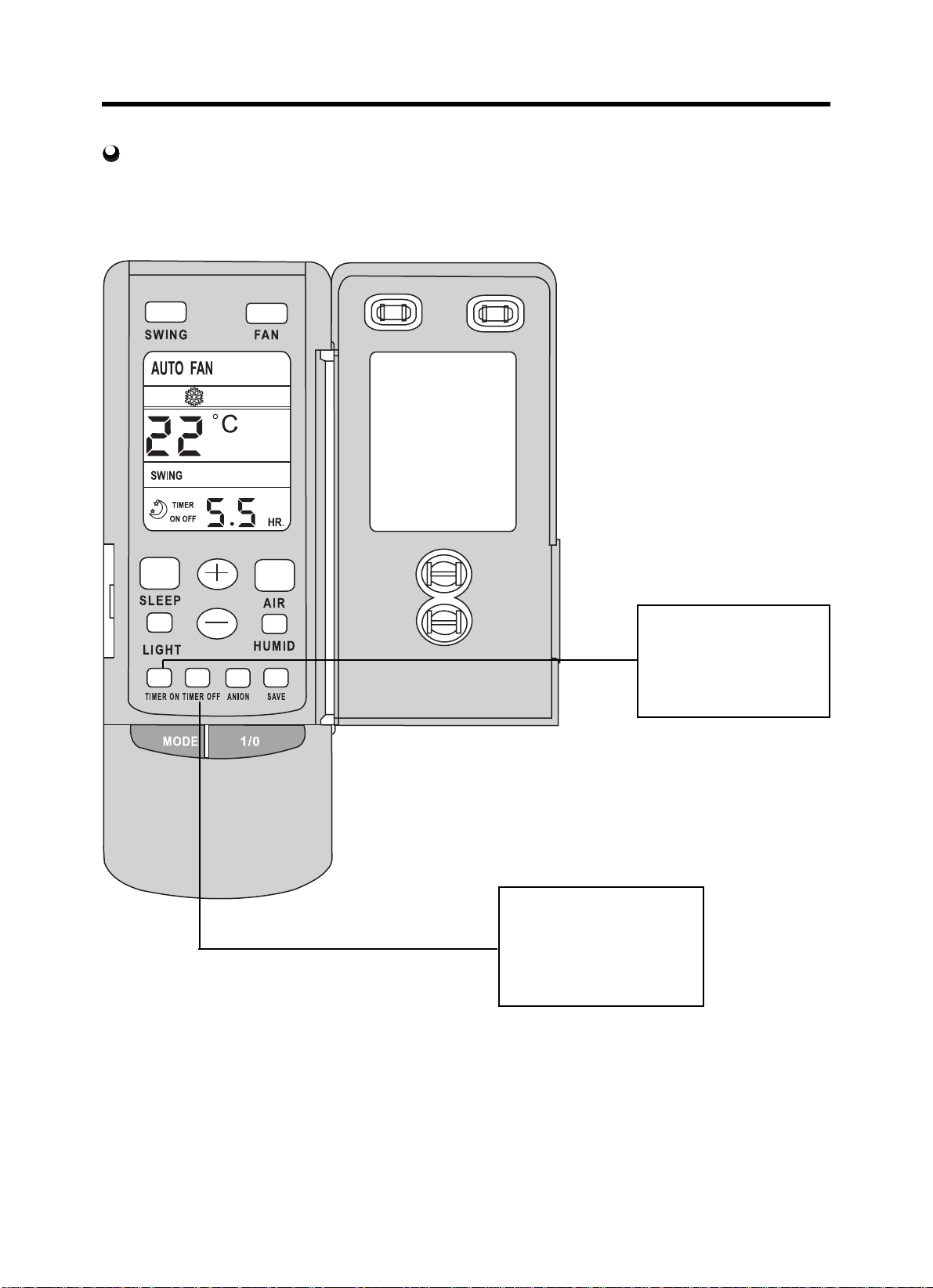

TIMER mode operation procedure
At stopping, press TIMER
ON button, set ON TIME
in range of 0 to 24 hour to
start the unit automatically.
At operating,press TIMER
OFF button.set OFF TIME
in range of 0 to 24 hour to
stop the unit automatically.

–11–
SLEEP mode operation procedure
4.Press FAN button, set
fan speed.
5.Press TEMP. but-
ton, set suitable
SET TEMP.
1.Plug in, press 1/0 button,then air
conditioner is turned on.
2.Press MODE button,
set ,¡¢ or
operation mode.
3.Press SWING button,
the louvers start to rotate
automatically, and stop
when repress.
6. SLEEP button
Press it to set SLEEP
operation.
•When the unit is cooling or drying, if SLEEP operation is set, SET TEMP. would
increase 1°C in 1 hour and 2°C in 2 hour. Indoor fan motor runs at low speed.
•When the unit is heating , if SLEEP operation is set, SET TEMP. would decrease 1°C,
in 1 hour and 2°C in 2 hours. Indoor fan motor runs at low speed.

–12–
How to install batteries
1. Remove the cover from the
back of the remote control.
2. Insert the two batteries ( Two
AAA dry - cell batteries ) and
press button “ACL”.
3. Re - attach the cover.
NOTE:
•Don’t confuse the new
and worn or different
batteries.
•Remove batteries when
not in use for a longtime.
•The remote control
signal can be received at
a distance of up to about
10m.
14

–13–
Select the most appropriate temperature. It can
preclude the electricity wasted.
Don’t leave windows and doors open while
operating the air conditioner for a longtime.
It can decrease the air conditioning capacity.
Splashing water on the air conditioner can
cause an electric shock and mal-function.
Air conditioner should be operated with stable
voltage in range of 206 - 244V 1ph. Otherwise,
compressor would vibrate terribly to damage
refrigeration system.
Don’t blow the wind to animals and plants
directly. It can cause a bad influence to them.
The ground must be connected.
Don’t connect the earth wire to gas or water
pipes. lightning rods or telephone earth lines.
Don’t use the air conditioner for other purposes,
such as drying clothes, preserving foods, etc.
The air flow direction can be adjusted appro-
priately. The louvers can be adjusted downward
at heating operation, and upward at cooling
operation.
USER NOTICES
RATED VOLTAGE
220 - 230V~

–14–¡ª
Turn power off and pull out the power plug before cleaning air conditioner.
Don’t sprinkle water on the indoor unit and the outdoor unit for cleaning.
Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or cleaner.
CAUTION

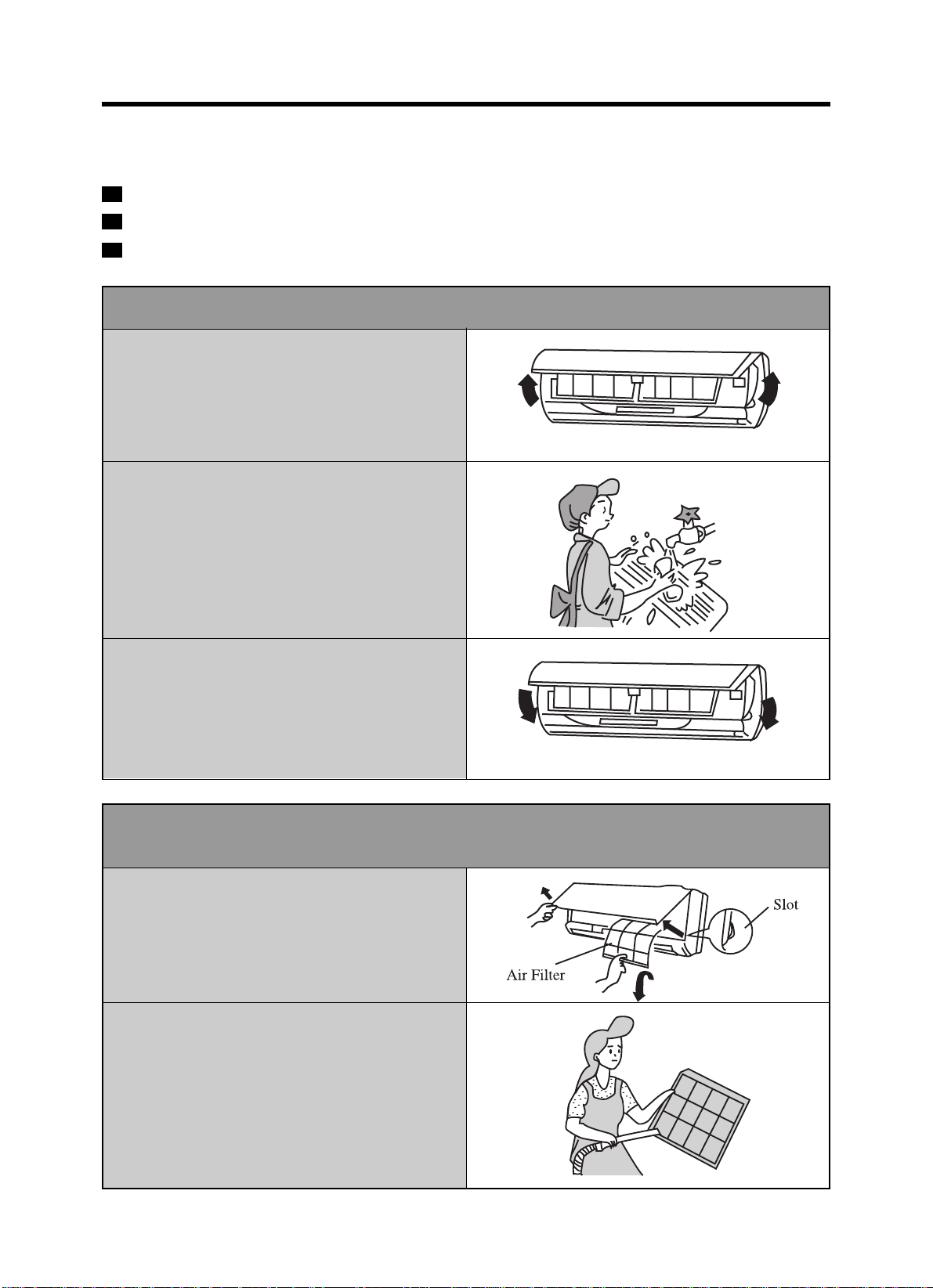

Care and Maintenance
Cleaning surface panel
2. Washing
Wipe with a cloth slightly moistened with water or
cleaner, and then dry it in the shade.
NOTE: Never use water above 45 °C to wash the
panel, orit couldcause deformationor
discolouration.
3. Install surface panel
Cover the surface panel and clasp it.
1. Pull along the direction of arrows to take down
surface panel.
1. Open the surface panel, hold the tab of Air Filter
and raise it slightly, and then take it out.
2. Cleaning
To clear the dust adhering to the filters, you can
either use a vacuum cleaner, or wash them with water
and dry it in the shade.
NOTE:
•Never use water above 45°C to wash the filters,
or it could cause deformation or discolourtion.
Cleaning the Air Filters (Recommended once every three weeks)

–15–¡ª
(Refer to the first step of “cleaning the Air Filters”)
(Refer to the third step of “cleaning the Air filters”)
Air cleaner
NOTE: Be careful not to injure yourself on the
fins
3.Reinsert the filters
Reinsert the filters with side marked “FRONT” facing
forward.
InstallationofAircleaner
1. Remove the Air Filters
2. Install the Air cleaner.
Take off the packed bags of Air cleaners, and then
put them into the filter frames.
3. Reinsert the filters.
Preparation before use
1.Be sure that nothing obstructs the air outlet and in-
take vents.
2.Check that whether ground wire is properly con-
nected or not.
3.Replace filters if necessary.
Maintain after use
1.Clean filters and other parts.
2.Turn main power off.
3.Clear dust from the outdoor unit.
4.Repaint the rubiginous place on the outdoor unit
to prevent it from spreading.

–16–¡ª

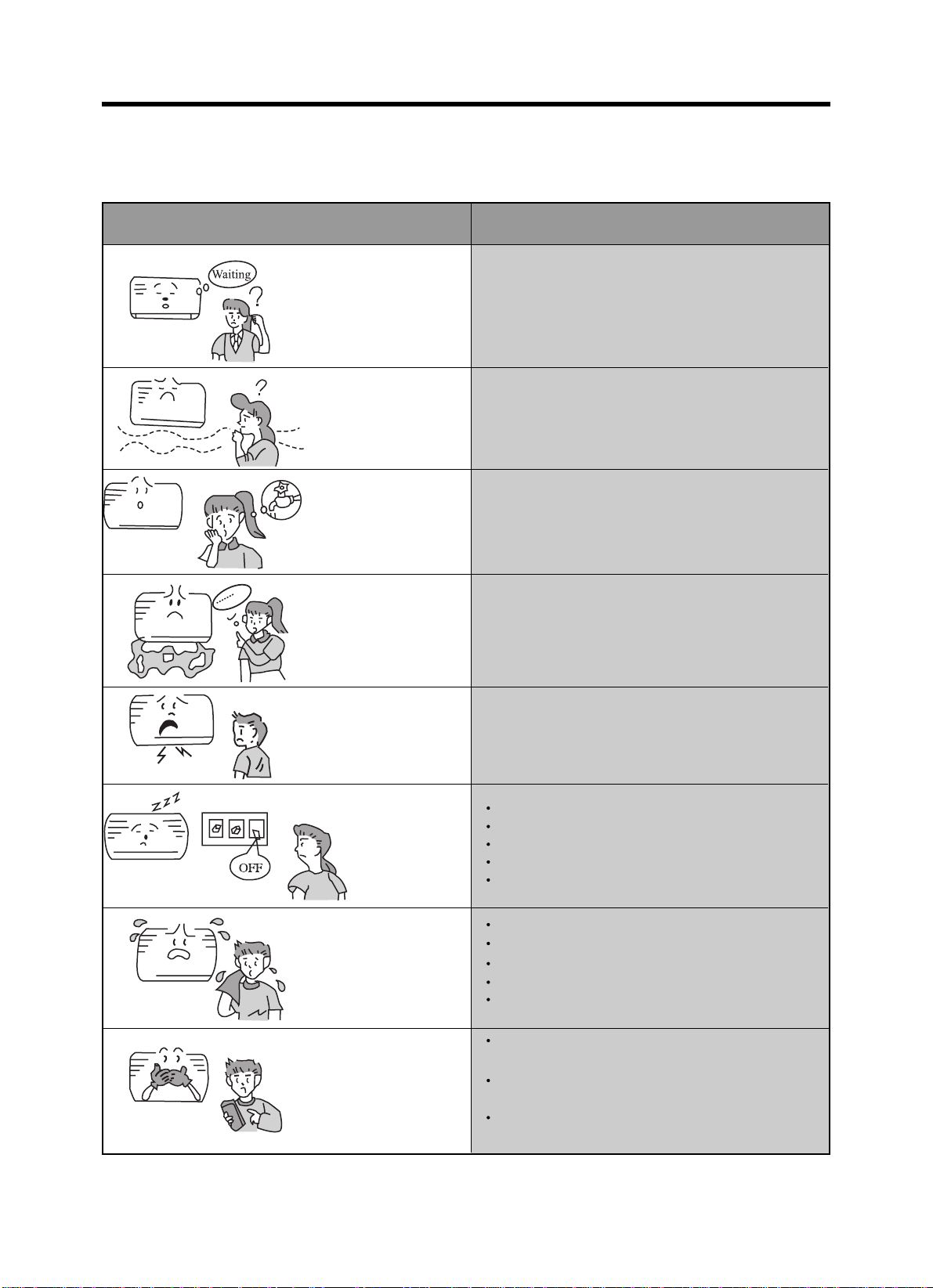

Check the following before requesting on service center if the malfunction occurs.
Troubleshooting
Phenomenon Trouble Shooting
Wireless remote con-
troller is not avai-
lable.
Is the remote control unit out of effective distance
to the indoor unit?
Replace the worn batteries of wireless remote con-
troller.
Are there any obstructions between the wireless re-
mote controller and the signal receptor?
Indoor unit does not
operate immediately
when the air condi-
tioner is restarted.
There’s unusual smell
blowing from the out-
let after operation is
started.
Sound of water flow
can be heard during
operation.
Mist is emitted du-
ring cooling opera-
tion.
Creaking noise can
be heard when start
or stop the unit.
Air conditioner
does not operate
at all.
Cooling (Heating)
efficiency is not
good.
Once the air conditioner is stopped, it will not operate
in approximately 3 minutes to protect itself.
This is caused by the odors in the room which have
been breathed into the air conditioner.
This is caused by the refrigerant flowing inside the
unit.
Because the air of the room is cooled down rapidly
by the cold wind and it looks like the fog.
This is caused by the deformation of plastic due to
the change of temperature.
Has the power been shut down?
Is the wiring loose?
Is the leakage protection switch in operation?
Is voltage higher than 244V or lower than 206V?
Is TIMER ON in operation?
Is SET TEMP. suitable?
Is air inlet or outlet obstructed?
Are air filters dirty?
Is indoor fan speed set at low speed?
Is there any other heat source in your room?

–17–
Immediately stop all operations and plug out, contact with
service center of MUNDOCLIMA in following situations.
Unusual noise can be heard during operation.
Power fuse or switch often breaks.
Carelessly splash water or something into air conditioner.
Electrical lines and power plug are very hot.
Wind blowing from the outlet smells terrible during operation.
NOTE:
Equipment subject to notification to or consent by the supply authority before connection to the system
(consent by the supply authority may be requested for high-power appliances which are intended to be used only
in systems having impedances considerably lower than the reference impedance. General consent mqy declared for
use of a type of appliance in a defined part of the supply system):
1. Equipment intended exclucively for professional purposes;
2. Appliances and equipment without automatic control means;
3. Appliances producing less than one voltage change per hour;
4. Appliances producing more than 1800 voltage changes per minute;
5. Disturbances caused by manual switching.

–18–
Technical specifications
I
Technical specifications
Model
Functions
Accessory
Cooling capacity (W)
Heating capacity (W)
Power supply
Input Power (W)
Air Flow Volume (m
3
/h)
Refrigerant
Noise (Indoor/Outdoor) dB (A)
Climate type
Isolation
Weight(kg)
Indoor unit/
Outdoor unit
Dimension(cm)
(W x H x D)
Air cleaner
Indoor unit: 83.0x28.5x18.9
MUP-07X2CN MUP-07X2HN
Cool Heat
2000x2
2300x2
950x2/950x2
MUP-09X2CN MUP-09X2HN
Cool
3500x2
–
1650x2/-
MUP-12X2CN
2x11/64kg
Cool Heat
3500x2
3800x2
1650x2/1500x2
MUP-12X2HN
220-230V~50Hz
2x420 2x520
T1
2x11/71kg
R-407C
34/34/56 35/35/56 38/38/58
Outdoor unit:95.0x70.0x34.0 Outdoor unit:95.0x84.0x34.0
Cool
2000x2
–
950x2/-
Cool
2500x2
–
1150x2/-
Cool Heat
2500x2
2800x2
1150x2/1200x2
•Allabove aretestaccording toCHINA NATIONAL STANDARDGB/T7725-1996.
•Allaboveshouldbe changed withoutnotice, thereare latestand accuratespecifications on thenameplate of your air conditioner.
Working temperature range
Maximum cooling
Minimum cooling
Maximum heating
Minimum heating
Indoor side DB/WB (°C)
32/23
21/15
27/-
20/-
Outdoor side DB/WB (°C)
43/26
21/-
24/18
-5/-6

–20–
* Be sure to use the exclusive accessories list above in the installation, or it will lead to water leakage ,electric
shock, fire, etc.
Accessories (Check that all accessory parts are present before installation)
Accessories and Installation diagram
DiagramNo.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Part name
Rear panel
Wireless remote
controller
Battery
Power connection
cord
Control cord
Tapping screw
Plastics drain hose
Gum type sealer
Piping-hole sleeve
Wrapping tape
Connection piping
Thermal insulation
hose
Air cleaner
Wire ring
specification
7# 1.5V
5 x 1.0
ST4.2 x 25
L = 2m
120 x 65 x 25
30
x 10
6/9.5(12)
35 x 500
Memo
Heat pump type only
Fix the rear panel
Packaged with
connection piping
Packaged with
connection piping
Packaged with
connection piping
Packaged with
connection piping
Packaged with
indoor unit
Qty
2
2
2
2
2
2
2
2
2
2
2
2
2
1
