MUSIC STORE professional WERSI SONIC OAX Series Owner's manual

OAX1 - OAX500 - OAX600 - OAX700
OAX800 - PERGAMON OAX1000
Programming Manual
Brand Owner and Development

Imprint & User Content
2 Programming Manual SONIC
Imprint & User Content
Programming Manual
for
WERSI SONIC OAX1, OAX500, OAX600, OAX700, OAX800, PERGAMON OAX1000
Software version on release:
V2.80
Date: 4. November 2020
Copyright © 2020 by
MUSIC STORE professional GmbH
Istanbulstraße 22-26
51103 Cologne
Germany
E-Mail: [email protected]
Website: www.wersi.net
All rights reserved.
We reserve the right to make technical changes to the hardware and software of the OAX instruments
without prior notice. We do not guarantee that all the properties described in this manual will be consistent
with those of an OAX instrument currently delivered.
Reproduction, translation, microfilming as well as storage and processing in electronic systems is not
permitted without our express consent and violates the copyright law.

OAX-System 3
User Content
Imprint & User Content................................................................................................................ 2
1Input Mixer ............................................................................................................... 6
1.1 Setting options in the area of organ .......................................................................................6
1.2 Setting options for the inputs area .........................................................................................9
Information for the microphone and line input.............................................................................10
Set microphone effects ..................................................................................................................10
Set effects for Microphone, Line In and Wave...............................................................................11
1.3 Explanations of insert and send effects.................................................................................12
The audio signal microphone and the effect..................................................................................12
The audio signals Line In/Wave and the effects.............................................................................12
1.4 Load preset for the input mixer............................................................................................13
1.5 Save preset for the input mixer............................................................................................14
1.6 Set a preset as default or global ...........................................................................................15
1.7 Rename or delete your own preset for the input mixer.........................................................15
2Output Mixer ........................................................................................................... 16
2.1 The adjustment options in the output mixing console...........................................................16

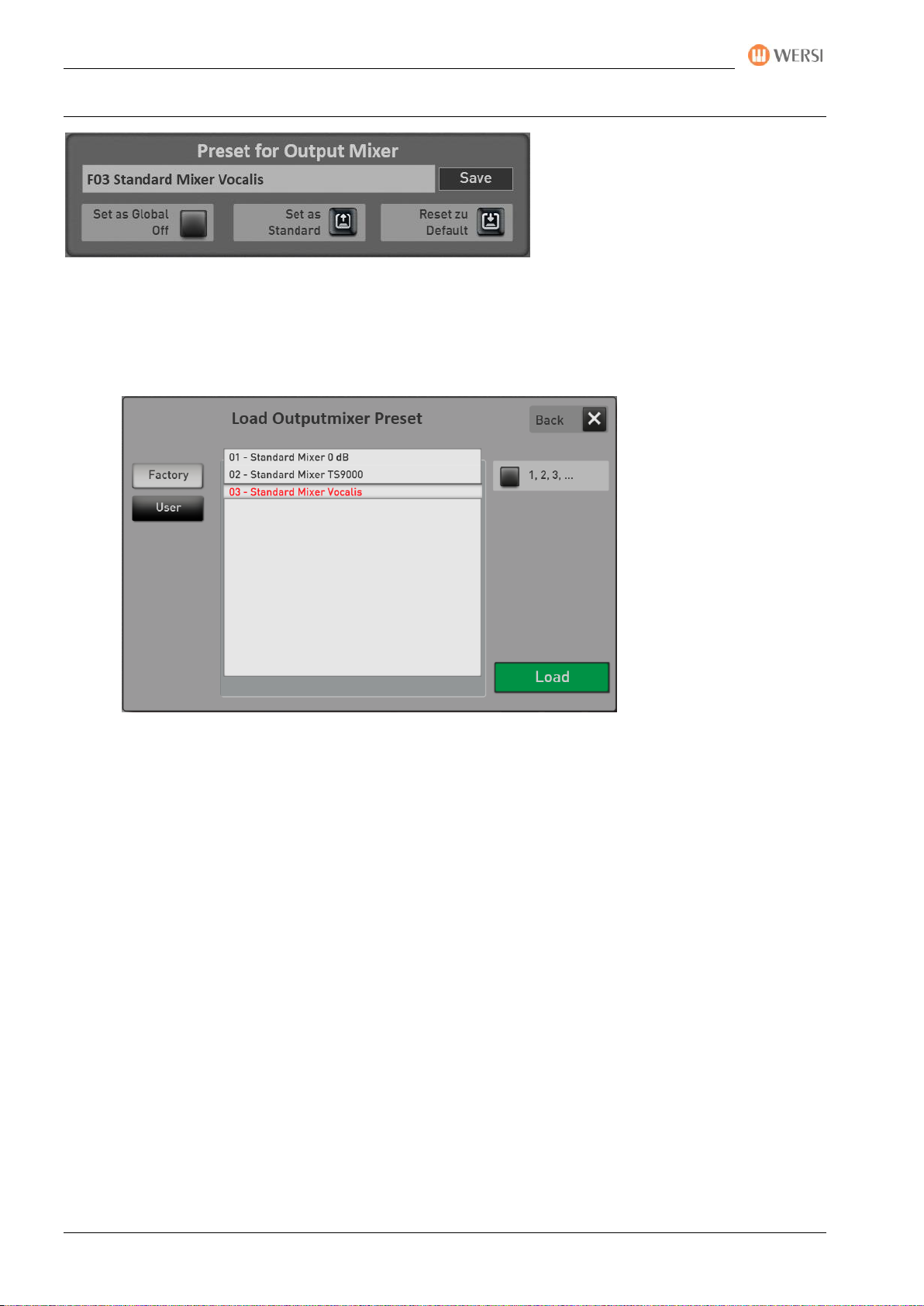

2.2 Load preset for output mixer ...............................................................................................18

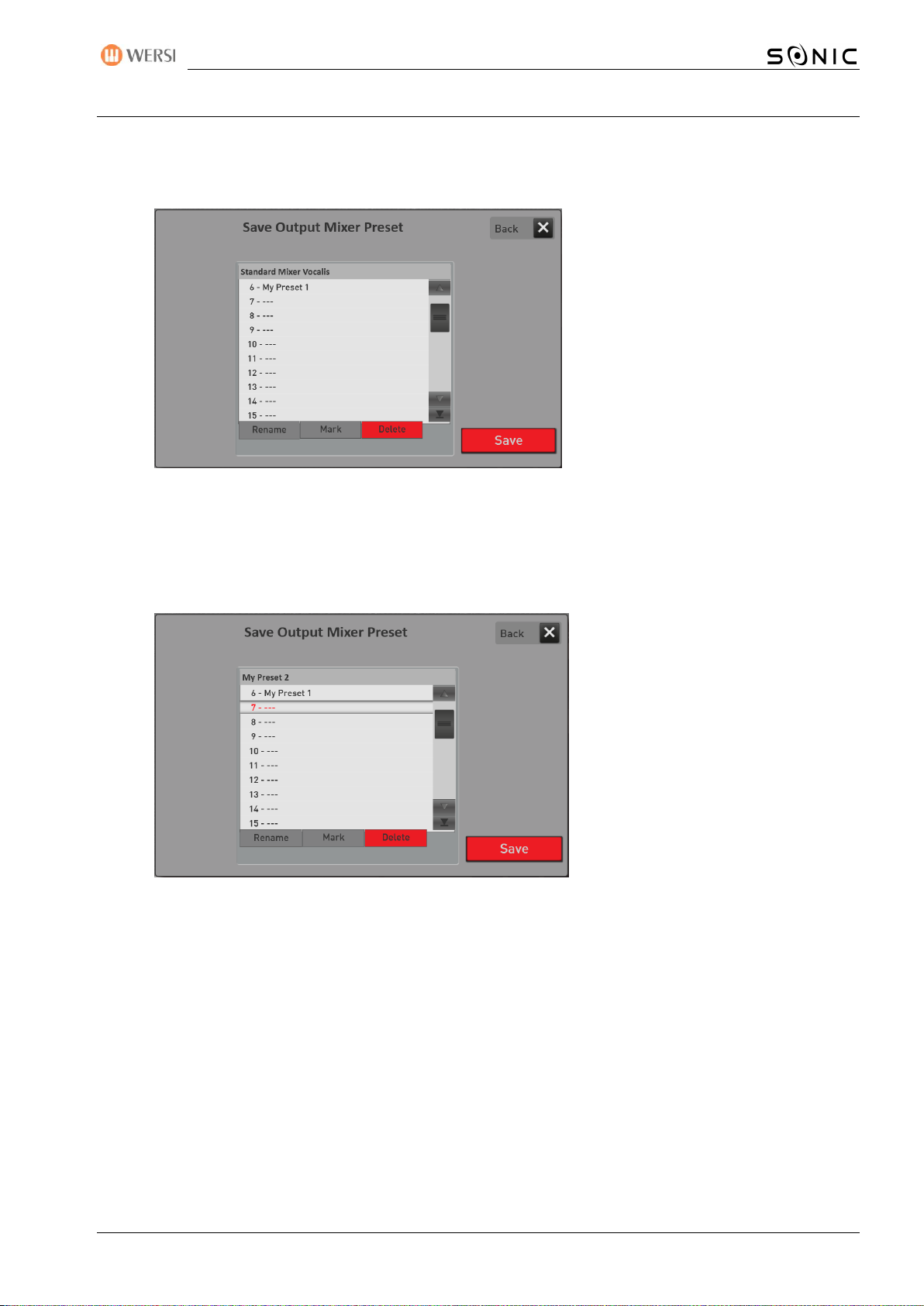

2.3 Save preset for the output mixer..........................................................................................19
2.4 Set a preset as default or global ...........................................................................................20
2.5 Rename or delete your own preset for the out mixer............................................................20
3Sequencer ................................................................................................................ 21
3.1 Editing MIDI-sequences .......................................................................................................21
3.2 Style-Sequences...................................................................................................................25
Examples already saved .................................................................................................................25
Load or save style sequence...........................................................................................................26
3.2.2.1 Load style sequence..................................................................................................................26
3.2.2.2 Save style-sequence..................................................................................................................26
3.2.2.3 Create a new style-sequence....................................................................................................26
Playback parameters for style-sequences......................................................................................26
Create a style-sequence.................................................................................................................27
3.2.4.1 The clock bar.............................................................................................................................27
3.2.4.2 The display style........................................................................................................................28
3.2.4.3 The Display Controls .................................................................................................................28
3.2.4.4 Enter the chords .......................................................................................................................29
3.2.4.5 Delete in the clock bar..............................................................................................................32
3.2.4.6 Move the stop point .................................................................................................................32
4Settings.................................................................................................................... 33
4.1 The Effect Sounds ................................................................................................................33
Use effect sound buttons with other effects .................................................................................34
Edit effect sound ............................................................................................................................35
Load preset for effect sound buttons.............................................................................................37
Save Effect Sound Preset................................................................................................................38
Set an effect sound preset as default or global..............................................................................39
Rename or delete your own preset for effect sound buttons .......................................................40

Imprint & User Content
4 Programming Manual SONIC
4.2 Footswitches .......................................................................................................................41
Occupying foot switches with other functions ..............................................................................42
Glide-Effect (Hawaii) ......................................................................................................................44
Save footswitch preset...................................................................................................................45
Load preset for footswitches .........................................................................................................46
Set a foot switch preset as standard or global...............................................................................47
Rename or delete your own footswitch preset.............................................................................48
4.3 Show sheets on the display ..................................................................................................49
Load your own sheets ....................................................................................................................50
Edit your own sheets......................................................................................................................53
4.4 Assignment of CC and drawbars with other functions ...........................................................55
Factory presets...............................................................................................................................56
Define your own assignments........................................................................................................56
Using the drawbars while editing ..................................................................................................57
4.5 VST-Settings ........................................................................................................................58
General overview of the VST host..................................................................................................59
The factory VST modules ...............................................................................................................60
Load and save preset for VST settings ...........................................................................................61
Integrate new plug-in into the system...........................................................................................62
Load and connect the VST plug-in..................................................................................................65
Edit VST Plug-In ..............................................................................................................................66
Set the basic volume and EQ for a VST plug-in..............................................................................67
Connect, edit or remove audio ......................................................................................................67
Place and edit the sounds of the plug-ins on the ..........................................................................68
Sacral organ module HAUPTWERK (Optional)...............................................................................73
4.6 Backup your own data .........................................................................................................74
Create Backup ................................................................................................................................74
Reload data backup........................................................................................................................75
5Edit sounds ...............................................................................................................77
6Edit styles .................................................................................................................79
6.1 The structure of a style ........................................................................................................80
6.2 Overview functions..............................................................................................................81
Basic functions ...............................................................................................................................81
Displaybutton EDIT per track .........................................................................................................83
Edit drum tracks.............................................................................................................................83
6.3 Professional functions in Style Edit.......................................................................................86
6.4 Edit or create styles on the computer ...................................................................................90
These export and import options are available to you..................................................................90
Import individual parts, tracks or patterns from a complete MIDI file..........................................91
Format of an exported style in MIDI format..................................................................................92
7Globale Einstellungen ...............................................................................................94
8Global Settings..........................................................................................................95
8.1 Set the display language ......................................................................................................95
8.2 Tuning.................................................................................................................................95
8.3 Audio Driver –Factory Standard - Hardware Informationen..................................................95
8.4 Remote diagnosis via TeamViewer .......................................................................................96
9Operation of the virtual typewriter ...........................................................................98
9.1 Letters and numbers............................................................................................................98
9.2 Entering quantities of text..................................................................................................100

OAX-System 5
10 WERSI OAX Music Workstation............................................................................... 101
10.1 Update of the WERSI OAX operating software.................................................................... 101
Download the latest software......................................................................................................101
Reinstall or update the software..................................................................................................102
10.2 Read the operating instructions on the display ...................................................................106
10.3 Changes in the different software versions.........................................................................107
10.4 Problems........................................................................................................................... 107
10.5 The MICROSOFT operating system WINDOWS....................................................................108
11 The Midi-Interface.................................................................................................. 109
11.1 MIDI Out ...........................................................................................................................109
11.2 MIDI IN.............................................................................................................................. 113
12 For your own notes ................................................................................................ 114

Input Mixer
6 Programming Manual SONIC
1Input Mixer
Your instrument has extensive possibilities in the input and output mixing
console. There you can change the volume or change the sound via the
different equalizers.
The entrance mixing console is divided into the Organ and Inputs.
1.1 Setting options in the area of organ

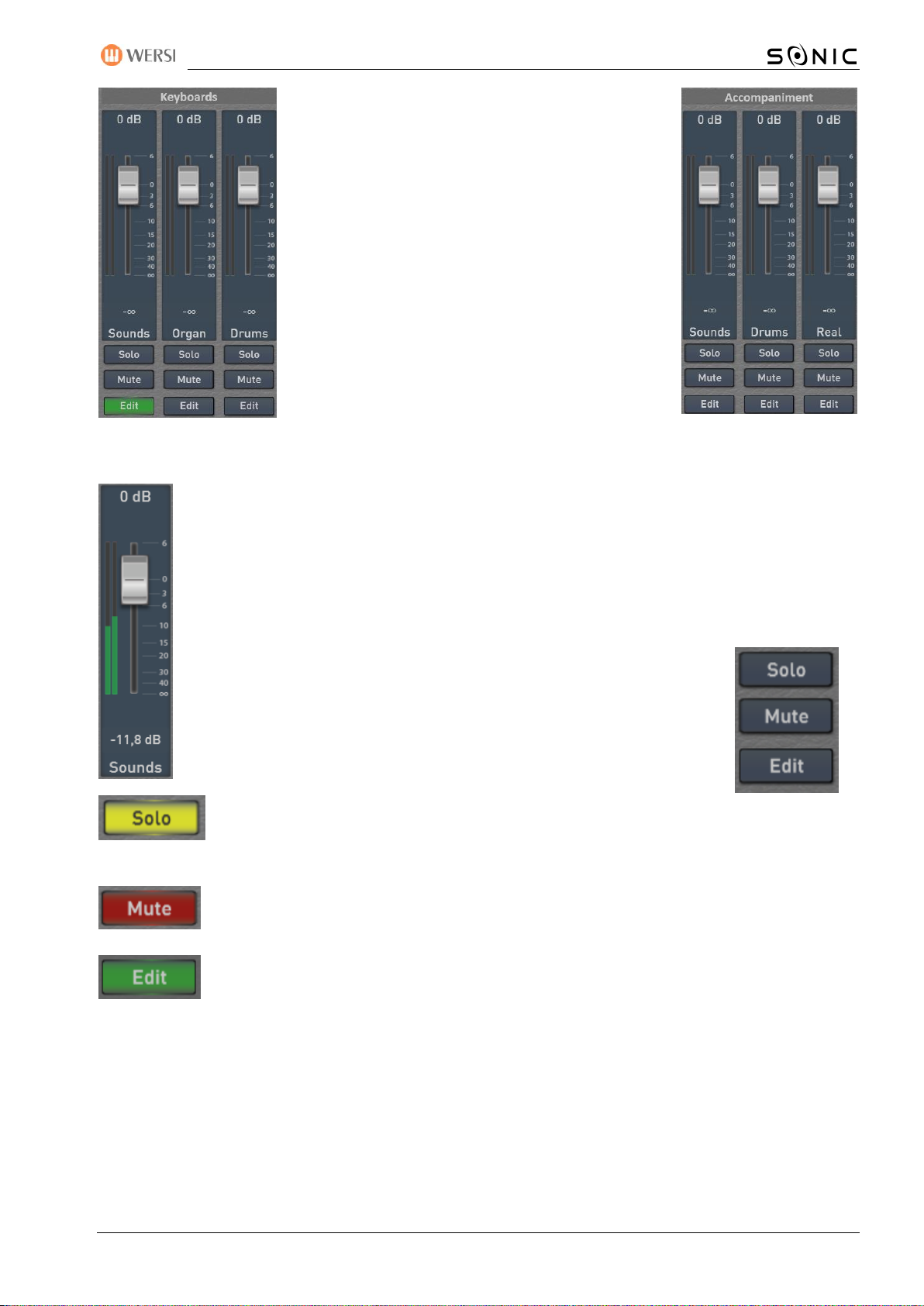

Organ area
The organ area is once again divided into manuals and accompaniment.

OAX-System 7
Manuals handles all signals generated by the
keyboard.
And Accompaniment all signals generated by styles
and MIDI sequences.
A 5-band equalizer is available for each input in the
organ section.
The slider allows you to adjust the volume of the channel.
The stereo control indicator always shows you the actual volume. A full rash always means 0 dB.
And digital technology is not louder than 0 dB!
The peak indicator always gives you the highest volume so far. You can reset the peak display at
any time by simply pressing the corresponding display surface once.

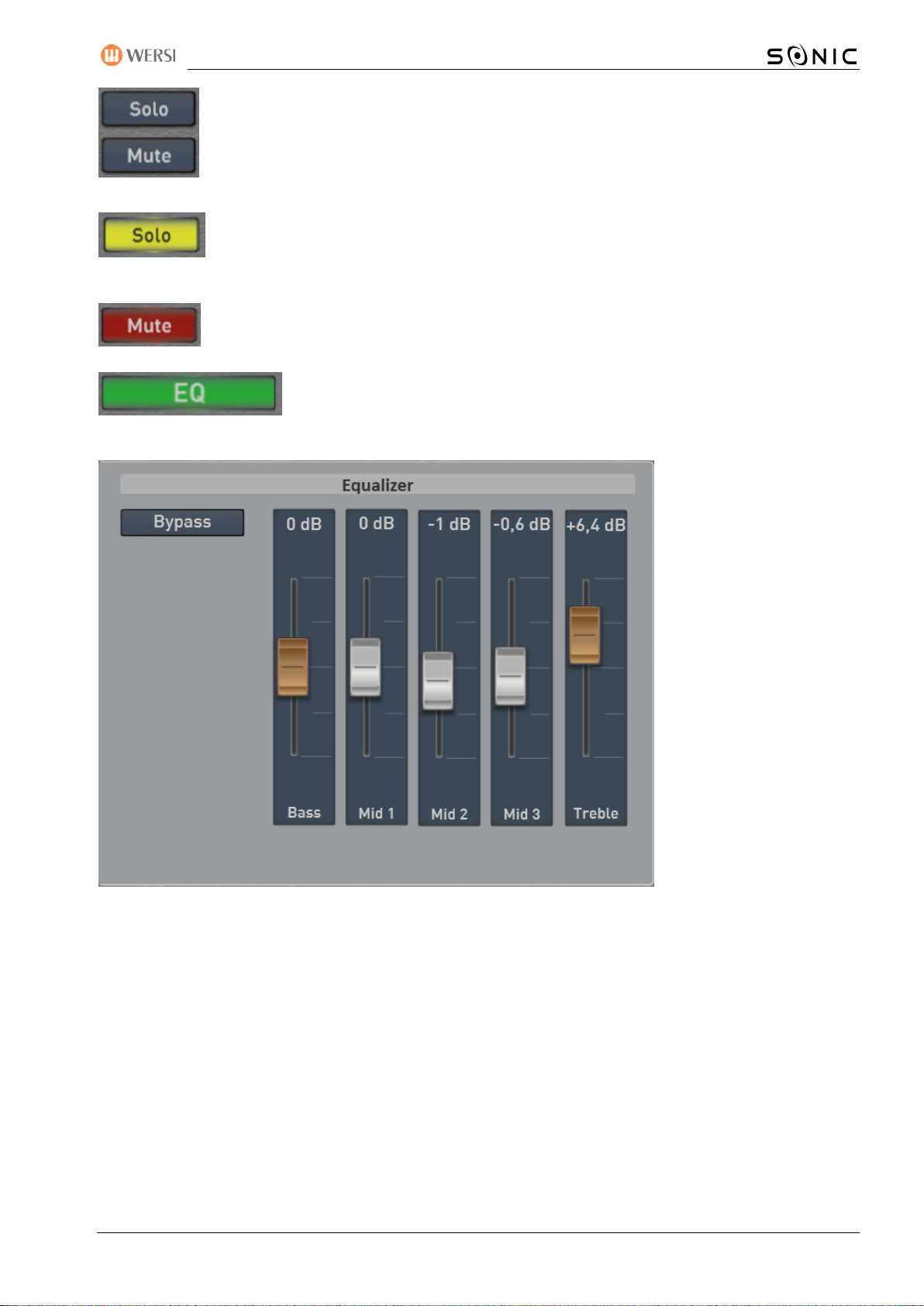

For each channel, the FUNCTIONS SOLO, MUTE and EDIT are available in
addition to the volume.
SOLO causes all other channels to be muted. Only one channel can be switched to SOLO.
SOLO is not saved into a preset.
MUTE allows you to mute one or more channels. The setting is saved into a preset.
Using EDIT, you can call up a 5-fold equalizer for the six organ inputs.

Input Mixer
8 Programming Manual SONIC
Once you have pressed the EDIT display buttons under the desired input, you can set the sound for the
corresponding input on the right.
The 5-fold equalizer has the areas bass, middle 1, 2 and 3 and a treble channel. The ranges can be changed
+/- 12 dB.

OAX-System 9
1.2 Setting options for the inputs area
As soon as you have selected the area inputs, you will see the following audio inputs:
Line -> Stereo input on the back
Wave -> Software audio input for Waves and MP3 files.
Micro -> Microphone connector on the back
For these three inputs, in addition to the equalizer, there is also a page on which you can set insert and send
effects.
By swiping or pressing the two small squares, you can switch between the two areas equalizer
and effects.
As with modern digital mixing consoles, the microphone input has an insert effect and two standalone send
effects.
There is a send effect and an insert effect for the line-in and the wave input.

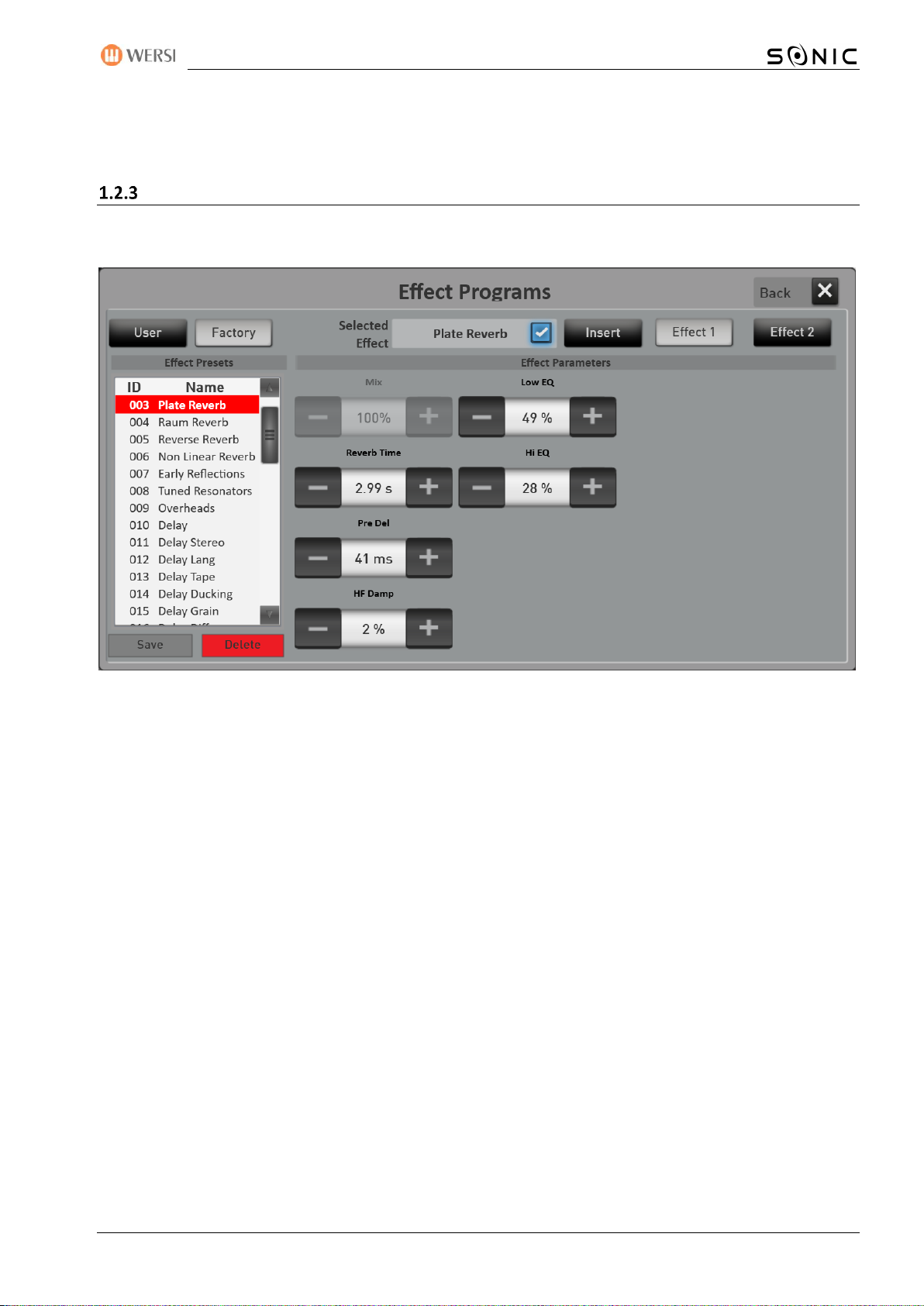

A total of 52 effect types are available, ranging from different reverb and echo effects to filters, phasers or
distortions or a multiband compressor.
In chapter 1.3 „Explanations of insert and send effects “the differences are explained.
All settings are stored in the preset for the input mixer.

Input Mixer
10 Programming Manual SONIC
Information for the microphone and line input
These connectors can be found behind a flap on the back of the instrument.
For more information, refer to the OAX user instructions.
Special features Microphone input:
Microphones must be adjusted with the microphone preamplifier. To do this,
you can set the pre-reinforcement from 0 to 60 dB. The value is not stored in
the mixer preset, but directly in the factory settings.
The volume of the microphone can be adjusted with the keyboard OAX1 via a
pull bar and for the organs via a rotary poti. The optical controller in the display
is also coupled to this.
Tip: You should always save the presets for the input mixer with the
microphone input closed.
Set microphone effects
The Pan slider controls whether the microphone is playing more left or right in the stereo area.
The Effect 1 and Effect 2 slider controls how strongly the two send effects are addressed.
To the right of the sliders, you can see which effects are set in the Insert and Send effects areas. Each effect
can be switched on or off with the adjacent switch.

OAX-System 11
Talk Button
The microphone input also has the TALK function, which allows you to switch off all effects at the touch of a
button. The setting is also saved with in the mixer preset.
Set effects for Microphone, Line In and Wave
To adjust the effects, select Edit Effects and the following display will open:
The Insert, Effect 1 and Effect 2 display switches allow you to switch between the three effect areas. The Line
and Wave inputs have only one insert and one effect at a time.
In the Effect Type display box, you can see which effect is currently loaded for the selected area.
Depending on which range is selected and which effect is loaded there, you will see the settings for the effect
type. You can see which effects are available with which settings in the OAX Data List chapter 8 "Effect for
Input Mixer”.
At least one factory preset is stored for each effect type. Of course, you can also create your own effects
programs and save them under USER.

Input Mixer
12 Programming Manual SONIC
1.3 Explanations of insert and send effects
Insert effect:
The whole signal goes through the INSERT effect and from there directly to the outputs. The effect is thus
inserted into the signal flow. That's why we're talking about an insert effect.
Insert effects are usually filter, compressor, limiter or chorus.
Send-Effect:
At part of the signal is sent to a send effect. How much does the EFFEKT slider determine.
The original signal remains untouched and the outputs of the send effects are added to the output. The
outputs of the effects contain only the effect portion and no longer the original signal.
Send effects are usually Reverb or Echo programs.
The audio signal microphone and the effect
For the microphone, the preamplifier adjusts the basic volume. In the OAX mixer, this is the MicroPreGain
setting.
Then comes the equalizer and then the insert effect.
After that, the Effect 1 and Effect 2 sliders adjust the volume of the Send effects. So e.g. how much reverb
and echo can be heard.
The audio signals Line In/Wave and the effects

OAX-System 13
1.4 Load preset for the input mixer
Now let's look at the "Preset for the
input mixer" area. Here you can select
factory presets or your own presets.
Own presets can be saved under USER.
1. To load an "input mixer preset," simply press the area where the name of the current preset is
displayed. In this case, "F01 Standard Mixer - 0dB (STD)".
The "Load input mixer preset preset" window opens and the current preset is selected.
2. Use the Factory or User buttons to switch the list between the factory presets and your own presets.
3. Now select the desired preset and confirm with LOAD.

Input Mixer
14 Programming Manual SONIC
1.5 Save preset for the input mixer
After you re-set the input mixer, you can save your settings to your own presets.
1. Press the "SAVE" surface on the main display of the output mixer. The following display opens:
2. Select a space in the list.
3. If you want to give the preset a new name, press the display area of the preset name.
4. The display keyboard opens on which you can change the name. Here in the example "My Input
Preset 1".
5. Save the preset with SAVE.

OAX-System 15
1.6 Set a preset as default or global
Set a preset as a "Standard preset"
You can set a preset as its standard
preset. Whenever you do not include a
special input mixer preset in a Total
Preset, the Total Preset automatically
selects your standard preset.
1. First, select the input preset, which you want to set as the Standard.
2. Then press the display button once . The current input mixer preset is marked
with the addition (STD) the next time you select it.
If you have changed a preset, the values can be re-entered at any time with the display button
to the previously saved values.
Set a preset as a "Global Preset"
You've probably noticed the "Set as Global" function in other areas. If a preset is marked as GLOBAL, this
selection is preserved in all Total Presets, even if you have saved different mixer presets in Total Presets.
This setting is maintained even after switching off and on until this setting is switched off again by hand.
1.7 Rename or delete your own preset for the input mixer
If you have saved your own mixer presets, you can rename them or delete them again. To do this, do the
following:
1. Press the area where the name of the current preset appears. The "Load input mixer presets"
window opens and the current preset is selected.
2. Go to User.
3. Select the preset you want to delete or change by name.
4. Rename or delete?
a. Press Rename and the display keyboard will open on which you can make the changes and
confirm on the display keyboard with ENTER.
b. To delete, press DELETE and confirm the security query.

Output Mixer
16 Programming Manual SONIC
2Output Mixer
In the output mixer, you can adjust the respective channels right and left separately in
the volume for both outputs and the headphones. And there is a separate 5-band
equalizer available for each output.
2.1 The adjustment options in the output mixing console
You can use the slider to adjust the volume of the desired channel.
The LINK button allows you to connect the two sliders of an
output. Then you can control right and left together with one slider.
The control indicator always shows you the actual volume. A full rash always means 0
dB. There is no more than 0 dB in digital technology!
The peak indicator always gives you information about the highest volume so far. You
can reset the peak display at any time by simply pressing the corresponding display
surface once.

OAX-System 17
For each channel, the SOLO and MUTE functions are available in addition to the volume.
SOLO causes all other channels to be muted. Only one channel can be switched to SOLO.
SOLO is not saved into a preset.
MUTE allows you to mute one or more channels. The setting is saved to the preset.
A separate 5-fold equalizer is available for each output. This can be selected and
set separately for each output via the EQ display surfaces. With BYPASS, you can turn off the equalizer.

Output Mixer
18 Programming Manual SONIC
2.2 Load preset for output mixer
Now let's look at the "Preset for the
output mixer" area. Here you can select
factory presets or your own presets.
Own presets are saved under USER.
1. To load an "output mixer preset," simply press the area where the name of the current preset is
displayed. In this case, "F03 Standard Vocalis”.
The "Load input mixer preset " window opens and the current preset is selected.
2. Use the Factory or User buttons to switch the list between the factory presets and your own presets.
3. Now select the desired preset and confirm with LOAD.

OAX-System 19
2.3 Save preset for the output mixer
After you have set the output mixer according to your wishes, you can save your settings in your own
presets.
1. Press the "SAVE" surface on the main display of the output mixer. The following display opens:
2. Select a space in the list.
3. If you want to give the preset a new name, press the display area of the preset name.
4. The display keyboard opens on which you can change the name. Here in the example "My Preset 2".
5. Save the preset with SAVE.

Output Mixer
20 Programming Manual SONIC
2.4 Set a preset as default or global
Set a preset as a "Standard preset"
You can set a preset as its standard preset. Whenever you do not include a special input mixer preset in a
Total Preset, the Total Preset automatically selects your standard preset.
First, select the input preset, which you want to set as the Standard.
Then press the display button once . The current output mixer preset is marked with
the addition (STD) the next time you select it.
If you have changed a preset, the values can be re-entered at any time with the display button
to the previously saved values.
Set a preset as a "Global Preset"
You've probably noticed the "Set as Global" function in other areas. If a preset is marked as GLOBAL, this
selection is preserved in all Total Presets, even if you have saved different mixer presets in Total Presets.
This setting is maintained even after switching off and on until this setting is switched off again by hand.
2.5 Rename or delete your own preset for the out mixer
If you have saved your own mixer presets, you can rename them or delete them again. To do this, do the
following:
1. Press the area where the name of the current preset appears. The "Load input mixer presets" window
opens and the current preset is selected.
2. Go to User
3. Select the preset you want to delete or change by name.
4. Rename or delete?
oPress Rename and the display keyboard will open on which you can make the changes and
confirm on the display keyboard with ENTER.
oTo delete, press DELETE and confirm the security query.
