MUZEN OTR Sticker User manual
MUZEN MUZEN Sticker Speaker
Product User Manual
Manuel du produit I Manuel d'utilisation du produit
Manual del producto I Manuale del prodotto I Manual do produto
I I PYKOBOACTBOno
Dear Customers :
Thank you for choosing our products. Sticker Speaker is an accessorized
Bluetooth speaker launched by MUZEN, adhering to the company' s design
philosophy of "Aesthetically pleasing, Great sound, User-friendly and
Entertaining". We hope to bring you multiple, better and more interesting music
applications.
Muzen Sticker Speaker produces different sound quality by combining the
Bluetooth speaker with the contact surface, and the vibration of the speaker
drives the contact surface (such as refrigerator/coffee machine/cabinet, etc.) to
vibrate together. Therefore, after vibration with the contact surface, the sound
quality of the speaker is related to the size and parts of the surface in contact. If
the contact surface is not solid, or there are other moving vibrating parts, it is
very likely to bring the noise that should not appear, then you need to make
appropriate adjustments to ensure the best sound quality.
A Gentle Reminder:
Pleasereadthis product manual carefully beforeuseif for better experiencewhile using
the product.
EN
DE
ES
KO

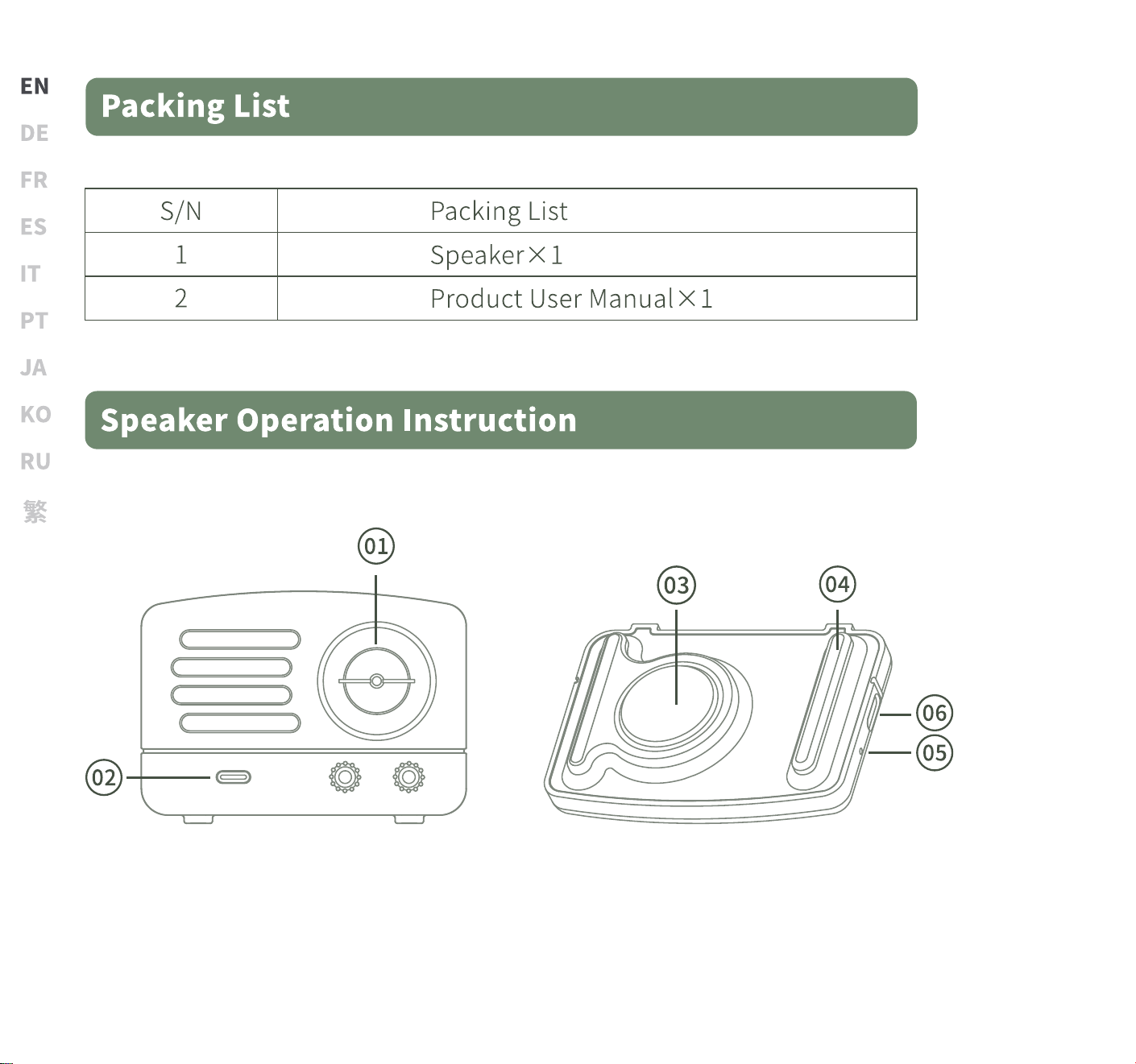

EN Packing List
Packing List
Product User Manual><l
Speaker Operation Instruction
01
02
— 06
— 05

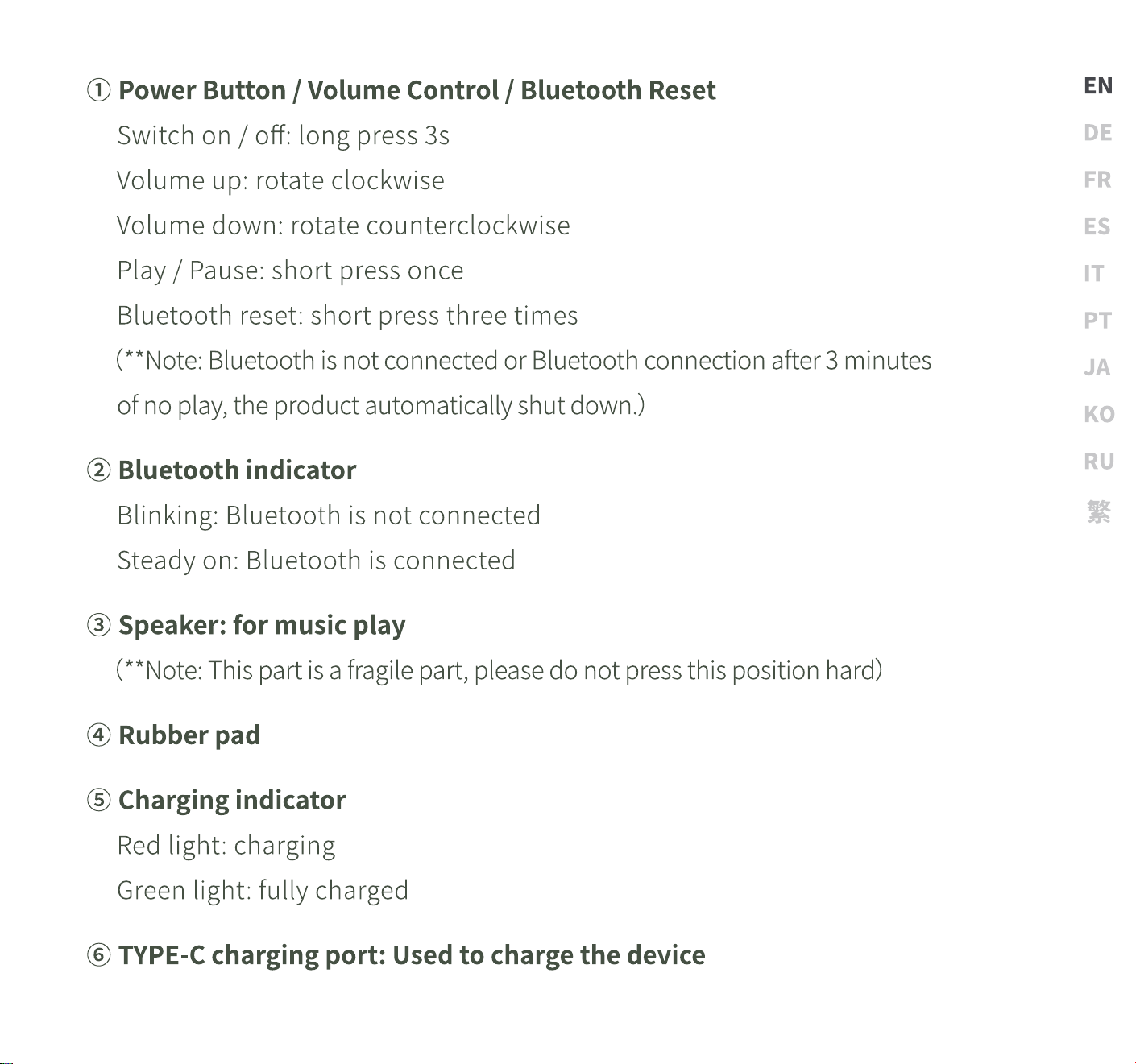

@ Power Button / Volume Control / Bluetooth Reset
Switch on / off: long press 3s
Volume up: rotate clockwise
Volume down: rotate counterclockwise
Play / Pause: short press once
Bluetooth reset: short press three times
C**Note: Bluetooth is not connected or Bluetooth connection after 3 minutes
of no play,the product automatically shut down.)
@ Bluetooth indicator
Blinking: Bluetooth is not connected
Steady on: Bluetooth is connected
@ Speaker: for music play
C**Note: This part is a fragile part, pleasedo not pressthis position hard)
@ Rubber pad
@ Charging indicator
Red light: charging
Green light: fully charged
@ TYPE-Ccharging port: Used to charge the device
EN
DE
ES
KO
EN
DE
ES
KO
Hardware Parameters
Product Model: MW-QII
Product Size:74mm >< 53mm >< 21.7mm
Product Net Weight:45 ±9g
Bluetooth : 5.3 version
Bluetooth connection distance: < 10m
Speaker:4Q 2W
Amplifier power:2W
Battery:3.7V/300mAh
Charging Port: TYPE-C
Charging Voltage: DC 5V
Important Notes
For your safety, please read the following instructions carefully and comply
with them:
l. The manufacturer reserves the right to modify or adjust the specifications and
details of the product without notifying users.
2. Please use the product in a dry environment wherever possible.
3. The product should not be placed near or in contact with exposed sources of
fire.
4. This product can be used normally with the ambient temperature of 0-450C. Do
not use it outside of this range.
5. Do not modify, repair or dismantle this product without authorization,
otherwise, no after sales services available.
6. Note that if the battery is not replaced properly, it may explode. If necessary,
please visit a professional service center. After replacing the battery, the product
will not be covered by the warranty.
Consult the dealer or an experienced radio/ TV technician for help. Any changes
or modifications not expressly approved by the party responsible for compliance
could void the user' s authority to operate this equipment.
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, Shenzhen Airsmart Technology Co., Ltd. Declares that the radio
equipment type MW-QII is in compliance with DIRECTIVE2014/53/EU. The
declaration of conformity may be consulted at our website, accessible form:
www.muzenaudio.com
This product can be used across EU member states
EN
DE
ES
KO
EN
DE
ES
KO
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCCRules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCCRules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada' s licence-exempt RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
L' émetteur/récepteur exempt de licence contenu dans le présent appareil est
conforme aux CNRd' Innovation, Sciences et Développement économique
Canada applicables aux appareils radio exempts de licence. L' exploitation est
autorisée aux deux conditions suivantes :
(l) L' appareil ne doit pas produire de brouillage;
(2) L' appareil doit accepter tout brouillage radioélectrique subi, méme si le
brouillage est susceptible d' en compromettre le fonctionnement.
EN
DE
ES
KO
EN
Warranty
DE
Limited hardware warranty is provided base on local laws. For maintenance
ES details, please visit www.muzenaudio.com or contact our local distributors.
Manufacturer: Shenzhen Airsmart Technology Co., Ltd.
Address: Unit 616,Ant's Union Start-up Accelerator,No.9 Keji Road,Science and
KO
Technology Park,Nanshan District,Shenzhen,China
