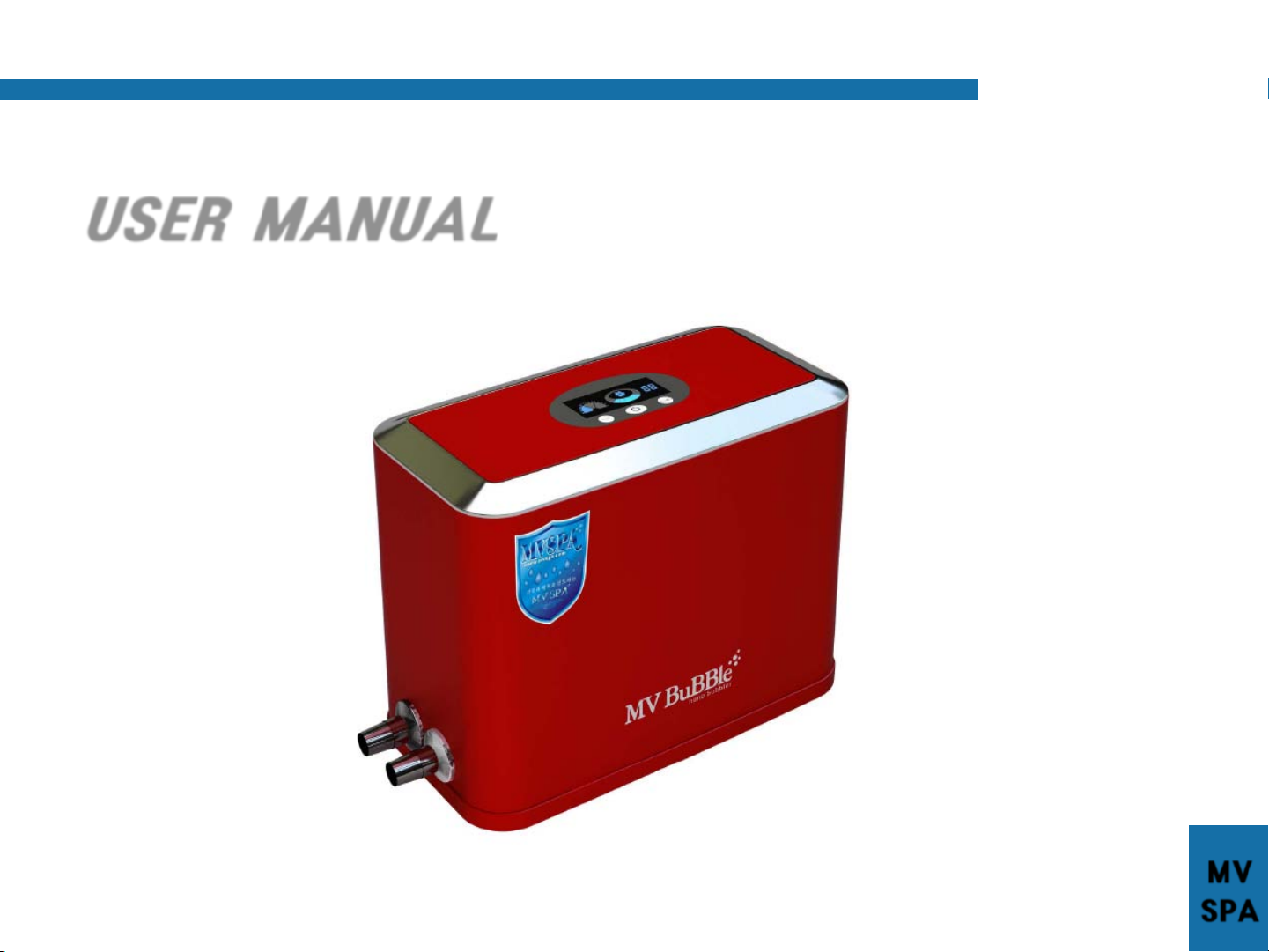

MV SPA MV BuBBle User manual

Y
E
G
A
MV
SPA
- 1 / 22 -
USER MANUAL
MV SPA

Y
E
G
A
MV
SPA
- 2 / 22 -
Contents
Before
Use Safety Precautions --- 2 ~ 7
To Use
Parts & Functions ------ 8-9
To Connect Hoses ------ 10
To Use ------- 11
Precaution for Use ----- 12
To
Clean To Clean ---- 14
Trouble
Shootin
g
Checks before calling customer
services -----15 ~ 16
Referen
ce
Product Specifications ----- 17
After-sales services ---- 19
Product Warranty ---- 20 ~ 21
Please read this User’s Manual
for correct use
MV SPA

Y
E
G
A
MV
SPA
- 3 / 22 -
Safety Precautions
‘Safety Precautions’ should be carefully observed to prevent potential accidents and risks.
Precautions consist of the following “Warning” and “Caution” messages.
Precautions consist of the following “Warning” and “Caution” messages
Please READ these instructions
carefully before use..
!This symbol indicates a potential risk. To prevent such risk,
please observe the instructions.
You MUST avoid an action which is marked with this symbol.
Do not immerse the Product in water.
If accidentally immersed in water,
unplug the power plug from the main
outlet and contact the nearest retailer
or the Service Center.
Take care not to trap the power cable
in doors or other objects.
This may damage the power
cable leading to fire or electric
shock
Do not use the Product if
any abnormality is shown
on the Product.
Warning
Caution
Warning
Clean the pins of the plug with
a dry cloth if contaminated by
water or dust.
Otherwise this may cause fire or
electric shock.
Unplug the power plug from the
main outlet and contact the
nearest retailer or the Service
Center

Y
E
G
A
MV
SPA
- 4 / 22 -
Do not touch or remove the
power plug with wet hands.
This may cause electric shock.
Do not use many plugs on
one socket.
If the socket is overheated, it may
cause short-circuiting or electric
shock.
Do not cover the Product
with during use.
This may cause product breakdown.
Do not connect the plug
upwards on the socket.
This may cause fire or electric shock.
Do not place heavy objects
on the power cable.
This may damage the power cable
leading to fire or electric shock.
Always plug into a suitable socket
(AC 220V).
This may cause fire or
electric shock.
.
Do not staple down the power cable to
affix to surfaces.
This may cause electric shock.
Do not damage the power
cable by extending or
altering.
This may cause fire or electric shock.

Y
E
G
A
MV
SPA
- 5 / 22 -
Remove the power plug from the
socket when cleaning
or checking.
This may cause electric shock
Do not damage the power cable
by extending or altering.
This may cause fire or electric shock.
Do not exert heavy impact
On or drop the Product.
This may cause breakdown and
Safety problems.
Do not place the Product on
uneven surfaces
Take care that the Product does
not fall. This may cause breakdown.
Do not mount or sit on
the Product.
Care must be taken with children
in particular.
Do not install the Product
Where it becomes vulnerable
to excessive water exposure
or deposits.
This may cause short circuiting
or electric shock.
Caution

Y
E
G
A
MV
SPA
- 6 / 22 -
Do not use loose power
cables, plugs
or sockets.
This may cause fire or electric shock
Do not pull on the cable
to remove the plug.
This may cause fire or
electric shock
Do not use the Product whilst leaving the
nozzle head of the water inlet outside water
for a long time.
It may cause breakdown.
Nozzle head of the water inlet
↑IN↑.
Nozzle head of the
water inlet
↑IN↑.

Y
E
G
A
MV
SPA
- 7 / 22 -
Do not use household detergents
to clean the Product or harsh
abrasive chemicals or sponges.
This may damage the Main Body.
Do not place heavy or
unsteady objects on
top of the Product.
This may damage the Main Body or
cause a malfunctioning in the switches.
Earth the power plug
If plugged into a socket that has an
earth connection, no extra earthing
is necessary.
Always clean the filters and
parts on the Water Inlet
And Outlet after use.
This may reduce the amount
of bubbles and breakdown..
When carrying, support the Product by
holding the lower part
of the Main Body.
This may cause scratches or
breakdown.
This Product is for household use only.
Other use may cause breakdown.
Do not insert the filter parts or
nozzle hoses in excessively
hot water.
This may cause deformation on the
filter parts or nozzle hoses.
Do not use any bath products
(shower gel, bath gel,
Bubble Spa etc)
This may cause blockage on the filter,
or no bubbling at al.
Earth
Connection
No more 50℃

Y
E
G
A
MV
SPA
- 8 / 22 -
Parts & Functions
Control Panel
Detail Control Panel
A small amount of water remains
inside the product for test purposes.
20 Min.
Power
Switch
Water
IN,OUT
PE Cap
Remove the PE Cap when connecting
the hoses.
the remaining water will come out
when the PE Cap is removed.
To be connected to
the Inlet on the Main Body To be connected to the
Outlet on the Main Body
Mail BODY
Rubber Pad
Inlet
Hose
Outlet
Hose
Adapter

Y
E
G
A
MV
SPA
- 9 / 22 -
Inlet Hose (IN)
Outlet Hose (OUT)
헤드 커버
Inlet Nozzle Head Head Cover
Filter Packing
Middle Cap
(Use a coin to turn the Middle Cap to tighten or loosen.)
Outlet Nozzle
Head Plate Plastic
Screen Head Cover

Y
E
G
A
MV
SPA
-10 / 22 -
1
To Connect Hoses
Remove the PE Caps on the Inlet and
Outlet on the Main Body.
2Hold the Hose and slide down the Sleeve.
Please check that the correct Hoses for IN and OUT
are connected to the corresponding Sleeve
3Connect the Hoses to the corresponding
Inlet and Outlet on the Main Body.
Push in the Hose while pulling down the Sleeve.
Once connected, release the Sleeve to secure the connection.
PE CAP
Sleeve
Inlet
Outlet
When the PE Cap is removed a small amount of
water retained inside the Product will come out
for test purposes.

Y
E
G
A
MV
SPA
-11 / 22 -
To Use
For General Bubble Spa
Adjust the water temperature slightly lower than normal bath water.
Remove all facial make-up before taking a bath.
Foreign materials will float on the surface at Auto Stop.
Please remove the foreign materials by letting the water overflow.
If you have a long bath, follow the steps 1 to 7 on the right hand side
instead of operating the Product at first instance.
1. Immerse the Inlet/Outlet Nozzle
Heads inside the bath tub.
3. Take a shower.
White bubbles will spout out.
4. Soak your body in the bath tub.
5. The Product will automatically
stop in 20 minutes.
6. Come out of the bath tub.
7. Rinse.
2. Touch on the Power Button (ON).
Keep a distance of at least 50cm from the Inlet Nozzle Head
to the Outlet Nozzle Head.
To discharge water from the tank when you turn off the Power
button, or after the Auto Stop, the small air pump will operate for
3 minutes. If the water is not completely emptied from the tank,
bubbles will not spout out in following usage.
When air intake is insufficient, bubbles may temporarily
become thinner during use.
Expose the Inlet Nozzle Head
to the air outside of the water to idle.

Y
E
G
A
MV
SPA
-12 / 22 -
For Bubble Shower
To have a brief shower using the bubbles
1. Immerge the Inlet Nozzle Head into the
washing basin or bath tub and run the water.
2. Turn on the Product.
3. Bubbles will spout out from the Outlet
Nozzle Head.
4. Adjust the quantity of water.
5. Hold the Outlet Nozzle Head to wash hair or have a bubble shower.

Y
E
G
A
MV
SPA
-13 / 22 -
Precautions for Use
To disassemble the Nozzle Head
for cleaning
All parts in the correct order
Do not operate the
Product whilst leaving
the Inlet Nozzle Head
outside of water.
Care of the Nozzle Head
Floating matter during bathing Distance between the Inlet and the
Outlet Nozzle Heads
For proper and best use of the Product, please observe the following.
Hold the Nozzle Head and
the Head Cover and
bend down to open.
Each part of the Inlet and
Outlet Nozzle Heads must
be assembled in the correct
order. (see Page 9)
Take care not to block the Inl
et and Outlet Nozzle Heads.
Keep a distance of at least
50cm between the Inlet
and Outlet Nozzle Heads.
Allow the water to overflow
in order to remove
floating matter.

Y
E
G
A
MV
SPA
-14 / 22 -
To Clean
To clean each part of the
Nozzle Head
1. To Clean the Inlet Nozzle Head
Use a tooth brush or a soft brush to
clean the stainless steel filter. (prior to use)
SUS 망사
2. To Clean the Outlet Nozzle Head
Separate the parts of the Outlet Nozzle Head and use a
tooth brush or a soft brush to clean each part.
Assemble the parts in the correct order after cleaning. (see Page 9)
To Clean the Main Body
To avoid damage or scratching, observe the following
Clean the Product with a soft wet cloth for general cleaning.
Use a small amount of neutral detergent to clean. Use a wet cloth
to clean off.
Remove the power plug from the power socket before cleaning.
Do not clean the Product with harsh bathroom or household detergents,
benzene, thinner, cleanser or nylon scrubber to avoid damage
to the Main Body.
SUS Screen
Warning
Caution

Y
E
G
A
MV
SPA
-16 / 22 -
No bubble
s spouting
during use
•Check if the Nozzle Head is out of the water
during use.
Expose the Inlet Nozzle Head to the air
outside water to idle for
about 20 seconds.
Water
coming ou
t from the
bottom of
the Main
Body
•A little amount of water may come out from the bottom of the Main Body during use.
This is normal as the water circulates with the air during the automatic pressure control
inside the pressure tank in the Main Body.
Check Point
Problem Trouble Shooting

Y
E
G
A
MV
SPA
-17 / 22 -
Product Specification
1
2
3
4
5
DC 40V
POWER
90W
Consumption
4+-0.5 L/MIN
Standard Flow
20 MIN
Bath Time Setting
GERNERAL HOUSEHOLD
BATHTUB, 200 L
Bathtub
5 ~ 40 ℃
Water Temp.
W390 * D200 * H290
Dimension
7Kg
Weight
6
7
8
The Product specification and design may be subject to change without prior notice .

Y
E
G
A
MV
SPA
-18 / 22 -
Consumer Indemnity
Type of Consumer Injuries Relief
Within warranty Outside warranty
In case of
normal
breakdown
or
malfunction
under
normal use
(within the
warranty
period)
If major repair is necessary within 10 days after purchase Replacement or refund
If repair on major parts is necessary within 1 month after pur
chase Replacement
If the replaced product requires major repair within 1 month
Refund
If replacement is impossible
If there is a defect Complimentary repair service
If the same defect reoccurs after repair (on the 4th defect)
Replacement
or
Refund
If defects keep occurring after 4 repairs in total (on the 5th d
efect)
If the product becomes irreparable
If product repair is unfeasible due to lack of parts for repair Refund the depreciated
value plus 10% of that
value
If the product returned to a retailer for repair gets lost
If damage occurs during transit or installation after purchase Replacement
Product breakd
own or malfunc
tion due to con
sumer’s acciden
tal or intentiona
l act
If the product is repairable Chargeable repair service
If the product is irreparable due to no parts for repair in stock Replacement after deducting the
value equivalent to the chargeabl
e repair service
•breakdown due to force majeure (fire, sea water, earthquake, storm/flood)
•replacement of consumable parts for normal wear and tear
•breakdown due to faulty power supply or connector
•breakdown due to external factors other than the defects on the product itself
•breakdown due to unauthorized repair or alteration
Chargeable repair service Chargeable repair ser
vice

Y
E
G
A
MV
SPA
-19 / 22 -
Ministry of Strategy & Finance
Consumers’ Rights
Consumers have valuable rights to complimentary services for a period of one year
from the date of purchase against Product breakdown during use. If however
the breakdown is due to consumers’ own fault or force majeure, repair services will be
charged even during the warranty period
Chargeable Services
After-sales services will be provided at cost even during the warranty period
if the breakdown is due to one of the following:
1. If foreign materials (such as water, drink or small object) get inside the Product
2. If the Product is dropped or subject to severe impact
3. If the Product is exposed to abrasive solvents such as thinner or benzene
4. If non-genuine parts or consumables are used
5. If incorrect electricity voltages are applied
6. If parts or components are lost or damaged by unauthorized disassembly
7. If the product is altered or repaired by an unauthorized technician
8. If the product is damaged due to force majeure (lightening, fire, storm/flood, gas, sea water, earthquake, etc)
9. If the “safety warnings” in the User’s Manual are not observed
(Product life can be extended if the “safety warnings” are duly observed.)
10. If the breakdown is due to users’ fault

Y
E
G
A
MV
SPA
-20 / 22 -
Product Name: Nano/Micro Bubbler (for home use)
Model Name :
Date of Purchase :
Name of Customer: Tel: Address:
Name of Retailer: Tel: Address:
1. Please fill out all necessary data before giving to the customer.
2. This Customer Card should be retained by the Retailer for Customer Care.
Others:
Customer Card Warranty
is 1 year

Y
E
G
A
MV
SPA
-21 / 22 -
Product Name: Nano/Micro Bubbler (for home use)
Model Name :
Date of Purchase:
Name of Customer: Tel: Address:
Name of Retailer: Tel: Address:
Please keep this Warranty safe as you will be asked to show
this Warranty at the time of claiming your After Sales Services.
1. The Company provides the Product warranty in accordance with the terms and conditions of the Warranty.
2. The warranty period takes effect from the date of purchase. Please ensure that the date of
purchase is written in the Warranty. (If the date of purchase is not shown, the warranty period shall be
deemed to be effective as of 6 months from the date of manufacture.)
3. If the Product is used for commercial use (for sales purposes or for other use), or the product is
for industrial use, then the warranty period shall be shortened to 6 months.
4. This Warranty shall not be reproduced.
Product Warranty
