MW BETA Series User manual

1 / 14
BETA series
Model:
BETA 12K WIFI
BETA-installation-manual-EN-
R1 27.07.2020
SPLIT TYPE INVERTER AIR-CONDITIONER
BETA series
Models: BETA 12K WIFI
INSTALLATION MANUAL
Obrázek n ejde zobrazit.

2 / 14
BETA series
Model:
BETA 12K WIFI
BETA-installation-manual-EN-
R1 27.07.2020
TABLE OF CONTENTS
1.Sellecting the installation place ...................................................................................................................... 3
1.1.Indoor unit ................................................................................................................................................ 3
1.2.Outdoor unit ............................................................................................................................................. 3
1.3.Installation diagram .................................................................................................................................. 3
2.Installation of the indoor unit ......................................................................................................................... 4
2.1.Installation of the mounting plate ............................................................................................................ 4
2.2.Drilling a hole in the wall for the piping ................................................................................................... 4
2.3.Electrical connections indoor unit ............................................................................................................ 4
2.4.Refrigerant piping connection .................................................................................................................. 5
2.5. onnections to the indoor unit ................................................................................................................. 5
2.6.Indoor unit condensed water drainage .................................................................................................... 5
3.Installation of the outoor unit ........................................................................................................................ 6
3.1.Outdoor unit condensed water drainage (only for heat pump models) .................................................. 6
3.2.Electrical connections ............................................................................................................................... 6
3.3. onnecting the pipes ................................................................................................................................ 7
3.4.Bleeding .................................................................................................................................................... 7
4.Operation test ................................................................................................................................................. 8
4.1.Indoor unit test ......................................................................................................................................... 8
4.2.Outdoor unit test ...................................................................................................................................... 8
5.Infromation for the installer ........................................................................................................................... 9
5.1.Tightening torque for protection caps and flange connection ................................................................. 9
5.2.Wiring diagram ........................................................................................................................................ 10
6. able wires specification .............................................................................................................................. 11
6.1.Air conditioner indoor unit fuse parameter is ........................................................................................ 11
6.2.Air conditioner indoor unit fuse parameter is ........................................................................................ 11
6.3.Air conditioner outdoor unit fuse parameter is ..................................................................................... 11
6.4.Air conditioner outdoor unit fuse parameter is ..................................................................................... 11
7.Maintenance ................................................................................................................................................. 12
7.1.Indoor unit .............................................................................................................................................. 12
7.2. leaning the heat exchanger: ................................................................................................................. 12
7.3.End of season maintenance: ................................................................................................................... 12
8.Troubleshooting ............................................................................................................................................ 13
8.1.Possible faults ......................................................................................................................................... 13
8.2.Switch off the air conditioner immediatley and cut off the power supply in the event of .................... 14
8.3.Error signals on the display ..................................................................................................................... 14

3 / 14
BETA series
Model:
BETA 12K WIFI
BETA-installation-manual-EN-
R1 27.07.2020
Obrázek n ejde
zobrazit.
1. S ELLECTING THE INSTALLATION PLACE
1.1. I NDOOR UNIT
• Install the indoor unit on a strong wall that is not subject to
vibrations.
• The in let and outlet ports should no be obstructed: the air
should be able to blow all over the room.
• Do not install the unit near a source of heat, steam, or
flammable gas.
• Install the unit near an electric socket or private circuit.
• Do not install the unit where it will be exposed to direct
sunlight.
• Select a site where the condensed water can be easily
drained out, and where it is easily connected to outdoor
unit.
• heck the machine operation regularly and reserve the
necessary spaces as shown in the picture.
•
Select a place where the fiter can be easly taken out.
1.2. O UTDOOR UNIT
• Do not install the outdoor unit near sources of heat, steam
or flammable gas.
• Do not install the unit in too windy or dusty places.
• Do not install the unit where people often pass. Select a
place where the air discharge and operating sound will not
disturb the neighbours.
• Avoid installing the unit where it will be exposed to direct
sunlight (other wise use a protection, if necessary, that
should not interfere with the air flow).
• Reserve the spaces as shown in the picture for the air to
circulate freely.
• Install the outdoor unit in a safe and solid place.
• If the outdoor unit is subject to vibration, place rubber
gaskets onto the feet of the unit.
1.3. I NSTALLATION DIAGRAM
The purschaser must ensure that the person and/or company
who is to install maintain or repair this air conditioner has
qualifications and experience in refrigerant products.

4 / 14
BETA series
Model:
BETA 12K WIFI
BETA-installation-manual-EN-
R1 27.07.2020
Obrázek n ejde
zobrazit.
Obrázek n ejde
zobrazit.
Obrázek n ejde
zobrazit.
Obrázek n ejde
zobrazit.
2. I NSTALLATION OF THE INDOOR UNIT
Before staring installation, dcide on the position of the indoor and outdoor units, takin into account the minium space reserved
around the units.
• Do not install your air conditioner in a wet room such as a
bathroom or laundry etc.
• The installation site should be 250cm or more above the
floor.
2.1. I NSTALLATION OF THE MOUNTING PLATE
1. Always mount the rear panel horizontally and vertically.
2. Drill 32mm deep holes in the wall to fix the plate.
3. Insert the plastic anchors into the hole.
4. Fix the rear panel on the wall with provided tapping screws.
5. Be sure that the rear panel has been fixed firmly enouh to
withsstand the weight.
• The shape of the mounting plate may be different from the
one above, but installation method is similar.
2.2. D RILLING A HOLE IN THE WALL FOR THE PIPING
1. Make the piping hole ( ø 55) in the wall at a slight
downward slant to the outdoor side.
2. Insert the piping-hole sleeve into the hole to prevent the
connection piping and writing from being damaged when
passing through the hole.
• The hole must slope downwards towards the exterior.
• Keep the drain pipe down towards the direction of the wall hole,
otherwise leakage may occur.
2.3. E LECTRICAL CONNECTIONS INDOOR UNIT
1. Open the fron panel.
2. Take off the cover as indicated in the picture (by removing
a screw or breaking the hooks).
3. Fot the electrical connections, see the circuit diagram on
the right part of the unit under the front panel.
4. onnect the cable wires to the screw terminals by
fallowing the numbering. Use wire size suitable to electric
power input (see name plate on the unit) and according to
all current national safety code requirements.
• An efficient earth connection must be ensured. ptional the wires can been connected to the main PCB of indoor
unit by manufacturer according to the model without terminal block.

5 / 14
BETA series
Model:
BETA 12K WIFI
BETA-installation-manual-EN-
R1 27.07.2020
2.4. R EFRIGERANT PIPING CONNECTION
The piping can be run in the 3 directions indicated by numbers in
the picture. When the piping is run in direction 1 or 3, cut a notch
along the groove on the side of the indoor unit with a cutter.
Run the piping in the direction of the wall hole and bind the
copper pipes, the drain pipe and the power cables together with
the tape with the drain pipe at the bottom, so that water can flow
freely.
• Do not remove the cap from the pipe until connecting it,
to avoid dampness or dirty from entering.
• If the pipe is bent or pulled too often, it will become stiff.
Do not bend the pipe more than three times at on point.
• When extending the rolled pipe, straighten the pipe by
unwinding it gently as shown in the picture.
2.5. C ONNECTIONS TO THE INDOOR UNIT
1. Remove the indoor unit pipe cap (check that there is no
debris inside).
2. Insert the fare nut and create a flange at the extreme end
of the connection pipe.
3. Tighten the connections by using two wrenches working
in opposite directions.
2.6. I NDOOR UNIT CONDENSED WATER DRAINAGE
The indoor unit condensed water drainage is fundamental for the
success of the installation.
1. Place the drain hose below the piping, taking care not to
create siphos.
2. The drain hose must slant downwards to aid drainage.
3. Do not bend the drain hose or leave it protruding or
twiested and do not put the end of it in water. If an
extension is connected to the drain hose, ensure that it is
lagged when it passes into the indoor unit.
4. If the piping is installed to the right, the pipes, power
cable and drain hose must be lagged and secured onto
the rear of the unit with a pipe connection.

6 / 14
BETA series
Model:
BETA 12K WIFI
BETA-installation-manual-EN-
R1 27.07.2020

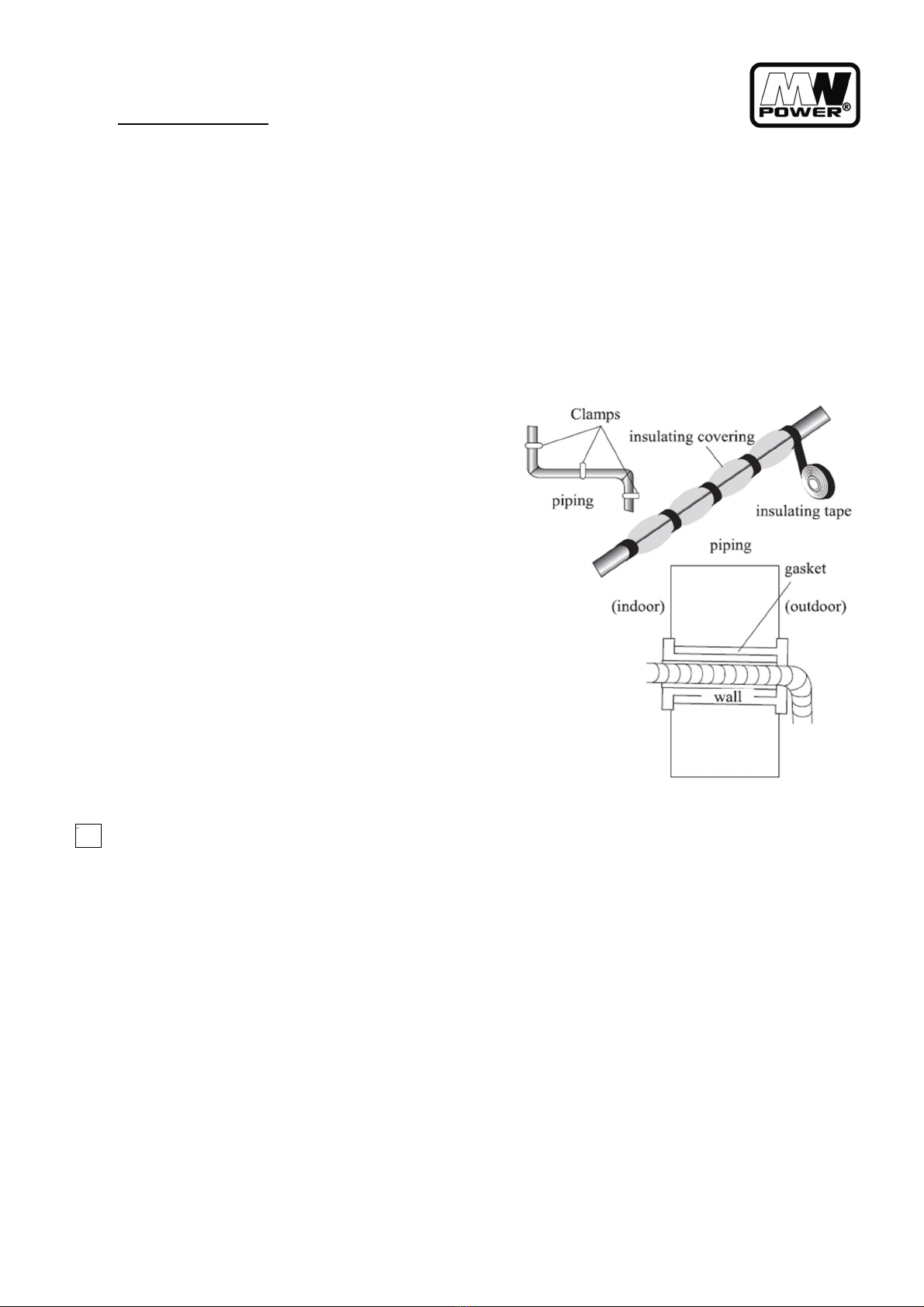

After having connected the pipe according to the instructions,
install the connection cables. Now install the drain pipe. After
connection, lag the pipe, cables and drain pipe with the insulating
material.
1. Arrange the pipes, cables and drain hose well.
2. Lag the pipe joints with insulating material, securing it
with vinyl tape.
3. Run the bound pipe, cables and drain pipe through the
wall hole and mount the indoor unit onto the upper part
of the mounting plate securely.
4. Press and push the lower part of the indoor unit thightly
against the mounting plate.
3. I NSTALLATION OF THE OUTOOR UNIT
• The outdoor unit should be installed on a solid wall and fastened securely.
• The fallowing procedure must be observed before connecring the pipes and connecring cavles:
decide which is the best position on the wall and leave enough space to be able to carry out
maintenance easily.
• Fasten the support to the wall using screw anchors which are particularly suited to the type of
wall.
• Use a larger quantity of screw anchors the normally rquired for the weight they have to bear to
avoid vibration during operation and remain fastened in the same position for years without the
screws becoming loose.
• The unit must be installed following the national regulations.
3.1. O UTDOOR UNIT CONDENSED WATER DRAINAGE ( ONLY FOR HEAT PUMP MODELS )
The condensed water and the ice formed in the outood unit during
heating operation can be drained away through the drain pipe.
1. Fasten the drain port in the 25mm hole placed in the part
of the unit as shown in the picture.
2. onnect the drain port and the drain pipe. Pay attention
that water is drained in a suitable place.
3.2. E LECTRICAL CONNECTIONS
1. Remove the handle on the right side plate of outdoor unit.
2. onnect the power connection cord to the terminal board.
Wiring should fit that of indoor unit.
3. Fix the power connection cord with wire clamp.
4. onfirm if the wire has been fixed properly.
5. An efficient earth connection must be ensured.

7 / 14
BETA series
Model:
BETA 12K WIFI
BETA-installation-manual-EN-
R1 27.07.2020
6. Recover the handle.
3.3. C ONNECTING THE PIPES
Screw the flare nuts to the outdoor unit coupling with the same
tightening procedures described for the indoor unit. To avoid
leakage, pay attention to the following points:
1. Tighten the flare nuts using two wrenches. Pay attention
not to damage the pipes.
2. If the tightening torque is not sufficient , there will
probably be some leakage. With excessive tightening
torque there will also be some leakage, as the flange could
be damaged.
3. The surest system consists in tightening the connection by
using a fix wrench and a torque wrench:in this case use the
table on page 10.
3.4. B LEEDING
Air and humidity left inside the refrigerant circuit can cause
compressor malfunction. After having connected the indoor and
outdoor units, bleed the air and humidity from the refrigerant
circuit by using a vacuum pump.
1. (1) Unscrew and remove the caps from the 2–way and 3–
way valves.
2. (2) Unscrew and remove the cap from the service port.
3. (3) onnect the cauum pump hose to the service port.
4. (4) Operate the caum pump for 10-15 minutes until an
absolute vacuum of 10mm Hg has been reached.
5. (5) With the vacuum pump still in operation, close the low
-pressure knob on the vacuum pump coupling. Stop the
vacuum pump.
6. (6) Open the 2-way valve by 1/4 turn and then close it
after 10 seconds. heck all the joints for leaks using liquid
soap or an electronic leak device.
7. (7) Turn the body of the 2-way and 3-way valves.
Disconnect the vacuum pump hose.
8. (8) Replace and tighten all the caps on the valves.

8 / 14
BETA series
Model:
BETA 12K WIFI
BETA-installation-manual-EN-
R1 27.07.2020
Obrázek n ejde
zobrazit.
4. O PERATION TEST
1. Wind insulating covering around the joints of the indoor unit
and fix it with insulating tape.
2. Fix the exceeding part of the signal cable to the piping or to
the outdoor unit.
3. Fix the piping to the wall (after having coated it with
insulating tape) using clamps or insert them into plastic slots.
4. Seal the hole in the wall through which the piping is passed
so that no air or water can fill.
4.1. I NDOOR UNIT TEST
• Do the ON/OFF and FAN operate normally?
• Does the MODe operate normally?
• Do the set point and TIMER function properly?
• Does each lamp light normally?
• Do the flap for air flow direction operate normally?
•
Is the condensed water drained regularly?
4.2. O UTDOOR UNIT TEST
• Is there any abnormal noise or vibration durin operation?
• ould the noise, the air flow or the condensed water
drainage disturb the neighbours?
•
Is there any coolant leakage?
• The electronic controller allows the compressor to start only three minutes after voltage has reached the system.

9 / 14
BETA series
Model:
BETA 12K WIFI
BETA-installation-manual-EN-
R1 27.07.2020
5. I NFROMATION FOR THE INSTALLER
INVERTER TYPE
CAPACITY (Btu/ ) 9K/12K 22/24K
Lenght of pipe with standard charge
4m
4m
Maximum distance between indoor and
outdoor unit
15m 15m
Additional refrigerant charge 15g/m 25g/m
Max. Diff. In level between indoor and outdoor
unit 5m 5m
Type of refrigerant R32/R290 R32/R290
5.1. T IGHTENING TORQUE FOR PROTECTION CAPS AND FLANGE CONNECTION
PIPE TIGHTENING TORQUE
[N x m]
CORRESPONDING STRESS
(using a 20cm wrenc ) TIGHTENING TORQUE [N x m]
1/4"
( φ 6) 15-20 Wirst strength Service port nut 7-9
3/8"
( φ 9.52) 31-35 Arm strength Protection caps 25-30
1/2"
( φ 12) 35-45 Arm strength
5/8"
( φ 15.88) 75-80 Arm strength

10 / 14
BETA series
Model:
BETA 12K WIFI
BETA-installation-manual-EN-
R1 27.07.2020
Obrázek n ejde
zobrazit.
5.2. W IRING DIAGRAM
For different models, the wiring diagram may be different. Please refer to the wiring diagrams pasted on the indoor unit and
outdoor unit respectively.
• On idoor unit, the wiring diagram is pasted under the front panel.
•
On outdoor unit, the wiring diagram is pasted on the backside of the outdoor handle cover.
• For some models the wires has been connected to the main PCB of indoor unit by manufacturer without terminal

11 / 14
BETA series
Model:
BETA 12K WIFI
BETA-installation-manual-EN-
R1 27.07.2020
block.
6. C ABLE WIRES SPECIFICATION
INVERTER TYPE
CAPACITY (Btu/ )
10K 12K 18/22K 24K
Sectional Area
Power supply cable
N
1.0mm
2
(1.5mm
2
)
AWG18
(AWG16)
1.0mm
2
(1.5mm
2
)
AWG18
(AWG16)
(1.5mm
2
)
AWG16
(1.5mm
2
)
AWG14
L
1.0mm
2
(1.5mm
2
)
AWG18
(AWG16)
1.0mm
2
(1.5mm
2
)
AWG18
(AWG16)
(1.5mm
2
)
AWG16
(1.5mm
2
)
AWG14
E
1.0mm
2
(1.5mm
2
)
AWG18
(AWG16)
1.0mm
2
(1.5mm
2
)
AWG18
(AWG16)
(1.5mm
2
)
AWG16
(1.5mm
2
)
AWG14
Connection supply cable
N 1.0mm
2
(1.5mm
2
)
1.0mm
2
(1.5mm
2
) 1.5mm
2
0.75mm
2
L 1.0mm
2
(1.5mm
2
)
1.0mm
2
(1.5mm
2
) 1.5mm
2
0.75mm
2
1 1.0mm
2
(1.5mm
2
)
1.0mm
2
(1.5mm
2
) 1.5mm
2
0.75mm
2
1.0mm
2
(1.5mm
2
)
1.0mm
2
(1.5mm
2
) 1.5mm
2
0.75mm
2
6.1. A IR CONDITIONER INDOOR UNIT FUSE PARAMETER IS
• 220V 7K, 9K, 12K, 15K, 16K, 18K, 22K, 24K, 30K = 50T, 3.15A
6.2. A IR CONDITIONER INDOOR UNIT FUSE PARAMETER IS
• 110V 7K, 9K, 12K = 50T, 3.15A
6.3. A IR CONDITIONER OUTDOOR UNIT FUSE PARAMETER IS
• 125V 7K, 9K, 12K = 61T, 15A

12 / 14
BETA series
Model:
BETA 12K WIFI
BETA-installation-manual-EN-
R1 27.07.2020
6.4. A IR CONDITIONER OUTDOOR UNIT FUSE PARAMETER IS
• 250V 18K, 22K, 24K = 65TS, 25A
7. M AINTENANCE
Periodic maintenance is essential for keeping your air conditioner efficient.
Before carrying out any maintenance, disconnect the power supply by taking the plug out from the socket.

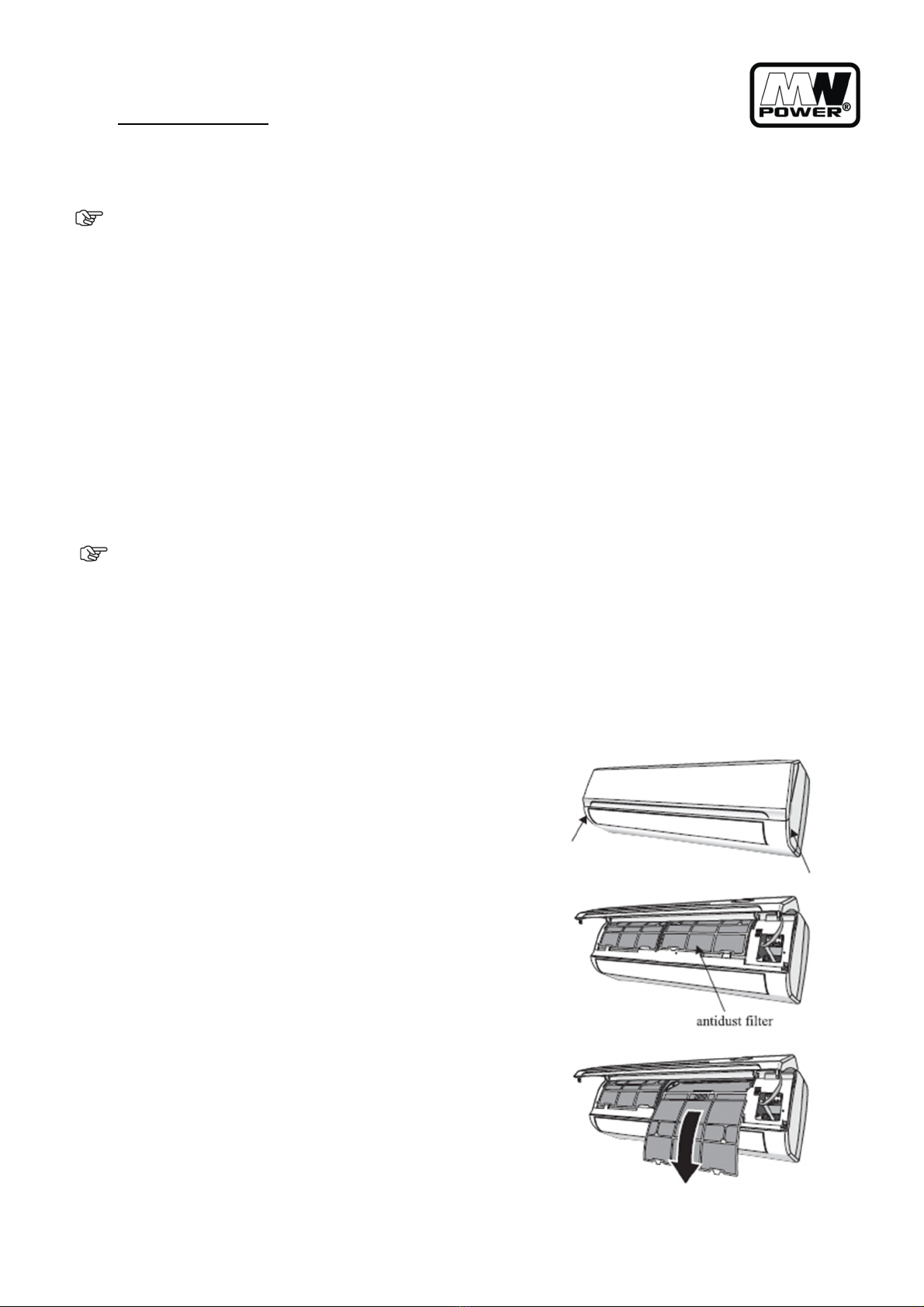

.1. I NDOOR UNIT
• Antidust filters
1. Open the fron panel fallowing the direction of the arrow.
2. Keeping the front panel raised with one hand, take out the
air filter with the other hand.
3. lean the filter with water if the filter is soiled with oil, it can
be washed with warm water (not exceeding 45° ). Leave to
dry in a cool and fry place.
4. Keeping the front panel raised with one hand, insert the air
filter with the other hand.
5. lose.
The electrostatic and the deodorant filter (if installed) cannot be
washed or regenerated and must be replaced with new filters after
every 6 months.
.2. C LEANING THE HEAT EXCHANGER :
1. Open the fron panel of the unit and life it till its greatest
stroke and then unhooking it form the hinges to make the
cleaning easier.
2. lean the indoor unit using a cloth with the water (not
higher than 40° ) and neutral soap. Never use aggressive
solvents or detergents.
3. If the outdoor unit is clogged, remove the leaves and the
waste and remove the dust with air jet or a it of water.
.3. E ND OF SEASON MAINTENANCE :
• Disconnect the automatic switch or the plug.
• lean and replace the filters.
• On a sunny day let the conditioner work in ventilation for
some hours, so that the inside of the unit can dry
completely.

13 / 14
BETA series
Model:
BETA 12K WIFI
BETA-installation-manual-EN-
R1 27.07.2020
8. T ROUBLESHOOTING
8.1. P OSSIBLE FAULTS
Case Possible cause
Device doesn't work
A power failure / defective plug has occurred
Indoor / outdoor unit fan motor damaged
ompressor thermomagnetic switch defective
Defective protective device or fuses
Too loose connections or plug
Automatic off device, self-protection function
Higher or higher voltage than recommended
TIMER ON function active
Motherboard damage
Strange smell The air filter is dirty
Sound of flowing water Regression liquid in the drain
A slight mist is emitted from the
air outlet
This happens when the air in time becomes very cold,
for example in OOL or DRY modes
Strange noise This noise is caused by expansion or contraction of the front panel due to temperature
changes, not a problem
Insufficient air flow, too hot or
cold
Incorrect temperature setting
The air inlet or outlet of the indoor or outdoor unit is blocked
The air filter is blocked
The fan speed is set to the minimum
Other heat sources in the room
No refrigerant
The device does not respond to
commands
The remote control is not close enough to the indoor unit
Low battery on the remote control
There is an obstacle between the remote control and the signal receiver on the main unit
Display is off LED function active
No power

14 / 14
BETA series
Model:
BETA 12K WIFI
BETA-installation-manual-EN-
R1 27.07.2020
8.2. S WITCH OFF THE AIR CONDITIONER IMMEDIATLEY AND CUT OFF THE POWER SUPPLY IN THE EVENT OF
•
Strange noises furing operation
•
Faulty electronic control board
•
Faulty fuses or switches
•
Spraying wather or objects inside the appliance
•
Overheated cables or plugs
•
Very strong smells coming from the appliance.
8.3. E RROR SIGNALS ON THE DISPLAY
If case of error, t e display on t e indoor unit s own t e following error codes.
ERRORS
E1
Indoor temperature sensor fault
E2
Indoor pipe temperature sensor fault
E3
Outdoor pipe temperature sensor fault
E4
Refrigerant system leakage or fault
E6
Malfunction of indoor fan motor
E
Outdoor air temperature sensor fault
E8
Outdoor discharge temperature sensor fault
E9
Oturdoor IPM module fault
EA
Outdoor current detect fault
EE
Outdoor P B EEPROM fault
EF
Outdoor fan motor fault
EH
Outdoor suction temperature sensor fault
