Kaden KCS Series User manual

Remote
Controller
Manual
CASSETTE AIR CONDITIONER
KCS Series
KCS24 | KCS36 | KCS42 | KCS48
Mode ON/OFF Fan
+
-
Timer Sleep
LED Follow
me
Turbo Short
Cut
Self
clean

Kaden Remote Controller Manual | 3
1. Specications 4
2. Function buttons 4
3. Handling the remote controller 5
Inserting and replacing batteries 5
Installing remote control holder 5
Tips for using remote control 5
4. Remote LCD screen indicators 6
5. Basic functions 7
AUTO operation 7
COOL operation 7
DRY operation (dehumidifying) 8
FAN operation 8
HEAT operation 9
Setting the TIMER function 10
Setting both TIMER ON and TIMER OFF at the same time 11
6. Advanced functions 13
SLEEP function 13
TURBO function 13
SELF CLEAN function 13
LOCK function 14
FOLLOW ME function 14
SWING function 14
Silent function 15
Short cut function 15
Table of contents
Important note
Read this manual carefully before installing
or operating your new air conditioning unit.
Make sure to save this manual for future reference.

4| Kaden Remote Controller Manual
1. Specications
Model RG66A1/BGEF
Rated voltage 3.0V (Dry batteries R03/LR03×2)
Signal receiving range 8m
Environment -5ºC – 60ºC

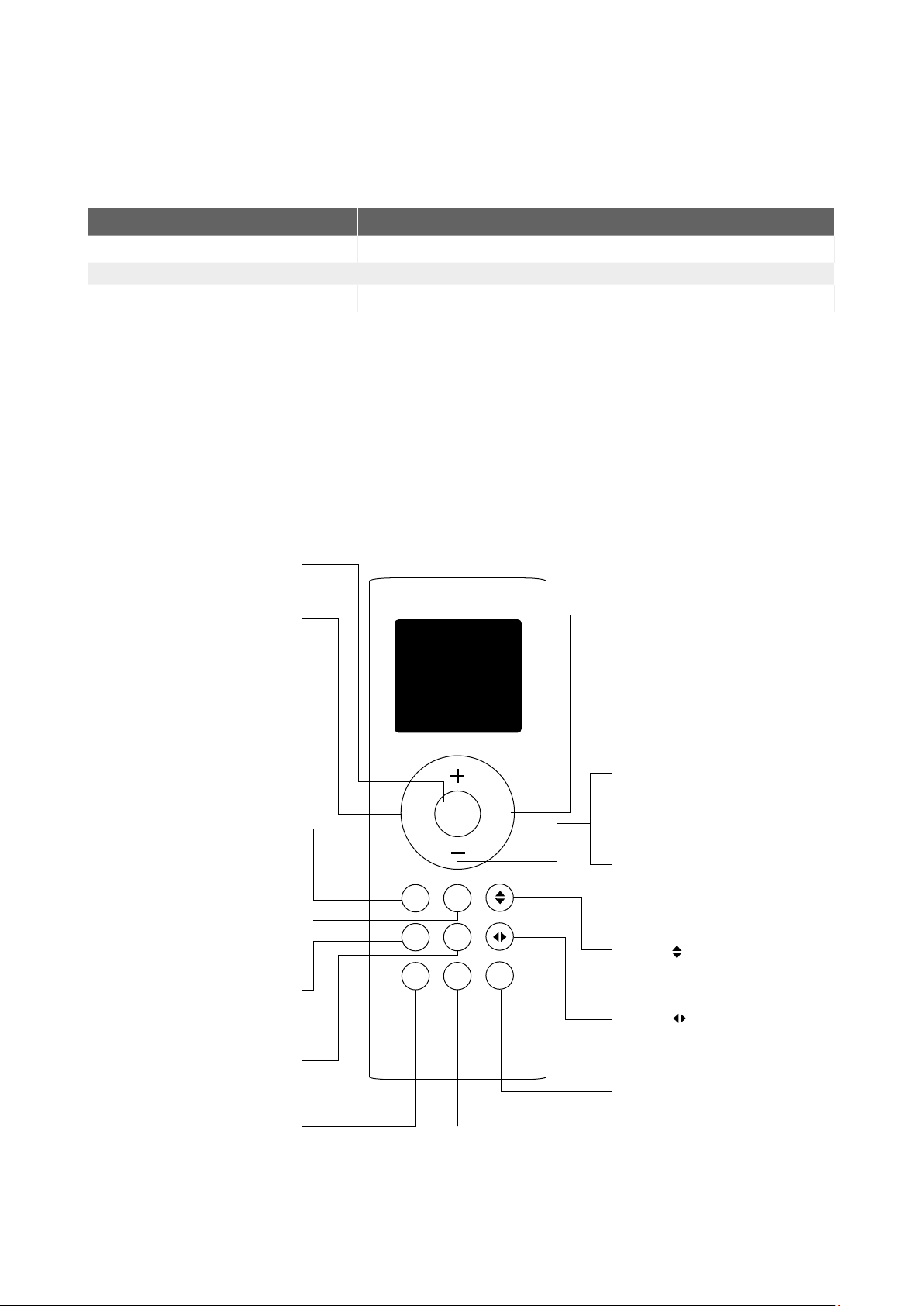

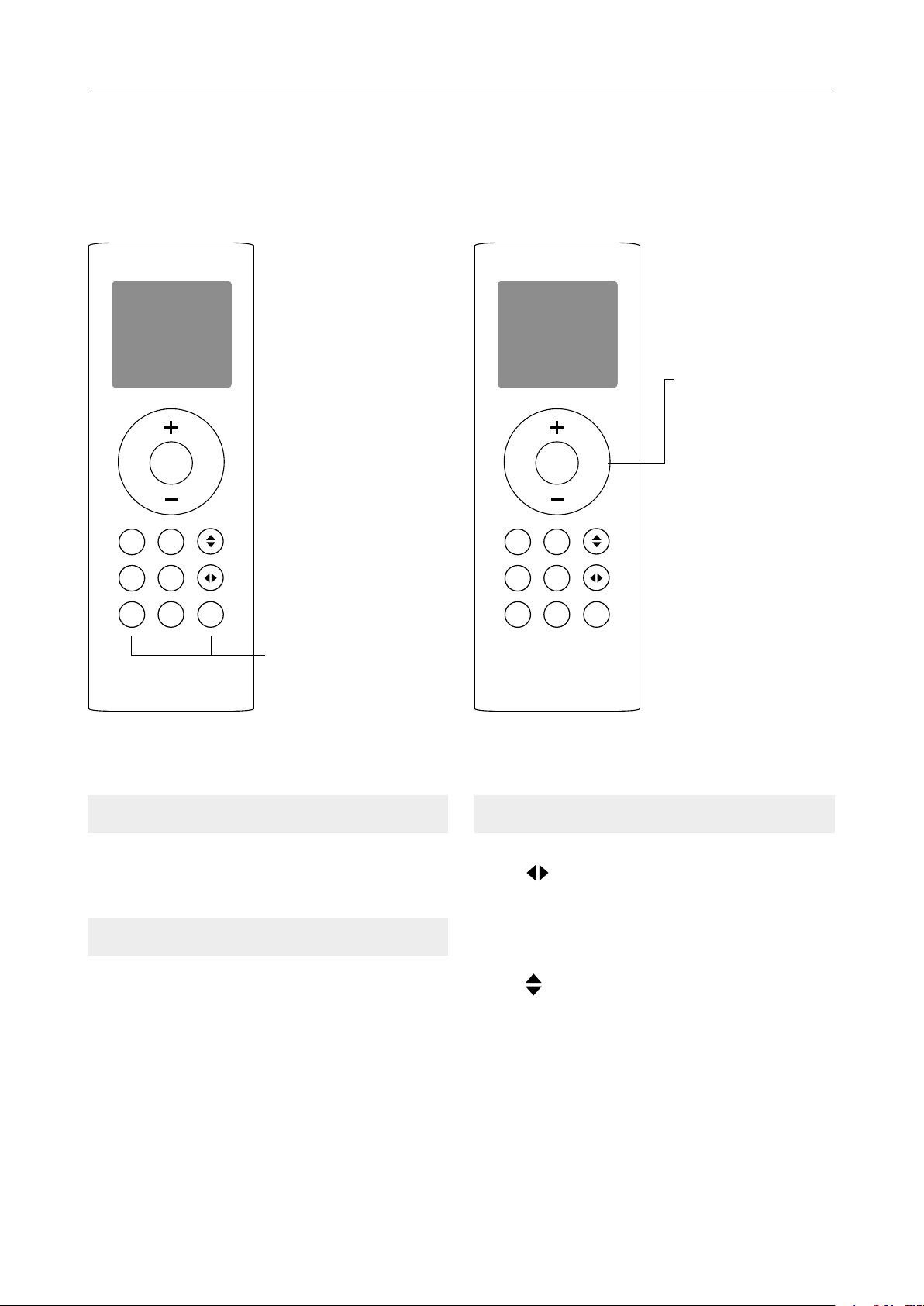

2. Function buttons
Before you begin using your new air conditioner, make sure to familiarise yourself with its remote control. The following
is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the
Basic functions and Advanced functions section of this manual.
Timer Sleep
LED Follow
me
Turbo Short
Cut
Self
clean
Mode FanON/OFF
ON/OFF
Turns the unit on or off
MODE
Scrolls through operation
modes as follows:
AUTO ➞ COOL ➞ DRY
➞ HEAT ➞FAN
TIMER
Set timer to turn unit on and
off (see Basic Functions
for instructions)
SLEEP
Saves energy during
sleeping hours
LED
Turns indoor unit’s LED
display on and off
FOLLOW ME
Temperature sensing and room
temperature display button
TURBO
Enables unit to reach
preset temperature in
shortest possible time
FAN
Scrolls through fan speeds
as follows:
AUTO ➞ LOW ➞
MED ➞HIGH
NOTE: Holding this button
down for 2 seconds will
activate Silent mode
TEMP +
Increases temperature
in 1ºC increments.
(Max. temperature is 30ºC)
TEMP –
Decreases temperature
in 1ºC increments.
(Min. temperature is 17ºC)
SWING
Starts and stops horizontal
louvre movement
SWING
Starts and stops vertical
louvre movement
SELF CLEAN
Starts and stops the
units self-clean feature
SHORT CUT
Sets and activates your
favourite settings

Kaden Remote Controller Manual | 5
3. Handling the remote controller

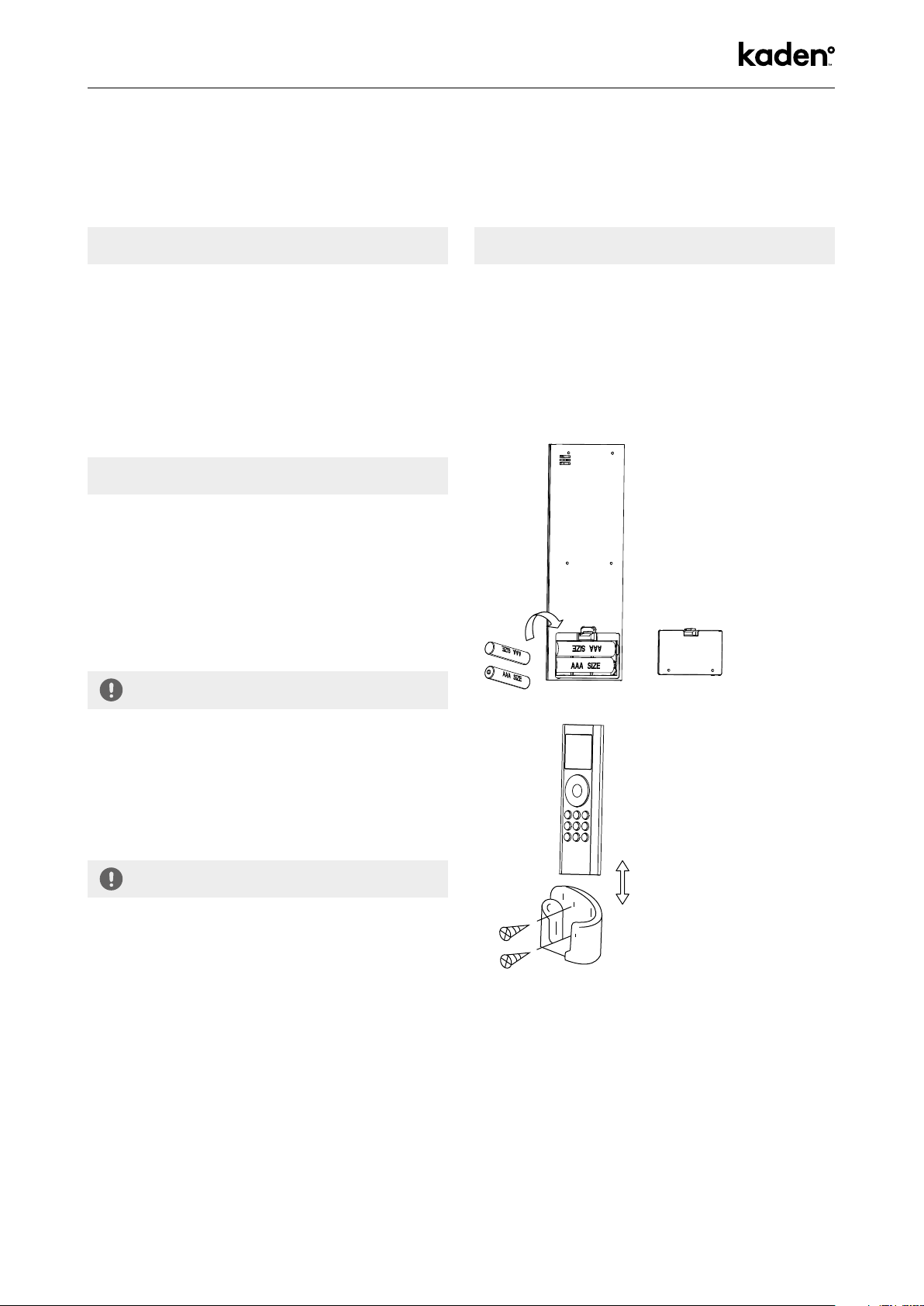

Inserting and replacing batteries
Your air conditioning unit comes with two AAA batteries.
Put the batteries in the remote control before use:
1. Remove the back cover from the remote control, exposing
the battery compartment.
2. Insert the batteries, paying attention to match up the (+)
and (-) ends of the batteries with the symbols.
3. Install the back cover.
Installing remote control holder
The remote controller can be attached to a wall or stand by
using a remote controller holder.
1. Before installing the remote controller, check that the air
conditioner receives the signals properly.
2. Install the holder with two screws.
3. Put the remote controller in the holder.
Battery notes
For optimum product performance:
• Do not mix old and new batteries, or batteries
of different types.
• Do not leave batteries in the remote controller if you don’t
plan on using the device for more than 2 months.
Battery disposal
Do not dispose of batteries as unsorted municipal waste.
Refer to local laws for proper disposal of batteries.
Tips for using remote control
• The remote control must be used within 8 metres
of the unit.
• The unit will beep when remote signal is received.
• Curtains, other materials and direct sunlight can interfere
with the infrared signal receiver.
• Remove batteries if the remote control will not be used
more than 2 months.
Remove the back cover
to install batteries
Put the remote controller
in the holder

6| Kaden Remote Controller Manual

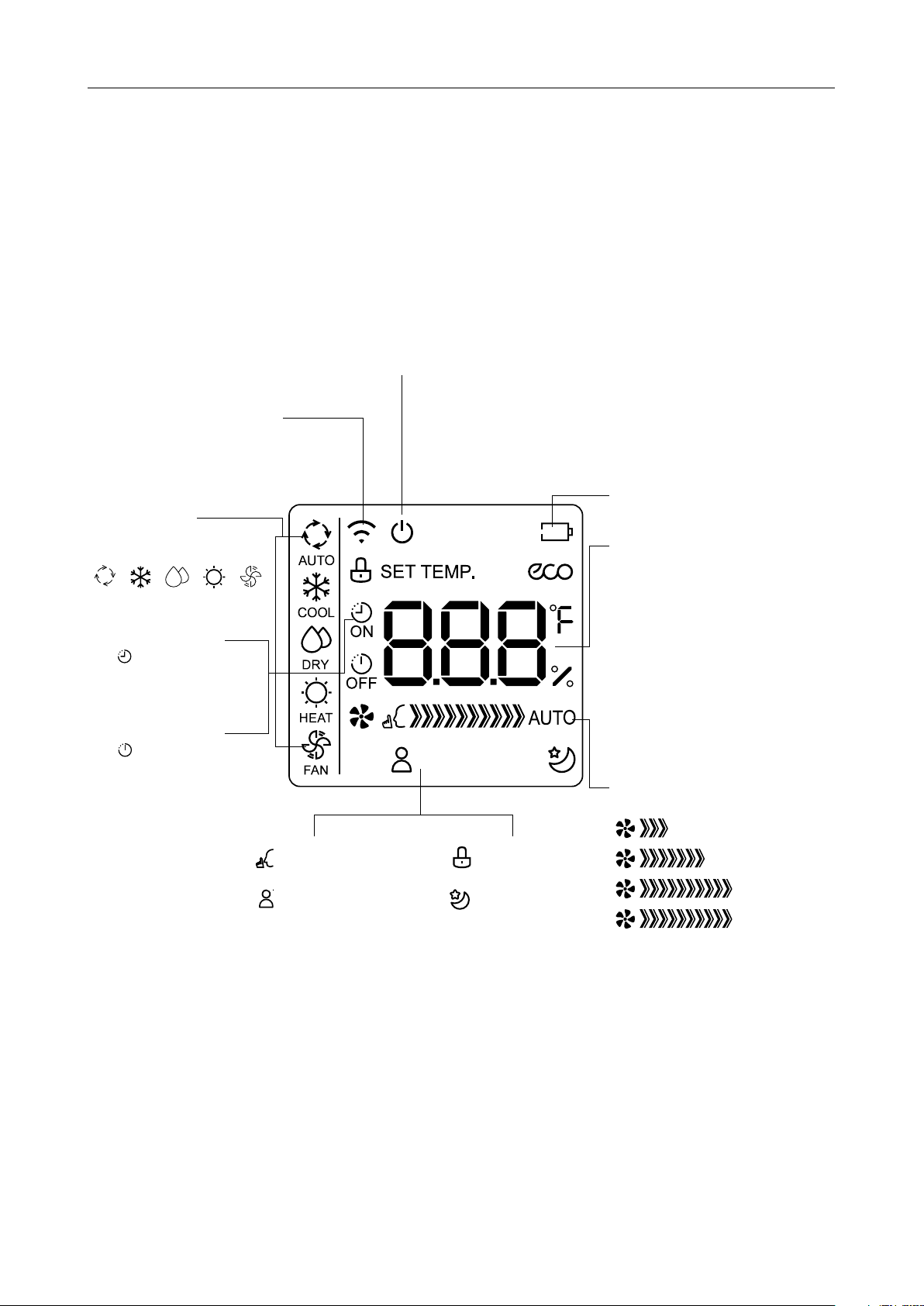

4. Remote LCD screen indicators
Information is displayed when the remote controller is powered up.
ON/OFF display
Appears when the unit
is turned on, and disappears
when the unit is turned off
Transmission indicator
Lights up when
remote sends signal
to indoor unit
MODE display
Displays the current
mode, including:
AUTO COOLAUTO DRY HEAT FAN
TIMER ON display
Displays when TIMER
ON is set
ON
TIMER OFF display
Displays when TIMER
OFF is set
OFF
Silent feature
display
Follow me feature
display
LOCK feature
display
Sleep mode
display
Battery display
Low battery detection
Temperature/Timer display
Displays the set temperature
by default, or timer setting
when using TIMER ON/OFF
function
• Temperature range:
17ºC – 30ºC
• Time setting range:
0 – 24 hours
This display is blank when
operating in FAN mode
Fan speed display
Displays selected fan speed:
Low speed
Medium speed
High speed
AUTO
Auto fan speed
This fan speed can not be adjusted
in AUTO or DRY mode

Kaden Remote Controller Manual | 7
5. Basic functions
AUTO operation
In AUTO mode, the unit will automatically select the COOL,
FAN, HEAT or DRY mode based on the set temperature.
1. Press the MODE button to select Auto mode.
2. Set your desired temperature using the Temp + or
Temp – button.
3. Press the ON/OFF button to start the unit.
NOTE: FAN SPEED can’t be set in Auto mode.
COOL operation
1. Press the MODE button to select COOL mode.
2. Set your desired temperature using the Temp + or Temp –
button.
3. Press the FAN button to select the fan speed.
4. Press the ON/OFF button to start the unit.
Setting temperature
The operating temperature range for units is 17ºC – 30ºC.
You can increase or decrease the set temperature in
1ºC increments.
Mode
Timer Sleep
LED Follow
me
Turbo Short
Cut
Self
clean
FanON/OFF
Mode
Timer Sleep
LED Follow
me
Turbo Short
Cut
Self
clean
FanON/OFF
3
12
4
12
3

8| Kaden Remote Controller Manual
DRY operation (dehumidifying)
1. Press the MODE button to select DRY mode.
2. Set your desired temperature using the Temp + or Temp –
button.
3. Press the ON/OFF button to start the unit.
NOTE: FAN SPEED can’t be set in DRY mode.

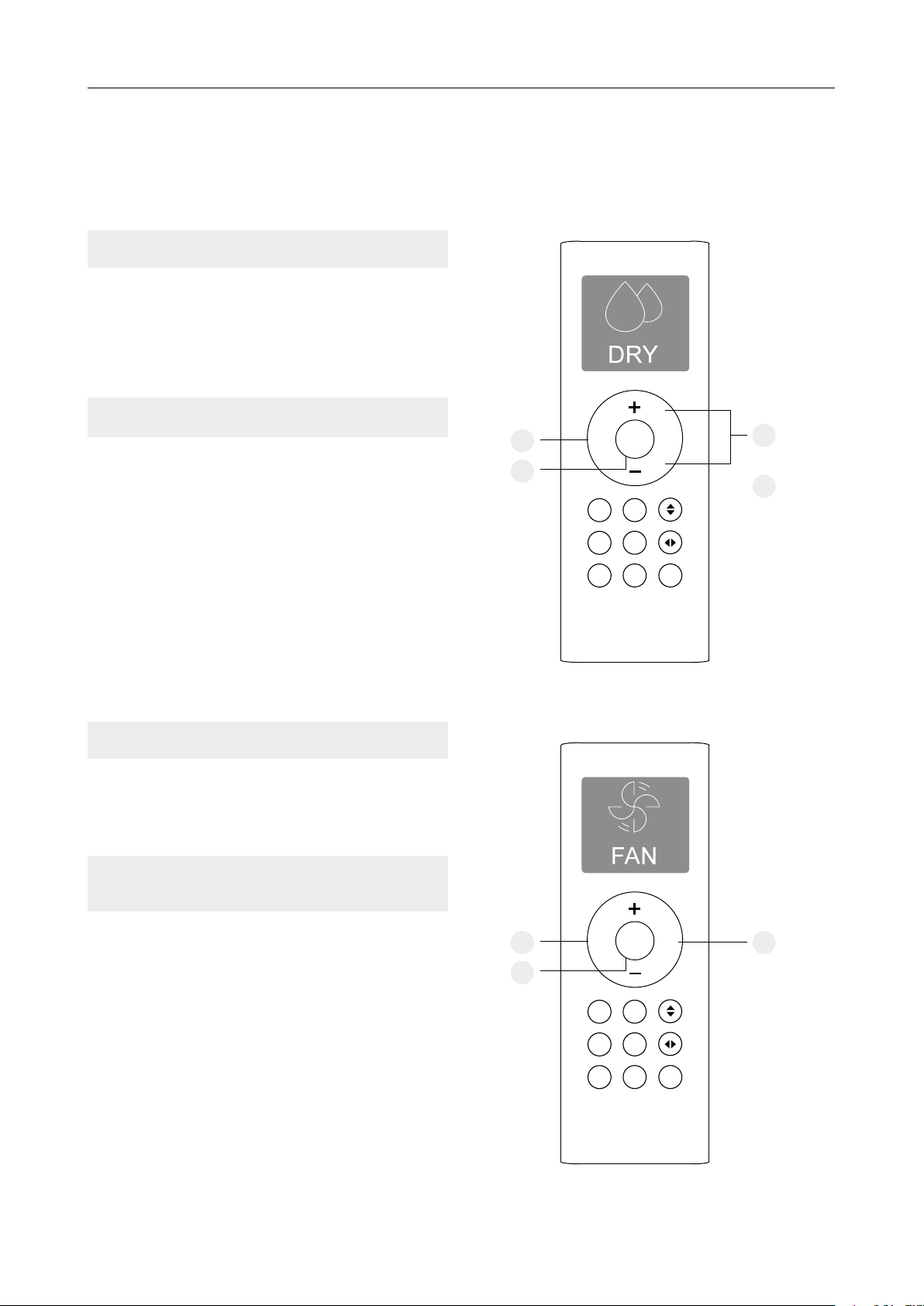

FAN operation
1. Press the MODE button to select FAN mode.
2. Press the FAN button to select the fan speed.
3. Press the ON/OFF button to start the unit.
NOTE: You can’t set temperature in FAN mode. Your
remote control’s LCD screen will not display temperature.
Mode
Timer Sleep
LED Follow
me
Turbo Short
Cut
Self
clean
FanON/OFF
Mode
Timer Sleep
LED Follow
me
Turbo Short
Cut
Self
clean
FanON/OFF
12
33
1
3
2

Kaden Remote Controller Manual | 9
HEAT operation
1. Press the MODE button to select heat mode.
2. Set your desired temperature using the Temp + or Temp -
button.
3. Press the FAN button to select the fan speed.
4. Press the ON/OFF button to start the unit.
NOTE: As outdoor temperature drops, the performance
of your unit’s HEAT function may be affected. In such
instances, we recommend using this air conditioner in
conjunction with other heating appliances.
Mode
Timer Sleep
LED Follow
me
Turbo Short
Cut
Self
clean
FanON/OFF
12
433

10 | Kaden Remote Controller Manual

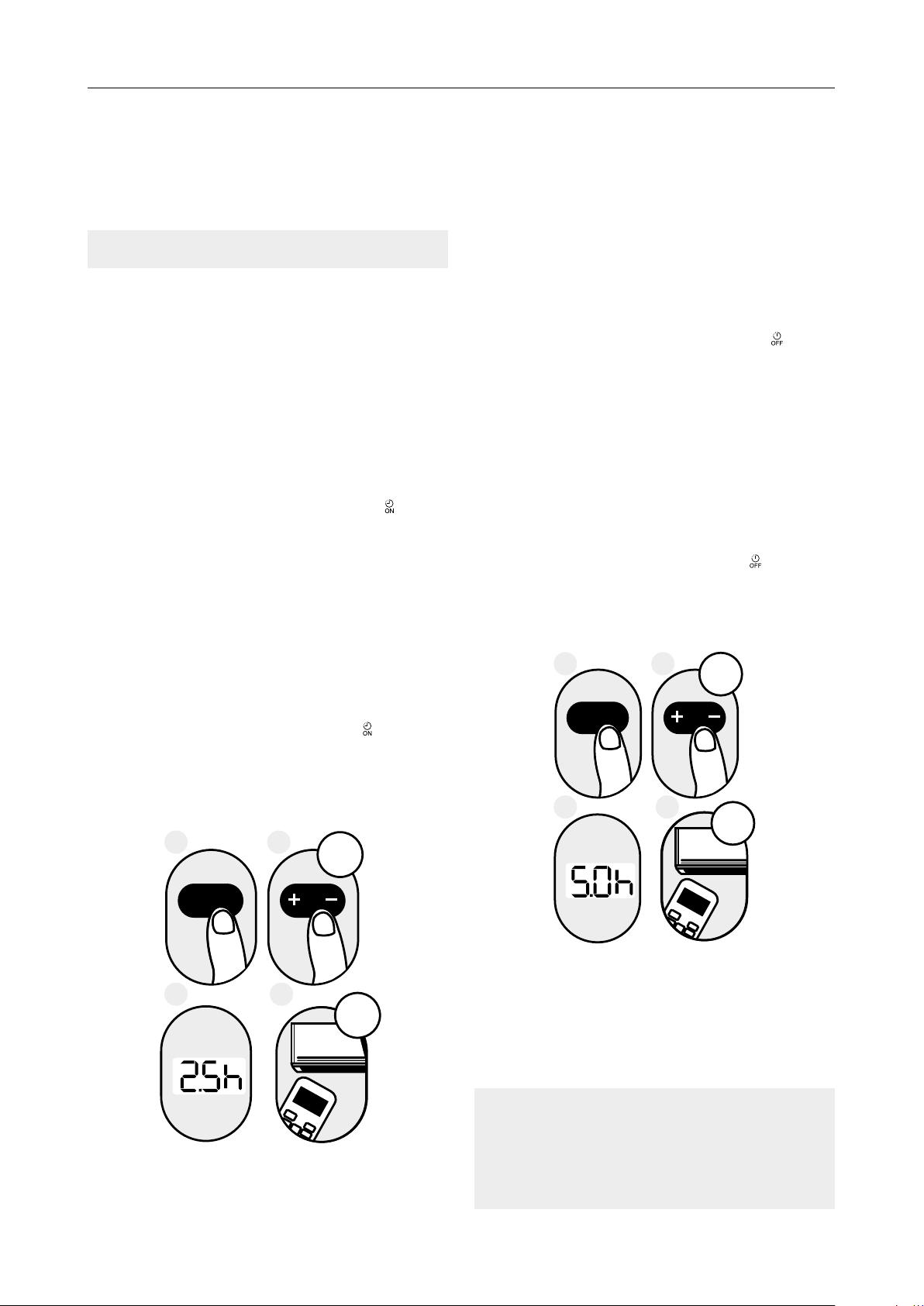

Setting the TIMER function
Your air conditioning unit has two timer-related functions:
• TIMER ON – sets the amount of time after which the
unit will automatically turn on.
• TIMER OFF – sets the amount of time after which
the unit will automatically turn off.
TIMER ON function
The TIMER ON function allows you to set a period of time
after which the unit will automatically turn on, such as when
you come home from work.
1. Press the Timer button, the Timer on indicator “ ”
displays and flashes. By default, the last time period that
you set and an “h” (indicating hours) will appear on the
display.
Note: This number indicates the amount of time after the
current time that you want the unit to turn on. For example,
if you set TIMER ON for 2.5 hours, “2.5h” will appear on the
screen, and the unit will turn on after 2.5 hours.
2. Press the Temp + or Temp – button repeatedly to set the
time when you want the unit to turn on.
3. Wait 3 seconds, then the TIMER ON function will be
activated. The digital display on your remote control will
then return to the temperature display. The “ ” indicator
remains on and this function is activated.
6. Put the remote controller in the holder.
TIMER OFF function
The TIMER OFF function allows you to set a period of time
after which the unit will automatically turn off, such as
when you wake up.
1. Press the Timer button, the Timer off indicator “ ”
displays and flashes. By default, the last time period
that you set and an “h” (indicating hours) will appear
on the display.
Note: This number indicates the amount of time after the
current time that you want the unit to turn off. For example,
if you set TIMER OFF for 5 hours, “5.0h” will appear on the
screen, and the unit will turn off after 5 hours.
2. Press the Temp + or Temp – button repeatedly to set the
time when you want the unit to turn off.
3. Wait 3 seconds, then the TIMER OFF function will be
activated. The digital display on your remote control will
then return to the temperature display. The “ ” indicator
remains on and this function is activated.
NOTE: When setting the TIMER ON or TIMER OFF
functions, up to 10 hours, the time will increase in 30
minute increments with each press. After 10 hours and
up to 24, it will increase in 1 hour increments. The timer
will revert to zero after 24 hours. You can turn off either
function by setting its timer to “0.0h”.
ON/OFF
MODE
SHORT
CUT
TIMER ON
TEMP
Timer or
ON/OFF
MODE
SHORT
CUT
TIMER ON
TEMP
Timer or
ON/OFF
MODE
SHORT
CUT
TIMER ON
TEMP
Timer or
ON/OFF
MODE
SHORT
CUT
TIMER ON
TEMP
Timer or
Example: Setting unit to turn
on after 2.5 hours
Example: Setting unit to turn
off after 5 hours
1 2
3 4
1 2
3 4
x5
3 sec
x10
3 sec

Kaden Remote Controller Manual | 11
Setting both TIMER ON and TIMER OFF at the same time
Keep in mind that the time periods you set for both functions refer to hours after the current time. For example, say that the current
time is 1:00 PM, and you want the unit to turn on automatically at 7:00 PM. You want it to operate for 2 hours, then automatically
turn off at 9:00 PM.
Do the following:
ON/OFF
ON/OFF
MODE
MODE
SHORT
SHORT
CUT
CUT
TIMER ON
TIMER ON
TEMP
TEMP
Timer
Timer
or
or
1 2 3 4
5 6 7 8
x12
3 sec
3 sec
x16

12 | Kaden Remote Controller Manual
Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off (see figure below)
Your remote display:
6 hours later
8 hours later
Timer starts Unit turns
ON
2PM 3PM 4PM 5PM 6PM 7PM 8PM 9PMCurrent
time 1PM
Timer is set to turn ON
6 hours from current time
Timer is set to turn OFF
8 hours from current time
Unit turns
OFF

Kaden Remote Controller Manual | 13
6. Advanced functions
SLEEP function
The SLEEP function is used to decrease energy use while
you sleep (and don’t need the same temperature settings
to stay comfortable). This function can only be activated
via remote control. For detail, see “sleep operation” in
“OWNER’S MANUAL”.
NOTE: The SLEEP function is not available in FAN or
DRY mode.
TURBO function
The TURBO function allows the unit to reach your set
temperature in the shortest amount
of time possible.
• When you select TURBO feature in COOL/HEAT mode,
the unit will blow cool/hot air with strongest wind setting
to jump-start the cooling/heating process.
SELF CLEAN function
Airborne bacteria can grow in the moisture that condenses
around the heat exchanger in the unit. With regular use, most
of this moisture is evaporated from the unit. When the self clean
feature is activated, your unit will clean itself automatically.
After cleaning, unit will turn off automatically.
You can use the self clean feature as often as you like.
NOTE: You can only activate this function in COOL or
DRY mode.

14 | Kaden Remote Controller Manual
LOCK function
Press Turbo button and self clean button simultaneously for
one second to lock or unlock the keyboard.
FOLLOW ME function
The FOLLOW ME function enables the remote control to
measure the temperature at its current location and send
this signal to the air conditioner in 3-minute intervals. When
using AUTO, COOL, or HEAT modes, measuring ambient
temperature from the remote control (instead of from the
indoor unit itself) will enable the air conditioner to optimise the
temperature around you and ensure maximum comfort.
SWING function
Swing button
Used to stop or start vertical louvre movement and set the
desired left/right air flow direction. The vertical louvre changes
6 degrees in angle for each press. If held down for more than
2 seconds, the vertical louvre auto swing feature is activated.
Swing button
Used to stop or start horizontal louvre movement or set
the desired up/down air flow direction. The louvre changes
6 degrees in angle for each press. If held down for more than
2 seconds, the louvre will swing up and down automatically.
Mode
Timer Sleep
LED Follow
me
Turbo Short
Cut
Self
clean
FanON/OFF Mode
Timer Sleep
LED Follow
me
Turbo Short
Cut
Self
clean
FanON/OFF
Hold together for one
second to activate
LOCK function
Hold down Fan
button for 2 seconds
to activate silent
function

Kaden Remote Controller Manual | 15
Silent function
Hold down Fan button for 2 seconds to activate /cancel Silent
mode. Due to low frequency operation of compressor, it may
result in insufficient cooling and heating capacity.
Short cut function
• Used to restore the current settings or resume
previous settings.
• If this button is pushed when the remote controller is on,
the system will automatically revert back to the saved
settings including operating mode, setting temperature,
fan speed level and sleep feature (if activated).
• If held down for more than 2 seconds, the system will store
the current operation settings including operating mode,
setting temperature, fan speed level and sleep feature
(if activated) as a shortcut.

kadenair.com.au
