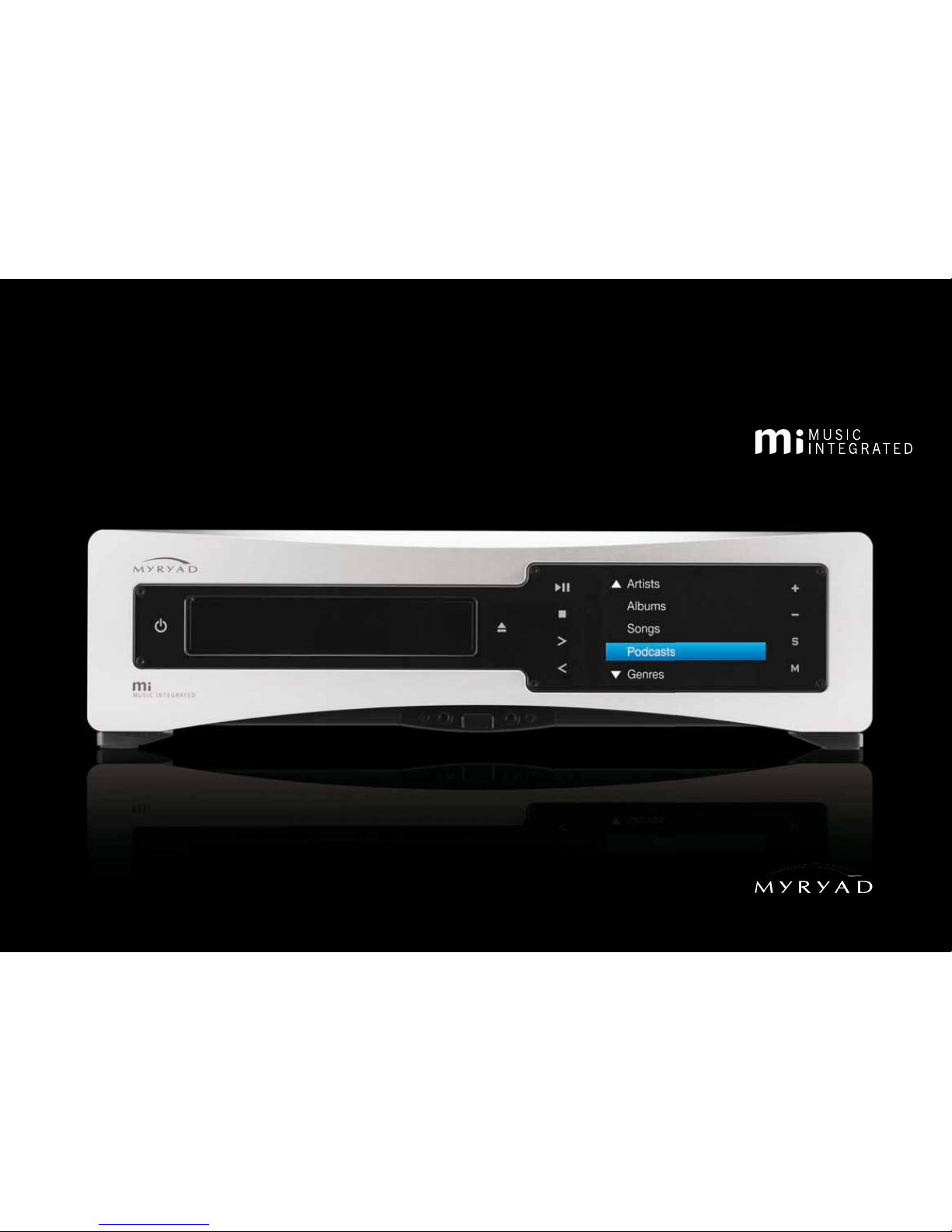

Myryad Mi Music Integrated User manual

Owner’s Manual
www.myryad.co.uk
FrançaisEnglish ItalianoDeutsch Русский

Owner’s Manual
www.myryad.co.uk

4
INSTALLATION AND
SAFETY
This CD Player generates very little heat but
still requires some ventilation.Do not place
it on a rug or other soft surface into which
it could sink, obstructing the air inlets in its
underside. Do not allow any obstruction to
the ventilation slots in the rear or side panels.
The unit should not be installed in a built-in
situation such as a bookcase or rack unless
proper ventilation is provided.
CAUTION:THIS APPARATUS MUST NOT BE
EXPOSED TO DRIPPING OR SPLASHING.
OBJECTS FILLED WITH LIQUIDS SUCH AS
VASES MUST NOT BE PLACED ON THE
APPARATUS.
THE REAR PANEL POWER SWITCH
DISCONNECTS MAINS LIVE ONLY.THE
POWER CORD MUST BE DISCONNECTED
FROM THE REAR OF THE APPARATUS,
OR THE WALL SOCKET,TO PROVIDE
TOTAL ISOLATION. ONE OR OTHER OF
THESE CONNECTIONS MUST BE READILY
ACCESSIBLE WHEN THE APPARATUS IS IN
USE.
Do not remove the cover,or attempt to modify
or repair the unit yourself. Refer all servicing to
a qualified technician.The CD laser radiation
is infra-red, so you cannot see it. If the cover
is removed for any reason,you MUST pay
attention to the following warning:
CAUTION–INVISIBLE LASER RADIATION
WHEN OPEN. DO NOT STARE INTO BEAM
OR VIEW DIRECTLY WITH OPTICAL
INSTRUMENTS.
ACCESSORIES
The Myryad is supplied complete with the
following accessories:
• Separate mains power cord to suit country
of sale.
• Remote control handset.
• 3×AAA batteries for remote control (not in
some countries)
• This owner’s manual
• M-Port Connector cable
• FM aerial with adaptor
• AM Loop antenna (some models only)
• iPod stand
DISPOSAL
This symbol means do not
dispose of as municipal waste.
Re-use or recycle wherever
possible. Electrical/Electronic
Equipment may contain
substances harmful to the
environment.For environmentally sound
methods of disposal, please contact your local
government agency.
RECORDYOUR SERIAL NUMBER
Record the serial number of your unit here.
The number can be found on the rear panel of
the unit or the colour sticker on the outside of
the shipping carton.
Serial No.:

5
WARRANTY
WARRANTY SERVICE FOR THIS PRODUCT IS
ONLY AVAILABLE IN THE U.K.
ARMOUR HOME ELECTRONICS LIMITED
guarantees this component to be free from
all defects in materials and workmanship as
follows:
• Electronic components are fully covered by a
2 year parts and labour Warranty
• UPGRADEABLE TO 3 YEARS PARTS AND
LABOUR WHEN REGISTERED ONLINE AT
www.myryad.co.uk/mi-warranty WHEN
REGISTERED WITHIN 30 DAYS OF PURCHASE
This warranty is valid only in the United
Kingdom.This warranty begins at the date of
purchase and is non-transferable. It is valid for
the first original purchaser, purchasing from an
Authorised Dealer of Myryad products in the
UK. Only Authorised Dealers should represent
themselves as such, and purchasers may
confirm the status of Authorised Dealers by
visiting www.myryad.co.uk/mi-dealers
WHAT IS COVERED BY THE MYRYAD
WARRANTY?
In the unlikely event that your Myryad
component fails to function correctly due to
a fault or a manufacturing defect ARMOUR
HOME ELECTRONICS LIMITED, at its sole
discretion, will repair or replace it free of
charge (a replacement is only considered if it
is returned in a clean and unmarked condition
and complete with original packaging and
accessories) during the warranty period.
HOW TO OBTAIN SERVICE
To obtain warranty service,please take your
unit along with the original invoice or bill of
sale to your UK Myryad dealer.This preferably
should be the dealer where you originally
purchased your unit.If this is not possible you
may call 01483 545613 for further assistance.
Note:The Myryad warranty requires proof
of purchase prior to any in-warranty repairs.
Always retain your original sales receipt.
Service charges may apply if a copy of your
receipt is not supplied.
WHAT COSTS WILL ARMOUR HOME
ELECTRONICS LIMITED COVER?
We will cover all labour and material expenses
for returned warranty items.If the repairs
are covered by the warranty, Armour Home
Electronics Limited will cover the shipping
costs back to the customer.
What is not covered:
1. Damage in transit.
2. Overloading, abuse, misuse, or operating
with faulty or unsuitable equipment, or
contrary to instructions contained in the
accompanying product manual.
3. Servicing by unauthorised personnel.
4. Units where the serial number has been
altered or removed.
5. Acts of God.
In the event of equipment being returned
which on test is found to comply with
published specification, the company reserves
the right to charge a reasonable fee for testing
the equipment and for carriage.
IN NO EVENT SHALL THE WARRANTOR
BE LIABLE FOR INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, whether
damages result from breach of express
or implied warranties, tort, negligence, or
otherwise.
IMPORTANT: This warranty is in addition to,
and in no way detracts from, your statutory
rights as a consumer.
WARNING
THE WARRANTY WILL BE INVALIDATED
IF THE EQUIPMENT CASING IS OPENED
OR ANY REPAIR ATTEMPTED IN ANY WAY,
REGARDLESS OF WHETHER CORRECT
OR INCORRECT PARTS ARE FITTED.THE
WARRANTY WILL ALSO BE INVALIDATED
IF THE EQUIPMENT IS MISUSED OR IS
TAMPERED WITH IN ANY WAY.

6
Contents
1 INTRODUCTION 7
Choosing your language 7
2 CONNECTION DIAGRAM 8
3 REAR PANEL CONNECTIONS 9
Power switch 9
Power inlet 9
Speaker outputs 9
Infrared outputs (IR1/IR2) 9
Infrared input 9
Digital pre-out 10
Optical digital inputs (DIG1/DIG2) 10
USB 10
M-Port 10
TAPE/CD-R input/output 10
Analogue stereo inputs (AUX1/AUX2) 10
Aerial input 10
4 OPERATING YOUR SYSTEM 11
Front Panel 11
Standby 11
Disc drawer 11
Open/close 11
Infra-red receiver 11
Front (JACK) PORT 11
USB 11
Headphone output 11
Display 11

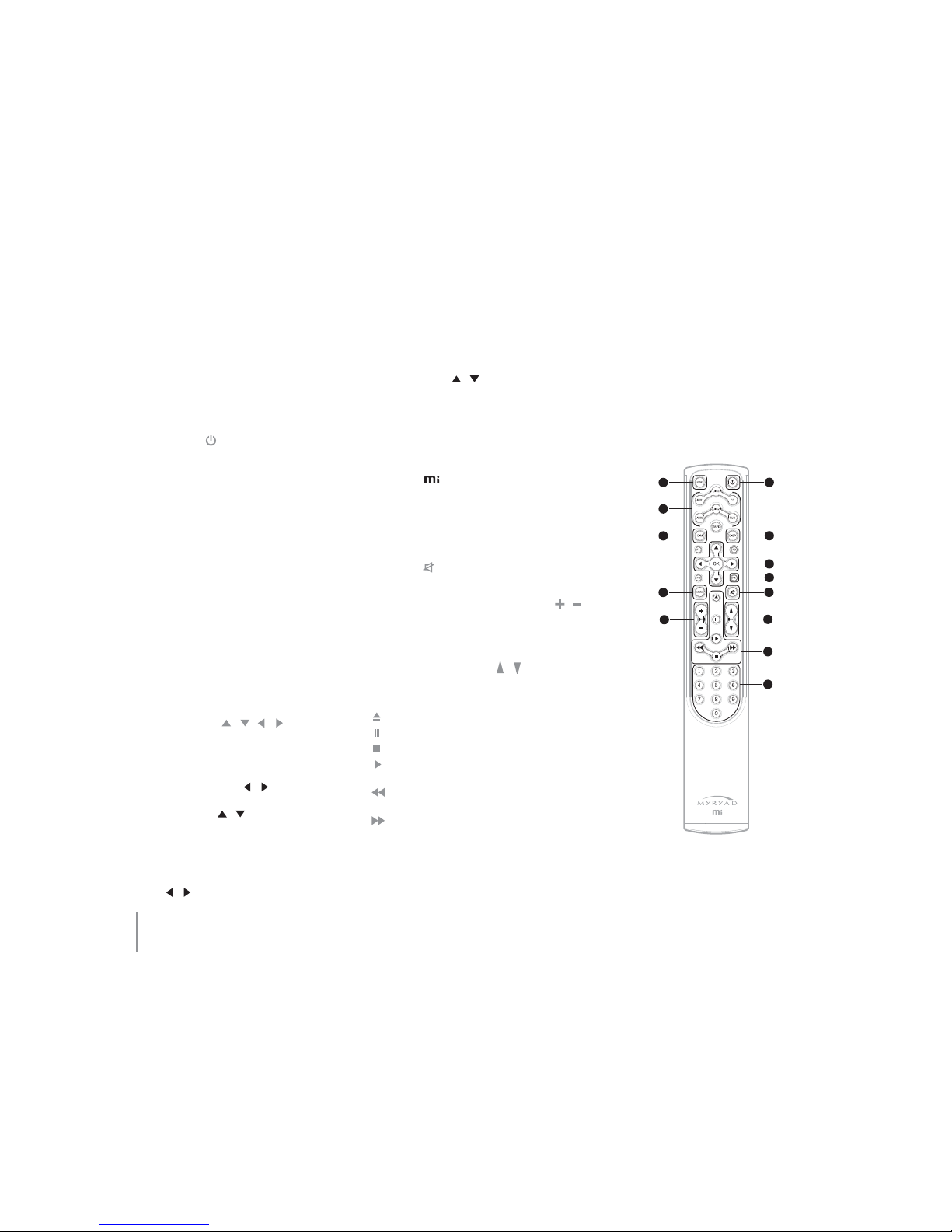

Remote Control 12
Port 12
Standby 12
Source selection 12
Dim 12
Display 12
Navigation 12
Favourites 12
Menu 12
Mute 12
Preset/track skip up/down 12
Volume control 12
Transport controls 12
Number keys 12
Choosing a source 13
Menu navigation 14
Select source 14
More/menu 14
Select source 14
Menu 14
Setup menu 14
Disc operation 15
Disc formats 15
Now playing screen 15
Playing a CD 15
Pausing playback 15
Track selection 15
CD DATA music folder selection 15
Searching backwards/forwards 15
Repeat/shuffle 16
MP3 playback 16
Disc formats 16
MP3 file formats 16
File naming conventions 16
Radio operation 17
Tuning screen 17
Selecting the radio tuning mode 17
Tuning stations 17
Tuning to a DAB station 17
Tuning to an FM or AM station 17
Storing presets 17
Tuning to a preset 18
Searching for DAB stations 18
Favourites 18
My favourites 18
M-Port operation 19
Pausing playback 19
Track selection 19
Album/artist/playlist selection 19
Searching backwards/forwards 19
Repeat/shuffle 19
AUX operation 20
iPod Stand 20
Optical digital inputs (DIG1/DIG2) 20
M-Port 20
Tape/CD-R input/output 20
Analogue stereo inputs (AUX1/AUX2) 20
Care and handling of compact discs 21

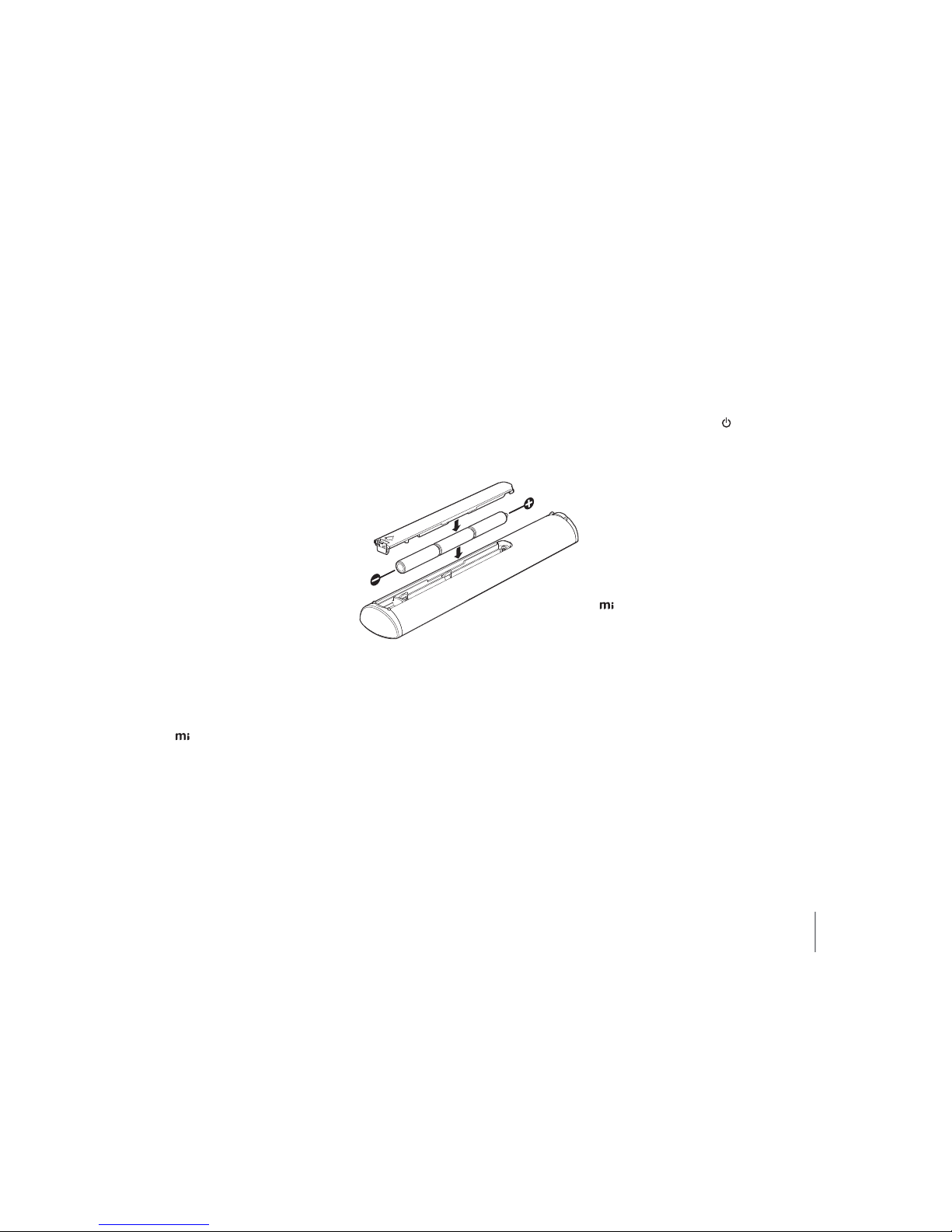

Installing and replacing batteries 21
Trouble shooting 21
5 SPECIFICATIONS 22

7
1 INTRODUCTION
The Myryad Music Integrated has been
designed to offer a combination of high
quality sound reproduction and elegant
styling.
The is a full-function remote-controlled CD
player, DAB/FM Tuner (AM/FM in some regions)
and a high quality integrated amplifier which
will play both standard CDs and CD DATA discs.
The offers a range of input possibilities:
• The 2 digital and 2 analogue inputs allow
for connection of external devices.
• The M-Port allows for connection and
control of an iPod™ and other M-Port
accessories.
• Analogue recording and playback input/
outputs for connection of recording devices.
CHOOSING YOUR LANGUAGE
When the is switched on the first time it
will present the option to select the operating
language from the list provided and then the
territory for tuner settings (North America or
the rest of the world).These settings can be
changed later if desired—see page 14.

8
2 CONNECTION DIAGRAM
RIGHT SPEAKER LEFT SPEAKER
AERIAL
SET-TOP BOX
Or other analogue
connection
DIGITAL TELEVISION
Or other digital connection using optical
digital cable
IPOD
With supplied
M-Port cable
MAINS POWER
Using supplied mains
power cord
NETWORK MUSIC PLAYER
Or other digital connection using optical
digital cable

9
12c1 2 3 79
8
54 6 10 11 12a 12b
3 REAR PANEL CONNECTIONS
1. POWER SWITCH
Press one side of this rocker switch (the side
nearer the edge of the rear panel) to switch
the ON and the other side (towards the
speaker output sockets) to switch it OFF. When
the POWER switch is in the OFF position all
power is disconnected from the unit.In this
condition the unit cannot be powered up
from the front panel or the remote control.
When the POWER switch is in the ON position
(and the mains power cord correctly inserted
and plugged in to a live wall socket) the
unit will power up with the standby button
continuously illuminated in red and all other
front panel indicators off.The unit is now in
standby mode.
NOTE: It is recommended that the POWER switch
is turned OFF if the unit is not going to be used
for an extended period of time.Disconnect any
iPod when the unit is turned off .
2. POWER INLET
Before making any connection, check that
the mains voltage setting printed on the rear
panel is the same as your local mains supply.
Plug the female (socket) end of the power cord
into the power inlet on the rear of the .
Plug the male (plug) end of the cord into a‘live’
wall socket or a suitable heavy-duty extension
cable.
3. SPEAKER OUTPUTS
Each channel is capable of driving any
loudspeaker with a rated impedance of 4Μ
(Ohms) or greater.The loudspeaker terminals
are high-current binding-posts,coded red and
black.
CAUTION: THE SPEAKER TERMINALS
ARE MARKED WITH A HAZARD SYMBOL
TO INDICATE THAT THEY CAN BE LIVE.
READ ANY WIRING INSTRUCTIONS YOUR
LOUDSPEAKERS MAY HAVE CAREFULLY.
IT IS RECOMMENDEDTHAT READY-MADE
LEADS BE USED WHERE POSSIBLE.
For correct imaging it is important that all the
loudspeakers used in a single room are wired
‘in phase’.To ensure correct phasing wire the
black (−) terminal on the amplifier to the black
or‘−’ terminal on the loudspeaker.The red (+)
terminal on the amplifier should be wired to
the red or‘+’ terminal on the loudspeaker.
4. INFRARED OUTPUTS (IR1/IR2)
These outputs relay infrared which is
presented at the IR input (modulated at
36kHz). Both outputs are the same
(for installer use).
5. INFRARED (IR) INPUT
This 3.5mm jack accepts remote control signals
relayed from remote IR receivers or sensors.
Using a remote IR sensor allows the to be

10
controlled when installed in a cabinet with
closed doors,or even from another room.
It is recommended that the and any
remote sensors are positioned such that the
two cannot receive IR signals from the remote
handset at the same time,otherwise the
may not respond correctly to some commands.
6. DIGITAL PRE-OUT
48kHz optical digital output (S/PDIF) for
connection to a digital recording device such
as a CD-R recorder.
7. OPTICAL DIGITAL INPUTS (DIG1/DIG2)
Connect the optical digital audio cables to
these inputs.Supports 16bit PCM Stereo
(44.1kHz/48kHz).
8. USB
Service Only.
9. M-PORT
Connect the supplied M-PORT cable to an iPod
for audio and control options.The iPod will
also charge whilst connected to the (when
the unit is on).
NOTE: Do not connect the M-PORT cable to an
iPod dock,it must be connected directly to the
iPod itself.
10. TAPE/CD-R INPUT/OUTPUT
The PLAY input carries the output analogue
audio signal from the connected recording
device.The RECORD output carries the signal
from whichever source device is currently
selected.This output may be connected to the
input of any recording device.
11. ANALOGUE STEREO INPUTS (AUX1/AUX2)
Connect the analogue audio output cables of
the appropriate devices to these sockets.Care
should be taken to match left (L) and right (R)
connectors to the correct sockets.
12a. AERIAL INPUT (DAB/FM MODEL ONLY)
The is fitted with an‘F’type antenna
socket, which must be used with an
appropriate antenna (aerial).
Experiment with the position and orientation
of the aerial to obtain the best reception.
NOTE: The supplied aerial is intended for
temporary use until the can be connected to
a properly installed aerial.
12b/c AERIAL INPUT (FM/AM MODEL ONLY)
The has different antenna sockets to suit
different countries.FM/AM models are fitted
with separate aerial connections for FM (co-
axial) and AM (spring clip).
The AM loop antenna should be connected
to the two spring-clip terminals on the rear
of the unit, with the black wire connected to
the‘GND’ terminal and the white wire to the
‘SIG’terminal.To connect each wire,press the
appropriate spring clip tab downwards and
insert the bare end of the wire into the small
hole just above the tab.The antenna should
be positioned and rotated to obtain the
best signal quality. Usually it is best with the
antenna as high as possible.
Also provided is a‘F’ type to coaxial adapter for
the supplied FM aerial.

11
1 2 3 8 4 7a 7b5 6
23(5$7,1*<2856<67(0
Front Panel
1. STANDBY ( )
When the is plugged into a live wall socket
and the POWER switch is turned ON, it will
power up in‘standby’ mode and the STANDBY
( ) button will glow red. In this mode the
internal circuitry of the is powered up but
disabled and its audio output is muted by a
relay.
Touching the standby button will cause the
unit to wake from standby.The button will
flash red for a few seconds before turning
white continuously.The LCD display will
illuminate and the will select the last source
used before it was switched to standby.
When the unit is on, pressing the standby
button will cause the unit to enter standby
immediately (unless a stored parameter
has changed).The button will glow red
continuously.
If any stored parameter has changed since the
unit was last in standby there will be a short
delay, while the new configuration is stored,
before the enters standby.The display will
show a disc symbol during this delay period.
CAUTION: WHEN IN STANDBY MODE THE
INTERNAL CIRCUITRY OF THE IS STILL
LIVE,SO ALL SAFETY PRECAUTIONS MUST
BE FOLLOWED.
2. DISC DRAWER
Place discs,printed side facing up,in the disc
drawer. It will accept either normal 120mm
CDs or small 80mm CDs.
3. OPEN/CLOSE ( )
The OPEN/CLOSE ( ) button controls the disc
drawer. Press this button to open or close the
disc drawer.
4. INFRA-RED RECEIVER
The infrared (IR) remote control receiver is
behind the front panel inputs.It must not be
obscured when the is to be operated using
the remote control.
5. FRONT (JACK) PORT ( )
Connect the analogue audio output cable of
the appropriate device to this socket.Accepts
stereo on a 3.5mm jack.Use the PORT button
on the handset to toggle between this front
PORT socket and the rear M-PORT input.
6. HEADPHONE OUTPUT ( )
Connect the 3.5mm jack of your headphones
to this socket.The loudspeaker output is
muted when headphones are connected.
7a. SOFT TOUCH KEYS
PLAY/PAUSE
STOP
SKIP/SCAN Forwards
SKIP/SCAN Backwards
7b. SOFT TOUCH KEYS
VOLUME Up
VOLUME Down
SOURCE Selection
MENU/MORE
8. DISPLAY
The operation of the player is indicated on a
high quality, full colour Liquid Crystal Display
(LCD).
