Nac Hi-Moiton II User manual

1
Ultra Slow Motion Camera
3-Chip High Definition High Speed Camera System
Quick Guide
Mar 14, 2014

2
Table of Contents
1 Firmware Version
2 Quick Overview of Specifications
3 Setup and Connections

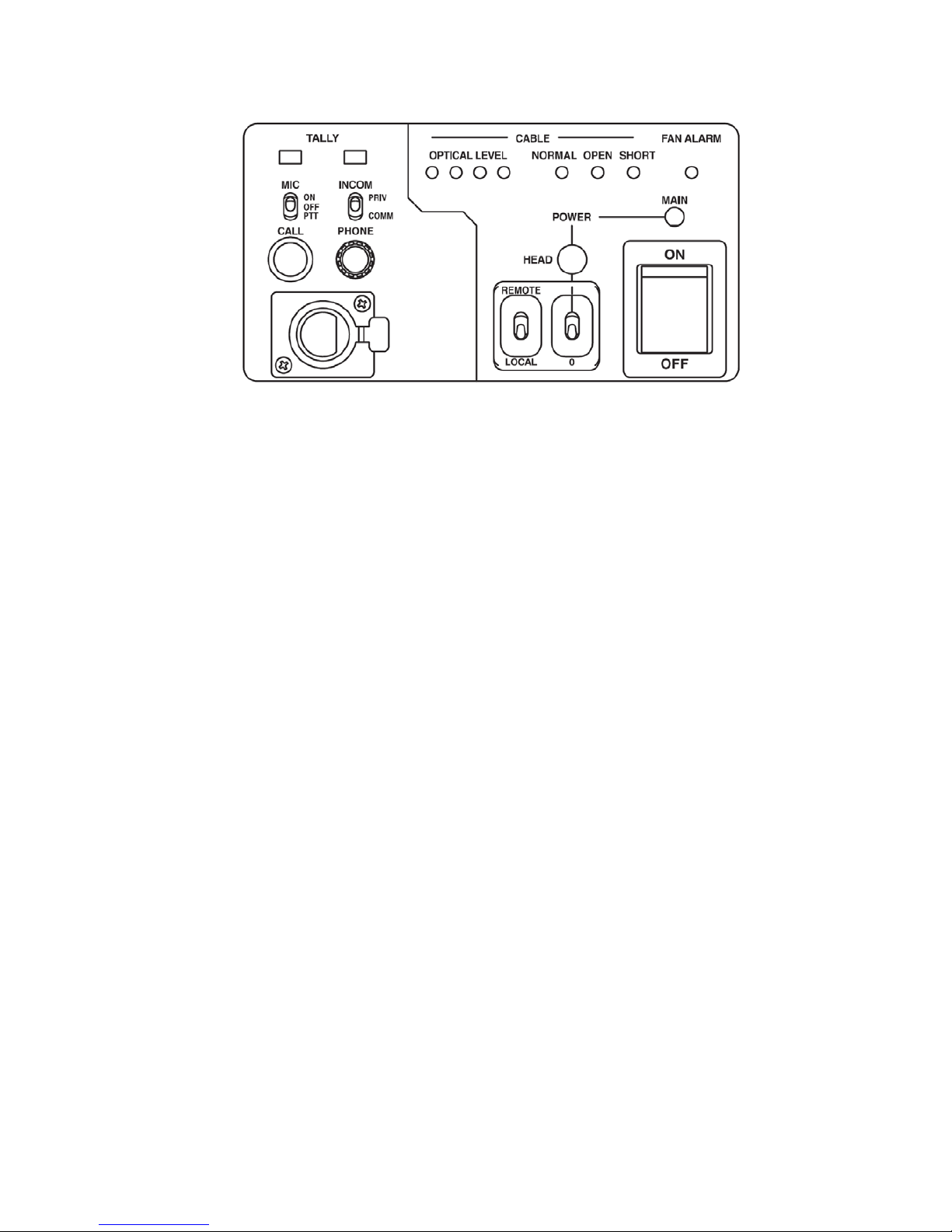

4 CCU Quick Guide
5 Format Selection and H / V Phase Adjustment
6 Capture Size

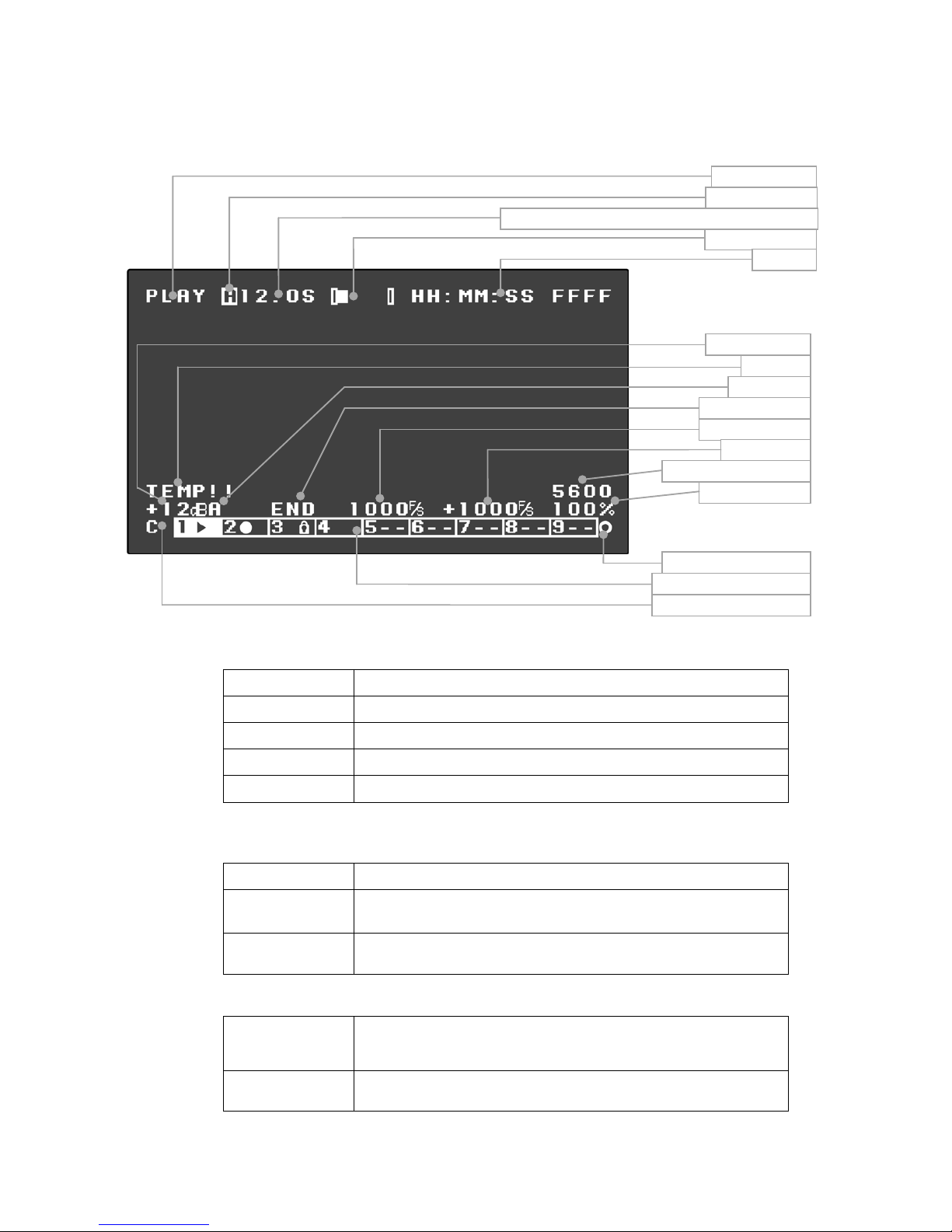

7 Monitor Information Caption
8 OCP Quick Guide
9 Slow Controller Quick Guide
10 Table of Recording Speed and Time
11 Camera Head Menu
12 Trouble Shooting
13 Precautions when using SHED-HDX Systems of Telecast Fiber Systems, Inc.
14 Camera Head / CCU / OCP / Slow Controller / Pin Assignment of Connectors

3
1 Firmware Version
This document is based on the following firmware versions.
Please refer to the versions before you read this document.
・Version : Camera Head
You can check the versions at MENU(1/2) > OTHER INFO > VERSION in 11. Camera Head Menu
I/F PART UPDATE
・FW ：01.08.19
・PIF ：01.00.07
・MEM ：02.04.00
・SNS ：02.07.00
PROC PART UPDATE
・FW ：01.12.05
・PROC1 ：01.37.41
・PROC2 ：01.74.00
・Version : OCP

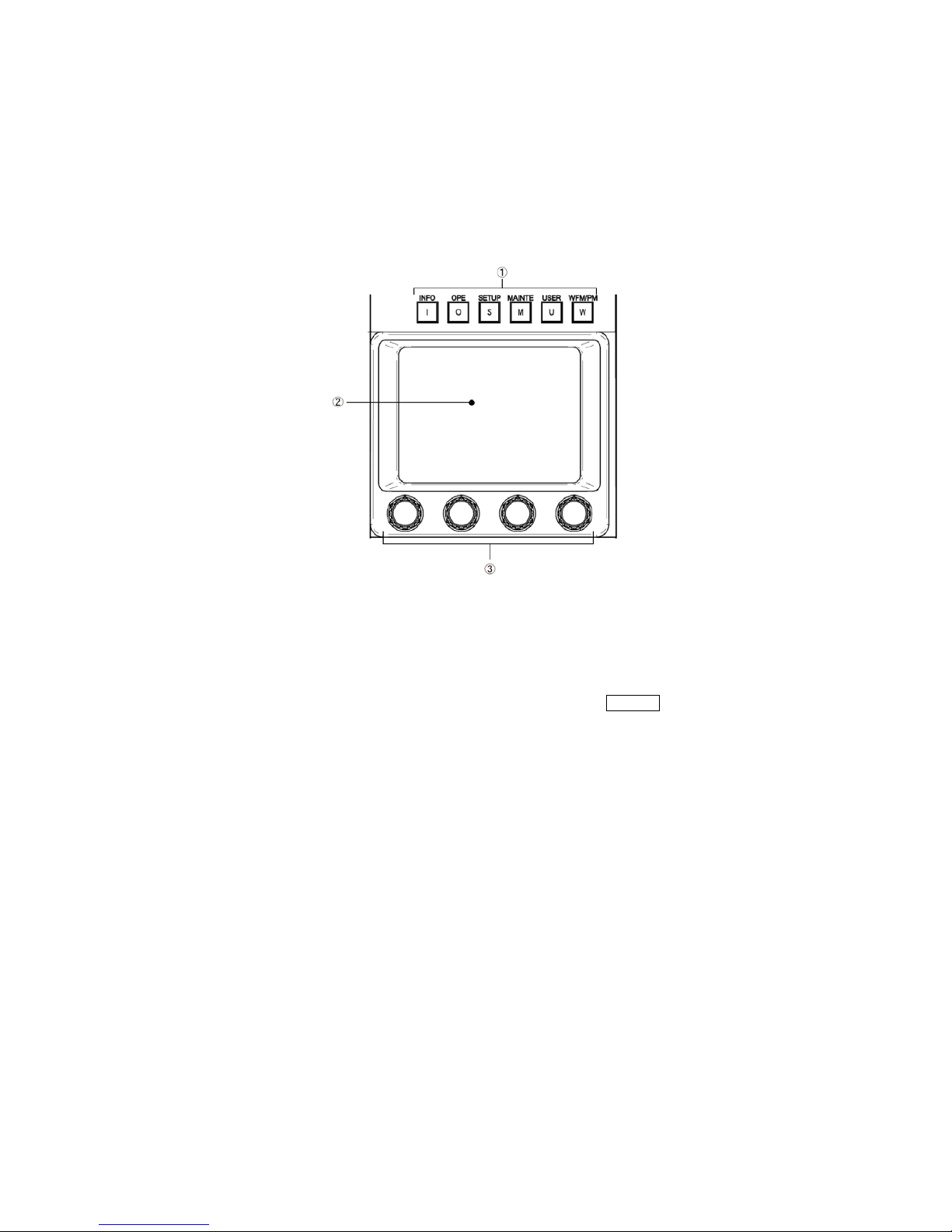

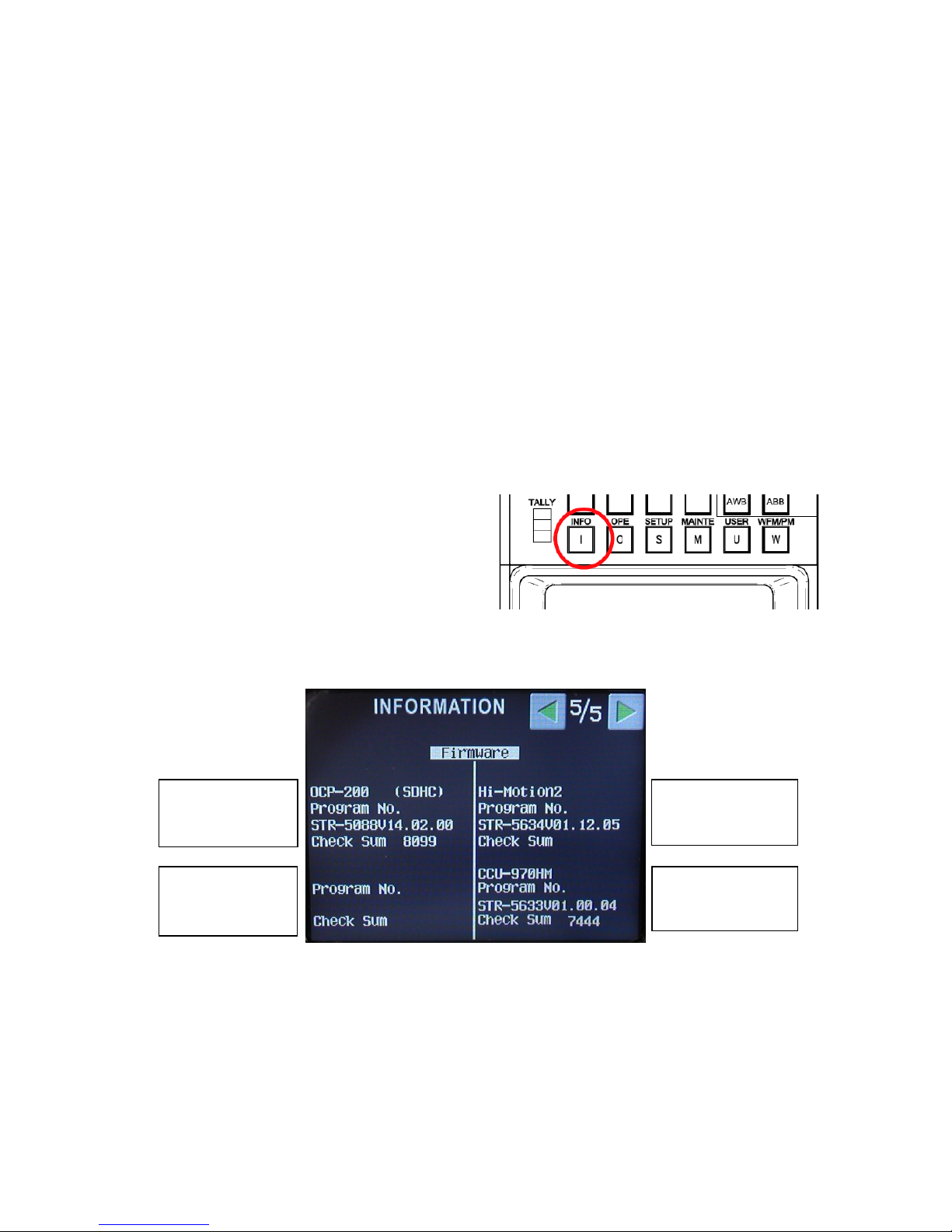

Press INFO button on OCP
You can check the versions at INFORMATION 5/5 on the touch screen.
Please check if the versions and Check Sum of OCP-200 / CCU-970HM are as follows.
・Version : Slow Controller
Version information is displayed on the LCD panel approx. 2secs after turning on the power and
“initialize…” message. Please confirm the version is “MDC50T-NAC09 S0130-53”.
CCU-970HM
Program No.
STR-5633V01.00.04
Check Sum 7444
OCP-200 (SDHC)
Program No.
STR-5088V14.02.00
Check Sum 8099
Program No.
Check Sum
Hi-Moiton2
Program No.
STR-5634V01.12.05
Check Sum

4
2 Quick Overview of Specifications
2.1. Camera Head
1 Image Sensor 3x CMOS (Global Shutter), 2/3-inch Optical System
2 Effective picture elements 1920x1080

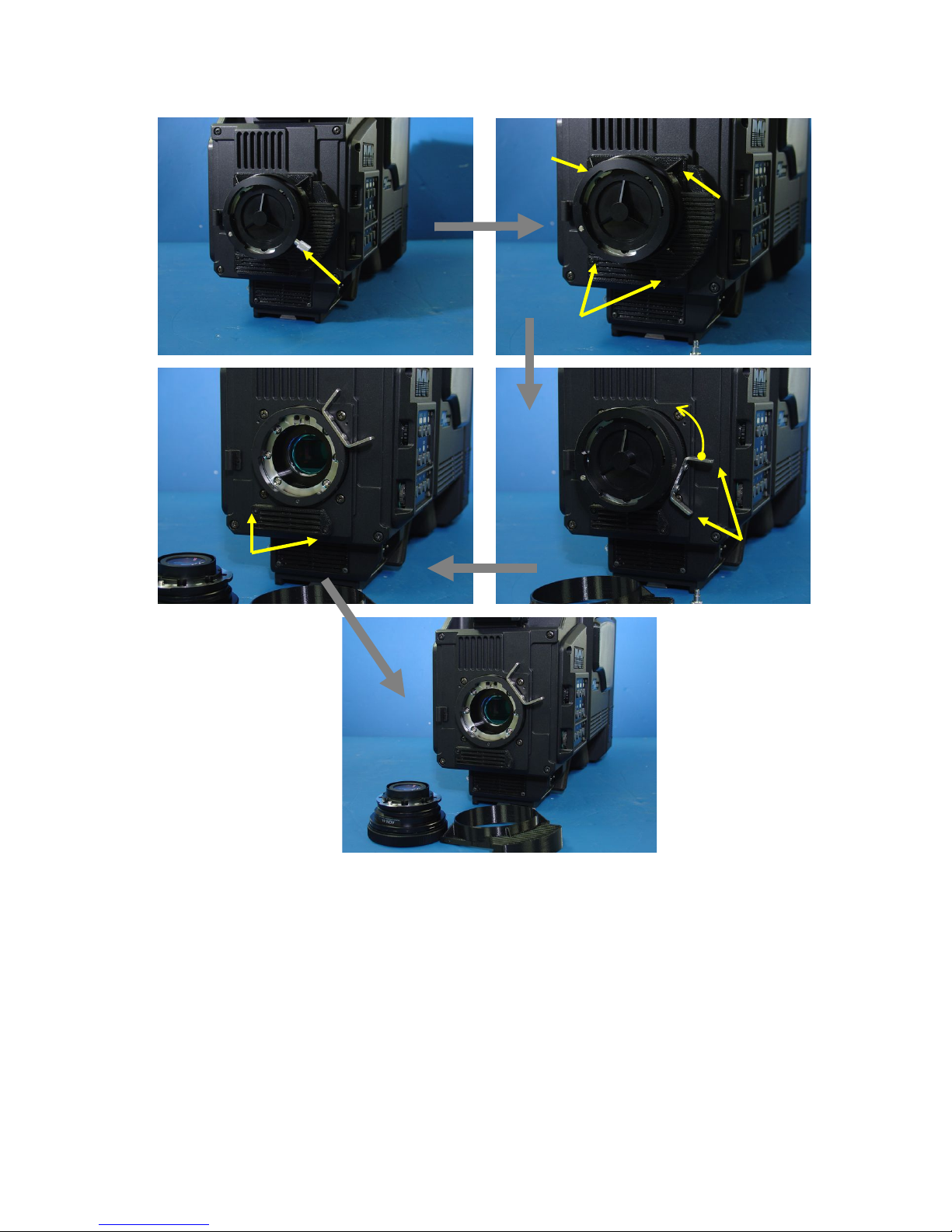

3 Lens Mount B4 Mount
4 Sensitivity F8 at 2000lx (5600K, 89.9% reflectance, at 1080 mode)
5 Signal-to-noise ratio 61.9dB at LIVE, 58.5dB at REPLAY*
*FRCR-ON, FRGA-4, FRTH-3 at 1080 mode
6 Operation temperature -15 to +40 degrees C
7 Storage temperature -30 to +60 degrees C
8 Memory 96GB (32GB x 3ch)
9 Frame rate 24 to 1000 fps, 1fps step
10 Recording time 38 Sec. (300fps)
11 Power Consumption 186W (with Lens and 2”VF)
12 Dimensions (W x H x D) 146 x 326 x 456 mm
13 Weight 7 Kg (without VF and lens)
2.2. CCU
1 FORMAT 1080i or 720p / 59.94 or 50Hz
2 Power supply AC 100 / 110 / 117 / 220 / 240 V ±10%
3 Power consumption approx. 290 - 510VA (Camera , 9"VF and CCU)
4 Operating temperature -0 to +45 degrees C
5 Storage temperature -30 to +60 degrees C
6 Dimensions (W x H x D) 483 x 133 x 454 mm
7 Weight 28 Kg

5

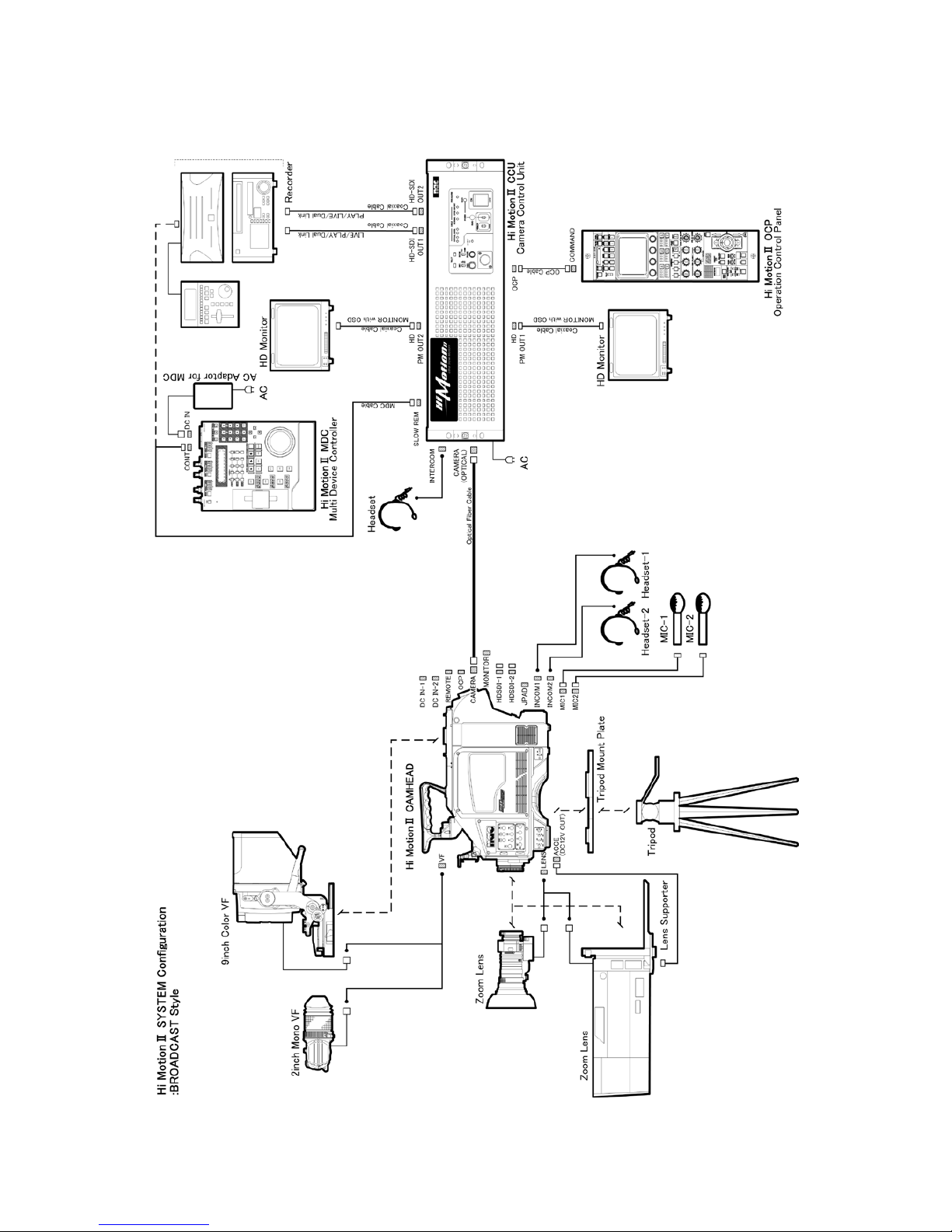

3 Setup and Connections
3.1 OB Style
