NAD M56 User manual

SERVICE MANUAL
SERVICE MANUAL
M56
MODEL : M56SERVICE MANUAL
© NAD 2010
NAD ELECTRONICS INTERNATIONAL
TORONTO Blu-ray DiscTM PLAYER
Blu-ray DiscTM PLAYER
M56
M56
Blu-ray DiscTM PLAYER

CONTENTS
SECTION 1 ........ SUMMARY
SECTION 2 ........ CABINET & MAIN CHASSIS
SECTION 3 ........ ELECTRICAL
SECTION 4 ........ HL-05P LOADER PART
SECTION 5 ........ REPLACEMENT PARTS LIST
1-1

SECTION 1
SUMMARY
CONTENTS
PRODUCT SAFETY SERVICING GUIDELINES FOR
BLU-RAY DISC PLAYER PRODUCTS ................................................................................................ 1-3
SERVICING PRECAUTIONS................................................................................................................... 1-4
• GENERAL SERVICING PRECAUTIONS
• INSULATION CHECKING PRODEDURE
• ELECTROSTATICALLY SENSITIVE (ES) DEVICES
SOFTWARE UPGRADE............................................................................................................................ 1-5
SPECIFICATIONS ....................................................................................................................................... 1-6
1-2

PRODUCT SAFETY SERVICING GUIDELINES
FOR BLU-RAY DISC PLAYER PRODUCTS
IMPORTANT SAFETY NOTICE
This manual was prepared for use only by properly trained audio-video service
technicians.
When servicing this product, under no circumstances should the original design be
modified or altered without permission from NAD Corporation. All components
should be replaced only with types identical to those in the original circuit and their
physical location, wiring and lead dress must conform to original layout upon comple-
tion of repairs.
Special components are also used to prevent x-radiation, shock and fire hazard.
These components are indicated by the letter “x” included in their component desig-
nators and are required to maintain safe performance. No deviations are allowed
without prior approval by NAD Corporation.
Circuit diagrams may occasionally differ from the actual circuit used. This way,
implementation of the latest safety and performance improvement changes into the
set is not delayed until the new service literature is printed.
CAUTION : Do not attempt to modify this product in any way. Never perform cus-
tomized installations without manufacturer’s approval. Unauthorized modifications
will not only void the warranty, but may lead to property damage or user injury.
Service work should be performed only after you are thoroughly familiar with these
safety checks and servicing guidelines.
GRAPHIC SYMBOLS
The exclamation point within an equilateral triangle is intended to alert
the service personnel to important safety information in the service
literature.
The lightning flash with arrowhead symbol within an equilateral trian-
gle is intended to alert the service personnel to the presence of non-
insulated “dangerous voltage” that may be of sufficient magnitude to
constitute a risk of electric shock.
The pictorial representation of a fuse and its rating within an equilat-
eral triangle is intended to convey to the service personnel the follow-
ing fuse replacement caution notice:
CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF
FIRE, REPLACE ALL FUSES WITH THE SAME TYPE AND
RATING AS MARKED NEAR EACH FUSE.
SERVICE INFORMATION
While servicing, use an isolation transformer for protection from AC line shock. After
the original service problem has been corrected, make a check of the following:
FIRE AND SHOCK HAZARD
1. Be sure that all components are positioned to avoid a possibility of adjacent
component shorts. This is especially important on items trans-ported to and from
the repair shop.
2. Verify that all protective devices such as insulators, barriers, covers, shields, strain
reliefs, power supply cords, and other hardware have been reinstalled per the
original design. Be sure that the safety purpose of the polarized line plug has not
been defeated.
3. Soldering must be inspected to discover possible cold solder joints, solder
splashes, or sharp solder points. Be certain to remove all loose foreign particles.
4. Check for physical evidence of damage or deterioration to parts and components,
for frayed leads or damaged insulation (including the AC cord), and replace if
necessary.
5. No lead or component should touch a high current device or a resistor rated at 1
watt or more. Lead tension around protruding metal surfaces must be avoided.

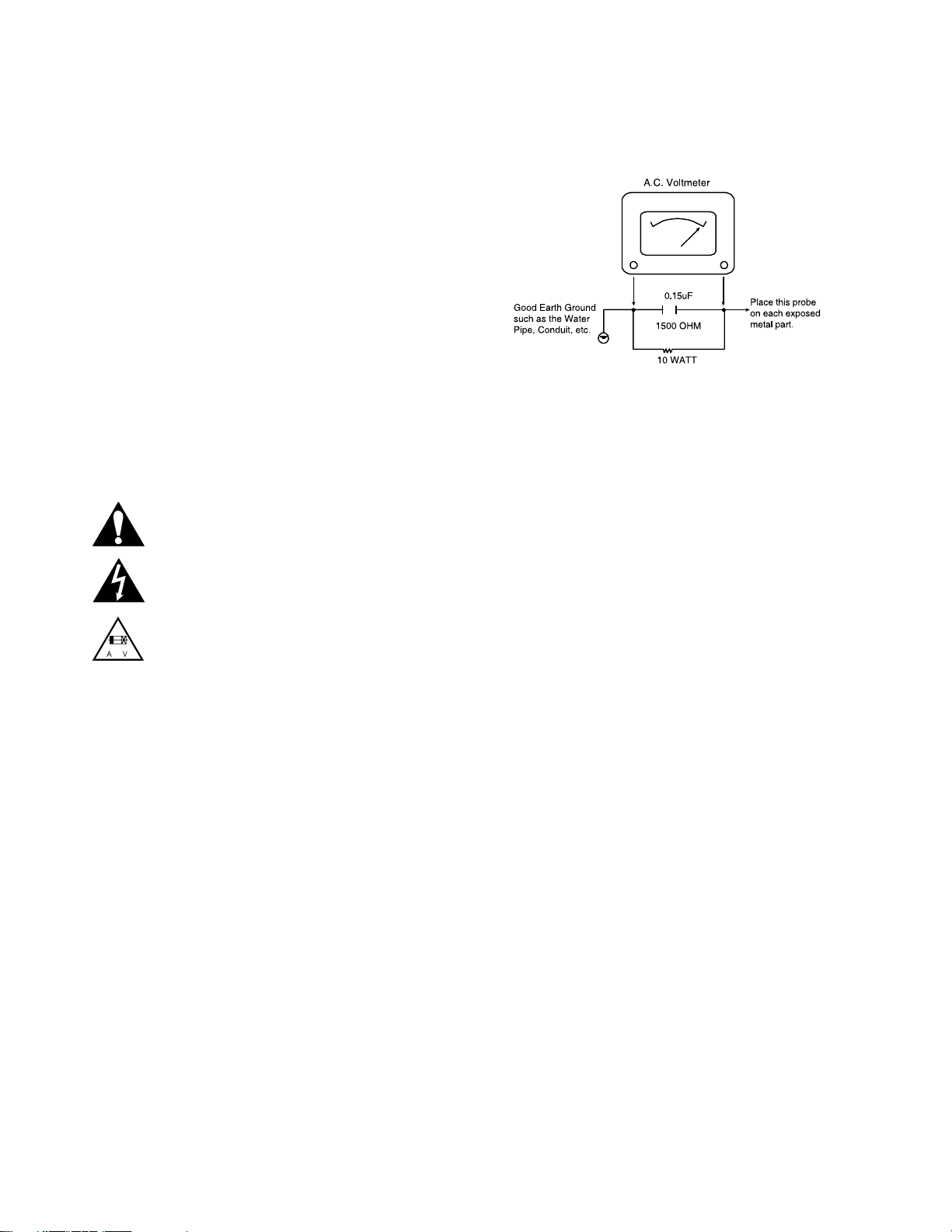

6. After reassembly of the set, always perform an AC leakage test on all exposed
metallic parts of the cabinet (the channel selector knobs, antenna terminals,
handle and screws) to be sure that set is safe to operate without danger of electri-
cal shock. DO NOT USE A LINE ISOLATION TRANSFORMER DURING THIS
TEST. Use an AC voltmeter having 5000 ohms per volt or more sensitivity in the
following manner: Connect a 1500 ohm, 10 watt resistor, paralleled by a .15 mfd
150V AC type capacitor between a known good earth ground water pipe, conduit,
etc.) and the exposed metallic parts, one at a time. Measure the AC voltage
across the combination of 1500 ohm resistor and .15 mfd capacitor. Reverse the
AC plug by using a non-polarized adaptor and repeat AC voltage measurements
for each exposed metallic part. Voltage measured must not exceed 0.75 volts
RMS. This corresponds to 0.5 milliamp AC. Any value exceeding this limit consti-
tutes a potential shock hazard and must be corrected immediately.
TIPS ON PROPER INSTALLATION
1. Never install any receiver in a closed-in recess, cubbyhole, or closely fitting shelf
space over, or close to, a heat duct, or in the path of heated air flow.
2. Avoid conditions of high humidity such as: outdoor patio installations where dew
is a factor, near steam radiators where steam leakage is a factor, etc.
3. Avoid placement where draperies may obstruct venting. The customer should
also avoid the use of decorative scarves or other coverings that might obstruct
ventilation.
4. Wall- and shelf-mounted installations using a commercial mounting kit must follow
the factory-approved mounting instructions. A product mounted to a shelf or
platform must retain its original feet (or the equivalent thickness in spacers) to
provide adequate air flow across the bottom. Bolts or screws used for fasteners
must not touch any parts or wiring. Perform leakage tests on customized installa-
tions.
5. Caution customers against mounting a product on a sloping shelf or in a tilted
position, unless the receiver is properly secured.
6. A product on a roll-about cart should be stable in its mounting to the cart.
Caution the customer on the hazards of trying to roll a cart with small casters
across thresholds or deep pile carpets.
7. Caution customers against using extension cords. Explain that a forest of exten-
sions, sprouting from a single outlet, can lead to disastrous consequences to
home and family.
1-3

SERVICING PRECAUTIONS
CAUTION: Before servicing the BLU-RAY DISC PLAYER
covered by this service data and its supplements and addends,
read and follow the SAFETY PRECAUTIONS. NOTE: if
unforeseen circumstances create conflict between the follow-
ing servicing precautions and any of the safety precautions in
this publications, always follow the safety precautions.
Remember Safety First :
General Servicing Precautions
1.Always unplug the BLU-RAY DISC PLAYER AC power cord
from the AC power source before:
(1) Removing or reinstalling any component, circuit board,
module, or any other assembly.
(2) Disconnecting or reconnecting any internal electrical
plug or other electrical connection.
(3) Connecting a test substitute in parallel with an electro-
lytic capacitor.
Caution : A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2.Do not spray chemicals on or near this BLU-RAY DISC
PLAYER or any of its assemblies.
3.Unless specified otherwise in this service data, clean electri-
cal contacts by applying an appropriate contact cleaning
solution to the contacts with a pipe cleaner, cotton-tipped
swab, or comparable soft applicator.
Unless specified otherwise in this service data, lubrication of
contacts is not required.
4.Do not defeat any plug/socket B+ voltage interlocks with
whitch instruments covered by this service manual might be
equipped.
5.Do not apply AC power to this BLU-RAY DISC PLAYER and
/ or any of its electrical assemblies unless all solidstate
device heat sinks are correctly installed.
6.Always connect the test instrument ground lead to an appro-
priate ground before connecting the test instrument positive
lead. Always remove the test instrument ground lead last.
Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and turn
the power on. Connect an insulation resistance meter (500V)
to the blades of the attachment plug. The insulation resistance
between each blade of the attachment plug and accessible
conductive parts (Note 1) should be more than 1Mohm.
Note 1 : Accessible Conductive Parts include Metal panels,
Input terminals, Earphone jacks,etc.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged
easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of
typical ES devices are integrated circuits and some field effect
transistors and semiconductor chip components.
The following techniques should be used to help reduce the
incidence of component damage caused by static electricity.
1.Immediately before handling any semiconductor component
or semiconductor-equipped assembly, drain off any electro-
static charge on your body by touching a known earth
ground. Alternatively, obtain and wear a commercially avail-
able discharging wrist strap device, which should be
removed for potential shock reasons prior to applying power
to the unit under test.
2.After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such
as aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3.Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4.Use only an anti-static solder removal device. Some solder
removal devices not classified as “anti-static” can generate
electrical charges sufficient to damage ES devices.
5.Do not use freon-propelled chemicals. These can generate
an electrical charge sufficient to damage ES devices.
6.Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum
foil,or comparable conductive material).
7.Immediately before removing the protective material from
the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the
device will be installed.
Caution: Be sure no power is applied to the chassis or cir-
cuit, and observe all other safety precautions.
8.Minimize bodily motions when handling unpackaged replace-
ment ES devices. (Normally harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity suf-
ficient to damage an ES device.)
1-4

SOFTWARE UPGRADE
1-5
• Burn a DVD recordable disc or USB with a file that is named to “NAD_BD_330BB.ROM” or “NAD_BD_310BB.ROM”.
• Insert a upgrading disc or USB.
• Show help message for disc upgrade as follows.
< in the case of Back End program & Front End program >
Press play key to upgrade and it will show progress information
After completing upgrade then power is off.

SPECIFICATIONS
• GENERAL
Power requirements: AC 120V, 60Hz
Power consumption: 21W
Dimensions (W x H x D): Approx. 17.1 x 2.4 x 11.0 inches (435 x 60 x 280mm) without feet
Weight (Approx.): 3.5kg (7.7lbs)
Operating temperature: 41°F to 95°F (5°C to 35°C)
Operating humidity: 5% to 90%
• OUTPUTS
VIDEO OUT: 1.0V (p-p), 75, sync negative, RCA jack x 1
COMPONENT VIDEO OUT: (Y) 1.0V (p-p), 75,negative sync, RCA jack x 1
(Pb)/(Pr) 0.7V (p-p), 75, RCA jack x 2
HDMI OUT (video/audio): 19pin (HDMI standard, Type A)
ANALOG AUDIO OUT: 2.0Vrms (1kHz, 0dB), 600, RCA jack (L, R) x 1
DIGITAL OUT (OPTICAL): 3V (p-p), Optical jack x 1
DIGITAL OUT (COAXIAL): 0.5V (p-p), 75, RCA jack x 1
MULTI CHANNEL OUT: 2.0Vrms (1kHz, 0dB), 600, RCA jack x 8
• SYSTEM
Laser: Semiconductor laser, wavelength: 405nm / 650nm
Signal system: Auto (NTSC / PAL), NTSC system
Frequency response: 20Hz to 20kHz
Signal-to-noise ratio: More than 100dB (ANALOG OUT connectors only)
Harmonic distortion: Less than 0.008%
Dynamic range: More than 95dB
LAN port: Ethernet jack x 1, 10BASE-T/100BASE-TX
Note : Design and specifications are subject to change prior notice.
1-6

SECTION 2
CABINET & MAIN CHASSIS
CONTENTS
DISASSEMBLY INSTRUCTIONS........................................................................................................... 2-2
EXPLODED VIEWS..................................................................................................................................... 2-3
1. CABINET AND MAIN FRAME SECTION ................................................................................................. 2-3
2. DECK MECHANISM SECTION (HL-05P) ................................................................................................ 2-4
3. PACKING ACCESSORY SECTION ......................................................................................................... 2-5
2-1

DISASSEMBLY INSTRUCTIONS
1. It is the product appearance.
2. Remove the four screws on the top cover to
seperate the top cover.
3. Push the top cover backward to seperate the top
cover completely.
4. Remove the eight screws in front panel (four screws on
the bottom,other four screws on the both side) to
seperate the front panel.
5. It is the feature that the top and front panel are
seperated.
2-2

EXPLODED VIEWS
1. CABINET AND MAIN FRAME SECTION
2-3
C001
C002
C005
C006
C008
C012
C007
T001
T002
T003
FS01
FS02
C010
C009
C011
C013
C014
C015
C016
C003
C004
F001
F002
F003
F004
F005
F006
F008
F007
F009
F010
F012
F014
F013
F015
F016
F017
F018
F011
F019
F021
F022
F020
F023
F024
F025
R001
R002
R003
FP02
FP01
S002
S001
S004
S003
S005
S006
S007
S008
S009
S011
S010
S012
S016
S013
S021
S018
S019
S020
S017
S015
S014
S022
S001
S009
S009
WiFi
module

REF.NO. PART NO. DESCRIPTION Qty. REF.NO. PART NO. DESCRIPTION Qty.
C001 67-154003-3 Chassis 1 F024 66-011011-0 Connectible Bracket 1
C002 01-55605-00 Decode Board(Region A) 1 F025 66-154001-1 PCB Bracket 1
01-55605-01 Decode Board(Region B) 1
01-55605-02 Decode Board(Region C) 1 R001 67-154001-2B Rear Panel (Region A) 1
C003 A16-55604-21 PCB Clamp 2 67-154011-2B Rear Panel (Region B) 1
C004 A16-55605-21 PCB Washer 1 67-154021-2B Rear Panel (Region C) 1
C005 01-57702-00 Audio Board 1 R002 JA17-07002-02AC Inlet 1
C006 01-55606-00 Power Board 1 R003 A11-01101-03 Rocker Switch 1
C007 36-57700-00 BD Drive (Region A) 1
36-57700-00 BD Drive (Region B) 1 T001 67-051002-0 Top Cover 1
36-57700-00 BD Drive (Region C) 1 T002 89-019015-0 CR Pad 1/2x2
C008 01-57704-00 FPP assembly 1 T003 76-046001-0 Screw Washer 4
C009 69-154006-1 FPP Spacer2 1
C010 85-054001-0 Round Spacer 1
C011 69-154002-1 Decode Board Spacer 1 FP01 79-154003-0 Foam for Filter double sided 3M 1
C012 01-55603-00 M56 FPP SUB-Board 1 FP02 78-154005-0 Lee Filter #209 Sheet 54x22mm 1
C013 69-154004-1 FPP Spacer1 1
C014 69-154001-1 Decode Board Spacer 3 FS01 85-154001-0 PCB Spacer 2
C015 67-154004-0 Chassis Cover 1 FS02 69-154007-1 Copper Spacer 2
C016 83-043001-0 Foot Assembly 4
F001 70-154001-0A Fascia2 1 S001 61-023208-0 Self Taping Screw (BTB3X8) 6
F002 70-051002-0 Ring Cursor 1 S002 61-023206-0 Self Taping Screw (BTB3X6) 6
F003 70-154002-1 Flip Door Skin 1 S003 61-023204-0 Self Taping Screw (BTB3X4) 2
F004 75-154002-2 Flip Door Bracket 1 S004 61-022506-6 Machine Screw (MB2.5X6-Ni) 2
F005 76-154001-0 VFD Window 1 S005 61-023616-0 Self Taping Screw (TBBT3×16) 2
F006 75-154001-3 Flip Door Frame 1 S006 61-224512-1 Hex Head Screw (M4X12) 6
F007 87-048003-0 Power Button Pad 2 S007 61-224508-1 Hex Head Screw (M4X8) 8
F008 86-046001-0 Led Lens Gum 1 S008 61-063106-0 Self Taping Screw (STF3X6) 5
F009 70-048013-0 Power Button 1 S009 61-023106-2 Self Taping Screw (STB3X6) 10
F010 76-008001-0 Led Lens 1 S010 61-023506-1 Machine Screw (MB3X6-Ni) 2
F011 92-154001-0 Flip Door Spring 1 S011 63-010303-0 Copper Washer 2
F012 77-051001-1 Cursor Holder 1 S012 61-024108-1 Self Taping Screw (STB4X8) 4
F013 70-048012-1 Input Button 2 S013 62-010302-0 Nut(M3) 2
F014 87-048002-0 Input Button Pad 4 S014 61-073108-0 Self Taping Screw (STO3X8) 2
F015 70-051006-1 Stop-Menu Button 2 S015 61-083510-1 Machine Screw (MPW3×10-Ni) 1
F016 70-051007-0 Enter Button 1 S016 61-022506-0 Machine Screw (MB2×6) 2
F017 92-048001-0 Spring for Button 6 S017 61-083514-1 Machine Screw (MPW3×14-Ni) 1
F018 01-55601-00 FPP 1 S018 61-083106-1 Self Taping Screw (STPW3X6-Ni 2
F019 J70-154003-1B Fascia1 1 S019 61-023104-0 Self Taping Screw (STB3×4) 1
F020 86-046002-0 Fascia Padding 2 S020 61-083108-0 Self Taping Screw (STPW3X8) 4
F021 67-154002-1 Subfascia 1 S021 61-083506-1 Machine Screw (MPW3×6-Ni) 11
F022 86-001004-0 2mm Rubber Pad 3 S022 61-246508-0 Machine Screw (MB6X8-Cr) 4
F023 01-55602-00 USB Board 1
2. EXPLODED VIEW PARTS LIST
2-4

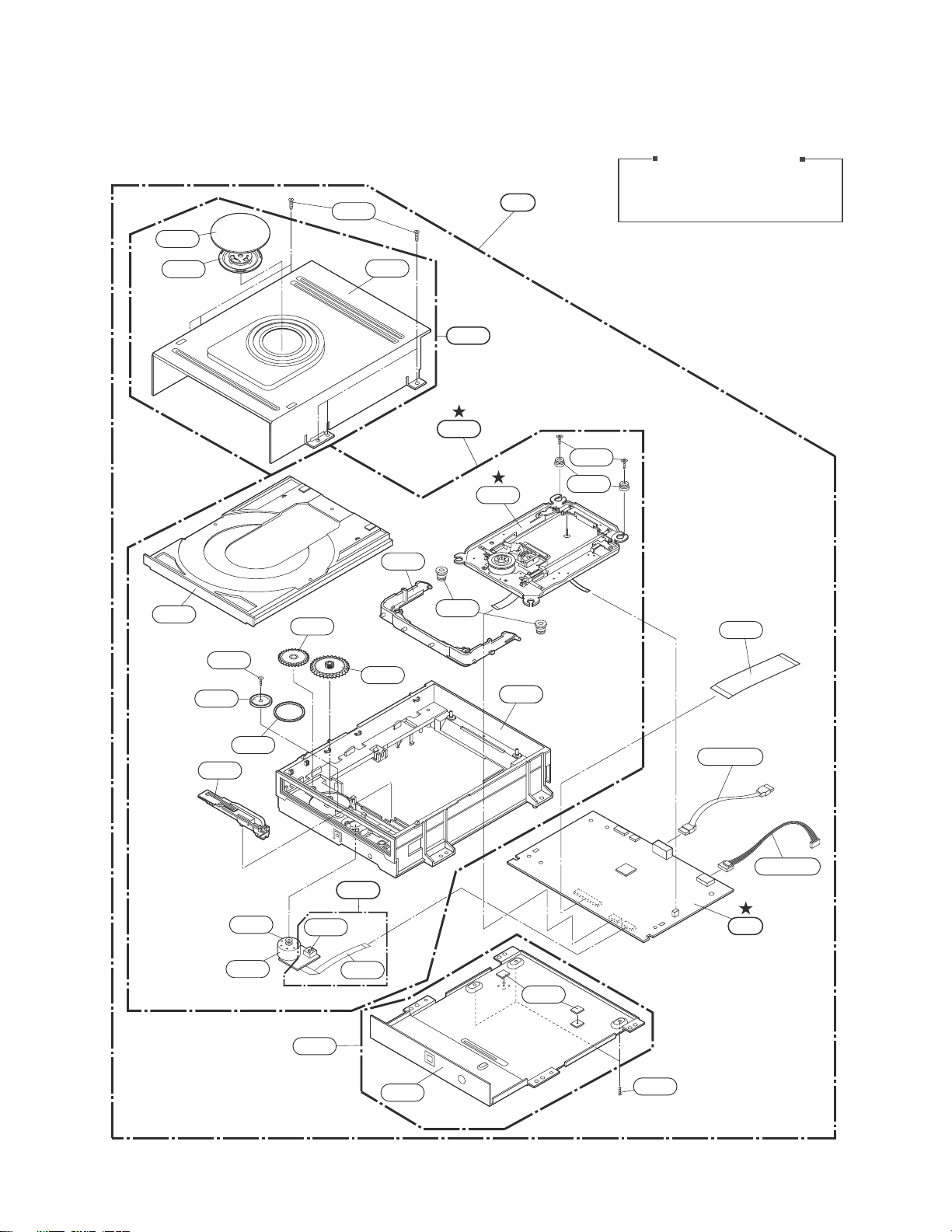

3. DECK MECHANISM SECTION (HL-05P)
1437
1025
1439
1047
1048
1041
1011
1030
A002
1431
1002
A001
1001
1003
1026
1013
1017
1433
1016
1015
1012
10201020
1046
A52
LOADER
BOARD
CABLE3
CABLE4
1049
A60
1019
1018
1043
1045
A005
2-5
Service Part Only: A60
Part # 36-57700-00
SVC purchase order caution
NO OTHER OPTIONAL PARTS
AVAILABLE: PARTS SHOWN
FOR REFERENCE ONLY

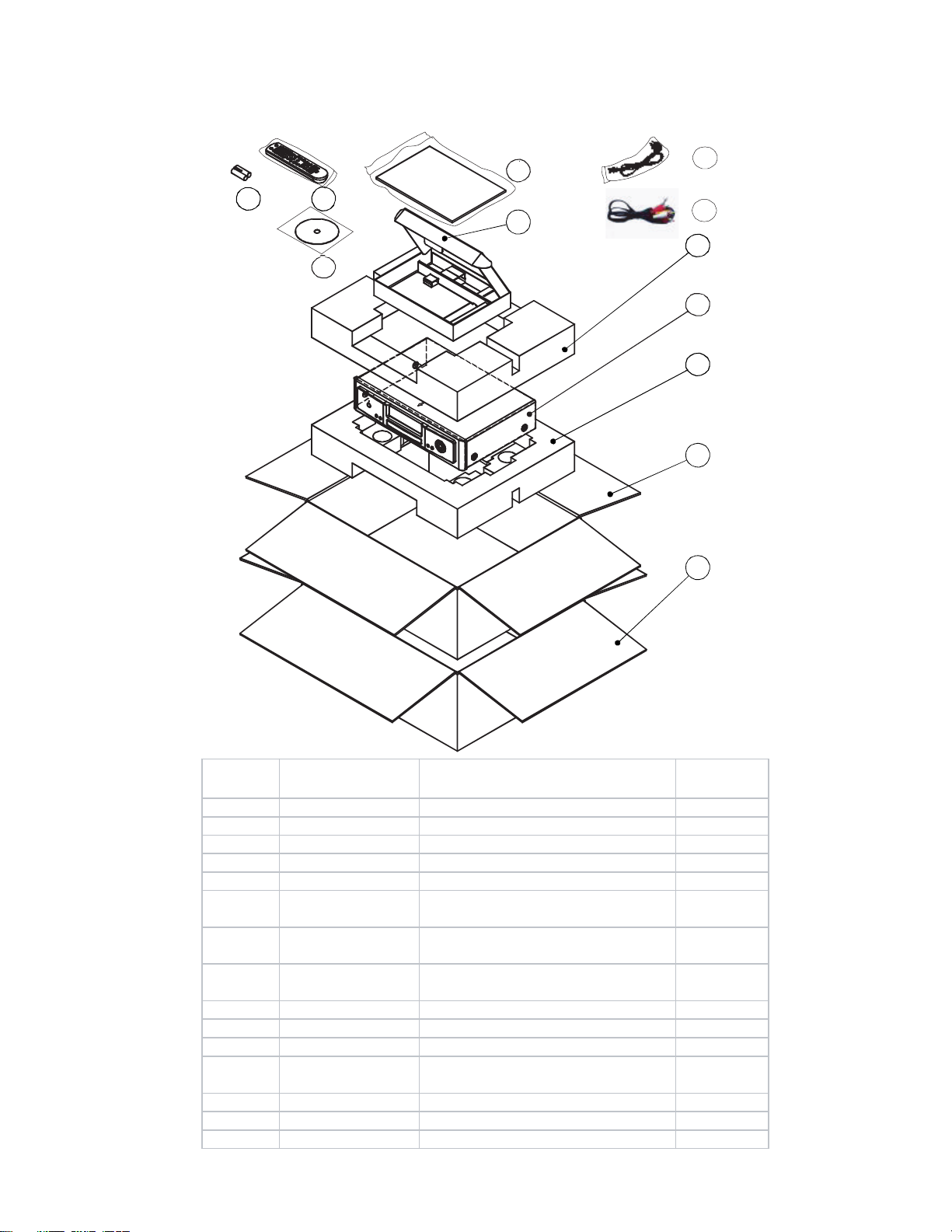

4. PACKING ACCESSORY SECTION
2-6
4
5
REF.N0 Part No. Description Qty.
1 00-55600-10 M56 RegionA 1
00-55600-20 M56 RegionB 1
00-55600-30 M56 RegionC 1
2 89-051001-0 EPE Polyfoam 1
3 89-051002-0 EPE Polyfoam 1
4JA15-10125-01
or A15-10125-00 AC Cord AH:1
JA15-10250-20
or A15-10250-00 AC Cord C:1
529-57702-00
& 29-57701-00 Audio and Video Cord 1
6 J30-15560-00 Remote Control 1
7 30-25770-00 Batteries 2
8 30-95770-00 DISC 1
930-45560-02
& 30-45561-02 Instruction Manual 1
10 88-043003-0 Accessories Box 1
11 88-154001-0A Gift Box 1
12 88-154002-0A Shipping Box 1
1
8
12
11
3
2
7
10
6
9

MEMO
2-7

SECTION 3
ELECTRICAL
CONTENTS
TRAINING MASTER FOR BLU-RAY (BR-Player) ....... .... ................................................................ 3-2
1. DISTORTED PICTURE........................................................................................................................... 3-2
2. NO PICTURE .......................................................................................................................................... 3-7
3. PICTURE COLOR................................................................................................................................. 3-12
4. NOISE/AUDIO PROBLEMS.................................................................................................................. 3-14
5. MISCELLANEOUS................................................................................................................................ 3-17
6. BLU-RAY PLAYER ............................................................................................................................... 3-26
ELECTRICAL TROUBLESHOOTING GUIDE.................................................................................. 3-27
1. POWER SUPPLY (SMPS).................................................................................................................... 3-27
2. POWER ON .......................................................................................................................................... 3-29
3. SYSTEM PART..................................................................................................................................... 3-30
4. COMPONENT (YPbPr) VIDEO OUT .................................................................................................... 3-31
5. CVBS VIDEO OUT ............................................................................................................................... 3-32
6. AUDIO (S/PDIF, OPTICAL) .................................................................................................................. 3-33
7. AUDIO (ANALOG) ................................................................................................................................ 3-34
8. HDMI ..................................................................................................................................................... 3-35
WAVEFORMS............................................................................................................................................. 3-36
1. SYSTEM PART-1.................................................................................................................................. 3-36
2. SYSTEM PART-2 (SYSTEM MEMORY) .............................................................................................. 3-37
3. VIDEO PART-1 (100% FULL COLOR-BAR) ........................................................................................ 3-38
4. VIDEO PART-2 (100% FULL COLOR-BAR) ........................................................................................ 3-39
5. AUDIO PART (S/PDIF) ......................................................................................................................... 3-40
6. HDMI PART .......................................................................................................................................... 3-41
7. FRONT I/F PART.................................................................................................................................. 3-42
BLOCK DIAGRAMS ................................................................................................................................. 3-43
1. OVERALL BLOCK DIAGRAM .............................................................................................................. 3-43
2. SMPS BLOCK DIAGRAM..................................................................................................................... 3-44
3. SYSTEM STRUCTURE BLOCK DIAGRAM ......................................................................................... 3-45
4. FRONT PART BLOCK DIAGRAM ........................................................................................................ 3-46
5. 2CH AUDIO INTERFACE BLOCK DIAGRAM...................................................................................... 3-47
6. 7.1CH AUDIO INTERFACE BLOCK DIAGRAM................................................................................... 3-48
7. VIDEO INTERNAL BLOCK DIAGRAM ................................................................................................. 3-49
8. Wi-Fi BLOCK DIAGRAM....................................................................................................................... 3-50
CIRCUIT DIAGRAMS ...............................................................................................................................3-51
1. SMPS (POWER) CIRCUIT DIAGRAM ................................................................................................. 3-51
2. BCM7602-2 CIRCUIT DIAGRAM ......................................................................................................... 3-53
3. DDR2-800 CIRCUIT DIAGRAM............................................................................................................ 3-55
4. NAND, SATA, INTERFACE, ETHERNET CIRCUIT DIAGRAM ........................................................... 3-57
5. BCM7602-1 CIRCUIT DIAGRAM ......................................................................................................... 3-59
6. A/V OUTPUT CIRCUIT DIAGRAM ....................................................................................................... 3-61
7. POWER SUPPLY CIRCUIT DIAGRAM................................................................................................ 3-63
8. ANALOG AUDIO 7.1CH CIRCUIT DIAGRAM...................................................................................... 3-65
9. FRONT TIMER / KEY CIRCUIT DIAGRAM.......................................................................................... 3-67
10.USB,GPIO,STRAP CIRCUIT DIAGRAM (OPTIONAL)........................................................................ 3-69
11.POWER AND CONTROL CIRCUIT DIAGRAM (OPTIONAL) ............................................................. 3-71
12.RF ANTENNA CIRCUIT DIAGRAM (OPTIONAL) ............................................................................... 3-73
13.M56 FPP+SUB+USB CIRCUIT DIAGRAM .......................................................................................... 3-75
CIRCUIT VOLTAGE CHART ................................................................................................................. 3-77
PRINTED CIRCUIT BOARD DIAGRAMS.......................................................................................... 3-79
1. MAIN P.C.BOARD ................................................................................................................................ 3-79
2. SMPS P.C.BOARD ............................................................................................................................... 3-81
3. M56+FPP+SUB+USB BOARDS .......................................................................................................... 3-83
4. FRONT TIMER P.C.BOARD...................................................................................................... ........... 3-85
5. ANALOG 7.1CH P.C. BOARD.................................................................................................... .......... 3-87
6. WI-FI P.C. BOARD ........................................................................................................... .................... 3-87
MEMO............................................................................................................................................................. 3-89
3-1

TRAINING MASTER FOR BLU-RAY (BD)
Objective: To provide clear and concise guidelines for customer service agents to handle calls on
box goods calls.
1. DISTORTED PICTURE
1-1. Lines on Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
What cables is
the customer using to
connect the BD?
NO
YES
Determine what cables the customer is using to connect
the BD to the TV and if connected properly. Refer to OM for
connections. Tighten any loose cables. Make sure the customer
is not connecting a BD to VCR or BD to DVD Recorder.
Copy protection can distort the picture on older DVD models.
Is the TV set
to the correct input?
NO
YES
Make sure the TV is on the correct input.
Turn TV off, then on to determine input.
Video when using composite, or component.
DVI when using DVI, and HDMI when using HDMI.
Do lines appear when
watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens
needs to be cleaned. Recommend the customer use a lens
cleaner on the BD. A lens cleaner is available at any local
electronics retailer.
Do lines appear when
watching a TV program?
NO
YES
Lines appearing when watching a TV program indicates
an issue with the display. If the TV program is fine,
then connect the BD to another input on the display to
determine if the problem is following the BD.
Do lines appear
when the BD is
connected to another TV?
NO
YES
Connect the BD to another TV and play a disc.
No lines during disc play back indicates a problem with the first TV.
Please refer to the owners manual for instructions on how to
connect the BD to a TV. If the BD has a problem on the
second TV, then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can
also cause video problems. Test the cable with another device to
the TV to also determine if the TV is bad. If BD is problem,
please see service chart for service information.
3-2

TRAINING MASTER FOR BLU-RAY (BD)
What cables is the customer
using to connect the BD?
NO
YES
Determine what cables the customer is using to connect the BD to
the TV and if connected properly. Refer to OM for connections.
Tighten any loose cables. Make sure the customer is not connecting a
BD to VCR or BD to DVD Recorder. Copy protection can distort
the picture on older VCR models.
Is the TV set to
the correct input?
NO
YES
Make sure the TV is on the correct input. Turn TV off,
then on to determine input. Video when using composite,
or component. DVI when using DVI, and HDMI when using HDMI.
Do ghosting appear when
watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens
needs to be cleaned. Recommend the customer use a lens cleaner
on the BD. A lens cleaner is available at any local electronics retailer.
Do lines appear when
watching a TV program?
NO
YES
Ghosting appearing when watching a TV program indicates an
issue with the display. If the TV program is fine, then connect
the BD to another input on the display to determine
if the problem is following the BD.
Does ghosting
appear when the BD is
connected to another TV?
NO
YES
Connect the BD to another TV and play a disc.
No ghosting during disc play back indicates a problem with the first TV.
Please refer to the owners manual for instructions on how to
connect the BD to a TV. If the BD has a problem on the second TV,
then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can
also cause video problems. Test the cable with another device to
the TV to also determine if the TV is bad. If BD is problem,
please see service chart for service information.
1-2. Ghost Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
3-3

TRAINING MASTER FOR BLU-RAY (BD)
What cables is the customer
using to connect the BD?
NO
YES
Determine what cables the customer is using to connect the BD to
the TV and if connected properly. Refer to OM for connections.
Tighten any loose cables. Make sure the customer is not connecting
a BD to VCR or BD to DVD Recorder. Copy protection can distort
the picture on older VCR models.
Is the TV set to
the correct input?
NO
YES
Make sure the TV is on the correct input. Turn TV off,
then on to determine input. Video when using composite,
or component. DVI when using DVI, and HDMI when using HDMI.
Does rolling appear when
watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens
needs to be cleaned. Recommend the customer use a lens cleaner
on the BD. A lens cleaner is available at any local electronics retailer.
Does rolling appear when
watching a TV program?
NO
YES
Rolling appearing when watching a TV program indicates
an issue with the display. If the TV program is fine, then connect
the BD to another input on the display to determine if the problem
is following the BD.
Does rolling appear
when the BD is connected to
another TV?
NO
YES
Connect the BD to another TV and play a disc. No lines during disc play
back indicates a problem with the first TV. Please refer to the owners
manual for instructions on how to connect the BD to a TV. If the BD has a
problem on the second TV, then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can also
cause video problems. Test the cable with another device to the TV
to also determine if the TV is bad. If BD is problem,
please see service chart for service information.
1-3. Rolling Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
3-4

TRAINING MASTER FOR BLU-RAY (BD)
What cables is the customer
using to connect the BD?
NO
YES
Determine what cables the customer is using to connect the BD to
the TV and if connected properly. Refer to OM for connections.
Tighten any loose cables. Make sure the customer is not connecting a
BD to VCR or BD to DVD Recorder. Copy protection can distort
the picture on older VCR models.
Is the TV set to
the correct input?
NO
YES
Make sure the TV is on the correct input. Turn TV off, then on
to determine input. Video when using composite, or component.
DVI when using DVI, and HDMI when using HDMI.
Does shaking appear when
watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens
needs to be cleaned. Recommend the customer use a lens cleaner
on the BD. A lens cleaner is available at any local electronics retailer.
Does shaking appear when
watching a TV program?
NO
YES
Shaking appearing when watching a TV program indicates
n issue with the display. If the TV program is fine, then connect
the BD to another input on the display to determine if the problem
is following the BD.
Does shaking appear
when the BD is connected to
another TV?
NO
YES
Connect the BD to another TV and play a disc. No shaking during
disc play back indicates a problem with the first TV. Please refer to
the owners manual for instructions on how to connect the BD to a TV.
If the BD has a problem on the second TV,
then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables. A bad cable can
also cause video problems. Test the cable with another device to
the TV to also determine if the TV is bad. If BD is problem,
please see service chart for service information.
1-4. Shaky Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
3-5

TRAINING MASTER FOR BLU-RAY (BD)
What cables is the customer
using to connect the BD?
NO
YES
Determine what cables the customer is using to connect the BD to
the TV and if connected properly. Refer to OM for connections.
Tighten any loose cables. Make sure the customer is not connecting
a BD to VCR or BD to DVD Recorder. Copy protection can distort
the picture on older VCR models.
Is the TV set to
the correct input?
NO
YES
Make sure the TV is on the correct input. Turn TV off,
then on to determine input. Video when using composite, or component.
DVI when using DVI, and HDMI when using HDMI.
Does blurriness appear when
watching multiple discs?
NO
YES
One disc displaying the issue is a problem with the disc.
Multiple discs displaying the problem could indicate the BD lens
needs to be cleaned. Recommend the customer use a lens cleaner on
the BD. A lens cleaner is available at any local electronics retailer.
Does blurriness appear when
watching a TV program?
NO
YES
Blurriness appearing when watching a TV program indicates an
issue with the display. If the TV program is fine, then connect
the BD to another input on the display to determine if the problem
is following the BD.
Does blurriness appear
when the BD is connected to
another TV?
NO
YES
Connect the BD to another TV and play a disc. No blurriness
during disc play back indicates a problem with the first TV.
Please refer to the owners manual for instructions on how to connect
the BD to a TV. If the BD has a problem on the second TV,
then see service chart for service information.
Has the customer tried
another set of cables?
NO Have the customer try another set of cables.
A bad cable can also cause video problems. Test the cable with another
device to the TV to also determine if the TV is bad. If BD is problem, please
see service chart for service information.
1-5. Blurry Picture
Distorted picture refers to the customer getting video, but there is a problem with the video.
3-6
