GTH-100

Tube Guitar Head Amp w/ Reverb

OWNER’S MANUAL

GUITAR AMPLIFIER

GTH-100

Tube Guitar Head Amplifier with Reverb

Congratulations on your choice of guitar amplifier — you

have purchased one of the finest guitar amplifiers on the

market today. This unit was developed using the expertise of

professional sound engineers and working musicians. You will

find that your new NADY AUDIO GTH-100 has superior

performance and greater flexibility than any other guitar

amplifiers in its price range. Please read this manual

carefully to get the most out of your new unit.

Thanks for selecting NADY AUDIO as your choice in guitar

amplifier.

Date of Purchase

Dealer’s Name

City

State

Zip

Model #

Serial #

CONTENTS

FEATURES

FEATURES ................................................................................2

WARNING ..................................................................................3

INSTALLATION ..........................................................................4

LEGAL INFORMATION..............................................................4

FRONT CONTROL AND CONNECTORS ................................5

REAR CONTROL AND CONNECTORS ..................................6

SPECIFICATIONS ......................................................................7

•100W RMS output, all-tube design featuring four EL-34 power tubes and three 12AX7A preamp tubes

•High and Low Inputs, Line Output, and full complement of controls for total volume, tone shaping and tonal definition, including a 3-way

overdrive gain switch, lead boost control (up to +12dB), volume, master, treble, mid, bass and presence controls

•High and Low power settings. HI-100W RMS, LO-30W RMS

•Spring reverb with adjustable control and lead gain boost both switchable with optional FS-2 footswitch

•Line level rev. output jack (rev sig. only)

•Durable vinyl cover, steel corners, and rugged construction for years of roadworthy reliability

WARNING

IMPORTANT SAFETY INSTRUCTIONS

When using this electronic device, basic precautions should always be taken, including the following:

1. Read all instructions before using the product.

2. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement, or near a

swimming pool, etc.).

3. This product should be used only with a cart or stand that will keep it level and stable and prevent wobbling.

4. This product, in combination with headphones or speakers, may be capable of producing sound levels that

could cause permanent hearing loss. Do not operate for a long period of time at a high volume level or at a

level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an

audiologist.

5. The product should be positioned so that proper ventilation is maintained.

6. The product should be located away from heat sources such as radiators, heat vents, or other devices

(including amplifiers) that produce heat.

7. The product should be connected to a power supply only of the type described in the operating instructions or

as marked on the product. Replace the fuse only with one of the specified type, size, and correct rating.

8. The power supply cord should: (1) be undamaged, (2) never share an outlet or extension cord with other

devices so that the outlet’s or extension cord’s power rating is exceeded, and (3) never be left plugged into

the outlet when not being used for a long period of time.

9. Care should be taken so that objects do not fall into, and liquids are not spilled through, the enclosure’s

openings.

10. The product should be serviced by qualified service personnel if:

A. The power supply cord or the plug has been damaged.

B. Objects have fallen into, or liquid has been spilled onto the product.

C. The product has been exposed to rain.

D. The product does not appear to operate normally or exhibits a marked change in performance.

E. The product has been dropped, or the enclosure damaged.

11. Do not attempt to service the product beyond what is described in the user maintenance instructions. All

other servicing should be referred to qualified service personnel.

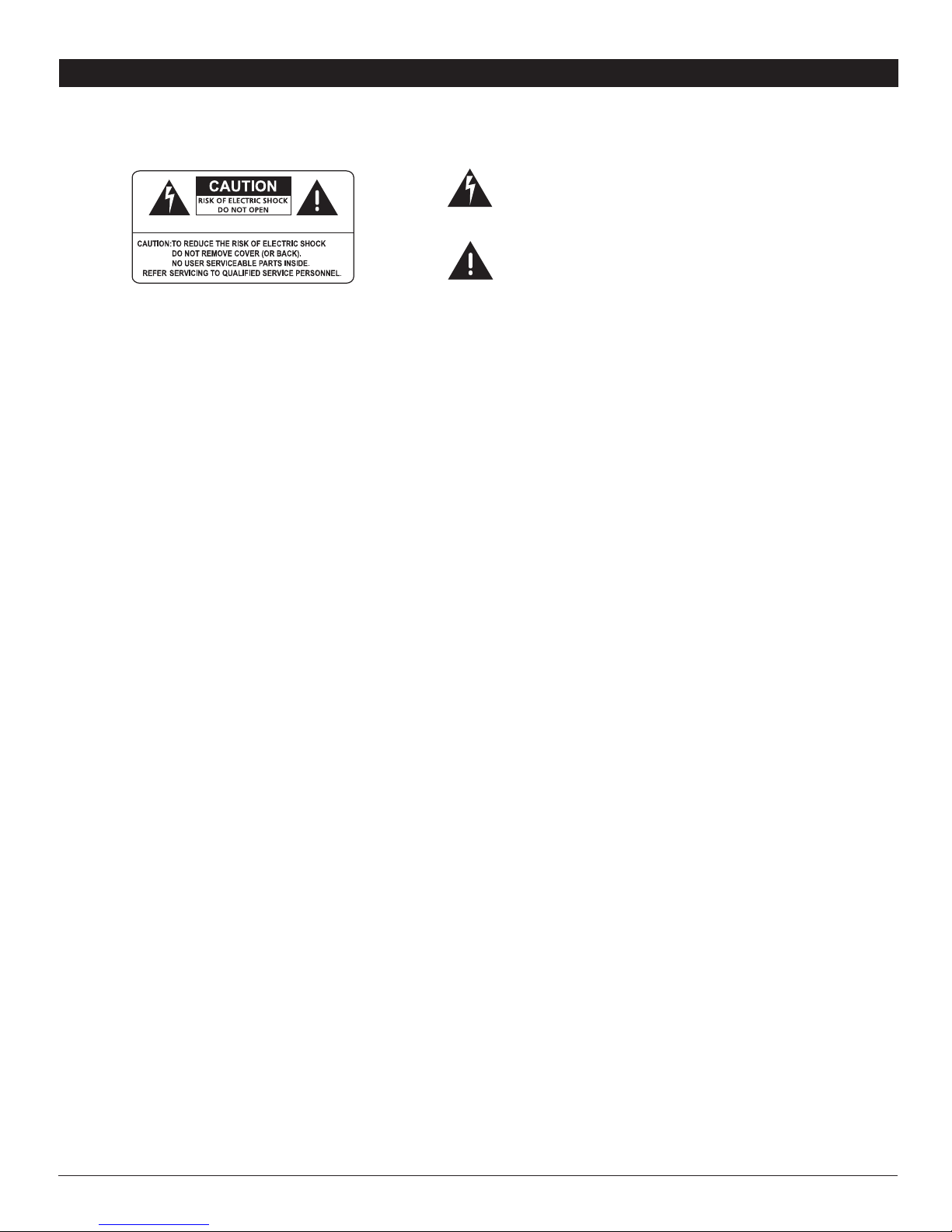

ATTENTION

: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

An equilateral triangle enclosing a lightening flash/arrowhead symbol is

intended to alert the user to the presence of uninsulated “dangerous

voltage”within the product’s enclosure which may be of sufficient

magnitude to constitute a risk of electric shock.

An equilateral triangle enclosing an exclamation point is intended to alert

the user to the presence of important operating and service instructions in

the literature enclosed with this unit.

INSTALLATION

To ensure years of enjoyment from your NADY AUDIO GTH-100, please read and understand this manual thoroughly before

using the unit.

INSPECTION

Your NADY AUDIO GTH-100 was carefully packed at the factory in packaging designed to protect the units in shipment.

Before installing and using your unit, carefully examine the packaging and all contents for any signs of physical damage

that may have occurred in transit.

[Please note: Nady Systems is not responsible for shipping damage. If your unit is damaged, do not return to Nady, but

notify your dealer and the shipping company (if shipped to you) immediately to make a claim. Such claims must be made

by the consignee in a timely manner.]

CONTENTS

•Instruction manual

•GTH-100 (verify that the unit’s serial number is same as shown on shipping carton)

•FS-2 Dual footswitch

•AC Power cord

•Warranty Card

POWER CONNECTION

The GTH-100 has an internal power supply and is designed to operate from an external AC source. Power requirements

for electrical equipment differ from area to area. Be sure to confirm that the voltage selected by the voltage selector switch

on the back panel is proper for your area (120VAC/60 Hz or 230VAC/50Hz) per the information below:

Europe (except UK): 230V, 50Hz

UK and Australia: 240V, 50Hz

USA and Canada: 120V, 60 Hz

For other areas, please check with local authorities.When ready to operate, plug the AC cord into the power source. Make

sure that the unit is turned off before connecting to the AC power source to avoid possible loud transients that can

damage your speakers or your ears, especially when monitoring with headphones.

NOTICE

The information in this document is subject to change, as the Company may make changes to product in order to improve

reliability, design, or function, without prior written notice. No part of this manual may be reproduced or transmitted in any form

or by any means without the written permission of the company.

IN NO EVENT WILL THE COMPANY BE LIABLE FOR SPECIAL INCIDENTAL OR CONSEQUENTIAL DAMAGES,

WHETHER ARISING DIRECTLY OR INDIRECTLY, SUCH AS LOSS OF PROFIT OR GOOD WILL, THAT MAY BE

SUFFERED IN CONNECTION WITH THE PURCHASE OF THIS PRODUCT OR FROM THE BREACH OF ANY

REPRESENTATION OR WARRANTY.

LICENSE

The Company grants the customer a non-exclusive, non-transferable license to use the software, if any, accompanying this

product for internal use on a single computer system. The end user may make a single copy of the software solely for backup

purposes; otherwise, no copies may be made of the software or any part thereof. No other license of any kind is granted to

any part of the product or any of the intellectual property therein.

LEGAL INFORMATION

FRONT CONTROLS AND CONNECTIONS

(1)

1. POWER SWITCH

This switch turns the main power on and off. Flipping

the toggle switch up to the ON+ position will turn on the

amp “in phase”with the main AC line voltage. Flipping

the switch down to the ON- position will reverse the

polarity. In some cases, AC hum (caused by ground

loops) can be reduced by reversing the polarity. Select

the On position which has the least amount of AC hum.

2. POWER INDICATOR LIGHT

Lights when the unit is powered on.

3. HI / STBY / LO SWITCH

Flipping this toggle switch to the STBY position will

respectively disable the audio to the amplifier and the

outputs and put the amp in standby mode. This allows

for proper warm-up of the tubes before applying signal to

them, and allows the amp to stay warm when not in

immediate use. To extend the life of the tubes, always

turn the Main Power Switch on first, for 1-2 minutes,

before flipping the Standby Switch to LO or HI. Set the

switch to LO, which will enable audio with a maximum of

30W RMS output power, if the highest volume is not

necessary, or, if you want to achieve more distortion at

the output tubes. Flipping the switch to HI will enable

audio to the amplifier with a maximum 100W RMS

output.

4. HIGH INPUT JACK

Input for instrument outputs like passive guitar outputs,

keyboard, mics for harmonicas, and other effects

devices.

5. LOW INPUT JACK

The Low Input Jack has a pad with approx 9dB with

lower gain than the High Input Jack. This should be

used with higher level electronic devices or to achieve

more range from the gain controls before distortion.

6. DISTORTION SELECTOR

This three-way switch selects the input sensitivity and

amount of overdrive distortion. Position 1 offers the

cleanest signal with least amount of distortion. Position

3 has the maximum amount of distortion.

Note: The VOLUME and MASTER controls also affect

the final signal level and the amount of distortion.

•For cleanest operation (least distortion) adjust the

VOLUME to a very low setting, the MASTER to

maximum, and the DISTORTION to Position 1.

•For medium distortion (or crunch) adjust the

VOLUME to past the mid position, the MASTER to

mid, and the DISTORTION to Position 2.

•For maximum distortion adjust the VOLUME to

maximum, the MASTER to a very low setting, and

the DISTORTION to Position 3.

7. VOLUME CONTROL

This adjusts the level of the input signal to the amp.

Increasing this level will create distortion dependent on

the DISTORTION SELECTOR setting.

8. MASTER VOLUME CONTROL

Adjusts overall loudness of the amp.

9. TREBLE CONTROL

Adjusts the level of treble/Hi frequencies.

10. MID CONTROL

Adjusts the level of mid-range frequencies.

11. BASS CONTROL

Adjusts the level of bass frequencies.

12. PRESENCE CONTROL

Adjusts the high overtones, texture, and feel of the amp.

13. REVERB CONTROL

Adjusts the level of reverb mixed with the dry signal.

(2)(3)

(4) (5) (6) (7) (8) (9) (10) (11) (12) (13)

REAR CONTROLS AND CONNECTIONS

1. POWER CONNECTION

A standard IEC AC power socket for connecting to the

main AC supply. The IEC power socket has an integral

fuse holder that takes a 20mm fuse.

NOTE:

• Always replace a blown fuse with the same type

as specified on the rear panel and under

Specifications (pg. 7) for the corresponding AC

voltage being used.

• Before you connect your GTH-100 to the AC,

please make sure that your local voltage matches

the Voltage Selector Switch.

• Do not remove the center ground conductor.

2. VOLTAGE SELECTOR SWITCH

For selecting the proper voltage (115/230VAC) to match

the power supply in your area.

3. HIGH VOLTAGE FUSE

1A 250V fast blow fuse

4. FOOTSWITCH JACK

For connecting to the included FS-2 dual footswitch. On

the FS-2, the right switch controls the Reverb on/off. The

left switch controls the Lead Boost on/off for adding up to

12dB of gain at the preamp stage. Note: connecting the

FS-2 will automatically decrease the level at the preamp

input stage allowing it to be boosted to a higher

level when the Lead Boost is switched

on.

5. SPEAKER OUTPUTS

Power output jacks for

connecting to 4Ω, 8Ω, and

16Ωspeaker cabinets.

Although compatible with

many cabinets, for best

results it is recommended

that the GTH-100 be used

to power the matching

GAC-412 cabinet (8Ω),

which utilizes (4x) 12”Nady

PowerDrive™speakers for

optimum tone and

maximum output.

6. LINE OUT

This line level output signal is derived from the output of

the power amp to incorporate all the characteristics, color

and tonal response of the output tubes. This signal can

be input into any device, such as an audio mixer or

another amplifier, and can be useful in many live sound

or recording applications.

7. REVERB OUT

A pure reverb signal output. This may be used for

recording by plugging into mixing consoles/recording

devices or for stereo effects by using an outboard amp

and speaker.

(1) (2) (3) (6)

(4) (5) (7)

SPECIFICATIONS

The specifications above are correct at the time of printing of this manual. For improvement purposes, all specifications for this unit, including design

and appearance, are subject to change without prior notice.

Power Amp Section ..................................................................................................................................Four EL34 Tubes

Power Output ....................................................................................................100W RMS @ 4Ω—8Ω—16Ω5% THD

Preamp Section ..................................................................................................................................Three 12AX7A Tubes

Input Imp. ........................................................................................................................ HI input 200K Ω, LO input 50K Ω

Input Sens. (1KHz) .................................................................................... HI input max clean 800mV, Max distortion 8mV

LO input max clean 1.6V, Max distortion 16mV

LO Input Attenuation .................................................................................................................................................... 9dB

Lead Boost Range ...................................................................................................................................................... 12dB

Line Output Imp........................................................................................................................................................... 600Ω

Line Output Level .............................................................................................................................................. 1V nominal

Reverb Output Imp. ........................................................................................................................................................ 1K

Reverb Output Level .......................................................................................................................................... 1V nominal

Power Requirements.......................................................................................................... 120 VAC 60Hz, 230 VAC 50Hz

Power Fuse.......................................................................................................................... 5x20mm glass tube, slow-blow

4A/250V for 115VAC, 2A/250V for 230VAC

High Voltage Fuse .................................................................................................................................. 1A 250V fast blow

Dimension ...................................................................................................................... 28”x 10.75”x 9”(71 x 27 x 23cm)

Weight .............................................................................................................................................................. 45 lbs (20kg)

TUBE REPLACEMENT

Preamp Tubes 12AX7A —No adjustment required
