Nakamichi DRAGON-CD Limited User manual

DRAGON-CD Limited (CD Player Unit)
i
Service Manual
Service Manual
DRAGON-CD/DAC
Limited
MusicBank CD Player System
DRAGON-CD/DAC Limited Service Manual

DRAGON-CD Limited (CD Player Unit)
ii
CONTENTS
This service manual consists of the following units.
• DRAGON-CD Limited (CD Player Unit)
• DRAGON-PS Limited (Power Supply Unit)
• DRAGON-DAC Limited (DAC)
Note:
This RAGON-CD/DAC Limited Service Manual describes the different items from the
DRAGON-CD/DAC (0Q06188A) issued on April, 1995. For items other than described in
this Service Manual, please refer to the RAGON-CD/DAC Service Manual.
[DRAGON-CD Limited — CD Player Unit]
1. General.................................................................................................................................................................. 1-2
2. Mechanism Ass'y and Parts List ........................................................................................................................ 1-4
2.1. Synthesis ..................................................................................................................................................... 1-4
2.2. Front Panel Ass'y (A01) ............................................................................................................................... 1-6
2.3. Rear Panel Ass'y (A02) ................................................................................................................................ 1-7
2.4. Mechanism Deck Ass'y (A03) ....................................................................................................................... 1-8
2.5. TrayAss'y (B01) ............................................................................................................................................ 1-10
2.6. Side Chassis R Section (B02)....................................................................................................................... 1-11
2.7. Main Chassis Section (B03).......................................................................................................................... 1-12
2.8. Drive Unit CA Section (B04).......................................................................................................................... 1-13
3. Modified Circuit .................................................................................................................................................... 1-14
[DRAGON-PS Limited — Power Supply Unit]
1. Mechanism Ass'y and Parts List ........................................................................................................................ 2-2
1.1. Synthesis ..................................................................................................................................................... 2-2
1.2. Front Panel Ass'y (A01) ................................................................................................................................ 2-3
2. Remote Control Unit ............................................................................................................................................ 2-4
[DRAGON-DAC Limited]
1. General.................................................................................................................................................................. 3-2
2. Parts Location for Electrical Adjustment........................................................................................................... 3-4
3. Electrical Adjustments ........................................................................................................................................ 3-4
4. Mechanism Ass'y and Parts List ........................................................................................................................ 3-5
4.1. Synthesis ..................................................................................................................................................... 3-5
4.2. Front Panel Ass'y (A01) ................................................................................................................................ 3-7
4.3. Rear Panel Ass'y (A02)................................................................................................................................. 3-8
5. Mounting Diagrams and Parts List..................................................................................................................... 3-9
5.1. DIF D-D P.C.B. Ass'y .................................................................................................................................... 3-9
5.2. DAC FA P.C.B. Ass'y .................................................................................................................................... 3-10
6. IC Block Diagrams ............................................................................................................................................... 3-13
7. Block Diagram ..................................................................................................................................................... 3-15
8. Specifications ..................................................................................................................................................... 3-16
Schematic Diagram for DRAGON-DAC Limited (See the end of this manual.)

DRAGON-CD Limited (CD Player Unit)
1-1
DRAGON-CD Limited
(CD Player Unit)
CD Player Unit
DRAGON-CD
Limited
Tri-Stage Isolation
Push
MusicBank CD Player

DRAGON-CD Limited (CD Player Unit)
1-2
CONTENTS
1. GENERAL
1.1. Product Code
V686 1.2. Destinations
USA, CAN, OTR, EP, JPN
Abbreviations
USA — U.S.A.
CAN — Canada
OTR — Other
EP — Europe
JPN — Japan
1. General.................................................................................................................................................................. 1-2
2. Mechanism Ass'y and Parts List ........................................................................................................................ 1-4
2.1. Synthesis ..................................................................................................................................................... 1-4
2.2. Front Panel Ass'y (A01) ............................................................................................................................... 1-6
2.3. Rear Panel Ass'y (A02) ................................................................................................................................ 1-7
2.4. Mechanism Deck Ass'y (A03) ....................................................................................................................... 1-8
2.5. TrayAss'y (B01) ............................................................................................................................................ 1-10
2.6. Side Chassis R Section (B02)....................................................................................................................... 1-11
2.7. Main Chassis Section (B03).......................................................................................................................... 1-12
2.8. Drive Unit CA Section (B04).......................................................................................................................... 1-13
3. Modified Circuit .................................................................................................................................................... 1-14

DRAGON-CD Limited (CD Player Unit)
1-3

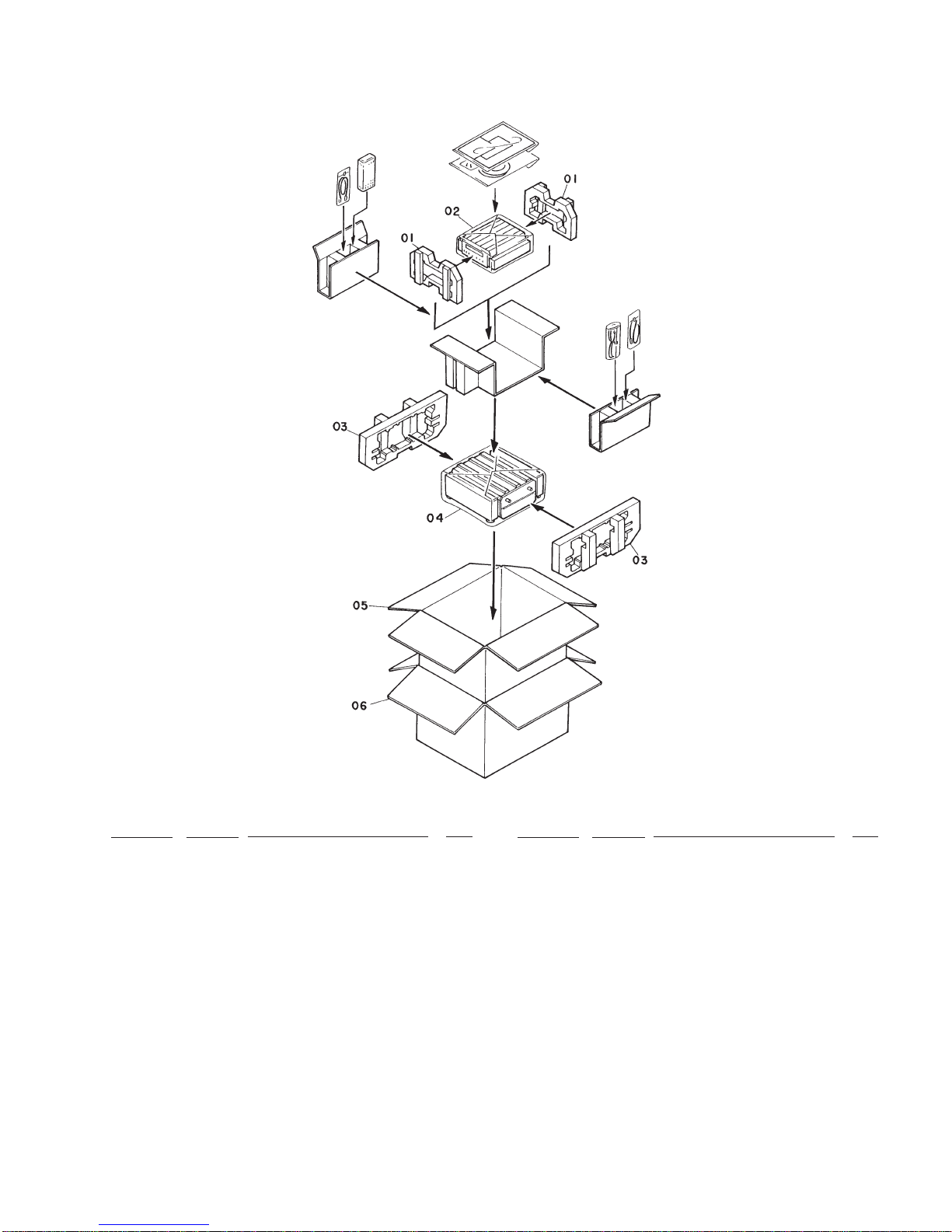

1.3. Package Ass'y and Accessory Ass'y
Fig. 1 Schematic
Ref. No. Part No. Description Q'ty
Schematic
Ref. No. Part No. Description Q'ty
— Package Ass'y
01 0F05006A Packing (for Power Supply Unit) 2
02 0F04874A Soft Sheet A (for Power Supply Unit) 1
03 0F05002A Packing F,R (for CD Player Unit) 2
04 0F04956A Soft Sheet (for CD Player Unit) 1
05 0F05001A Inner Carton 1
06 0F05009A Outer Carton 1
— Accessory Ass'y 1
0B80864A AC Cord 2P Socket (USA, CAN) 1
0B80826A AC Cord 2P Socket (JPN, OTR, EP) 1
(for Power Supply Unit)
0B80827A NC 3 Cable Ass'y 1
(for Power Supply Unit)
0C09816B Adaptor 3-Inch 7
0D06703A DIN Cord (for Power Supply Unit) 1
0D06717A CD Cloth 1
0F04931A Soft Sheet 1
— Remote Control Unit 1
DG05497A Owner's Manual (Japanese) 1
DG05498A Owner's Manual (English) 1
DG05515A Owner's Manual 1
(English/German/French)
DG05012A Information Ass'y (Japanese) 1
DG05014A Information Ass'y (English) 1
DG05501A Technical Information Ass'y (Japanese) 1
DG05502A Technical Information Ass'y (English) 1
DG05516A Technical Information Ass'y 1
(English/German/French)
0E03310A M4x6 + Binding (Black) 4
0J04310A Washer Poly Slider FT-40 4

DRAGON-CD Limited (CD Player Unit)
1-4
2. MECHANISM ASS'Y AND PARTS LIST
Schematic
Ref. No. Part No. Description Q'ty Schematic Ref. No. Part No. Description Q'ty
30 0J07486A Mecha Cushion 2
31 0J07456A Seal S 2
32 0J07601A AL Stabilizer Bottom 1
33 0H07020B Bonnet Lower 1
34 0H08608A Emblem 1
L01 0E03889A M5x50 Hex. Bolt
L02 0E03883A Washer 5.5x10x0.8 (Black)
L03 0E00819A Spring Washer 5mm
L04 0J07593A Washer Poly Slider 5mm
L05 0E03872A TP4x20 + Pan (Black)
L06 0E03901A TP3x18 + Countersunk (Black)
L07 0E03853A Shipping Lock Screw
L08 0J04310A Washer Poly Slider FT-40
L09 0E03866A ST3x17 Button Bolt (Black)
L10 0E00857A BT3x6 + Binding
L11 0E03030A M3x6 + Binding
L12 0E00800A ST3x6 + Binding
L13 0E04207A M4x10 Button Bolt (Gold)
L14 0J07594A Washer Poly Slider 4mm
L15 0E00818A M3x8 + Binding (Black)
L16 0E03769A PT2.6x8 + Binding
L17 0E03900A M3x5 Hex. FH (Black)
L18 0E03746A M3x6 Countersunk
L19 0E03805A PT3x9.5 Special Screw
L20 0J07534A Insulator
L21 0E03815A PT3x12 + Flat Head
2.1. Synthesis

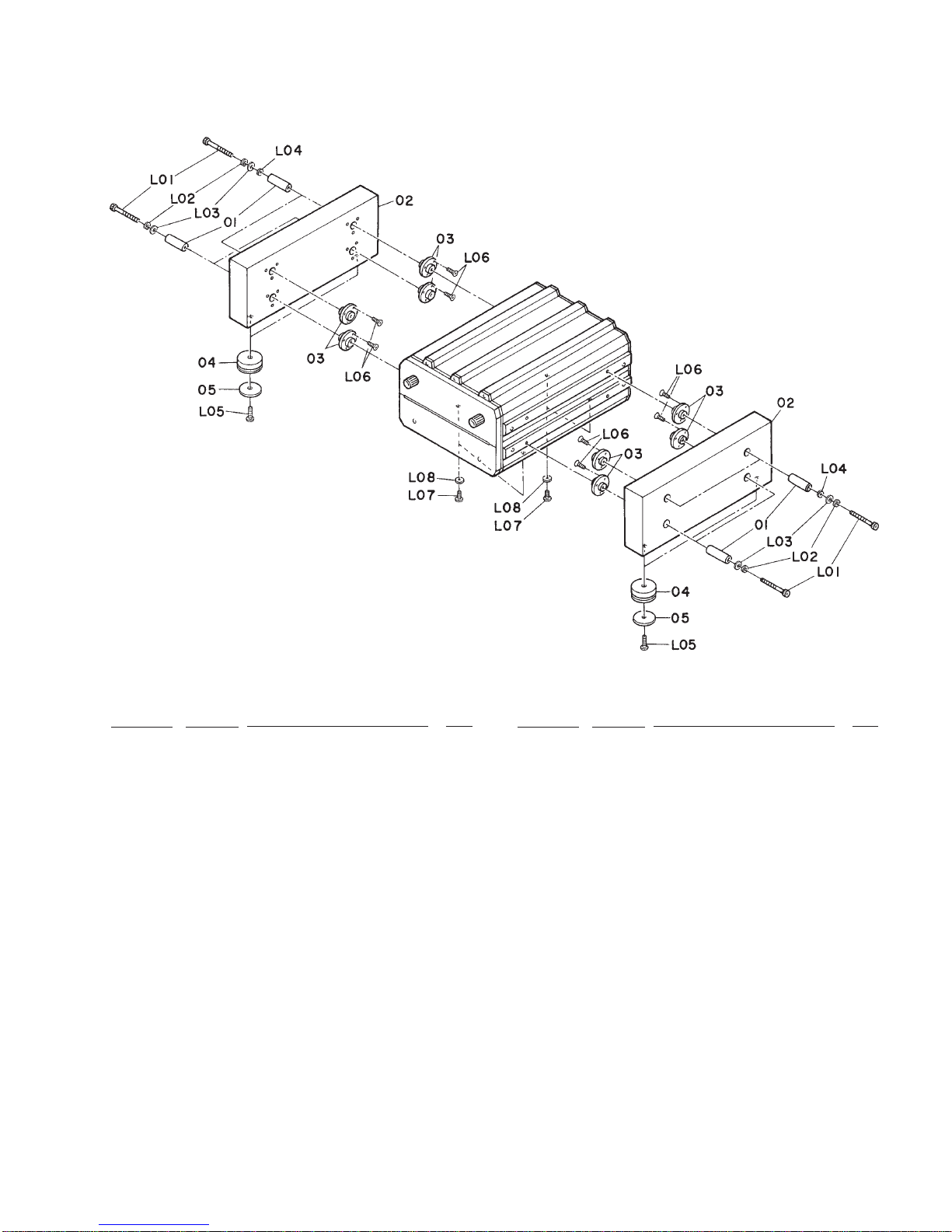

Fig. 2.1.1 Synthesis (1/2)
2.1. Synthesis
— Synthesis
01 0J07542B Sleeve 8
02 0H07021A Side Wood Plate 2
03 0H07024A Side Spacer A 8
04 0H07023A Leg 4
05 0J07543A Leg Cushion 4
06 0H07014B Bonnet Upper 1
07 0J07481B Collar 8
08 0J07507A Al Stabilizer Upper 1
09 — Rear Panel Ass'y 1
10 BA09409A Main P.C.B. Ass'y 1
11 — Front Panel Ass'y 1
12 BA09210A Tilt Switch P.C.B. Ass'y 1
13 0B80685A 3P Connector Ass'y CN107 1
14 0J07540B Channel 2
15 0J07285A Cushion Channel 2
16 CG09331A Mechanism Deck Ass'y 1
17 0H07026A Lid 1
18 0B80671A 12P Connector Ass'y CN104 1
19 0B80672A 4P Connector Ass'y CN105 1
20 0B80670B 6P Connector Ass'y CN103 1
21 0J07539B Sub Chassis 2
22 0J07538A Damper 4
23 3J07491A Damper SL R 2
24 3J07490A Damper Holder R 2
25 3J07489A Damper Holder F 2
26 3J07492A Damper SL F 2
27 0J07352A Spring Sus Front 2
28 JG04906A Main Chassis Ass'y 1
29 0J07260A Spring Sus Rear 2

DRAGON-CD Limited (CD Player Unit)
1-5
Fig. 2.1.2 Synthesis (2/2)

DRAGON-CD Limited (CD Player Unit)
1-6

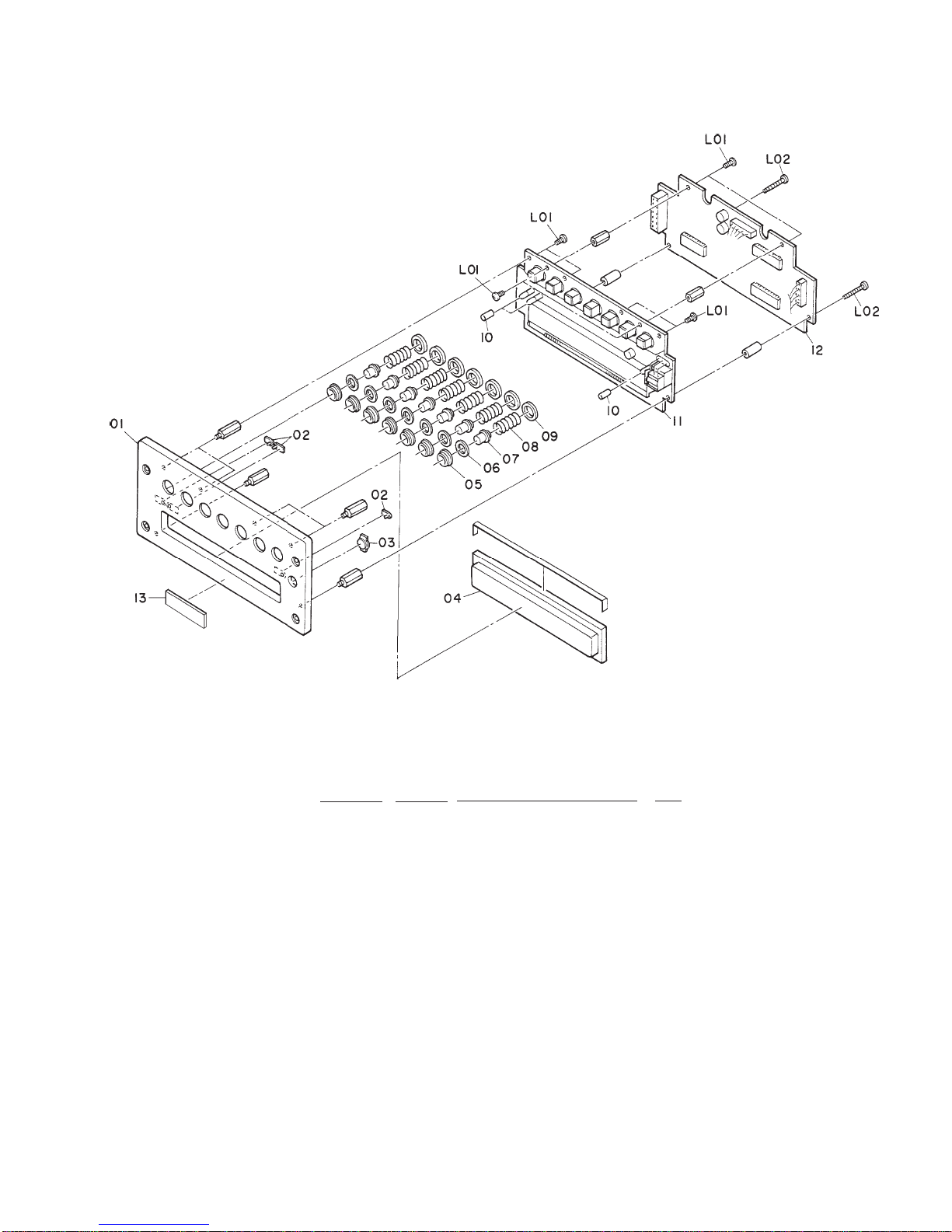

2.2. Front Panel Ass'y (A01)
Fig. 2.2
2.2. Front Panel Ass'y (A01)
A01 — Front Panel Ass'y 1
01 0H08620A Knob Ass'y 2
02 0J07595A Washer 12.2mm 2
03 0H08609A Front Door 1
04 0H06935B Door Sponge 1
05 0H07092A Door Spacer 2
06 0J07495A Spring K 2
07 0J07485A Knob Spacer B 2
08 0H06954A Door Pin 1
09 0H08607A Door Hinge 1
10 0H06955A Cushion D 2
11 0H07017A Door Base 1
12 0J07484C Lock Stud 2
13 0H07012A Front Panel 1
14 0H07088A Front Shield 1
15 0J07503C Door Switch Sheet 1
16 HA07021B Indicator Ass'y 1
17 0H06770C Button Disc 1
18 0J07325B Diffusion Sheet 1
19 0J07579A Diffusion Sheet (Gray) 1
L01 0E03851A C Stopper
L02 0E03867A M2.6x5 + Pan
L03 0E03850A M2.6x5 + Binding 3A (Black)
L04 0E00896A M3x6 + Binding
L05 0E03243A M2x2.5 + Pan
L06 0E03529A M2x4 + Binding
L07 0J07612A Washer 4x2.1x0.5
Schematic
Ref. No. Part No. Description Q'ty Schematic
Ref. No. Part No. Description Q'ty

DRAGON-CD Limited (CD Player Unit)
1-7

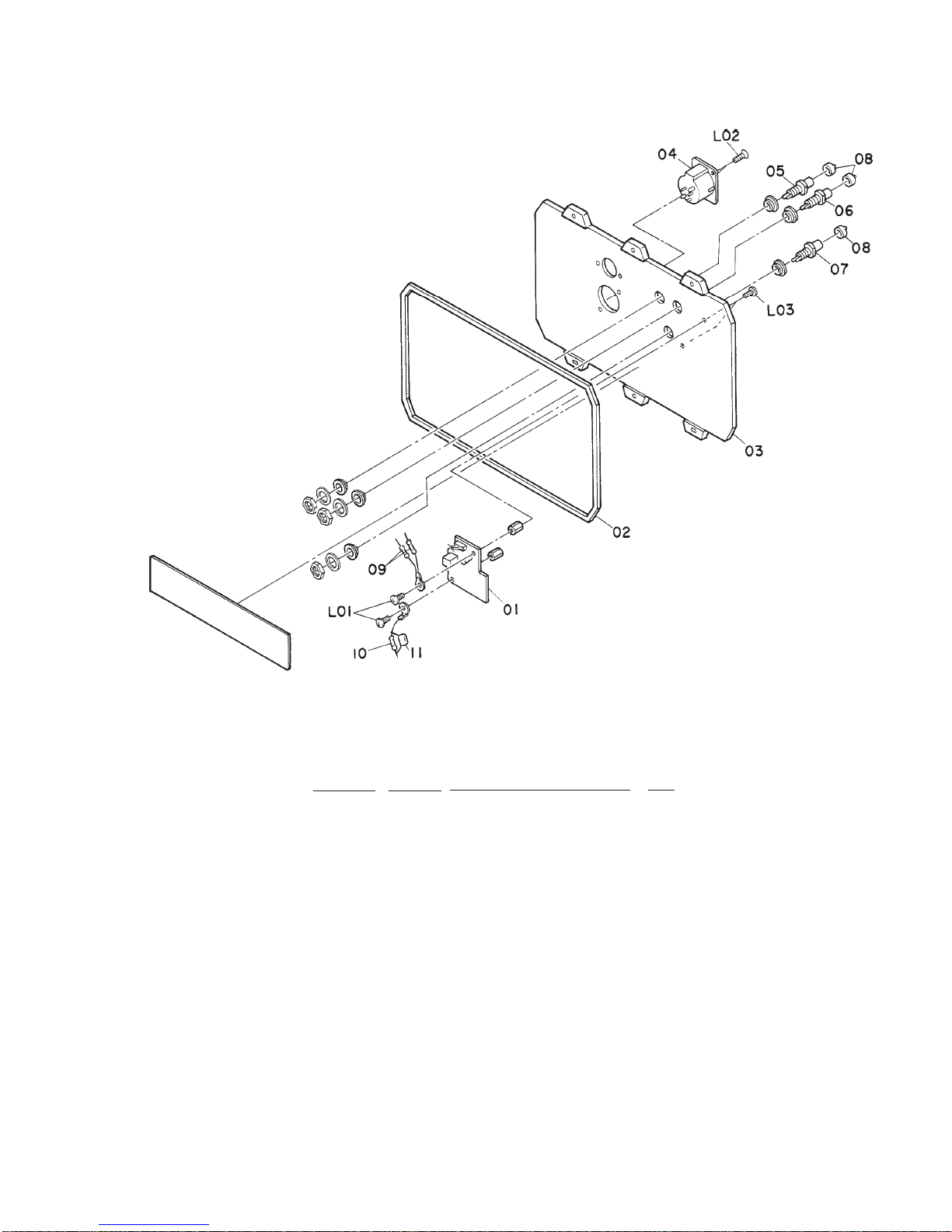

2.3. Rear Panel Ass'y (A02)
Fig. 2.3
Schematic
Ref. No. Part No. Description Q'ty
2.3. Rear Panel Ass'y (A02)
A02 — Rear Panel Ass'y 1
01 BA09410A Digital Out P.C.B. Ass'y 1
02 0H07088A Front Shield 1
03 0H07013A Rear Panel 1
04 0B80830A 3P XLR Connector (Male) [PJ803] 1
05 0B80828A 1P Pin Jack (WHT) [PJ801] 1
06 0B80862A 1P Pin Jack (RED) [PJ802] 1
07 0B80863A 1P Pin Jack (YEL) [PJ301] 1
08 0B84524A RCA Cap 3
09 0B22666A RM 10 1/4W F [R561L,R] 2
10 0B22567A RM 100 1/4W F [R560] 1
11 0B41823A CML 0.01 50V J [C560] 1
L01 0E00964A M3x5 + Binding
L02 0E03905A ST3x6 + Countersunk (Black)
L03 0E00985A M3x6 + Binding (Black)

DRAGON-CD Limited (CD Player Unit)
1-8
Lubricant (Grease)
A
AA:FLOIL G425
B
BB:FLOIL FL777
2.4. Mechanism Deck Ass'y (A03)
Fig. 2.4

DRAGON-CD Limited (CD Player Unit)
1-9
2.4. Mechanism Deck Ass'y (A03)
A03 CG09331A Mechanism Deck Ass'y 1
01 2C00128A Clamper Top MSS 1
02 2C00285A Top Cover N 1
03 2C00016A Magnet 17x27x5 1
04 2C00015A Clamper LO 1
05 2C00101A A Arm Cushion 2
06 2C00116A Assist Arm N 1
07 CB00245A Stocker N Ass'y 1
08 — Drive Unit CA Section 1
09 2C00284A Side Chassis L N 1
10 — Side Chassis R N Section 1
11 2C00098A Tray Holder L 1
12 CB00230A Timing Ass'y 1
13 CB00246A Tray Ass'y N 1
14 — Main Chassis N Ass'y 1
15 2C00097A Tray Holder R 1
16 0C09857A Mecha B Stopper BLK 1
17 2B70009A Store Switch MSS-10L2-1 1
18 2C00107A Wire Clamper 3B40 2
19 2B70007A Eject /T-Close Switch SSS-13 1
20 0C09850A Clamper Sheet 1
21 0C09830B Carriage-S-1 1
22 0C09831B Carriage-S-2 1
23 0C09832B Carriage-S-3 1
24 0C09833B Carriage-S-4 1
25 0C09834B Carriage-S-5 1
26 0C09835B Carriage-S-6 1
27 0C09836B Carriage-S-7 1
28 2C00129A Magnet 17x28.5x2 1
29 2C00130B Clamper HI MSS 1
30 2C00127A Clamper Plate 1
31 2B70017A Chucking Detection Switch 1
L01 2E00036A PT M2.6x8 + Binding (Black)
L02 2E00038A PT M2.6x12 + Binding
L03 2E00032A PT M2x6 + Binding (Black)
L04 0E03442A ST2.6x5 + Pan
L05 2E00037A PT M2.6x10 + Binding (Black)
L06 2E00035A PT M2.6x6 + Binding (Black)
L07 2E00013A M2x4 + Binding (Black)
Schematic
Ref. No. Part No. Description Q'ty

DRAGON-CD Limited (CD Player Unit)
1-10
Lubricant (Grease)
A
AA:FLOIL G425
B
BB:FLOIL FL777
2.5. Tray Ass'y (B01)
Schematic
Ref. No. Part No. Description Q'ty
Fig. 2.5
2.5. Tray Ass'y (B01)
B01 CB00246A Tray Ass'y N 1
01 2C00287A Tray Top N 1
02 2C00303A Tray Plate N 1
03 2C00068A Shuttle Lock Spring 1
04 2C00061A Shuttle Lock 1
05 2C00291A Tray R N 1
06 2C00290A Tray L N 1
07 2C00302A TR Guide Shaft N 2
08 2C00063A Tray Guide R 1
09 2C00289A Tray Guide L N 1
10 2C00070A Stop Rubber 2
11 2C00286A Shuttle N 1
L01 2E00032A PT M2x6 + Binding (Black)
L02 2E00029A PT M2x4 + Binding (Black)

DRAGON-CD Limited (CD Player Unit)
1-11
Lubricant (Grease)
A
AA:FLOIL G425
2.6. Side Chassis R Section (B02)
Fig. 2.6
Schematic
Ref. No. Part No. Description Q'ty
2.6. Side Chassis R Section (B02)
B02 — Side Chassis R N Section 1
01 CB00329A Change Plate N Ass'y 1
02 2C00281A Carriage Opener N 1
03 2C00039A Change Gear 1
04 2C00093A Switch Bracket 1
05 CB00216A Loading Motor Ass'y 1
06 CB00330B Side Chassis R Sub N Ass'y 1
07 2C00044A S-P-Gear 1
08 2C00017A Belt-C-S 1
09 2C00041A Side Idler 1
10 2C00054A S-F-Gear 1
11 2C00042A S-I-Gear 1
12 2C00279A S-M-Gear N 1
13 2C00280A Tray Stopper N 1
14 CB00331A Trace Arm N Ass'y 1
15 2C00300A Gear Holder N 1
L01 2E00043A PT2.0x1.2x7.2
L02 2E00035A PT M2.6x6 + Binding (Black)
L03 0E00945A M2.6x4 + Binding (Black)
L04 2E00036A PT M2.6x8 + Binding (Black)
L05 2E00031A PT M2x12 + Binding (Black)
L06 2E00042A M2x4 + Binding (Black)
L07 2E00047A Washer 2.1x5x0.5

DRAGON-CD Limited (CD Player Unit)
1-12
2.7. Main Chassis Section (B03)
Lubricant (Grease)
A
AA:FLOIL G425
B
BB:FLOIL FL777
Fig. 2.7
Schematic
Ref. No. Part No. Description Q'ty Schematic
Ref. No. Part No. Description Q'ty
28 0B81459A 2P T-Post 2
29 0B81460A 3P T-Post 1
30 0B09663A RK 270 1/6W J 1
31 0B09665A RK 330 1/6W J 2
32 0B81470A 6P S-Post 1
33 0B81468A 4P S-Post 1
34 0B84475A 12P S-Post 1
L01 2E00035A PT M2.6x6 + Binding (Black)
L02 0E00945A M2.6x4 + Binding (Black)
L03 2E00031A PT M2x12 + Binding (Black)
L04 2E00055A PT M3x12 + Pan Washer-Faced
L05 2E00040A M1.7x5 Touchlock (Black)
L06 2E00009A BT2x8 + Binding Washer-Faced
L07 2E00044A PT2.6x1.4x8.9
L08 2E00034A PT M2.6x5 + Binding
L09 0E00501A M3x3 + Pan
L10 2E00041A M1.7x8 Touchlock (Black)
L11 2E00028A PT M2x8 + Binding
L12 2E00039A M1.7x4 Touchlock (Black)
L13 2E00033A PT M2.6x4 + Binding
L14 2E00048A Washer 2.7x6x0.5
L15 2E00027A PT M2x5 + Binding
— 2B80006A Wire CNW-W6P 1
— 2B80007A Wire CNW-2P175 1
— 2B80008A Wire CNW-2P330 1
— 2B80009A Wire CNW-W4P 1
— 2B80010A Wire CNW-W2P50 1
— 2B80011A Wire CNW-W11P 1
— 2B80012A Wire CNW-3P 1
2.7. Main Chassis Section (B03)
B03 — Main Chassis N Section 1
01 CB00335A Disc Lock Arm N Ass'y 1
02 2C00305A Gear Plate 1
03 2C00117A ME UD Cam Top N 1
04 2C00118A Mecha UD Cam N 1
05 2B70008A Cam Switch MSS-10R2-16 3
06 2C00082A ID-ST-Gear 1
07 2C00074A D1-ST-Gear 1
08 CB00226A D2-ST-Gear Ass'y 1
09 2C00075A D3-ST-Gear 2
10 2C00076A D4-ST-Gear 1
11 2C00077A D5-ST-Gear 1
12 2C00083A Lock Idler 1
13 2C00079A D7M-ST-Gear 1
14 2C00278A D6P-ST-Gear N 1
15 2C00277A Change Arm N 1
16 2C00091A Stocker Cam 1
17 2C00018A Belt-T-C 1
18 2C00092A ST-Worm-Gear 1
19 2C00088A Motor Bracket 1
20 2C00311A Worm Shaft N 1
21 CB00213A Stocker Motor Ass'y 1
22 2B70012A Home Position MSS-10R2-17 1
23 2C00099A Mecha Cushion 2
24 CB00334B Main Chassis N Ass'y 1
25 0B10671A Photoreflector GP2S40 1
26 0B10670A Photointerrupter GP1S52V 1
27 0B10669A Photointerrupter GP1S51V 1

DRAGON-CD Limited (CD Player Unit)
1-13

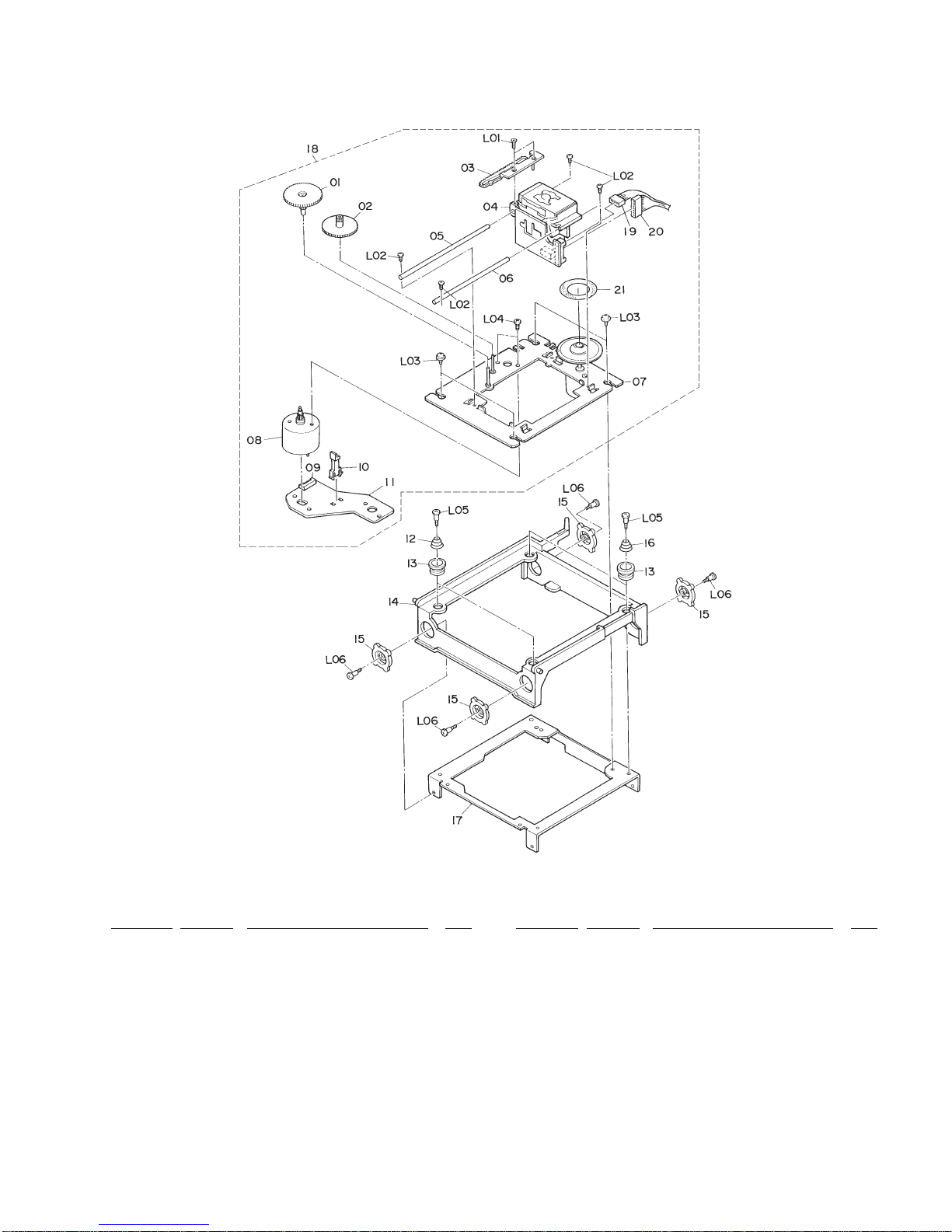

2.8. Drive Unit CA Section (B04)
Fig. 2.8
Schematic
Ref. No. Part No. Description Q'ty
Schematic
Ref. No. Part No. Description Q'ty
2.8. Drive Unit CA Section (B04)
B04 — Drive Unit CA Section 1
01 2C00023A Gear Power 1
02 2C00022A Gear Middle 1
03 2C00105A Plate Rack 1
04 3C09845A Pick-up SF91PQ 1
05 2C00021A Guide Bar B 1
06 2C00020A Guide Bar A 1
07 CB00458A Disc Motor Ass'y 1
08 CB00218A Feed Motor Ass'y 1
09 0B81470A 6P S-Post 1
10 2B70011A Leaf Switch BSW-333A 1
11 2B60002A Motor P.C.B. 90V-M 1
12 2C00027A Mecha. SP B 2
13 2C00025A Mecha. Limit 4
14 CB00332A Mecha Base N Ass'y 1
15 2C00024A Mecha. SUS 4
16 2C00026A Mecha. SP A 2
17 2C00087A Mecha. Chassis 1
18 CB00457A Unit Mecha Ass'y 1
19 2B80032A 5P Connector 1
20 2B80033A 8P Connector 1
21 2C00314A Table Sponge 1
L01 0E03648A M2x5 + Countersunk
L02 2E00053A ST M2.6x6 + Binding
L03 2E00054A ST2.6x4 + Washer-Faced
L04 0E03439A M2x2.5 + Pan (Black)
L05 2E00004A ST2.0x10x15
L06 2E00003A ST2.0x3.0x8.0

DRAGON-CD Limited (CD Player Unit)
1-14
3. MODIFIED CIRCUIT
The following parts have been added to the Main P.C.B. Ass'y.
Schematic
Ref. No. Part No. Description Added between
(Countermeasures against CD-R)
C162 0B41297A CML 0.082 50V J Pins 15 and 16 of U101
C165 0B41975A CC 10P 50V Pins 8 and 9 of U101
(Countermeasures against Cam Switch chattering)
C161 0B40111A CE 0.47 50V Pins 2 and 12 (GND) of CP104
(Countermeasures against electric static discharge)
C166 0B41944A CC 100P 50V K Pins 22 and 26 (GND) of U102
C167 0B41944A CC 100P 50V K Pins 16 and 21 (GND) of U104
(Other countermeasures)
C163 0B41708A CC 22P 50V J In parallel with C104
C164 0B41975A CC 10P 50V D Pins 7 and 9 of U101

DRAGON-PS Limited (Power Supply Unit)
2-1
DRAGON-PS
Limited
Power Supply Unit
DRAGON-PS Limited
(Power Supply Unit)
Power
Off On
Disc Track
Track Time Random
Repeat
Disc
Digital Input
A B
Tri-Stage Isolation
1. Mechanism Ass'y and Parts List ........................................................................................................................ 2-2
1.1. Synthesis ..................................................................................................................................................... 2-2
1.2. Front Panel Ass'y (A01) ................................................................................................................................ 2-3
2. Remote Control Unit ............................................................................................................................................ 2-4
CONTENTS
Note:
DRAGON-PS Limited is included in the DRAGON-CD Limited. For Package Ass'y and
Accessory Ass'y, refer to 1.3 "Package Ass'y and Accessory Ass'y" in the CD Player
section.

DRAGON-PS Limited (Power Supply Unit)
2-2
1. MECHANISM ASS'Y AND PARTS LIST
Schematic
Ref. No. Part No. Description Q'ty Schematic Ref. No. Part No. Description Q'ty

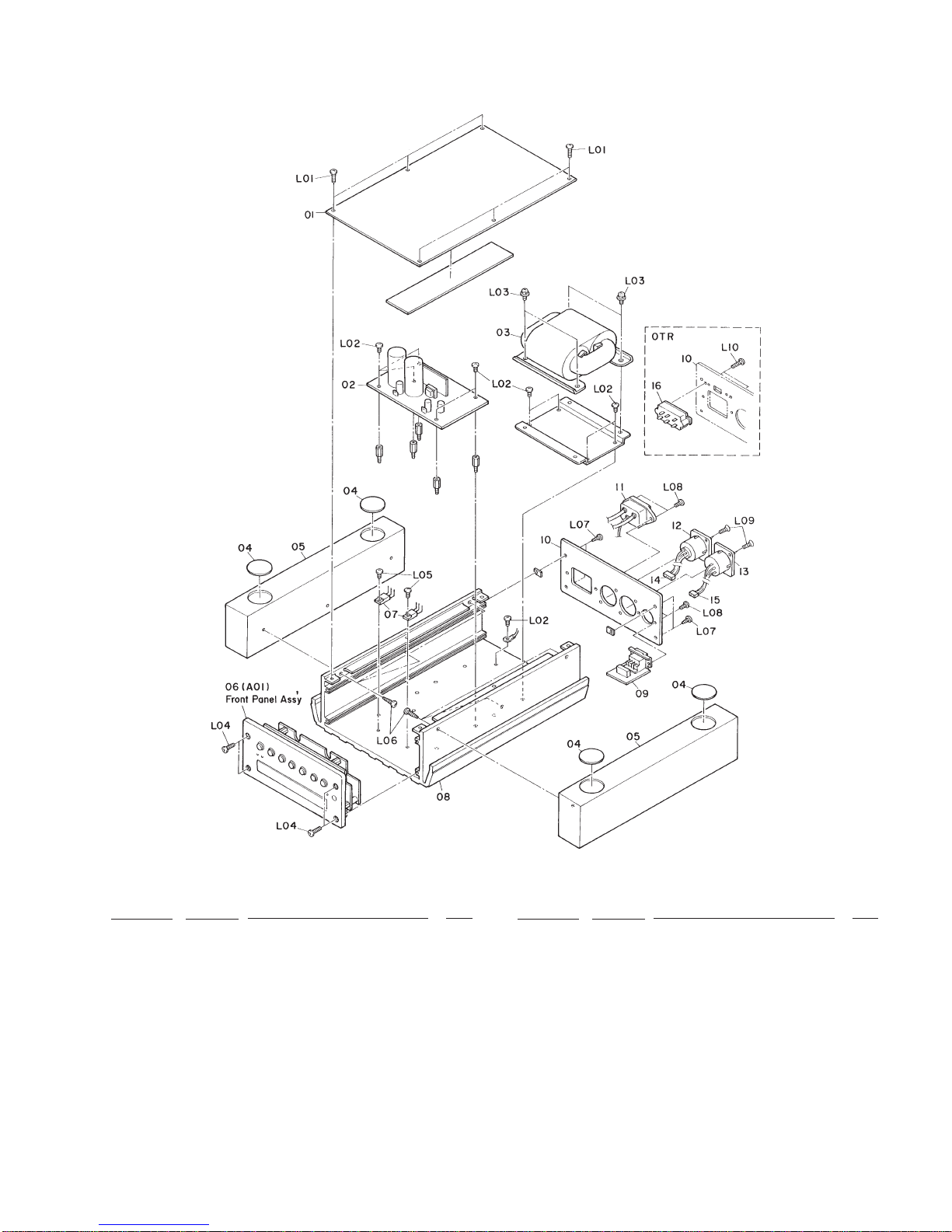

Fig. 1.1
1.1. Synthesis
— Synthesis
01 0H07035A Bottom Cover 1
02 BA09403A Power Supply P.C.B. Ass'y 1
03 0B50280A Power Transformer [T701] (USA, CAN) 1
0B50279A Power Transformer [T701] (OTR) 1
0B50278A Power Transformer [T701] (JPN) 1
0B50353A Power Transformer [T701] (EP) 1
04 0J07549A Leg Cushion 4
05 0H07032A Side Wood Plate 2
06 — Front Panel Ass'y 1
07 0B10684A IC PQ12RF2 [U701,702] 2
08 0H07033A Case 1
09 BA09404A 13 Pin Connector P.C.B. Ass'y 1
10 0H07071A Rear Panel (USA, CAN) 1
0H07047A Rear Panel (OTR) 1
0H08613B Rear Panel (JPN) 1
0H08615A Rear Panel (EP) 1
11 0B90092A AC Inlet [CN701] 1
12 0B80819A 4P XLR Connector (Female) [CN502] 1
13 0B80818A 3P XLR Connector (Female) [CN501] 1
14 0B80824A 4P Connector Ass'y [CN511] 1
15 0B80823A 3P Connector Ass'y [CN510] 1
16 0B70242A Voltage Selector Switch (OTR) 1
L01 0E03137A M3x10 + Binding (Black)
L02 0E00964A M3x5 + Binding
L03 0E00633A M4x6 + Pan 3A
L04 0E04208A M3x10 Hex. FH (Gold)
L05 0E00985A M3x6 + Binding (Black)
L06 0E03888A TP3x16 + Binding Tapping
L07 0E00921A BT3x8 + Binding (Black)
L08 0E00818A M3x8 + Binding (Black)
L09 0E03905A ST3x6 + Countersunk (Black)
L10 0E03012A BT3x12 + Binding (Black) (OTR)
1.1. Synthesis

DRAGON-PS Limited (Power Supply Unit)
2-3
1.2. Front Panel Ass'y (A01)
Fig. 1.2
1.2. Front Panel Ass'y (A01)
A01 — Front Panel Ass'y 1
01 0H08617A Front Panel 1
02 0H05488A LED Lens B 3
03 0H05975A Remote Lens 1
04 0H07037A Window 1
05 0J07552B Sleeve 7
06 0J07554A Cushion 7
07 0H07038A Button 7
08 0J07553A Spring 7
09 0J07555A Cushion 7
10 0B80876A Poly Tube (Black) 3
11 BA09401A Front P.C.B. Ass'y 1
12 BA09402A Digital P.C.B. Ass'y 1
13 0H08618A Emblem 1
L01 0E00985A M3x6 + Binding
L02 0E03265A M3x16 + Binding
Schematic
Ref. No. Part No. Description Q'ty

DRAGON-PS Limited (Power Supply Unit)
2-4
Schematic
Ref. No. Part No. Description Q'ty
— Remote Control Unit 1
01 0H08619A Remote Front Panel 1
02 0B90680A Battery Case 1
03 0B90683A Battery 2
04 0B10909A LED SE303A-C 1
05 0H07041A Remote Side Wood Plate 2
06 0H07042A Remote Bottom Cover 1
07 0H07044A Sensor Cap 1
08 0H08622A Emblem Remote 1
L01 0E04209A M3x6 + Countersunk (Gold)
Schematic
Ref. No. Part No. Description Q'ty
L02 0E03691A M2x3 + Binding (Black)
L03 0E00964A M3x5 + Binding
L04 0E03243A M2x2.5 + Pan
L05 0E03487A M3x6 + Countersunk (Black)

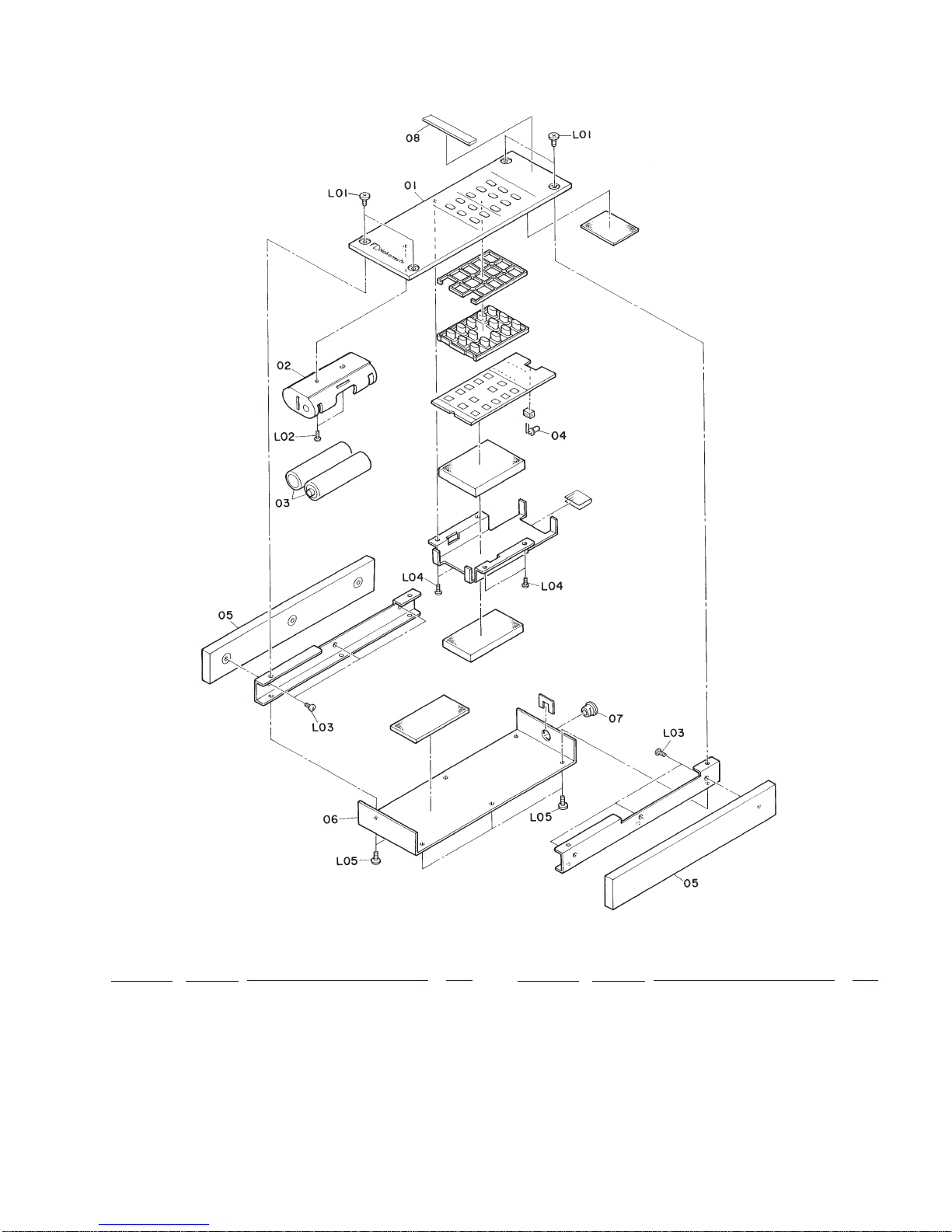

Fig. 2
2. REMOTE CONTROL UNIT
