Nakamichi ND27 User manual

Nakamichi
®
DIGITAL
VIDEO
RECORDER
MODEL:ND27
FOR
12V
APPLICATION

~Nakarnichi

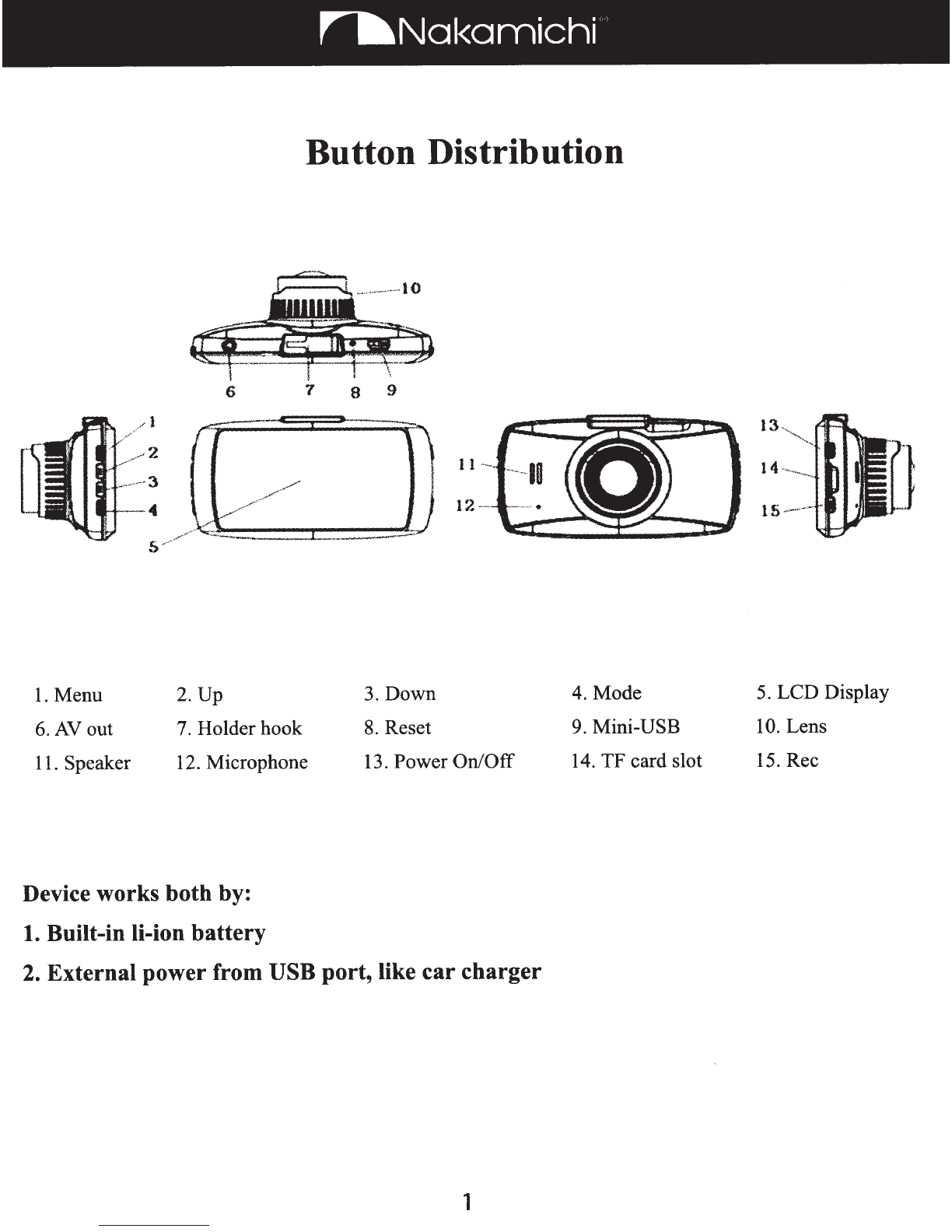

Button Distribution
6 7 8 9
1.
Menu
6.
AVout
11.
Speaker
2.
Up
7. Holder hook
12. Microphone
Device works
both
by:
1.
Built-in li-ion
battery
3.
Down
8.
Reset
13.
Power
On/Off
2. External power from USB
port,
like
car
charger
1
4.Mode
9. Mini-USB
14. TF card slot
13
14
15
5.
LCD
Display
10. Lens
15. Rec

r-.Nakarnichr
Functions Introduction
Before operating this device, please insert a TF card, then format it.
1.
Power On/Off:
When device works with built-in battery, short press
'power'
button to
start
up,
press again to shut off.
When device connected to car charger through USB port, device will
start up and record automatically.
When disconnected, device power
off
automatically.
When device is On, to insert or remove the TF card will shut
off
the device.
2. Recording:
When device is ON with built-in battery, short press
'Rec'
button to start
recording,press it again to stop recording.
When device connected to car charger through USB port, device will start
up and record automatically.
Press 'Rec'manually to stop recording.
3. Photographing:
After device is ON, press
'Mode'
button to enter Photographing mode, then
press
'Rec'
to take photos.
4. Preview/Playback:
After device is ON, press
'Mode'
button twice to enter preview/playback
mode, select the files by Up/Down buttons, press
'Rec'
to playback the
selected file.
5. Automatic Locking Function:
During driving, when the car is shaking severely, the real-time video will
be locked automatically to protect from recycling.
2

r-.Nakarnichi'
·
Video Menu
During video mode, press
'menu'
button to enter the video menu setting.
1. Video resolution: VGA/HD
VGA: 640*480/25FPS
HD: 1280*720/25FPS
2. Date Stamp: On/Off
When Date Stamp set ON, the date/time details will be stamped onto video
screen and photo,as watermark.
When Date Stamp set OFF, the date/time details
won't
be stamped onto video
screen and photo.
3.Motion Detection: On/Off
When Motion Detection set On, device will start recording
if
any object
moving in front
of
the lens.
When Motion Detection set Off, device will keep on and
won't
be triggered
to record automatically by any object moving.
4.Voice recording: On/Off
When voice recording set ON, device will store the video together with audio,
and users can hear the sound from the video when playback.
When voice recording set OFF, device will take video without audio input,
then users
can't
hear any sound from the video file when playback.
S.Loop recording: 2 min./5min./15min.
2 min.: video will be stored by 2 minutes per section.
5 min.: video will be stored
by
5 minutes per section.
15
min.: video will be stored
by
15
minutes per section.
3

r-.Nakarnichr
Photo Menu
In
photographing mode,press
'menu'
button to enter photo menu.
1. Photo size: VGA/1.3M
VGA: photo size will
be
640*480
o
1.3M: photo size will be 1280*1024
0
Preview Menu
In preview mode, press
'menu'button
to enter preview menu.
1. Delete: Single/All/Cancel
Single: delete the current file
0
All: delete all the files (except locked files)
0
Cancel: back to last menu.
2. Thumbnail: Execute/Cancel
Execute: all files will display
by
thumbnail format.
Cancel: back to last
menu.
3. Volume: 1/2/3/4/5/6/7/8
The volume to playback the video will
be
selectable from 8
...
7
...
6
...
5
...
4
...
3
...
2
...
1
4. Unprotect: Execute/Cancel
Execute: unlock the protected video
file.
Cancel:
back
to
upper
menu
option.
4

r-.Nakan~ichi"
System Menu
When at recording or photographing mode, press
'Menu'
button twice
to enter system menu interface.
1. Format: Execute/Cancel
Execute: all data in TF card will be deleted.
Cancel:
back
to last menu.
2. OSD language:
OSD language is selectable among English/Simple Chinese/
Traditional Chinese /Japanese/Russian/Polish.
3. System reset: Execute/Cancel
Execute: will reset the device to the factory defaulted data.
Cancel: back to last menu.
4. Light frequency:
50Hz/60Hz selectable for different countries.
5. Date Input: Date Input/Cancel
Date input: set the date through 'Up'/'Down'buttons to fix the date,confirmed
by pressing 'Rec'button.
Cancel: back to last menu.
6. TV Output:
PAL/NTSC selectable for different countries.
How to download files from device:
1.
Connect the device to a PC through USB data cable included in package.
2.
Find the movable Disk from 'Computer'.
3.
Copy the files that you want from the folder 'DCIM/lOODSCIM'.
5

r.Nakarnichi'
"
Technical Parameters
LCD
screen 2.7"Hi-definition TFJ:.LCD screen
Video resolution HD (1280*720) /VGA(640*480)
Video file
format
AVI
Photo size 1.3M (1280*1024) IVGA(640*480)
Photo file
format
JPG
Compression
format
MJPG
Motion Detection
Support
Record Time 2Min/5Min/15Min
TF
card
supported
4GB-
32GB(C4)
Mic/Spe
aker
Built-in
TV
output
PAL/NTSC
Power
input
DC
5V/1A
Battery
Built-in
li-ion
battery
rechargeable
Light
Freq.
50Hz/60Hz
Input/Output
AV-out/USB
port
OSD
Language
English/Simple Chinese/Traditional Chinese
I
Japanese/Russian/Polish
Packaging Accessories
/
..
.
....
...
.
fl
DVR
Car
Charger
USB
Cable
Suction
cup
holder
Manual
6
