NAL RESEARCH CORPORATION SHOUT ts User manual

SHOUT ts/SHOUT tw
QUICK START GUIDE
Support Phone#: [phone]
[e-mail]
451-92854-002A
2023-03-31

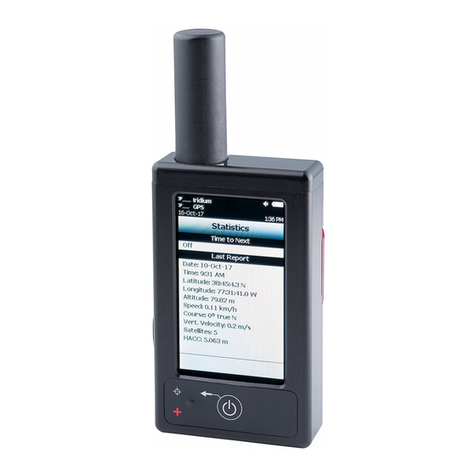

DEVICE DESCRIPTION: The SHOUT tw comprises a touchscreen, a Power/Back button, an LED Status Display, a guarded
Emergency button, and a USB port.
Rotating Guard
Emergency Button
Iridium Antenna
Touchscreen
USB Micro-B
Interface
LED Status Display
GPS Antenna (embedded)
Device Status
Power/Back Button
IMPORTANT: The SHOUT tw must have a full view of the sky during transmission.
1

SHOUT ts/SHOUT tw
QUICK START GUIDE
Support Phone#: [phone]
[e-mail]
451-92854-002A
2023-03-31
DEVICE STATUS SYMBOLS: Device status symbols are displayed along the top three lines of all screens.
Some symbols do not appear until an event is initiated, such as sending or receiving a message.
Iridium
Signal
One or more messages are in the Outbox ready to be
sent or one or more messages in queue failed to send
Tracking on when the symbol is bright white. The
symbol turns dimmed gray when tracking is off
Mailbox Check is on when the symbol is bright white. The
symbol turns dimmed gray when Mbox Check is off. It is
only available when the Iridium link is enabled. It checks
for any pending messages at the Iridium Gateway.
Geofences:
On -symbol is bright white
Off -symbol is dimmed
One or more unread messages are in the Inbox
Audio alert is on
Battery Indicator: battery is being charged
GPS Signal
Date
2

SHOUT ts/SHOUT tw
QUICK START GUIDE
Support Phone#: [phone]
[e-mail]
451-92854-002A
2023-03-31
911 EMERGENCY
Activate 911 Emergency: Press the 911 Emergency button on the device.
The Status bar turns red and the status LED turns solid green. An alert is immediately sent to a designated monitoring
center(s).
Cancel 911 Emergency: Navigate to the Tracking Menu and select Cancel 911 .
NOTE: The Cancellation message is queued in the Outbox to be transmitted, and the
Emergency mode ends immediately. Turning the SHOUT ts off does not cancel the
Emergency mode. You MUST select the Cancel 911 option to cancel the emergency.
3

SHOUT ts/SHOUT tw
QUICK START GUIDE
Support Phone#: [phone]
[e-mail]
451-92854-002A
2023-03-31
POWER ON/OFF DEVICE
Press the Power button for two seconds to turn on device.
Press the Power button for two seconds to turn off device.
A Power-down Screen appears.
Press Turn Off to turn off the SHOUT tw.
Press Lock to go back to the power-up screen, or press Cancel to return to the previous screen
.
4
MESSAGES
Check Messages
1. Select Texting from the Home screen.
2. Select Inbox from the Texting screen.
•Read messages have a white opened envelope symbol next to them.
•Unread messages have a green closed envelope symbol.
•A closed envelope symbol appears at the top of the screen when an
unread message(s) is in the Inbox.
Compose Message
1. Select Texting from the Home screen.
2. Select Compose from the Texting screen.

SHOUT ts/SHOUT tw
QUICK START GUIDE
Support Phone#: [phone]
[e-mail]
451-92854-002A
2023-03-31
MESSAGES (continued)
Sent Messages
1. Select Texting from the Home screen, then select Sent from the Texting screen . This displays a list of
messages that were successfully sent to the NOC. A message can be resent, forwarded, or deleted.
5
CHARGING BATTERY
Fully charge the SHOUT tw before use. The SHOUT tw must be kept in environments between 0°C (32°F) and 45°C
(113°F) when charging.
The SHOUT tw can be charged with the supplied AC wall adapter or connect to a standard USB device.
NOTE: the battery symbol turns red when the remaining power is less than 20%. A warning message appears when
the remaining power is less than 10%.
WARNING!
All batteries can cause property damage, injury, or burns if a
conductive material, such as jewelry or keys, touches exposed
terminals.The material may complete an electrical circuit and
become extremely hot.To protect against such unwanted current
drain, exercise care in handling any charged battery, particularly
when placing it inside your pocket, purse, or other container with
metal objects.
Do not disassemble the SHOUT ts for battery replacement.Return
it to NAL Research for services.Risk of explosion if battery is
replaced with an incorrect type.Dispose of the batteries (ts)
according to local, state, and federal regulations or laws.
