Napoleon SDO800 Mounting instructions

Sectional and Tilting Door Opener
Installation Instructions and User Guide
SDO800
WARNING
Please read the manual carefully before installation and use. The
installation of your new door opener must be carried out by a technically
qualified or licensed person. Attempting to install or repair the door opener
without suitable technical qualification may result in severe personal injury,
death and / or property damage.

CONTENTS
Important Safety Recommendations..…………………………….………………………….….1-2
Basic function introduction………..……………………………………………….……………...2
Special function introduction………….…………………………………………………………..2
Installation (aluminum track)………………………………………….…………………………..3-4
Installation (steel track)………………………………………….…………………………….…..5-6
Installation recommendations……………………………………………………………………..7
Basic function setting and applying……………………………………………………………..8-9
Special function introduction and application………………………………………….……….10
Aluminum & steel track accessories list………………………………………………….……...11
Manual disengagement……………………………………………………………………………12
Maintenance………………………………………………………………………………………...13
Final note….………………………………………………………………………………………...13
Important information for the user………………………………………………………………...13

1
Important safety recommendations
FAILURE TO COMPLY WITH THE FOLLOWING SAFETY RECOMMENDATIONS MAY
RESULT IN SERIOUS PERSONAL INJURY, DEATH AND / OR PROPERTY DAMAGE.
1. PLEASE READ CAREFULLY AND ADHERE TO ALL SAFETY AND INSTALLATION
RECOMMENDATIONS.
2. The opener is designed and manufactured to meet local regulations. The installer must be
familiar with local regulations required in respect of the installation of the opener.
3. Unqualified personnel or those persons who do not know the occupational health and
safety standards being applicable to automatic gates and other doors, must in no
circumstances carry out installations or implement systems.
4. Persons who install or service the equipment without observing all the applicable safety
standards will be responsible for any damage, injury, cost, expense or claim whatsoever
any person suffered as a result of failure to install the system correctly and in accordance
with the relevant safety standards and installation manual whether directly or indirectly.
5. For additional safety we strongly recommend the inclusion of Photo Beam. Although the
opener incorporates a pressure sensitive Safety Obstruction Force system the addition of
Photo Beam will greatly enhance the operating safety of an automatic garage door and
provide additional peace of mind.
6. Make sure that the garage door is fully open & stationary before driving in or out of the
garage.
7. Make sure the garage door is fully closed & stationary before leaving.
8. Keep hands and loose clothing off the opener and garage door all the time.
9. The Safety Obstruction System is designed to work on STATIONARY objects only.
Serious personal injury, death and / or property damage may occur if the garage door
comes into contact with a moving object
10. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
11. Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer for
recycling advice.
12. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
- WARNING: Important safety instructions. It is important for the safety of persons to
follow all instructions. Save these instructions.
- Do not allow children to play with door controls. Keep remote controls away from
children.
- Watch the moving door and keep people away until the door is completely opened
or closed.
- Take care when operating the manual release since an open door may fall rapidly
due to weak or broken springs, or being out of balance.

2
- Frequently examine the installation, in particular check cables, springs and
mountings for signs of wear, damage or imbalance. Do not use if repair or
adjustment is needed since a fault in the installation or an incorrectly balanced door
may cause injury.
- Each month check that the drive reverses when the door contacts a 50 mm high
object placed on the floor. Adjust if necessary and recheck since an incorrect
adjustment may present a hazard, for drives incorporating an entrapment
protection system depending on contact with the bottom edge of the door.
- Details on how to use the manual release.
- Information concerning the adjustment of the door and drive.
- Disconnect the supply when cleaning or carrying out other maintenance.
- The installation instructions shall include details for the installation of the drive and
its associated components.
Basic function introduction
1. Soft start, soft stop
Minimize start-up load on garage door opener and garage door
2．Opening & closing force self-learning
3．Overloading force detecting, the door will reverse more than 15 cm automatically when it is
overloaded when closing.
4. Security resistance adjustable, with a wide range, sensitive and reliable.
5．Wall switch
6．Infra-red security protection, the door will change to open when obstruction is detected
while closing.
7．Low-voltage protection, the process will not perform any action of opening and closing when
voltage is too low, door panel and controller won‟t be damaged.
8．We adopt rolling code transmitter, with billions of codes, won‟t be coincident code or pirated
code.
9．Optional battery back up, in case of power failure.
10．Key lock feature.
11．With self-closing feature.
Special function introduction
The following functions are made to order in accordance with the special needs of
customers:
1. Caution light feature
2. O/S/C button function (“K” – Button)
3. Pass door protection feature (Photo Eyes)
4. Automatic safety reverse (On Down Operation Only)

3

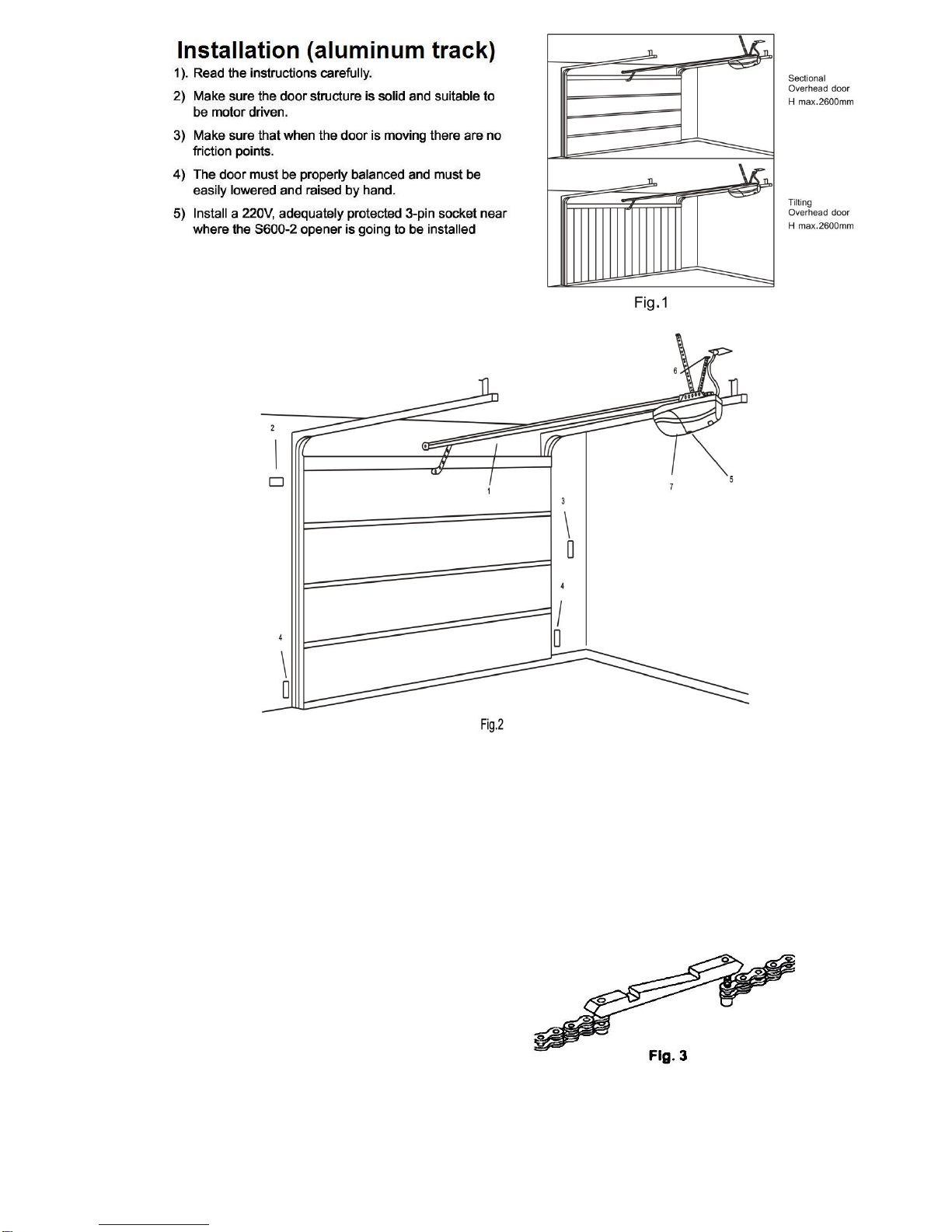

Referring to Fig. 2 for recommended installation
1) Aluminum track 5) Inside panel
2) 24V DC flashing light (optional extra) 6) Power socket
3) Push button 7) Door opener
4) Photo beam (RX/TX Type)
CHAIN SHUTTLE ASSEMBLY
As for the ease of the chain, it is delivered with the
chain and chain shuttle already assembled in the
track. If you need to assemble it yourself, connect
the chain shuttle to the chain with screw C tightened
firmly. Move shuttle B to half way along the rail
section; grease the chain and sprocket (Fig.3) with
a lithium type grease or equivalent. Do not use oil
type lubricants.

4
Fig. 6
Fig. 7
Before attaching the motor brackets (E)
(FIG 4) screw an inverted nut (6mm) (D) on
each stud then position the brackets (E) on
the studs and secure them in-place using a
second 6mm-nut and then lock the brackets
to the rail by tightening the inverted lock

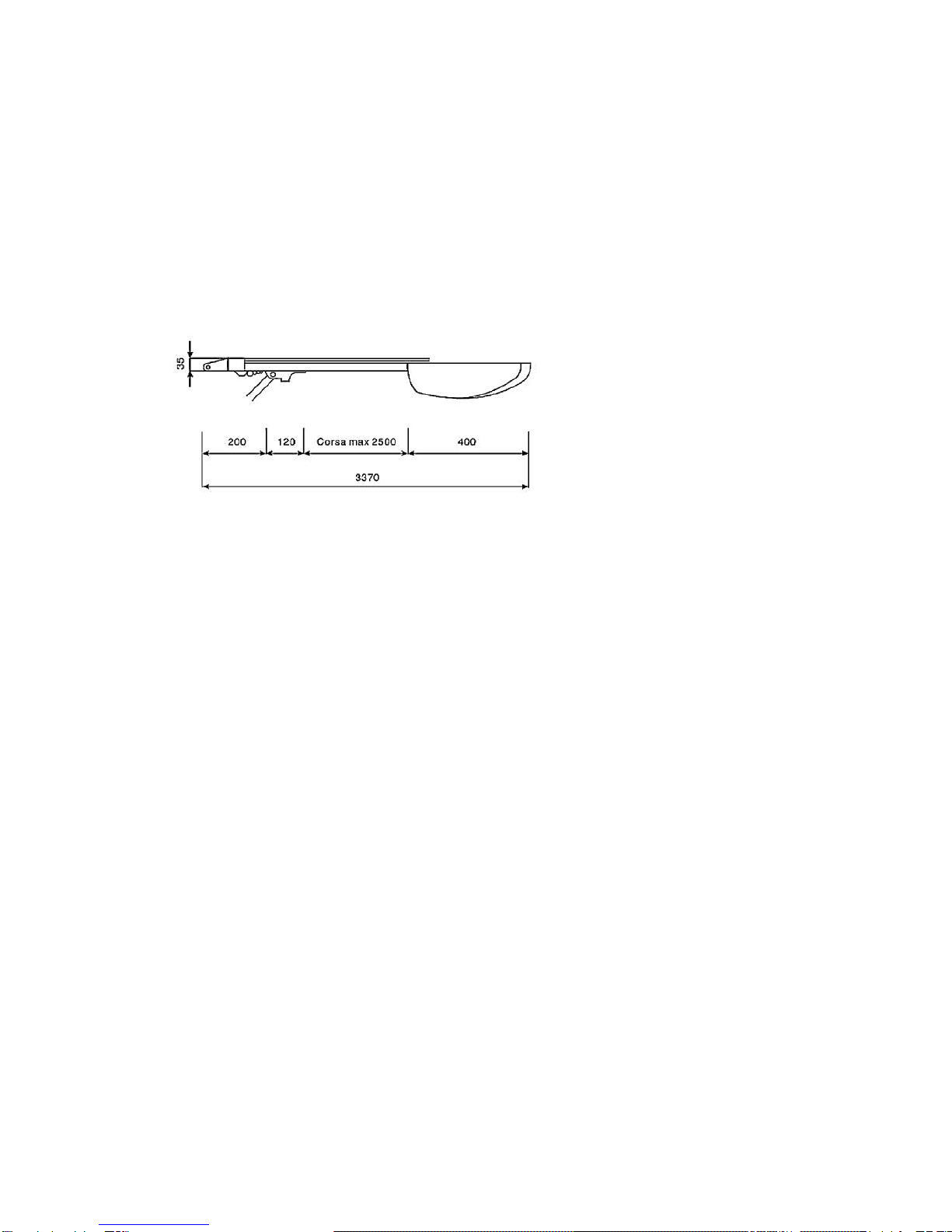

nuts (D).Fix the opener to the doorframe
or to the ceiling with the correct fixing (Fig.5),
maintaining a minimum gap of 30mm from
the top panel‟s maximum height (Fig. 6).
Check measurements for drilling insert and
lock the brackets F and fix the Smart Lifter
opener to the ceiling with the correct fixings
(Fig.6). Cut off any hanging brackets excess.
Warning: Make sure the opener is affixed to
noggins in ceiling and not to plasterboard.
Failure to have a safe and secure fixing will
lead to opener falling, and cause serious
persons and /or property damage.

5

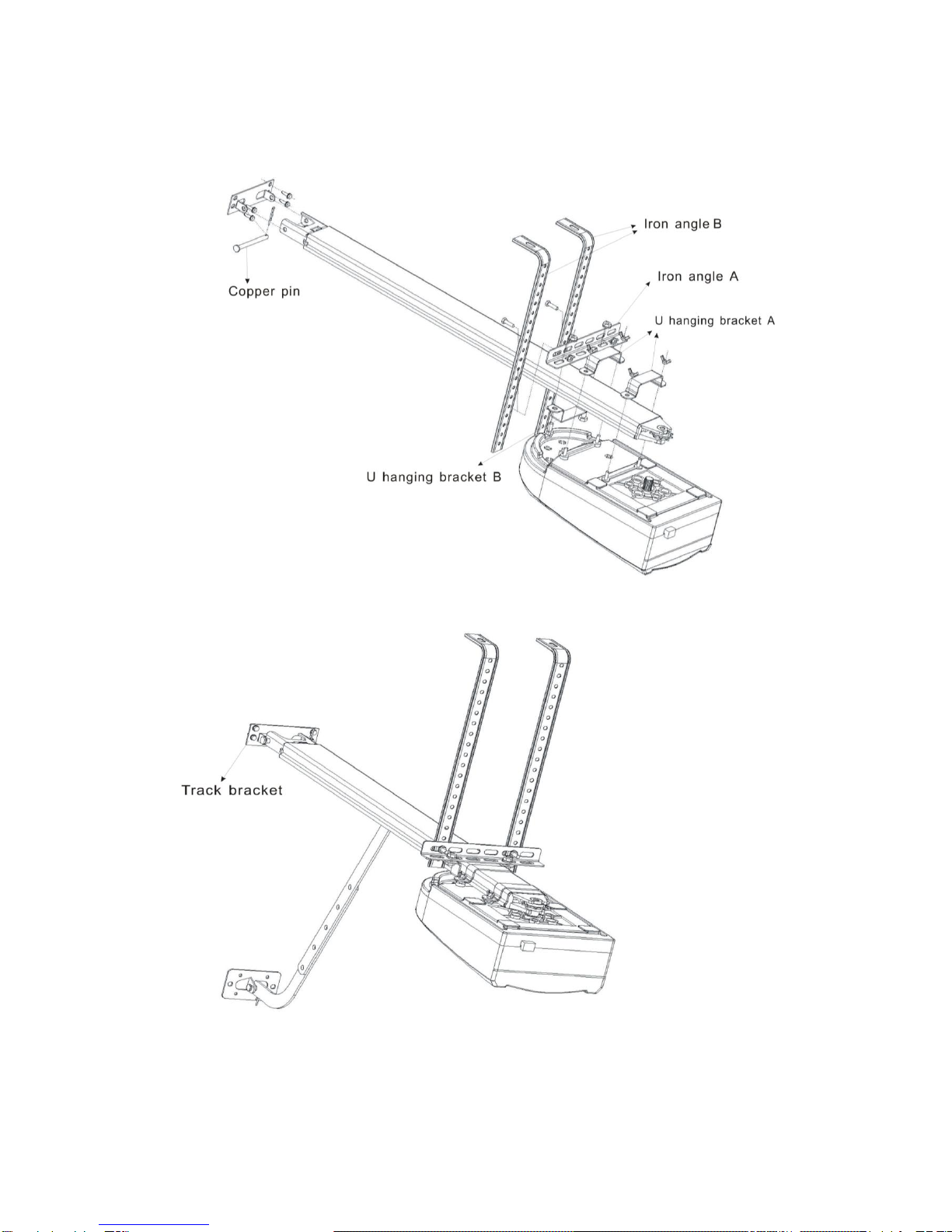

Installation (steel track)
Fig. 1
Fig. 2

6
1. Fixing the track bracket. Fixing the track bracket to the wall 2cm-15cm over the shaft or
intermediate bracket (depend on the actual installation space).
2. Fixing the steel track to the bracket with cotter pin A. (Fig. 1)
3. Fixing garage door opener to the track by U hanging bracket A. It‟s enough for 2 Nm
fastening force.
4. Fixing the motor bracket. Fix the motor bracket as closer to the opener as you can, if there
is enough space.
Notice: Make sure the track is horizontal and vertical to the shaft. Make sure the connection of
iron angle B and ceiling is firm enough.
5. Fixing the track by iron angle A and U bracket B.
6. The connection of panel bracket and panel connector refers to the installation of aluminum
track. Fix the clutch cord.
7. Release the clutch, try to open and close the door by hand. Make sure there is no
resistance between door panel and track.
8. Connecting the opener with power and adjusting the operation.
Notice: Make sure the opener‟s voltage is in accordance with the local voltage. Connect
the opener to a properly earthed power supply.

7
Installation recommendations
Remember there are specific standards that have to be strictly followed regarding the safety
rules of electrical installations and automatic gates and doors.
As for the legal requirements and standards that must be adhered to, please take notice of the
following points to ensure maximum safety and reliability of your installation.
1. Before installing, check the surrounding environment. Carefully evaluate any hazards which
could be physical damage (transiting vehicles, parts of trees falling etc.), possible contact with
persons‟bodies (insects, leaves, etc.), flooding hazards, or any other exceptional events.
2. Check the main voltage numbers is the same as the numbers that are given on the rating
plate and in this manual.
3. Check and make sure if there is suitable electrical protection against short circuits/power
spikes and proper earthing on the main supply.
Remember the unit having main voltage running through it (electrocution hazard, fire hazard).
4. Take care with the control unit; the parts may be subject to damage if the control unit is
abused.
5. Make sure that you have all the necessary materials, and they are suitable for this kind of
use.
6. Read all the instructions thoroughly, and make sure they are understood before attempting
to install the opener.
7. Before starting the installation carefully analyze all the risks relating to automating the door.
Verify that the door is automated in a sound condition and that the mechanisms are in good
working order. Observe the safety margins and minimum distances.
8. Carefully evaluate the safety devices to be installed and the right place to install them; always
install an emergency stop device for power interruption to the opener if it is required.
9. Once the risks have been analyzed, install the opener and relative safety devices,
emergency stop and/or photoelectric cells.
Important note: As for additional safety rules, we strongly recommends the fitting of Photo
Electric safety beams on all installations.
10. While installing the opener, strictly follow all the instructions given in the instruction manual.
If some points or procedures in this manual are not very clear, do not install the unit until all
doubts have been cleared up with our technical department.

8
Basic function setting and applying
1. Itinerary setting Opening & closing force self-learning
2. Matching the receiver and transmitter
Fig. A
Fig. B
Press „SET‟button and hold on until the LED displays
figure „1‟, then adjust the up limit by pressing „LIM-1‟
button. Fine-tuning „LIM-1‟(up) or „LIM-2‟(down) button
to determine the final up limit position then press „set‟
button the display turn into „2‟ automatically. Adjust the
down limit by pressing „LIM-2‟ button. Fine-tuning
„LIM-1‟(up) or „LIM-2‟(down) button to determine the
final down limit position then press „set‟ button. The
opener will operate a cycle automatically to remember
the limit positions and the opening & closing force.
Press „CODE‟ button and hold on until the LED dot is
on. (Fig. A) Then press any button on the transmitter
once, the dot will be off; press the button again the dot
will fast flash then LED displays „11‟(Fig. B). After that
the transmitter will be available.
Press „CODE‟ button more than 8 seconds until the LED
displays „C‟, all the stored codes will be deleted.

9
3. Safety reverse force adjustment
4. Auto-close setting

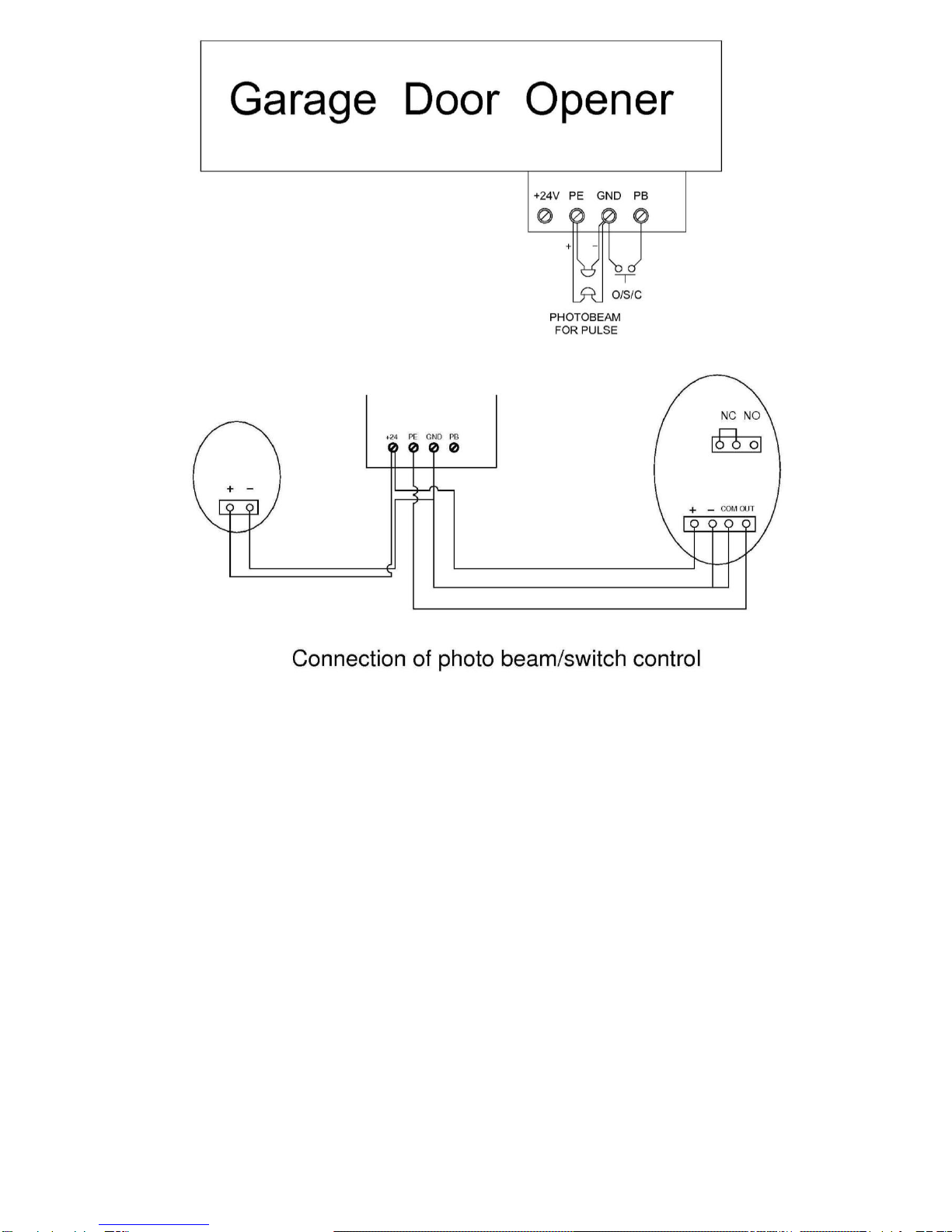

5．Photo beam setting
6. “K”- Button
Press „SET‟ button and hold on until the LED displays
„3‟. It‟s under force adjustment mode. Press „LIM-1‟
button to increase the force and „LIM-2‟ button to
decrease the force. The maximum force is 9 and the
minimum is 1. Press „SET‟ button to confirm.
Press „LIM-1‟ button and hold on until the LED displays „-‟.
Press „LIM-1‟ button once, the auto-close time will increase 1
minute, the maximum time is 9 minutes. Press „LIM-2‟ button
the auto-close time decrease 1 minute. The auto-close
function will be turned off when LED displays 0. Press „SET‟
button to confirm.
Press „LIM-2‟ button and hold on until the LED displays‟11‟,
press „LIM-1‟ button the LED displays „H‟, photo beam
function is available. Press „LIM-2‟ button the LED displays
„11‟ to cancel this function. When setting is finished, press
„SET‟ to confirm. When connecting pulsed quantity control
infrared sensor, wiring as below Fig. 1. When infrared
sensor is controlled by switch value, wiring as below Fig.2
Notice: Close the photo beam function when you don’t
use photo beam sensor.
Press the “K”button to operate the motor unit without a
transmitter.

10
Fig. 1
Fig. 2
Special function introduction and application
The following functions are made to order in accordance with the special needs of
customers:
1．The O/S/C button function
Add an O/S/C button to open or close the door.
2．Auto safety reverse function
This special function is for safety consideration. Reverse force and time are in accordance
with European Union standard.
（F≤400N; reverse time≤0.75S）

11
Aluminum track accessories list
Name
Amount
Clutch Components
×1
Hanging bracket
×1
Motor bracket
×2
φ6×90 axis pin
×1
φ8×55 carriage bolt
×2
Bracket for door panel
×1
Bracket for track
×1
Clutch cord
×1
Cord pendant
×1
φ1.8×38 Cotter pin
×2
φ6×14 bolt
×8
φ8×16 hexagon head bolt
×2
φ8×25 axis pin
×1
φ6 flange
×10
φ8 flange
×4
28×18 fixing kit
×1
10×15 fixing kit
×1
Steel track accessories list
Name
amount
Bracket for door panel
×1
Bracket for track
×1
Clutch cord
×1
Cord pendant
×1
φ1.8×38 Cotter pin
×3
6×14 screw
×4
φ8×16 hexagon head bolt
×4
φ8×25 axis pin
×2
φ6 flange
×8
φ8 flange
×4
28×18 fixing kit
×1
10×15 fixing kit
×1
Hanging bracket
×1
Motor bracket
×2
φ8×90 axis pin（need to be punched）
×1

12
Manual disengagement
The opener is equipped with a manual release cord to disengage shuttle and move door by
hand while holding the handle down (Fig 12). Pull on the handle to disengage the shuttle. To
re-engage the door simply run opener in automatic mode or move door by hand until the trolley
engages in the chain shuttle.
In some situations that a pedestrian door is not in state, it is recommended that an external
disengagement device should be fitted (Fig 13).
Maintenance
1. No particular maintenance is required for the logic circuit board.
Check the door at least twice a year if it is properly balanced and all working parts are in
good working condition or not.
Check the reversing sensitivity at least twice a year, and adjust if it is necessary.
Make sure that the safety devices are working effectively (photo beams, etc.)
Notice: A poor operating door can affect the life of the automatic opener due to incorrect
loads, and will void the warranty.

13
Technical specifications
Power Input: 140W (800N)
220 - 240 VAC 50 Hz or 110 -120 VAC 60 Hz (subject to customer‟s area)
Motor: 800N: 50W
Light time: 3 minutes
Working temperature: -20°~ 40°C
Relative Humidity: <90%
Open and close force: 800N
Reception frequency: 303 MHz or according to customer‟s requirement
Sensitivity: >1 V for correct receiver signal
Decoding: Rolling code
Transmitter power: 27A 12V Battery
Lamp: LED
Final notes
This manual is only used by technical persons who are qualified to carry out the
installation.
No given information in this manual can be considered of any interest to the end user.
It is important for the installer to show their clients correct operation using of the opener
including the using of manual disengagement cord.
Inform the owner about the need of a regular and accurate maintenance, especially
regarding a regular check of the safety and reversing devices.
Important information for the user
Once the opener has been installed, the user must be informed about how it works and all the
risks that can arise if it is used improperly. The user must avoid placing himself/herself in
dangerous situations such as standing within the door‟s operating range when it is moving.
Do not let children play near the door, and keep the remote controls out of their reach.
All services, repairs or checks must be carried out by professionally qualified persons, and
noted on a maintenance register kept by the user.
IMPORTANT NOTE: In the case of a malfunction the user must call an authorized installer and
should not attempt to repair it by yourself

73-75 Magnesium Drive, Crestmead Qld 4132
Ph: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.napoleongd.com.au
