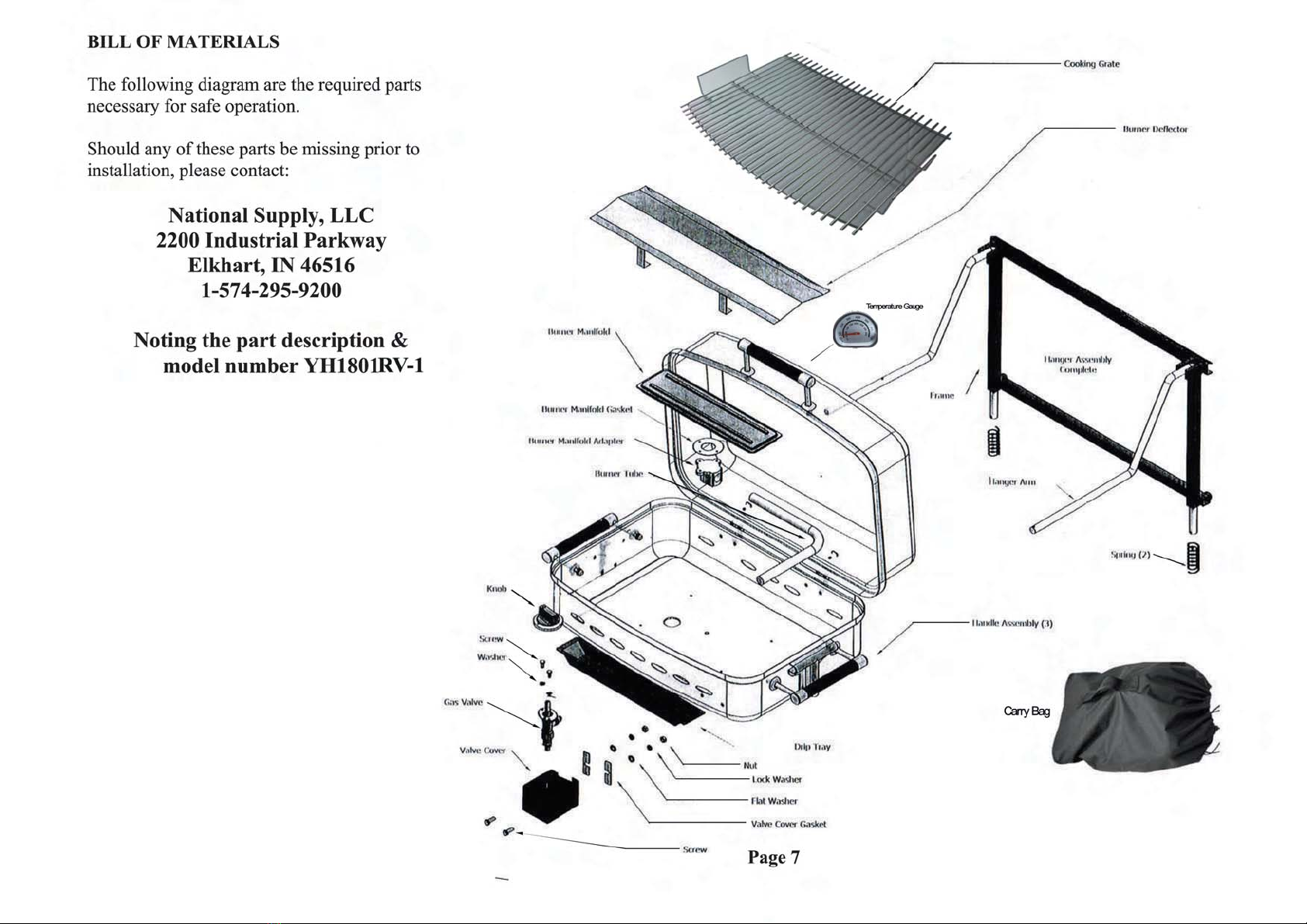

National Supply YH1801RV-1 User manual

DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately
call your fire department.
Failure to follow these instructions could result in fire or explosion
which could cause property damage, personal injury or death.
DANGER
1. Never operate this appliance unattended.
2. Never operate this appliance within 10 ft (3.0 m) of any structure,
combustible material or other gas cylinder.
3. Never operate this appliance within 25 ft (7.5 m) of any flammable
liquid.
4. Do not fill cooking vessel beyond maximum fill-line.
5. Never allow oil or grease to get hotter than 400°F or 200°C. If the
temperature exceeds 400°F (200°C) or if oil begins to smoke,
immediately turn the burner or gas supply OFF.
6. Heated liquids remain at scalding temperatures long after the
cooking process. Never touch cooking appliance until liquids have
cooled to 115°F (45 °C) or less.
7. If a fire should occur, keep away from the appliance and
immediately call your fire department. Do not attempt to extinguish
an oil or grease fire with water.
Failure to follow these instructions could result in fire, explosion
or burn hazard which could cause property damage, personal
injury or death.
This instruction manual contains important information necessary
for the proper assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling
and using the appliance.
Follow all warnings and instructions when using the appliance.
Keep this manual for future reference.
REMOVING BURNER AND VENTURI TUBE
1. Turn grill bottom side up.

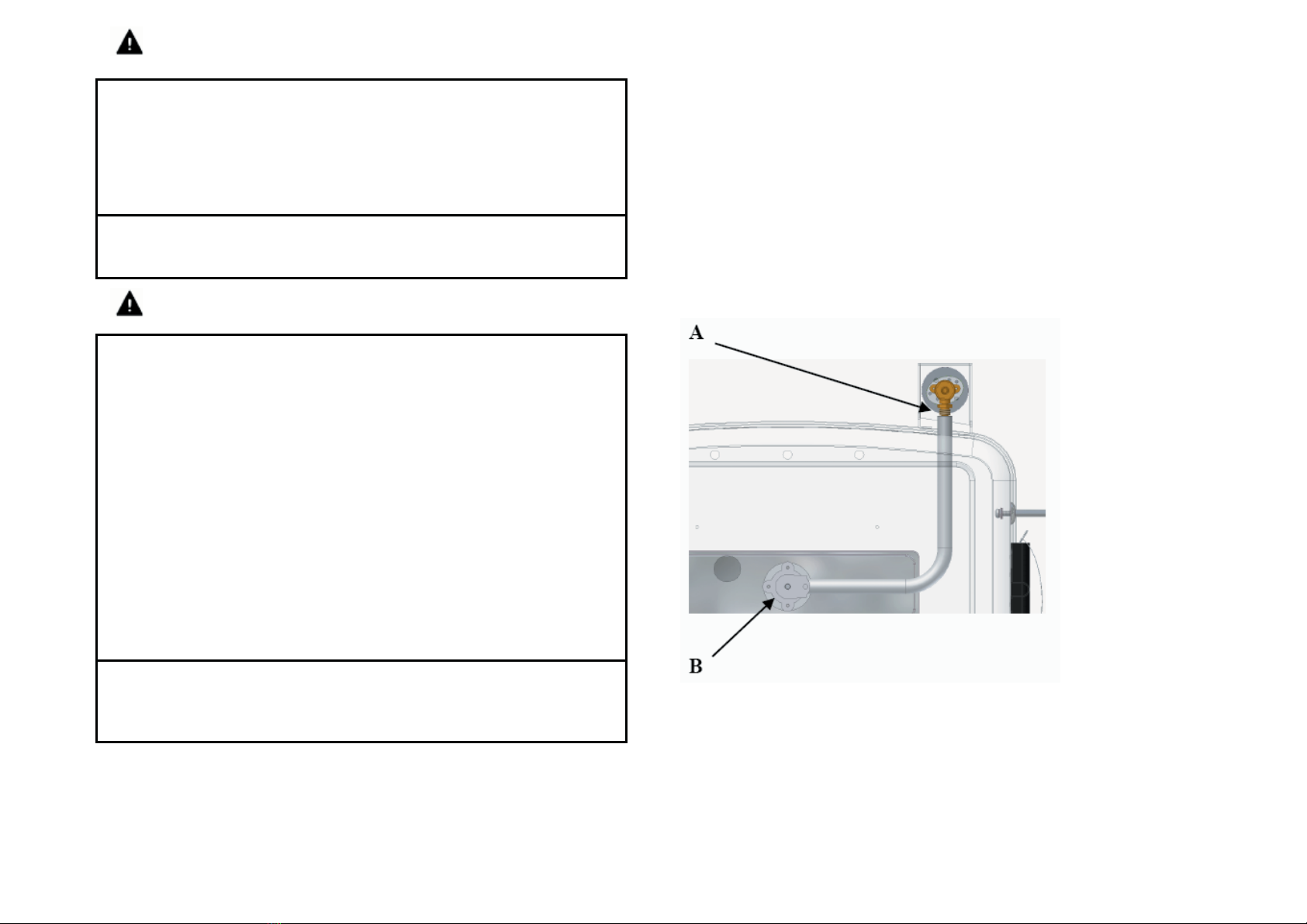

2.Remove screw “B”(see diagram below) Do Not Lose
Washer.
3. Turn nut “A” (see diagram below) counter clock wise
until burner and tube are free.
4. To install new burner and tube, reverse steps #2 and #3.
Important - Venturi tube must fully engage valve
nut A to fully engage threads on Venturi tube.
Nut A must be turned to full length of threads.
Page 1

MAINTENANCE
Keep appliance area clear and free of any combustible
materials, gasoline and other flammable vapors and liquids.
Insure that nothing is obstructing the flow of combustion and
ventilation air.
Insure the ventilation opening (s) of the grill are free and clear from
debris
Visually check burner flames.
Grill should be cool to the touch before cleaning and storing.
After each use of the grill, the appliance must be cleaned.
To reduce the risk of a grease fire, always clean the drip tray
and remove any grease from the inside of the grill using
warm soapy water. The outside of the appliance can also be
wiped down with warm soapy water.
Use a brass bristled barbecue brush to scrub the stainless
steel cooking grates, not a steel bristled wire brush.
DO NOT use any cleaning solvents or abrasives to clean the
grill.
Before each use always check/clean burner/Venturi tubes for
insects and insect nests. A clogged tube can lead to a fire
beneath the appliance.
To check for gas leaks on hose or grill, use a solution of 1
part liquid dish detergent to 10 parts water. Agitate solution
until bubbles form, then apply to all fittings and inlet to grill
control valve. If a leak is detected and you are unable to
correct; return unit to the dealer for repair.
The appliance and its individual shutoff valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of ½
psi (3.5kPa).
The appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2psi (3.5kPa).
ANSI Z21.89-2007 Outdoor Cooking Specialty Gas
Appliance.
Page 2

CAUTIONS
This Barbecue grill is designed for OUTDOOR USE ONLY and
shall not be used in a building, garage or any other enclosed area!
This appliance is not intended to be installed in or on boats.
Minimum clearance from grill to any combustible material must be
8" on the rear and 12" on either side of grill.
This appliance shall not be located under a unprotected combustible
constructions.
Before each use, your grill, hoses, fittings and burner should be
visually inspected for any wear and/or damage/blockage.
If hoses, fittings or burners need replaced use only assemblies
specified by manufacturer.
This appliance is not intended for commercial use.
The use of alcohol, prescription or non-prescription drugs may
impair the consumer’s ability to properly/safely operate the appliance.
When cooking with oil or grease, have a type BC or ABC fire
extinguisher readily available.
In the event of an oil or grease fire do not attempt to extinguish with
water. Immediately call the fire department. A Type BC or ABC fire
extinguisher may, in some circumstances contain the fire.
In the event of rain, snow, hail, sleet or other forms of precipitation
while cooking with oil or grease, cover the cooking vessel
immediately and turn off the appliance burners and gas supply. Do not
attempt to move the appliance or cooking vessel.
When cooking, the appliance must be on a level, stable surface in an
area clear of combustible material. An asphalt surface (blacktop) may
not be acceptable for this purpose.
Do not leave the appliance unattended. Keep children and pets away
from the appliance at all times.
Do not place empty cooking vessel on the appliance while in
operation.
Use caution when placing anything in cooking vessel while the
appliance is in operation.
Do not move the appliance while in use. Allow the cooking vessel
to cool to 115ºF (45ºC) before moving or storing.
This appliance is not intended for and should never be used as a
heater.
Place hoses and tank in a position so as to avoid a trip hazard.
This appliance will be hot during and after use. Use insulated oven
mitts or gloves for protection from hot surfaces or splatter from
cooking liquids
Avoid bumping of or impact with the appliance to prevent spillage
or splashing of hot cooking liquid.
WARNING - Do not use this appliance under extended
awnings. Failure to comply could result in a fire or personal
injury."
DANGER -Do not put grill in storage or travel mode
immediately after use. Allow grill to cool to touch before moving
or storing. Failure to do so could result in fire resulting in
property damage, personal injury or death.
Page 3

INSTALLATION
The installation of the convenience outlet (quick disconnect and
manual valve assembly) must be performed by the recreational vehicle
manufacturer and be in accordance with the requirements of ANSI
A119.2 /NFPA 1192 and ANSI A119.5.
The installation of the appliance mounting brackets must be
performed by the recreational vehicle manufacturer and be in
accordance with the requirements of ANSI
A119.2/NFPA 1192 and ANSI A119.5.
Installation of this grill must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code, ANSI
Z223.1 / NFPA 54, Storage and Handling of Liquefied Petroleum
Gases, ANSI / NFPA 58; or Natural Gas and Propane Installation
Code, CSA B149.1; Propane Storage and Handling, CSA B149.2; or
the Standard for Recreational Vehicles, ANSI A119.2 / NFPA 1192;
and Recreational Vehicle Code, CSA Z240 RV Series, as applicable.
This appliance shall be installed on the opposite side, from a fuel
distribution/dispensing system of an RV.
The installation of the appliance must preclude the
possibility of operation or gas flow when in storage (travel)
position.
The recreational vehicle grill (s) shall be connected to the vehicles
propane system with a flexible hose connector complying with the
high pressure requirements of the Standard for Pigtails and Hose
Connections for LP-Gas, ANSI/UL 569, and shall be of a length no
longer than that required to allow the grill to be mounted in the "in
use" position of its mounting system.
The hose shall be installed in a manner that will not allow it to come
in contact with the hot surface of the grill while in use or in the
storage/travel mode.
To the Installer - All instructions for appliance are to be
left with the consumer for further reference.

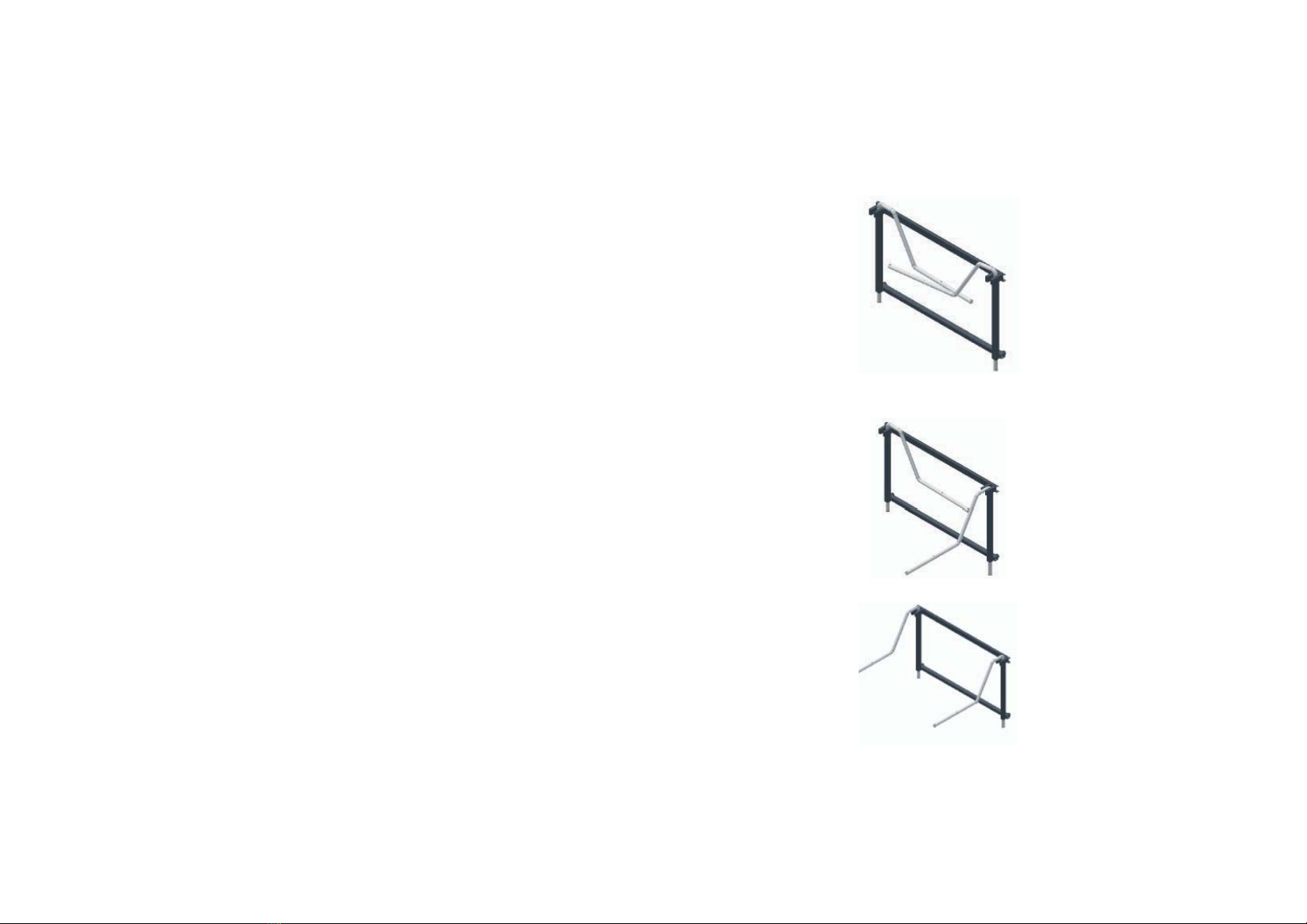

BRACKETS
Bracket is shipped in the folded position
Unfold each arm one at a time
Arms will drop into slots.
To refold; step on bottom rail to push arms above slots.
Fold back into position.
Page 4

BURNER FLAME PATTERN
The burner has been factory set for the correct air and as
mixture. The correct flame pattern is shown below.
INSTALLING GRILL HANDLES
Install the Handles
(1) to the Bottom Bowl (2) by Caps (3), Flat Washers (4),
Spring Washers (5) and Screws (6).
Setting Up Your Grill
Remove your grill from all interior and
exterior packaging.

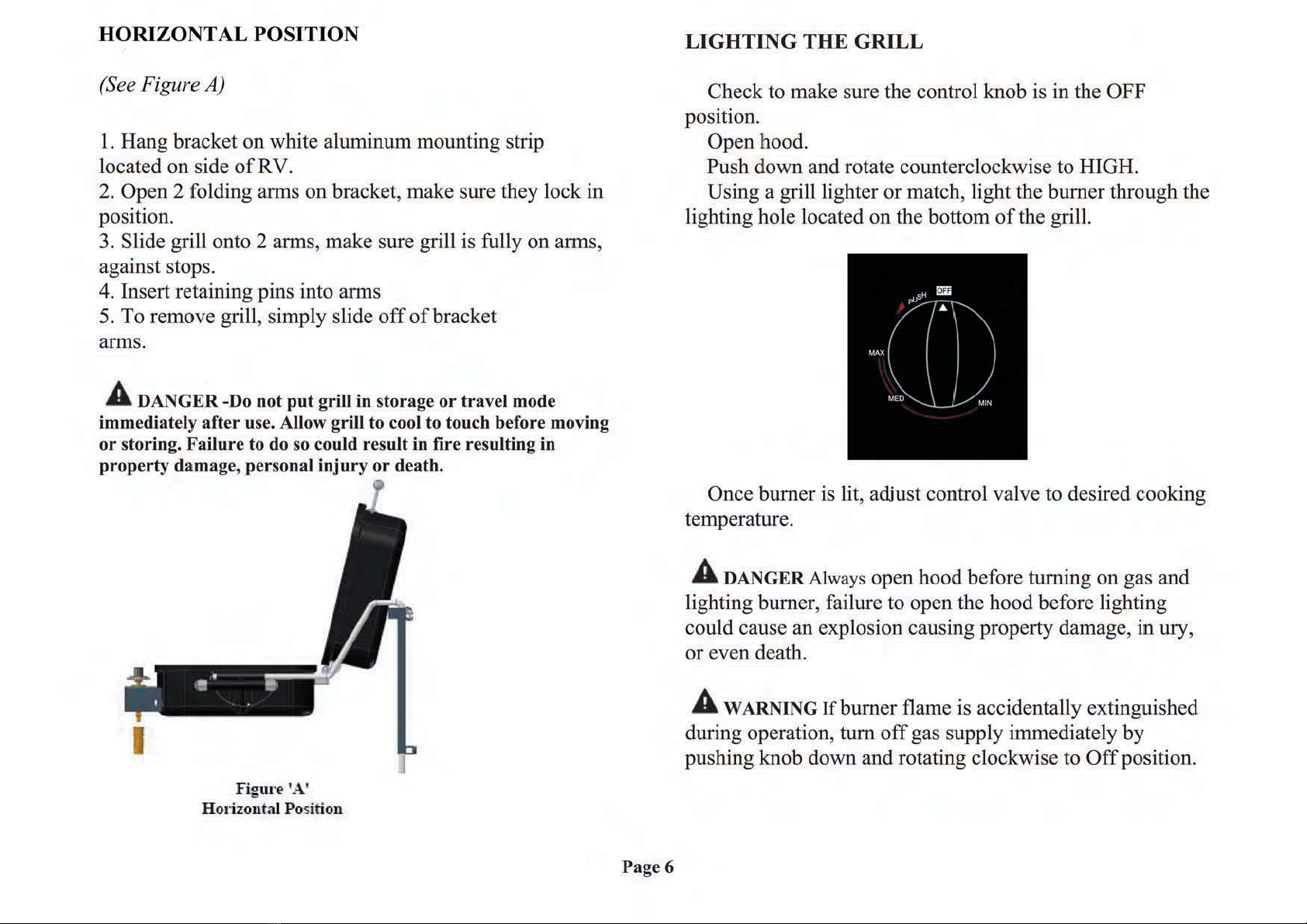

Hold bracket at a 45 degree angel & drop attachment
over white aluminum strip.
Always make sure the cooking area is free from
combustible material.
Attach the hose assembly to your grill using the quick
coupler.
