FORWARD
Thank you for your purchase of a NAUTICAM housing.
At NAUTICAM, we pride ourselves in the ability to recognise the requirements of professional
as well as amateur underwater photographers and fulfill them through the innovative designs
of our products. We strive to achieve a high level of user-friendliness by allowing stress-free
installation and easy operation of all important functions of the camera.
Each housing is individually inspected and water pressure tested to ensure optimum quality
before leaving our manufacturing center.
Please read this manual carefully before using the housing, this will maximise its performance
as well as its lifetime.

3
TABLE OF CONTENTS
Warranty …………………………………………………………………………………………………………….
4
Package Contents ……………………………………………………………………………………………….
6
Precautions …………………………………………………………………………………………………………
7
Specifications ……………………………………………………………………………………………………..
9
Identification of Parts …………………………………………………………………………………………
10
Opening and Locking the Housing ………………………………………………………………………
12
Preparation of the Housing …………………………………………………………………………………
14
Installing the Monitor …………………………………………………………………………………………
20
Connecting to the Camera Housing …………………………………………………………………….
22
Care and Maintenance ……………………………………………………………………………………….
31
Optional Accessories …………………………………………………………………………………………..
32

4
NAUTICAM Products are warranted against any material and manufacturing defects for two
years from the date of purchase for consumer use. HDMI cables are limited to 4 months. Please
fill in the warranty cards shipped with our housings and viewfinders at the time of sale and
return them to your point of purchase within a month. If we do not receive the completed
warranty card for a particular product, the warranty period would be assumed to begin from
the day that the product is shipped from our facility. This warranty only applies to products
purchased from authorised NAUTICAM dealers and does not extend beyond the original retail
purchaser.
HDMI and SDI cables are warranted for 4 months from the date of purchase.
To return your product for service, please contact your regional authorized service centre(s).
Please note that this warranty only applies when the product is purchased in the territory where
the service centre is located.
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper
use and/or poor maintenance; it is the responsibility of the owner to carefully follow the
instructions in our manuals.

5
NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with
and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability to capture images
even if it is due to the malfunctioning of our products.
Unauthorised modifications and/or repairs of our products will automatically invalidate the
warranty.

6
PACKAGE CONTENTS
• NA-502 Housing
• M16 Vacuum Valve II (pre-installed)
• Monitor Hood for Housing
• Hand pump for vacuum valve
• Spanner for vacuum valve
• Spare silicone rubber main O-ring
• O-ring remover
• CR2032 battery
• Lubricant
• Set of Allen keys
• Instruction manual
For 17920 NA-502B-H
1. HDMI (A-D) cable in 750mm length
(pre-installed)
2. M16 HDMI bulkhead
3. HDMI (D-C) cable in 190mm length
4. HDMI (D-C) cable in 200mm length
5. HDMI (A-D) cable in 750mm length
For 17921 NA-502B-S
1. SDI cable in 0.75m length (pre-installed)
2. M16 SDI Bulkhead
3. SDI cable in 0.3m length

7
PRECAUTIONS
• A water-tight test without the monitor inside the housing is highly recommended when
using the system for the first time and after the changing of port and O-ring(s).
• Do not use lubricants from other brands with the silicone rubber O-ring on this housing,
only use the lubricant provided by NAUTICAM.
• Discontinue use immediately should you notice any leakage.
• Store the housing in a robust, shock-proof container during transportation; avoid
transporting with any equipment, such as a camera, inside the housing.
• When travelling by air, do not close the housing as this may lead to a pressure difference
between the atmosphere and inside the housing.
• Care must be taken when opening the housing, as pressure may build up inside the
housing which increases the opening force.

8
• Do not open the product in a wet or sandy environment. Protect the interior from
moisture and debris in order to prevent malfunction or leakage.
• Do not store the product in an environment of high humidity.
• Do not leave the housing and the monitor in direct sunlight for prolonged periods.
• Keep out of reach of children, failure to do so could result in injury.
• Defective products should be shipped to our distributors for service, unauthorized
disassembling and/or modifications could result in malfunction or leakage.

9
SPECIFICATIONS
Construction
Housing body:
Aluminium alloy
Surface treatment:
Hard anodised
Display window:
Abrasion resistant polycarbonate
Dimensions
Width:
222mm
Height:
122mm
Depth:
77mm
Weight
Approx. 1.41kg
Buoyancy
Approx. -20g
Depth rating
100 metres
Operating
Temperature
Normal operating temperature is between 10°C and 40°C. For
usage outside the stated temperature range, please contact our
dealers for more information.

10
IDENTIFICATION OF PARTS
Up selection button
Monitor on/off button
Center button
Left selection button
Right selection button
Down selection button
Back button
M16 vacuum valve
Capture button
Threaded holes for
monitor hood (4x)

11
Housing lock safety button
Ball mount
Sacrificial zinc anode
M16 accessory port
Housing lock
HDMI cable / SDI cable
Cable cap

12
OPENING AND LOCKING THE HOUSING
To open the housing:
1. Press the housing lock safety
button.
2. Turn the housing lock anti-
clockwise for 270°, until the lock
reaches the “Open” position as
shown.

13
To lock the housing:
3. Close the housing while the
housing lock is in the “Open”
position.
4. Turn the housing lock clockwise
for 270°, until the lock reaches
the “lock” position as shown.
Confirm that the white indicator
line on the safety button is
visible.

14
PREPARATION OF THE HOUSING
1. After verifying that the main O-ring is in
good condition, lightly coat it with the
lubricant provided.
2. Make sure the O-ring groove located in
the front part of the housing is free from
any foreign material; the groove can be
cleaned with the aid of a microfiber cloth.
3. Place the main O-ring into the groove,
first at the corners, then the whole
perimeter.
4. Setting up the moisture alarm:
1. Install the CR2032 battery
provided into the battery
compartment on the circuit
board inside the front part of the
housing.

15
2. Switch the alarm on. The LED
light will flash blue once and turn
blue for five seconds indicating
the battery is normal. Then it
goes into flashing blue light
standby mode.
3. Test the alarm by connecting the
two wires near the bottom of the
housing with a damp cotton bud;
the alarm should start giving out a
repeating “beep” sound along
with a flashing red light. The
“beep” sound and the light should
keep on going for 5 seconds after
the removal of the damp cotton
bud.

16
To build up vacuum:
1. Remove the vacuum valve cap.
2. Make sure the vacuum release
ring is at its closed position by
turning it clockwise until it
cannot go any further.
3. After the target vacuum level is
reached, i.e. steady green light. It is
recommended to leave the housing for
at least 20mins to ensure it is sealed. If
the LED light changes from steady
green light to rapidly flashing yellow
light, that means there is a leakage and
please check every o-ring and conduct
the vacuum test again.
Caution: Please DO NOT attempt to go
over the designated vacuum level, i.e.
stop pumping when the LED turn green.
Excessive vacuum level may lead to the
malfunctioning of the camera and lens.
Release
Seal

17
Attention: Although the vacuum indicator
is designed to compensate for a certain
amount of temperature variation, it is
recommended to conduct the vacuum test
in an environment where the temperature
is stable.
4. Please ensure that the cap is attached
back to the vacuum valve before going
underwater.
5. Vacuum can be released by turning the
vacuum release ring anti-clockwise.

18
LED status identification:
On start up:
LED indicator
Status
Flash “Blue” light once
Indicates a 2nd generation PCB
Steady "Blue" light
Battery is normal, goes into flashing "Blue" light standby
mode after 5 seconds.
"Blue" and "Red" lights
alternating
Battery low. Replace battery as soon as possible. Goes
into standby mode after 5 seconds.
Steady "Red" light
Battery empty, replace battery.

19
After start up:
LED indicator
Status
Flashing "Blue" light
Standby mode. The moisture alarm is active, and the
system is ready for vacuum indication whenever a
vacuum is detected.
Flashing "Red" light with
beeping sound
Moisture is detected.
Flashing "Yellow" light
Some vacuum is detected, target vacuum level is not
reached.
Steady "Green" light
Target vacuum level is reached.
Rapidly flash "Yellow"
light
Vacuum is dropping. (Will occur only after target vacuum
level is reached)
Rapidly flashing "Red"
light
Vacuum is totally lost. Circuit stalled until switched off.
(Will occur only after target vacuum level is reached)

20
INSTALLING THE MONITOR

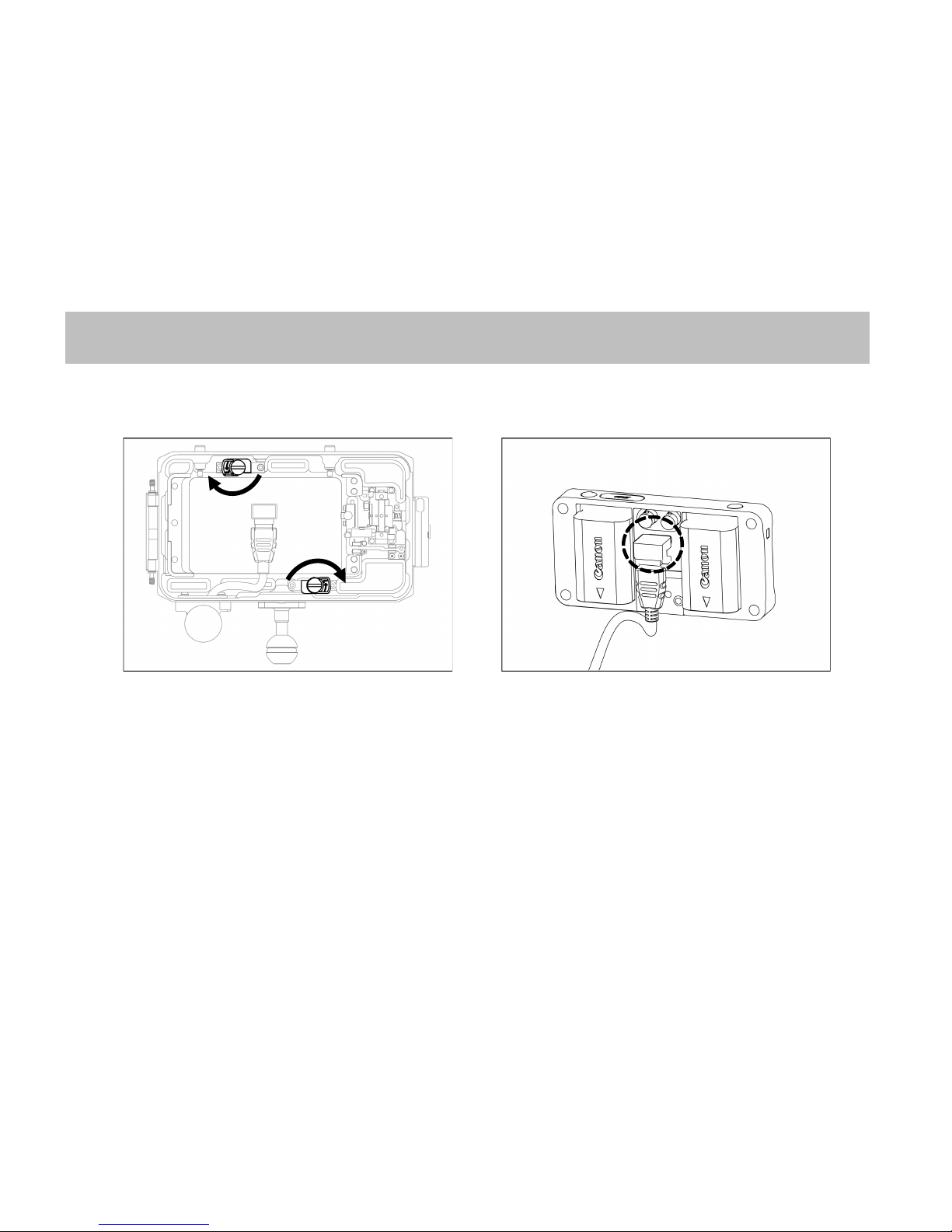

To install the monitor into to the housing:
1. Turn the two locking levers in
the direction as shown.
2. Connect the HDMI cable with "L"
connector to the monitor’s
HDMI in socket as shown above
or HD-SDI cable to the monitor’s
SDI out socket.
