NavLinkz r.LiNK RL3-C3D User manual

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
r.LiNK Video inserter
RL3-C3D
Compatible with
Alfa Romeo vehicles
with Connect Radio and 6.5 inch monitor
or Connect 3D navigation and 8.8 inch monitor
Video-inserter for one rear-view camera and two additional video inputs
Product features
Video-inserter for factory-infotainment systems
CVBS Input for one rear-view camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T2
Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Boxes and connectors –video interface
1.4. Settings of the 8 Dip switches (black)
1.4.1. Enabling the interface’s video inputs (dip 2-3)
1.4.2. Rear-view camera setting (dip 5)
1.4.3. Activating the guide lines (dip6)
1.4.4. Monitor selection (Dip 7 and8)
1.5. Settings of the 4 Dip switches (CAN function –red)
2. Installation
2.1. Place of installation
2.2. Connection schema
2.3. Connection to factory head unit and monitor
2.3.1. Connection to the picture signal cable –
2.3.2. Connection to Quadlock - CAN
2.4. Connection of video-sources
2.4.1. Audio insertion
2.4.2. After-market rear-view camera
2.4.2.1. Case 1: Interface receives the reverse gear signal
2.4.2.2. Case 2Interface does not receive the reverse gear signal

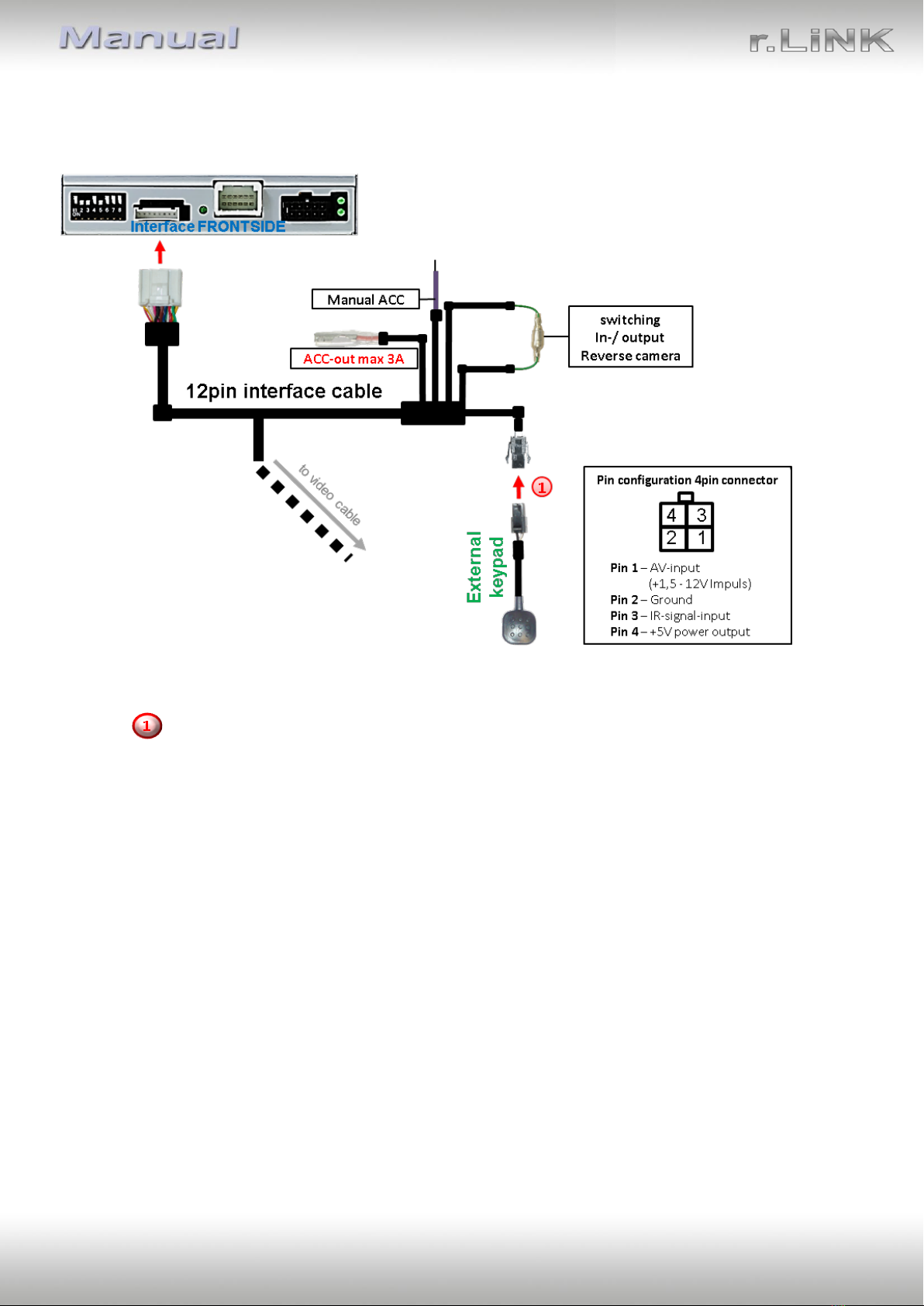

2.5. Connecting video-interface and external keypad
2.6. Picture settings and guide lines
3. Interface operation
3.1. By factory infotainment button
3.2. By keypad
4. Specifications
5. FAQ –Trouble Shooting-Interface functions
6. Technical support

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-
camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
video interface’s place of installation must be free of moisture and away from heat sources.
Before the final installation in the vehicle of the video sources, we recommend a test-run
to ensure the compatibility of vehicle and interface. Due to changes in the production of
the vehicle manufacturer there’s always a possibility of incompatibility.
1.1. Delivery contents
'[e-mail]'
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page4
Requirements
Brand
Compatible vehicles
Compatible systems
Alfa Romeo
Giulia (952) since model year 2016
Stelvio (949) since model year 2017
Connect Radio with 6.5 inch monitor and
Connect 3D navigation with 8.8 inch monitor
Limitations
Video only The interface inserts ONLY video signals into the infotainment. For inserting
Audio signals either the possibly existing factory audio-AUX-input or a FM-
modulator can be used. If 2 audio sources shall be connected to the
infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is
only possible while the reverse gear is engaged. To delay the switch-back an
additional electronic part is required.
Video input signal Only NTSC compatible.
Guide lines If the interface does not receive the required information from the vehicle CAN-
bus, the guide-lines will not be supported.
1.2. Checking the compatibility of vehicle and accessories

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page5
1.3. Boxes and connectors –video interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and
converts them for the video interface.
1.4. Settings of the 8 Dip switches (black)
Some settings have to be selected by the dip-switches of the
video interface.
Dip position down is ON and position up is OFF.
In case of a non-optimal displayed picture with the mentioned dip settings of dip7 and dip8,
we recommend to try each other possible dip switch combination.
See the following chapters for detailed information.
After each Dip-switch-change a power-reset of the Can-box has to be performed!
See the following chapters for detailed information.
Dip
Function
ON (down)
OFF (up)
1
No function
set to OFF
2
CVBS Video 1-input
enabled
disabled
3
CVBS Video 2-input
enabled
disabled
4
No function
set to OFF
5
Rear-view cam type
after-market
factory or none
6
Guide lines
guide lines enabled
guide lines disabled
7
Monitor-specific
adjustments
6.5inch monitor: dip7OFF / dip8 ON
8.8inch high resolution monitor: dip7ON / dip8 OFF
8.8inch lower resolution monitor: dip7OFF / dip8 OFF
8

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page6
1.4.1. Enabling the interface’s video inputs (dip 2-3)
Only by dip switches enabled video inputs can be accessed by switching through the
interface’s video sources. It is recommended to enable only the required inputs. Disabled
inputs will be skipped while switching through the video interfaces inputs.
Note: Dip 1 and 4 are out of function and have to be set to OFF!
1.4.2. Rear-view camera setting (dip5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input while the reverse gear is
engaged.
1.4.3. Activating the guide lines (dip6)
If set to ON, the guide-lines will be shown on the display.
If set to OFF, the guide lines won’t be visible on the display.
Note:If there is no communication between interface and the vehicle`s CAN-bus (several
vehicles aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s
operation, even if they once appear after having switched the system to powerless!
1.4.4. Monitor selection (dip7 and 8)
Dips 7-8 customize the monitor-specific video settings. For the according monitor, use the
dipswitch combinations shown in the table below. Sometimes the mentioned settings vary
even within head units of the same version, caused by different monitor specifications. In
case of a non-optimal displayed picture with the mentioned dip settings, we recommend to
try each other possible dip switch combination of dip7 and dip8 while a working video
source is connected to the chosen input of the interface. One of the 4 combinations will
show the best picture size and quality (some may give no picture). It is possible to first hot
plug through the dip combinations. If there is no change of picture visible after trying all 4
options, retry and disconnect the 6pin plug at the interface box between every change of the
dip setting.
Empirical value:
Size of monitor
Dip 7
Dip8
6.5inch monitor
OFF
ON
8.8 Zoll high resolution monitor
ON
OFF
8.8 Zoll lower resolution monitor
OFF
OFF

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page7
1.5. Settings of the 4 Dip switches (CAN functions –red)
Dip position down is ON and position up is OFF.
Fahrzeug/Navigation
Dip 1
Dip 2
Dip 3
Dip 4
Alfa Romeo vehicles
ON
ON
OFF
OFF
Note: If, with dip switch-1 setting „ON“ the source switching by infotainment button
doesn‘t succeed and further the external keypad doesn’t work either, the dip switch
setting of dip-1 has to be changed to „OFF“.
After each Dip-switch-change a power-reset of the Can-box has to be performed!
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
If the necessary stabilized power supply for the interface is not taken directly from the
battery, the chosen connection has to be checked for being constantly stabile.
The interface needs a permanent 12V source!
Before a final installation, we recommend a test-run to ensure the compatibility of the
vehicle and the interface. Due to changes in the production of the vehicle manufacturer
there’s always a possibility of incompatibility.
2.1. Place of installation
The interface is supposed to be installed at a suitable location behind the vehicle`s head-
unit.

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page8
2.2. Connection schema

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page9
2.3. Connections to factory head-unit and monitor
Remove the factory head unit and monitor
2.3.1. Connection to the picture signal cable
Disconnect the factory picture signal cable’s purple coloured female HSD+2 connector at the
rear-side of the head unit and connect it to the purple coloured HSD+2 connector
„TO LCD“ of the video interface .
Connect the not-angled purple coloured female HSD+2 connector of the enclosed picture
signal cable to the previously become free purple coloured male HSD+2 connector of the
video interface.
Connect the angled female purple coloured HSD+2 connector opposite the picture signal
cable to the purple coloured male HSD+2 connector „HU IN“of the video interface.
Note: The colours of the HSD+2 connectors at monitor and head unit may vary.

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page10

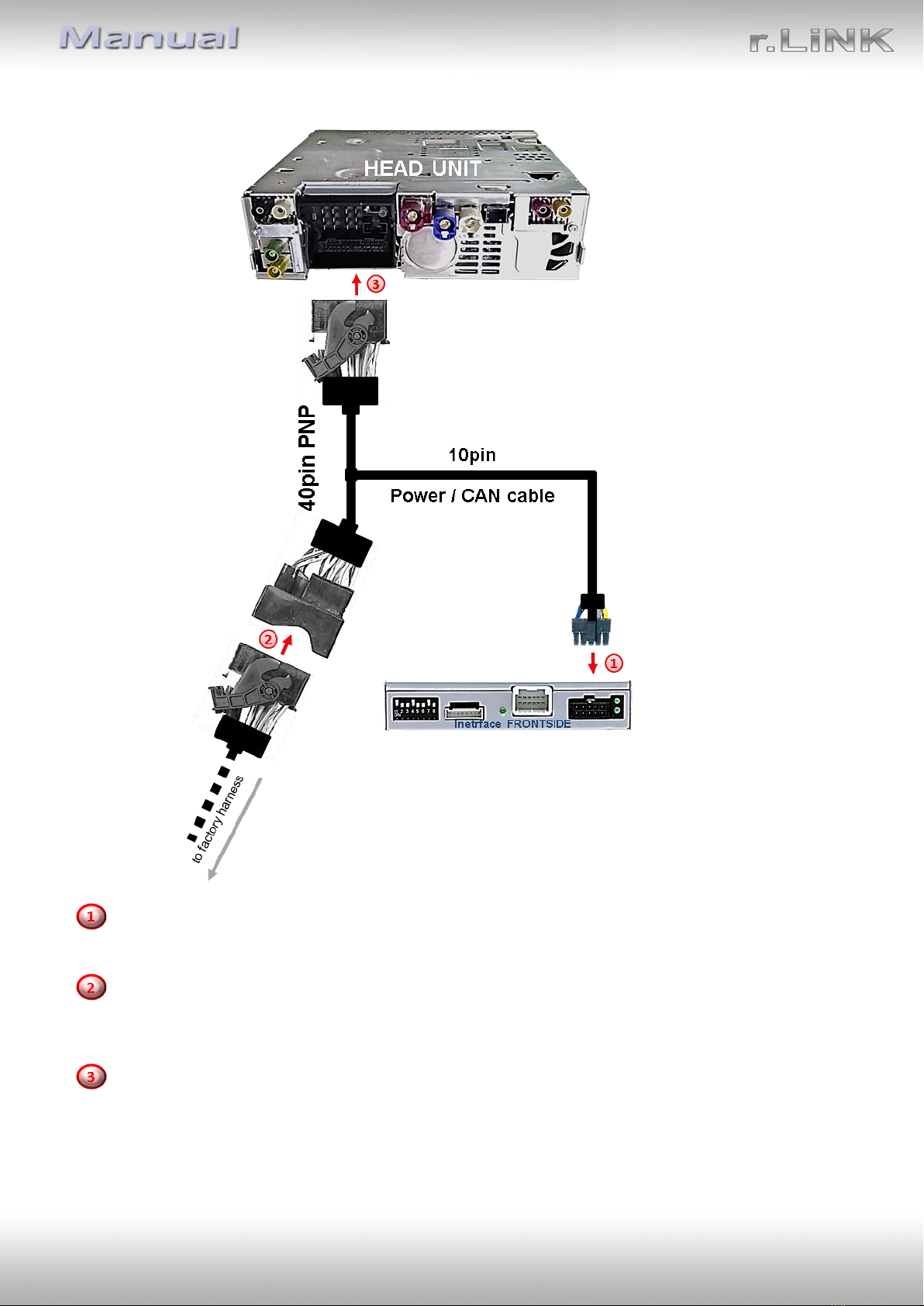

2.3.2. Connection to Quadlock - CAN
Connect the female 10pin connector of the 10pin Power / CAN cable to the 10pin connector
of the video interface.
Remove the female 40pin Quadlock connector of the vehicle harness from the rear-side of
the head-unit and connect it to the male 40pin Quadlock connector of the Power / CAN
cable.
Connect the opposite female Quadlock connector of the Power / CAN cable to the previously
become free male Quadlock connector at the rear-side of the head unit.

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page11
2.4. Connecting video sources
It is possible to connect an after-market rear-view camera and two more Video sources to
the video-interface.
Before a final installation of the video sources, we recommend a test-run to ensure the
compatibility of vehicle and interface. Due to changes in the production of the vehicle
manufacturer there’s always a possibility of incompatibility.
Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video-interface.
Connect the video RCA of the video source 1 and 2 to the female RCA connector “Video IN1”
and ”Video IN 2” of the 12pin interface cable.
Connect the video RCA of the rear-view camera to the female RCA connector “Camera IN” of
the 12pin interface cable.

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page12
2.4.1. Audio-insertion
This interface is only able to insert video signals into the factory infotainment. If an AV-
source is connected, the audio insertion has to be done by the factory audio AUX input or an
FM-modulator. The inserted video-signal can be activated simultaneously to each audio-
mode of the factory infotainment. If 2 AV sources shall be connected to the infotainment,
additional electronic is necessary to switch the audio signals.

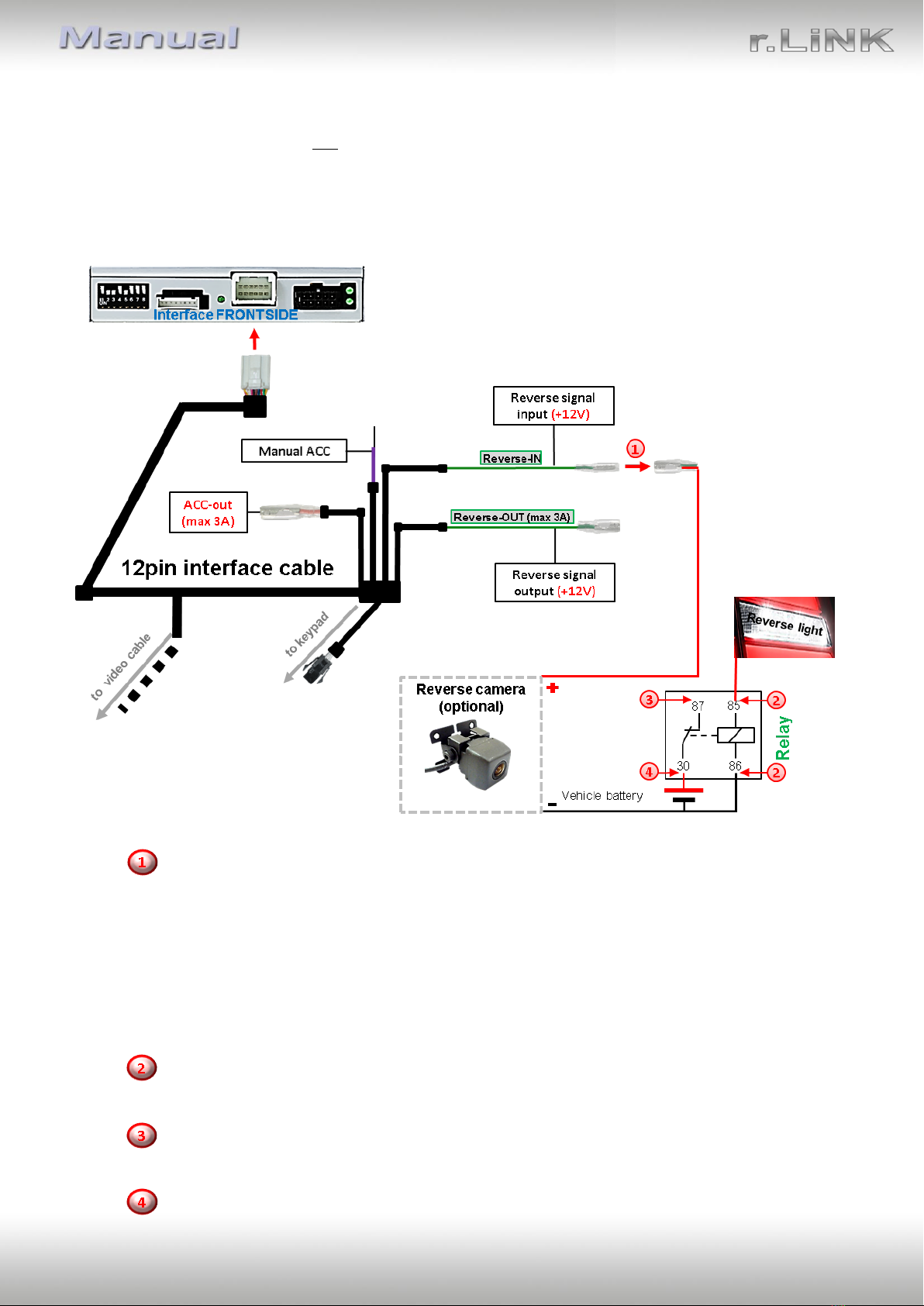

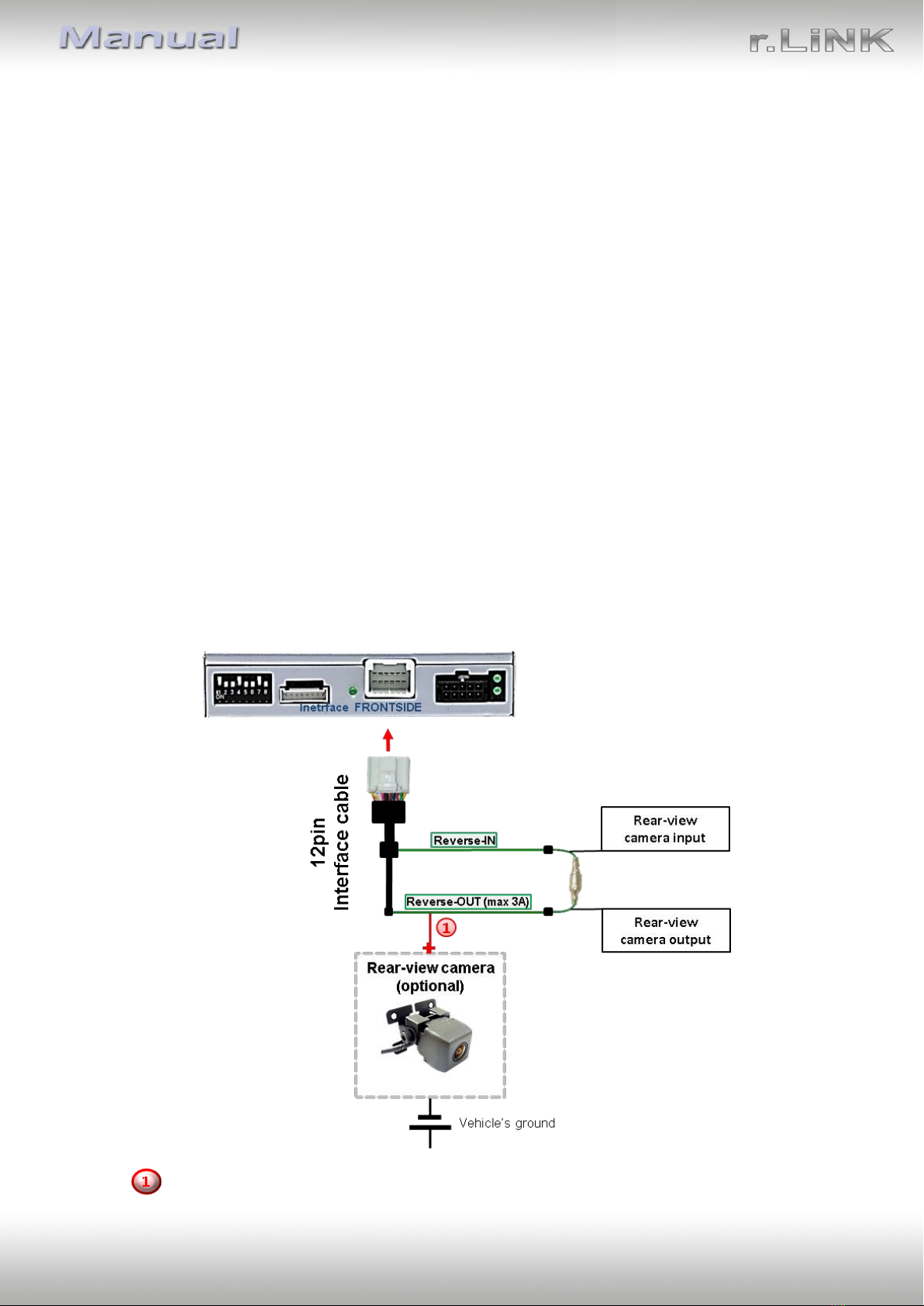

2.4.2. After-market rear-view camera
Some vehicles have a different reverse gear code on the CAN-bus which the video-interface
is not compatible with. Therefore, there are two different ways of installation. If the video
interface receives a signal of the reverse gear, the green wire “Reverse-OUT” of the 20pin
cable should carry +12V while the reverse gear is engaged.
Note: Do not forget to set video interface’s dip5 to ON before testing.
2.4.2.1. Case 1: Interface receives the reverse gear signal
If the interface delivers +12V on the green output wire of the 12pin interface cable while
reverse gear is engaged, the video interface will automatically switch to the rear-view
camera input “Camera IN” while the reverse gear is engaged.
Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken
from the green wire of the 12pin interface cable.

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page13
2.4.2.2. Case 2: CAN-box does not receive the reverse gear signal
If the video interface does not deliver +12V on the green wire of the 12pin cable when
reverse gear is engaged (not all vehicles are compatible), an external switching signal from
the reverse gear light is required. As the reverse gear light’s power supply isn’t voltage-
stabile all the time, an ordinary open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter
(e.g. AC-PNF-RVC) is required. The diagram below shows the connection type of the relay.
Disconnect the green cable’s preconnected male- and female connectors of the 12pin
interface cable and connect the green input cable “Reverse-IN” to the output
connector (87) of the relay.
Note: Last but not lot least to avoid short circuits, the best solution should be, to
crimp a male 4mm connector to the relay’s output cable and connect it to the green
cable’s female 4mm connector. The output-cable “Reverse-OUT” remains
disconnected as it’s out of function.
Connect the Reverse light’s power-cable to coil (85) and the vehicle’s ground to coil
(86) of the relay.
Connect the output connector (87) of the relay to the rear-view camera’s power-
cable, like you did it to the green “Reverse-IN” cable before.
Connect stabile and permanent +12V to the relay’s input connector (30).

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page14
2.5. Connecting video-interface and external keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the
12pin interface cable.
Note: Even if switching through several video sources by the keypad mightn’t be required,
the invisible connection and availability is strongly recommended.

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page15
2.6. Picture settings and guide lines
The picture settings are adjustable by the 3 push-buttons at the rear-side of the video-
interface. Press the MENU button to open the OSD settings menu or to switch to the next
menu item. Press UP and DOWN to change the selected value. The buttons are placed inside
in the housing to avoid accidental changes during or after the installation. Picture settings
must be done separately for AV1, AV2 and CAM while the corresponding input is selected
and visible on the monitor.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available:
Contrast
Brightness
Saturation
Position H (horizontal)
Position V (vertical)
IR-AV1/2 (no function)
Guide L/R (adjustments for Guide lines)
UI-CNTRL (ON/OFF) guide lines
Size H/V (picture size horizontal/vertical)
Note:
To adjust the reverse picture, engage the reverse gear.
To adjust the guide lines, move the steering wheel to see the changes.
If there is no communication between interface and the vehicle`s CAN-bus (several vehicles
aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s
operation, even if they once appear after having switched the system to powerless!

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page16
3. Interface operation
3.1. By factory infotainment button
To switch the interface’s activated video sources; the factory infotainment buttons can be
used.
Press the according infotainment button to switch the input from the factory video to the
inserted video sources. If all inputs are activated by dip switch settings, the order is the
following:
Factory video  Video IN 1  Video IN 2  factory video
Each press will switch to the next enabled input. Inputs which are not enabled will be
skipped.
Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external
keypad has to be used.
3.2. By keypad
Alternatively or additionally to the factory infotainment buttons, the interface’s external
keypad can be used to switch the enabled inputs. Even if not needed, the keypad should
always remain connected to the video interface for support purposes.

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page17
4. Specifications
BATT/ACC range 7V - 25V
Stand-by power drain 13mA
Power 290mA @12V
Video input 0.7V - 1V
Video input formats NTSC
Temperature range -40°C to +85°C
Dimensions video-box 118 x 25 x 103 mm (W x H x D)

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page18
5. FAQ –Trouble shooting Interface functions
For any troubles which may occur, check the following table for a solution before requesting
support from your vendor.
Symptom
Reason
Possible solution
No picture/black
picture (factory
picture).
Not all connectors have been
reconnected to factory head-
unit or monitor after
installation.
Connect missing connectors.
No power on CAN-bus box (all
LED CAN-bus box are off).
Check power supply of CAN-bus box. Check CAN-bus
connection of CAN-bus box.
CAN-bus box connected to
CAN-bus in wrong place.
Refer to the manual where to connected to the CAN-
bus. If not mentioned, try another place to connect to
the CAN-bus.
No power on video-interface
(all LED video-interface are
off).
Check whether CAN-bus box delivers +12V ACC on red
wire output of 8pin to 6pin cable. If not cut wire and
supply ACC +12V directly to video-interface.
No picture/black
picture/white picture
(inserted picture) but
factory picture is OK.
No picture from video source.
Check on other monitor whether video source is OK.
No video-source connected to
the selected interface input.
Check settings dips 1 to 3 of video interface which
inputs are activated and switch to corresponding
input(s).
LVDS cables plugged in wrong
place.
Double-check whether order of LVDS cables is exactly
connected according to manual. Plugging into head-
unit does not work when the manual says to plug into
monitor and vice versa.
Wrong monitor settings of
video-interface.
Try different combinations of dips 7 and 8 of video-
interface. Unplug 6pin power after each change.
Inserted picture totally
wrong size or position.
Inserted picture double
or 4 times on monitor.
Inserted picture
distorted, flickering or
running vertically.
Video sources output set to
AUTO or MULTI which causes
a conflict with the interfaces
auto detection.
Set video source output fixed to PAL or NTSC. It is best
to set all video sources to the same standard.
If error occurs only after
source switching: Connected
sources are not set to the
same TV standard.
Set all video sources to the same standard.
Some interfaces can only
handle NTSC input.
Check manual whether there is a limitation to NTSC
mentioned. If yes, set source fixed to NTSC output.
Inserted picture b/w.
Inserted picture qual.
bad.
Picture settings have not been
adjusted.
Use the 3 buttons and the interface's OSD to adjust the
picture settings for the corresponding video input.
Inserted picture size
slightly wrong.
Inserted picture
position wrong.
Camera input picture
flickers.
Camera is being tested under
fluorescent light which shines
directly into the camera.
Test camera under natural light outside the garage.
Camera input picture is
bluish.
Protection sticker not
removed from camera lens.
Remove protection sticker from lens.

Version 11.09.2019 HW:CAM (V98) / (V20) RL3-C3D
Page19
Symptom
Reason
Possible solution
Camera input picture
black.
Camera power taken directly
from reverse gear lamp.
Use relay or electronics to "clean" reverse gear lamp
power. Alternatively, if CAN-bus box is compatible
with the vehicle, camera power can be taken from
green wire of 6pin to 8pin cable.
Camera input picture
has distortion.
Camera input picture
settings cannot be
adjusted.
Camera input picture settings
can only be adjusted in AV2
mode.
Set dip 3 of video-interface to ON (if not input AV2 is
not already activated) and connect the camera to AV2.
Switch to AV2 and adjust settings. Reconnect camera
to camera input and deactivate AV2 if not used for
other source.
Graphics of a car in
camera input picture.
Function PDC is ON in the
interface OSD.
In compatible vehicles, the graphics will display the
factory PDC distance. If not working or not wanted, set
interface OSD menu item UI-CNTRL to ALLOFF.
Chinese signs in
camera input picture
Function RET or ALL is ON
(function for Asian market) in
the interface OSD.
Set interface OSD menu item UI-CNTRL to ALLOFF or
PDCON.
Not possible to switch
video sources by OEM
button.
CAN-bus interface does not
support this function for
vehicle.
Use external keypad or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.
Pressed too short.
For video source switching a longer press of about 2.5
seconds is required.
Not possible to switch
video sources by
external keypad.
SW-version of interface does
not support external keypad.
Use OEM-button or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.
Interface does not
switch to camera input
when reverse gear is
engaged.
CAN-bus interface does not
support this function for the
vehicles.
Cut the green wire of the 6pin to 8pin cable and apply
+12V constant from reverse gear-lamp signal. Use
relay to "clean" R-gear lamp power.
Interface switches
video-sources by itself.
CAN-bus interface
compatibility to vehicle is
limited.
Cut the grey wire of 6pin to 8pin and isolate both
ends. If problem still occurs, additionally cut the white
wire of 6pin to 8pin cable and isolate both ends.
6. Technical Support
Please note that direct technical support is only available for products purchased directly
from NavLinkz GmbH. For products bought from other sources, contact your vendor for
technical support.
NavLinkz GmbH
distribution/tech dealer-support
Eurotec-Ring 39
D-47445 Moers
Tel [phone]
Email [email protected]
10R-03 5384
Made in China
