NAVMAN WIRELESS M-Nav760
Personal Navigation Device
Reference Manual

2
Legal Notices
Copyright
NAVMAN WIRELESS M-Nav760 Portable Navigation Device User’s Guide Original issue: October
2009
NAVMAN WIRELESS and the NAVMAN WIRELESS logo are registered trademarks of NAVMAN
WIRELESS Inc. Other products or system names appearing in this document are trademarks or
registered trademarks of their respective owners. Further, the © or TM symbols are not used in the text.
Changes may be made periodically to the information in this publication without obligation to notify
any person of such revision or changes. Such changes will be incorporated in new editions of this
User’s Guide or supplementary documents and publications.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form
or by any means, electronic, mechanical, photocopy, recording, or otherwise, without the prior written
permission of NAVMAN WIRELESS Inc.
DISCLAIMER AND LIMITATION OF LIABILITY
NAVMAN WIRELESS and its subsidiaries make no representations or warranties, either expressed or
implied, with respect to the contents here of and specifically disclaims the implied warranties of
merchantability or fitness for a particular purpose. NAVMAN WIRELESS and its subsidiaries assume
no responsibility for any damage or loss resulting from the use of this NAVMAN WIRELESS
M-Nav760 Portable Navigator.
NOTE：Record the device ID, serial number, purchase date, and place of purchase information in the
space provided below. The serial number is indicated on the label affixed to your NAVMAN
WIRELESS device. All correspondence concerning your unit should include the serial number, device
ID, and purchase information.
Revision: 1.0
October 2009
NOTE: Information in this manual is subject to change without notice.

3
Warnings and Notices
For your safety, do not operate the controls of the product while driving.
GPS satellite signals cannot typically pass through solid materials (except glass). GPS location
information is not typically available inside buildings, tunnels, or underground parking lots.
A minimum of 4 GPS satellite signals is needed to calculate your GPS position. Signal reception can be
affected by weather events or overhead obstacles (e.g. dense foliage and tall buildings).
Other wireless devices in the vehicle may interfere with the reception of satellite signals and cause the
reception to be unstable.
Adapter
Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is
damaged or exposed to excess moisture.
Do not use the adapter if the cord becomes damaged.
Connect the adapter to the proper power source. The voltage requirements are found on the product
case and/or packaging.
Battery
This unit contains a non-replaceable internal Li-polymer battery. The battery could be bursting or
exploding and releasing hazardous chemicals in case of over battery specification and using in an
abnormal conditions; disassemble, crush, puncture, or dispose of the battery in fire or water. Abnormal
operation could be dangerous to your human body. Please be aware.
Use only the specified charger approved by the manufacturer.
Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to the
instructions.
WARNING: The Lithium-Ion battery in the device must be recycled or disposed of properly.

4
FCC Warning
)('(5$/&20081,&$7,216&200,66,21,17(5)(5(1&(67$7(0(17
The M-Nav760 PND has been tested and found to comply with the limits for a Class B digital device in
accordance with the specifications in Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause
undesired operation. This device generates, uses, and can radiate radio-frequency energy. If it is not
installed and used properly, it may cause interference with radio and television reception.
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
RF exposure warning
This equipment must be instal led and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not
be co-located or operating in conjunction with any other antenna or transmitter.
End-users and installers must be provide with antenna installation instructions
and transmitter operating conditions for satisfying RF exposure compliance. 
CE Mark
This equipment complies with the requirements for CE marking when used in a residential, commercial,
vehicular or light industrial environment. R&TTE Directive. Products with the CE marking comply with
Radio & Telecommunication Terminal Equipment Directive (R&TTE) (1999/5/EEC), the Electromagnetic
Compatibility Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) – as amended by Directive 93/68/ECC - issued by the Commission of the European
Community.

5
Table of Contents
Chapter 1 Features and Specifications............................................................................7
1.1 NAVMAN WIRELESS M-Nav760 PND features ....................................7
1.2 M-Nav760 Specifications.............................................................................7
Chapter 2 Getting Started.............................................................................................9
2.1 Hardware overview......................................................................................9
2.1.1 Packing list ............................................................................................9
2.1.2 Front Panel .........................................................................................11
2.1.3 Car holder ...........................................................................................12
2.2 Using the mounting bracket......................................................................13
2.3 Additional Application with the Optional SKU ......................................16
Chapter 3 Using the M-Nav760...................................................................................18
3.1 M-Nav760 Operating Basics .....................................................................18

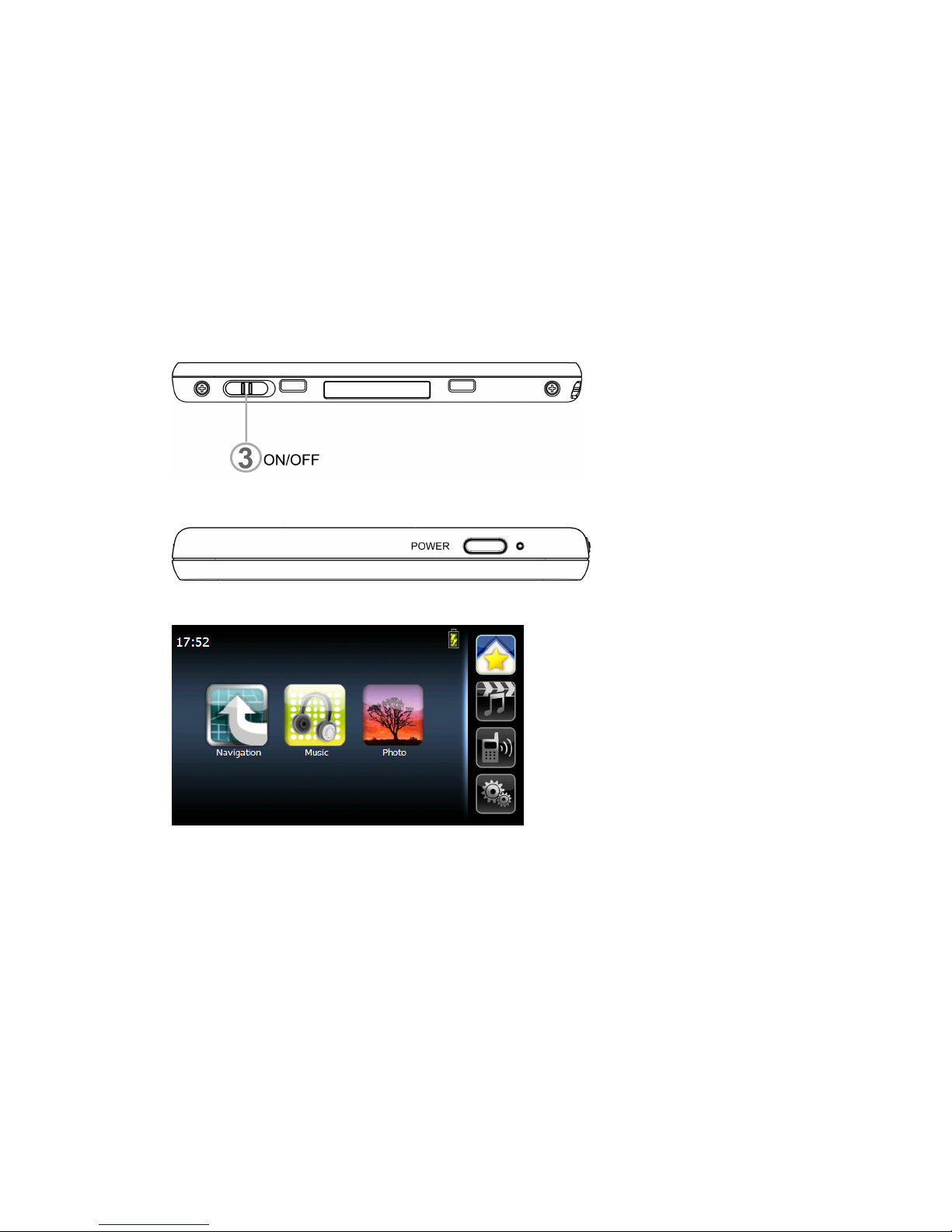

3.2 To turn on the device:................................................................................18
3.3 To configure system settings:....................................................................18
3.4 Additional System settings ........................................................................22
3.5 Reset ............................................................................................................22
3.9 To set the favorite application category: .................................................28
3.10 Power Supply..............................................................................................29
3.11 Charge.........................................................................................................29
3.11.1 Discharge .....................................................................................29
3.11.2 Power outage ................................................................................29
Chapter 4 Communications.......................................................................................31
4.1. M-Nav760 Bluetooth..................................................................................31
4.2. Connection ..................................................................................................31
4.3. Mobile phone connection...........................................................................31
4.4. Call Out (Hands – free Calling)................................................................33
4.5. Contacts (Import phonebooks) .................................................................35
Chapter 5 Troubleshooting and Maintenance ..............................................................36
5.1. General troubleshooting............................................................................36
5.1.1.
If your device does not respond, do a “hard reset.” ........................36
5.1.2. Users can also perform a “system reset.” .........................................36
5.1.3. Screen responds slowly ......................................................................36
5.1.4. Inaccurate response to taps. ..............................................................36
5.1.5. Connection Problems with PC. .........................................................36
5.1.6. No GPS connection .............................................................................36
5.1.7. No sound coming from the device. ....................................................36
5.1.8. Can’t I see my photos. ........................................................................37

6
5.1.9. Takes longer than normal time to get a GPS fix. .............................37
5.1.10. Factory reset does mean a GPS reset. ...............................................37
5.2. Maintenance ...............................................................................................38
5.2.1. Storage precautions ............................................................................38
5.2.2. Accessories and repair precautions ..................................................38

7
Chapter 1 Features and Specifications
1.1 NAVMAN WIRELESS M-Nav760 PND features
The NAVMAN WIRELESS M-Nav760 Portable Navigation D evice is a powerful multifunction
GPS/multimedia navigation and entertainment device.
• Compact size and lightweight
• Integrated GPS receiver for GPS navigation
• High-resolution color LCD
• 4.3” wide touch screen with 320 x 240 x 16 bits
• Multimedia functionality with high performance processor
1.2 M-Nav760 Specifications
Table 1: M-Nav760 dimensions and specifications
Category Item
Chassis
Dimension 117mmx77.4mmx11.55mm for 520 mAh
117mmx77.4mmx12.9 mm for 930 mAh
Weight 130g
Specifications
Operating Temperature: 0 ℃to +55 ℃
Storage Temperature：-20 ℃to + 70 ℃
System
OS Windows CE 5.0 Core Version
NAND Flash 1G or 2G I_NAND
SDRAM 64MB or 128MB Mobile DDR
Display
Screen Type TFT, Touch Panel
Screen Size 4.3”
Resolution 480x272x16bits (WQVGA)
Backlight Yes, brightness with TSP 300 nits typical
Touch Panel Yes, (Finger Tapped)

8
Category Item
Battery
General -930 mAhr Li-ion
Recharge Time
■930 mAhr
Power ON (Default setting after factory reset)
-Under 6 hours charge from empty to full by AC adapter
- Under 6 hours charge from empty to full by car charger
Power Suspend
-Under 4 hours charge from empty to full by AC adapter
-Under 4 hours charge from empty to full by car charger
Audio
Earphone Yes (2.5mm)
Speaker 1.0W mono speaker
Hardware Button\Slot
Micro SD Supports Micro SD
Battery switch Yes (HW reset)
FM Transmitter (Optional)
Frequency
1) 88.2 to 107.8Mhz for EU market.
2) 88.2 to 107.8Mhz for US market
3) 76 to 90Mhz for Japan market
4) 88.2 to 107.8Mhz China market
Audio input Digital stereo audio for internal audio
Analog stereo audio if there is analog audio input
Antenna PCB trace
USB
USB solution USB 2.0 device with supporting mass storage( High Speed)

9
Chapter 2 Getting Started
This chapter describes the hardware interface of the NAVMAN WIRELESS M-Nav760 and its peripherals.
Instructions for setting up the device and some basic system operations are also discussed.
NOTE: Although the M-Nav760 rechargeable Li-Polymer battery comes approxim
ately 30% charged,
before using, it is best to connect the AC adapter (Optional Accessory) or USB cable by PC connect
and
plug to power socket and fully charge the battery. The ON/OFF button will be orange when charging
and
green when change done.
2.1 Hardware overview
This section introduces the M-Nav760 PND external features and hardware components.
2.1.1 Packing list
The NAVMAN WIRELESS M-Nav760 box contains all of the items listed below ：
M-Nav760 Portable Navigation Device
Car mount Car holder

10
USB cable (Option Accessory) Earphone (Option Accessory)
AC adaptor (Option Accessory) Dashboard (Option Accessory)
TMC Antenna (Optional Accessory). Portable Navigation Device Application Software DVD/CD.
(Optional Accessory)
Portable Navigation Device Quick Start Guide.

11
2.1.2 Front Panel

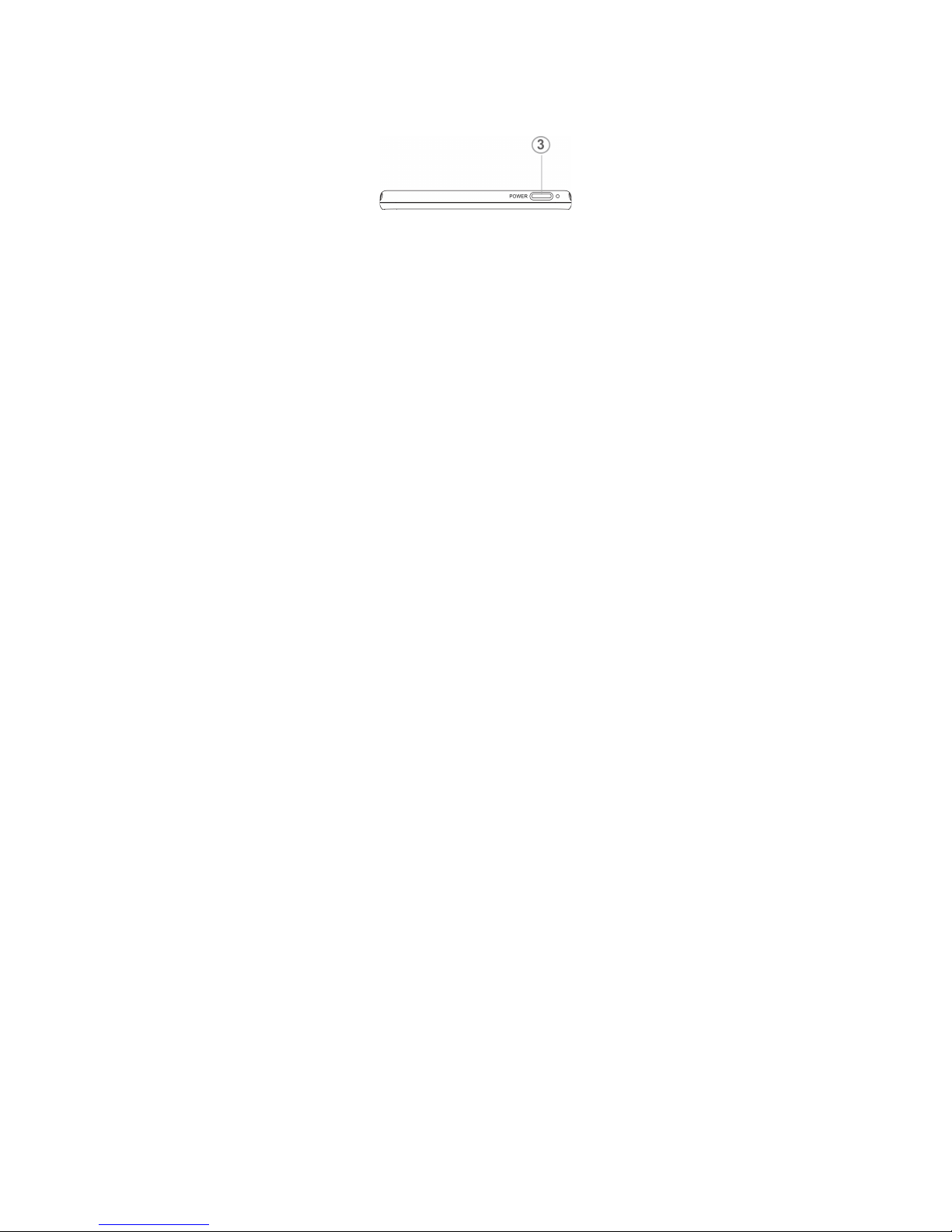

Figure 1: Top and Left/Rights side views
Table 2- 1: Top and Left/Right side controls
NO
Function
1 Power button Standby mode by pressing the button for sleep/wake.
2 Power status LED
Indicated the battery charging status.
 Green—fully charged or high battery.
 Orange—charging Battery
 Red—low Battery
3 Switch Battery power “ON/OFF” and system reset function
4 Micro SD Accepts Micro SD storage cards, allows you use audio, image files stored
in it for use with internal applications.
5 Earphone
(optional)
Standard stereo headphone jack.
6
USB port/Docking
connector
Mini-USB connector serves as the power connector for charging the
device or upload files from computers.
However, it cannot be charged by USB device cable when PND is

12
wake-up mode.
7 Hook For hanging decoration
2.1.3 Car holder
Figure 2: Car holder side views
Table 2-2: Car holder
No
Function
1
USB Port/Docking
connector
For USB port ： Only serves as the power connector of charging, but mass
storage function. Also, it can connect to external TMC module (Option
part). For Docking connector: connects to car mount kit.

13
2.2 Using the mounting bracket.
The M-Nav760 comes with a car mount kit and a car charger to help install your device in your vehicle.
The car mount kit uses a suction cup on the windshield to offer flexible mounting options for the
M-Nav760.
Warning: Some countries prohibit the mounting of any electronic device on the vehicle dashboard.
Be sure to check your local laws for acceptable mounting areas before installing the car mount
bracket.
This section shows how to install the car mount kit in your vehicle’s windshield using the suction cup.
The M-Nav760 uses a snap on mounting cradle to use when the device attaches to the car mount. Below
is the backside view of the M-Nav760 in the cradle.
1. Clean the mounting surface with a glass cleaner and a clean cotton cloth.
2. If the ambient temperature is below +15°C (60°F), you can warm the mounting area and the
suction cup (e.g. with a hair dryer) to ensure a strong suction bond.
3. Install the car mount on the selected area.
a. Press the suction cup of the car mount firmly against to the windshield. (See Figure 2-3-1)
b. Press down the lever to fix the suction cup in place.
c. Adjust the angles of the arm to your proper viewing position.
Figure 2-3-1
4. Mounting the device holder with your M-Nav760.
a. Fit M-Nav760 down in the device holder first, and then lock it using the plugs on the bottom of
the device holder. (See Figure2-3-2)
b. Firmly dock the M-Nav760 with device holder on the car mount which has been mounted to
your windscreen.(See Figure2-3-3)

14
Figure 2-3-2
Figure 2-3-3
5. Charging your M-Nav760 device.
a. Plug the car charger to the 12 V outlet of your car and then connect the charger cable to the Mini
USB port of the M-Nav760 car holder ； Please make sure the battery switch status in “ON” mode.
(See Figure 2-3-4)
b. You now can let your M-Nav760 have the continuous power by the car charger.

15
Figure 2-3-4
NOTE: Your car may be required to switch the vehicle ignition into the accessories position to power
the cigarette lighter. Your M-Nav760 will not charge with the ignition off.
6. Starting your M-Nav760
a. Push the battery switch ON.(Default status OFF)
b. Press the power button to turn on your M-Nav760, then the main menu screen appears.
c. Tap Navigation, you will see the map screen displayed.
d. Please read the User’s Guide of Navigation software for the detail setting information.
Please be noted, the first time turning on your M-Nav760 may take some time to obtain a valid GPS
fix.

16
2.3 Additional Application with the Optional SKU
1. TMC Accessory (only available in certain areas)
You may use external TMC accessory to perform TMC function when you are in a TMC Traffic
signal available areas . Please visit: www.tmcforum.com for the TMC Coverage information,
Please connect the TMC accessory to the USB port of M-Nav760 for the TMC application and be
placing the TMC accessory in a place which will not interfere to the driving safe. (See Figure 2-4-1)
Please refer to the User’s Guide of Navigation software for the detail TMC operating information.
Figure 2-4-1
Disclaimer
Please be noted that NAVMAN WIRELESS Company Ltd. and the licensed Navigation Software are
not responsible for any damage caused by an accident due to unreliable TMC radio transmissions by
national, regional, or local broadcasters caused by TMC service restrictions, or by natural and
man-made conditions that prevent real-time information from being delivered to the device. The both
companies are not responsible for the quality or accuracy of the events broadcast.
Resetting the M-Nav760 Device
You should less than seldom need to reset your M-Nav760 under normal circumstances. However, in
the event that a problem cannot be corrected, you may reset the M-Nav760 device by the following
way ：
Hard reset：
• To do a “Hard reset” Disconnect all cables, including the AC adapter, from your device.
By sliding the hard reset switch on the primary ON/OFF switch on the right side of the device from
OFF to ON position then tap the power button.(see Figure 2-4-2)
Figure 2-4-2

17
Figure 2-4-3

18
Chapter 3 Using the M-Nav760
3.1 M-Nav760 Operating Basics
After fully charging the M-Nav760 it is ready to be used. You can now turn it on and proceed to system
settings configuration.
3.2 To turn on the device:
1. Sliding the battery switch to “ON”. (Default status OFF)
2. Turn on your device by pressing the power button on the top right panel of the device.
After turn on the device, main page will display. This is also referred to the Favorite page.
3.3 To configure system settings:
If you intend to start using your M-Nav760 at once, we recommend that you configure the language and
time zone settings first. The rest of the user preferences can be set up later.
1. Tap “System” in the right category bar

19
.

20
2. Tap “Language” on the System page.
3. It will display current language in central area.
4. To drag wheel scroll language tags.
5. To set the system time zone, tap “Time Zone” in System Menu.
6. Tap the icon to set up the function of daylight saving s time.
a. represent enable the function of daylight savings time.
b. represent disable the function of daylight savings time.
7. Drag the Map to adjust the time zone.
