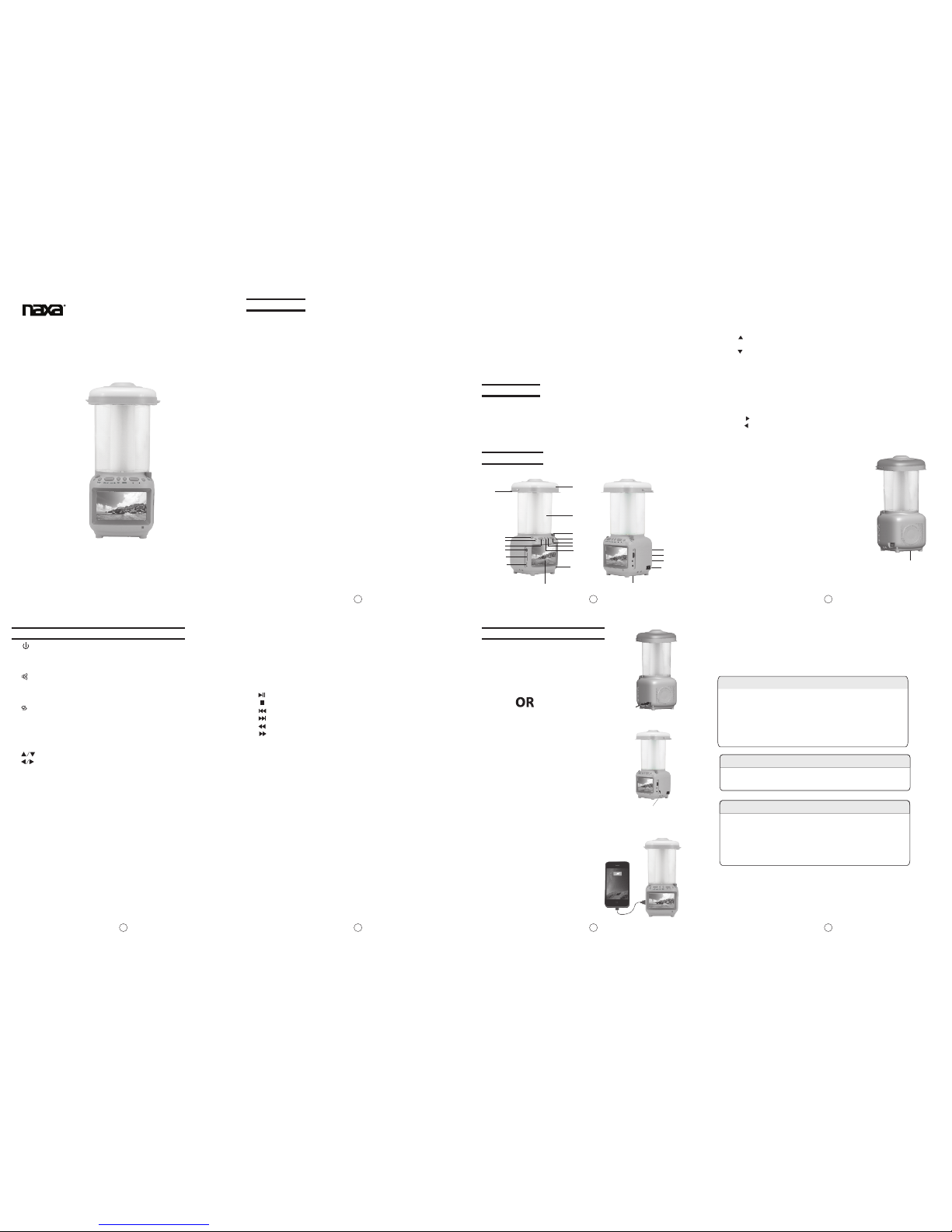

Naxa NTL-4300N User manual

MODE
CH-/
CH+/
MODE
CH-/
CH+/
4. Description of Buttons on Remote Control
1 2 3
4
1. Precautions
1. Storage
※Do not store this device in the environment with extreme temperature; the
appropriate storage temperature is -20~60℃, and the operating temperature
is -5~40℃;
※Do not use this device in the bathtub, washbasin, kitchen, washtub and other
place with water or moist basements, swimming pools or similar places;
※Keep the device away from humid, dusty and smoky environments.
※Do not drop the device or subject it to strong shocks or impacts.
※Do not leave the device in a car. Avoid using the device in an environment
subject to strong vibrations.
※Do not poke or scrape the device with sharp objects.
2. Maintenance
Please disconnect all cables before cleaning the device;
※Please wipe the dirt on the shell, display and keys with soft a cloth lightly
moistened with water.
※Do not wipe the device with polishing cloth, scouring powder, alcohol, benzene
and other volatile agents or chemical cleaning agents.
※
Warning:
the TV when you are driving;
※It is very dangerous to watch TV programs or operate the TV when you are
driving.
※To ensure the safety of you and others, do not watch the TV or turn on
Special Note:
LCD screen may have a few bright spots or dark spots, which is a very common
phenomenon of active-matrix display technology and does not mean that there are
defects or failure. Do not attempt to repair. If a failure occurs, immediately turn off
the TV, and notify the company or the dealer. The TV is composed of many
precision electronic components; disassembly or modification may damage
or destroy the TV.
3. Battery charging mode
※The battery can be charged when the TV is in standby state or power on state;
※If the built-in battery is used, the device will turn off automatically when the
battery voltage drops to certain level; please connect to charge with the AC or
DC power supply.
2. Packing list
3. Appearance
1. AC power cable
2. Manual
5. Antenna connector
3. Remote control
4. Antenna
6. DC power cable
Check whether all parts are included after opening the package.
4. Notice for battery charging/discharging
※It is normal that the battery become hot during charging; if, however, the battery
temperature exceeds 60 , immediately disconnect it from the power supply
and contact qualified personnel;
※If the ambient temperature is too high during charging, the battery may not
charge fully;
※Charging the battery is most efficient when the ambient temperature is
15℃ - 25℃.
※To ensure the reliability of the battery, please charge and discharge the battery
every three to six months if the device isn't used for long time.
℃
22
14
15
16
11
12
02
17
18
19
20
21
03
04
05
06
07
08
09
10
01
User's manual
●P.MODE: Picture Mode. Press to change the picture mode preset:
Standard, Dynamic, Soft, Personal.
●S.MODE: Press to change the sound mode presets:
Personal, Standard, Music, Movie, Sports.
●CH.LIST: View the channel list to see the entire program list.
●FAV.LIST: Favorite list
●SLEEP: Set a Sleep timer (up to 240 minutes)
●REP: Repeat (CARD/USB mode only)
●:Play/Pause (CARD/USB mode only)
●:Stop (CARD/USB mode only)
●:Previous track (CARD/USB mode only)
●:Next track (CARD/USB mode only)
●:Fast backward (CARD/USB mode only)
●:Fast forward (CARD/USB mode only)
●Power: Press to turn the TV on or off. (The main power switch
on the main unit must to set to the ON position.)
●ZOOM: Change the magnification level of the TV.
●FREEZE: Freeze ON/OFF
●(Mute Key): Press to temporaritly disable sound output from the
speakers. Press it again to restore the sound.
●Channel Key (Number key (0-9) and --/- ):
Enter a channel number to tune to a station directly.
●: Return Key. Press this key to return to the last channel you
were watching.
●SOURCE: Press this button to switch between TV/CARD/
USB mode.
●INFO: When you press this key, the system will display messages
/information about the current program.
●: up and down direction key
●: left and right direction key
●CH+/CH- (Channel keys):
Press CH+ key to tune to a higher channel.
Press CH- key to tune to a lower channel.
●VOL+/VOL- (Volume control keys):
Press VOL+ to increase the volume.
Press VOL- to decrease the volume.
●ENTER: confirm button
●MENU: Menu key. Press to enter the system menu.
.
●EXIT: Exit Key. Press to exit a menu.
●AUDIO: Press to change the audio track (if an alternate track is
available).
●CC: Press to show/hide closed captioning (if CC is available).
●EPG: Press to display the Electronic Program Guide that is
included with ATSC TV broadcasts.
1. There are four options of sound mode, which are Personal,
Standard, Movie and Music.
TV Menu Operation
2. Audio: adjust the sound options.
1. There are four options of picture mode, which are Personal,
Standard, Dynamic and Soft.
2. Contrast adjust the black and white contrast of the image
3. Brightness adjust the brightness of the image
4. Color adjust the color of the image
5. Sharpness adjust the sharpness of the image
6. Tint adjust the red and green balance of the image
6
1. Power connection:
5. Interface connection diagram
Connect the AC power cable to the
“figure 8” AC Power In socket [18].
Use the DC power cable to connect to the DC
Power In socket [17].
** Choose only one power source at a time. Never
use the AC Power In and DC Power In sockets
at the same time. **
5 7
2.
3. OK:
4. MENU: MENU button
5.
6. MODE: Press to change the active mode (TV, Card/USB)
7. Light switch: The switch main light and brightness adjustment.
8. LED main light
9. LED night light
10. Handle
11. Night light switch
12. EXIT:
13. VOL+/
14. Antenna input port
15.
16. USB port
17. DC Power In +9V
18. AC Power In (AC100-240V~50/60Hz)
19. Headphone jack
20. Power switch: CARD/USB/TV mode of power switch
21. Charging indicator: Lights red when the unit is charging.
Off when the unit is fully charged.
22. Speaker
1. TFT-LCD screen
Remote-control sensor
EXIT button
SD memory card slot
Confirm button
CH+/ : Press to tune to the next channel, or press to browse up through
on-screen menus.
Press to tune to the next channel, or press to browse up through
on-screen menus.
.
CH-/ :
: Volume up/Right button
VOL-/ : Volume down/Left button
MODE
CH-/
CH+/
13 MODE
CH-/
CH+/
MODE
CH-/
CH+/
Portable Utility Lantern and TV
NTL-4300N
Charging a mobile phone: You can charge your mobile phone or other small
electronic device from the USB port [16]. Use the original USB cable
provided by your device manufacturer to charge it.
Note: To ensure sufficient current to charge your device,
do not operate the TV or the light
while charging.
1. Picture: adjust image options.
To access the TV menu, press the MENU key. On the menu screen,
press CH+/▲or CH-/▼to browse the settings. Press OK to select an
item; press VOL+/► or VOL-/◄to adjust an item; press EXIT to
return to the previous screen.
1. Sleep Timer: Set the TV to turn off at the end of the timer.
2. Time Zone: Set your area.
3. DST:Enable/disable Daylight Savings Time.
4. Time Format: Set the clock to display 12 hours or 24 hours.
5. Auto Sync: Set the system time automatically from the ATSC
broadcast.
6. Clock: Adjust the system.
3. Time: Adjust the clock and time options

Many TV programs contain closed caption information, and the
audience can see the caption in words on the screen. Not all the
channels at any time have closed caption code information.
There are three CC Modes, which are Off (closed caption off), On
(closed caption always on when information is available) and CC on
Mute (closed caption on when TV is in mute and closed caption off
when TV is not in mute).
Basic Selection can choose among CC1, CC2, CC3, CC4, Text1,
Text2, Text3 and Text4
11
1098
Troubleshooting Guide
If you are having difficulty with your device, please refer to the guide
below which describes common problems. If the guide does not address
your concern, please contact Naxa Technical Support. .
No image and sound
Ensure that the AC or DC power cable
is connected securely to a power source
that matches the rated power type.
Ensure that the power switch is set to ON.
No signal
Run the Auto Scan feature to find all TV
channels thare are available. Ensure that the
antenna is securely connected and that the
TV is located within receiving distance of a
broadcast station.
No sound
Ensure that the volume level is not set to the
minimum; that no headphone is connected;
that you are viewing a TV channel with a ;
strong signal; and that the mute function is
not enabled.
Mosaic in the image
Ensure that the antenna is connected
securely and that the channel you are trying
to view has a strong signal.
Cannot receive
signals
TV signal strength is affected by your
distance from the TV broadcaster as well as
environmental factors (e.g., tall buildings
and mountains can interfere with reception.)
If you cannot receive a TV signal, you may
need to use a powered antenna, a larger
antenna, or you may need to move closer
to the TV broadcaster.
Image is too dark Adjust the brightness and contrast levels
in the System menu.
Warning
This operation instruction is only intended for reference. No further
notice is available to any modification of all information contained
therein. Due to continuing improvements, the features and design
are subject to change without notice.
●To prevent injury, this apparatus must be securely attached to the
floor/wall in accordance with the installation instructions.
●The mains plug is used as the disconnect device, the disconnect
device shall remain readily operable, and it shall be disconnected
from the mains completely.
●The plug is used as disconnect device form the mains supply, the
plug shall remain readily operable.
●The apparatus should not be exposed to dripping or splashing
and that no objects filled with liquids, such as vases, shall be
placed on the apparatus.
●No naked flame sources, such as lighted candles, should be
placed on the apparatus.
●Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
●Danger of explosion if battery is incorrectly replaced. Replaced
only with the same or equivalent type.
Warning
Input
ATSC frequency: 54MHz〜803MHz
NTSC receiving frequency: 55.25MHz〜801.25MHz
LCD screen: 4.3" LCD
Resolution: 480 x 272
LCD screen scale: 16:9
Multimedia
Support MP3, JPG, MPEG2, MPEG2_HD, MPEG4,
MPEG4_SD, MPEG4_HD, H.264,FLV, MVC, DD
Power Supply: AC INPUT 100-240V 50/60HZ
DC/Car Input 9V
Dimensions: 138 x 138 x 307 mm
Net Weight: About 820g
Power Consumption: About 10W
Built-in rechargeable battery
Specifications
4. Setup: Adjust the system options.
Menu Language: Adjust the language of the on-screen menus.
Transparent: Adjust the intensity of the transparancy effect
applied to the on-screen menus.
Closed Caption:
Restore Default: Return all settings to their factory-default options.
Setup Wizard: An easy-to-follow guide that will help you set the
most important options for your TV.
The Lock settings are not available for this device.
5. Lock
Air/Cable: Select Air when the TV connected to an antenna to
receive over-the-air broadcasts. Select Cable when the TV is
connected to a cable box to receive cable programming.
Auto Scan: Select to detect available channels and save them to
the channel list. Make sure you set the Air/Cable option properly
before performing an Auto Scan. Note: performing an auto scan will
delete all previously saved channels.
Favorite: Create a list of your favorite channels for quick access.
Press CH+/▲or CH-/▼to select a channel, then press OK to mark it as
a favorite. (Press OK again to unmark the channel.) Press MENU
when you are done to exit and save the list.
Show/Hide: Remove or restore a channel from the Channel List.
Hidden channels will not appear when you are browsing TV
channels.
Press CH+/▲or CH-/▼to select a channel, then press OK to mark it as
hidden. (Press OK again to unmark the channel.) Press MENU when
you are done to exit and save the list.
DTV Signal: Shows the signal strength of the current channel. This
item cannot be adjusted.
6. Channel: Adjust TV program options.
