NAYATI NGER 4-60 Manual

Instructions Manual for Gas Economic Range
NAYATI
20141105
INSTALLATION, OPERATION and MAINTENANCE,
INSTRUCTIONS
Note: The pictureis illustration only. We reserved the right tomake technical changes in the interest in
progress without prior notice.
PT NAYATI INDONESIA
JI. Raya Terboyo No.19
Semarang ~ 50112
Central Java - Indonesia
Telephone : (0062) + 024 658 05 73
Telefax : (0062) + 024 658 05 72
E-mail : [e-mail]
GAS ECONOMIC RANGE
MODELS: NGER_60 SERIES
NGER_70 SERIES
NGER_130 SERIES
ORIENTAL 1

Instructions Manual for Gas Economic Range
NAYATI
20141105
Dear customer,
Thank you for choosing our product as your trusted partner. We ensure you that we always give
our best as we produce thisappliance by using the finest materials. NAYATI Gas Economic Range
is excellent choice to cook. In order to obtain maximum benefits of this appliance, please read this
manual instruction carefully.Pleasenotice the warningsand safety instructions to keep your safety.
DO NOT use this appliance exceptits utility.
If you have any question or difficulty in operating this appliance, please contact your dealer or
NAYATI to acquire mechanic assistance.
NAYATI TEAM
ORIENTAL 2

Instructions Manual for Gas Economic Range
NAYATI
20141105
Page
Cover ………................................................................................................................ 1
Preface ………............................................................................................................. 2
Table of Content ……………........................................................................................ 3
General Information ………………….. ......................................................................... 4
Safety Instructions ………………….............................................................................. 5
Technical Data ………………....................................................................................... 7
•Data Tables ……………….............................................................................. 7
•Overall Dimension ……………….................................................................... 11
Technical Data Plates …………………........................................................................ 20
Component List ………………………........................................................................... 24
•Water System Components ………………………………………………………. 30
Installation (for the Installer) ………………................................................................... 32
•Position and Fixing ……………....................................................................... 33
•Gas Supply Connection………………............................................................ 34
•Checking Gas Pressure and Nominal Heat Input ………………..................... 35
•Primary Air Adjuster ……………….................................................................. 36
•Install Pipe Leg ………………......................................................................... 37
Use Instructions (for User) ……………. ....................................................................... 38
•Warning …………………................................................................................. 38
•Turn ON / OFF ……………….......................................................................... 39
Routine Cleaning and Maintenance ………….............................................................. 40
Trouble Shooting …………………................................................................................ 42
Warranty …………....................................................................................................... 43
TABLE OF CONTENT
ORIENTAL 3

Instructions Manual for Gas Economic Range
NAYATI
20141105
Please read this manual instruction carefully before operating this appliance.
NAYATI Gas Economic Range is an excellent cooking appliance. This appliance is using gas.
NAYATI Gas Economic Range designed for cooking both Western and Oriental cuisine like
sautéing, shallow frying, frying, until boiling It is very important to keep this instruction book
together with the appliance for future consultation. If this appliance sold or transferred elsewhere,
make sure this book goes with it. Therefore, the new user can read about its functions and other
relevant information.
If you have any question about the appliance, please contact your nearest dealer or contact
NAYATI.
GENERAL INFORMATION
ORIENTAL 4

Instructions Manual for Gas Economic Range
NAYATI
20141105
Very important!: Before installing, place the appliance on solid, flat, stable and horizontal surface
and connection availability.
Read this manual instruction carefully before using NAYATI Gas Economic Range. This appliance
is for food preparationonly. Below are safety instructions that strictly conformed:
•Improper installation, maintenance, cleaning, or modification to the appliance could lead to
severe injuryor death and could damage theappliance.
•The mechanics must instruct staff regularly to avoid accident and damage of the appliance.
•NAYATI Gas Economic Range may be used for skilled staff only.
•DO NOT place the appliance in a toxic areaor have a risk of explosion.
•DO NOT place the appliance near flammable materials such gasoline, fat, clothes, liquid
gas, paper, etc.
•DO NOT place the appliance in wet or humid room or condition such in rain or near water
leaks, etc.
•DO NOTuse theappliancefor drying clothes, paper,or living animals.
•DO NOT use the appliance to heat non-food products.
•Put theappliance in a good ventilated room.
•Before cleaning or maintaining the appliance, detach the gas line andallowit to cool.
•DO NOT touch the area .This sign means VERY HOT. Beware of severe burning
injury.
•DO NOT attempt to dismantle or repair the appliance. The authorized mechanics must do
all jobs.
SAFETY INSTRUCTIONS
ORIENTAL 5

Instructions Manual for Gas Economic Range
NAYATI
20141105
EXPLOSION RISK !
-DO NOT cover the burners or drawers below or the air holes
on the sidewalls with Aluminum or silver foil or similar
materials. This may cause a wrong air circulation and gas
combustion and lead to overheat.
INJURY RISK !
-DO NOT lean to Main Burner during ignition process. High
flames from the range may cause severe burning injury.
INJURY RISK !
-DO NOT USE POT WITH FLAT BOTTOM on the Wok Burner
Ring. During Full Combustion with or without Wok pot on it,
the flame extends to the side or over the Wok Ring. This may
cause severe burning injury.
ORIENTAL 6

Instructions Manualfor GasEconomic Range
NAYATI
20141105
NAYATI Gas Economic Range is made of stainless steel. This appliance used for cooking both Oriental and Western cuisine. With Dualfunction, the
cooking ring can accommodate pan and wok. This appliance equipped with Safety device Thermocouple for user’s safety.
•Data Tables
Table 1: Technical Specification for NGER 4-60 and NGER 9-60
Technical Specification
Model
NGER 4-60
NGER 9-60
Overall Dimension (mm)
Width
Depth
Height
Width
Depth
Height
475
600
850 / 950
900
600
850 / 950
Gas Connection
R ¾”
R ¾”
Number of Burners
1
3
Nominal Heat Input
G20 : 13 kW
G30 : 11.5 kW
G20 : 26 kW
G30 : 23 kW
Gas Pressure Connection
G30 / G31 : 28 - 30 / 37 mbar
G30 G31 : 50 mbar
G20 : 20 mbar
G25 : 20 - 25 mbar
G30 / G31 : 28 – 30 / 37 mbar
G30 G31 : 50 mbar
G20 : 20 mbar
G25 : 25 mbar
Ignition
Manual
Manual
TECHNICAL DATA
ORIENTAL 7

Instructions Manualfor GasEconomic Range
NAYATI
20141105
Table 2: Technical Specification for NGER 15-60 and NGER 20-60
Technical Specification
Model
NGER 15-60
NGER 20-60
Overall Dimension (mm)
Width
Depth
Height
Width
Depth
Height
1500
600
850 / 950
2000
600
850 / 950
Gas Connection R ¾” R ¾”
Number of Burners
3
4
Nominal Heat Input
G20 : 39 kW
G30 : 34.5 kW
G20 : 52 kW
G30 : 46 kW
Gas Pressure Connection
G30 / G31 : 28 – 30 / 37 mbar
G30 G31 : 50 mbar
G20 : 20 mbar
G25 : 25 mbar
G30 / G31 : 28 – 30 / 37 mbar
G30 G31 : 50 mbar
G20 : 20 mbar
G25 : 25 mbar
Ignition
Manual
Manual
ORIENTAL 8

Instructions Manualfor GasEconomic Range
NAYATI
20141105
Table 3: Technical Specification for NGER 7-70, NGER 13-70 and NGER 20-70
Model
NGER 7-70
NGER 13-70
NGER 20-70
Overall Dimension (mm)
Width
Depth
Height
Width
Depth
Height
Width
Depth
Height
700
700
850 / 1150
1300
700
850 / 1150
2000
700
850 / 1150
Pipe Diameter
Drain
(D)
Gas Inlet
(G)
Water Inlet
(S)
Drain
(D)
Gas Inlet
(G)
Water Inlet
(S)
Drain
(D)
Gas Inlet
(G)
Water Inlet
(S)
R 1 ¼”
R ¾”
R ½”
R 1 ¼”
R ¾”
R ½”
R 1 ¼”
R ¾”
R ½”
Number of Burners
1
2
3
Nominal Heat Input
G20 : 13 kW
G30 : 11.5 kW
G20 : 26 kW
G30 : 23 kW
G20 : 39 kW
G30 : 34.5 kW
Gas Pressure
Connection
G30 / G31 : 28 - 30 / 37 mbar
G30 G31 : 50 mbar
G20 : 20 mbar
G25 : 20 - 25 mbar
G30 / G31 : 28 - 30 / 37 mbar
G30 G31 : 50 mbar
G20 : 20 mbar
G25 : 20 - 25 mbar
G30 / G31 : 28 – 30 / 37 mbar
G30 G31 : 50 mbar
G20 : 20 mbar
G25 : 25 mbar
Ignition
Manual
Manual
Manual
ORIENTAL 9

Instructions Manualfor GasEconomic Range
NAYATI
20141105
Table 4: Technical Specification for NGER 13-130 and NGER 20-130
Model
NGER 13-130
NGER 20-130
Overall Dimension (mm)
Width
Depth
Height
Width
Depth
Height
1300
1300
850
2000
1300
850
Pipe Diameter
Drain
(D)
Gas Inlet
(G)
Water Inlet
(S)
Drain
(D)
Gas Inlet
(G)
Water Inlet
(S)
R 1 ¼”
R ¾”
R ½”
R 1 ¼”
R ¾”
R ½”
Number of Burners
4
6
Nominal Heat Input
G20 : 52 kW
G30 : 46 kW
G20 : 78 kW
G30 : 69 kW
Gas Pressure
Connection
G30 / G31 : 28 - 30 / 37 mbar
G30 G31 : 50 mbar
G20 : 20 mbar
G25 : 20 - 25 mbar
G30 / G31 : 28 - 30 / 37 mbar
G30 G31 : 50 mbar
G20 : 20 mbar
G25 : 20 - 25 mbar
Ignition
Manual
Manual
ORIENTAL 10

Instructions Manual for Gas Economic Range
NAYATI
20141105
•Overall Dimension

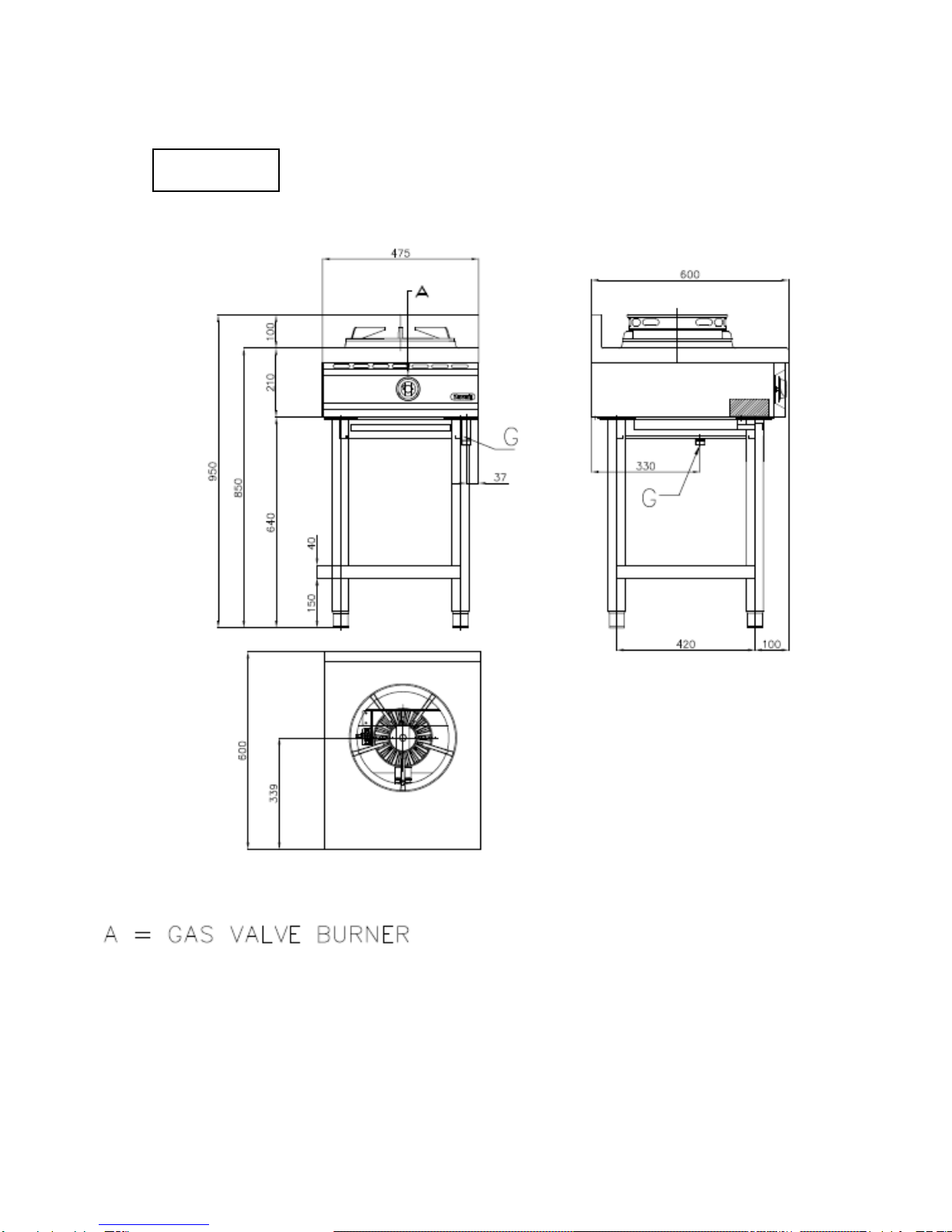

NGER 4-60
ORIENTAL 11

Instructions Manual for Gas Economic Range
NAYATI
20141105

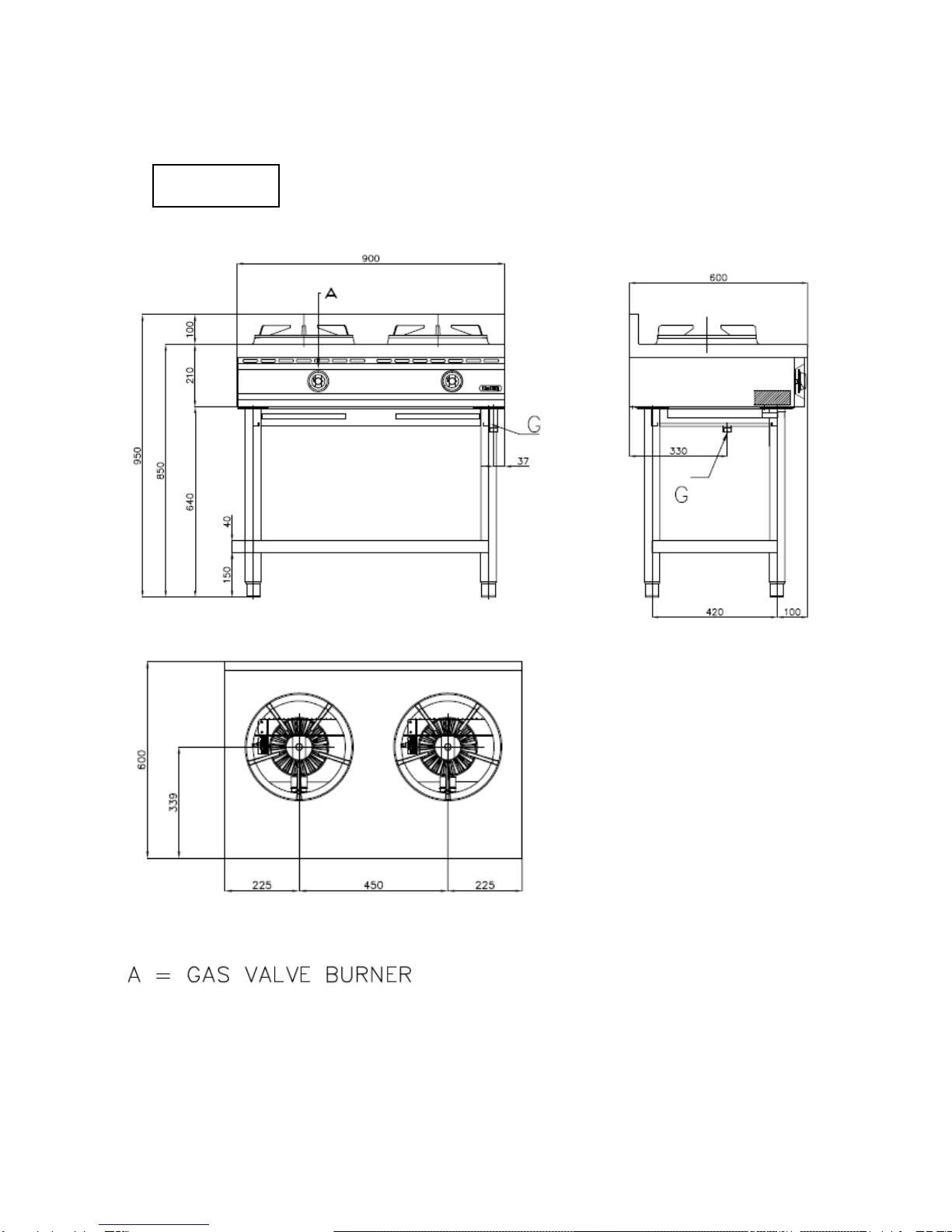

NGER 9-60
ORIENTAL 12

Instructions Manual for Gas Economic Range
NAYATI
20141105

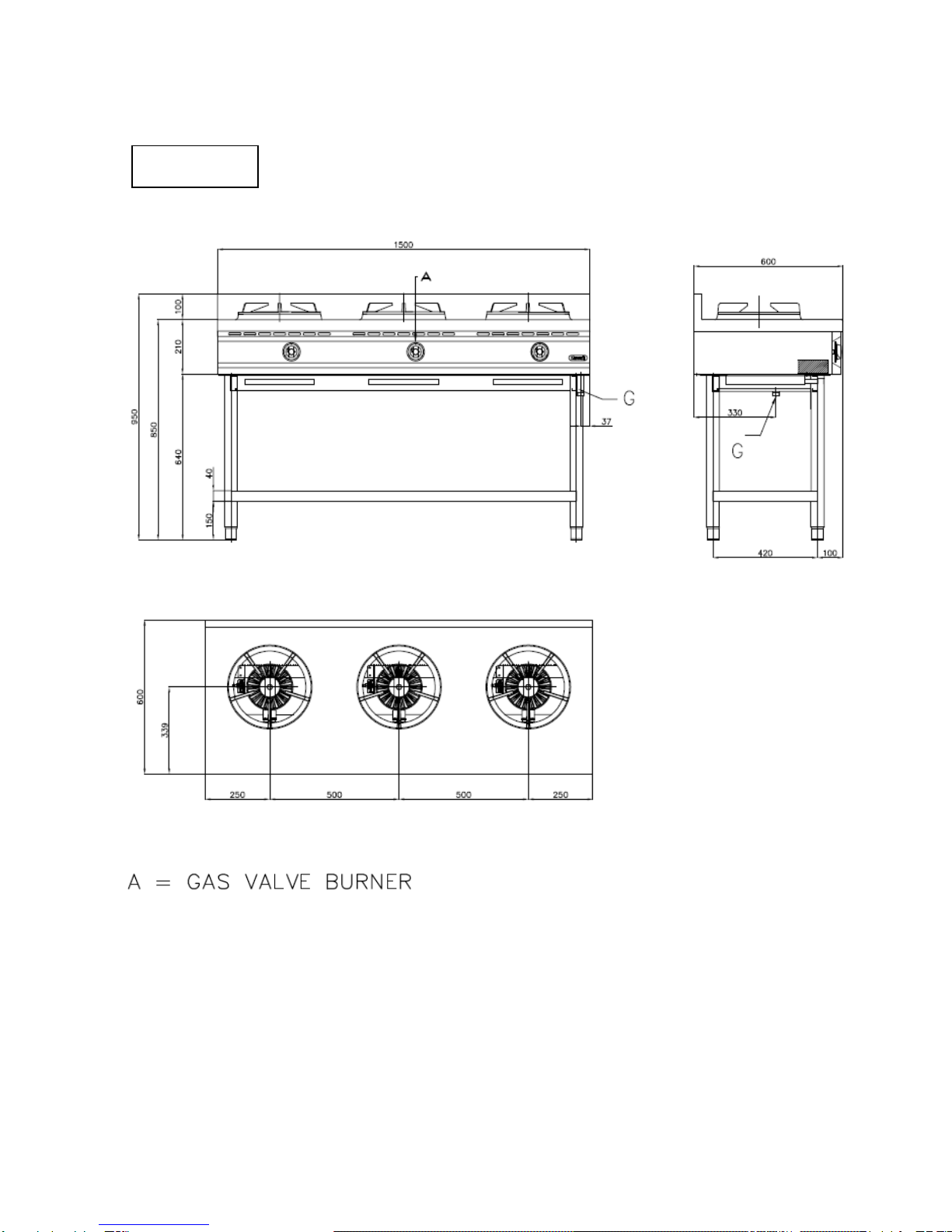

NGER 15-60
ORIENTAL 13

Instructions Manual for Gas Economic Range
NAYATI
20141105

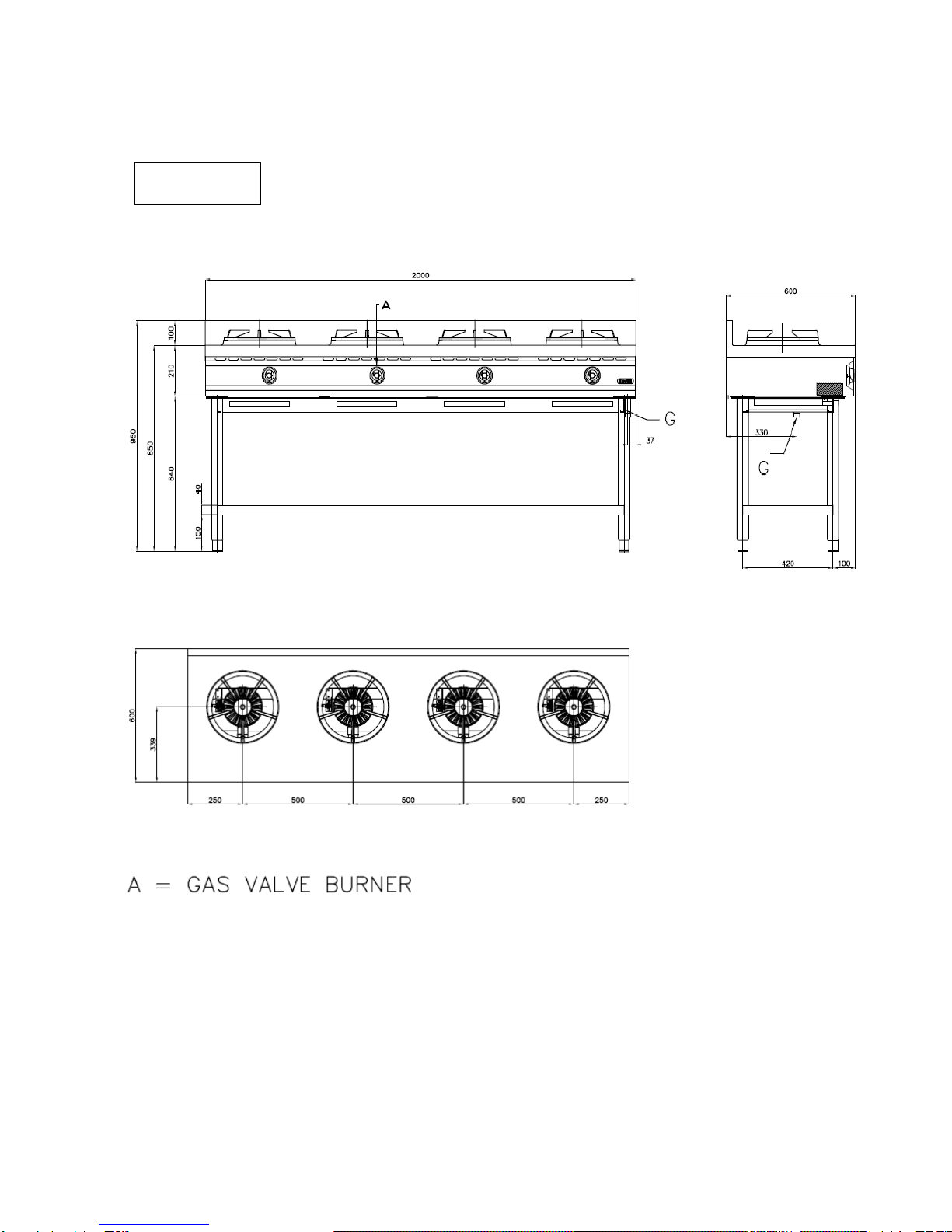

NGER 20-60
ORIENTAL 14

Instructions Manual for Gas Economic Range
NAYATI
20141105
NGER 7-70
ORIENTAL 15

Instructions Manual for Gas Economic Range
NAYATI
20141105
NGER 13-70
ORIENTAL 16

Instructions Manual for Gas Economic Range
NAYATI
20141105
NGER 20-70
ORIENTAL 17

Instructions Manual for Gas Economic Range
NAYATI
20141105

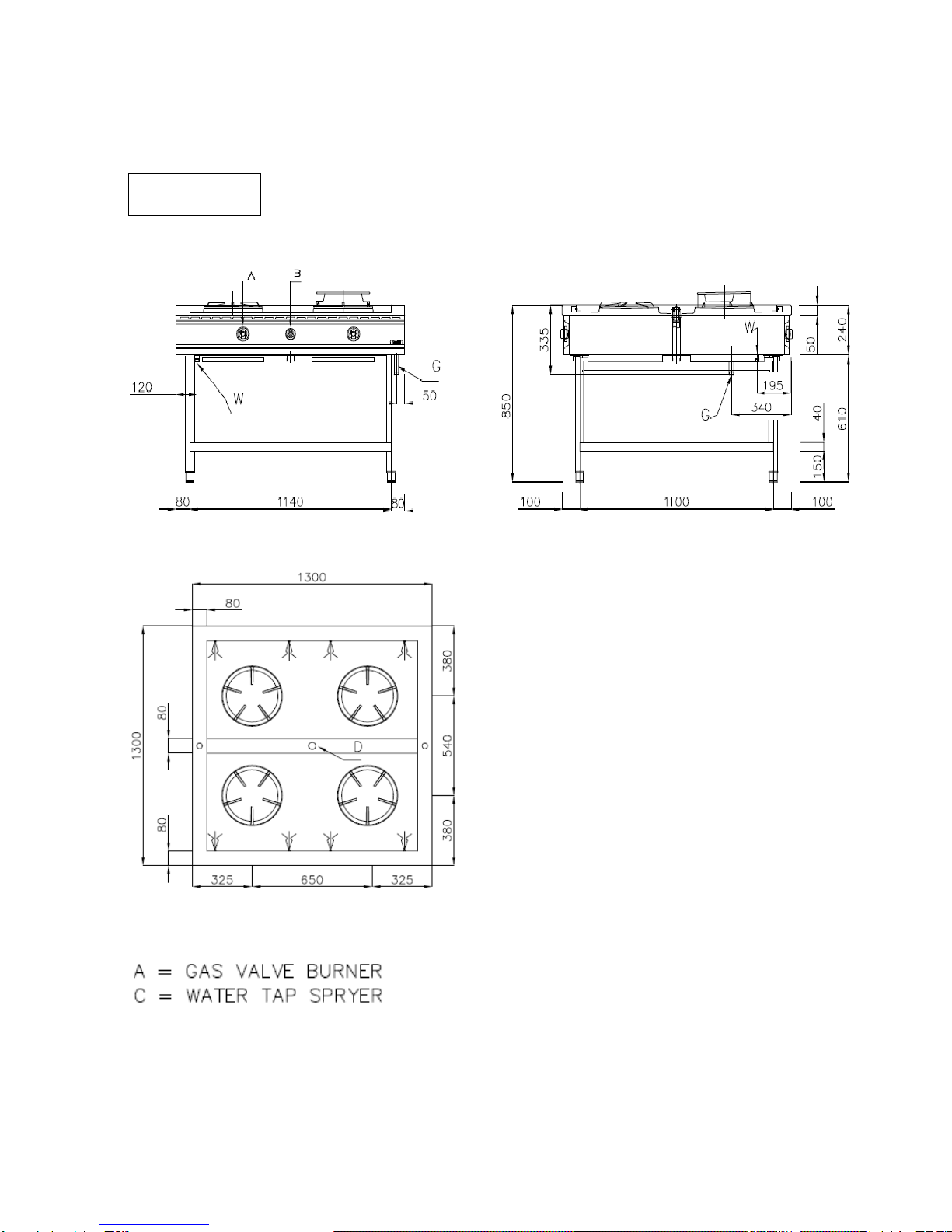

NGER 13-130
ORIENTAL 18

Instructions Manual for Gas Economic Range
NAYATI
20141105
NGER 20-130
ORIENTAL 19

Instructions Manual for Gas Economic Range
NAYATI
20141105
Figure 1:
Technical plate reports thecurrent gas setting, nominal data of Gas Economic Range and table with
gases, categories, and pressures for other CE countries.
TECHNICAL DATA PLATES
Fig. 1
ORIENTAL 20
