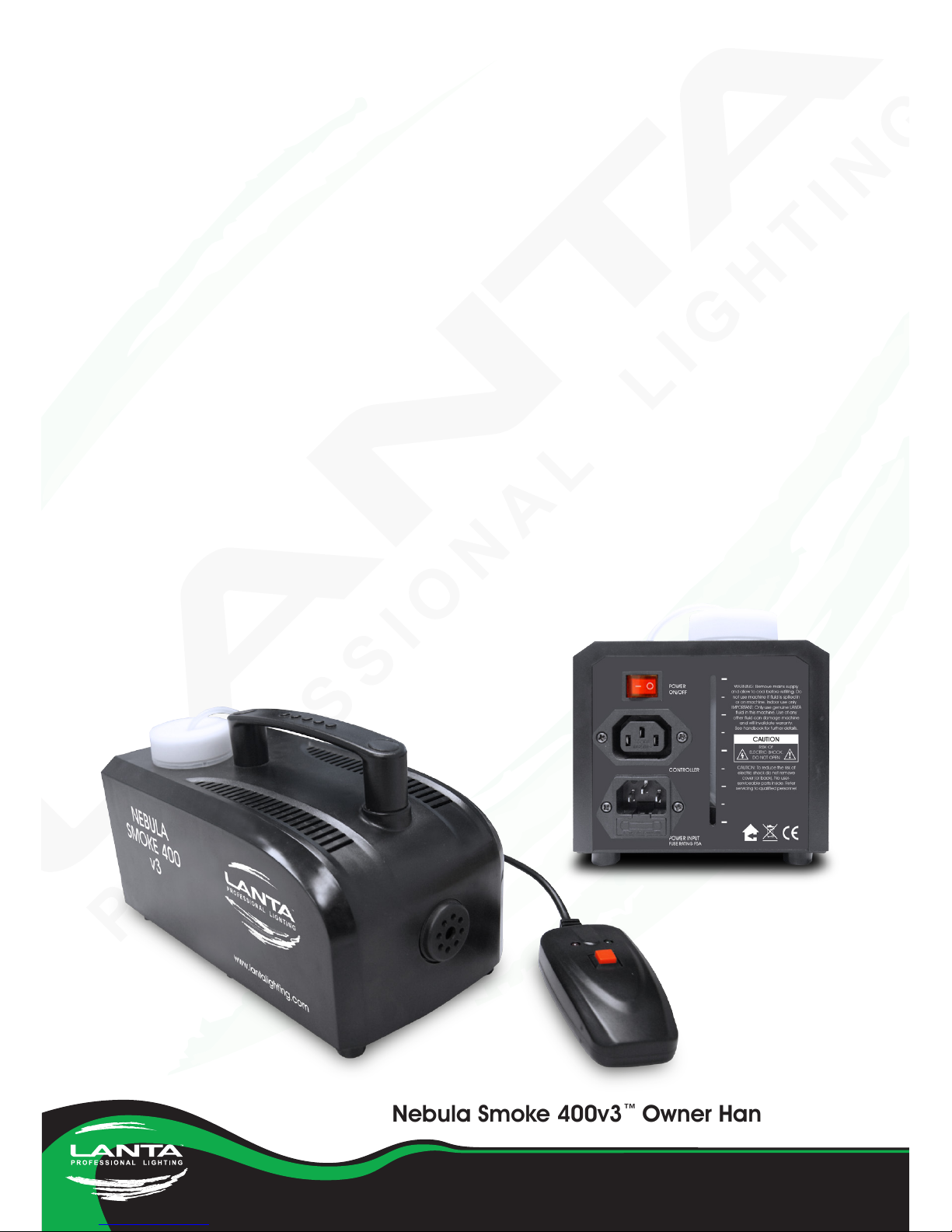

Nebula Smoke 400v3 User guide

Owner Handbook
Nebula Smoke 400v3™
Compact Smoke Machine

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
September 2016 - Version 3
Nebula Smoke 400v3™ Owner Handbook
For your Safety
• Follow all instructions to maintain Manufacturer Warranty and for your own safety.
• There are no user replacement parts inside the product. Do not open the product for
any reason. This will invalidate your Manufacturer Warranty and may impair the safety
features of the product.
• All Lanta products designed for indoor use. Under no circumstances must these
products be used outdoors unless the product specification specifically defines the
product as being water resistant.
• Do not expose this product to moisture, rain or other fluids.
• Do not use if the product if you suspect it has been damaged in any way, including
being dropped, is malfunctioning, or has been exposed to liquids or moisture. The unit must
be repaired by an authorised service centre only. Manufacturer Warranty is void if the unit is
opened or adapted in any way. Operator safety may be compromised if this product is not
operated and maintained in accordance with the details contained in this Owner Handbook.
• This appliance must be earthed. Do not remove the earth connection in the plug or any
other location- it is essential for user safety.
• Be aware that products are mains powered and may be capable of producing high
voltages from its outputs and has mains voltages inside the cabinet.
Product Installation, Use & Maintenance
• Keep this Owner Handbook safe for future reference.
• Clean the product with a clean and dry, non-abrasive cloth. Do not use solvents or
liquids to clean the product.
• To prevent overheating, do not obstruct any ventilation opening, fan cover or vent. Do
not install near any sources of heat such as radiators, heaters or other heat producing
items such as amplifiers, power units etc.
• Never lift, move or carry the product by any other means other than the case as a
whole or handle if provided.
• Power connection to the product is via a UK 240 Volt AC three-pin mains plug. Do not
remove or adapt this plug. If necessary, only replace the plug top fuse with one of the
same type, size and value.
• The mains lead must not be crushed or damaged. If any damage occurs, disconnect
from the mains immediately. Replace the damaged cable, or if the mains lead is
captive, return the product to an authorised repair centre for cable replacement. Do
not attempt to repair the cable - it must be discarded and destroyed.
• To maintain the Manufacturer Warranty, only attach authorised accessories and external
devices. This includes cables, connectors and other electrical and/or mechanical devices.
• Unplug the product from the mains during lightning storms or periods of mains
fluctuations. If the product is going to be unused for long periods, unplug from the mains.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
September 2016 - Version 3
Nebula Smoke 400v3™ Owner Handbook
Product Quality & Compliance
Products from Lanta Lighting meet all required safety standards in force at the time of
manufacture and are fully compliant with them.
Unpacking & Inspection
• Inspect the packaging before opening. If the packaging appears to have sustained
significant damage, please take extra care before using the product. If you are in any
doubt, consult a suitably qualified professional.
• If you suspect the product has been damaged, do not use it. Return it to your original
supplier without delay.
• Keep all packaging in a safe place for storage or transportation in future.
Manufacturer Warranty
• This Manufacturer Warranty is valid in the UK only.
• Lanta Lighting warrants that this product is free from workmanship defects and material
failure during normal use and operation for a 12 month period from original date of
sale, providing all of the terms indicated in the warranty section have been fully
complied with. Please refer to your suppliers T&C’s for warranty details.
• Expressly excluded is our liability for any directly connected or indirectly connected item
or items or any consequential loss associated with the failure of the product however
caused.
• If the product has been opened, modified, tampered with, incorrectly connected,
used inappropriately or in conflict with the instructions herein, or the product model
or serial number has been damaged, removed, tampered with, obliterated or made
partly unreadable by any person or persons, the Manufacturer Warranty is irrevocably
null and void.
• No extension, adaption, alteration or modification to the terms of this Manufacturer
Warranty will be permitted, unless expressly authorised in writing (excluding email and
fax) by a Director of Lanta Lighting. Warranty is transferrable during the Warranty period.
For Further Information about Lanta Lighting
Our website can be found at www.lantalighting.com and is available for the benefit
of customers worldwide. Please consult for information, advice and support on this and
other high quality products from Lanta.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
September 2016 - Version 3
Nebula Smoke 400v3™ Owner Handbook
Nebula Smoke 400v3™ Owner Handbook
IMPORTANT!
Battery Operated Products
Some Lanta products include an internal battery for portable use. These batteries are
high energy rechargeable devices and for safety and product performance purposes
these batteries have a permanent connection between the appliance and the battery.
The batteries are constructed from Lithium Ion materials, a much safer product than
older generation primary Lithium batteries. Great care must be exercised when handling
and disposing of these batteries and they must only be accessed and/or serviced by an
authorised Lanta service centre.
DO NOT ATTEMPT TO ACCESS, MODIFY OR DISPOSE OF THE BATTERY!
End of life disposal of the product and/or the battery must not be disposed
in domestic rubbish or other non-specific recycling centre.
Only disposal sites that fully conform to the requirements of the EU Battery
Directive are permitted to recycle these products and batteries.
Please visit www.gov.uk for further information.
About Lanta Lighting™
Based in the UK, Lanta are committed to providing high quality products at cost-effective
prices to the professional lighting market. Since the first product was launched in 2006,
Lanta has established a reputation for reliability, common sense design and customer
support that has become the envy of others. All Lanta products are specifically designed
for UK operation and are optimized for 240VAC 50Hz UK mains power.
The Lanta Lighting range includes:-
Professional Lighting
Focussing on the use of LED technology, Lanta offer distinctive lighting effects for install
and mobile applications. From washes to floods, spots to projectors, LED technology now
outperforms traditional lights while at the same time requiring significantly lower power
and generating far less unwanted heat.
Atmospheric Effects
When you need special atmospheric effects, Lanta have everything from bubble
machines to fake snow, hazers and foggers. There’s also a range of fluids and consumables
specially designed to get the best from the range.
Control Gear
Lightweight and portable, Lanta Control Gear is robust enough to survive life on the road
and smart enough to control DMX kit whatever the venue.
Visit us at www.lantalighting.com for more details.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
September 2016 - Version 3
Nebula Smoke 400v3™ Owner Handbook
Getting to know your Lanta Product
A reliable and effective compact smoke machine, the Nebula Smoke 400v3™ is supplied
with a wired remote control and produces a fog effect at the press of a button. It features
an 0.25 litre capacity built-in fluid tank, high quality thermostat and over-temperature trip
to ensure reliable operation.
INSIDE THE BOX
• 1 x Nebula Smoke 400 v3™
• IEC Power Cable
• Wired Remote Receiver
SPECIFICATIONS
Fluid Reservoir 0.5 Litres
Fluid Reservoir
Nebula Smoke 400v3™ Owner Handbook
Model No L68667
Fluid Reservoir 0.25 Litres
Warm Up Time 4 minutes
Control Modes Wired Remote
Control Connections None
Power Requirement 240 Volt AC 50/60Hz
Power Consumption 400 Watts
Fuse F5A
Dimensions W x D x H 130mm x 245mm x 150mm
Weight 2Kg
Dimensions
130mm 245mm
125mm
150mm

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
September 2016 - Version 3
Nebula Smoke 400v3™ Owner Handbook
Nebula Smoke 400v3™
The LANTA Nebula Smoke 400v3™ must be mounted on a firm, level surface. It must not
be used on an unstable, unlevel surface. Ensure there is adequate ventilation around the
product. It must only be used horizontally, do not tilt or operate on an incline when using
fluid, as this may spill out and damage the product and invalidate the warranty. Ensure
that there is a 50cm clearance from the nozzle to any surface and that the smoke is not
directed at someone’s face.
NB. This is an indoor rated product. Do NOT use outdoors.
HOW TO OPERATE
1. Remove the tank bottle cap and fill with Lanta Smoke Fluid (sold separately).
1. Do NOT overfill.
2. Replace the tank cap securely.
3. Plug in the wired remote and the mains cable directly into the machine.
DO NOT CONNECT THESE TWO CABLES DIRECTLY TOGETHER.
4. Plug into Mains and switch on.
5. The red LED on the remote will illuminate to signal the machine is in a heating cycle.
6. When the machine has reached operating temperature the green LED will illuminate.
7. Press the button on the control to emit smoke, release to stop.
Nebula Smoke 400v2™ Owner HandbookNebula Smoke 400v3™ Owner Handbook

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
September 2016 - Version 3
Nebula Smoke 400v3™ Owner Handbook
Nebula Smoke 400v3™
IMPORTANT:
• Do not run the machine without fluid as it will damage the unit.
• Do not touch the output nozzle on this product. It is very hot during operation and it may
remain hot for some time after turning the unit off.
• Never place the fog/hazer machine on any flammable material (i.e. carpet, fabric etc.)
during operation. All fog/hazer machines should always be on a non-flammable
surface, such as concrete or tile.
• Depending on the amount of fog/haze generated, all fog machines may set off smoke
detectors.
TROUBLESHOOTING
If you experience low output, pump noise, or no output at all, unplug immediately and
do the following:
1. Check the fluid level, the external fuse, the remote connection and main power supply.
If all appear OK, plug the unit in again.
2. If the machine operates, but smoke does not come out after 5 seconds, switch off and
check the hose going into the tank to make sure there is fluid going into the hose.
3. If you are unable to determine the cause of the problem, do not continue to operate
as this may damage the unit. Contact your supplier for support.
PRODUCT MAINTENANCE
Do not allow the Smoke Machine to become contaminated. Lanta recommends
that after every 30 hours of continuous operation, a cleaning solution composed of
80% distilled water and 20% distilled vinegar is run through the system to prevent the
accumulation of particulate matter in the heating element.
The recommended cleaning procedure is:
1. Empty all fog liquid from the machine. Add 100ml cleaning solution to tank. Plug unit
in and begin warm up.
2. Run the unit in a well-ventilated area until the tank is almost empty. Do not allow the
pump to run dry.
3. Cleaning is now complete. Refill with fog liquid. Run the machine briefly to clear any
cleaning solution from the pump and heater.
4. Do not operate the machine without liquid at any time.
STORAGE
1. When storing run distilled water (not tap water) through the system as described in the
cleaning regime above. This will help avoid any particles condensing inside the pump
or heater.
2. It is strongly recommended to test-run the machine on a monthly basis.
Keep this User Manual for future consultation.
If you sell the product to another user, be sure that they also receive this document.
Nebula Smoke 400v3™ Owner Handbook
