Introduction to the NEC MultiSync LCD1525V E - 1
Introduction to the NEC MultiSync LCD1525V
Congratulations on your purchase of the NEC MultiSync LCD1525V
true colour monitor!
Wider Compatibility
Because the MultiSync LCD monitor is analog through and through, it
does not require special analog to digital display or interface cards but
can accept RGB input directly.
Reduced Footprint
Provides the ideal solution for environments requiring superior image
quality but with size and weight limitations. The monitor’s small foot-
print and low weight allow it to be moved or transported easily from one
location to another.
Colour Control System
Allows you to adjust the colours on your screen and customize the colour
accuracy of your monitor to a variety of standards.
OSM (On-Screen Manager) Controls
Allow you to quickly and easily adjust all elements of your screen image
via simple to use on-screen menus.
ErgoDesign Features
Enhance human ergonomics to improve the working environment,
protect the health of the user and save money. Examples include OSM
controls for quick and easy image adjustments, tilt/swivel base for
preferred angle of vision, small footprint and compliance with MPRII
guidelines for lower emissions.
Plug and Play
The Microsoft®solution with the Windows®operating system facilitates
setup and installation by allowing the monitor to send its capabilities (such
as screen size and resolutions supported) directly to your computer, auto-
matically optimizing display performance.
LCD1525E.PM5 99/06/09, 14:33Page 13 PageMaker5.0J

IPM (Intelligent Power Manager) System
Provides innovative power-saving methods that allow the monitor to shift
to a lower power consumption level when on but not in use, saving two-
thirds of your monitor energy costs, reducing emissions and lowering the
air conditioning costs of the workplace.
Multiple Frequency Technology
Automatically adjusts monitor to the display card’s scanning frequency,
thus displaying the resolution required.
FullScan Capability
Allows you to use the entire screen area in most resolutions, significantly
expanding image size.
E - 2 Introduction to the NEC MultiSync LCD1525V
LCD1525E.PM5 99/06/09, 14:33Page 14 PageMaker5.0J

Contents
Your new NEC MultiSync LCD monitor box should contain the following:
– NEC MultiSync LCD1525V.
– AC Power Cord.
– ACAdapter.
– Video Signal Cable.
– User’s Manual.
Remember to save your original box and packing material to transport or
ship the monitor.
Contents E - 3
MultiSync LCD
1525V
MultiSync LCD1525V monitor
with video signal cable
and AC Adapter
Power Cord
LCD1525E.PM5 99/06/09, 14:33Page 15 PageMaker5.0J

Recommended Use
Safety Precautions and Maintenance
For optimum performance, please note the following when setting up and
using the MultiSync LCD colour monitor:
• DO NOT OPEN THE MONITOR.There are no user serviceable
parts inside and opening or removing covers may expose you to
dangerous shock hazards or other risks. Refer all servicing to
qualified service personnel.
• Allow adequate ventilation around the monitor so that heat can
properly dissipate. Do not block ventilated openings or place
the monitor near a radiator or other heat sources. Do not put
anything on top of monitor.
• Do not spill any liquids into the cabinet or use your monitor
near water.
• Do not insert objects of any kind into the cabinet slots, as they
may touch dangerous voltage points, which can be harmful or
fatal or may cause electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to
the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or
table, as the monitor may fall, causing serious damage to the
monitor.
• The power cable connector is the primary means of detaching
the system from the power supply. The monitor should be
installed close to a power outlet that is easily accessible.
• When operating the MultiSync LCD monitor with its AC220-
240V worldwide power supply, use a power supply cord that
matches the power supply voltage of theAC power outlet being
used. The power supply cord you use must have been approved
by and comply with the safety standards of your country.
• Use supplied AC Adapter.
• No Object shall be placed onAC Adapter.
E - 4 Recommended Use
LCD1525E.PM5 99/06/09, 14:33Page 16 PageMaker5.0J

• AC Adapter shall not be used outdoors.
• Handle with care when transporting. Save packaging for trans-
porting.
• The inside of the fluorescent tube located within the LCD moni-
tor contains mercury. Please follow the bylaws or rules of your
local municipality to dispose of this tube properly.
Immediately unplug your monitor from the wall outlet and refer servic-
ing to qualified service personnel under the following conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet is damaged.
Recommended Use E - 5
LCD1525E.PM5 99/06/09, 14:33Page 17 PageMaker5.0J

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR
CAN REDUCE EYE, SHOULDERAND NECK FATIGUE. CHECKTHE
FOLLOWING WHEN YOU POSITION THE MONITOR:
• For optimum performance, allow 20 minutes for warm-up.
• Adjust the monitor height so that the top of the screen is at or
slightly below eye level. Your eyes should look slightly down-
ward when viewing the middle of the screen.
• Position your monitor no closer than 40 cm and no further away
than 70 cm from your eyes. The optimal distance is 53 cm for
the MultiSync LCD1525V monitor.
• Rest your eyes periodically by focusing on an object at least 6 m
away. Blink often.
• Position the monitor at a 90° angle to windows and other light
sources to minimize glare and reflections.Adjust the monitor tilt
so that ceiling lights do not reflect on your screen.
• If reflected light makes it hard for you to see your screen, use an
anti-glare filter.
• Clean the LCD monitor surface with a lint-free, non-abrasive
cloth. Avoid using any cleaning solution or glass cleaner!
• Adjust the monitor’s brightness and contrast controls to enhance
readability.
• Use a document holder placed close to the screen.
• Position whatever you are looking at most of the time (the screen
or reference material) directly in front of you to minimize turn-
ing your head while you are typing.
• Avoid displaying fixed patterns on the monitor for long periods
of time to avoid image persistence (after-image effects).
• Get regular eye checkups.
E - 6 Recommended Use
LCD1525E.PM5 99/06/09, 14:33Page 18 PageMaker5.0J

Installation
To attach the MultiSync LCD1525V monitor to your system, follow these
instructions:
1. Turn off the power to your computer.
2. For the PC: Connect the 15-pin mini D-SUB of the appropriate
signal cable to the connector of the display card in your system
(FigureA.1). Tighten all screws.
Forthe Mac:Connect the MultiSync LCD1525V Macintosh cable
adapter to the computer (Figure B.1). Attach the 15-pin mini
D-SUB end of the appropriate signal cable to the MultiSync
LCD1525V Macintosh cable adapter (Figure B.1). Tighten all
screws.
3. Remove connector cover and cable cover. Connect the 15-pin
mini D-SUB of the video signal cable to the appropriate connec-
tor on the back of the monitor (Figure C.1).
Place the Video Signal Cable under Clip A. Then place AC
Adapter Cable under Clip B.
Replace connector cover and cable cover.
NOTE: Incorrect cable connections may result in irregular operation,
damage display quality/components of LCD module and/or shorten the
module’s life.
4. Connect one end of the power cord to the MultiSync LCD
Series monitor and the other end to the power outlet (Figure
D.1).
5. Turn on the monitor (Figure E.1) and the computer.
6. To complete the setup of your MultiSync LCD monitor, use the
following OSM controls:
• Auto Adjust Contrast
• Auto Adjust
Refer to the Controls section of this User’s Manual for a full description
of these OSM controls.
NOTE: If you have any problems, please refer to the Troubleshooting
section of this User’s Manual.
Installation E - 7
LCD1525E.PM5 99/06/09, 14:33Page 19 PageMaker5.0J

E - 8 Installation
Figure A.1 Figure B.1
15-pin
mini D-SUB
Mac Adapter
(not included)
15-pin
mini
D-SUB
LCD1525E.PM5 99/06/09, 14:33Page 20 PageMaker5.0J

Installation E - 9
MultiSy
n
Figure D.1
Figure E.1
Figure C.1
Clip B
Clip A
Power Button
LCD1525E.PM5 99/06/09, 14:33Page 21 PageMaker5.0J

E - 10 Installation
LCD1525E.PM5 99/06/09, 14:33Page 22 PageMaker5.0J

Controls
OSM Controls
The OSM controls on the front of the monitor provide the following
functions:
NOTE: When RESET is pressed, a warning window will appear allow-
ing you to cancel the RESET function.
Controls E - 11
To access OSM press any of the control buttons ( , , , ) or the PROCEED
button.
EXIT
CONTROL /
CONTROL /
PROCEED
RESET
Main Menu
Exits the OSM controls.
Moves the highlighted
area up/down to select
one of the controls
Moves the highlighted
area left/right to select
control menus.
Has no function.
Resets the highlighted
control menu to the factory
setting.
Sub-Menu
Exits to the OSM main
menu.
Moves the highlighted
area up/down to select
one of the controls
Moves the bar left/ right
to increase or decrease
the adjustment.
Activates Auto Adjust
feature.
In Tool and Information
Mode, opens additional
window.
Resets the highlighted
control to the factory
setting.
LCD1525E.PM5 99/06/09, 14:34Page 23 PageMaker5.0J

E - 12 Controls
Brightness and Contrast
Brightness
Adjusts the overall image and background screen brightness.
Contrast
Adjusts the image brightness in relation to the background.
AutoAdjust
Corrects the image displayed for non-standard video inputs.
AutoAdjust
Automatically adjusts the Position, H. size and Fine
controls.
Position
Controls horizontal and vertical image position within the
display area of the LCD.
LEFT/RIGHT
Controls Horizontal Image Position within the display area
of the LCD.
DOWN/UP
Controls Vertical Image Position within the display area of
the LCD.
AutoAdjust
Automatically sets the horizontal and vertical image posi-
tion within the display area of the LCD.
Image Adjust
H. size
Adjusts the horizontal size by increasing or decreasing this
setting.
Fine
Improves focus, clarity and image stability by increasing or
decreasing the Fine setting.
LCD1525E.PM5 99/06/09, 14:34Page 24 PageMaker5.0J

Controls E - 13
AutoAdjust
Automatically adjusts the H. Size or Fine settings.
Colour Control System
Five options select the desired colour setting. If a setting is
adjusted, the name of the setting will change to Custom.
Colour Gain (Red, Green, Blue): Increases or decreases
Red, Green or Blue colourdepending upon which is selected.
The change in colour will appear on screen and the direction
(increase or decrease) will be shown by the colour bars.
ToolsLanguage: OSM control menus are available in seven lan-
guages.
OSM Position
You can choose where you would like the OSM control
image to appear on your screen. Selecting OSM Location
allows you to manually adjust the position of the OSM
control menu left, right, up or down.
OSM Turn Off
The OSM control menu will stay on as long as it is in use. In
the OSM Turn Off sub-menu, you can select how long the
monitor waits after the last touch of a button to shut off the
OSM control menu. The preset choices are 10, 20, 30, 60
and 120 seconds.
OSM Lock Out
This control completely locks out access to all OSM control
functions. When attempting to activate OSM controls while
in the Lock Out mode, a screen will appear indicating the
OSM controls are locked out. To activate the OSM Lock
Out function, simultaneously press and hold down the
PROCEED and button(s). To de-activate the OSM Lock
Out mode, again simultaneously press and hold down the
PROCEED and button(s).
LCD1525E.PM5 99/06/09, 14:34Page 25 PageMaker5.0J

E - 14 Controls
Factory Preset
Selecting Factory Preset allows you to reset all OSM control
settings back to the factory settings. The RESET button will
need to be held down for several seconds to take effect.
Individual settings can be reset by highlighting the control
to be reset and pressing the RESET button.
Resolution Notifier
This optimal resolution is 1024 x 768. If ON is selected, a
message will appear on the screen after 2 minutes, notifying
you that the resolution is not at 1024 x 768.
Information
Display Mode: Provides information about the current reso-
lution display and technical data including the preset timing
being used and the horizontal and vertical frequencies.
LCD1525E.PM5 99/06/09, 14:34Page 26 PageMaker5.0J

Specifications E - 15
Display
Input Signal
Display Colours
Synchronisation
Range
Resolutions
Supported
Active Display
Area**
38 cm (15.1 inch) viewable image size; 1024 x 768
native resolution (Pixel Count); active matrix;
thin film transistor (TFT); liquid crystal display (LCD);
0.30 mm dot pitch; 200 cd/m2white luminance, typical;
200:1 contrast ratio, typical
Analog 0.7 Vp-p 75 Ω
Separate sync. TTL Level
Horizontal sync. Positive/Negative
Vertical sync. Positive/Negative
16,194,277 colours with dithering
(Depends on the graphics board)
24.8 kHz to 48.4 kHz (Automatically)
56.2 Hz to 75.0 Hz (Automatically)
720 x 400*: VGA text
640 x 480* at 60 Hz to 75 Hz
800 x 600* at 56 Hz to 75 Hz
1024 x 768 at 60 Hz
Horizontal 307.2 mm
Vertical 230.4 mm
Video
Sync
Analog Input:
Horizontal
Vertical
Specifications
LCD1525E.PM5 99/06/09, 14:34Page 27 PageMaker5.0J

Power Supply
Current Rating

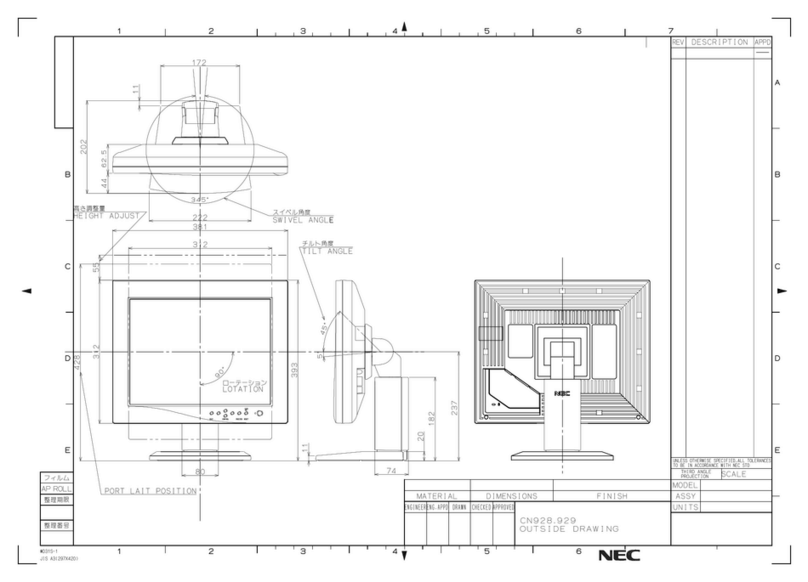

Dimensions
Weight
Operating
Environmental
Considerations
Storage
Environmental
Considerations
E - 16 Specifications
Temperature
Humidity
Temperature
Humidity
AC 100-240 V @ 50/60 Hz
0.4 A @ 100-120 V / 0.25 A @ 220-240 V
370(W) x 325(H) x 151(D) mm
4.0 kg
5° C to +35° C
30% to 80%
-10° C to +60° C
10% to 85%
* Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of
the LCD module, text may appear different. This is normal and necessary for all current flat
panel technologies when displaying non-native resolutions full screen. In flat panel technolo-
gies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an
interpolation of the resolution must be done.
** Active display area is dependent upon the signal timing.
Technical specifications are subject to change without notice.
LCD1525E.PM5 99/06/09, 14:34Page 28 PageMaker5.0J

Troubleshooting/Support E - 17
Problem
No picture
Power Button does
not respond
Image persistence
Check These Items
- The signal cable should be completely connected to
the display card/computer.
- The display card should be completely seated in its slot.
- Power button and computer power switch should be in
the ON position.
- Check to make sure that a supported mode has been
selected on the display card or system being used.
(Please consult display card or system manual to change
graphics mode.)
- Check the monitor and your display card with respect
to compatibility and recommended settings.
- Check the signal cable connector for bent or pushed-in
pins.
Unplug the power cord of the monitor from the AC
outlet to turn off and reset the monitor, or simultaneously
press the RESET and Power buttons.
Image persistence is when a “ghost” of an image remains
on the screen even after the monitor has been turned off.
Unlike CRT monitors, LCD monitors’image persistence
is not permanent. To alleviate image persistence, turn
the monitor off for as long as an image was displayed. If
an image was on the monitor for one hour and a “ghost”
of that image remains, the monitor should be turned off
for one hour to erase the image.
NOTE: As with all personal display devices, NEC
recommends using a screen saver at regular intervals
whenever the screen is idle.
Troubleshooting/Support
LCD1525E.PM5 99/06/09, 14:34Page 29 PageMaker5.0J

E - 18 Troubleshooting/Support
Problem
Image is unstable,
unfocused or
swimming is
apparent
LED on monitor is
not lit (no green or
amber colour can be
seen)
Display image is not
sized properly
Check These Items
- Signal cable should be completely attached to the
computer.
- Use the OSM ImageAdjust controls to focus and adjust
display by increasing or decreasing the Fine Control.
When the display mode is changed, the OSM Image
Adjust settings may need to be re-adjusted.
- Check the monitor and your display card with respect to
compatibility and recommended signal timings.
- If your text is garbled, change the video mode to non-
interlace and use 60 Hz refresh rate.
- Power Switch should be in the ON position and power
cord should be connected.
- Make certain the computer is not in a power-savingmode
(touch the keyboard or mouse).
- Use the OSM Image Adjust controls to increase or
decrease the H. Size.
- Check to make sure that a supported mode and signal
timing has been selected on the display card or system
being used. (Please consult display card or system manual
to change graphics mode or refresh rate.)
LCD1525E.PM5 99/06/09, 14:34Page 30 PageMaker5.0J
