NEFF S4556A0 User manual

Fill with rinse aid
Fill with detergent
Select programme

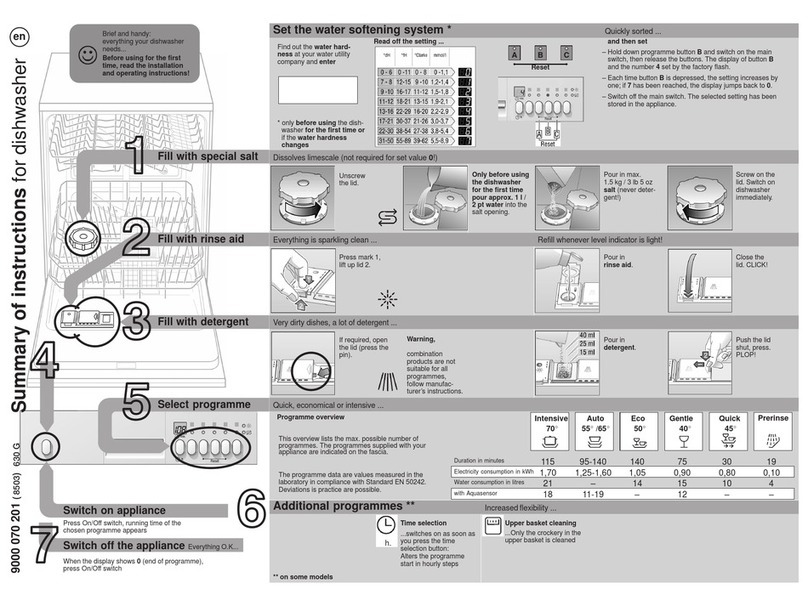

Summary of instructions for dishwasher
Brief and handy:
everything your dishwasher
needs...
Before using for the first
time, read the installation
and operating instructions!
Fill with special salt
Switch on appliance
Press On/Off switch, running time of the
chosen programme appears
When the display shows 0(end of programme),
press On/Off switch
Switch off the appliance Everything O.K...
5600 054 668   
en Set the water softening system * Quickly sorted ...
Find out the water hard-
ness at your water utility
company and enter
* only before using the dish-
washer for the first time or
if the water hardness
changes
Read off the setting ... and then set
– Hold down programme button Band switch on the main
switch, then release the buttons. The display of button B
and the number 4set by the factory flash.
– Each time button Bis depressed, the setting increases by
one; if 7has been reached, the display jumps back to 0.
– Switch off the main switch. The selected setting has been
stored in the appliance.
Reset
ABC
Dissolves limescale (not required for set value 0!)
Unscrew
the lid. Only before using
the dishwasher
for the first time
pour approx. 1 l /
2 pt water into the
salt opening.
Pour in max.
1.5 kg / 3 lb 5 oz
salt (never deter-
gent!)
Screw on the
lid. Switch on
dishwasher
immediately.
Everything is sparkling clean ... Refill whenever level indicator is light!
Press mark 1,
lift up lid 2. Pour in rinse aid.Close the lid. CLICK!
Very dirty dishes, a lot of detergent ...
If required, open
the lid (press the
pin).
Warning,
combination
products are not
suitable for all
programmes,
follow manufac-
turer’s instructions.
Pour in
detergent.Push the lid shut, press.
PLOP!
Quick, economical or intensive ...
Programme overview
This overview lists the max. possible number of
programmes. The programmes supplied with your
appliance are indicated on the fascia.
The programme data are values measured in the
laboratory in compliance with Standard EN 50242.
Deviations is practice are possible.
112
1,60
21
18
140
1,05
14
–
72
0,80
15
12
30
0,60
10
–
19
0,10
4
–
95-145
1,15-1,50
11-19
–
35507055/6540
Duration in minutes
Electricity consumption in kWh
Water consumption in litres
with Aquasensor
AutoIntensive Eco Quick Prerinse Gentle
Additional programmes ** Increasedflexibility ...
** on some models
h.
Time selection
...switches on as soon as
you press the time
selection button:
Alters the programme
start in hourly steps
Upper basket cleaning
...Only the crockery in the
upper basket is cleaned

Maintenance and care For perfect rinsing results ... Cleaning the waste-water pump *
Strainers ...
Check, if
required, clean
Rotate filter
cylinder, remove
filter system ...
rinse under
flowing water ... Insert ... Screw in filter system NOTE
MARK!
* With some models
– Ladle out water and remove filters
– Unscrew cover (Torx T20)
– Check area of fan impeller for foreign objects
– Screw in cover and insert filters
Spray arms ...
Remove
blockages/deposits
Pull lower arm
upwards ... Unscrew upper arm ... Clean spray nozzles under flowing water
(perhaps with
toothpick) ...
Insert lower arm ...
Screw in upper arm
Eliminating minor faults yourself ... ... Self–help pays!
Fault Possible Cause
Device does not work/stops Supply fitting not open
Supply hose kinked
Supply fitting jammed or calcified
Open supply fitting.
Lay supply hose without kinks.
1. Unscrew water connection.
2. Clean filter in the water connection.
3. Flow rate must be min. 9 l/min when
the water inlet is open.
If the flow rate is less, replace the
supply fitting.
Remedy
Plastic parts / parts of
dishes discoloured
Too little cleaning product
Discoloration caused by food colourings
(tomato sauce)
Follow manufacturer’s specifications
(detergent).
Discoloration is quite safe; fades after
subsequent rinse cycles.
Residual water in the device Waste-water pump blocked
Programme not yet ended Clean waste-water pump (see above). Close and switch on appliance or
terminate programme (see Terminating
the programme).
Cutlery rusty Cutlery not rust-proof
Hard knife blades are more susceptible
Extraneous rust
Use dishwasher-proof cutlery.
Never wash rusting parts in the
appliance.
Fault Possible Cause Remedy
Stains and streaks
Milky residues on dishes
(can be removed)
Rinse aid dosage too high / too low
Glasses not dishwasher-proof.
Streaks: Reduce dosage.
Water or limescale stains: Increase
dosage.
Use dishwasher-proof glasses.
Use glass-friendly cleaning products.
Further advice can be found in the instruction manual
Milky film, glasses cloudy /
dull (cannot be removed)
Water softening system incorrectly set;
no special salt Set water softening system correctly. Refill with special salt.
Dishes not clean
Sand or grainy residues
on dishes
Utensils are situated too close to each
other or on top of each other
Too little cleaning product
Unsuitable programme selected
Spray nozzles blocked
Filters dirty, not installed securely
Spray arms blocked
Spread out the utensils, avoid contact
between the utensils.
Follow manufacturer’s specifications
(detergent).
Select more intensive programme.
Clean spray arms (see above).
Clean the strainers (see above).
Arrange the utensils so that the spray
arms can rotate freely.
Stopping the programme ... Loading the dishwasher correctly ...
Press and hold the two
reset buttons simultaneously for
approximately 3 seconds while
the programme is running
(RESET)
”0” appears
The programme will stop
after 1 minute
Switch off the appliance. Arrange dishwasher-proof utensils (having removed any ash, wax, grease, ink, sticky labels; remove,
large remnants of jam, dairy products and food) according to the operating instructions and check that
the spray arms can rotate freely.
