NEFF R7380X1EU User manual

1 2 3 4 5 6
Emptying condensation
Empty container after each drying opera tion!
1. Pull out condensation conta iner keeping it horizontal.
2. Pour out condensation.
3. Always push container in ful ly until it clicks into place.
If -(Container) flashes in the display panel aWhat to do if..., Page 10.
Cleaning the fluff filter
Clean the fluff filter after each drying operation.
1. Open the door, remove fluf f from door/door area.
2. Pull out and fold open the fluff filter.
3. Remove the fluff (by wiping the filter with your hand).
If the fluff filter is very dirty or blocked, rinse with warm water and dry
thoroughly.
4. Close and reinsert the fluff f ilter.
Switching off the dryer
Turn the programme se lector to (Off).
Do not leave laundry in the dryer.
Removing the laundry
The automatic anti-crease functi on causes the drum to move at specific int ervals, the washing remains
loose and fluffy for an hour (two hours if the additional (Reduced Ironing) function is also se lected-
depending on model).
... and adapt to individual requirements
Never start the dryer if it is damaged!
Inform your after-sales service. Inspecting the
dryer
Sorting and loading laundry
Remove all items from pockets .
Check for cigarette lighters.
The drum must be empty pri or to loading.
See programme overview on p age 7.
See also separate instructions for “Woollens basket”
(depending on model)
Your new dryer
Congratulations - You have chosen a modern, high-quality Neff
domestic appliance.
The condensation dryer is distingui shed by its economical energy
consumption.
Every dryer which leaves our factory is carefully c hecked to ensure
that it functions correctly and is in perfect condition.
Should you have any questions , our after-sales service will be pleased
to help.
Disposal in an environmentally-responsible manner
Dispose of packaging in an en vironmentally-responsible manner.
This appliance is labelled in a ccordance with the European
guideline 2002/96/EG on waste electrica l and electronic
equipment - WEEE.
The guideline provides an EU-wide f ramework for the return and
recycling of old appliances.
For further information about our pro ducts, accessories, spare parts
and services, please visit: www.neff.de
Intended use Preparing for installation, see Page 8
Selecting and adjusting the programme
Drying
Condensation container
Control panel
ʋfor domestic use only,
ʋonly to be used for drying fabric s that have been
washed with water.
Do not leave children unsupervised near the dryer.
Keep pets away from the dryer.
Select the drying programme ...
Press the uStart/Stop
button
1
2
3
Make sure your hands are dry.
Hold the plug only. Connecting the
mains plug
Drying

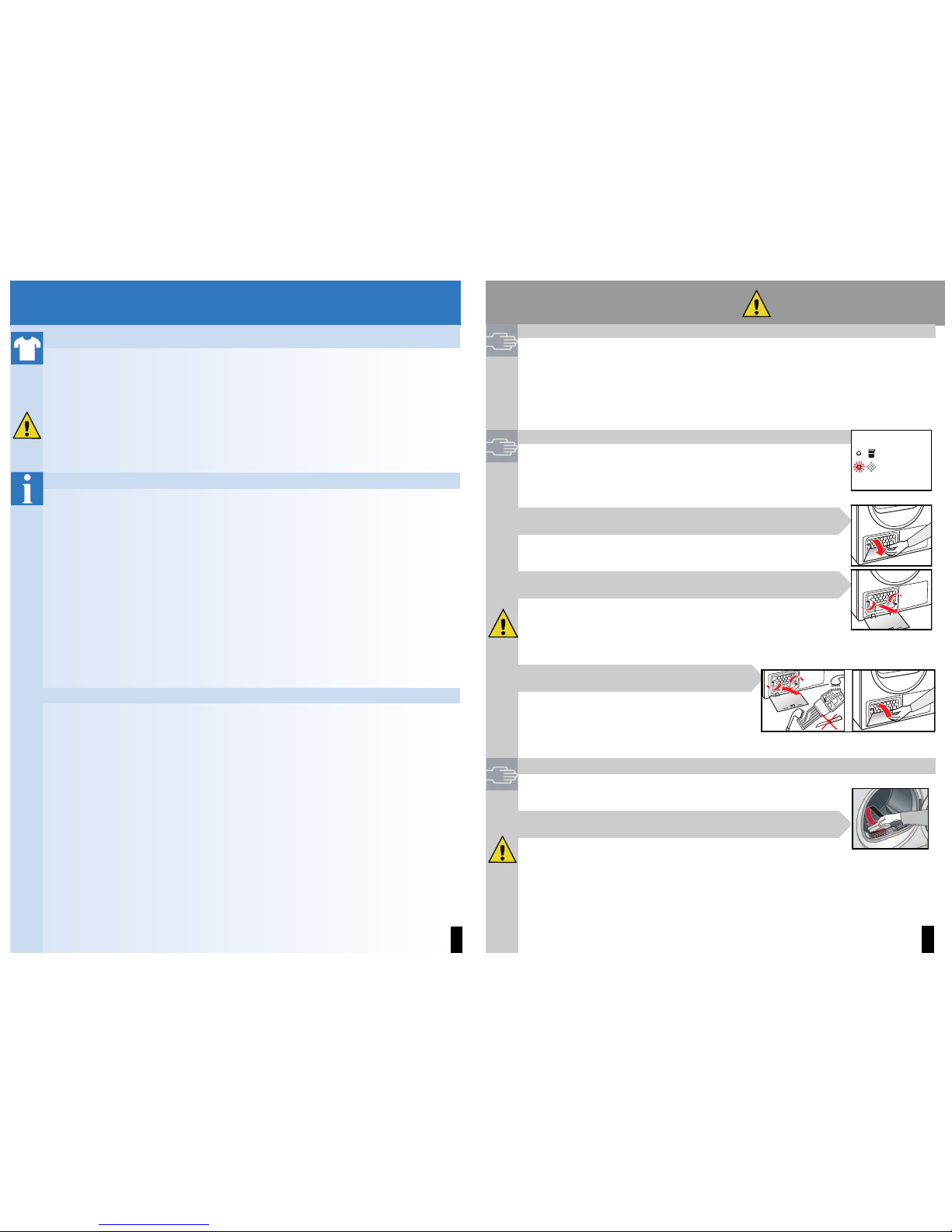

Information on laundry ...
Labelling of fabrics
Follow the manufacturer's care inform ation.
(Drying at normal temperature.
'cDrying at low temperature aalso select (Low Heat)
)cDo not machine dry.
Observe safety instructions with out fail aPage 11!
Do not tumble-dry the followi ng fabrics for example:
– Impermeable fabrics ( e.g. rubber-coated fabrics).
– Delicate materials (silk or curtains made from synth etic material) athey may crease
– Laundry contaminat ed with oil.
Drying tips
– To ensure a consist ent result, sort the laundry by fabric type and drying programme.
– Always dry very small items (e.g. baby socks) together with large items of laundry (e.g. hand
towel).
– Close zips, hooks and eyele ts, and button up covers.
Tie fabric belts, apron strings, etc. togethe r
– Do not over-dr y easy-care laundry arisk of creasing!
Allow laundry to finish drying in the ai r.
– Do not dry woolens in the dryer, only use to freshen them up aPage 7, Wool finish
Programme (depending on model).
– Do not iron la undry immediately after drying, fo ld items up and leave fo r a while athe
remaining moisture will then be distributed evenly.
– Machine-k nitted fabrics (e.g. T-shirts or je rseys) often shrink the first time they a re dried a
do not use the 7(Cupboard Dry P lus) programme.
– Starched laundry is not always suitable for dryers asta rch leaves behind a coating that
adversely affects the drying opera tion.
– Use the correct dosage of fabric softener as per the manufact urer's instructions when
washing the laundry to be dried.
– Use the timer programme for small loads athis im proves the drying result.
Environmental protection/energy-saving tips
– Before drying, spin the laund ry thoroughly in the washing machine athe higher the spin
speed the shorter the drying time will be (consumes less energy), also spin easy-care
laundry.
– Put in, but do not exceed, the maximu m recommended quantity of laundry a
programme overview aPage 7.
– Make sure the roo m is well ventilated during drying.
– Do not obstruct or seal up the air inlet.
– Keep the air cooler clean apage 6 “Care and cleaning” .
Drum
All buttons are sensitive and only
need to be touched lightly.
Only operate the dryer with
the fluff filter inserted! Air inlet
Fluff filter
Drum interior light
(depending on model)
Maintenance
flap
Care and cleaning
Dryer housing, control panel, air cooler, moisture sensors
– Wipe with a soft, dam p cloth.
– Do not use harsh cleani ng agents and solvents.
– Remove detergent and clean ing agent residue immediately.
– During drying, wate r may collect between the door and seal.
This does not affect your dryer's functions in any way.
Clean the protective filter 5 - 6 ti mes a year
or if v(Filter) flashes after cleaning the fl uff filter.
Air cooler / protective filter
When cleaning, only remove the protective filter. Clean the air cooler
behind the protective filter once a yea r.
– Allow the dryer to cool.
– Residual water may leak out, so place an absorbent towel
underneath the maintenance door.
1. Unlock the maintenance door.
2. Open the maintenance door fully.
3. Turn both locking levers towards each another.
4. Pull out the protective filter/air cooler.
Do not damage the protective filter or air cooler.
Clean with warm water only. Do not use any hard or sharp-edged
objects.
5. Clean the protective filter/ air cooler thoroughly,
Allow to drip dry.
6. Clean the seals.
7. Re-insert the protective filter/air cooler,
with the handle facing down.
8. Turn back both locking levers.
9. Close the maintenance door until the lock clicks into place.
Moisture sensors
The dryer is fitted with stainless s teel moisture sensors. The sensors
measure the level of moisture in the laundry. After a long period of
operation, a fine layer of limescale may form on the sensors.
1. Open the door and clean the moisture sensors with a damp sponge
which has a rough surface.
Do not use steel wool or abrasive m aterials.
Programme end once lights up in the display.
Interrupt programme removing or adding laundry.
The drying cycle can be interrupted for a brief p eriod so that laundry may be added or removed.
The programme selected must then be res umed and completed.
Never switch the dryer off before the drying process has ended.
Drum and door may be hot!
1. Open door, the drying process is interrupted.
2. Load or remove laundry and close d oor.
3. If required, select a new progr amme and additional functions.
4. Press the uStart/Stop bu tton. The remaining time is upda ted after a few minutes.
Contents Page
ʋPreparation . . . . . . . . . . . . . . . . . . . . . . 2
ʋSetting the programmes . . . . . . . . . . . . . 2
ʋDrying . . . . . . . . . . . . . . . . . . . . . . . . 3/4
ʋInformation on laundry . . . . . . . . . . . . . . 5
ʋCare and cleaning . . . . . . . . . . . . . . . . . 6
ʋProgramme overview . . . . . . . . . . . . . . . .7
ʋInstallation . . . . . . . . . . . . . . . . . . . . . . . . 8
ʋFrost protection / Transport . . . . . . . . . . . 8
ʋTechnical data . . . . . . . . . . . . . . . . . . . . 9
ʋOptional accessories . . . . . . . . . . . . . . . .9
ʋWhat to do if... / After-sales service . . . .10
ʋSafety instructions . . . . . . . . . . . . . . . . 11
Additional
functions Programme selector
Time
remaining
Display panel
dccccc+ccc!/bdrying, iron dry, cupboard dry, fluff/finished
-(Container) Empty the condensati on container.
v(Filter) Clean the fluff filter and/o r air cooler apage 4/6.
ˎh:min
End of programme in 1*-24 hours (P ress button several times if required) (*depending on the selected programme , e.g. duration 1:54h a2h. Can
always be selected to the next full hour.)
Only when switched off!
Select On/Off for a acoustic s ignal at end of programme. ʋ3(Buzzer)
Reduced temperature for delica te fabrics 'that require a
longer drying time; e.g. for polyacrylics , polyamide,
elastane or acetate.
ʋ(Low Heat)
Reduces creasing and extends the anti-crea sing phase
once the program has ended.
ˣ(Reduced
Ironing)

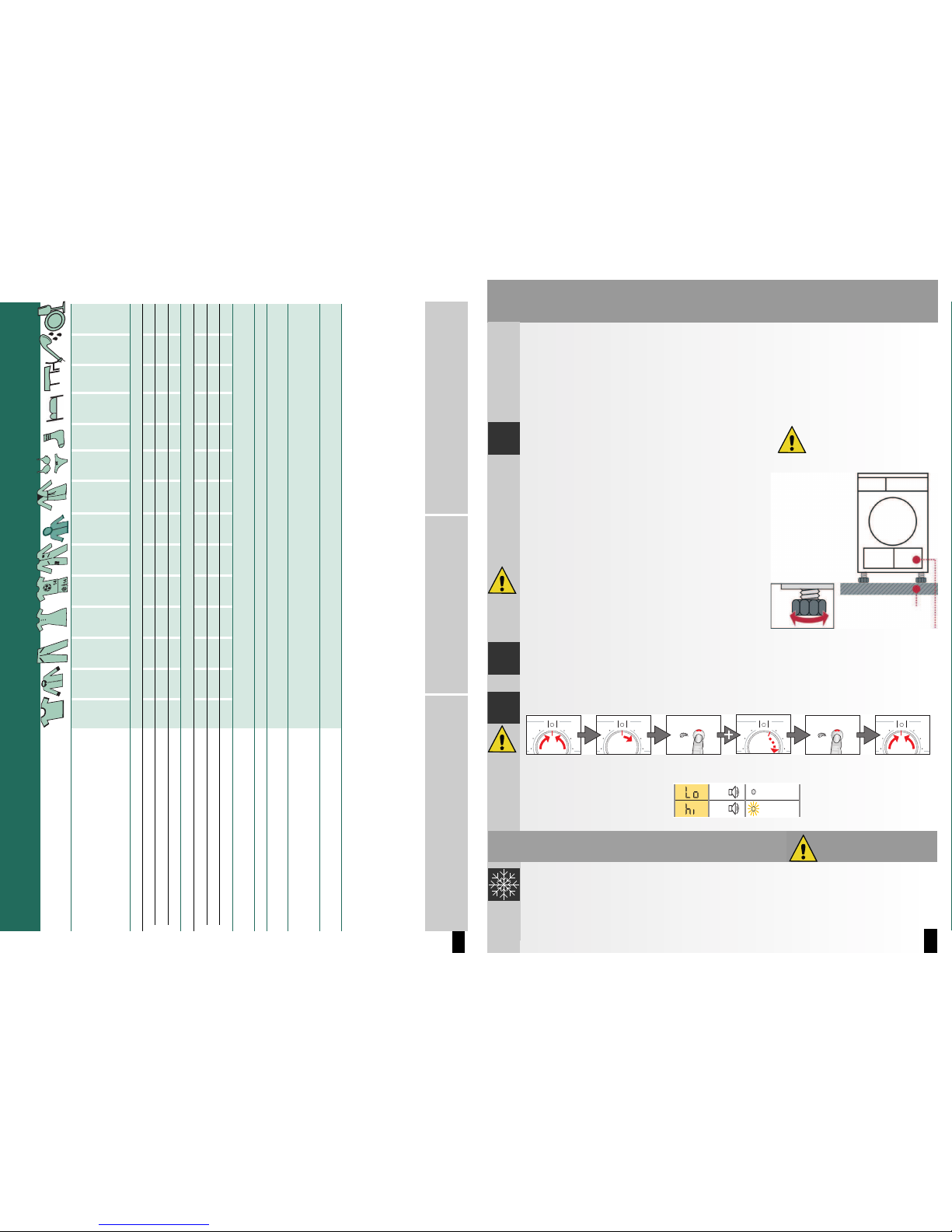

7
Programme overview also see Page 5
After drying: laundr y is to be ...
T-shirt
Shirts
Trousers
Skirts/dresses
Sportswear
Work clothing
Anoraks
Towelling
dressing gowns
Underwear
Socks
Bed linen
Table linen
Terry towels
Tea towels/
towels
c
ironed

lightly ironed dry
@c
not ironed
c
passed through a mangle
Cottons+Linens max. 7 kg For whites and coloureds/cotton or linen.
(Iron Dry) ø@ è*è*è*è*è*è*è*è*+(Cupboard Dry) @è*è*è*è*è*7(Cupboard Dry Plus) @*è*è*è*è*è*Synthetics max. 3.5 kg For non-iron laundry made of synthetic fibres and blended fabric, cotton. (Iron Dry) cø@c è*è*è*è*è*è*+(Cupboard Dry) @è*è*9(Cupboard Dry Plus) @è*è*è*WOutdoor max. 1.5 kg For fabrics with membrane coating, water-repellent fabrics, functional clothing, fleece fabrics (dry jackets/trousers
with removable internal lining separately).
Dessous max. 1 kg For lingerie made of synthetic fibres, cotton or blended fabric. Wool finish max. 3 kg For woollen fabrics suitable for machine-washing. Fabrics become fluffier but not dry.
Remove fabrics once the programme has ended and allow to dry.
ASuper 40 max. 2 kg
For laundry made of synthetic fibres, cotton or blended fabrics (for example) that needs to be dried quickly. The values may differ from the those specified depending on the type of fabric, mixture of laundry to be dried, residual moisture in the fabric and loading capacity.
Timed programme 20 min max. 3 kg For pre-dried, multi-layered, sensitive fabrics made of acrylic fibres, or separate small items of laundry.
Also for subsequent drying.
1110 / 9000577708 *577708* R7380X1EU
8
Installation
– Delivery specification : dryer, instructions for installation and use, w oollens basket
(depending on model).
– Check dryer for transport damage.
– The dryer is very heavy. Do not attem pt to lift it on your own.
– Be careful to av oid sharp edges.
– Do not lift the dryer by any of the protruding parts (e.g. the door) as they may break off.
– Do not set up in a room that is susc eptible to frost. Freezing water may cause d amage.
– If in doubt, have the appliance connected by an exper t.
Setting up the dryer
– The appliance plug must always be accessible.
– Ensure th at the appliance is installed o n a clean, level
and solid surface.
– Keep the cooling grille at the front of the dryer
unobstructed.
– Keep the area aroun d the dryer clean.
– Make the dryer level using the threaded feet
and a spirit level.
Do not remove the threaded feet under any
circumstances.
Mains connection see safety instructions a Page 11.
– Connect to an AC earthed socket. I f in doubt have the socket checked by an expert.
– T he mains voltage and the voltage s hown on the rating plate (
a Page 9) must correspond.
– The connected load and n ecessary fuse protection are specified on the ra ting plate.
Converting the installed load Note the fuse protection o f the socket.
10/16 Amps
Frost protection / Transport
Preparation
1. Empty the condensation co ntainer a page 4.
2. Select any programme using the p rogramme selector.
3. Press the uStart/Stop button
a condensation is pumped into the co ntainer.
4. Wait 5 min., and then empty the condensation container again.
5. Turn the programme selector to (Off).
1.
Take all accessory parts
out of the drum.
The drum must be empty.
Make sure that the air
inlet remains unobstructed
Clean and level
2.
3.
turn to (Off)
Press and hold selection
then turn 3 x to the right turn to (Off)
Set
amperage
1 x to the
right
Feedback: off
flashes
10 A
16 A
Do not operate the dryer if
there is a danger of frost.
Do not set up the dryer behind a door or sliding
door as this may obstruct or prevent the dryer do or
from opening. This will prevent a potentially fatal
danger to children from locking themsel ves in.
9
Technical data
ʠDimensions (DxWxH) 60 x 60 x 85 cm (height adjustable)
Weight approximately 45 kg
Max. capacity 7 kg
Condensation container 4.2 l
Connection voltage
Connected load
Fuse protection see appliance rating plate
Ambient temperature
Product number/
Production number
You can find the rating pla te on the back of the dryer.
ʠConsumption rates These are guide values determined under standard
conditions. Fluctuations up to 10% are p ossible. The value
on the label is achieved at the ma ximum heat setting.
Spin speed in rpm
(residual moisture)
Drying time
in min.**
Energy
consumption
in kWh**
Cottons+Linens 7 kg 10 A 16 A 10 A 16 A
+(Cupboard Dry) * 1400 (approx. 50 %) 112 89 3.36 3.36
1000 (approx. 60 %) 131 104 3.92 3.92
800 (approx . 70 %) 150 120 4.48 4.48
c(Iron Dry) * 1400 (appr ox. 50 %) 93 69 2.42 2.42
1000 (approx. 60 %) 111 82 3.06 3.06
800 (approx . 70 %) 130 94 3.70 3.70
Synthetics 3.5 kg
+(Cupboard Dry) * 800 (approx . 40 %) 48 42 1.35 1.35
600 (approx . 50 %) 60 51 1.65 1.65
*Test program according to DIN E N 61121.
**The values may differ from the those specified dep ending on the type of fabric, mixture of
laundry to be dried, residual moisture in the fabric and load ing capacity.
ʠDrum interior light (depending on model) (bulb E14, 25 W)
The drum is illuminated after the door is opene d or closed, and also after the programme is
started. It goes out automa tically. Replacing the bulb
a Page 10.
Optional accessories (order from th e after-sales service using the order number)
Connection fittings for condensation outlet
The condensation is conveyed d irectly via a hose.
Washer-dryer stack connection set
The dryer can be placed on top of a suitable washing machine with t he same width and depth
to save space. This connection set must always be used to secure the dryer to the washing
machine. With pull-out worktop: WZ 2 0300.
Installation underneath the worktop
Risk of electric shock!
Instead of the appliance covering plate, you m ust have a metal cover fitted by an expert.
WZ
20160
WZ
20310
WZ
20290
10
What to do if ...
If you cannot rectify a fault yourself, please contact our after-sales service. We will always
find an appropriate solution and will avoid unnecessary visits by engineers. Trust the
expertise of the manufacturer and rest assured that the repair will be carried out by trained
service technicians using original spare parts. The contact details of your local after-sales
service can be found in the enclosed after-sales service directory, or by calling one of
these numbers:
–GB 0844 8928989 Calls from a BT landline will be charg ed at up to 3 pence per minut e.
A call set-up fee of up to 6 penc e may apply.
–IE 01450 2655
When contacting the after-sales service, please quote the appliance's product number (E
no.) and production number (FD) (see the inside of the door).
Set the programme selector to (Off) and remove the appliance plug from the socket.
ʠThe uStart/Stop indicator
lamp does not light up.
Mains plug plugged in?
Programme selected?
ʠThe -(Container) and
uStart/Stop indicator lights
are flashing.
Empty the condensation container.
If featured, check hose for condensation outlet.
ʠThe v(Filter) and
uStart/Stop indicator lights
are flashing.
Clean the fluff filter and/or air cooler a Page 4/6.
ʠDryer does not start. uStart/Stop button selected?
Door closed?
Programme set?
Ambient temperature greater than 5 °C?
ʠWater is running out. Align dryer horizontally.
Clean air cooler seal.
ʠThe door opens by itself. Push the door closed until you hear it engage.
ʠThe required degree of
dryness was not achieved or
the drying time was too long.
Clean the fluff filter and/or air cooler a Page 4/6.
Empty condensation container
a Page 4.
Check water outlet (if featured).
Ambient temperature higher than 35 °C
a airing.
Air inlet may be blocked
a keep unobstructed.
Was an unsuitable programme selected?
a Page 7.
Has the dryer been installed with sufficient space on all
sides? Ensure that air can circulate.
Fine layer of scale on the moisture sensors
a Clean the
moisture sensors a page 6.
ʠLaundry damp. Use the next drying programme up or use the timer
programme as a supplement a Page 7.
Warm laundry feels damper than it really is!
ʠ
The moisture content of the room
has increased significantly.
Make sure the room is sufficiently ventilated.
Air inlet blocked?
a keep unobstructed.
Ensure that the air cooler has been inserted.
ʠMains failure. Remove laundry from the dryer immediately and spread
out. This allows the heat to dissipate.
ʠOne or more indicator lights for
programme status are
flashing.
Clean filter and air cooler a Page 4/6.
Check installation conditions
a Page 8.
Switch off, leave to cool down, switch on again, restart
programme.
ʠThe interior light is not working
(depending on model).
Pull out the appliance plug, remove the cover cap in the
interior above the door (use Torx 20 screw driver) and
replace the bulb. Close the cover cap.
Never operate the dryer without a cover cap.
11
Safety instructions
Emergency – Pull the appliance plug out of the socket imme diately or disconnect the fuse.
ONLY use the
dryer...
– In rooms inside the hou se.
– To dry fabrics.
The dryer must
NEVER...
– Be used for other purposes than those described above.
– Be modified in te rms of its technology or attribut es.
Dangers – The dryer must not be used by children or persons w ho have not been
instructed in its use.
– Do not leave children uns upervised near the dryer.
– Keep pets away from the dryer.
– Remove all objects from pockets.
Make especially sure that cigarette light ers are removed as they constitute an
a explosion hazard.
– Do not lean or sit on the door
a risk of tipping.
Installation – Secure loose cables a tripping hazard.
– Do not operate the dryer if there is a risk of frost.
Mains
connection
– Connect the dryer accordi ng to specifications to an AC earthed soc ket, as
otherwise it cannot be guaranteed that the appliance is co mpletely safe.
– The cable cross-section m ust be sufficient.
– Only use earth-leaka ge circuit breakers with the following symbol:
– The appliance plug and socket must be compatible.
– Do not use multiple pl ugs/couplings and/or extension c ables.
– Do not hold the appliance p lug with wet hands
a risk of electric shock.
– Never pull the appliance plug out of the socket by its cable.
– Do not damage the mains lead
a risk of electric shock.
Operation – Only load the drum w ith laundry.
Check the contents before you sw itch the dryer on.
– Do not use the dryer if the laundry has been in contact with solvents, oil, wax,
grease or paint (e.g. hair setting spray, nail polish remover, stain remover,
cleaning solvent, etc.)
a fire/explosion hazard.
– Dust (e.g. coal dust, flour) poses a danger: do not use the dryer
a explosion hazard.
– Do not put la undry containing foamed material/rubbe r in the dryer
a elastic
material may be destroyed and the dryer may be damaged due to po ssible
deformation of the foamed material.
– Switch off the dryer once the programme has ended.
– Condensation is not drink ing water and may be contamin ated with fluff.
Defect – Do not use the dryer if it is defective or if you suspect it is.
Repairs must only be carried out by the after-sales s ervice.
– Do not use the dryer if the mains cable is defective. To avoid danger, only
have the defective mains cable replaced by the after-sales service.
– Always pull the mains plug o ut of the socket before changing the bulb for the
interior light
a risk of electric shock.
Spare parts – Only use genuine spare p arts and accessories for safety reaso ns.
Disposal – Dryer: pull out the applian ce plug, then cut off the mains cable from the
appliance.
Dispose of at municipal waste disposal facility.
– Packaging: do not leave chi ldren alone with packing parts
a risk of suffocation.
– All materials are environmentally sound and can be reu sed. Dispose of in an
environmentally-responsible manner.
INSTRUCTIONS FOR INSTALLATION AND USE
TUMBLE DRYER
Read these instructions before ope rating the dryer.
en
Observe the safety instructions on p age 11.

1 2 -a... and adapt to individual requirements
Never start the dryer if it is damaged!
Inform your after-sales service. Inspecting the
Sorting and loading laundry
Remove all items from pockets.
Check for cigarette lighters.
The drum must be empty prior to loading.
See programme overview on page 7.
See also separate instructions for “Woollens basket
(depending on model)
Your new dryer
Congratulations - You have chosen a modern, high-quality Neff
domestic appliance.
The condensation dryer is distinguished by its economical energy
consumption.
Every dryer which leaves our factory is carefully checked to ensure
that it functions correctly and is in perfect condition.
Should you have any questions, our after-sales service will be pleased
to help.
Disposal in an environmentally-responsible manner
Dispose of packaging in an environmentally-responsible manner.
This appliance is labelled in accordance with the European
guideline 2002/96/EG on waste electrical and electronic
equipment - WEEE.
The guideline provides an EU-wide framework for the return and
recycling of old appliances.
For further information about our products, accessories, spare parts
and services, please visit: www.neff.de
Intended use Preparing for installation, see Page 8
Selecting and adjusting the programme
ʋfor domestic use only,
ʋonly to be used for drying fabrics that have been
washed with water.
Do not leave children unsupervised near the dryer.
Keep pets away from the dryer.
Select the drying programme ...
Press the uMake sure your hands are dry.
Hold the plug only. Connecting the
mains plug ('ca)caaaaaa7aaaaaa
All buttons are sensitive and only
need to be touched lightly.
Only operate the dryer with
the fluff filter inserted! vu
Contents Page
ʋPreparation . . . . . . . . . . . . . . . . . . . . . . 2
ʋSetting the programmes . . . . . . . . . . . . . 2
ʋDrying . . . . . . . . . . . . . . . . . . . . . . . . 3/4
ʋInformation on laundry . . . . . . . . . . . . . . 5
ʋCare and cleaning . . . . . . . . . . . . . . . . . 6
ʋProgramme overview . . . . . . . . . . . . . . . . 7
ʋInstallation . . . . . . . . . . . . . . . . . . . . . . . . 8
ʋFrost protection / Transport . . . . . . . . . . . 8
ʋTechnical data . . . . . . . . . . . . . . . . . . . . 9
ʋOptional accessories . . . . . . . . . . . . . . . . 9
ʋWhat to do if... / After-sales service . . . . 10
ʋSafety instructions . . . . . . . . . . . . . . . . 11
Additional
functions Programme selector
Time
remaining
Display panel
dccccc+ccc!/bdrying, iron dry, cupboard dry, fluff/finished
-(Container) Empty the condensation container.
v(Filter) Clean the fluff filter and/or air cooler apage 4/6.
ˎh:min
End of programme in 1*-24 hours (Press button several times if required) (*depending on the selected programme, e.g. duration 1:54h a2h. Can
always be selected to the next full hour.)
Select On/Off for a acoustic signal at end of programme. ʋ3(Buzzer)
Reduced temperature for delicate fabrics 'that require a
longer drying time; e.g. for polyacrylics, polyamide,
elastane or acetate.
ʋ(Low Heat)
Reduces creasing and extends the anti-creasing phase
once the program has ended.
ˣ(Reduced
Ironing)

3 4
Emptying condensation
Empty container after each drying operation!
1. Pull out condensation container keeping it horizontal.
2. Pour out condensation.
3. Always push container in fully until it clicks into place.
If -(Container) flashes in the display panel aWhat to do if..., Page 10.
Cleaning the fluff filter
Clean the fluff filter after each drying operation.
1. Open the door, remove fluff from door/door area.
2. Pull out and fold open the fluff filter.
3. Remove the fluff (by wiping the filter with your hand).
If the fluff filter is very dirty or blocked, rinse with warm water and dry
thoroughly.
4. Close and reinsert the fluff filter.
Switching off the dryer
Turn the programme selector to (Off).
Do not leave laundry in the dryer.
Removing the laundry
The automatic anti-crease function causes the drum to move at specific intervals, the washing remains
loose and fluffy for an hour (two hours if the additional (Reduced Ironing) function is also selected-
depending on model).
... and adapt to individual requirements
Inspecting the
dryer
Sorting and loading laundry
See also separate instructions for “Woollens basket”
Selecting and adjusting the programme
Drying
Condensation container
Control panel
ʋʋ
Select the drying programme ...
Press the uStart/Stop
button
1
2
3
Connecting the
mains plug
Drying ('ca)caaaaaa7aaaaaa
Drum
All buttons are sensitive and only
need to be touched lightly.
Only operate the dryer with
the fluff filter inserted! Air inlet
Fluff filter
Drum interior light
(depending on model)
Maintenance
flap vProgramme end once lights up in the display.
Interrupt programme removing or adding laundry.
The drying cycle can be interrupted for a brief period so that laundry may be added or removed.
The programme selected must then be resumed and completed.
Never switch the dryer off before the drying process has ended.
Drum and door may be hot!
1. Open door, the drying process is interrupted.
2. Load or remove laundry and close door.
3. If required, select a new programme and additional functions.
4. Press the uStart/Stop button. The remaining time is updated after a few minutes.
ʋʋʋʋʋʋʋʋʋʋʋʋdccccc+ccc!b-vaˎaʋ3'ʋˣ

56
-a
ʋʋu
1
2
3
Information on laundry ...
Labelling of fabrics
Follow the manufacturer's care information.
(Drying at normal temperature.
'cDrying at low temperature aalso select (Low Heat)
)cDo not machine dry.
Observe safety instructions without fail aPage 11!
Do not tumble-dry the following fabrics for example:
– Impermeable fabrics (e.g. rubber-coated fabrics).
– Delicate materials (silk or curtains made from synthetic material) athey may crease
– Laundry contaminated with oil.
Drying tips
– To ensure a consistent result, sort the laundry by fabric type and drying programme.
– Always dry very small items (e.g. baby socks) together with large items of laundry (e.g. hand
towel).
– Close zips, hooks and eyelets, and button up covers.
Tie fabric belts, apron strings, etc. together
– Do not over-dry easy-care laundry arisk of creasing!
Allow laundry to finish drying in the air.
– Do not dry woolens in the dryer, only use to freshen them up aPage 7, Wool finish
Programme (depending on model).
– Do not iron laundry immediately after drying, fold items up and leave for a while athe
remaining moisture will then be distributed evenly.
– Machine-knitted fabrics (e.g. T-shirts or jerseys) often shrink the first time they are dried a
do not use the 7(Cupboard Dry Plus) programme.
– Starched laundry is not always suitable for dryers astarch leaves behind a coating that
adversely affects the drying operation.
– Use the correct dosage of fabric softener as per the manufacturer's instructions when
washing the laundry to be dried.
– Use the timer programme for small loads athis improves the drying result.
Environmental protection/energy-saving tips
– Before drying, spin the laundry thoroughly in the washing machine athe higher the spin
speed the shorter the drying time will be (consumes less energy), also spin easy-care
laundry.
– Put in, but do not exceed, the maximum recommended quantity of laundry a
programme overview aPage 7.
– Make sure the room is well ventilated during drying.
– Do not obstruct or seal up the air inlet.
– Keep the air cooler clean apage 6 “Care and cleaning”.
Care and cleaning
Dryer housing, control panel, air cooler, moisture sensors
– Wipe with a soft, damp cloth.
– Do not use harsh cleaning agents and solvents.
– Remove detergent and cleaning agent residue immediately.
– During drying, water may collect between the door and seal.
This does not affect your dryer's functions in any way.
Clean the protective filter 5 - 6 times a year
or if v(Filter) flashes after cleaning the fluff filter.
Air cooler / protective filter
When cleaning, only remove the protective filter. Clean the air cooler
behind the protective filter once a year.
– Allow the dryer to cool.
– Residual water may leak out, so place an absorbent towel
underneath the maintenance door.
1. Unlock the maintenance door.
2. Open the maintenance door fully.
3. Turn both locking levers towards each another.
4. Pull out the protective filter/air cooler.
Do not damage the protective filter or air cooler.
Clean with warm water only. Do not use any hard or sharp-edged
objects.
5. Clean the protective filter/ air cooler thoroughly,
Allow to drip dry.
6. Clean the seals.
7. Re-insert the protective filter/air cooler,
with the handle facing down.
8. Turn back both locking levers.
9. Close the maintenance door until the lock clicks into place.
Moisture sensors
The dryer is fitted with stainless steel moisture sensors. The sensors
measure the level of moisture in the laundry. After a long period of
operation, a fine layer of limescale may form on the sensors.
1. Open the door and clean the moisture sensors with a damp sponge
which has a rough surface.
Do not use steel wool or abrasive materials.
u
ʋʋʋʋʋʋʋʋʋʋʋʋdccccc+ccc!b-vaˎaOnly when switched off!
ʋ3'ʋˣ

7
Programme overview also see Page 5
After drying: laundry is to be ...
T-shirt
Shirts
Trousers
Skirts/dresses
Sportswear
Work clothing
Anoraks
Towelling
dressing gowns
Underwear
Socks
Bed linen
Table linen
Terry towels
Tea towels/
towels
c
ironed

lightly ironed dry
@c
not ironed
c
passed through a mangle
Cottons+Linens max. 7 kg For whites and coloureds/cotton or linen.
(Iron Dry) ø@ è*è*è*è*è*è*è*è*+(Cupboard Dry) @è*è*è*è*è*7(Cupboard Dry Plus) @*è*è*è*è*è*Synthetics max. 3.5 kg For non-iron laundry made of synthetic fibres and blended fabric, cotton. (Iron Dry) cø@c è*è*è*è*è*è*+(Cupboard Dry) @è*è*9(Cupboard Dry Plus) @è*è*è*WOutdoor max. 1.5 kg For fabrics with membrane coating, water-repellent fabrics, functional clothing, fleece fabrics (dry jackets/trousers
with removable internal lining separately).
Dessous max. 1 kg For lingerie made of synthetic fibres, cotton or blended fabric.
Wool finish max. 3 kg For woollen fabrics suitable for machine-washing. Fabrics become fluffier but not dry.
Remove fabrics once the programme has ended and allow to dry.
ASuper 40 max. 2 kg
For laundry made of synthetic fibres, cotton or blended fabrics (for example) that needs to be dried quickly. The values may differ from the those specified depending on the type of fabric, mixture of laundry to be dried, residual
moisture in the fabric and loading capacity.
Timed programme 20 min max. 3 kg For pre-dried, multi-layered, sensitive fabrics made of acrylic fibres, or separate small items of laundry.
Also for subsequent drying.
1110 / 9000577708 *577708* R7380X1EU
8
Installation
– Delivery specification: dryer, instructions for installation and use, woollens basket
(depending on model).
– Check dryer for transport damage.
– The dryer is very heavy. Do not attempt to lift it on your own.
– Be careful to avoid sharp edges.
– Do not lift the dryer by any of the protruding parts (e.g. the door) as they may break off.
– Do not set up in a room that is susceptible to frost. Freezing water may cause damage.
– If in doubt, have the appliance connected by an expert.
Setting up the dryer
– The appliance plug must always be accessible.
– Ensure that the appliance is installed on a clean, level
and solid surface.
– Keep the cooling grille at the front of the dryer
unobstructed.
– Keep the area around the dryer clean.
– Make the dryer level using the threaded feet
and a spirit level.
Do not remove the threaded feet under any
circumstances.
Mains connection see safety instructions a Page 11.
– Connect to an AC earthed socket. If in doubt have the socket checked by an expert.
– The mains voltage and the voltage shown on the rating plate ( a Page 9) must correspond.
– The connected load and necessary fuse protection are specified on the rating plate.
Converting the installed load Note the fuse protection of the socket.
10/16 Amps
Frost protection / Transport
Preparation
1. Empty the condensation container a page 4.
2. Select any programme using the programme selector.
3. Press the uStart/Stop button
a condensation is pumped into the container.
4. Wait 5 min., and then empty the condensation container again.
5. Turn the programme selector to (Off).
1.
Take all accessory parts
out of the drum.
The drum must be empty.
Make sure that the air
inlet remains unobstructed
Clean and level
2.
3.
turn to (Off)
Press and hold selection
then turn 3 x to the right turn to (Off)
Set
amperage
1 x to the
right
Feedback: off
flashes
10 A
16 A
Do not operate the dryer if
there is a danger of frost.
Do not set up the dryer behind a door or sliding
door as this may obstruct or prevent the dryer door
from opening. This will prevent a potentially fatal
danger to children from locking themselves in.
ʠʠ+c+ʠ
a
ʠuʠ-uʠvu
a
ʠuʠʠʠ
aaaaaaa
ʠ
a
ʠ
a
ʠʠ
aa
ʠ
aaaaaaaaaa

c@c c
ø@ è*è*è*è*è*è*è*è*+@è*è*è*è*è*7@*è*è*è*è*è*cø@c è*è*è*è*è*è*+@è*è*9@è*è*è*WA
aaa
u
a
1.
2.
3. Do not operate the dryer if
9
Technical data
ʠDimensions (DxWxH) 60 x 60 x 85 cm (height adjustable)
Weight approximately 45 kg
Max. capacity 7 kg
Condensation container 4.2 l
Connection voltage
Connected load
Fuse protection see appliance rating plate
Ambient temperature
Product number/
Production number
You can find the rating plate on the back of the dryer.
ʠConsumption rates These are guide values determined under standard
conditions. Fluctuations up to 10% are possible. The value
on the label is achieved at the maximum heat setting.
Spin speed in rpm
(residual moisture)
Drying time
in min.**
Energy
consumption
in kWh**
Cottons+Linens 7 kg 10 A 16 A 10 A 16 A
+(Cupboard Dry) * 1400 (approx. 50 %) 112 89 3.36 3.36
1000 (approx. 60 %) 131 104 3.92 3.92
800 (approx. 70 %) 150 120 4.48 4.48
c(Iron Dry) * 1400 (approx. 50 %) 93 69 2.42 2.42
1000 (approx. 60 %) 111 82 3.06 3.06
800 (approx. 70 %) 130 94 3.70 3.70
Synthetics 3.5 kg
+(Cupboard Dry) * 800 (approx. 40 %) 48 42 1.35 1.35
600 (approx. 50 %) 60 51 1.65 1.65
*Test program according to DIN EN 61121.
**The values may differ from the those specified depending on the type of fabric, mixture of
laundry to be dried, residual moisture in the fabric and loading capacity.
ʠDrum interior light (depending on model) (bulb E14, 25 W)
The drum is illuminated after the door is opened or closed, and also after the programme is
started. It goes out automatically. Replacing the bulb a Page 10.
Optional accessories (order from the after-sales service using the order number)
Connection fittings for condensation outlet
The condensation is conveyed directly via a hose.
Washer-dryer stack connection set
The dryer can be placed on top of a suitable washing machine with the same width and depth
to save space. This connection set must always be used to secure the dryer to the washing
machine. With pull-out worktop: WZ 20300.
Installation underneath the worktop
Risk of electric shock!
Instead of the appliance covering plate, you must have a metal cover fitted by an expert.
WZ
20160
WZ
20310
WZ
20290
10
What to do if ...
If you cannot rectify a fault yourself, please contact our after-sales service. We will always
find an appropriate solution and will avoid unnecessary visits by engineers. Trust the
expertise of the manufacturer and rest assured that the repair will be carried out by trained
service technicians using original spare parts. The contact details of your local after-sales
service can be found in the enclosed after-sales service directory, or by calling one of
these numbers:
–GB 0844 8928989 Calls from a BT landline will be charged at up to 3 pence per minute.
A call set-up fee of up to 6 pence may apply.
–IE 01450 2655
When contacting the after-sales service, please quote the appliance's product number (E
no.) and production number (FD) (see the inside of the door).
Set the programme selector to (Off) and remove the appliance plug from the socket.
ʠThe uStart/Stop indicator
lamp does not light up.
Mains plug plugged in?
Programme selected?
ʠThe -(Container) and
uStart/Stop indicator lights
are flashing.
Empty the condensation container.
If featured, check hose for condensation outlet.
ʠThe v(Filter) and
uStart/Stop indicator lights
are flashing.
Clean the fluff filter and/or air cooler a Page 4/6.
ʠDryer does not start. uStart/Stop button selected?
Door closed?
Programme set?
Ambient temperature greater than 5 °C?
ʠWater is running out. Align dryer horizontally.
Clean air cooler seal.
ʠThe door opens by itself. Push the door closed until you hear it engage.
ʠThe required degree of
dryness was not achieved or
the drying time was too long.
Clean the fluff filter and/or air cooler a Page 4/6.
Empty condensation container a Page 4.
Check water outlet (if featured).
Ambient temperature higher than 35 °C a airing.
Air inlet may be blocked
a keep unobstructed.
Was an unsuitable programme selected? a Page 7.
Has the dryer been installed with sufficient space on all
sides? Ensure that air can circulate.
Fine layer of scale on the moisture sensors a Clean the
moisture sensors a page 6.
ʠLaundry damp. Use the next drying programme up or use the timer
programme as a supplement a Page 7.
Warm laundry feels damper than it really is!
ʠ
The moisture content of the room
has increased significantly.
Make sure the room is sufficiently ventilated.
Air inlet blocked?
a keep unobstructed.
Ensure that the air cooler has been inserted.
ʠMains failure. Remove laundry from the dryer immediately and spread
out. This allows the heat to dissipate.
ʠOne or more indicator lights for
programme status are
flashing.
Clean filter and air cooler a Page 4/6.
Check installation conditions
a Page 8.
Switch off, leave to cool down, switch on again, restart
programme.
ʠThe interior light is not working
(depending on model).
Pull out the appliance plug, remove the cover cap in the
interior above the door (use Torx 20 screw driver) and
replace the bulb. Close the cover cap.
Never operate the dryer without a cover cap.
aaaaaaaaaa

c@c c
ø@ è*è*è*è*è*è*è*è*+@è*è*è*è*è*7@*è*è*è*è*è*cø@c è*è*è*è*è*è*+@è*è*9@è*è*è*WA
aaa
u
a
1.
2.
3. Do not operate the dryer if
ʠʠ+c+ʠ
a
ʠuʠ-uʠvu
a
ʠuʠʠʠ
aaaaaaa
ʠ
a
ʠ
a
ʠʠ
aa
ʠ
11
Safety instructions
Emergency – Pull the appliance plug out of the socket immediately or disconnect the fuse.
ONLY use the
dryer...
– In rooms inside the house.
– To dry fabrics.
The dryer must
NEVER...
– Be used for other purposes than those described above.
– Be modified in terms of its technology or attributes.
Dangers – The dryer must not be used by children or persons who have not been
instructed in its use.
– Do not leave children unsupervised near the dryer.
– Keep pets away from the dryer.
– Remove all objects from pockets.
Make especially sure that cigarette lighters are removed as they constitute an
a explosion hazard.
– Do not lean or sit on the door a risk of tipping.
Installation – Secure loose cables a tripping hazard.
– Do not operate the dryer if there is a risk of frost.
Mains
connection
– Connect the dryer according to specifications to an AC earthed socket, as
otherwise it cannot be guaranteed that the appliance is completely safe.
– The cable cross-section must be sufficient.
– Only use earth-leakage circuit breakers with the following symbol:
– The appliance plug and socket must be compatible.
– Do not use multiple plugs/couplings and/or extension cables.
– Do not hold the appliance plug with wet hands
a risk of electric shock.
– Never pull the appliance plug out of the socket by its cable.
– Do not damage the mains lead a risk of electric shock.
Operation – Only load the drum with laundry.
Check the contents before you switch the dryer on.
– Do not use the dryer if the laundry has been in contact with solvents, oil, wax,
grease or paint (e.g. hair setting spray, nail polish remover, stain remover,
cleaning solvent, etc.) a fire/explosion hazard.
– Dust (e.g. coal dust, flour) poses a danger: do not use the dryer
a explosion hazard.
– Do not put laundry containing foamed material/rubber in the dryer a elastic
material may be destroyed and the dryer may be damaged due to possible
deformation of the foamed material.
– Switch off the dryer once the programme has ended.
– Condensation is not drinking water and may be contaminated with fluff.
Defect – Do not use the dryer if it is defective or if you suspect it is.
Repairs must only be carried out by the after-sales service.
– Do not use the dryer if the mains cable is defective. To avoid danger, only
have the defective mains cable replaced by the after-sales service.
– Always pull the mains plug out of the socket before changing the bulb for the
interior light a risk of electric shock.
Spare parts – Only use genuine spare parts and accessories for safety reasons.
Disposal – Dryer: pull out the appliance plug, then cut off the mains cable from the
appliance.
Dispose of at municipal waste disposal facility.
– Packaging: do not leave children alone with packing parts
a risk of suffocation.
– All materials are environmentally sound and can be reused. Dispose of in an
environmentally-responsible manner.
INSTRUCTIONS FOR INSTALLATION AND USE
TUMBLE DRYER
Read these instructions before operating the dryer.
en
Observe the safety instructions on page 11.
