NEFF B 1544 Series User manual

de Gebrauchsanleitung
en Instructions for use
fr Mode d’emploi
de
en
fr
B 1544 . .

2
de Seite 003–043
en page 045–077
fr page 078 – 110
Noch Fragen? Sie erreichen uns:
Postfach 83 0101 Quellenstraße 2 Per Telefon:
D-81701 München A-1100 Wien
Fax: +49 (0) 89 / 45 90-35 32 Fax: [phone]
Internet: www.neff.de Internet: www.neff.at
€0,12/min. DTAG
Für Österreich:
Tel: 08 10 / 70 04 00
zum Regionaltarif

44
Notizen

45
Table of contents
Important Information . . . . . . . . . . 46
Packaging and old appliances . . . . . 46
Before installation . . . . . . . . . . . . . . 46
Safety information . . . . . . . . . . . . . . 47
Reasons for damage . . . . . . . . . . . . 48
Your new cooker . . . . . . . . . . . . . . 49
The control panel . . . . . . . . . . . . . . . 49
Function selector . . . . . . . . . . . . . . . 49
Temperature selector . . . . . . . . . . . . 50
Press-down switches . . . . . . . . . . . 50
Slide-in levels . . . . . . . . . . . . . . . . . . 50
Accessories . . . . . . . . . . . . . . . . . . 51
Before using your Appliance
for the first time . . . . . . . . . . . . . . . 52
Preliminary cleaning . . . . . . . . . . . . . 52
Initial burn-in . . . . . . . . . . . . . . . . . . 52
Time of day . . . . . . . . . . . . . . . . . . . 52
Electronic clock . . . . . . . . . . . . . . . 53
The control panel . . . . . . . . . . . . . . . 53
Special functions . . . . . . . . . . . . . . . 53
Minute timer . . . . . . . . . . . . . . . . . . 54
Automatic timer . . . . . . . . . . . . . . . . 54
Inhaltsverzeichnis
Description of Oven Features . . . . 56
Switching the oven ON and OFF . 59
Rapid heat up . . . . . . . . . . . . . . . . . 59
Baking . . . . . . . . . . . . . . . . . . . . . . 60
Cooking Tips and Helpful Hints . . 61
Roasting . . . . . . . . . . . . . . . . . . . . . 62
Grilling . . . . . . . . . . . . . . . . . . . . . . 64
Combination hot-air/surface grilling . 65
Surface grilling . . . . . . . . . . . . . . . . . 65
Defrosting and Cooking . . . . . . . . 66
Cleaning and Care . . . . . . . . . . . . . 68
Important cleaning basics . . . . . . . . 68
Catalytic oven surfaces . . . . . . . . . . 70
EasyClean®system
(Oven cleaning system) . . . . . . . . . . 71
Removing/installing
the oven door . . . . . . . . . . . . . . . . . 73
Heating elements . . . . . . . . . . . . . . . 73
Inset rack / Telescopic pull-outs . . . 74
Service and Repair information . . 75
Trouble-shooting Guide . . . . . . . . . 76

46
Important information
Before using your new appliance, please read these
Instructions for Use carefully. They contain important
information concerning your Personal safety as well
as on use and care of the appliance.
The Instructions for Use apply to several versions of
this appliance. Accordingly, you may find
descriptions of individual features that do not apply
to your specific appliance.
Please keep the operating and installation
instructions in a safe place; this important
documentation may also be of use to a possible
subsequent owner.
Packaging and Your new appliance was protected by suitable
old appliances packaging while it was on its way to you. All materials
used for this purpose are environmentally friendly and
can be recycled. Please make a contribution to
protecting the environment by disposing of the
packaging appropriately.
Old appliances are not worthless rubbish.
Environmentally-conscious recycling can reclaim
valuable raw materials.
Before disposing of your old appliance, please make
sure that it is unusable, or label it with a sticker
stating „Caution, scrap”.
Up-to-date information on how to dispose of your
old appliance and the packaging from the new one
can be obtained from your retailer or local authority.
Before installation
Transport damage Check the appliance after unpacking it. Do not
connect the appliance if it has been damaged in
transport.
Electrical connection The cooker may only be connected by an approved
specialist. Losses resulting from damage caused by
incorrect connection will invalidate warranty claimes.

47
Safety information This appliance is intended for domestic use only.
Only use the cooker for food preparation.
Hot oven Open the oven door carefully. Hot steam may escape.
Never touch the internal surfaces of the oven or the
heating elements. There is a risk of burning.
Children must be kept at a safe distance from the
appliance.
Never store combustible items in the oven.
Risk of fire. Never place flammable objects onto the
hot plates. Fire hazard!
Never place cables of electronic devices onto the hot
plates.
Never clamp leads of electrical appliances in the hot
oven door. The insulation on the leads could melt.
There is a risk of short-circuiting.
Caution: The extension rails heat up during oven
operation. Use special care to avoid burns when
extending the rails.
Remove all packaging remnants, e.g. polystyrene
parts, from the oven.
Repairs Incorrectly done repairs are dangerous. There is a
risk of electrocution.
Repairs may only be carried out by after-sales
service technicians who have been fully trained by
BSH.
If there is a fault, switch off the oven fuse at the fuse
box.
Call the after-sales service.

48
Reasons for
damage
Baking sheet or aluminium Do not place baking sheets on the oven floor. Do not
foil on the oven floor line the oven floor with aluminium foil.
This causes heat to accumulate. Baking and roasting
times will no longer be correct and the enamel will be
damaged.
Baking paper If using hot air *, do not place greaseproof paper
loosely in the oven (e.g. when heating the oven).
The hot-air fan could draw in the paper which may
damage the heater and fan.
Water in the oven Never pour water directly into a hot oven.
This could damage the enamel.
Fruit juice When baking very moist fruit cakes, do not put too
much on the baking sheet. Fruit juice dripping from
the baking sheet leaves stains that cannot be
removed.
It is recommended that you use the deeper universal
pan.
Cooling with the oven door Only leave the oven to cool with the door closed. Do
not allow anything to become trapped in the oven
door. Even if you only leave the oven door open
slightly, the fronts of adjacent units may become
damaged over time.
Very dirty oven seal If the oven seal is very dirty, the oven door will no
longer close properly when the oven is in use.
The fronts of adjacent units could be damaged.
Keep the oven seal clean.
Using the oven door as a Do not stand or sit on the oven door.
seat
Care and cleaning Do not use high-pressure cleaners or steam jets.
Hotplates Keep an eye on pressure cookers during the heat-up
phase. As soon as the proper cooking pressure is
reached, reduce the heat setting.
Please observe the separate operating instructions
that came with your hob.

49
Your new cooker
Here you will learn more about your new oven. The
control panel and its switches and indicators are
explained here. The heating modes and the
accessories included with your oven will be
explained here.
The control panel
Function selector Use the function selector to select the type of
heating for the oven.
Settings
* Hot-air and defrosting position
/ Top/bottom heat (conventional heating system)
( Surface grilling, full-surface grill
) Surface grilling, centre-area grill (energy-saving grill)
, Combination hot-air/surface grilling
& Pizza setting
. Bottom heat
e Defrosting position
d EasyClean®system (Oven cleaning system)
$ Oven light
Function
selector
Temperature selector with
control lamp
EasyClean®system (oven cleaning system)
Electronic
clock

50

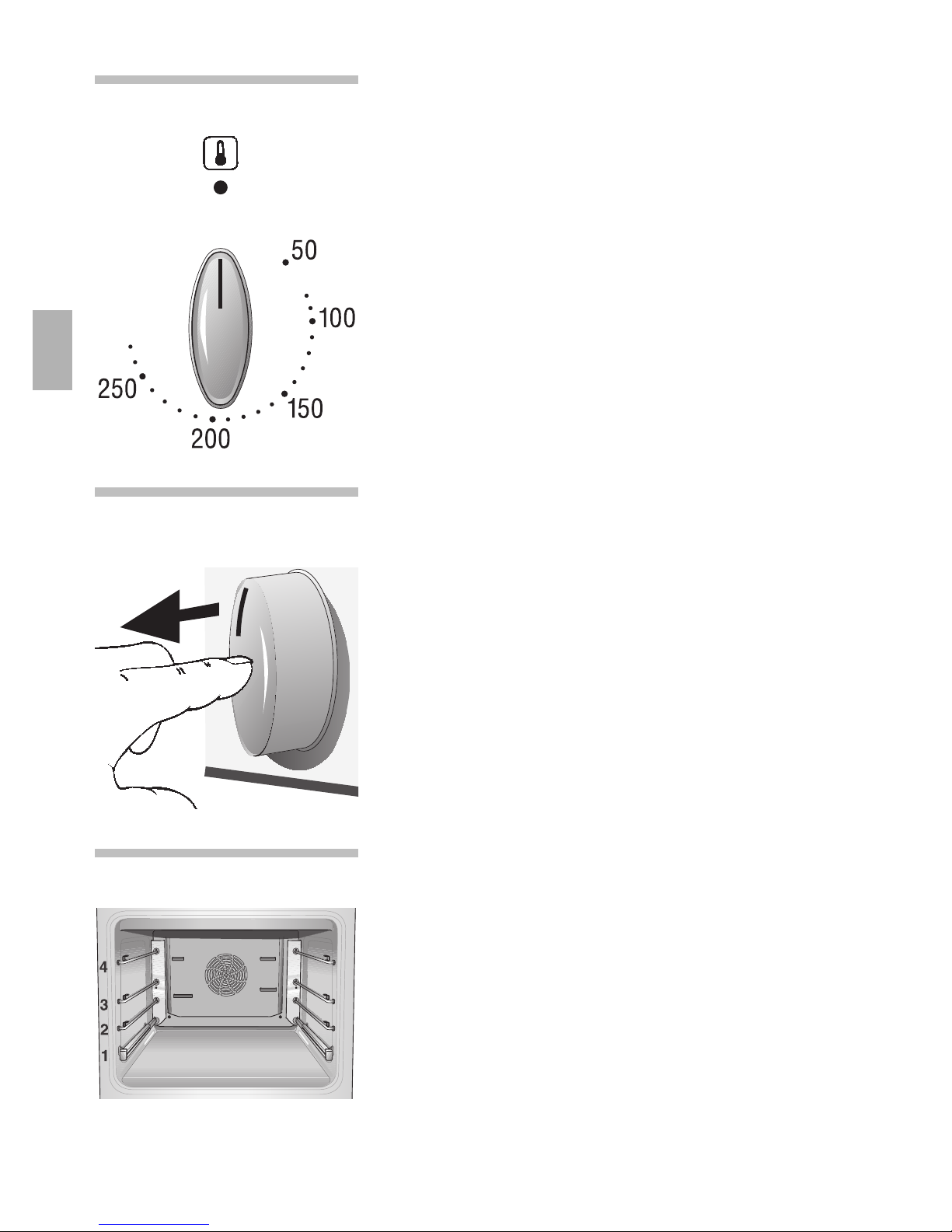

Temperature selector Settings
50 –275 Temperature in °C.
Press-down To engage and disengage, depress the switch,
switches making sure that it is in OFF position.
Slide-in levels Your oven features 4 slide-in levels. The slide-in
levels are counted from bottom to top.
The numbers are marked in the oven.
When usung hot-air baking *or roasting, do not
use slide-in level »2«, in order not to block air
circulation.
The hook-in grilles and telescopic rails can be
inserted at your preferred slide-in level.

51
Accessories Your appliance is supplied with:
Universal pan with grid Grid
Baking tray, enamelled
The following accessories can be obtained from a
specialist dealer: Order no.
Note:
The baking tray or universal pan may distort while the oven is operating. This is cau-
sed by major temperature differences on the utensil. These differences may occur if
only one part of the utensil was covered or if deep-frozen food, e.g. pizza, was placed
on the utensil.
The distortion will already subside again during baking, roasting or grilling.
Universal pan, non-stick
Soufflé pan
Baking tray, aluminium
Baking tray, enamelled
Baking tray, non-stick
Wire shelf, high/low
Wire shelf, dose mesh
Roasting tray
Upgrade set – Single Telescope
System steamer cooker
Pizza stone
Universal pan Z 1232 X0
Z 1233 X0
Z 1272 X0
Z 1332 X0
Z 1342 X0
Z 1343 X0
Z 1432 X0
Z 1442 X0
Z 1512 X0
Z 1784 X0
N 8642 X0
Z 1912 X0

52
Before using your appliance
for the first time
Preliminary Take the accessories out of the oven.
cleaning Remove all packaging remnants, e.g. polystyrene
parts, from the oven.
1. Clean the appliance exterior with a soft
moistened cloth.
2. Clean the oven and the accessories with a hot
detergent solution.
Please observe the operating instructions
furnished with the hob.
Initial burn-in Heat the empty oven for approx. 30 minutes.
Select top and bottom heat at a setting of 240° C.
During the initial burn-in phase, please open the
kitchen windows to dissipate unpleasant odours.
Time of day Before using the appliance for the first time, you
must set the current time on the electronic clock.
Setting the time After connecting to the mains, or after a power
failure, the display 0:00 will blink.
Press the >button and set the current time with
the rotary knob (e.g. 15:00 Uhr).
To correct the time, press the >button until the
symbol flashes.
Then set the time.
Note: The time cannot be corrected if an automatic
function has been set (see Electronic clock for
cancelling automatic function).

53
Electronic clock
The electronic clock can be operated with one hand;
after pressing the button, set the time with the rotary
knob. Settings can be made for as long as the
function display flashes (~4 seconds).
The control panel
Minute timer
ON time OFF time
Rotary knob
To engage and
disengage, depress
gently
Time of day
Rapid heat up
Function selector
Special functions
Masking out the display 1. Press the >button for 7 seconds.
The display then goes blank and the time
continues running in the background.
2. To switch on the display, briefly press the
>button.
Rapid heating Rapid heating scan be set with the clock
(see section ”Switching the oven on and off”).
Setting the time See section ”Before using your appliance for the first
time”.
Dimming the display Between 22.00 and 6.00 the display is automatically
dimmed.

54
Automatic timer You can switch the oven on and off via the electronic
clock.
Automatic switch off If you wish to bake or roast food immediately, it is
only necessary to set the ON time.
1. Select the heating system and the oven
temperature.
2. Press the >button until the ?
symbol flashes and set the ON time with the
rotary knob (example: 1hour and 30 minutes).
When the setting has been made, the current
time is displayed after approx. 4 seconds.
The ?symbol signals automatic mode.
3. When the time has elapsed (example: 1hour and
30 minutes), a signal is emitted and the !
display flashes.
The oven switches off automatically.
To stop the signal, press the >button.
4. Switch the oven off.
5. To end automatic mode, press the >button
again.
Minute timer 1. Press the >button and set the cooking time
(e.g. 5minutes).
When the timer switches on, the remaining time
is displayed.
2. When the time has elapsed, a signal is emitted
and the ,symbol flashes. To stop the signal,
press the >button.

55
Automatic switch on and If the food is to be baked or roasted later on, both
switch off the ON time and OFF time must be set.
1. Select the heating system and the oven
temperature.
2. Press the >button until the ?
symbol flashes and set the ON time with the
rotary knob (example: 1hour and 30 minutes).
3. Press the >button until the !symbol flashes
and set the OFF time with the rotary knob
(example: 12:30).
When the setting has been made, the current
time is displayed after approx. 4 seconds.
The !symbol signals automatic mode.
4. The oven is automatically switched on and off at
the preset times (e.g. 11:00 and 12:30).
5. When the time has elapsed, a signal is emitted
and the !symbol flashes. To stop the signal,
press the >button.
6. Switch the oven off.
7. To end automatic mode, press the >button.
Checking, correcting and 1. To check your settings, press the >button
cancelling settings until the symbol flashes.
2. If required, correct the settings with the rotary
knob.
3. If you want to cancel your settings, turn the set
time back to 0:00 and switch the oven off.
Note The automatic timer is best used with dishes which
require little attention.
The minute timer and OFF time can be pre-
programmed up to a max. 24 hours.
The settings can be displayed at any time by
pressing the >button.

56
Description of Oven Features
Hot-air circulation A fan system located in the rear oven wall circulates
the hot air in the oven, achieving an especially
effective heat transfer to the food being baked or
roasted.
Advantages:
–Simultaneous baking and roasting possible on up
to 3 levels
–low soiling of oven inferior
–shorter preheating times
–low oven temperatures
–gentile defrosting
Top and bottom heat The food being baked or roasted is exposed to heat
(Conventional heating system) radiation from heating elements located at the top
and bottom of the oven cavity.
Baking and roasting is possible on one slide-in level
only.
Advantages:
–Baking of cake with moist filling, pizza, quiche.
Surface grilling The food being prepared is exposed to heat radiation
from the heating element at the top of the oven
cavity.
–Particularly effective with flat, small cuts of meat,
i.e., steaks, sausages, fish, vegetables and toast.
Full-surface grill Advantages:
–the entire grilling surface heats up
–especially useful with large amounts of food
Centre-area grill Advantages:
–only the centre area of the grilling surface heats
up
–especially useful with small amounts of food
–energy-saving operation
*
/
(
)

57
Combination hot-air/ With combination hot-air/surface grilling, the air
surface grilling circulating fan and the grilling radiators are activated
in alternation.
The heat generated by the grilling radiator is evenly
distributed in the oven cavity.
Advantage:
–Particularly effective with poultry and larger cuts
of meal.
Bottom heat With this setting, only the heating element at the
bottom of the oven cavity is activated.
Advantage:
–Particularly useful with dishes and baked goods
that require a distinctive bottom crust or browning.
Use just before the end of the baking or roasting
time.
Pizza setting The pizza setting adds the bottom heat to the hot air.
Advantages:
–Fresh preparation with a high ”juice portion”, e.g.
pizza and juicy cakes with crisp base.
–Especially suited for frozen products, e.g. pizzas,
chips etc.
Defrost A fan in the rear wall of the oven circulates the air in
the oven around the frozen food.
The fan system is running without heating.
Advantages:
–Gentle defrosting.
–Frozen pieces of meat, poultry, bread and cakes
defrost evenly.
,
.
&
e

58
EasyClean®system The oven cleaning function featured in your oven is
(oven cleaning system) intended to help you keep your oven neat and tidy.
An amount of cleaning solution is vaporised
automatically. The combined effects of heat and
steam soften the soil deposits on the oven wall
enamel and facilitate their removal. For more
information on this function, see the section on
”Cleaning and Care” later in this booklet. Use this
function with a cold oven only.
Advantages:
–takes the toil out of oven cleaning
–protects the enamel on interior surfaces
–constitutes an environmentally friendly cleaning
method
Rapid heat up Note
can be switched on with hot air.
d
s

59
Switching the Oven ON and OFF
Before switching on your oven, you should decide
which heating system you wish to use.
Switching the oven ON:
1. Use the function selector to determine the
desired system.
2. Set the temperature control knob to the desired
temperature.
The selected temperature will be controlled
automatically.
The oven temperature control lamp illuminates when
the oven is first switched on, and extinguishes when
the required temperature has been reached.
Switching the oven OFF:
To switch the oven OFF, turn both the temperature
selector and functions selector to the »0« position.
Notes:
The appliance features a cooling fan which runs until
the oven has cooled down.
Rapid heat up Switching the oven ON:
When the oven has been switched on, rapid heating
scan be switched on with hot air via the clock.
Press the >button until the ssymbol flashes.
After approx. 4 seconds rapid heat up sswitches
on. The ssymbol is lit during the heating-up
process. When the set temperature is reached, the
symbol goes out and a signal sounds.
Early cancelling:
Press the button >until the icon sappears.
Then cancel the rapid heating using the control
knob.

60
Baking

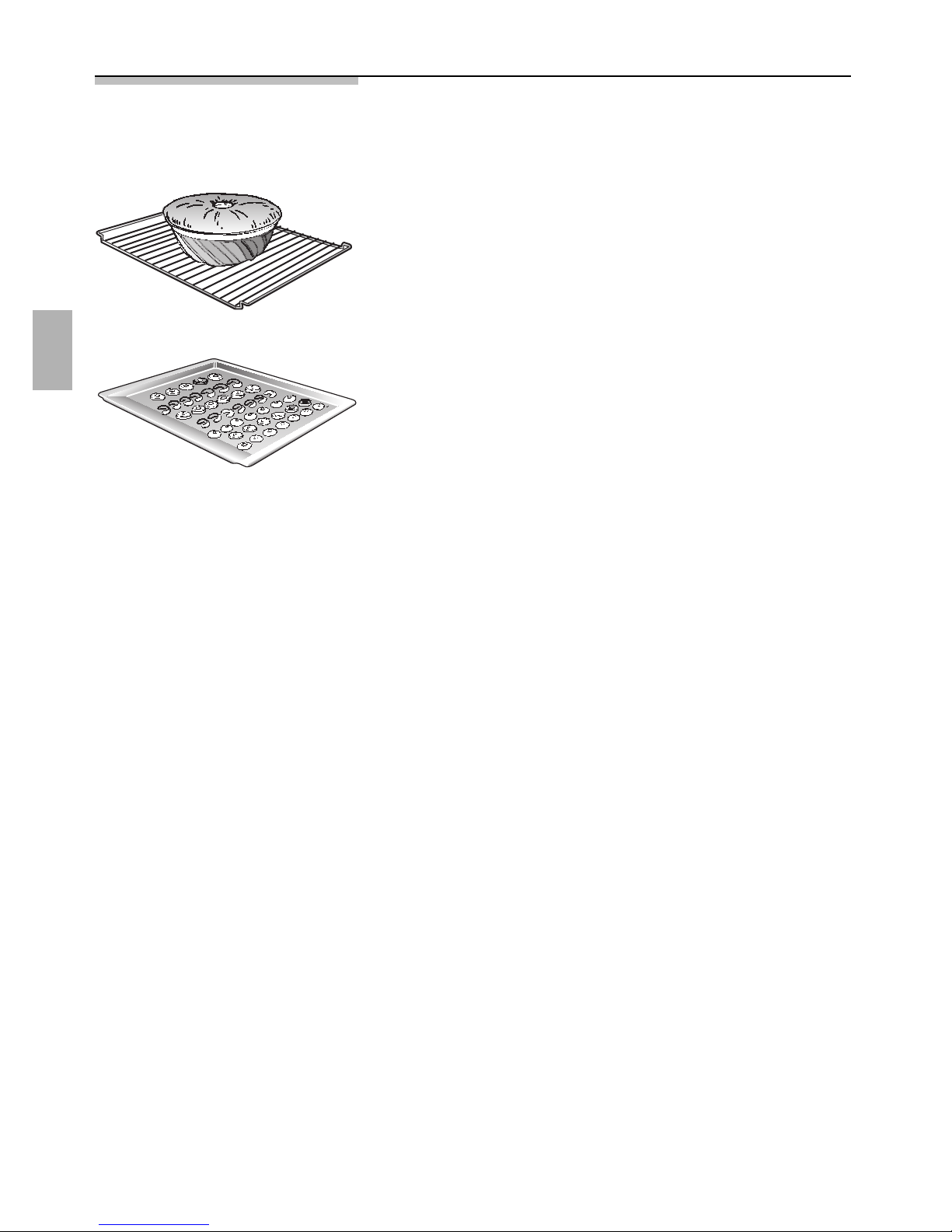

Using baking tins Always place baking tins in the centre of the
baking grill.
We recommend dark metallic baking tins.
Using baking sheets The slanted (handle) end of the baking sheet must
always face the oven door.
Always fully insert baking sheets into the oven.
Use only original baking sheets.
Notes You can influence the degree of browning by
changing the temperature setting.
Light coloured baking tins made from thin-wall
materials lead to longer baking times and uneven
browning of the cake.
If a cake collapses after removing it from the oven,
consider using a longer baking time, or use a slightly
lower temperature setting.
Using tinplate baking tins *Hot air Shelf position 1
/Top/bottom heat Shelf position 1
If the cake bottom gets too dark:
Check the slide-in level. Shorten the baking time,
and possibly use a lower baking temperature.
If the cake bottom stays too light:
Check the slide-in level. Increase the baking time,
select a lower temperature, or use a dark metal
baking tin.
Do not place baking forms or high cakes too close
to the rear oven wall.

61
Cooking Tips and Helpful Hints
The bottom of a cake baked Remove from the oven all baking sheets or universal
on a baking sheet stays too baking pan currently not in use.
light
The bottom of a cake baked Use a grill and not a baking sheet to support the
in a tin stays too light cake tin during baking.
The bottom of cake or Set cake or cookies into a higher set of slide-in
cookies gets too dark levels.
The cake gets too dry Select a slightly higher oven temperature, and shorter
baking time.
The cake is too moist Choose a slightly lower baking temperature.
on the inside Note: Higher temperatures do not shorten baking
times (done on the outside, raw on the inside).
Choose a slightly longer baking time, allow the dough
to rise slightly longer. Add less liquid to the dough.
When baked with hot-air Avoid blocking the air vents at the rear wall of the
circulation, cake baked in oven cavity with the cake tins.
round or square tins gets
too dark at the rear
Very moist cake dough (e.g. You can let the steam escape from the oven and
fruit cake) causes a lot of thereby reduce the forming of water droplets by
steam to generate in the briefly and carefully opening the oven door (once or
oven that condenses on the twice, in case of longer baking times more often).
oven door.
Very uneven browning when Check the slide-in level.
using hot air circulation
Cake collapses when taken Use less liquid.
out of the oven
To save energy Preheat only if expressly required by the recipe.
Dark baking tins have a higher degree of heat
absorption.
Residual heat: In the case of longer baking times,
you can switch off the oven 5-10 minutes before the
full baking time has elapsed.
