NEFF B1832N2GB Safety guide

How to connect up,
build-in, set up, use and
look after your
B1832 oven
NEFF (UK) Ltd

2
Table of Contents
Page
Important Information
❑Notes on disposal 3
❑Before connecting your
new appliance 3
❑Appliance safety considerations 4
Introducing: Your New Oven
❑Control panel overview 5
❑Accessories 6
❑Shelf positions 6
Before Using Your Appliance for the
First Time
❑Setting the time of day 7
❑Preliminary cleaning 7
❑Initial burn-in 7
Electronic Timer
❑Minute timer 8
❑Automatic timer 9+10
❑Information 10
Baking Roasting and Grilling
❑Definition of Oven Features 11
❑Switching the oven ON and OFF 12
❑Baking 13
❑Roasting 14
❑Grilling 15
Cooking Tips and Helpful Hints 16
Defrosting and Cooking 17
Page
Cleaning and Care
❑Important cleaning basics 18
❑Enamel and glass 18
❑Stainless steel front 18
❑Oven interior 18
❑Removing/installing the oven door 19
❑Oven light 19
❑Removing shelf railings 19
Service and Repair Information 20
Trouble-shooting Guide 21
Assembly Instructions
❑For the installer and kitchen expert 22
❑Installation of the built-in oven 23

3
Notes on disposal
❑Old appliances still have some residual
value. An environment-friendly method
of disposal will ensure that valuable raw
materials can be recovered and used
again.
Before you dispose of your old
appliance, make sure that it has been
rendered inoperable.
❑Your new appliance was protected by
suitable packaging while it was on its
way to you. All materials used for this
purpose are environment-friendly and
suitable for recycling. Please make a
contribution to protecting the
environment by disposing of the
packaging appropriately.
Up-to-date information concerning
options for disposing of your old
appliance and the packaging from the
new one can be obtained from your
retailer or local government office.
Before connecting your new
appliance
❑Before using your new appliance, please
read these Instructions for use carefully.
They contain important information
concerning your personal safety as well
as on use and care of the appliance.
❑The Instructions for Use apply to several
versions of this appliance. Accordingly,
you may find descriptions of individual
features that do not apply to your
specific appliance.
❑Please keep the operating and
installation instructions in a safe place;
this important documentation may also
be of use to a possible subsequent
owner.
❑Do not use the appliance if it is
damaged in any way.
❑Installation and connection of the
appliance should be performed
according to the instructions and
connection diagram provided, and
should be entrusted to a competent
electrician. In the event of a damage
that occurs as a result of improper
connection, the warranty will be void.
❑Our appliances meet the applicable
safety regulations for electrical
appliances. Repairs must only be
performed by service engineers trained
by the manufacturer. Repairs carried out
by incompetent service agents can
make the appliance unsafe.
Important Information

Open the oven door
carefully.
Hot steam may escape.
4
Important Information
Appliance safety
considerations
❑The appliance should only be used for
the preparation of food.
❑
❑If using hot air v, do not place
greaseproof paper loosely in the oven
(e.g. when heating the oven).
The hot-air fan could draw in the paper
which may damage the heater and fan.
❑Do not insert a baking sheet at the
bottom of the oven, or cover the base of
the oven with aluminium foil, as this
would result in heat build up. Roasting
and baking times would change, and
the enamel would be damaged.
❑Never pour water directly into the hot
oven. Damage to the enamel could
result.
❑Dripping juices may leave spots on the
oven lining. Always place a baking tray
below to prevent this from happening.
❑Never stand or sit on the open oven
door.
❑The oven door must close properly.
Keep the door seal surfaces clean.
❑The surfaces of heating and cooking
appliances get hot during operation.
The interior oven walls and the heating
elements get extremely hot. Always
keep children away from the appliance.
❑Never leave the appliance unattended
when cooking with fat or oil. They can
catch fire if overheated.
❑Clean the oven regularly.
Fatty or oily remants could ignite when
the oven is switched on.
❑Make sure that the power cord does not
get caught in the hot oven door. The
plastic insulation could melt.
❑In the case of a defect, switch off (or
remove) the mains fuse in the building
electrical system.
❑Do not store combustible items in the
oven. They could ignite if the oven is
switched on accidentally.
❑Do not clean the oven with steam or
high-pressure cleaners.
❑Grip only the centre of the oven door
handle when operating the oven door.

5
Introducing: Your new Oven
Setting:
50–250 Temperature in ° C
0
50
100
150
200
250
●
●
●
●
●
●
●●●●●●●●
●
●
●
●
●
●
●
0
50
100
150
200
250
●
●
●
●
●
●
●●●●●●●●
●
●
●
●
●
●
●
Temperature selector
with control lamp
Function selectorElectronic timer controls
Function selector Temperature selector
Setting:
kDefrosting position
vCircotherm
eConventional top and bottom heat
ZRadiant grill
ICirco-roasting
wBottom heat
The control panel:
❑The switches are retractable.
❑To engage and disengage, depress the
switch, making sure that it is in OFF
position.

6
Introducing: Your new Cooker
Shelf positions
❑Your oven features 4 shelf positions.
The shelf positions are counted from
bottom to top. The numbers are marked
in the oven.
 When using circotherm, do not
use shelf position »2«, in order not to
block air circulation.
Accessories
❑Your appliance is supplied with:
Order no.
Deep roasting pan
Baking tray, aluminium
Baking tray, enamelled
Z 1270 X2
Z 1330 X0
Z 1340 X2
Small grill-set Z 1240 X0
Supplementary equipement set – Telescopic Z 1750 X0
❑The following accessories can be obtained from the supplier of your
oven:
2 Wire shelves
1 Roasting/grill pan with grid
Note:
❑The baking tray or roasting pan may
distort while the oven is operating. This
is caused by major temperature
differences on the utensil. These
differences may occur if only one part of
the utensil was covered or if deep-frozen
food, e. g. pizza, was placed on the
utensil.Note:
Note:
The distortion will already subside again
during baking, roasting or grilling.

7
Before Using Your Appliance for the First Time
Time of day
❑Before you use your appliance for the
first time, it is necessary to set the
current time on the electronic timer.
❑After connecting to the mains, or after a
power failure, the display {:{{ will blink.

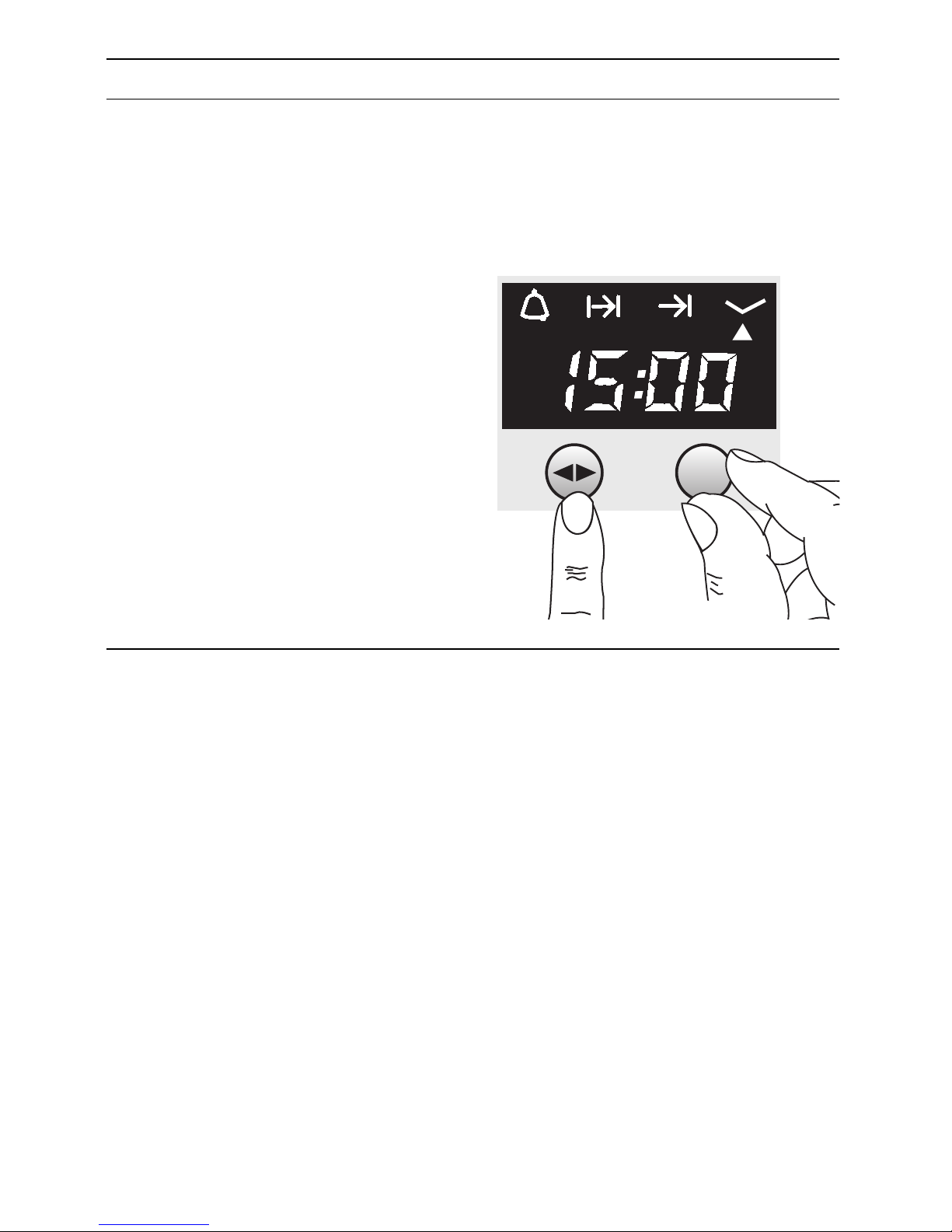

Setting the time:
❑Press the >button and set the current
time with the rotary knob (e.g. |Å:{{).
❑To amend the time of day, press button
>until the indicator ▲flashes unter
the +symbol.
The correct time of day can then be set.
Note: The time cannot be set if an
automatic function is active (see Electronic
clock for cancelling automatic function).
Initial burn-in
1. Preheat the empty oven for about
30 minutes.
Select vheat at a setting of 190° C.
During the initial burn-in phase, please
open the kitchen windows to dissipate
unpleasant odours.
Preliminary cleaning:
1. Clean the appliance exterior with a soft
moistened cloth.
2. Clean the oven and the accessories with
a hot detergent solution.

8
Electronic timer
❑The electronic timer can be operated
with one hand; after pressing the button,
set the time with the rotary knob.
Adjustments can be made for as long as
the display flashes (4 seconds).
❑Setting the time:
See section ”Before using your
appliance for the first time”.
Minute timer:
1. Press the >button and set the
cooking time (e.g. Åminutes).
When the timer switches on, the
remaining time is displayed.
2. A signal tone is emitted when the time
has elapsed and the indicator ▲flashes.
To stop the signal tone, press the >
button.
Minute timer
Cooking time Off time
Rotary knob
To engage and
disengage, depress
gently.
Setting the timer:
Time
Function indicator
Function button

9
Automatic timer
❑You can switch the oven on and off via
the electronic clock.
Automatic switch off:
❑If you wish to bake or roast food
immediately, it is only necessary to set
the cooking time.
1. Select the heating system and the oven
temperature.
2. Press button >until the indicator ▲
flashes under the ?symbol. Set the
required cooking duration with the rotary
control
(Example: |hour and ~{ minutes).
Approx. 4 seconds after setting the
clock reverts to time of day.
The Indicator ▲under the ?Symbol
confirms that automatic operation has
been set.
3. When the time has elapsed (e.g. |hour
and ~{ minutes), a signal is emitted and
the ▲flashes. The oven is automatically
switched off. To stop the signal, press
the >button.
4. Switch the oven off.
5. To end automatic mode, press the >
button again.
Setting the length of cooking time:
Electronic timer

Electronic timer
Automatic switch on and switch off:
❑If the food is to be cooked later on, both
the cooking time and Off time must be set.
1. Select the heating system and the oven
temperature.
When the settings have been made, the
time of day is displayed.
2. Press button >until the indicator ▲
flashes under the ?symbol. Set the
required cooking duration with the rotary
control (Example: |hour and ~{ minutes).
3. Press button >until the indicator ▲
flashes unter the !symbol. Set the
required end of cooking time with the
rotary control (Example: |}:~{).
Approx. 4 seconds after setting the clock
reverts to time of day.
The Indicator ▲under the !
Symbol confirms that automatic operation
has been set.
4. The oven is automatically switched on and
off at the preset times (e.g. ||:{{ and
|}:~{).
5. When the time has expired, a signal is
emitted and the ▲flashes. To stop the
signal, press the >button.
6. Switch the oven off.
7. To end automatic mode, press the >
button.
Checking, correcting and cancelling
settings:
1. To check your settings, press the >
button.
2. If required, correct the settings with the
rotary knob.
3. If you want to cancel your settings, turn
the set time back to {:{{ and switch the
oven off.
Special functions
Masking out the display:
1. Press the >button for 7 seconds.
The display then goes blank and the time
continues running in the background.
2. To switch on the display, briefly press the
>button.
Dimming the display:
❑Between 22.00 and 6.00 the display is
automatically dimmed.
Note:
❑The automatic timer is best used with
dishes which require little attention.
❑The minute timer and OFF time can be
pre-programmed up to a max. 24 hours.
❑The settings can be displayed at any
time by pressing the >button.
Setting the length of cooking time:
Setting the end of cooking time:
10

11
Definition of Oven Features
Gentle defrosting————————— k
Advantages:
Recommended for delicate pastries only
(i.e., whipped-cream gateaus).
Circotherm ——————————— v
Advantages:
–low soiling of oven interior
–cooking on up to 3 shelf levels at once
is possible
–shorter preheating times
–low oven temperatures
–gentle defrosting k
–bread baking
Circotherm grilling ———————— v
A system by which foods, that would
normally be grilled by direct heat from an
element, are cooked using Circotherm.
Temperatures between 180 and 190 °C are
selected and the food is placed on the wire
shelf, roasting on the roasting/grill pan.
Advantages:
–ideal for steaks, sausages, chicken
joints, fish, kebabs and chops
–no turning of food is required
–three shelves of ‘grilled’ food can be
prepared at one time
–very convenient
Conventional Cooking
(top and bottom heat) ——————— e
The food being cooked is exposed to heat
from heating elements located at the top
and bottom of the oven cavity.
Cooking is possible on one shelf level only.
Advantages:
–Baking rich fruit cakes, pizza, quiche
Radiant grill ——————————— Z
The food being cooked is exposed to heat
from the grill element at the top of the oven
cavity.
Advantages:
–Particularly suitable for flat, small cuts of
meat, i.e., steaks and sausages, fish,
vegetables and toast.
Circo-roasting —————————— I
With Circo-roasting the fan and grill
elements are activated alternately.
The heat generated by the grill element is
evenly distributed in the oven cavity by the
fan. This method of cooking gives an effect
similar to spit roasting (rotisserie).
Advantages:
–Particularly suitable for pork and poultry
when a crisp skin is desired.
Bottom heat —————————— w
With this setting on the heating element if
the base of the oven cavity is activated.
Advantages:
–Particularly useful with dishes that
require a distinctive bottom crust or
browning e.g. casseroles, baking blind,
quiches.

12
Switching the Oven ON and OFF
Before switching on your oven, you should
decide which heating system you wish to
use.
Switching the oven ON:
1. Use the function selector to determine
the desired system.
2. Set the temperature control knob to the
desired temperature.
❑The selected temperature will be
controlled automatically.
❑The red oven temperature control lamp
illuminates when the oven is first
switched on, and extinguishes when the
required temperature has been reached.
Switching the oven OFF:
To switch the oven OFF, turn both the
temperature selector and function selector
to the »0« position.
Note: After switching OFF the oven, the fan
may continue to run for a short time in
order to prevent heat build-up.
0
50
10
0
150
200
250
●
●
●
●
●
●
●●●●●●●●
●
●
●
●
●
●
●
Function selector Temperature
selector

13
Baking
Using baking tins
❑Always place baking tins in the centre
of the wire shelf.
Circotherm: v
❑You can use baking tins of any material
and of any colour, as long as they are
oven-proof.
❑Do not place baking tins or high cakes
too close to the rear oven wall.
Conventional heat: e
❑Dark-coloured baking tins made of metal
give the best results.
❑The wire shelf may be turned upside
down to accommodate different size
tins.
❑If the cake base gets too dark:
Check the shelf level. Shorten the
baking time, and possibly use a lower
baking temperature.
❑If the cake base stays too light:
Check the shelf level. Increase the
baking time, select a lower temperature,
or use a dark metal baking tin.
Notes:
❑You can influence the degree of
browning by changing the temperature
setting.
❑If a cake collapses after removing it from
the oven, use less liquid on your next
attempt, consider using a longer baking
time, or use a slightly lower temperature
setting.

14
Roasting
Roasting with Circotherm v
Notes:
❑Meat roasted using the Circotherm
system will brown on all sides and stay
moist without additional fat.
❑Choose cuts of meat that weigh
150 grams (5 oz) or more.
❑Place the shelf on top of the roasting
pan.
❑Place the meat on the shelf, season if
desired.
❑Slide the pan and shelf into the oven on
the same shelf position.
❑No pre-heating is required. Save energy
by putting the roast into the cold oven.
❑Use a Circotherm temperature of 160 °C.
❑Let the meat rest for 10 minutes after
roasting, this will allow the juices to
settle and prevent them from running
out of the meat when carved.
Roasting with
Conventional heat e
❑Follow the steps above. With fatty meat
125–250 ml (4–8 floz) of water can be
poured into the roasting pan.
❑Baste the meat if desired.
❑Place in a cold oven to save energy or
pre-heat if desired.
Casseroling or pot-roasting in a covered
dish:
❑Some meats should be prepared in
liquid in a covered casserole. This type
of cooking is suitable for less tender
cuts of meat.
❑Place the casserole on the wire shelf on
a suitable shelf position.
Cooking tips:
❑Only use ovenproof cookware.
❑Extra large turkeys and joints can be
placed directly in the roasting pan and
not on the wire shelf.
❑Cover large turkeys with foil during
cooking. Remove foil during the last
hour.
Circo-roasting I
Use this method for particularly crispy
poultry or pork with crackling.
❑Use the shelf and roasting pan together.
Turn large roasts after about half of the
total cooking time has elapsed. Use
shelf 1 or 2 for circo-roasting.
❑Some types of food (e.g. fatty meats)
will spit during Circo-roasting.
Therefore, to prevent burning-on of the
stains, thorough cleaning of the oven is
recommended after use.
❑Whole poultry should be turned after
approx. two-thirds of the cooking time
has elapsed. With duck and goose,
pierce the skin under the wings to allow
excess fat to drain off.
❑After the end of the selected roasting
time and with the oven switched OFF,
leave the roast in the closed oven for
approx. 10 minutes.

15
Grilling
Radiant grilling Z
Used for small cuts of meat or poultry.
❑Always use the shelf and roasting pan
together.
❑Turn the food after approx. two-thirds of
the grilling time has elapsed.
❑Always place the food to be grilled in the
centre of the wire shelf.
❑If the heating element switches off
automatically, the overheating protection
was activated. The element will be
reactivated after a short period of time.
Exercise CAUTION when grilling.
!Always keep children away from the
oven when it is in use.
Notes on grilling:
❑Always close the oven door when
grilling.
❑The grilling temperatures are variable.
❑Always use the shelf and the roasting
pan.
❑Lightly brush the wire shelf with oil and
baste the food if desired.
Circotherm grilling v
Use this method for small cuts of meat –
steaks, chops, sausages, bacon, chicken
joints and fish.
❑Use the shelf and roasting pan together.
❑Season meat as required.
❑Place on shelf.
❑Do not turn food over – the hot air will
circulate around the food cooking all
sides.
❑Use a temperature of 180–190 °C.

16
Cooking Tips and Helpful Hints
To save energy:
❑Preheat only if recommended by the
recipe.
❑Dark baking tins have a higher degree of
heat absorption.
❑Residual heat: In the case of longer
baking times, you can switch off the
oven 5–10 minutes before the full baking
time has elapsed.
When cooking with Circotherm:
❑Cakes baked in a tin get too dark at the
back.
❑Cakes remain doughy and collapse
when removed from the oven.
❑Uneven browning of small cakes or
biscuits.
❑With very moist foods steam develops
and condenses on the oven door and
drips onto the floor.
When cooking conventionally:
❑The bottom of a cake baked on a
baking tray stays too light.
❑The cake gets too dry.
❑The inside of the cake remains spongy
or doughy, or meat stays raw in the
centre.
Avoid blocking the air vents at the rear wall
of the oven with the cake tins.
Reduce the temperature for deep cakes.
Bake for a longer period of time. Test with
a skewer before removing.
Avoid placing trays too close to the back
wall. Space food on the tray.
Several brief periods of opening the oven
door during baking (1 or 2 times, more
frequently with longer roasting times) will
aid in venting the steam in the oven and
reduce condensation.
Ensure that no other pans or trays are in
the oven. Lower shelf position.
Place tin on wire shelf.
Select a slightly higher oven temperature.
Cook for shorter period of time.
Use a slightly lower temperature and cook
for a longer time. Reduce the liquid in the
cake mixture.

17
Defrosting and Cooking
Defrosting and cooking using the Circotherm v
Important heating system information:
❑For defrosting and cooking of frozen
foods, use circotherm.
❑With all frozen foods, follow the food
manufacturers instructions on the
package.
❑As a rule, defrosted frozen foods
(especially meats) require less cooking
time than fresh products, since freezing
has a pre-cooking effect.
❑If frozen meat is placed in the oven, the
defrosting time must be added to the
required cooking time.
❑Always defrost frozen poultry before
cooking because the giblets must be
removed.
❑For cooking frozen fish, use the same
temperatures as for fresh fish.
❑Frozen ready-to-eat meals in
aluminium dishes may be placed into
the oven several at a time.
❑Frozen vegetables (i.e., when cooking
complete meals) should be cooked in a
covered pot together with the roast. Use
only approximately half of the liquid
specified in the recipe. Use fat only for
adding flavour.
Gentle defrosting: k
Recommended for delicate pastries only
(i.e., whipped-cream gateaus).
❑Turn the function selector switch to the
kposition. Dependent on size and type
of the baked goods, defrost 25 – 45
minutes, take out of the oven and allow
to stand 30 – 45 minutes.
❑With smaller amounts (pastries), the
defrosting time is reduced to 15 – 20
minutes and the subsequent standing
time to 10 – 15 minutes.
Standard defrosting of various foods:
Shelf-in levels:
With 1 baking sheet: Slide-in level 3
With 2 baking sheets: Slide-in levels 1and 3
❑All stated times are approximate
guidelines that vary with the shape and
volume of frozen products.
❑Raw frozen products or foods from a
freezer always defrost at 50° C.
Higher defrosting temperatures may
cause the food to dry out.
❑Defrost frozen meals packed in
aluminium foil or closed aluminium
containers at a setting of 130 – 140° C.
❑Place frozen meals packed in plastic
bags or plastic containers in a pot
filled with water. Cover the pot and
defrost of 130 – 140° C.
Attention: Pot handles must be oven-
proof.
❑Defrost and warm up frozen baked
goods at 100 – 140° C. Brush bread,
rolls or yeast pastry lightly with egg to
make the crust more appealing.
❑Defrost dry frozen yeast cakes at
160 – 170° C for 20 – 30 minutes.
❑Defrost moist frozen yeast cakes (with
fruit topping) at 160 – 170° C for
30 – 50 minutes after wrapping in
aluminium foil to prevent cake from
drying out.
❑Defrost and toast frozen toast (with
topping) at 160 – 170° C for about
20 minutes.
❑Defrost and bake frozen pizzas at 180 –
190 °C for 15 – 25 minutes.
Place on wire grill covered with
greaseproof paper.
Please ensure that the greaseproof
paper is suitable for use at these
temperatures.

18
Cleaning and Care
Important cleaning basics:
❑For cleaning, do not use abrasives, corrosive cleaners, aerosol cleaners or sharp objects.
❑Do not scratch off burnt-on food residues, but soak off them with a damp cloth and
washing up liquid.
❑Oven cleaners must not be used on aluminium or plastic parts.
Stainless steel front:
❑When using commercially available
Stainless Steel cleaning agents, avoid
cleaning any lettering, as this can
become damaged!
❑Do not use any scouring pads or
abrasive cleaners.
❑Use commercially available detergents
applied with a soft, moistened cloth or a
chamois.
Enamel and glass:
❑Use hot detergent suds for cleaning.
❑Remove the oven door before cleaning
the enamel surface.
Oven interior:
❑Clean the oven after each use,
especially after roasting or grilling.
Food remnants burn in when the oven is
reheated.
The baked in remnants are very difficult
to remove once burnt in.
❑You can reduce the degree of soiling by
greater use of the circotherm.
Do not clean the warm oven with any
of the cleaning products specifically
designed for this purpose.
❑When baking very moist cake (e.g. rich
fruit cake) that could drip over the top of
the tin, place on the roasting pan or
your own baking sheet.
❑When roasting, ensure that the meat
juices do not splash on to the base of
the oven.
❑Clean the oven before soiling becomes
too heavy. Wash out the oven cavity
with hot detergent suds. Leave the door
open until the interior has dried.

19
Cleaning and Care
Manual cleaning steps:
Note: To make cleaning more convenient,
the oven offers you the following options:
Removing the oven door:
1. Fully open the oven door.
2. Move the catch levers on the right and
left-hand sides to the fully open position.
3. Placing the door at an upward angle
toward you, grasp the door with both
hands and lift it out of the hinges toward
you.
Replacing the oven door:
1. Set both hinges into their respective
receptacles on the left and right, and
swing the oven door downward.
2. Close the catch levers on the left and
right.
3. Close the oven door.
Switch on the oven light:
❑Set the function selector to a random
position.
Removing the shelf railings:
1. On both left and right sides, remove the
one milled screws.
2. Carefully remove the suspended grids.
1.
2.

20
In the event of problems or repairs that you
cannot solve yourself, our service company
will be happy to help. Check the service
directory for the service facility in your area.
Caution: Calling customer service because
of an operator error can be very costly! In
the event of a service request, please have
the following information handy:
You can find this information on the
appliance‘s nameplate. The nameplate is
located on the appliance, behind the oven
door, on the left bottom edge of the oven.
Replacing the oven light:
Caution: Unplug the appliance or
remove the fuse!
1. To prevent damage, place a tea towel
into the cold oven.
2. Unscrew the lamp cover by turning it
anti-clockwise.
3. Replace the lamp.
–Type: Incandescent bulb E 14, 220 –
240 V, 40 W, heat-resistant to 300 °C.
–You may obtain this bulb from your
customer service or from your
appliance dealer.
Replacing the oven door seal:
1. Remove the defective oven door seal by
simply unhooking it.
You may obtain the new oven door seal
from our customer service.
Service and Repair Information
E-Number FD
