Neilsen CT4000 Operation instructions

1100W FAN BLOWER CT4000
ORIGINAL INSTRUCTION
SAVE THESE INSTRUCTIONS AND PRECAUTIONS.
READ ALL PRECAUTONS AND INSTRUCTIONS BEFORE USE.
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.UNITED KINGDOM

1
EC DECLARATION OF CONFORMITY
We CANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Declare that the following machine complies with the appropriate basic safety and
health requirements of the EC Directive based on its design and type, as brought
into circulation by us.
In case of alteration of the machine, not agreed upon by us, this declaration will
lose its validity.
Product description:1100W FAN BLOWER
Model: CT4000
Applicable EC Directives:
EC Machinery Directive 2006/42/EC
EC Low Voltage Directive 2014/35/EU
Harmonized standards:
EN ISO 12100:2010, EN 60335-1:2012+A11:2014, EN 14960:2013,
IEC 60529:2013
20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Mr. Gurcharan Tony Singh Sanghera
Managing Director
CANNON TOOLS LTD
2020-05-31

2
1. SPECIFICATION
Voltage
230V/50Hz
Power
1100W(1.5HP)
Speed
2800rpm
Current max
6.9A
Max. Flow
1800 m3/h
Max. Pressure
1750pa
Outlet Diameter
210mm
Weight
17.2kg
2. IMPORTANT SAFETY INFORMATION
GENERAL TOOL SAFETY WARNINGS
Work area safety
1. Keep work area clean and well lit.Cluttered or dark areas invite accidents.
2. Do not operate tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Tools create sparks which may ignite the dust or
fumes.
3. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
Electrical safety
1. Tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with grounded tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.
2. Avoid body contact with grounded surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is
grounded.
3. Do not expose tools to rain or wet conditions. Water entering a tool will
increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

3
Damaged or entangled cords increase the risk of electric shock.
5. When operating a tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
6. If operating a tool in a damp location is unavoidable, use a Ground Fault Circuit
Interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric
shock.
Personal safety
1. Stay alert, watch what you are doing and use common sense when operating a
tool. Do not use a tool while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating tools may result in serious
personal injury.
2. Use personal protective equipment. Always wear eye protection. Safety
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
3. Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source, picking up or carrying the tool. Carrying tools with
your finger on the switch or energizing tools that have the switch on invites
accidents.
4. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewelry or long hair can be
caught in moving parts.
5. Only use safety equipment that has been approved by an appropriate
standards agency. Unapproved safety equipment may not provide adequate
protection. Eye protection must be ANSI-approved and breathing protection must
be NIOSH-approved for the specific hazards in the work area.
Tool use and care
1. Use the correct tool for your application. The correct tool will do the job better
and safer at the rate for which it was designed.
2. Do not use the tool if the switch does not turn it on and off. Any tool that cannot
be controlled with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source before making any adjustments, or
storing tools. Such preventive safety measures reduce the risk of starting the tool
accidentally.

4
4. Store idle tools out of the reach of children and do not allow persons unfamiliar
with the tool or these instructions to operate the tool. Tools are dangerous in the
hands of untrained users.
5. Maintain tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the tool’s operation. If damaged,
have the tool repaired before use. Many accidents are caused by poorly
maintained tools.
6. Have your tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the tool is maintained.
SAFETY WARNINGS
1. Connect to GFCI outlet only.
2.Do not allow children to operate the fan. Keep children and pets away from the
area of operation.
3. Keep the fan at least 1 meter (3 feet) away from buildings and other equipment
during operation. Keep flammable materials away, and dot not place anything on
the fan while it is running.
4. Do not use without guard in place.
5. To reduce the risk of fire or electric shock, do not use this fan blower with any
Solid-state speed control device.
6. Do not reposition the fan while in use.
7. Unplug after use.
8. Inspect before use; do not use if parts loose or damaged.
9. Keep inlet and outlet clear during use.
10. Maintain labels and nameplates on the tool. These carry important safety
information.
11. Avoid unintentional starting. Prepare to begin work before turning on the tool.
12. People with pacemakers should consult their physician(s) before use.
Electromagnetic fields in close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure. In addition, people with
pacemakers should:
•Avoid operating alone.
•Do not use with power switch locked on.
•Properly maintain and inspect to avoid electrical shock.
•Properly ground power cord. Ground Fault Circuit Interrupter (GFCI) should

5
also be implemented
–it prevents sustained electrical shock.
13.Understand the operation of all controls and learn how to stop the fan quickly
in case of emergency. Make sure the operator receives adequate instruction
before operating the equipment.
3. TECHNICAL DESCRIPTION
4. OPERATION
BEFORE USE, YOU MUST KNOW
1. The air outlet used for connecting to inflatable objects, and the diameter of air
outlet is 210MM
2. Cut off the power before moving or checking the machine.
3. The fan is protected by automatic thermal overload protection
contact. By overheating of the motor it will switch off the motor，and will restart
automatically.
4. Before using the machine,please check whether the power socket is
grounded.
5. Once connect to the electric power (230V/50Hz), the machine start working
automatically.
Air Outlet
Air Inlet
Electric Motor
Impeller
Handle

6
BEFORE OPERATION CHECKS IS YOUR FAN READY TO GO?
For your safety, and to maximize the service life of your equipment, it is very
important to take a few moments before you operate the engine to check its
condition. Be sure to take care of any problem you find, or have your servicing
dealer correct it, before you operate the engine.
OPERATION
WARNING
Review the instruction provided with the equipment powered by this fan for any
safety precautions that should be observed with fan start up, shutdown or
operation.

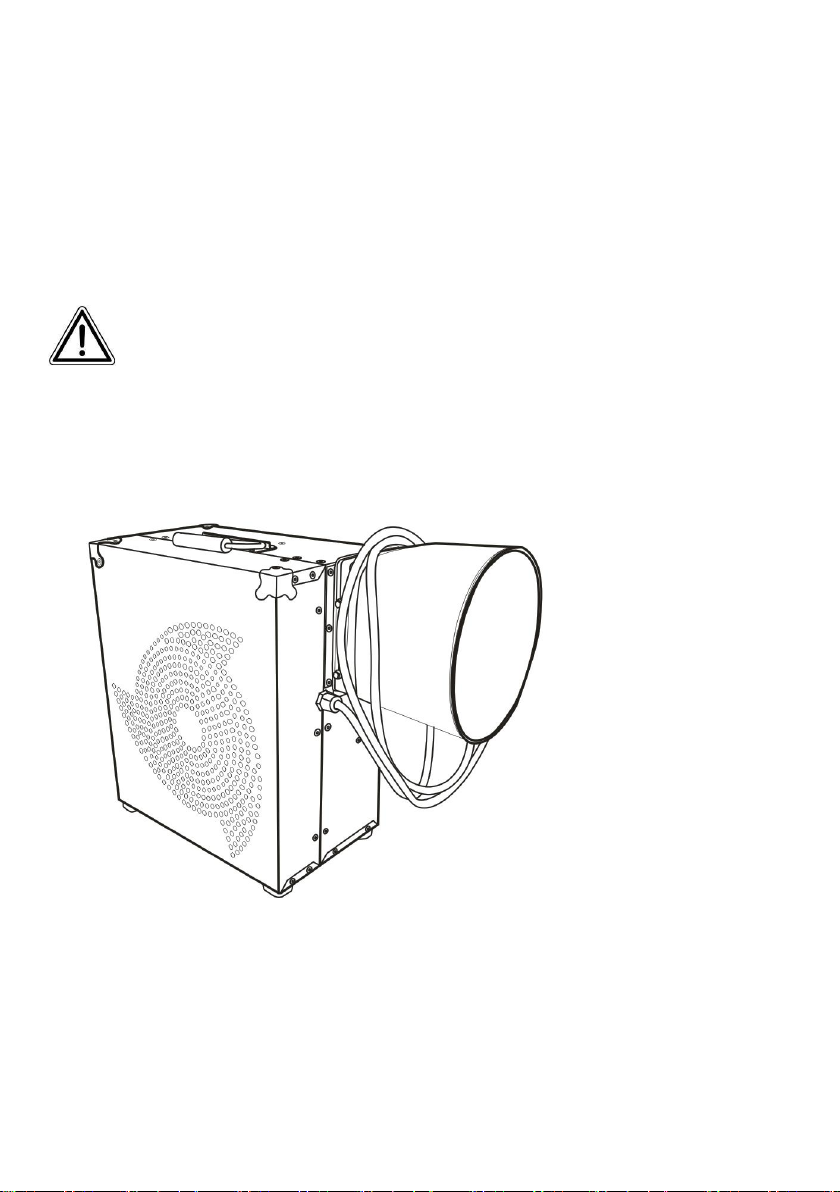

STARTING THE FAN
1. Put the machine on a flat and safe place.
2. Prepare one power socket (230V/50Hz)with grounded wire.
3. Make the air outlet connected to the inflatable objects.
4. Make the machine connected to the power.
5. The machine starting work.

7
WARNING
* While the machine is working, pay attention to the noise and vibration, if there is
anything abnormal, please turn off the power.
*Car polite, twig and the other foreign bodies are forbidden to drawn into the fan
as it will cause damage to the machine.
* Keep children away from the area of operation.
* Do not use an adaptor on this fan.
* TAKE CARE with water and do not use fan in wet or damped situations.
5. MAINTENANCE
THE IMPORTANCE OF MAINTENANCE
Good maintenance is essential for safe, economical and trouble-free operation. It
will also help reduce pollution.
WARNING! Improper maintenance, or failure to correct a problem before
operation, can cause a malfunction in which you can be seriously hurt. Always
follow the inspection and maintenance recommendations in this owner’s manual.
1. After using it, please clean the surface of the machine and make it cool down.
2. Check the loosening of screws and rivets each week.
3 .By damaged electrical cables and plugs, repairs only by skilled and introduced
workers.
4 For maintenance and major repairs the fan has to be returned to your dealer.
6. ENVIRONMENT
Should your appliance need replacement after extended use, do
not discard it with the household rubbish but dispose of it in an
environmentally safe way.
Waste produced by electrical machine items should not be handled
like normal household rubbish. Please recycle where recycle
facilities exist. Check with your Local Authority or retailer for recycling
advice.

8
7. SYMBOLS

9

10
CANNON TOOLS LTD
Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K.
Made in China
