Neilsen CT0778 User manual

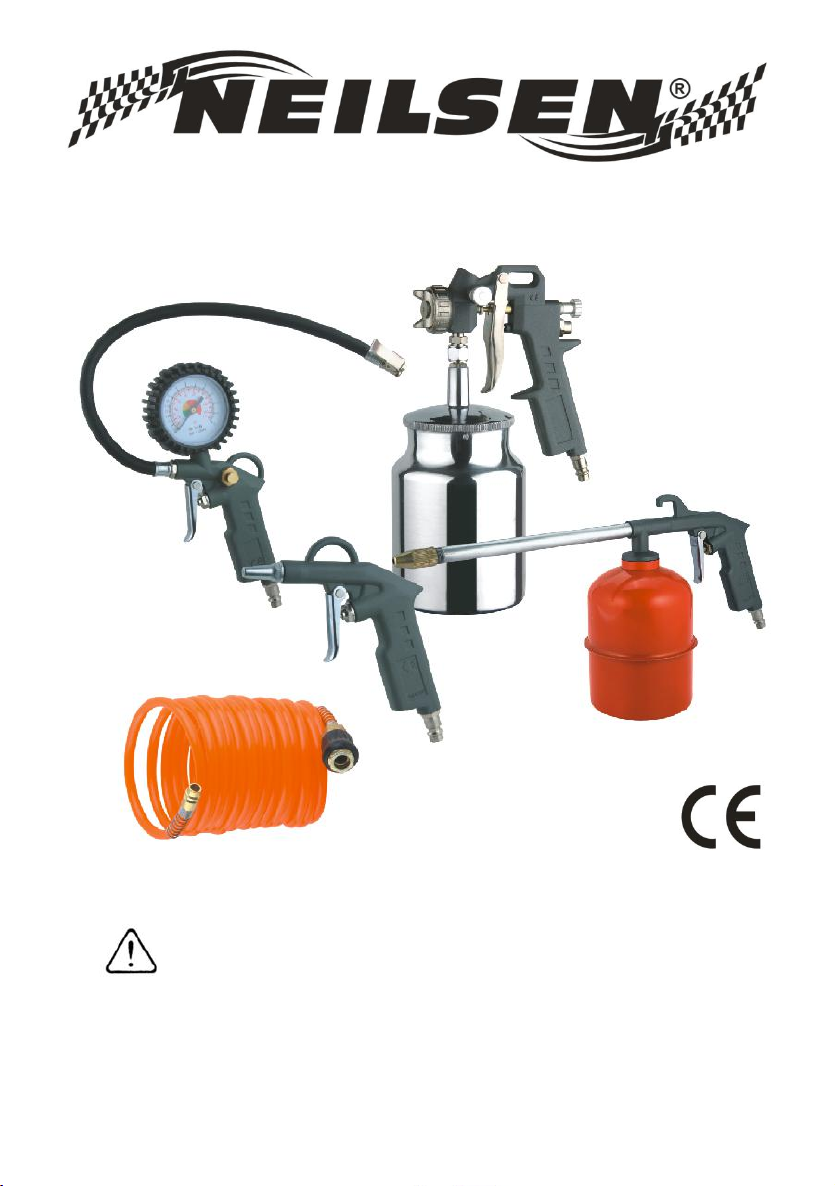

5 PIECE SPRAY GUN / AIR TOOL KIT CT0778
ORIGINAL INSTRUCTIONS
SAVE THESE INSTRUCTIONS AND PRECAUTIONS.
READ ALL PRECAUTONS AND INSTRUCTIONS BEFORE USE.
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.

EC DECLARATION OF CONFORMITY
We CANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Declare that the following machine complies with the appropriate basic safety
and health requirements of the EC Directive based on its design and type, as
brought into circulation by us.
In case of alteration of the machine, not agreed upon by us, this declaration will
lose its validity.
Product description:5 PIECE SPRAY GUN / AIR TOOL KIT
Model: CT0778
Applicable EC Directives:
EC Machinery Directive 2006/42/EC
Harmonized standards
EN 1953:2013，EN ISO 11148-8:2011
20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Mr. Gurcharan Tony Singh Sanghera
Managing Director
CANNON TOOLS LTD
2020-09-01

1. SPECIFICATIONS
Air inlet: 1/4”BSP
TYRE INFLATOR WITH PRESSURE GAUGE
Max. air pressure: 8 bar.
With gauge for use on motor vehicles, cycles, dinghies etc.
AIR BLOW GUN
Max. air pressure: 8 bar.
Suitable for the removal of all dirt / dust / swarf.
AIR SPRAY GUN
Max. air pressure: 4 bar.
Capacity: 900cc.
Nozzle: 1.5mm.
Suitable for light viscosity painting applications.
WASHING GUN
Max. air pressure: 8 bar
Capacity: 750cc.
Extra long nozzle for access into restricted areas.
Sprays a wide range of oils, cleaning agents and rust proofing agents.
5M AIR RECOIL HOSE
Fitted with 1/4" BSP couplings.
Strengthened tips provide resistance for kinks and splits.
2. SAFETY WARNINGS
GENERAL SAFETYINSTRUCTIONS FORCOMPRESSED AIR
Following Safety instructions should be strictly followed.Failure to do so may
result in accidents,equipment malfunctioning, serious personal Injury and / or
loss of life.Compressed air is a source of considerable energy. When handling
products dealing with compressed air, the following precautions must betaken to
prevent accidents.
1. Ensure that compressed air is not blocked or in contact with any part of your

body.
2. Before connecting any pneumatic equipment to the compressed air supply, all
mounted fittings,piping assemblies and electrical connections should be checked
for security.All plastic plugs in the equipment used for protection during shipping
should be removed.
3. No piping alterations, removal of fittings, repairing of equipment etc.Should be
attempted with air supplies connected.Air and electrical supplies must be
disconnected before beginning any adjustment, maintenance or dismantling of
equipment.
4. The maximum allowable operating pressures, temperature, flows etc. must be
strictly observed.Failure to do so might result in catastrophic failure of
equipment,and result in serious personal injury and i or death.Refer to individual
catalogues for this information,and any other operating or application limitations.
COMPRESSED AIR SAFETYFOR PNEUMATIC EQUIPMENT
WARNING:
1. Compatibility of pneumatic equipment
Ensuring the compatibility of the procured FRL equipment is the responsibility of
the person who designs the Pneumatic system and/ or System specifications.
This should be based on specifications or after analysis and / or tests to meet
specific requirements.
2. Repair & Maintenance
Assembly, handling, or repair of pneumatic systems should be performed by only
trained and experienced operators.
3. Safety First
Do not service machinery / equipment or attempt to remove any component until
safety is confirmed.
Inspection and maintenance of machinery / equipment should only be performed
after confirmation that both compressed air and electrical supply have been
positively disconnected and all residual compressed air in the system has been
completely exhausted to the atmosphere.
4. Contact the manufacturer if equipment is to be used in any of the following
conditions:
A. Equipment is to be used in conditions beyond the given specifications, or if
equipment is to be used outdoors.

B. Equipment is to be used in conjunction with atomic energy, railroad, air
navigation, automobiles or related vehicles, medical equipment or safety
equipment.
C. In applications that adversely effect humans, animals,or property requiring
special safety analysis.
PRODUCT SELECTION WARNING:
Standard Filters, Regulators, Lubricators and Filter- Regulator Combination units
should be used in accordance with the specifications mentioned in the
specification sheets.While installing and using this equipment, please also follow
the respective specification & instruction manual available for each product.
It indicates that operator error can lead to damage and malfunctioning of the
pneumatic equipment and can lead to serious personal injury or loss of life.
1. Air Filter and Lubricator
Standard Filters and Lubricators incorporate polycarbonate bowls and / or
observation windows.Do not use filters & lubricators in an environment that will
expose the above components to synthetic fluids, organic solvents,corrosive
chemicals, cutting lubricants, thread sealant or similar materials.Make sure that
the condensate in periodically drained when using manual drain valves on
Filters.
2. Regulator
a. Safety devices shall be placed to prevent secondary (output) pressure from
rising past the set pressure.
This will ensure that damage to the components on the secondary side will be
minimized in the event of a malfunction.
b. In a standard regulator, when the supply pressure is removed or disconnected,
either of the following may happen:
1. The residual pressure will remain on the secondary side of the regulator.
2. The pressure on the secondary side of the regulator will exhaust.
The designer should add components to the circuit to compensate for any of
the above conditions.
c. Regulator operation may be affected when used in Balanced or Secondary
sealed circuits.Please consult the manufacturer regarding these applications.

3. Lubricators
Ensure proper function of the Lubricator.Minimum airflow rate should be ensured
for effective lubrication.
3. TECHNICAL DESCRIPTION
1. Air spray sun
2. 750cc capacity pot
3. Washing gun
4. 900cc capacity pot
5. Air blow gun
6. 5M Air recoil hose
7. Tyre inflator
8. Pressure gauge
9. PVC hose
10. Clip on valve connector

4. MAINTENANCE
Warning! Disconnect from the air supply before carrying out any adjustments,
servicing or maintenance. Never use any sockets or accessories that are not
hardened for impact use.
EVERY-DAY MAINTENANCE CHECKS
Before connection to the air supply:
● Drain the compressor reservoir of condensate.
● Drain the air lines of condensate.
● Drain the combined separator filter, regulator, water trap.
● Fill up the combined separator filter, regulator, lubricant reservoir.
● Check the line pressure is correct for the tool.
AFTER USE MAINTENANCE CHECKS
一Repeat the above procedures.
一Lubricate the tool with approximately 1.5ml of oil directly down the air inlet.
6. DISPOSAL
At the end of the machine's working life, or when it can no longer be repaired,
ensure that it is disposed of according to national regulations.
Contact your local authority for details of collection schemes in your area.
In all circumstances:
Do not dispose of this tool with domestic waste.
Do not incinerate.
During decommissioning of the equipment, certain hazards should be
understood and avoided:
. Only with the line pressure released shall the equipment be disassembled.
.Goggles should be worn.

10. SYMBOLS
In this manual and/or on the machine the following symbols are used:
CANNON TOOLS LTD
Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K.
Made in China
Denotes risk of personal injury, loss of life or damage to
the tool in case of non-observance of the instructions in
this manual.
Wear hearing protection.
Wear safety goggles.
Contact with or inhalation of dust coming free during use
(e.g. lead-painted surfaces, wood and metal) can
endanger your health and the health of bystanders.
Always wear appropriate protective equipment, such as a
dust mask. Always use proper dust extraction during use.
Wear gloves.
Do not abandon into the environment.
