Neilsen CT0700 User manual

Rotary Hammer Drill Model CT0700 - CT0701
Ref no. Z1C-DS-32TS
INSTRUCTION MANUAL
CAUTION:
Before using this
electric drill or any of
its accessories, read
this manual and follow
all its Safety Rules and
Operating Instructions.
•
Safety
Instructions
•Assembly
•Operation
•Maintenance
•Parts List
SAVE THESE INSTRUCTIONS FOR REFERENCE

SECTION PAGE SECTION PAGE
Declaration of conformity 2 Accessories ………………. 8
Product Specifications …….. 3 Carton Contents ..………... 8 – 9
Power Tool Safety …………. 4 – 6 Assembly & Operation …… 10 – 13
Drill Safety ………………….. 6 Maintenance .……………… 13
Symbols …………………….. 6 Drawing and Parts list….. 14 – 15
Know Your Electric Drill ... 7
EC DECLARATION OF CONFORMITY
We CANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Declare that the design and construction of the following machine, in the
form supplied by us, comply with the requirements of the appropriate EC
directives.
Product description: 230V ROTARY HAMMER DRILL
Model: CT0700 Ref no. Z1C-DS-32TS
110V ROTARY HAMMER DRILL
Model: CT0701 Ref no. Z1C-DS-32TS
●EC-Machinery Directive 2006/42/EC
●EC-Directive on electromagnetic compatibility(EMC)2004/108/EC
CANNON TOOLS LTD
sign
Gurcharan Tony Singh Sanghera
2015-11-30
2
TABLE OF CONTENTS

SPECIFICATIONS
DRILL CT0700 230v 50Hz
SDS Chuck………………. SDS fitting
Voltage
No Load Speed …………. 230v 50Hz 0-850 rpm
No. of strokes,under load 0-4200Bpm
Input power 1200 w
Drilling capacity in
Steel mm 13
Wood mm 42
Weight kg 5.6
Level of sound pressure
measured
(sound pressure)
(acoustic power)
according to EN 50144:
dB(A) 93.7
dB(A) 104.7
DRILL CT0701 110v 60Hz
SDS Chuck………………. SDS fitting
Voltage
No Load Speed …………. 110v 60Hz 0-850 rpm
No. of strokes,under load 0-4200Bpm
Input power 1200 w
Drilling capacity in
Steel mm 13
Wood mm 42
Weight kg 5.6
Level of sound pressure
measured
(sound pressure)
(acoustic power)
according to EN 50144:
dB(A) 93.7
dB(A) 104.7
The SDS Rotary hammer drill power tool noise output may exceed
85dB(A) at the workplace. In this instance, wear ear protection.
Wear safety-hearing protection
Wear Dust mask
Wear safety goggles
Wear safety shoes
3
WARNING
!

GENERAL SAFETY RULES
Read all instructions Failure to follow all
instructions listed below may result in electric
shock, fire and/or serious injury. The term
“power tool” in all of the warnings listed below
refers to your mains operated (corded) power
tool or battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
WORK AREA
Keep work area clean and well lit.
Cluttered and dark areas invite accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks, which may ignite the dust
or fumes.
Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of
electric shock.
Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your
body is earthed or grounded.
Do not expose power tools to rain or wet
conditions. Water entering the power tool
will increase the risk of electric shock.
Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock
PERSONAL SAFETY
Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
Use safety equipment. Always wear eye
protection. Safety equipment such as dust
mask, non-skid safety shoes, hardhat, or
hearing protection used for appropriate
conditions will reduce personal injury.
Avoid accidental starting. Ensure the
switch is in the OFF position before
plugging in. Carrying power tools with your
finger on the switch or plugging in power
tools that have the switch ON invites
accidents.
Remove any adjusting key or wrench
before turning the power tool on. A wrench
or key left attached to a rotating part of the
power tool may result in personal injury.
Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in unexpected
situations.
Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of these devices can reduce dust
related hazards.
POWER TOOL SAFETY
WARNING
!
4
SAVE THESE INSTRUCTIONS FOR REFERENCE

POWER TOOL USE AND CARE
Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job better
and safer at the rate for which it was
designed.
Do not use the tool if the switch does not
turn it ON or OFF. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power
source before making any adjustments,
changing accessories or storing power
tools. Such preventive safety measures
reduce the risk of starting the power tool
accidentally.
Store idle power tools out of the reach of
children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tools operation.
If damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
Use the power tool, accessories and tool
bits etc., in accordance with these
instructions and in the manner intended
for the particular type of power tool,
taking into account the working
conditions and the work to be performed.
Use of the power tool for operations different
from intended could result in a hazardous
situation.
SERVICE
Tool service must be performed only by
qualified personnel. Service or maintenance
performed by unqualified personnel could result in
risk of injury.
When servicing a tool, use only identical
replacement parts. Follow instructions in the
Maintenance section of this manual. Use of
unauthorized parts or failure to follow Maintenance
instructions may create a risk of electric shock or
injury.
SPECIFIC SAFETY RULES
For your safety, do not plug in your Power tool
until you have read and understood this
Owner’s Manual.
WEAR EYE PROTECTION. Use face or dust
mask along with safety goggles if operation is
dusty. Use hearing protection, particularly
during extended periods of operation, wear
safety shoes.
“Wear ear protectors with impact drills.
Exposure to noise can cause hearing loss”
DO NOT wear gloves, jewellery, neckties or
loose clothing.
DO NOT drill, cut or sand material too small to
be securely held.
ALWAYS keep hands out of the path of the
drill bit and saw blade. Avoid awkward hand
positions where a sudden slip could cause
your hand to move into the path of the drill bit
or saw blade.
SECURE WORKPIECE. Use clamps or a vice
to hold the work when practical. It is safer
than using your hand and it frees both hands
to operate the tool.
MAKE SURE there are no nails or foreign
objects in the part of the workpiece to be cut,
drilled or sanded.
POWER TOOL SAFETY
5
WARNING
!
SAVE THESE INSTRUCTIONS FOR REFERENCE

SPECIFIC SAFETY RULES – cont’d
TO AVOID INJURY from accidental
starting, always remove the Plug from
the electrical socket before installing or
removing a drill bit, saw blade,
sandpaper, accessory or attachment.
When using a keyed or keyless chuck
DO NOT install or use any drill bit that
exceeds 7” (175mm) in length or extends
more than 6” (150mm) beyond the chuck
jaws. They can suddenly bend or break.
BEFORE STARTING the operation, jog
the drill switch to make sure the drill bit
does not wobble or vibrate.
DO NOT USE fly cutters or multiple-part
hole cutters, as they can come apart or
become unbalanced in use.
MAKE SURE the spindle has come to a
complete stop before touching the chuck
or attempting to change the drill bit.
ALWAYS MAKE SURE THE CHUCK IS
TIGHT AND THE DRILL FIRMLY
TIGHTENED IN THE CHUCK before
starting drill.
Some of the following symbols may be
used on your tool. Please study them and
learn their meaning. Proper interpretation
of these symbols will allow you to operate
the tool better and safer.
V volts
A amperes
Hz hertz
W watt
Kw kilowatts
F farads
microfarads
l litres
Kg kilograms
bar bars
Pa pascals
h Hours
min minutes
s seconds
No load speed
./min or
min¯¹ Revolutions or
reciprocations per minute
direct current
alternating current
²two-phase alternating
current
2N two-phase alternating
current with neutral
three-phase alternating
current
3N three-phase alternating
current with neutral
Rated current of the
appropriate fuse-link in
amperes
Time-lag miniature fuse-
link where X is the
symbol for the
time/current
characteristic, as given in
EN 60127
protective earthing at
earthing terminal, Class I
tools
Diameter
Off position
Arrow
Warning symbol
alternating or direct
current
splash proof construction
watertight construction
class II construction
IPXX IP symbol
Hammer symbol
Drill symbol
POWER TOOL SAFETY
DRILL SAFETY
6
SYMBOLS

Hammer/drill switch
SDS Chuck
Trigger
Handle Drill
switch
Model 0700
230v
cable
Model 0701
110v
cable
Variable speed dial
Motor Housing
KNOW YOUR ELECTRIC DRILL
7

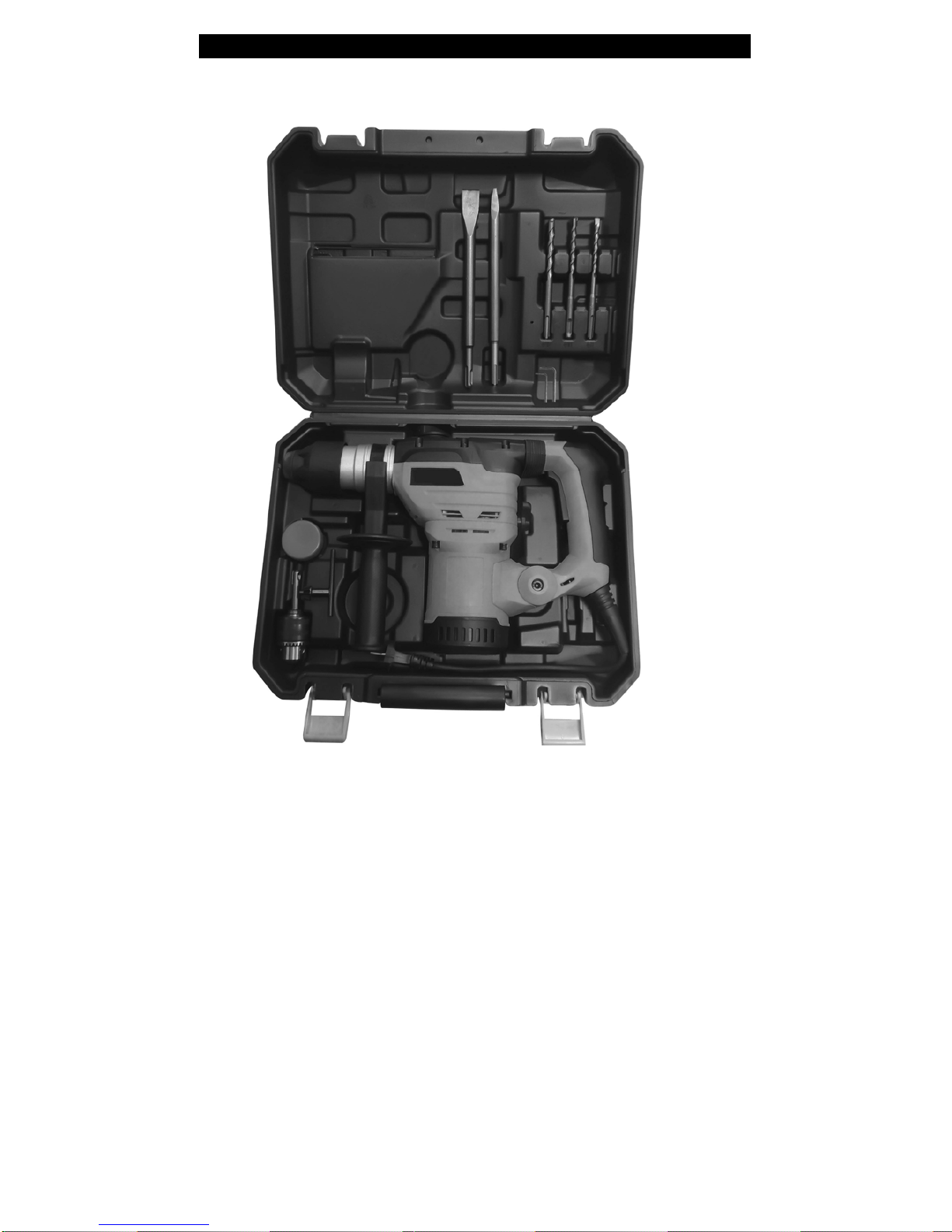

ACCESSORIES & CARTON CONTENTS
AVAILABLE ACCESSORIES
Use only accessories recommended for
this Rotary hammer drill. Follow
instructions that accompany accessories.
Use of improper accessories may cause
injury to the operator or damage to the
cordless drill.
Do not use any accessory unless you have
completely read the instructions or Owner’s
Manual for that accessory.
Various Drills
Chuck
If any part is missing or damaged, do not
plug the charger into the power source
until the missing or damaged part is
replaced.
Carefully unpack the tools see “Components
chart” at right hand side of this page
NOTE: See illustration of components on
Page 9.
To avoid fire or toxic reaction, never use
gasoline, naphtha, acetone, lacquer
thinners or similar highly volatile solvents
to clean the tool.
CARTON CONTENTS – cont’d
WARNING
!
CARTON CONTENTS
WARNING
!
WARNING
!
8
Drill no CT0700/0701
KEY DESCRIPTION QTY
A Rotary Hammer Drill 1
B
SDS Chisels 2
C SDS Masonry drills 3
D SDS chuck 1-1.5 to
13mm 1
E Chuck key 1
F Grease tub 1
G Drill dust cap 1
H Plastic carry case 1
I Carbon brush 1

CARTON CONTENTS
9
Model 0700 CT0701 Shown

Always make sure the power tool is
isolated from the power supply before
fitting any attachment
Moving the handle. See (Fig 1)
To move the handle to any position that suits
the job in hand, grab hold of the handle and
rotate it to the left and it will come undone it
can then be moved to the required position,
when in the position re-tighten by rotating to
the right. Always make sure the handle is
tight before any job takes place as a loose
handle could cause you to slip and invite
injuries.
Turn left Turn right
Fig1
Switching the drill on/off
The drill has an On/Off switch (Fig 2) built in
to the handle. Holding the drill with both
hands simply squeeze the trigger and the
motor will start. To switch off release the
trigger.
Trigger
switch
Fig 2
WARNING
The rotary hammer drill continues for a few
second after the trigger has been release, so
be careful when putting it down.
Fitting a drill bit, chisel bit and keyed
chuck into the SDS housing.
The bits have slots in the shank; these locate
with tabs in the drill. Grip and pull back the
black shrouding see (Fig 3) and insert the bit
you want to use, push the bit inwards until a
resistance is felt, it may be necessary to spin
the bit until the shaft drops completely in to
place. Once you are satisfied the bit has
seated, release the black shroud, this should
lock the bit into place.
Note
The bit will be gripped firmly by its shank and
will not be able to be removed, if the bit is not
located and can be removed, you must
repeat the procedure until it is lock in place.
Do not use the drill until you are satisfied
the bit is secured.
To remove the bit pull back the shroud and
the bit can be removed.
Fig3
Impact chisel only.

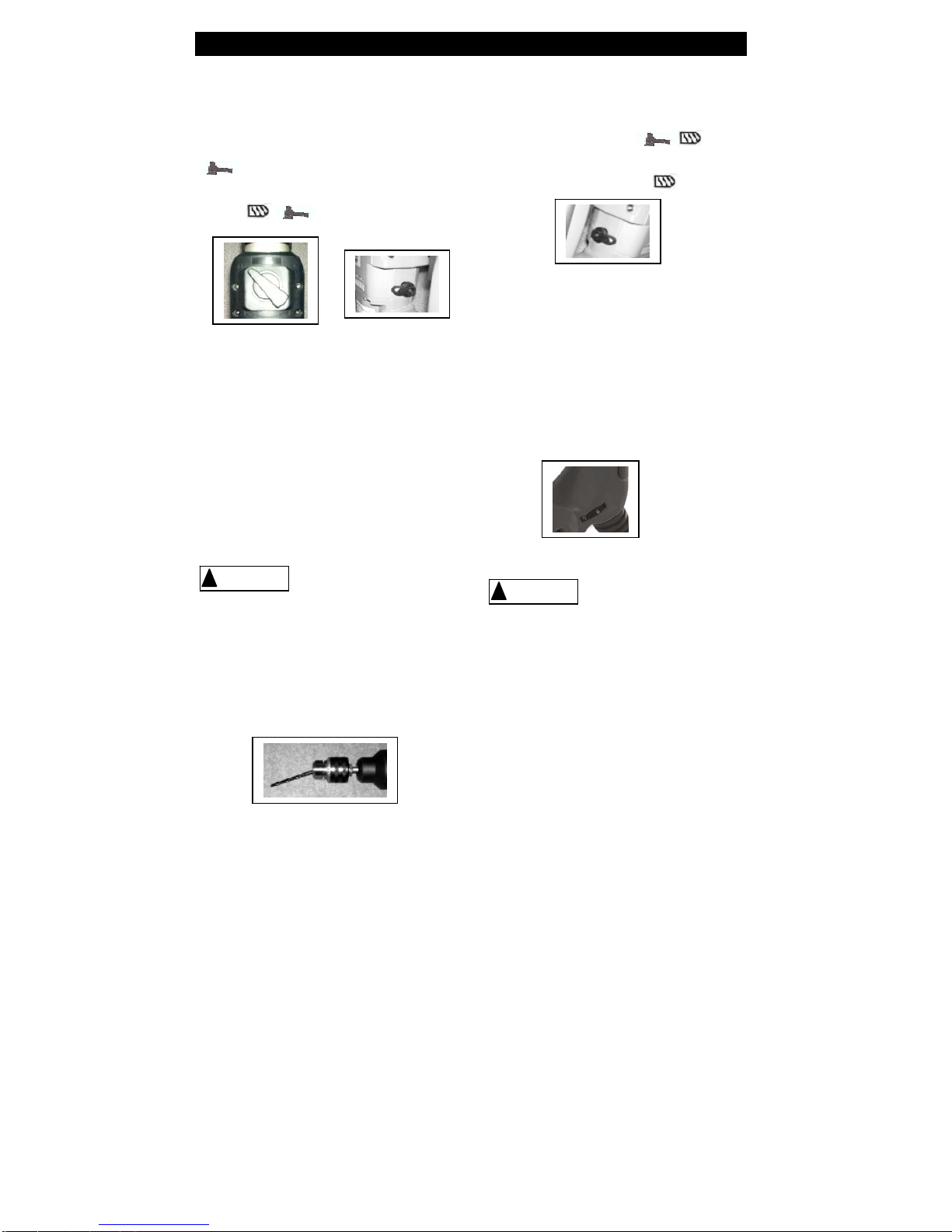

Place chisel in the shroud as (fig 3) locate the
dial on the top of the drill and rotate it until
the large hammer symbol aligns with
the arrow on the drill casing see (fig 4) locate
the large lever to the rear of the drill in front
of the on/off trigger switch See (fig 5) turn the
selector to the drill hammer symbol.
Fig 4 Fig 5
ASSEMBLY & OPERATION
10
WARNING
!
←→

Hammer action for drilling masonry
Inserting drill bit see (fig 3) when using a
masonry drill for impact drilling hammer
action, turn the large dial on the top of the
drill to the left to the hammer and drill symbol
see (fig 6) and turn the large dial at
the back of the drill in front of the trigger on/of
switch to the left, to the drill and hammer
symbol see (fig 7)
Fig 6 Fig 7
For normal drilling into wood and metal
Remove the 13mm chuck from the carry case
and insert the chuck as (fig 3) to use this
chuck which can take drills from 1.5 to 13mm
shank. Tighten the chuck by hand making
sure that the drill is located between the three
lugs in the chuck, which hold the drill to be
used, then tighten the drill with the key, insert
the key into one of the holes in the chuck and
seat into the cog this will allow you to tighten
the chuck to the drill. Do not use
unnecessary force, as it may be difficult to
undo.
Do not insert drill bit into chuck and
tighten as shown in Fig. 8. Drill bit MUST
be properly inserted with all three chuck
jaws holding the bit centered in the chuck.
Failure to properly insert drill bit could
cause the drill bit to be thrown from the
chuck resulting in possible serious injury
or damage to the chuck.
Fig 8
To use the drill for wood and metal
Insert the drill into the chuck and tighten and
turn the large dial on top of the drill to the left
hammer and drill symbol see
(fig 6) and turn the large dial at the back of
the drill in front of the trigger on/off switch to
the right to the drill symbol see (fig 9)
Fig 9
If using a masonry drill with the chuck in
place see figure 6 and 7. hammer action for
masonry.
Variable speed dial
The variable speed dial 300 to 800rpm is
located at the bottom back left side of handle
set the dial to the preferred speed and then
squeeze the trigger. See (fig 10)
Fig 10
This rotary hammer drill does not have
reverse direction, so always take care not
to force the drill in case the drill bit gets
stuck. Always make sure you keep the
drill going in and out to remove debris to
make sure the drill does not get stuck.
This drill does not have torque facility. It
is not recommended to use screwdriver
bits in this drill as it could damage the
screwdriver head or bit and could cause
serious injury
11
WARNING
!
WARNING
!
ASSEMBLY & OPERATION

NOTE: Drilling at a slow drilling speed for
an extended period of time may cause the
drill motor to overheat. If the drill gets hot,
stop drilling and allow it to cool for at
least 15 minutes.
INSTALLING BITS
Never hold the chuck body with one hand
and use the drill power to rotate the drill
body to loosen or tighten bits. You may
severely injure your hand.
DRILLING
When drilling in smooth hard surfaces such
as metal, use a centre punch to mark the
desired hole location. This will prevent the
drill bit from slipping off center as the hole is
started.
The work piece to be drilled should be
secured in a vise or with clamps to keep it
from turning as the drill bit rotates (see fig 11)
Fig 11
Check drill bit to make sure it is firmly locked
into the drill chuck.
1. Hold the drill firmly with both hands
whenever possible. Use one hand to
grasp the handle and switch and the
other to grasp the body of the drill or
Handle if one is in place.
NOTE: Make sure the hand placed on
the body of the drill does not cover the
air vents. Covering these air vents will
reduce the motor cooling and possibly
lead to overheating the motor.
2. While holding the drill firmly, place the
point of the drill bit at the point to be
drilled. Depress the switch trigger to start
the drill.
NOTE: Always use a higher drill speed
when drilling small holes. Use a slower
drill speed when drilling large holes.
3. Move the drill bit into the workpiece
applying only enough pressure to keep
the bit cutting. Do not force the drill bit or
apply sideways pressure to elongate the
hole.
Be prepared for binding and bit
breakthrough. When these situations
occur, the drill bit has the tendency to
grab the workpiece. This action will kick
the drill opposite to the direction of drill
bit rotation and could cause loss of
control when breaking through material
as you complete drilling the hole. If you
are not prepared, this loss of control can
result in possible serious injury.
ASSEMBLY & OPERATION
WARNING
!
12
Have you read “POWER TOOL
SAFETY”, “DRILL SAFETY” and
“SYMBOLS” on pages 4,5 & 6 of this
manual? If not, please do it now
before you operate this drill. Your
safety depends on it!
Every time you use the drill you
should verify the following:
1. SDS bit or drill chuck is secure.
2. Work piece is properly secured
in SDS chuck or drill chuck.
3. Select drill or masonry before
you engage in the proposed
operation
4. Safety glasses are being worn.
Failure to adhere to these safety
rules can greatly increase the
chances of injury.
WARNING
!

When drilling metals, use light oil on the drill
bit to keep it from overheating. The oil will
prolong the life of the drill bit and improve the
drill cutting action. If the bit jams in the
workpiece or if the drill stalls, release the
trigger switch immediately. Remove the bit
from the workpiece and determine the reason
for jamming.
GENERAL
When servicing, use only identical
replacement parts. Use of any other part
may create a hazard or cause product
damage.
DO NOT use solvents when cleaning plastic
parts. Most plastics are susceptible to
damage from various types of commercial
solvents and may be damaged by their use.
Use clean cloth to remove dirt, dust, oil,
grease etc.
Do not at any time allow brake fluids,
gasoline, petroleum-based products,
penetrating oils, etc. to come in contact
with plastic parts. They contain chemicals
that can damage, weaken or destroy
plastic.
DO NOT abuse power tools. Abusive
practices can damage the tool as well as the
workpiece.
DO NOT attempt to modify tools or create
accessories not recommended. Any such
alteration or modification is misuse and
could result in a hazardous condition
leading to possible serious injury. It will
also void the warranty.
LUBRICATION
All of the bearings in these electric tools are
lubricated with a sufficient amount of high-
grade lubricant for the life of the unit under
normal conditions. Therefore, no further
lubrication is required.
13
WARNING
!
WARNING
!
WARNING
!
MAINTENANCEASSEMBLY & OPERATION

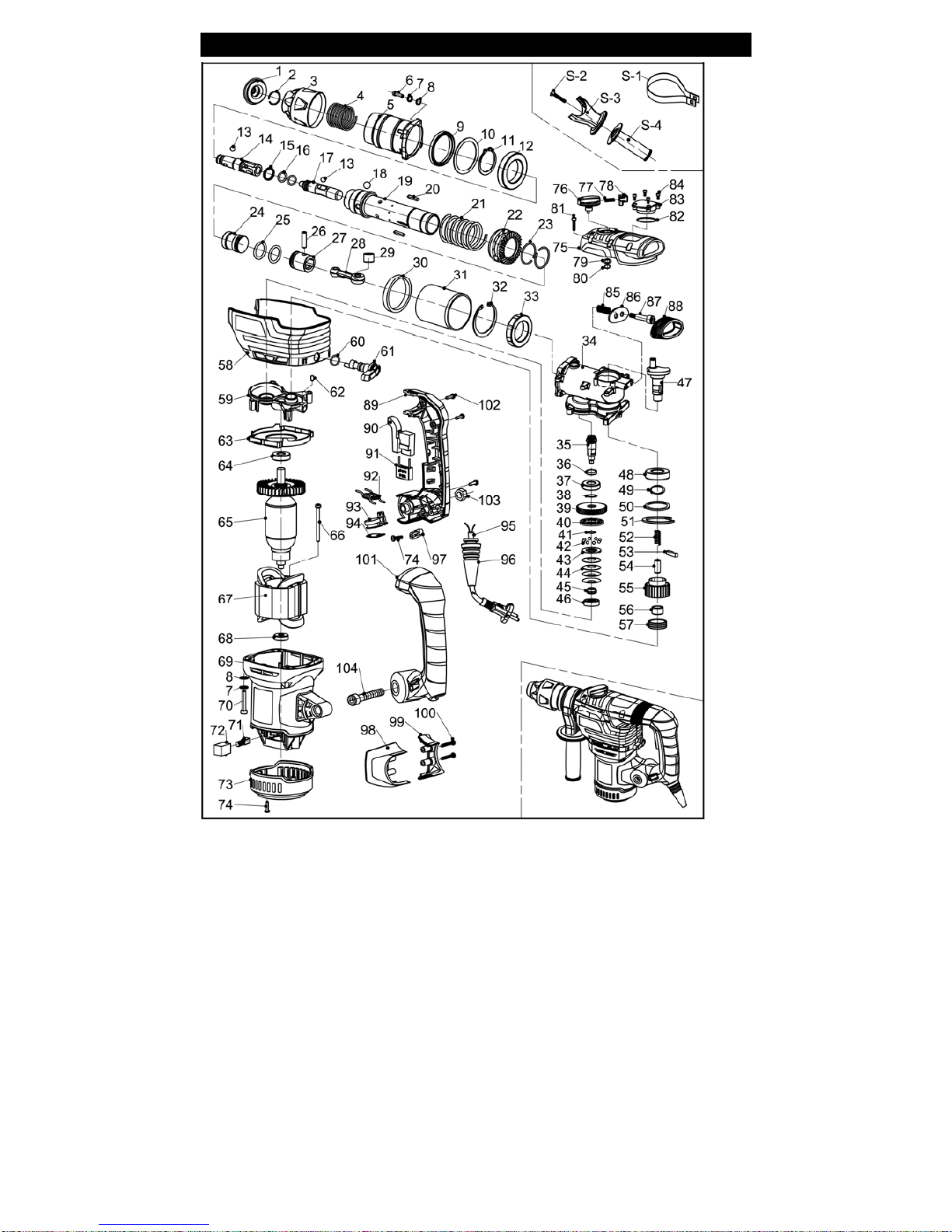

PARTS DIAGRAM
14

When servicing, use only identical replacement parts. Use of any
other parts may create a HAZARD or cause damage to your power tool.
Any attempt to repair or replace electrical parts on this power tool may create a hazard
unless repair is performed by a qualified technician.
WARNING
!
15
PARTS LIST
