Nembrini Audio MP1 PRO User manual

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
Congratulations on choosing our MP1 Pro Programmable Tube Amplier.
The Nembrini Audio MP1 Pro features a Tri-State Voicing selection that allows you to choose between Distortion
Tube, Clean Tube, or Solid State virtual circuits. The EQ points were designed to replicate the sound of Fender* and
Marshall*, but the Presence control surpasses the range offered by either.
• Unique Tri-State Voicing option for choice of Clean Tube, Distortion Tube, or Solid State circuit.
• Two 12AX7 virtual tubes.
• Three programmable gain controls
• Four band programmable EQ including 16dB boost/cut for bass and treble.
Nembrini Audio have extended the possibility of the original hardware to customize your tone:
• Power amplier section
• 6 guitar effects, delay, modulation, reverb, cleaner, noise gate and compressor.
• 6 carefully selected cabinet emulations
• 4 of the best mic emulations used in real recording sessions - selectable mic positions with volume and pan con-
trols
• Powerful impulses loader to load your favorite IRs

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER

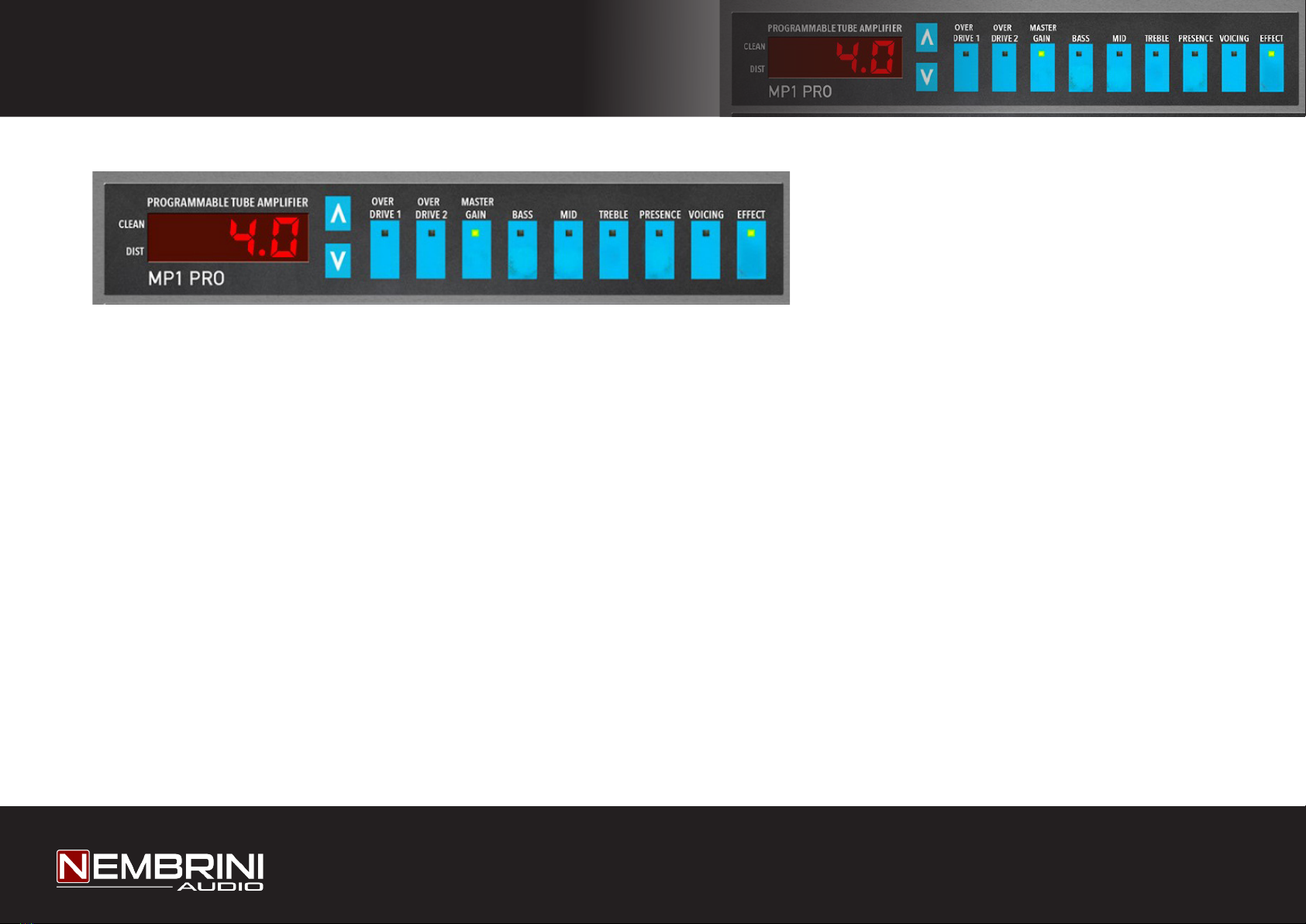

PRE - AMPLIFIER
11
1 - Display : Shows selected parameter value.
2 - Arrows : Up/Down arrow changes the selected pararameters value.
3 - Overdrive 1 : Attenuates pre-tube input signal. Higher gain levels of Overdrive 1 result in higher frequency
harmonic saturation
4 - Overdrive 2 : Attenuates inter-tube signal. Higher levels of Overdrive 2 result in fuller harmonic saturation.
In the Solid State mode, Overdrive 2 sets the level of compression.
5 - Master Gain : Post-tube, pre-EQ gain.
33224455

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
PRE - AMPLIFIER
11
1 - Bass : Narrow band low frequency EQ control adjustable in 2 dB steps ± 16 dB.
2 - Mid : Wide band mid frequency EQ control adjustable in 2 dB steps ± 12 dB.
3 - Treble : Narrow band high frequency EQ control adjustable in 2 dB steps ± 16 dB.
4 - Presence : Wide band high frequency EQ control adjustable in 2 dB steps ± 12 dB.
5 - Voicing : Allows choice of Clean Tube, Distortion Tube, or Solid State circuits (S.S.).
6 - Effect : This button when on engages all effects section.
3322445566

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
FX - DELAY
1 - SYNC : Activates/deactivates the delay synchronization with the host DAW tempo.
2 - TIME : Provides adjustment of delay time, when the host SYNC is on, it will be with time division.
3 - FEEDBACK : This is the amount of the signal that you’d like to feed back into the input of your delay to create
echoes.
4 - FILTER : This parameter make the delay Lo-Fi.
5 - OFFSET : Create a time offset in left/right delay sections.
6 - MIX : Adjusts the mix of dry input to wet delay signal.
7 - POWER : When on engages the delay section.
11223344556677

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
FX - MODULATION
1 - SYNC : Activates/deactivates the modulation synchronization with the host DAW tempo.
2 - RATE : This sets the rate of the chorus/tremolo effect. Clockwise rotation quickens the rate and counterclockwise
rotation slows down.
3 - DEPTH : This sets the depth of the chorus/tremolo effect. Clockwise rotation deepens the effect and counter-
clockwise rotation creates the opposite effect
4 - MODE : Select chorus or tremolo mode.
5 - POWER : When on engages the modulation section.
1122334455

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
FX - REVERB
1 - DECAY : Controls the time for the reections to die away.
2 - LOW CUT : Remove the low frequencies from the reverb.
3 - HIGH CUT : Remove the high frequencies from the reverb.
4 - MIX : Adjusts the mix of dry input to wet reverb signal.
5 - POWER : When on engages the reverb section.
1122334455

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
FX - FILTERS
PRE : Cleaner in the beginning of the signal chain.
1 - TIGHT : Clockwise rotation reduces low frequency content tightening the low range, suitable for 7/8 strings guitars.
2 - HARSH : Clockwise rotation reduces high frequency content.
POST : Cleaner in the end of the signal chain.
3 - RUMBLING : Clockwise rotation reduces low frequency content.
4 - HARSH : Clockwise rotation reduces high frequency content.
11223344

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
FX - NOISE GATE
1 - THRESHOLD : This sets the threshold level where the noise suppression starts working. Adjust it depending on
the signal level and noise level, and when too low, counterclockwise.
2 - RANGE : The gate range is the amount of gain reduction that the gate produces. Therefore, if the range is set at
0 dB, there will be no change in the signal as it crosses the threshold. If the range is set to -60 dB, the signal will be
gated (reduced) by 60 dB.
3 - GATE : Adjust the gate speed.
4 - POWER : When on engages the noise gate section.
11223344

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
FX - COMPRESSOR
1 - THRESHOLD : Controls the compressor’s threshold, left led indicates the amount of gain reduction.
2 - RATIO : Controls the compressor’s ratio.
3 - ATTACK : Controls the compressor’s attack time.
4 - RELEASE : Controls the compressor’s release time.
5 - OUTPUT : Controls the compressor’s output volume.
6 - POWER : When on engages the compressor section.
112233445566

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
Cabinet - Impulse Loader
11
22
33
44
1 - Recording Chain Mode: these three buttons switch between the included cabinet/recording
chain emulation, the Impulse Loader and the complete bypass of the entire cabinet/recording chain
section.

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
2 - POWER AMP: This section manages the power amplier section powered by four EL34 virtual tubes with presen-
ce, resonance, volume and power for engage it.
3 - Levels: This section lets you control the level before the plugin process and after all the processing
Input: adjust the input level from minus innite to +12db
Output: adjust the output level from minus innite to +12db
4 - Fix button: By pressing this button, your input level remains the same while changing presets

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
Cabinet MODE
1 - Cabinet: you can choose between six selected cabinet emulations:
1- VH 4x12 P50E: based on VHT* 412S 4x12 with Eminence* P50E speakers.
2- VH 4x12 V30: based on VHT* 412 4x12 with Celestion* Vintage 30 speakers.
3- MRH 4x12 Green: based on Marshall* 1960A 4×12 with Celestion* G12M-20W Greenback speakers
4- MB RECT 4x12 V30: based on Mesa Boogie* Rectier 4x12 with Celestion* Vintage 30 speakers.
5- HK 2x12 P50E: based on Hughes and Kettner* TM 212 with Eminence* P50E speakers.
6- BG 2x12 V30: based on Bogner* 2x12 with Celestion* Vintage 30 speakers.
112233

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
2 - Mic 1 and Mic 2 settings: You can use 2 virtual microphones for your amp recording chain and select between 4
different models, select between ON or OFF Axis positions, change the Position and Distance.
The emulated microphones are:
1- DYNAMIC 57: based on popular Shure* SM-57 dynamic microphone
2- RIBBON 121: based on modern Royer Labs* R-121 ribbon microphone
3- CONDENSER 414: based on classic AKG* C 414 condenser microphone
4- DYNAMIC 421: based on vintage Sennheiser* MD-421 dynamic microphone
3 - Mixer: These 3 faders control the volume of the 2 microphones in front of the guitar cabinet and the stereo am-
bience microphones. Each channel has a pan control for stereo positions (active only in stereo and mono to stereo
instances), solo, mute and phase inversion switch.

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
IMPULSES MODE
The Nembrini Audio Impulses Loader lets you load up to three 3rd-party impulse responses and blend them.
The following settings are available for each of the three loaded IRs:
1 - Empty button: unloads the current IR
2 - Browse button: opens an explorer window to select a folder and shows you the contained wav les on the right
side display (5).
3 - Load button: opens an explorer window to load your impulse response.
11
22
33
44
55

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
In this mode the whole cabinet/recording chain section and impulses loader are completely bypassed,
letting you use your favourite impulse loader or your real power amplier and speaker system with
the MP1 Pro Programmable Tube Amplier plugin.
BYPASS MODE
4 - IR controls: you can change the volume, pan, phase of each IR and Solo or Mute it
5 - Browse/Preview display: in this display, you can browse your IRs or preview the resulting IR waveform

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
The Toolbars
1 2 3 4 5 4
Top Toolbar
1 - Open the manual and the information about the plugin.
2 - + and - buttons allow you to scroll through the presets.
3 - Undo/Redo changes made to the parameters of the plugin at any time.
4 - With A/B banks, it is possible to compare two different settings in an easy way. It is also possible to compare
presets by loading them in the two different A/B banks. The red highlight will show the currently selected bank and
what you will modify/save.
5 - Copy the settings from a bank to another, so you can make slight changes to the controls and compare the two
settings for example.

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
2 3 4 5
1 - Shows you the active preset. Click on the label to see the preset list.
2 - Allows you to override the currently selected preset.
3 - Save the current selected preset as a new preset with a name of your choice.
4 - Delete the selected preset.
5 - Bypass the plugin in order to compare your processed and unprocessed signal.
1

MP1 PRO PROGRAMMABLE TUBE AMPLIFIER
* Please note that all marks and models are all trademarks of their respective owners, which are in no way associated or afliated with
Nembrini Audio. These marks and names are used solely for the purpose of describing certain tones produced using Nembrini Audio’s modelling
technology.
