Neo-Neon SRM-25007 User manual

ELC 250WATT MINI NEO-ONE
Neo-Neon International
©Neo Neon LTD, GuangDong china
All rights reserved. No part of this manual may be reproduced, in any form,
Without the express permission, in writing from Neo – Neon LTD GUANGDONG,
China
Printed in China 2006
1
SRM-25007

ELC 250WATT MINI NEO-ONE
Neo-Neon International
©Neo Neon LTD, GuangDong china
All rights reserved. No part of this manual may be reproduced, in any form,
Without the express permission, in writing from Neo – Neon LTD GUANGDONG,
China
Printed in China 2006
2
CONTENTS
1. Introduction…………………………………..2
2. AC Power………………………………….....4
3. Installation……………………………………6
4. Control Panel…………………………………7
5. Optical Path Configuration………………….12
6. Trouble Shooting……………………………14
7. Technology Specifications………………….14
INTRODUCTION 1

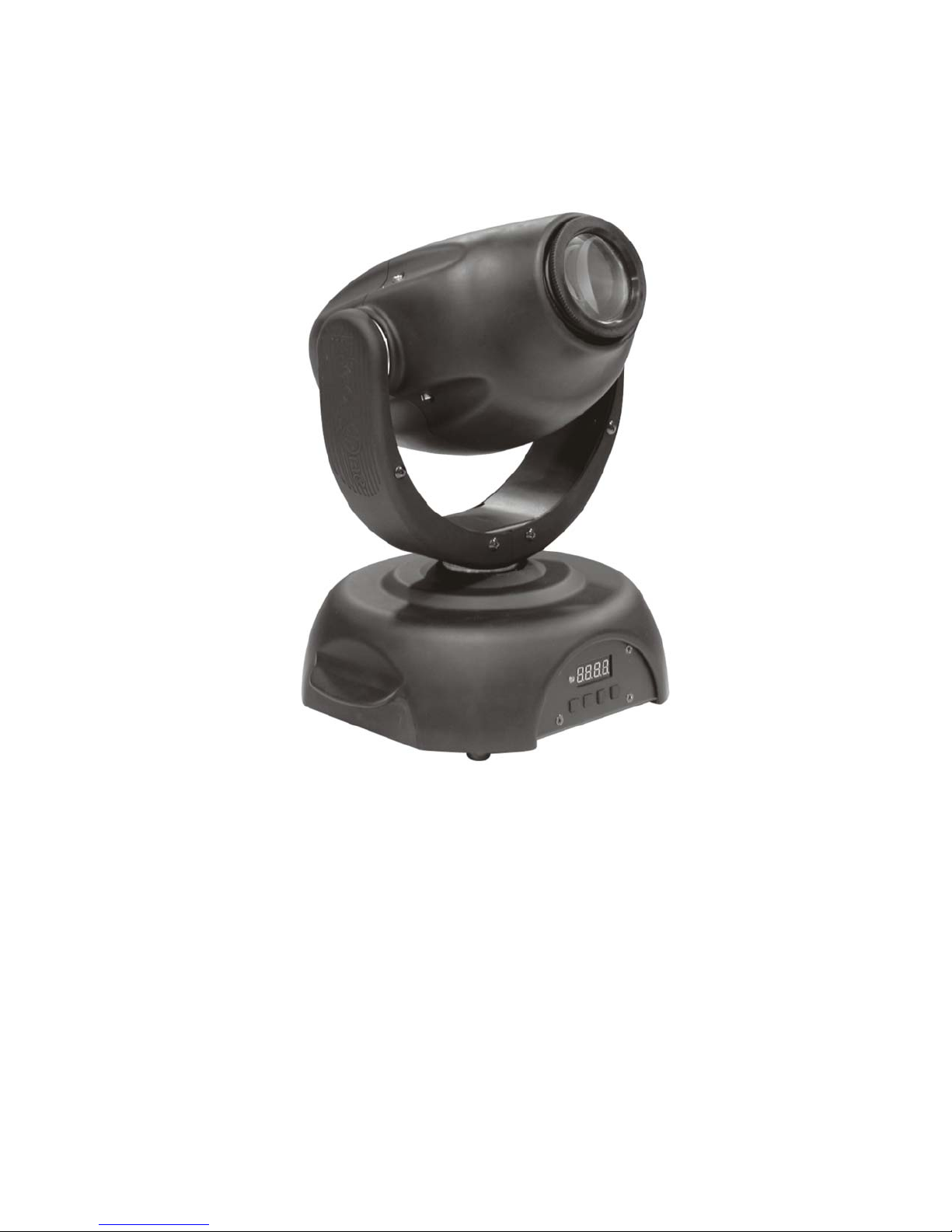

Thank you for selecting the Neo One Mini Profile. This automated luminary
pro-
vides 8 dichroic color filters, high-speed mechanical shutter, 4-digit LED
control
Panel, 510° of pan by 260° of tilt, DMX, Stand-Alone, and Master/Slave
control
Options; and switch-selectable power supply settings. The Neo One Mini
Profile provides a 17° hard-focused beam, manually adjustable focus, and 7
Gobos.
SAFETY INFORMATION
Warning! This product is for professional use only. It is not for
household Use.
This product presents risks of lethal or severe injury due to fire and heat, electric
shock, ultraviolet radiation, lamp explosion, and falls. Read this manual before
powering or installing the fixture, follow the safety precautions listed below and
observe all warnings in this manual and on the fixture. If you have questions
about how to operate the fixture safely, please contact your Neo-Neon dealer or
call CHINA ([phone]
To protect yourself and others from electric shock
•Disconnect the fixture from AC power before removing or installing the
lamp, fuses, or any part, and when not in use.
•Always ground (earth) the fixture electrically.
•Use only a source of AC power that complies with local building and
electrical codes and has both overload and ground-fault protection.

ELC 250WATT MINI NEO-ONE
Neo-Neon International
©Neo Neon LTD, GuangDong china
All rights reserved. No part of this manual may be reproduced, in any form,
Without the express permission, in writing from Neo – Neon LTD GUANGDONG,
China
Printed in China 2006
3
•Do not expose the fixture to rain or moisture.
•Refer all service to a Neo-Neon service technician.
To protect yourself and others from UV radiation
and lamp
Explosion
.
•Never operate the fixture with missing or damaged lenses and/or covers.
•When replacing the lamp, allow the fixture to cool for at least 5 minutes
before opening the fixture or removing the lamp. Protect your hands and
eyes with gloves and safety glasses.
•Do not stare directly into the light. Never look at an exposed lamp while
it is lit.
•Replace the lamp if it becomes defective or worn out.
To protect yourself and others from burns and fire
•Never attempt to bypass the thermostatic switch or fuses. Always
replace defective fuses with ones of the specified type and rating.
•Keep all combustible materials (for example fabric, wood, paper)
at least 0.3 meters (12 inches) away from the fixture. Keep
flammable materials well away from the fixture.
•Do not illuminate surfaces within 0.3 meters (12 inches) of the
fixture.
•Provide a minimum clearance of 0.1 meters (4 inches) around fans
and air vents.
•Never place filters or other materials over the lens.
•The exterior of the fixture can reach temperatures up to 60° C
(140° F). Allow the fixture to cool before handling.
•Do not modify the fixture or install other than genuine Neo-Neon
parts.
•Do not operate the fixture if the ambient temperature (Ta) exceeds
40° C (104° F).
To protect yourself and others from injury due to
falls
•When suspending the fixture above ground level, verify that the
structure can hold at least 10 times the weight of all installed
devices.
•Verify that all external covers and rigging hardware are securely
fastened and use an approved means of secondary attachment such
as a safety cable.

ELC 250WATT MINI NEO-ONE
Neo-Neon International
©Neo Neon LTD, GuangDong china
All rights reserved. No part of this manual may be reproduced, in any form,
Without the express permission, in writing from Neo – Neon LTD GUANGDONG,
China
Printed in China 2006
4
•Block access below the work area whenever installing or removing
the fixture.
UNPACKING
The packing material is carefully designed to protect the fixture during
shipment - always use it to transport the fixture.
The Neo One Mini comes with:
•ELC 24V 250W lamp
•3 m, 3-pin IEC mains cable
•Attachment bracket for mounting clamp
•User manual
AC POWER 2
The Neo One Mini has switch-selectable settings to configure the power
supply for local conditions. Always use the setting that is closest to the
local AC supply.
Warning! For protection from electric shock, the fixture must be
grounded (earthed). The power supply shall have overload and
ground-fault protection.
Important! Install fuse and verify that power supply settings match
local
AC supply before use.
To change the voltage setting
1. Disconnect the fixture from power.
2. Remove the 4 base cover bolts with a 4 mm Allen wrench.
Move the cover out of the way of the switches without
disconnecting wires.
3. Set the 5-position switch (A) to the setting closest to the AC
voltage. Use the higher setting if the voltage is halfway
between 2 settings. For example, use the 230 V setting
instead of the 210 V setting for operation with 220 V power.
4. Set the 2-position switch (B) to the AC frequency (50 / 60
Hz).
5. Replace the cover and apply a new power setting label to the
serial number label.

ELC 250WATT MINI NEO-ONE
Neo-Neon International
©Neo Neon LTD, GuangDong china
All rights reserved. No part of this manual may be reproduced, in any form,
Without the express permission, in writing from Neo – Neon LTD GUANGDONG,
China
Printed in China 2006
5
To install the main fuse
Fuses are provided for 100 - 130 V and 200 - 250 V operation.
Use only the fuse specified for the operating voltage.
1. Locate the bag containing the fuse for your AC voltage.
Insert the fuse in the fuse holder. The holder may be
packed with the other fuse.
2. Remove the label covering the mains input socket.
3. Insert the fuse holder in the empty slot in the mains input
socket (C).
To install a plug on the power cable
The power cable must be fitted with a grounding-type cord cap that fits
your power distribution system. Consult an electrician if you have any
doubts about proper installation.
Following the cord cap manufacturer’s instructions, connect the yellow
and green wire to ground (earth), the brown wire to live, and the blue wire
to neutral. The table below shows some pin identification schemes.
Table 1: Cord cap connections
To apply power
Warning! The power cables must be undamaged and rated for the electrical requirements of
all connected devices. Important! Powering through a dimmer system can damage the
fixture.
•Connect the prepared cable to the mains input socket and the AC mains distribution system. Do
not connect the fixture to a dimmer system.
Wire Pin Marking Screw color
brown live “L” yellow or brass
blue neutral “N” silver
yellow/green ground
green

ELC 250WATT MINI NEO-ONE
Neo-Neon International
©Neo Neon LTD, GuangDong china
All rights reserved. No part of this manual may be reproduced, in any form,
Without the express permission, in writing from Neo – Neon LTD GUANGDONG,
China
Printed in China 2006
6
INSTALLATION 3
LOCAT ION AND ORIENTATION
For safe operation, install the Neo One Mini in a location where: -
•It is at least 0.3 meters (12 inches) away from illuminated surfaces
and combustible materials.
•It is not easily touched or bumped.
•It is protected from rain and moisture.
•There is at least 0.1 meters (4 inches) clearance around the fans
and air vents.
•There are no flammable materials nearby. The Neo One Mini may
be installed in any orientation as described below or placed
directly on a stage or floor. The intense light can burn or melt parts
within a distance of 0.3 meters (12 inches).
When installing fixtures side-by-side, avoid illuminating one fixture
with another.
Clamp
The Neo One Mini includes a bracket for attaching a rigging clamp with
12 mm (1/2 in.) hardware.
TO R IG THE FIXTURE WITH A CLAMP
WARNING! Ensure a safety Cable is secured to the safety anchor
point at the base of the fixture.
1. Verify that the clamp is undamaged and can bear at least
10 times the weight of the fixture. Verify that the structure
can bear at least 10 times the weight of all installed fixtures,
clamps, cables, auxiliary equipment, etc.
2. Bolt a clamp to the included bracket with a grade 8.8
(minimum) M12 bolt and locknut, or as recommended by
the clamp manufacturer, through the 13 mm hole in the
bracket.
3. Align the bracket with the keyholes in the base. Insert both
locking pins into the holes and turn both levers a full 1/4 turn
clockwise to lock. The fasteners are locked only when turned

ELC 250WATT MINI NEO-ONE
Neo-Neon International
©Neo Neon LTD, GuangDong china
All rights reserved. No part of this manual may be reproduced, in any form,
Without the express permission, in writing from Neo – Neon LTD GUANGDONG,
China
Printed in China 2006
7
fully clockwise.
4. Attached the safety cable that can bare at least 10 times its
weight, through the safety cable anchor point at the base.
5. Block access below the work area.
6. Working from a stable platform, clamp the fixture to the
structure.
INSTALLATION OF FIXTURE
,
INCLUDE DIAGRAM OF CLAMPS

ELC 250WATT MINI NEO-ONE
Neo-Neon International
©Neo Neon LTD, GuangDong china
All rights reserved. No part of this manual may be reproduced, in any form,
Without the express permission, in writing from Neo – Neon LTD GUANGDONG,
China
Printed in China 2006
8
CONTROL PANEL 4
The control panel is used to set control modes, address, and
personalities; to display information readouts, to run tests, and to
control the fixture manually.
TO NAVIGATE THE CONTROL MENU
Error messages, if any and mode information are displayed at the top of
the menu tree. If the fixture is in (1) DMX mode, the address is
displayed; (2) Automatic Stand-alone mode, SA is displayed. The top
of the menu can be reached by pressing [menu] repeatedly.
1. From the top of the control menu, press [menu] toenter the
main menu.
2. Press [up] or [down] to scroll through menus and press
[enter] to view submenus.
3. To activate a setting or function, press [enter].
4. To return to the previous menu or to escape without
making a selection, press [menu].
PERSONALITIES
The following settings are available to modify fixture behavior.
Pan/tilt swap: Map pan to the tilt channel and tilt to the pan channel to provide
more intuitive control of fixtures mounted sideways.
Inverse pan: Flip pan movement to right-to-left instead of left-to-right.
Inverse tilt: Flip tilt movement to down-to-up instead of up-to-down.
DMX lamp-off: By switching the fixture between 6 and 7 channels, you are able to strike the lamp via
DMX.
Display: Flip the display for truss mounting.
USER INTERFACE PICTURE / DIAGRAM

ELC 250WATT MINI NEO-ONE
Neo-Neon International
©Neo Neon LTD, GuangDong china
All rights reserved. No part of this manual may be reproduced, in any form,
Without the express permission, in writing from Neo – Neon LTD GUANGDONG,
China
Printed in China 2006
9
MENU FUNCTIONS AND DISTRIBUTION
The Mini Neo-One has 9 menu functions. Bellow is a Menu tree, which will
help you to read understand the menu codes.
MENU CODE MEANINGS
ADDR This allows you to change the start
address one to 512.
MODE This allows you to change the control
mode: -
M-DM DMX MODE
M-SO SOUND ACTIVE MASTER
M-SL SOUND ACTIVE SLAVE
M-AU STAND ALONE
rPAN This allows you to change the pan
direction: -
REV REVERSE
STND STANDARD
rTILT This allows you to change the tilt
direction: -
REV REVERSE
STND STANDARD
ADDR MODE rPAN rTILT r-PT nchn TEST DSPL
1
To
512
M-DM
M-SO
M-SL
M-AU
STND
SHUT
REST
REV
STND
REV
STND
REV
7ch
6ch
ALL
PAN
TILT
COL
GOBO
STND
REV REST

ELC 250WATT MINI NEO-ONE
Neo-Neon International
©Neo Neon LTD, GuangDong china
All rights reserved. No part of this manual may be reproduced, in any form,
Without the express permission, in writing from Neo – Neon LTD GUANGDONG,
China
Printed in China 2006
10
r-PT This allows you to change the pan and
tilt direction simultaneously: -
REV REVERSE
STND STANDARD
nchn This allows you to control the ELC lamp
via DMX: -
7ch lamp controlled via DMX
6ch lamp controlled via fixture
TEST This function allows the user to test the
fixtures features from the fixture without
DMX signal: -
PAN Tests the pan movement
TILT Tests the tilt movement
COL Tests the color wheel
GOBO Tests the gobo wheel
SHUT Tests the shutter
DSPL This allows you to change the display
orientation for upside down truss
mounting: -
REV REVERSE
STND STANDARD
REST This allows you to reset the fixture: -
REST RESET
DMX VALUE TABLE
CHANNEL 1 – PAN (510°)
CHANNEL 2 – TILT (260°)
CHANNEL 3 – SPEED The speed of the pan and tilt
from left to right, up and down. DMX value 0-255.
NO. DMX VALUE EFFECT
1 0 PAN LEFT
2 127 PAN CENTER
3 255 PAN RIGHT
NO. DMX VALUE EFFECT
1 0 TILT LEFT
2 127 TILT CENTER
3 255 TILT RIGHT

ELC 250WATT MINI NEO-ONE
Neo-Neon International
©Neo Neon LTD, GuangDong china
All rights reserved. No part of this manual may be reproduced, in any form,
Without the express permission, in writing from Neo – Neon LTD GUANGDONG,
China
Printed in China 2006
11
CHANNEL 4 – COLOR
NO. DMX VALUE EFFECT
1 0 -15 OPEN
2 16 -31 COLOR 1
3 32 -43 COLOR 2
4 44 -55 COLOR 3
5 56 -67 COLOR 4
6 68 -79 COLOR 5
7 80 -91 COLOR 6
8 92- 107 COLOR 7
9 108 -119 COLOR 8
10 120 -135 1 COMBINED COLOR
11 136 -151 2 COMBINED COLOR
12 152 -167 3 COMBINED COLOR
13 168 -183 4 COMBINED COLOR
14 184 -199 5 COMBINED COLOR
15 200 -215 6 COMBINED COLOR
16 216 -227 7 COMBINED COLOR
17 228 -239 8 COMBINED COLOR
18 240 -255 CONTINUOUSLY CYCLING
CHANNEL 5 – GOBOS
NO. DMX VALUE EFFECT
1 0 - 23 OPEN
2 24 - 47 GOBO 1
3 48 - 71 GOBO 2
4 72 - 95 GOBO 3
5 96 - 119 GOBO 4
6 120 - 143 GOBO 5
7 144 - 167 GOBO 6
8 168 – 191 GOBO 7
9 192 - 255 CONTINUOUSLY CYCLING

ELC 250WATT MINI NEO-ONE
Neo-Neon International
©Neo Neon LTD, GuangDong china
All rights reserved. No part of this manual may be reproduced, in any form,
Without the express permission, in writing from Neo – Neon LTD GUANGDONG,
China
Printed in China 2006
12
CHANNEL 6 – SHUTTER / DIMMER
NO. DMX VALUE EFFECT
1 0 - 15 SHUTTER
2 16 - 127 DIMMING
3 128 - 239 STROBE (FAST TO SLOW)
4 240 - 255 OPEN
CHANNEL 7 – RESET & LAMP CONTROL
NO. DMX VALUE EFFECT
1 0 – 127 STRIKE LAMP
2 128 – 191 REPOSITION AFTER 5 SECS
3 192 – 250 TURN OFF LAMP
4 251 – 255 TURN LAMP OFF AFTER 10
SECS
ADDRESS SELECTION
The control address, also known as the start channel, is the first channel
used to receive instructions from the controller. The total number of
channels used depends on the control mode.
Be sure to allow adequate channels when setting the control address.
If control channels for one fixture overlap control channels for another
fixture, then one of the fixtures will receive the wrong commands. To
find the highest usable address channel, subtract the number of channels
required from the last controller channel and add 1. Two Mini Neo
One’s of the same type, and operating in the same control mode, may
share the same address if they are to respond identically. They will
receive the same commands and individual control will be impossible.
To set the control address
1. Scroll to Addr in the main menu and press [enter]. The
current address is displayed.
2. Scroll to the address that is assigned to the fixture on the
controller. Press [enter] to activate the address setting.

ELC 250WATT MINI NEO-ONE
Neo-Neon International
©Neo Neon LTD, GuangDong china
All rights reserved. No part of this manual may be reproduced, in any form,
Without the express permission, in writing from Neo – Neon LTD GUANGDONG,
China
Printed in China 2006
13
Optical Path Configuration 5
GOBO WHEEL
This fixture has 7 static indexing metal gobos plus one open. The
gobos can be chosen prior to manufacture. Wheels can be
interchanged with replacement wheels to vary the gobo effects.
COLOR WHEEL
This fixture has 8 Dichroic filters on one single color wheel. They are
Red, Green, Blue, Yellow, Rose, Light Blue, Orange Red, Pink plus
Open.
FOCUS LENS
This fixture has a manual focus lens. By turning it clock-wise and
counter clock-wise you are able to adjust the focal length according to
your requirements.
GOBO WHEEL DIAGRAM
COLOR WHEEL DIAGRAM
FOCUS LENS DIAGRAM
red
orange
green
blue
yellow
magneta
cyan
pink

ELC 250WATT MINI NEO-ONE
Neo-Neon International
©Neo Neon LTD, GuangDong china
All rights reserved. No part of this manual may be reproduced, in any form,
Without the express permission, in writing from Neo – Neon LTD GUANGDONG,
China
Printed in China 2006
14
Trouble Shooting 6
Technology Specifications 7
DMX Channels: 6 or 7 Channel selectable
Lamp: ELC 24V 250W
User Display Interface: Four LED bar Display with four soft touch keys and English menu
Color Wheel: One Color Wheel with 8 dichroic filters, 9 split colors and open
Gobo Wheel: One Gobo Wheel with 7 indexing metal gobos plus open
Pan: 510°of pan
Tilt: 260°
Volts: 220VAC 50Hz
Current: 5Amps
Size: 220 x 220 x 350mm
Weight: 6kg
Lamp is loose Ensure Lamp is properly
inserted into ceramic base
Lamp Does not Strike
Reassign DMX address
DMX ADDRESS OFFSET and ensure all fixtures
use the same profile
No Power Check to see if fixture has power
Lamp is blown Replace lamp with same
Poor signal from Control control DMX selection switch
if one is present
But undesired or no
connection between control
and the fixture a is constant
Individually check each cable
for continuity on all three pins
Check polarity of DMX cable
Check DMX cables, Check
Check that the fuse is inFuse to the fixture
reponse
tact and serviceable
Fixture repositions
DMX CABLE
Check to see that a proper
fixtures do not
respond
No Power
DMX ADDRESS
PROBLEM REASON TROUBLE SHOOTING
One or More Ensure you are sending signal
Turn on the power at mains
