Monoprice Stage Right 612785 User manual

2
CONTENTS
SAFETY WARNINGS AND GUIDELINES.......................................................................................................................................3
INTRODUCTION................................................................................................................................................................................................4
FEATURES..............................................................................................................................................................................................................4
CUSTOMER SERVICE....................................................................................................................................................................................4
PACKAGE CONTENTS.................................................................................................................................................................................5
CONTROLS AND MENU DISPLAY.....................................................................................................................................................5
MENU FUNCTIONS........................................................................................................................................................................................6
MASTER/SLAVE MODE .............................................................................................................................................................................6
9-CHANNEL DMX MODE......................................................................................................................................................................... 7
TECHNICAL SUPPORT.................................................................................................................................................................................8
SPECIFICATIONS..............................................................................................................................................................................................8
REGULATORY COMPLIANCE................................................................................................................................................................8
Notice for FCC ............................................................................................................................................................................................8
Notice for Industry Canada.............................................................................................................................................................9

3
SAFETY WARNINGS AND GUIDELINES
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. If moisture does get in
or on the device, immediately unplug it from the power outlet and allow it to fully
dry before reapplying power.
Prior to operation, check the unit and power cord for physical damage. Do not use if
physical damage has occurred.
Take care to prevent damage to the power cord. Do not allow it to become
crimped, pinched, walked on, or become entangled with other cords. Ensure that
the power cord does not present a tripping hazard.
Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
This device uses a grounded power cord and requires a ground connection for safe
operation. Ensure that the power source has a proper ground connection. Do not
modify the plug or use a "cheater" plug to bypass the ground connection.
When disconnecting the power cord do not pull on the cord itself. Instead, grasp
the plug connector head to disconnect it from the power socket.
Do not look directly into the light source.
If the device will not be used for any lengthy period of time, it should be unplugged
from the power source.
When installing this device, ensure that the mount is sufficiently robust to support
the weight of the unit and to prevent unwanted movement.
This device ventilates excessive heat through the slots and openings in the case. Do
not block or cover these openings. Ensure that the device is in an open area where
it can get sufficient airflow to keep from overheating.
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.

4
INTRODUCTION
Thank you for purchasing this stage light!
This PAR light features twelve 15-watt LEDs. These 5-in-1 LEDs can produce Red, Green,
Blue, White, and Amber light, as well as any of the 16.7 million colors obtained by mixing
various amounts of the available colors. It can be controlled using a DMX-512 controller or
can be used as a Master or Slave with the built-in programs.
FEATURES
Uses twelve 15-watt LEDs
5-in-1 LEDs produce Red, Green, Blue, White, and Amber light (RGBAW)
9-channel DMX mode
Built-in strobe functionality
Includes sound-responsive color-changing program
Accepts 90 ~ 240 VAC, 50/60 Hz input power
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6pm PT) or via email at [email protected]

5
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x 12x15-watt LED PAR stage light
1x User's manual

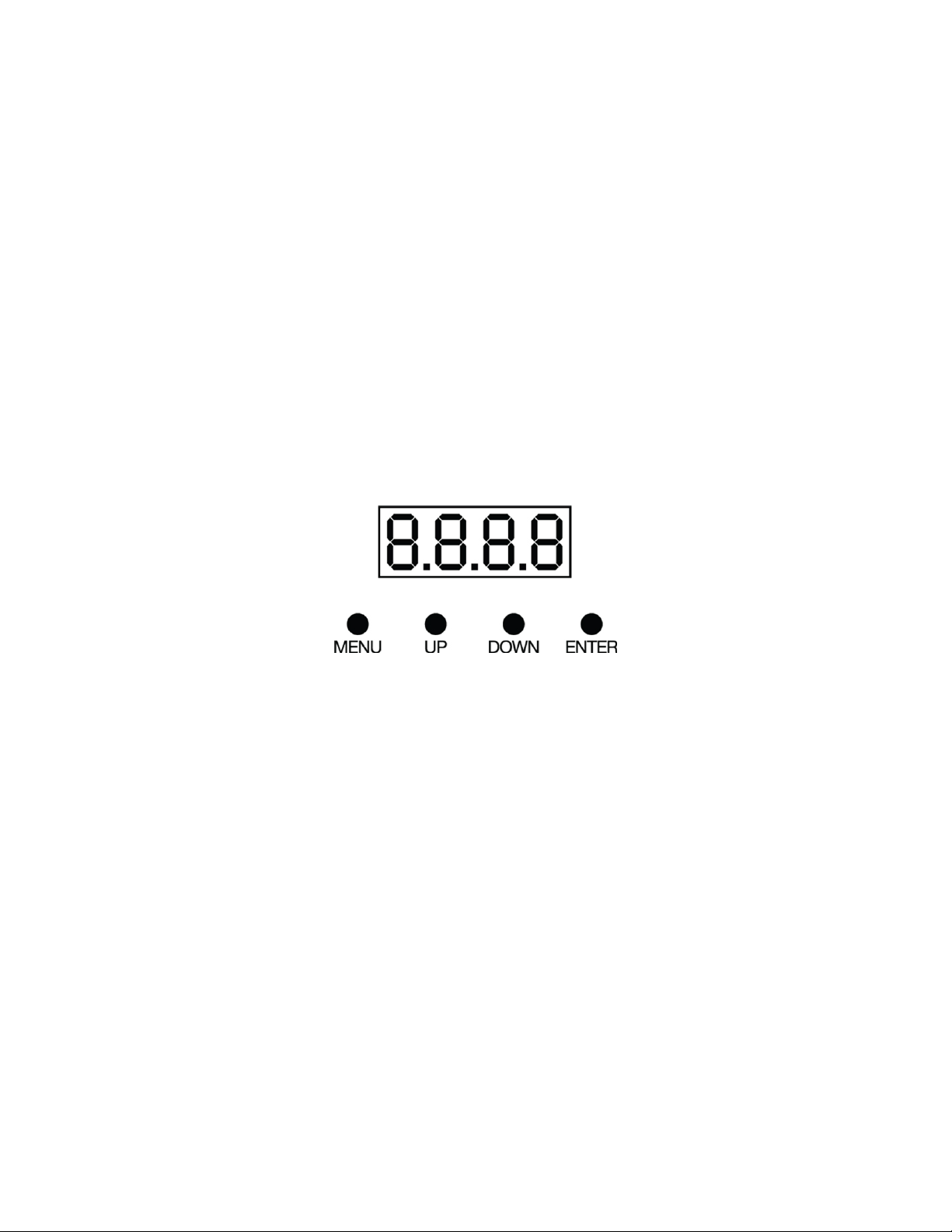

CONTROLS AND MENU DISPLAY
The 4-digit LED display indicates the mode and the value for the selected function or
mode.
Press the MENU button to cycle through the various modes and functions.
Press the UP button to increase the value of the selected function or mode. Press
and hold the button to rapidly increase the displayed value. The list will cycle back
to the beginning after the maximum value is reached.
Press the DOWN button to decrease the value of the selected function or mode.
Press and hold the button to rapidly decrease the displayed value. The list will cycle
back to the end after the minimum value is reached.
Once the desired value is displayed, press the ENTER button to set that value for the
displayed function or mode and allow for selection of another function or mode.
If you want to discard any changes made to the value of the selected function or
mode, simply press the MENU button to cycle to the next function or mode in the
list.

6
MENU FUNCTIONS
Menu
Option
Value
Range
Function
A###
001-512
9-channel DMX mode, ### = starting address
CC##
00-99
Color jumping mode, ## = speed
CP##
00-99
Color gradient mode, ## = speed
dE##
00-99
Color fade mode, ## = speed
bEbE
N/A
Sound activate color jumping mode
r###
000-255
Red color modification mode, ### = brightness/intensity
G###
000-255
Green color modification mode, ### = brightness/intensity
b###
000-255
Blue color modification mode, ### = brightness/intensity
o###
000-255
White color modification mode, ### = brightness/intensity
Y###
000-255
Amber color modification mode, ### = brightness/intensity
MASTER/SLAVE MODE
When using one of the built-in programs, the fixture is considered to be in Master mode.
You can then daisy-chain additional fixtures to the master by using a 3-pin DMX cable to
connect the DMX OUT on the Master fixture or on the previous Slave fixture to the DMX IN
on the next Slave fixture. Slave fixtures will perform the same actions as the Master fixture.
To configure a fixture as a Master, set the light to any mode except DMX mode.
To configure a fixture as a Slave, set the fixture to A001.
Note that you cannot use a DMX controller when connecting multiple lights in
Master/Slave mode.

7
9-CHANNEL DMX MODE
The following table lists the functionality of each channel in DMX mode.
Channel
Function
Value Range
Description
1
Master Dimming
0-255
Linear dimming from dark to bright
2
Flash/Strobe Mode
0-255
Speed from slow to fast
3
Built-in Programs
0-50
No effect
51-100
Jumping color change mode
101-150
Gradient color change mode
151-200
Clock color change mode
201-255
Sound activated color jumping mode
4
Program Speed
0-255
Speed of execution of built-in programs
5
Red Dimming
0-255
Linear dimming from dark to bright
6
Green Dimming
0-255
Linear dimming from dark to bright
7
Blue Dimming
0-255
Linear dimming from dark to bright
8
White Dimming
0-255
Linear dimming from dark to bright
9
Amber Dimming
0-255
Linear dimming from dark to bright

8
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
during regular business hours, 7 days a week. You can also get assistance through email by
sending a message to [e-mail]
SPECIFICATIONS
Light Source
12x 5-in-1 15-watt RGBWA LEDs
Beam Angle
45°
DMX Control
9-channels
DMX Input/Output
3-pin XLR input and pass-through output
Maximum Power Consumption
190 watts
Input Voltage
90 ~ 240 VAC, 50/60 Hz
Dimensions
11.5" x 8.5" x 12.0"
Weight
7.5 lbs.
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must

9
accept any interference received, including interference that may cause undesired
operation.
Modifying the equipment without Monoprice's authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your
right to use the equipment may be limited by FCC regulations, and you may be required to
correct any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
