Nero SL598 User manual

Cordless Stick Vacuum
Instruction Manual
PAGES
1. Attention ··················································· 2
2. Illustration (part name) ································ 4
3. Technical parameters···································· 5
4. Attached accessories····································· 5
5. User Manual ··············································· 6
5.1 Assembly ········································· 6
5.2 Battery assembly and charge ················ 7
5.3 Used as stick vacuum cleaner ··············· 8
5.4 Used as handheld vacuum cleaner·········· 9
6. Cleaning and maintenance ····························· 10
6.1 Empty the dust ································· 10
6.2 Clean the dustbin system ····················· 11
6.3 Clean up the electric brush ··················· 12
6.4 Unblock··········································· 12
7. Problem solving ··········································· 14

1. ATTENTION
To help you use this product in the correct way and protect you from
unnecessary bodily injury and property loss,please read this
instruction manual carefully before you use it.
1. This product is not for full commercial use.
2. Please check carefully whether every part is in good condition upon
opening the box, please do not use the product and contact dealer or
service immediately if anything is found missing or broken.
3. Please keep instruction manual, warranty card, invoice, and package for
future use, storage, or repair.
4. Please make sure the local power (V) falls within power range that is
indicated on the charger.
5. Charger should be placed on a dry surface, do not leave it unattended
during charging.
6. Please hold the plug instead of cord to pull charger out from socket, cord
should stay away from heat sources, do not touch charger with wet hands.
7. This product is not a toy, please store this product far away from reach of
children. Special attention should be made when children are around.
8. Do not use this product to vacuum any liquid, heat temperature substance,
very fine substance (E.g. sawdust, plaster powder, cement, ash, carbon
powder), sharp substance (E.g. glass, staple), and hazardous substance
(E.g. detergent, solvent), chemical substance (E.g. Acid), flammable
substance (petrol, alcohol), Etc.
9. Please cut off the power before you clean the product, please always use
dry or a slightly wet soft cloth, do not use alcohol, petrol, etc.
10. This product can’t stand by itself, please apply the product body onto
holder.
11. Do not immerse the product in water.
12. Please make sure all parts are assembled correctly. Do not use this
product without filtration.
13. Do not try disassembling the battery, do not place battery on metal
surface or near heat sources, and do not put the battery in fire.
14. Please make sure that products can no longer be used before you discard
it, the battery pack must be removed from product for further safe recycle
disposal.
15. This product cannot be used by persons (including children) with reduced
physical, sensory, or mental capabilities or lack of experience and
knowledge unless they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
16. This product is not for any professional and commercial use, any
damage/consequence caused by improper use or use without following
this instruction are not covered by warranty.
17. Use only Australian and New Zealand electrical safety approved extension
cords.
18. Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water immediately. If
liquid comes in contact with eyes, seek medical assistance.

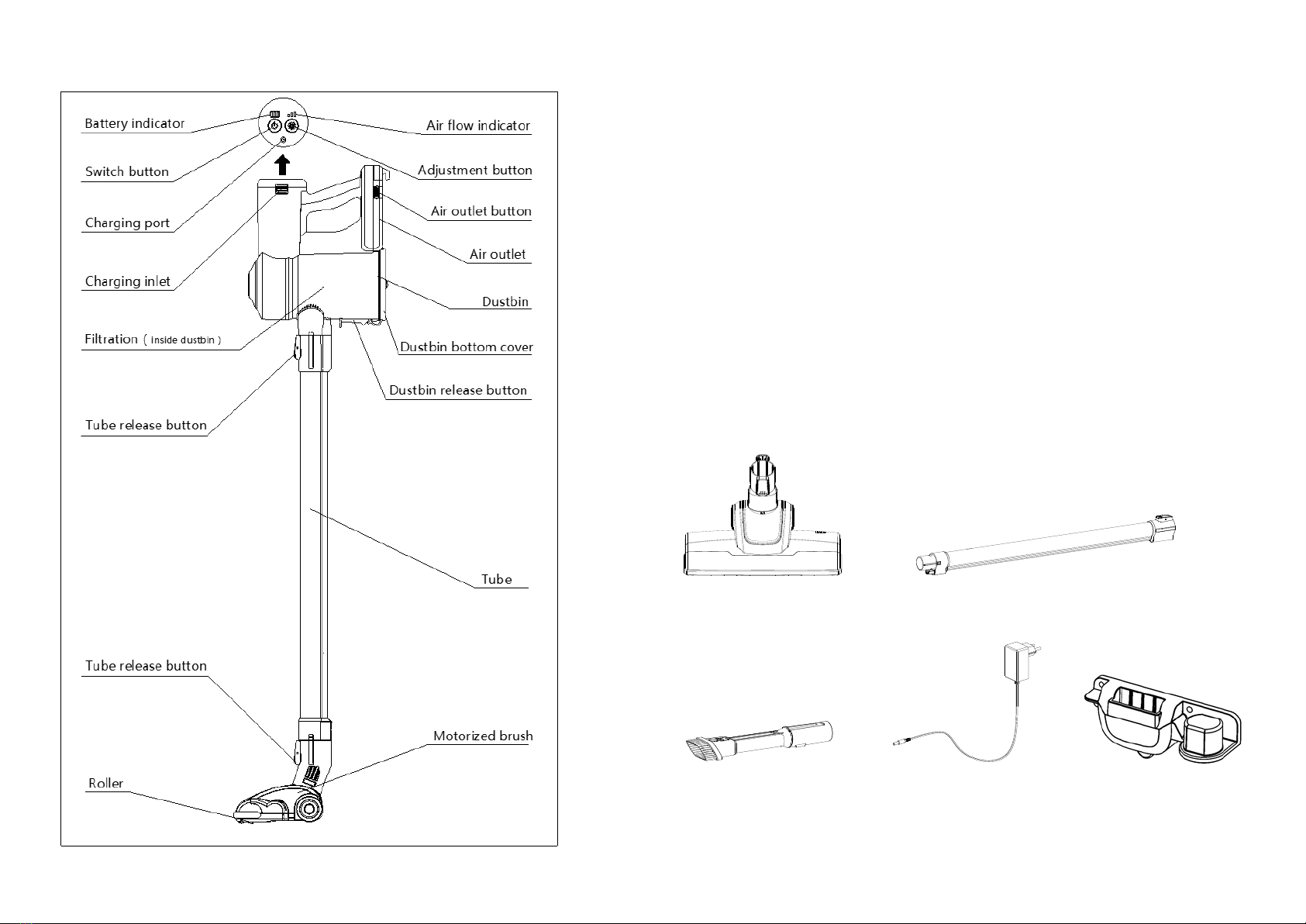

2. ILLUSTRATION (PART NAME) 3. TECHNICAL PARAMETERS
Cleaner parameter Charger parameter
Model name：Cordless Stick Vac Charger output: 26V, 500mA
Model no. SL598 Charger input: 100-240V~50/60Hz 0.5A
Rated voltage：22.2V Charger voltage：100-240V
Rated power: 150W Battery Parameter
Product size: 72 X 31 X 13 cm Battery: Li-ion 2200mAh
N.W: 2KG Working time: 14-20 min
Box size: 73.5 x 32.5 x 15 cm Charging time：4-5H
4. INCLUDED ACCESSORIES
Motorized brush Connection tube
2 in 1 nozzle Charger Wall mount

5. ASSEMBLY INSTRUCTION
Please carefully read “ATTENTION”before assembly：
This product can’t stand by itself, please apply body part onto holder which is
on the connection tube.

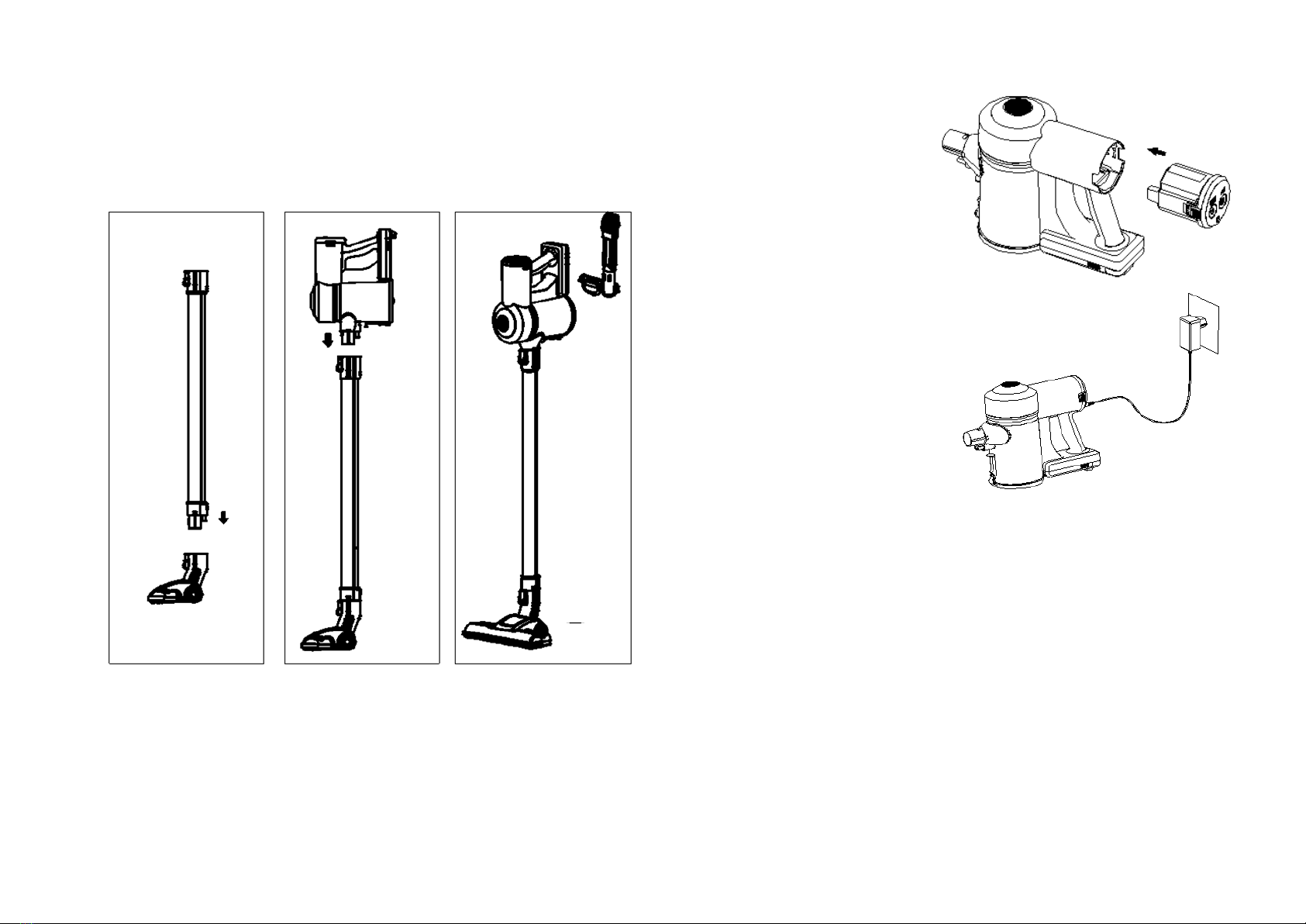

5.1 PRODUCT ASSEMBLY
1. Connect the motorized brush and the connection tube until the button is
locked;
2. Insert the body into the connection tube until the button is locked；
3. Hang the assembled vacuum cleaner and a 2 in 1 nozzle on the holder.
5.2 Vacuum Cleaner
Charging
BATTERY ASSEMBLY:
Same as illustration: have battery
pack locked into cleaner body.
BATTERY CHARGING:
1. Make sure that the product is
powered off, plug the adapter
charging head into the charging port
behind the console (Battery pack can
be charged separately) and plug the
adapter into a 100-240V to 50/60Hz
power outlet.
2. When charging the battery, the 3
charging indicators will be lit up in
turn, and the indicator lights up to
show the current charge. When the
charge is complete, all 3 lights are
on for 3 minutes and then turn off.
WARNING: Do not turn on the product and do not try removing
battery during its charging!
ATTENTION
Only within 00C-450C can charging be allowed, over heating or overly cold
temperatures could prolong the charging time or even damage the battery.
Normal charging takes 4-5 hours, please charge fully and use the product until
the battery is fully discharged for 1-3 times when you initiate using it so that
the battery can be fully activated.
If this product will not be used for a long time, please charge and discharge
this product once every 3 months.

5.3 USED AS STICK VACUUM CLEANER
Place your foot gently on the motorized brush and
tilt the product backward, switch on the product
and move it back and forward to start your
cleaning (You may use 1pc of tube only or 2pcs
tubes connected).
1. Step on the motorized brush and tilt the
appliance backward;
2. Press the power button to turn on the power
supply;
3. Press the adjustment button to adjust the flow;
4. Move back and forth and start cleaning.
ATTENTION:
By default, the vacuum cleaner is in normal mode when turned on. Switch to
high-performance mode by pressing the adjustment button one time. Switch
to economic mode by pressing the adjustment button two times. Press the
adjustment button again to switch back to normal mode. Turn off the product
by pressing the power button again.
When the battery is empty, the vacuum cleaner turns off itself and the three
power indicators on the battery pack flash at the same time.
The motorized roller rolls at very high speed. To avoid damage to cleaning
surface, do not stay cleaning in same spot too long. The motorized nozzle has
an overheating protection function which can cut off the power to nozzle when
blockage or like hair twirling occurs. Please turn off the product, unblock and
clean the nozzle. Do not use the product until it cools down.
5.4 USED AS HANDHELD VACUUM CLEANER
①Press the button on the connection tube；
②Separate the body and connection tubes (place the ground brush and
connection tube properly)；
③Using a 2 in 1 nozzle：Insert the hand-held vacuum cleaner nozzle as
shown.
Or use the connection tube as shown before connecting the 2 in 1 nozzle
④Press the power switch to start the machine。

6. CLEANING AND MAINTENANCE

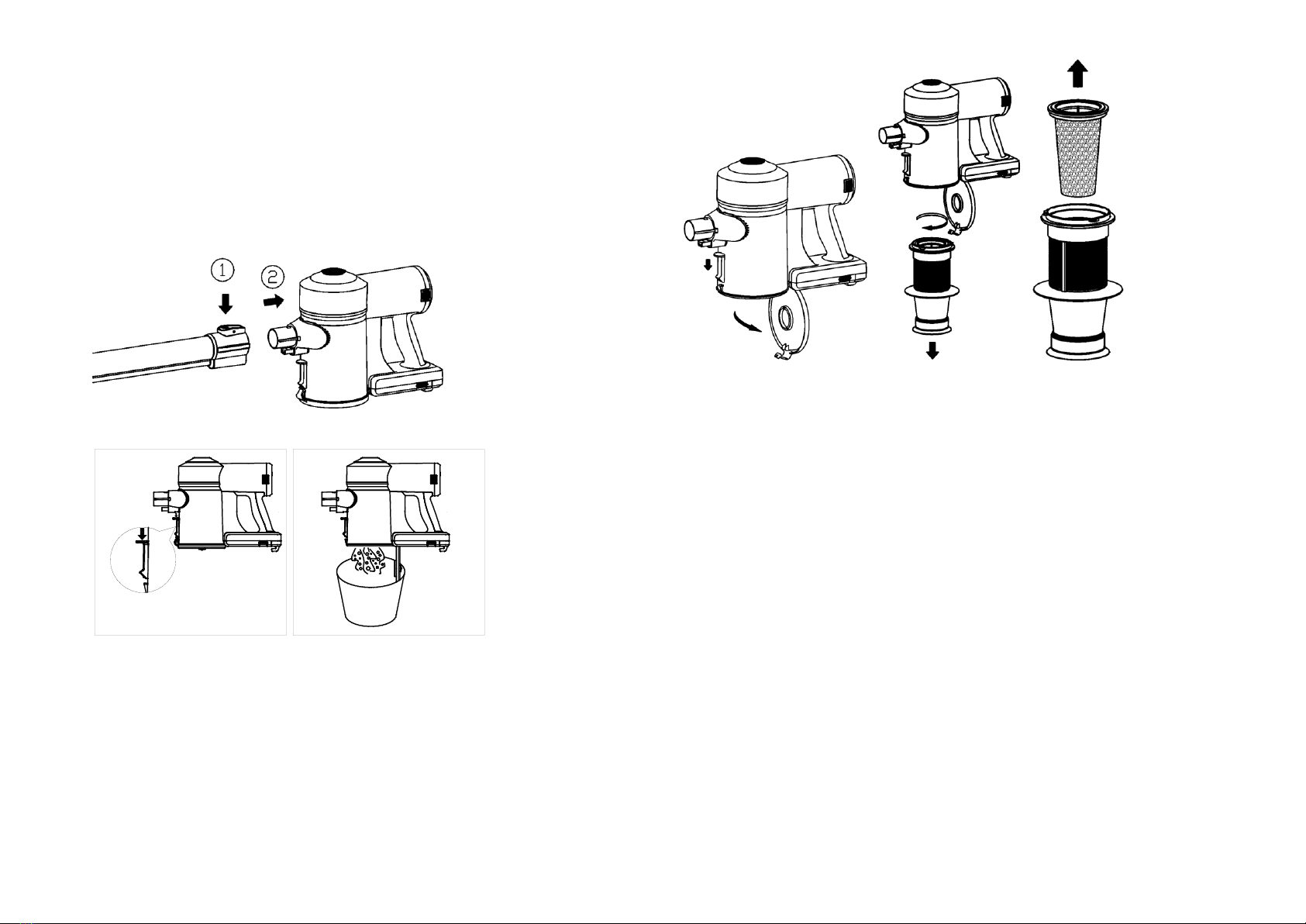

6.1 EMPTY THE DUST CANISTER
Attention：
①Turn off the power and press the connection tube button to separate the
vacuum cleaner as shown.
②Gently shake to empty the dust in the dustbin, close the bottom cover and
lock.
6.2 CLEAN THE DUSTBIN SYSTEM
To maximize the cleaning performance, it’s suggested to clean the filtration
system after every 4-6 uses.
1. Turn off the power, press the bottom switch and empty the dust;
2. Hold the bottom of the filter assembly, rotate and remove the filter
assembly in the direction shown；
3. Remove the filter cotton from the upper part of the filter assembly；
4. Clean the filter cotton assembly, filter and dustbin and dry；
5. Reassemble all parts correctly in reverse order.
*The wrong assembly will reduce suction and even damage the motor!*
Attention：
①Before assembling back together, make sure that all parts after cleaning
are completely dry, otherwise do not use.
②The dustbin is not available for water flushing to prevent
liquid from entering the interior of the host and can be wiped
with a slightly damp soft cloth.
Do not use until it’s completely dry.
WARNING: DO NOT USE PRODUCT WITHOUT FILTRATION

6.3 CLEAN THE MOTORIZED BRUSH
1. Turn off the power and release the motorized brush.
2. Turn the button on the bottom of nozzle by coin to “ ” position.
3. Open the roller fixing cover.
4. Lift up one side of the roller and take it out.
5. Along the groove on the roller, remove twirled hair or blockage.
6. Place back the cleaned roller.
7. Cover the fixing cover and turn the button back to “ ”position .
6.4 UNBLOCK
①This product has a protection function.
When the roller brush is stuck by the
winding, it will automatically cut off the
power to the motorized brush. Please turn
off the product and unblock roller
immediately. (Please refer to 6.3）
②When the machine duct is blocked,
the protection device will cut off all
power, check and clean the motorized
brush, connection tube or host air duct,
remove the blockage and let it cool
down before usage again.
7. PROBLEM SOLVING
There are some simple problems in the process of use that can be resolved by
reference to the following methods.
Problem
Possible causes
Solving
Product will not
start
●Running out of power
●Referring to “battery
charging”instruction,
charge the battery
No suction or weak
suction
●Dustbin is full of dust
●Filtering is not correctly assembled or
dust blocked the HEPA
●Nozzle and/or tubes blocked
●Empty the dust
●Assemble the filter again
or clean/replace filter
●Refer to “unblock”
instruction, unblock the
nozzle and/or tube
Nozzle roller does
not rotate
●Roller blocked, protection function
works
●Refer to “unblock”
instruction, unblock the
nozzle
Using time shorter
●Battery not fully charged
●Refer to “Battery
charging”instruction,
charge the battery
WARNING: FOR SOLVING OTHER PROBLEMS OR REPLACEMENT,
PLEASE ALWAYS RESORT TO PROFESSIONALS SPECIFIED, ANY
UNAUTHORISED REPAIRING ARE NOT COVERED BY WARRANTY.
Imported By:
R Weatherdon & Co Pty Ltd
www.weatherdon.com.au
Made in China
