Nesco NC-59101 User manual
HIGH PRESSURE WASHER
MODEL : NC-59101
1800 W 220-240 V 50 Hz
Instruction Manual
คู่มือการใช้งาน
1
A.
B.
D.
F.
G.
H.
I.
2
3
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
6.
7.
4
5
6
1.
2.
3.
4.
5.
6.
7.
9.
10.
11.
12.
13.
14.
15.
16.
17.
1.
2.
3.
4.
5.
6.
7
7.
9.
11.
12.
10.
1 2
3
3
13.
14.
15.
16.
17.
1.
2.
-
-
9
10
-
-
-
11
12
13
English
Dear Customer
Thank you for choosing a NESCO appliance. The experience, design, feature
and technology of this appliance, as well as the strict quality controls used during
manufacture, will provide full satisfaction for many years.
Introduction
Carefully read and understand this manual and any label attached to the tool
before use. Keep these instructions with the product for future reference. Ensure
all persons who use and service this product are acquainted with this manual.
A.
B.
C.
D.
E.
F.
G.
H.
I.
On/off switch
Water intake connector
Water outlet
Detergent tank
Trigger
Lance
Transit handle
Nozzle cleaning pin
High pressure outlet hose
14
Main features
Many usages as below
Introduction
Carefully read and understand this annual and any label attached to the tool
before use. Keep these instructions with the product for future reference. Ensure all
persons who use and service this product are acquainted with this manual.
Even when used as prescribed it is not possible to eliminate all residual risk factors.
Use with caution.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
6.
7.
1.
2.
3.
4.
To wash up cars, motorcycles, electric motor cars and other motor vehicles.
To spray garden owers and grasses.
To spray medicine to sterilize and work on other large-scale spraying situation.
To clear up house external walls, windows, oors, baths, toilets and other areas
hard to clean corner by manpower.
To clean the surface of the work piece at any location including blind holes,
grooves and other places difcult to clean.
You may dissemble the spray lance, gun handle or high pressure hose freely,
You may stand in up or lay it down when using. IT is easy for transportation and
storage.
Plastic main body , looks nice, Safe in use.
Plastic spray lance, light and comfortable when use.
Adjustable nozzle to adjust water into different shapes freely, and the pressure
a well.
Equipped with wheel for easy moving.
Interior designed detergent bottle for better cleaning.
Noise less than 84 db.
Keep guards in position
-Always keep guards in position, in good working order, correctly adjusted and
aligned. Never attempt to use a power tool without any guard supplied with it.
Remove adjusting keys
-Always check to see that keys and adjusting wrenches are removed from
power tool before turning on.
Clean work area
-Accidents occur where benches and work areas are cluttered or dirty, oors
must be kept clear, avoid working where the oor is slippery.
Dangerous environment
-Do not use power tools in damp or wet conditions, or expose them to rain.
Provide adequate surrounding work space and keep area will lit. Do not use
power tools where there is a risk of explosion or re from combustible material,
ammable liquids, ammable gases or dust of an explosive nature, When using
power tools avoid contact with any earthed items such as pipes, radiators,
cookers, refrigerators, metal baths and taps.
15
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Children & pets
-should always be kept at a safe distance from your work. Make your workshop
child-proof. Lock tool away where children can’t get access to them. Remove
batteries from cordless tools.
Use the correct power tool
-Don’t force, or attempt to use a power tool for apurpose it was not designed
for. Do not use a small tool to do the job of a heavy duty tool.
Wear correct clothing and footwear
-Don’t wear loose clothing. Neckties or jewellery or other item which may get
caught in moving parts. Wear non-slip foot wear, cover or tie back long hair.
Use safety footwear if necessary.
Protect your head
-wear safety googles at all times, every day glasses are not sufcient for eye
protection, as lenses are not impact resistant and could shatter, Use an approved
face or dust mask when operation creates dust. Ensure dust extraction equipment is
functioning and correctly used. Hearing protection should be used if the sound
intensity level for the operator could exceed 85 dB(A). Use a head hat where
there is a risk of falling objects or striking your head on low level obstructions.
Protect yourself from vibration
-Hand held power tools may produce. Vibration can cause disease. Gloves to
keep the operator warm and dry and therefore maintain good blood circulation
in the ngers may help. This tool has not been designed for extended or industrial
operation.
Secure work
-Always secure work. Where practical use a clamp or vice, it will allow you to
use both hands to operate your power tool.
Keep your balance
-Don’t over reach, keep proper footing at all time to ensure correct balance.
Maintain your power tool
-Keep your power tool in good working order, keep tools sharp and clean
for best and safest performance. Ensure ventilation holes are kept clean and
unrestricled at all time.
Always Disconnect
-Before changing tools, always ensure they are disconnected from the power
source.
Accessories
-The use of any attachment or accessory other than those mentioned in this
manual could result in damage or injury. The use of improper accessories could
be dangerous.
Never stand on your power tool
-Standing on your power tool or its stand could cause serious injury if the tool is
tipped or if the cutting tool is accidentally contacted. Do not store materials
above or near the tool so that it is necessary to stand on the tool or its stand to
reach them.
Switch off before connecting.
-Ensure the power tool is switched off before connecting to the power source.
If the power tool stops unexpectedly turn the power switch to off.
16
17.
18.
Do not abuse the power cord
-Be sure your cable/extension cable is properly wired and in good condition.
Always replace a damaged cable/ extension cable or have it repaired by
aqualied person before using it. Never yank or pull the cable to disconnect
it from the power socket. Never carry your power tool by it’s cable. Keep the
cable away from amp, heat, oil , solvents, and sharp edges.
Check for damaged or missing parts
-Before each use check if any part of the power tool is damaged or missing,
check carefully that it will operate properly and perform its intended function.
Check alignment of moving parts for binding. Any guard or other part that is
damaged should be correctly repaired or replaced. Do not use if the power
switch does not turn the power on and off. Check any other condition that
may affect the safety of the power tool.
DO NOT USE IF DEFECTIVE
ADDITIONNAL SAFTY INSTRUCTIONS FOR PRESSURE WASHERS
1.
2.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Direction of feed
-Feed work into a blade or cutter against the direction of rotation of the blade
or cutter only.
Don’t leave the tool running unatended
-Always wait until your power tool has come to complete stop before leaving
it and then disconnect from power source.
Never direct the water jet at people or animals, as the water pressure is very
powerful and can cause serious injury. Avoid aiming the jet at the pressure
washer body or the power supply.
Do not use in an area where ventilation could be limited and NEVER cover the
unit while it is in use.
Always ensure the water supply as connected and the ow is continuous into
the washer when being operated. If the washer is operated when dry, it could
cause irreparable damage to the machine.
Please ensure that you engage the trigger safety catch in the safe position
when spraying has stopped, even if this is for a short period of time.
After use, the machine should be drained of all water to reduce the risk of corrosion.
When not in use, the machine should be stored in a dry location that will not
fall below freezing point.
Do not operate the washer when it is raining or during a thunderstorm.
Always wear safety glasses or goggles and waterproof protective clothing
when operating the washer.
ALWAYS use this sequence to prepare the product for storage:
- Switch off and disconnect the mains electrical power to the machine.
- Switch off the water supply to the machine.
- Discharge any remaining water in the lance by pulling the lance trigger.
- Disconnect the machine from the water supply NEVER turn the water supply
off BEFORE switching off the pump motor to prevent the pump running dry,
as this will cause irreparable damage to the machine NEVER disconnect the
high-pressure discharge hose from the machine while the system is still pressurised.
Always follow the above procedure.
17
10.
11.
12.
13.
14.
15.
16.
17.
18.
When using an extension lead, make sure it is 13 amps fused, and no longer
than 25 metres. If using acable reel, ALWAYS fully unwind the cable before
using (if left wound, it can generate heat and be a potential re hazard). Only
use a cable that is recommended for outdoor use.
The water supply should provide a consistent pressure throughout the period
you are using the pressure washer. Make sure that , if the supply is shared by an
appliance which could affect the water pressure eg a washing machine wich
draws water on and off periodically through it’s programmer cycle, that the
appliance is not used whilst using the pressure washer.
Handle the lance with care, ensuring that the tip is not damaged eg striking
the ground in use.
The pressure washer should always be used in its upright position.
Pressure washers can be deceptively heavy, so take care when lifting.
NEVER connect the pressure washer to the hot water supply, as this will rapidly
reduce the life of the pump.
It is necessary to turn on the spray lance within one or two minutes after the
machine has been switchedon. Otherwise, the temperature of the water
circulating within the machine will soon rise to a critical point
and will cause internal damage.
When you have nished using the machine, use the safety button on the lance
handle to prevent the trigger from being accidentally activated .
It is highly recommended that you use a Residual Current Device (RCD) – not
suppliedwith this product, to provide you with maximum protection from the
risk of electrocution.
1.
2.
3.
4.
Stand the machine up, placed on a at ground.
Check the water entry ller to make sure it is free of blockage.
Use detergent to make better wash.
Cut the soft hose. (see g.1) put the hose into the hot water (about 70 c) and
let the hose to be softer, connect the soft hoses to joint of detergent tank.
(see g.2)
g.2g.1
5.
6.
7.
8.
9.
10.
Fix unit body and detergent tank by screws. (see g.3)
Fix storage brackets to unit body by screws.(see g.4)

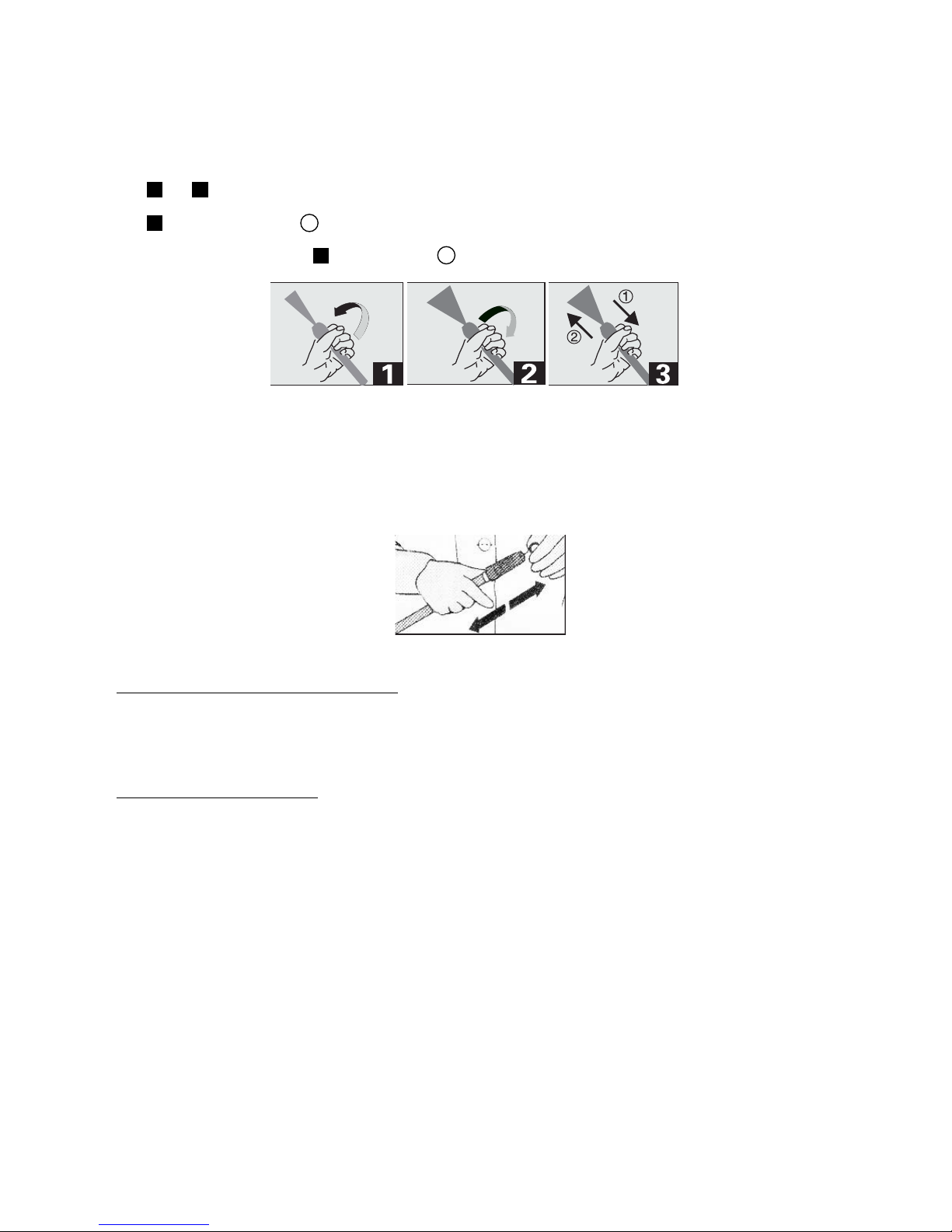

Connect the nozzle onto the spray lance and the lance onto the gun handle.
(see g. 5,6,7)
Loosen the high pressure hose to avoid twist.
Connect the gun with the high pressure hose. (see g.8)
Connect the hose onto the water output exit. (see g.9)
g.4g.3
g.5 g.6
g.8
g.9
g.7
