NESS ID TECK RF30 User manual

IDTeck
RF30
Proximity Reader
USER’S MANUAL

101-062 2 RF30 Proximity Reader
IDTeck
–
RF30 PROXIMITY READER
CONTENTS
1. Important safety instructions page 3
2. Introduction page 4
3. Identifying supplied parts page 4
4. Specification page 4
5. Installation page 5
6. Wire Colour Table of the Reader page 6
7. Wire Connection to Controller page 6
8. Operation page 7
9
. The maximum length of the Wiegand cable page 7
10 Contacts page 8

101-062 3 RF30 Proximity Reader
IDTeck
–
RF30 PROXIMITY READER
1. Important safety instructions
To prevent injuries to persons and damages to property, please read all the instructions and
follow them whenever you deal with this product.
After reading, please put this instruction manual where it can be easily seen for the system
operator.
ON INSTALLATION AND POWER
Use 12V DC power ONLY.
- Connecting to higher than 12V DC may result in a risk of electric shock, fire, or heavy damage
of
the unit.
Do NOT install this product at places with wet or metallic dust, or that can be watered.
- There may be risks of electric shock and fire.
Do NOT install this product near electric motors running.
- The unit may not operate normally.
Do NOT set this product near heaters or any thing that produces heat.
- There may be a risk of fire.
Be ALWAYS careful not to short-circuit any part of the circuitry with tools like a screwdriver in
hand.
- There may be a risk of fire or heavy damage of the unit.
ON MAINTENANCE
Do NOT use any kind of liquid for cleaning.
- There may be a risk of electric shock, fire or heavy damage of the unit. Use an air spray, if
needed.
Users are cautioned NOT to attempt repair of this product or modify the wirings set by the
installer
at their own discretion.
- It may pose the risk of fire, hardware damages, or abnormal operations of the unit.
It is recommended not to use a flammable spray or something easy to burn near this product.
- There may be the risk of an explosion or fire.
Keep the unit away from any unauthorized people.
- It may cause abnormal operations of the unit.
NOTICE
Please, contact a designated service centre or the outlet at which the product was purchased when
A. Any liquid has been spilt or sprayed onto the product. In this case, cut the power off first.
B. The product seems to be operating abnormally.
C. The unit exhibits a distinct change in performance.
D. The unit has fallen to be broken down or damaged on its case.
* The cost of repairing can be charged for troubles due to the improper handling or negligence
of users or the operator.

101-062 4 RF30 Proximity Reader
IDTeck
–
RF30 PROXIMITY READER
2. Introduction
The NESS - IDTECK RF30 is an elegant looking and attractive 30cm (12") read range proximity
reader, which can be mounted on any flat wall surface. The RF30 uses the electronics module in
epoxy potting that ensures successful operations even in harsh environments.
The two-colour LED of green and red and the inside Piezo buzzer sound will guarantee you
accurate and reliable system operations.
3. Identifying supplied parts
Please unpack and check the contents of the box.
ReaderModule RF30Bezel Instruction
4. Specification
Read Range Up to 30cm (12")
Input Voltage/Current DC 7V ~ 17V / Max. 170mA
Output Format 26 bit Wiegand, Magstripe ABA Track II
External Beeper control Input Low Active, DC 0 ~ 12V, Max. 50 mA
External LED control Input Low Active, DC 0 ~ 12V, Max. 50 mA
LED/Beeper 2-Colour LED (Red and Green) / Piezo Buzzer
Colour Dark Grey
Operating Environment -35℃~ +65℃ (-31℉~149℉), 0~90% Humidity
Overall Size (WxHxD) 130x154x20.5mm (5.2"x 6.2"x0.8")
Weight 420g (0.93 lbs)

101-062 5 RF30 Proximity Reader
IDTeck
–
RF30 PROXIMITY READER

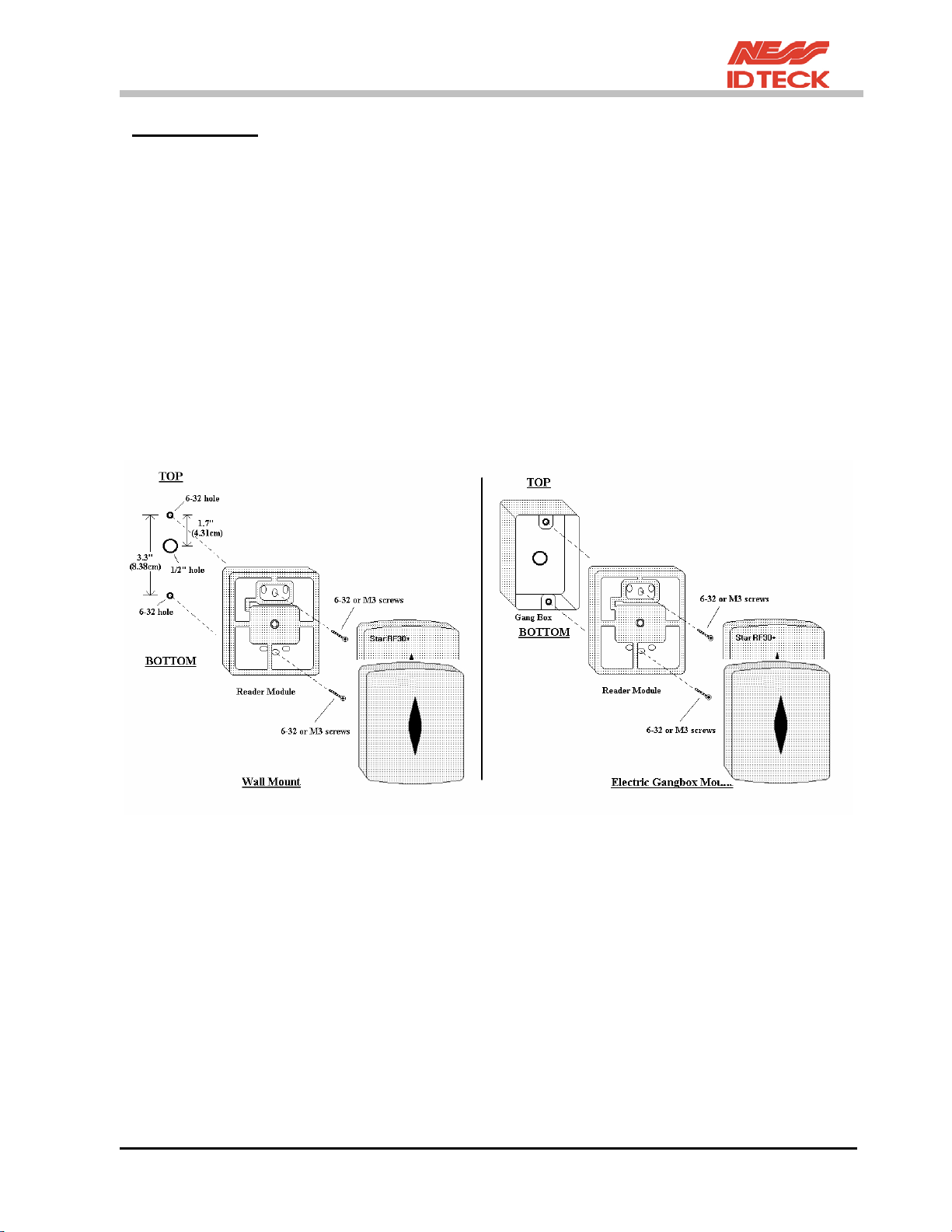

5. Installation
5-1. Wall Mount
Drill two 6-32 or M3 holes 3.3"(8.38cm) apart in vertical and drill one 1/2" hole for
the reader cable 1.7"(4.31cm) apart from the top hole.
(If you have installed an electric gang box then skip this step and go to step 4.2.)
5-2. Put reader cable into the centre hole and install the reader module by using two
6-32 or M3 screws (Not included).
5-3. Put bezel on to the reader module then push bezel until you hear the locking sound.

101-062 6 RF30 Proximity Reader
IDTeck
–
RF30 PROXIMITY READER
6. Wire Colour Table of the Reader
POWER
Power (DC +7V~+17V) DC (+) Red wire
Power (DC Ground) DC (-) (GND) Black wire
INPUT
Beeper control input BEEP Blue wire
LED control input LED Yellow wire
OUTPUT (Wiegand Format)
Wiegand Data-0 Data-0 Green wire
Wiegand Data-1 Data-1 White wire
OUTPUT (RS232 Format)
RS232 (TX) TX Violet wire
OUTPUT (ABA Track II Format)
ABA (Card Present) CP Orange wire
ABA (Clock) CLK White wire
ABA (Data) Data Green wire
Note: All ABA Track II outputs are open collector output.

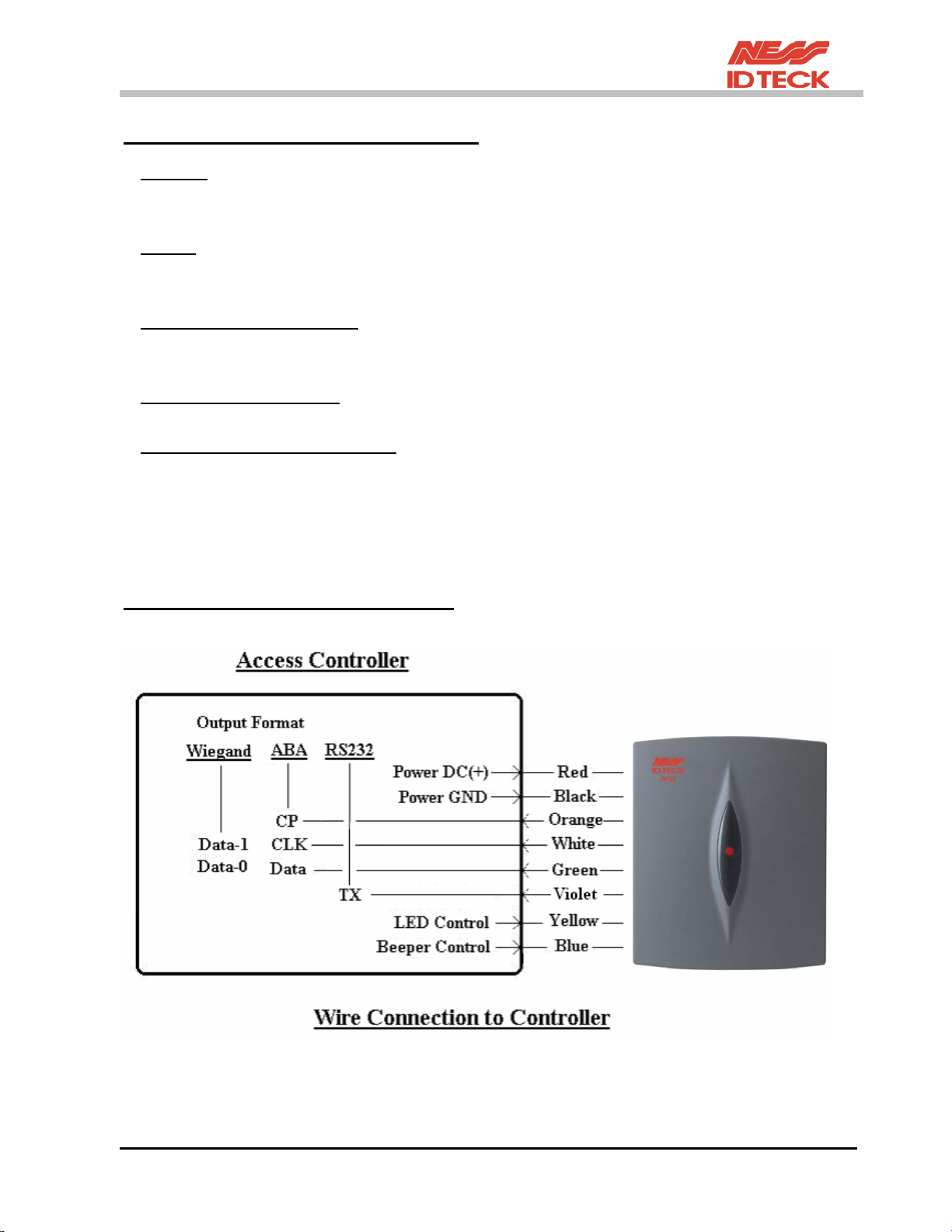

7. Wire Connection to Controller

101-062 7 RF30 Proximity Reader
IDTeck
–
RF30 PROXIMITY READER
8. Operation
8-1. Once power is applied, you should hear three beeping sounds and LED changes colour to
red-green-red indicating that the reader is in standby mode after a successful initialisation
and diagnostics.
8-2. Present proximity card to the reader until you hear the beeping sound and see the LED
changes colour to Green. The reader will send the RF card data to the controller then the
LED will change colour to Red again for the next reading.
8-3. LED Control:
To change the LED colours, you may connect the LED Control Input (Yellow wire) to
ground and the Green LED will turn on indicating that the reader is in standby mode.
Present proximity card and the LED will change colour to Red then Green again for the next
reading.
8-4. Beeper Control:
In normal operation, the reader generates one beep when it reads a proximity card, however
additional beeps can be generated to improve indication for access status (granted or denied)
by forcing the beeper control input (Blue wire) to system ground level. The beeper will
remain on as long as the Blue wire is connected to system ground.
9. The maximum length of the Wiegand cable
When this reader is used with a controller with the length of the Wiegand cable more than 70m in
length use AWG # 22 twisted pair.

101-062 8 RF30 Proximity Reader
IDTeck
–
RF30 PROXIMITY READER
