Net to Net Technologies IP Broadband Loop Carrier 4000 Manual

220-0000006 rev02 Net to Net Technologies, Inc.
112 Corporate Drive Suite 1
Pease International Tradeport
Portsmouth, NH 03801
877.638.2638 www.nettonettech.com
IP DSL Access
Multiplexer
Hardware Installation
Guide
• IPD12000
• IPD4000
© Copyright 1998-2001 Net to Net Technologies, Inc.
™ “DSL The Easy Way” and the Net to Net Logo are trademarks of Net to Net Technologies, Inc.
This manual may not be duplicated without prior permission from Net to Net Technologies, Inc.
This document is intended as a usage guide for the IP DSLAM family of products. All features defined herein are subject to change. Any features
inferred herein are accurate to the best knowledge of Net to Net Technologies, Inc. Please report any and all discrepancies to
[e-mail] or call toll free at 877-638-2638.

220-0000006 rev02 Net to Net Technologies, Inc.
112 Corporate Drive Suite 1
Pease International Tradeport
Portsmouth, NH 03801
877.638.2638 www.nettonettech.com
Table of Contents
Table of Contents.............................................................................................................................................................. 2
IP DSL Access Multiplexer Overview................................................................................................................................3
IP DSL Access Multiplexer 12000 ................................................................................................................................3
IP DSL Access Multiplexer 4000 .................................................................................................................................. 3
Installation......................................................................................................................................................................... 4
DC Power Installations ................................................................................................................................................. 4
AC Power Installations.................................................................................................................................................. 5
Installing Access and Uplink Modules .......................................................................................................................... 5
Connecting Cables to the IP DSLAMs.......................................................................................................................... 6
Installing and Removing the Fan Tray Module ............................................................................................................. 6

220-0000006 rev02 Net to Net Technologies, Inc.
112 Corporate Drive Suite 1
Pease International Tradeport
Portsmouth, NH 03801
877.638.2638 www.nettonettech.com
IP DSL Access Multiplexer Overview
Net to Net Technologies’ IP DSLAMs are designed to deliver high-speed data and voice connections over existing
telephone copper lines. The IPD12000 and IPD4000 multiplex multiple access technologies (IDSL, SDSL, T1, ADSL,
etc.) for upstream delivery to the provider’s packet network. The IP DSLAMs achieve this in conjunction with Net to Net
Subscriber Units, which are used on the other end of the copper line at the customer premise. This purpose of this
guide is to familiarize the user with the chassis and modules, and to inform the user of the proper installation
procedures of the IP DSLAM products.

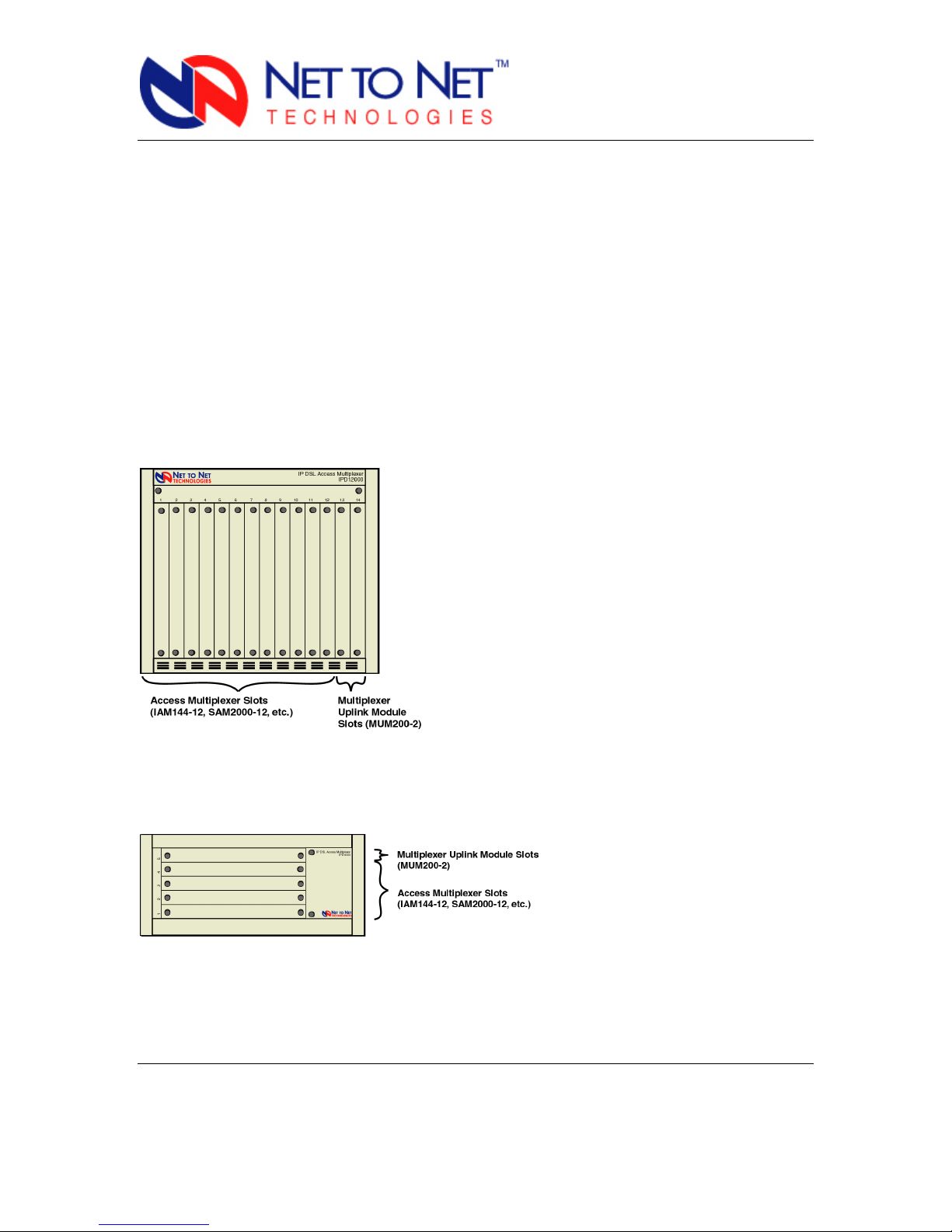

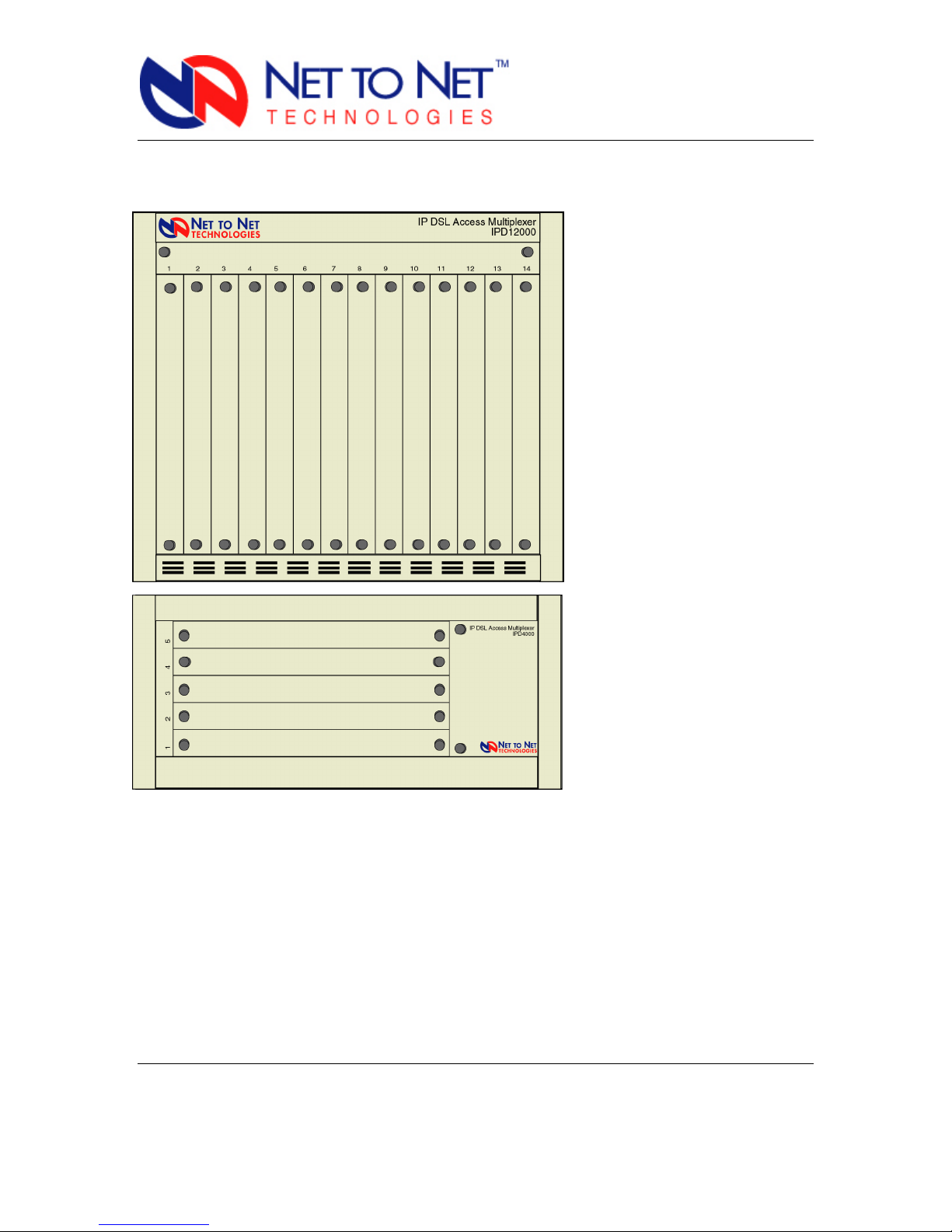

IP DSL Access Multiplexer 12000
The IPD 12000 is a 14 slot chassis. Slots 1-12 are reserved for
Multiplexer Access Modules (i.e. the IAM144-12 or the SAM2000-
12), and slot 13 and 14 are reserved for Multiplexer Uplink
Modules (i.e. the MUM200-2). Access Modules may be placed in
any order in slots 1-12. The IPD 12000 requires only one
Multiplexer Uplink Module; the second is for redundancy purposes.
When using only one Uplink Module, it may reside in slot 13 or 14,
and does not matter which slot is chosen. The chassis includes
mounting ears for a standard 19” equipment rack, or special
mounting brackets are available for 23” equipment racks.
IP DSL Access Multiplexer 4000
The IPD 4000 is a 5 slot chassis. Slots 1-4
are reserved for Multiplexer Access Modules
(i.e. the IAM144-12 or the SAM2000-12), and
slot 5 is reserved for Multiplexer Uplink
Modules (i.e. the MUM200-2). Access
Modules may be placed in any order in slots 1-4. The IPD 4000 houses only one Multiplexer Uplink Module. The
chassis includes mounting ears for a standard 19” equipment rack, or special mounting brackets are available for 23”
equipment racks.

220-0000006 rev02 Net to Net Technologies, Inc.
112 Corporate Drive Suite 1
Pease International Tradeport
Portsmouth, NH 03801
877.638.2638 www.nettonettech.com
Installation
Net to Net Technologies strongly recommends using proper grounding techniques when
installing the IP DSLAM chassis and modules.
DC Power Installations
1. When mounting unit into an equipment rack please adhere to the following:
• Maximum recommended ambient temperature is 30°C. Internal temperatures of rack should
be considered for continued safe operation.
• Do not block power supply vents or otherwise restrict airflow when installing unit in rack.
• Mechanical loading of rack should be considered so that the rack remains stable and unlikely
to tip over.
• Consideration of the overall loading of the branch circuit should be given before installing any
equipment in a rack environment.
• Ensure that a reliable grounding path is maintained in the rack system. This unit is intended
for a grounded connection.

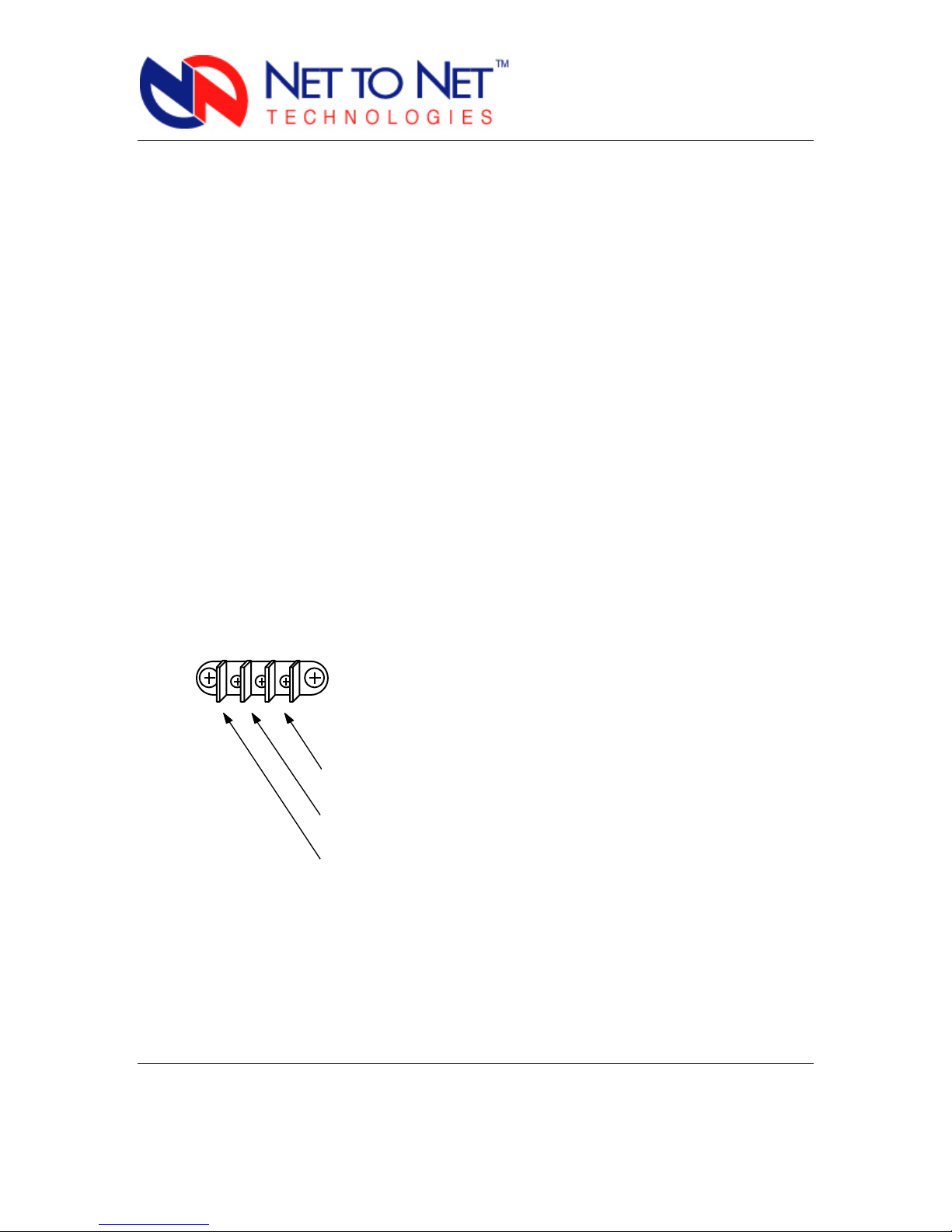

2. Attach the –48 VDC power leads and ground connection to the appropriate terminals indicated on the
back of the unit and supply power to the unit.
+ G -
Connect to Negative (-) DC Power feed
Connect to Ground
Connect to positive (+) DC Power Feed

220-0000006 rev02 Net to Net Technologies, Inc.
112 Corporate Drive Suite 1
Pease International Tradeport
Portsmouth, NH 03801
877.638.2638 www.nettonettech.com

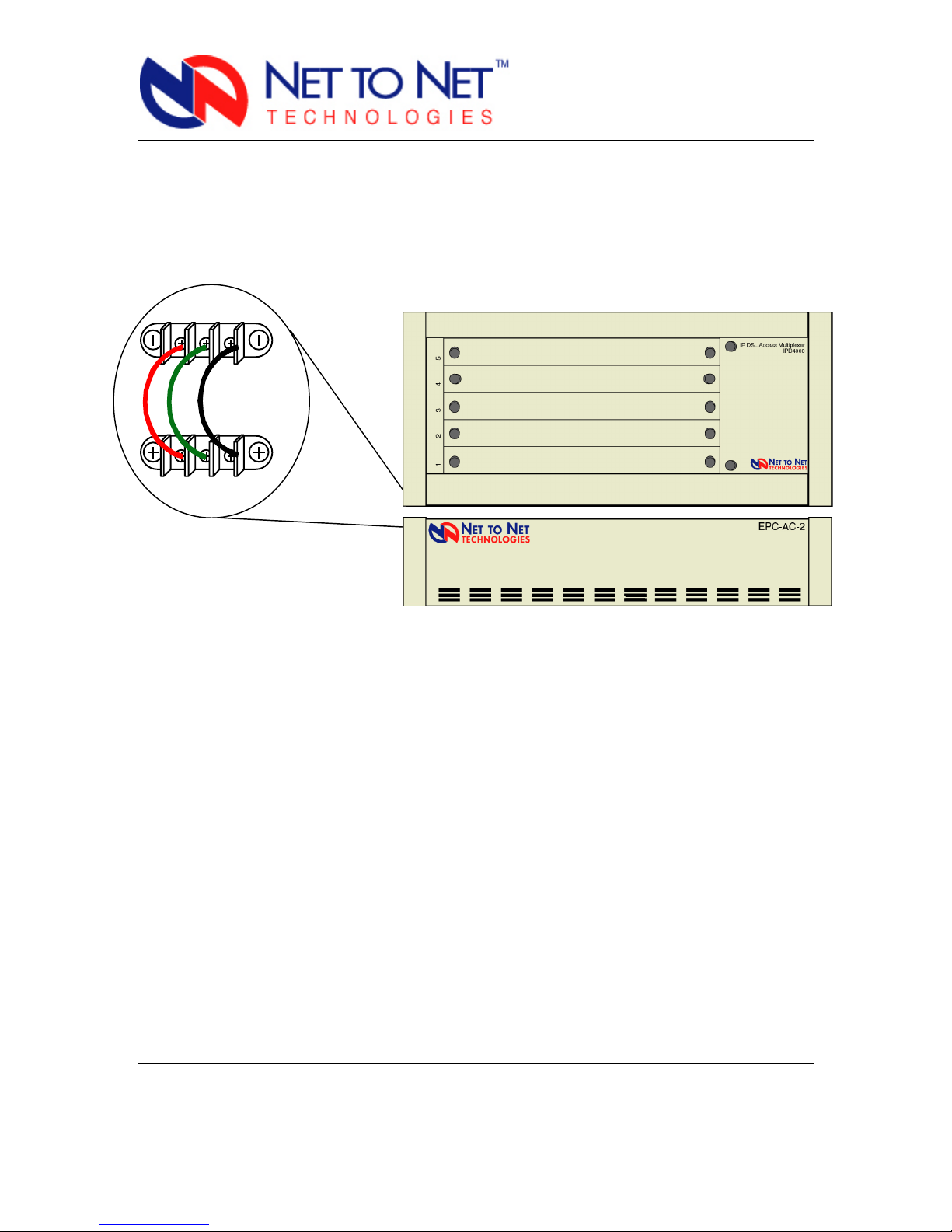

AC Power Installations
An external power converter is required to power the IP DSLAMs. Follow the instructions included with the AC to DC
power converter you are using to power the IP DSLAM.
+ G -
Installing Access and Uplink Modules
1. Ensure that proper grounding techniques are being used when installing modules into the IP DSLAM.
2. Align module with slot module guides and slide module gently but firmly all the way into the chassis.
3. Tighten screws on front of Module.
IP DSLAM Access Modules and fan trays are hot swappable; installing or removing an Access Module or Fan Tray
while the chassis is powered up does not affect the operational status of other Access Modules within the chassis.
There must be a Multiplexer Uplink Module installed in the IP DSLAM chassis in order for Access Modules to operate.
Once the Multiplexer Uplink Module and Access Modules have been installed, all configuration settings are software
selectable via the IP DSLAM Network Management System (NMS). For further instruction please refer to the IP
DSLAM NMS Users Guide. Information such as interface pin-outs and LED indications can be found in module specific
Users Guides.
CAUTION: To ensure proper cooling of the chassis, blanking plates must be left in any slots for which an
Access Module (or 2nd Multiplexer Uplink Module on the IPD12000) will not be installed.

220-0000006 rev02 Net to Net Technologies, Inc.
112 Corporate Drive Suite 1
Pease International Tradeport
Portsmouth, NH 03801
877.638.2638 www.nettonettech.com
Connecting Cables to the IP DSLAMs
Cables used to connect copper pairs into the IP DSLAMs may be connected with the chassis powered on or off. Extra
caution should be taken when installing cables near the DC terminal blocks. Cable pin-out information is module
specific; refer to the User Manual for each module for cable pin-out information.

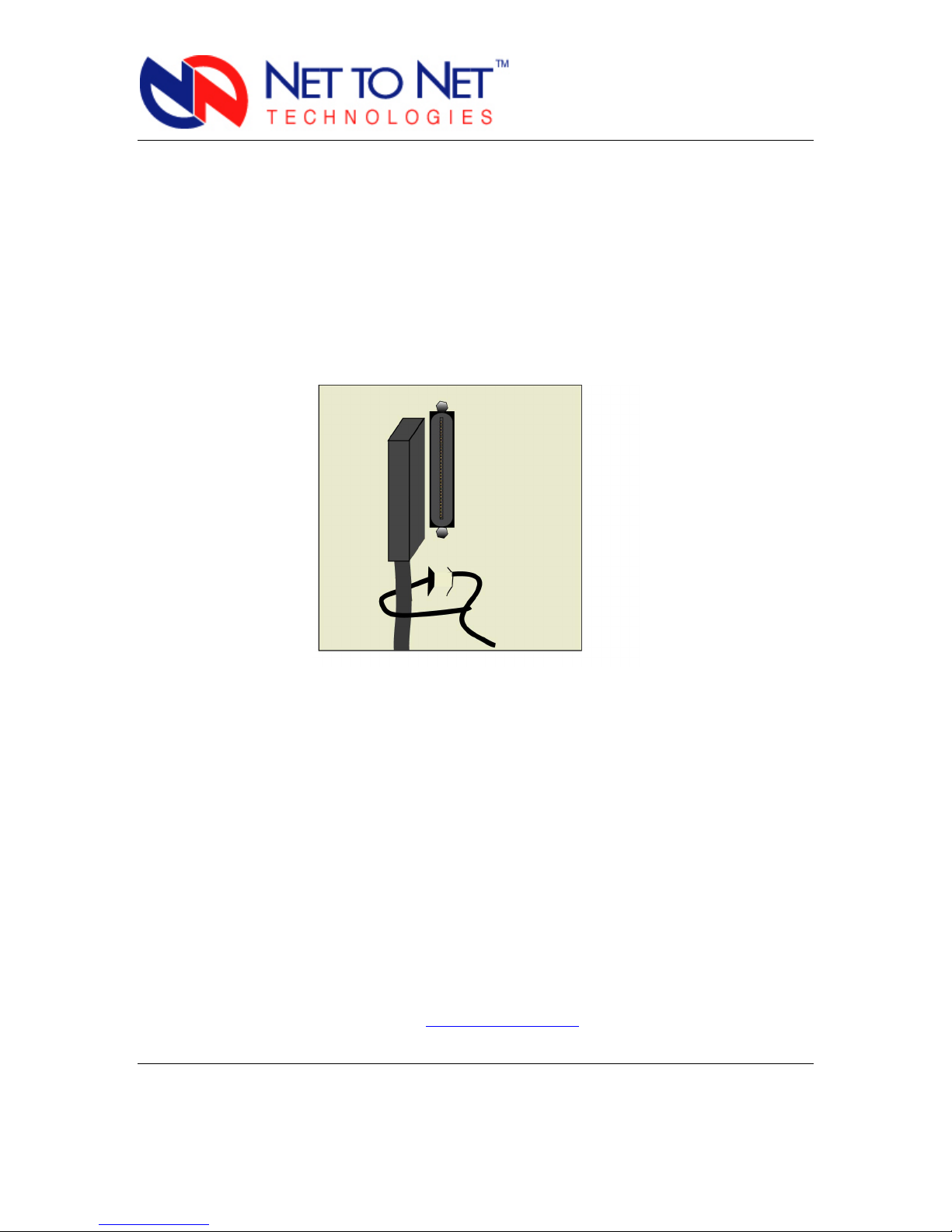

To install cables on the back of the IP DSLAMs, simply push the RJ-21 connector on to the connector on the back of
the chassis. Secure the cable in place using one of the provided cable ties.
Installing and Removing the Fan Tray Module
The fan tray module may be installed when the chassis is either powered on or off. Net to Net Technologies
recommends always using the fan tray when an IP DSLAM is in service.
To install the fan tray, simply guide the module into the fan tray slot and tighten the screws. To remove the fan tray,
loosen the screws and disengage the fan tray from the backplane. Allow the fan blades to come to a complete stop
before completely removing from the chassis.
Caution should be taken when removing the fan tray module. The fan blades take a few seconds to come to a
complete stop. Do not touch the fan blades until they come to a complete stop.
Need help?
If you need additional assistance with any of Net to Net Technologies’ products, please call 877-638-2638 or (603)
427-0600 for Support. We can also be reached at [email protected].
