Net2Phone Max 410 User manual

Max 410/420/430
The specifications and information regarding the products in
this manual are subject to change without notice. All
statements, information, and recommendations in this manual
are believed to be accurate but are presented without warranty
of any kind, express or implied. Users must take full
responsibility for their application of any products.
The software license and limited warranty for the
accompanying product are set forth in the information packet
that shipped with the product and are incorporated herein by
this reference. If you are unable to locate the software license
or limited warranty, contact your Net2Phone representative for
a copy.
The following information is for FCC compliance of Class A
devices: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to part 15
of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio-frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case
users will be required to correct the interference at their own
expense.
The following information is for FCC compliance of Class B
devices: The equipment described in this manual generates
and may radiate radio-frequency energy. If it is not installed in
accordance with 's installation instructions, it may cause
interference with radio and television reception. This
equipment has been tested and found to comply with the limits
for a Class B digital device in accordance with the
specifications in part 15 of the FCC rules. These specifications
are designed to provide reasonable protection against such
interference in a residential installation. However, there is no
guarantee that interference will not occur in a particular
installation.
Modifying the equipment without 's written authorization may
result in the equipment no longer complying with FCC
requirements for Class A or Class B digital devices. In that
event, your right to use the equipment may be limited by FCC
regulations, and you may be required to correct any

interference to radio or television communications at your own
expense.
You can determine whether your equipment is causing
interference by turning it off. If the interference stops, it was
probably caused by the Net2Phone equipment or one of its
peripheral devices. If the equipment causes interference to
radio or television reception, try to correct the interference by
using one or more of the following measures:
· Turn the television or radio antenna until the interference
stops.
· Move the equipment to one side or the other of the television
or radio.
· Move the equipment farther away from the television or
radio.
· Plug the equipment into an outlet that is on a different circuit
from the television or radio. (That is, make certain the
equipment and the television or radio are on circuits controlled
by different circuit breakers or fuses.)
Modifications to this product not authorized by Net2Phone
could void the FCC approval and negate your authority to
operate the product.
Notwithstanding any other warranty herein, all document files
and software of these suppliers are provided "as is" with all
faults. and the above-named suppliers disclaim all warranties,
expressed or implied, including, without limitation, those of
merchantability, fitness for a particular purpose and non-
infringement or arising from a course of dealing, usage, or
trade practice.
In no event shall Net2Phone or its suppliers be liable for any
indirect, special, consequential, or incidental damages,
including, without limitation, lost profits or loss or damage to
data arising out of the use or inability to use this manual, even
if or its suppliers have been advised of the possibility of such
damages.
Max 410/420/430, Net2Phone, and the logo are registered
trademarks of , Inc. in the US and certain other countries. All
other trademarks mentioned in this document are the property
of their respective owners.
Max 410/420/430 User’s Guide
Rev. 1.3.5 December 2002

Max 410/420/430
Copyright © 2002, Net2Phone, Inc. All rights reserved
The use, disclosure, modification, transfer, or transmittal of this
work for any purpose, in any form, or by any means, without
the written permission of Net2Phone is strictly forbidden.
Printed in Korea

Max 410/420/430
1
1 OVERVIEW......................................................1
1.1 SYSTEM FEATURES .....................................1
1.2 ABOUT THIS GUIDE......................................2
1.3 PRODUCT ENHANCEMENTS FOR VERSION
1.3.5 ..........................................................3
1.4 HARDWARE SETUP......................................4
1.4.1 Hardware Requirements....................4
1.4.2 Additional Requirements....................5
1.4.3 The Hardware Setup Procedure.........6
1.5 LOCATING YOUR FXS AND/OR FXO PORTS ..7
1.5.1 Physical Port Numbering....................7
1.6 INSTALLING THE MAX 410/420/430 UNIT ......8
1.6.1 Connecting the Max 410’s FXO Ports
to a PBX..........................................10
1.6.2 Connecting the Max 420’s FXS Ports
to a PBX..........................................11
1.6.3 Connecting the Max 430’s FXS/ FXO
Ports to telephone / PBX.................12
2 CONNECTING THE MAX 410/420/430 TO A
LAN.........................................................13
2.1 CONNECTING THE MAX 410/420/430 TO A
DHCP LAN ..............................................13
2.1.1 Obtaining the Max 420/430’s DHCP IP
Address via a Telephone Keypad....14
2.1.2 Connecting to the Max 410 through a
Serial Cable ....................................15
2.2 CONNECTING TO A LAN WITH STATIC IP
ADDRESSES..............................................18

User’s Guide Section 1
2
2.2.1 Entering Static IP addresses from a
Telephone Keypad..........................18
2.2.2 Entering Static IP Addresses via
HyperTerminal (Max 410)................22
3 LOGGING IN TO THE MAX WEB MANAGER26
4 USING THE MAX WEB MANAGER........30
4.1 NETWORK AND VOICE CONFIGURATION ......31
4.2 CONFIGURING FIREWALLS..........................32
4.3 CONFIGURING ACCOUNTS..........................35
4.3.1 Single Account Management ...........35
4.3.2 Multiple Account Management.........37
4.3.3 The Login Button..............................38
4.3.4 Announce Account Balance.............38
4.3.5 FAX Only Option..............................38
4.4 IVR (INTERACTIVE VOICE RESPONSE)
CONFIGURATION........................................39
4.4.1 The Remote Access IVR Configuration
Table...............................................39
4.4.2 The Max-to-Max IVR Configuration
Table...............................................43
4.5 THE CURRENT ROUTING TABLE..................50
4.5.1 Logical Port Numbering....................51
4.5.2 Adding an Entry to the Current Routing
Table...............................................51
4.6 SYSTEM INFORMATION AND COMMANDS .....53
4.7 OTHER WEB MANAGER FUNCTIONS............54
4.7.1 Load Default Config .........................54
4.7.2 Show Log Messages........................55
4.7.3 Restart System ................................56

Max 410/420/430
3
4.7.4 Upgrading the System Software........56
4.7.4 Upgrading the System Software........57
4.7.5 Help with your Max 410/420/430......58
5 PLACING CALLS...................................59
5.1 THE POUND KEY .......................................59
5.2 PLACING CALLS TO THE PSTN...................59
5.3 MAX-TO-MAX CALLING...............................59
5.3.1 Calling a Max 420’s FXS port from
another Max....................................59
5.3.2 Calling a Max 410’s FXO port from
another Max....................................60
APPENDICES.....................................................63
APPENDIX A – TROUBLESHOOTING .....................63
A. 1 Common mechanical installation
problems and corrective actions......63
A. 2 Common network connection problems
........................................................65
A. 3 Common configuration problems......67
A. 4 Problems using the Max 410/420/430
........................................................68
APPENDIX B – TECHNICAL SUPPORT...................70
APPENDIX C – SYSTEM SPECIFICATIONS.............71
APPENDIX D – PHYSICAL AND LOGICAL PORT
NUMBER TABLE.........................................73
APPENDIX E – APPROVALS AND LISTINGS ...........74
INDEX ................................................................76

Max 410/420/430
1
1 Overview
1.1 System Features
Congratulations on purchasing the Max 410/420/430!
The Max 410/420/430 is a Voice over Internet Protocol
(VoIP) device that allows you to make multiple outgoing
calls over the Internet using a single Ethernet Local Area
Network (LAN) connection. The Max 410/420/430 works
like a gateway to convert the analog signal from your
telephones to Voice over Internet Protocol (VoIP). It then
uses the LAN’s broadband connection to send calls over
the Internet via ’s service platform. Since Net2Phone
calls bypass most of the Public Switched Telephone
Network (PSTN), the result is significant savings on
long-distance communications services.
The Max 410/420/430 is a stand-alone device that
connects directly into an existing LAN through an RJ-45
port. The Max 410 contains four FXO ports, Max 420
contains four FXS ports and Max 430 contains 3 FXS
ports and 1 FXO port.
FXS (Foreign EXchange Station) interfaces are used to
connect standard analog devices such as corded and
cordless telephones or fax machines. Optionally, they
may be connected to the analog trunk card on a Public
Branch Exchange (PBX), Automatic Public Branch
Exchange (APBX), or Key Phone System (KPS)
systems. They are used to place outgoing calls over the
Internet and to receive incoming calls from other
devices.
FXO (Foreign EXchange Office) ports connect to the
analog line card on a PBX, APBX, or KPS, or to an

User’s Guide Section 1
2
analog phone jack, to provide connectivity to the Max
from phones both inside and outside of the PBX system.
In addition to the FXS functions, FXO ports provide
limited Interactive Voice Response (IVR) functionality,
which includes multiple options for caller greetings,
passwords, and Internet call forwarding. This allows the
Max 410 to assume many IVR functions when the PBX
does not provide them.
A separate port with its own telephone line connection to
the PBX, or to an analog telephone, is required for every
concurrent telephone call (or conversation). For
example, if capability for 3 concurrent calls is desired,
then the Max must have at least 3 ports connected to the
PBX or to analog telephones.
The Max 410/420/430 features several proprietary QoS
(Quality of Service) enhancements, including:
•G.168 echo cancellation
•Voice Activity Detection (VAD)
•Comfort Noise Generation (CNG)
•Dynamic jitter buffer control
1.2 About This Guide
This User’s Guide, as well as the other instructional
literature that accompanies the Max 410/420/430, is
intended for people who have a moderate degree of
experience installing networking equipment such as
routers, hubs, servers, and switches, and are familiar
with basic wiring and cabling practices.
In addition to this User’s Guide, the Max 410/420/430 is
shipped with three product manuals:
•A Quick Start Guide describing hardware
installation, cabling, and configuration for a basic,
uncomplicated installation.

Max 410/420/430
3
•A Hardware Installation Guide describing
hardware installation, cabling, and safety-related
issues.
•A Command Reference Guide describing
advanced configuration of the Max 410/420/430
through a serial connection.
1.3 Product Enhancements for Version 1.3.5
•Improved Call Quality – The Max 8/16 is now
compatible with more state-of-the-art gateways
such as Nuera and Cisco (when available),
which greatly improves the quality of calls with
reduced latency.
•Dropped Call Prevention – The Max
410/420/430 is now more reliable in retaining
calls in progress by re-establishing connections
to call controllers if an IP stream is lost. This
feature will greatly improve dropped call
problems for ADSL or Cable modem users as
well as LAN network users.
•Account Balance Announcement by Port –
The Max 410/420/430 has a Web configurable
toggle switch that enables the IVR to announce
the account balance or minutes remaining on
the port that the call is going over.
•New Greeting Message - A greeting message
will play prior to the dialed call being sent to the
call servers.
•Voice file changes – Newer, clearer voice files
have been added.
•New Password Functionality - When a user
selects Password mode or Acc/Pin/Password
mode and the password field is empty, an error

User’s Guide Section 1
4
message is displayed and the password value is
not saved in flash memory.
•Call Detail Record (CDR) Generation –
Administrators can select to have CDRs
generated and sent to the Max Automated
Billing System (ABS).
•RTF 2833 Enhancement for Disordered
Packets - The Max 410/420/430 now
automatically corrects the order sequence of
data packets if they are received out of order.
•TX/RX silence detection – the Max
410/420/430 detects both TX/RX silence on an
FXO port and then disconnects the call based
on the duration of call silence.
•Multiple Frames per Packet Support - Now
the Max 410/420/430 supports multiple frames
per packet on the G.732 codec.
•Upgraded Vocfiles – Updated vocfile included
with software upgrade.
•Fax Mode Support – Fax only mode feature
added in web configuration, which allows the
Max 410/420/430 to connect to a server that can
handle fax data transmission.
If you have an older version of the Max 410/420/430
software, and you want to take advantage of these
new features, you can download the software from:
http://web..com/partnersupport/ devicesoftware/
1.4 Hardware Setup
1.4.1 Hardware Requirements
To use the Max 410/420/430, you will need:

Max 410/420/430
5
•A Max 410/420/430 unit and power cord.
•A Local Area Network (LAN) with a broadband
connection, which must not have proxy server
caching.
•If your LAN uses static addresses you will also
need: an IP address, netmask, and gateway
address for the Max (all available from your
Network Administrator).
•With FXS ports: a corded or cordless analog
telephone, and additional analog devices as
desired for each port. Optional: a PBX, APBX, or
KPS with an analog trunk card installed.
•With FXO ports: a PBX, APBX, or KPS with an
analog line card installed.
•A Net2Phone account number and PIN
(available from your reseller).
•A separate port with its own telephone line
connection to the PBX, or to an analog
telephone, is required for each concurrent
telephone call desired. For example, if capability
for 3 concurrent calls is desired, then the Max
must have at least 3 ports, each connected to
the PBX or to an analog telephone.
1.4.2 Additional Requirements
To configure and manage the unit, you will need:
•A PC workstation with any recent Web browser,
connected to the LAN.
•For Max units with FXO ports only (for initial
LAN configuration):
– The HyperTerminal PC application (included
in all Microsoft operating systems), or an
equivalent terminal-emulator application.
– A standard serial cable (see Section 2.1.2.1)

User’s Guide Section 1
6
NOTE: On the Max 410, LAN
settings must be configured using a
PC with a serial cable connection.
For details see Section 2.1.2
Connecting to the Max 410 Through
a Serial Cable in this Guide.
1.4.3 The Hardware Setup Procedure
1.4.3.1 The Hardware Installation Guide
A Hardware Installation Guide that describes
hardware installation, cabling, and safety-related
issues provided along with your Max
410/420/430 unit. Please read that manual in its
entirety before beginning your hardware
installation. Make sure you completely
understand the issues discussed and, in
particular, the safety warnings given.
1.4.3.2 Steps in the Hardware Setup Procedure
The steps you will follow to set up your Max
410/420/430 are:
1. Install the Max 410/420/430 unit in its
location and connect the cabling.
2. Configure the LAN settings on the Max
410/420/430 so that it communicates with
your LAN.
3. Log in to the Max 410/420/430 Web
Manager.
4. Finish configuring your FXS ports via the
Web Manager.
5. Test your installation by making an Internet
telephone call.

Max 410/420/430
7
1.5Locating Your FXS and/or FXO Ports
You need to be able to identify the Max’s physical
port numbers before you can begin configuring its
LAN settings.
The RJ-11 sockets are visible on the Max’s rear
panel. Figure 1, below, shows the rear panel of a
Max with 4 ports.
1.5.1 Physical Port Numbering
Figure 1 illustrates the physical port numbering on
the Max 410/420/430’s rear panel for a unit with 4
ports installed. These numbers are referenced by
the Max Web Manager when identifying ports,
setting up the Max’s features and configuring calling
accounts.
Figure 1
Figure 2

User’s Guide Section 1
8
As the illustration shows, the ports are numbered
from left to right. The left-most port is port number 1
and the last one on the right is number 4.
Ports also have logical numbers, used by the
Routing Table, which are different from their physical
numbers. Logical port numbering is where the FXS
and FXO ports are counted separately, and the
count starts from zero instead of one (See Section
4.5, Routing Table, in this Guide).
1.6 Installing the Max 410/420/430 Unit
Proceed with installation as follows:
1. Install the unit in a well-ventilated area. If it is to
be placed on a surface rather than in a rack, be
sure that all four rubber feet are in place to allow
for proper air circulation. Do not place objects in
excess of 20 pounds on top of the unit.
Please refer to the Max 410/420/430
Hardware Installation Guide and
observe the safety precautions
listed.
2. Connect an analog telephone to any one of the
FXS ports. (Max-420)

Max 410/420/430
9
3. Connect the RJ-45 LAN port to a hub or switch.
4. Connect your FXS and/or FXO ports to your PBX
as per the illustrations in Figures 3, 4, and 5,
below.
NOTE: For the Max 410,
initial LAN configuration is
done via a PC connected to
the Max through its serial
port, using the HyperTerminal
terminal emulator application
(or equivalent), which is
included with all Microsoft™
operating systems. This
procedure is explained in
Section 2.1.2.1, Connecting
to the Max 410/420/430
Using HyperTerminal.

User’s Guide Section 1
10

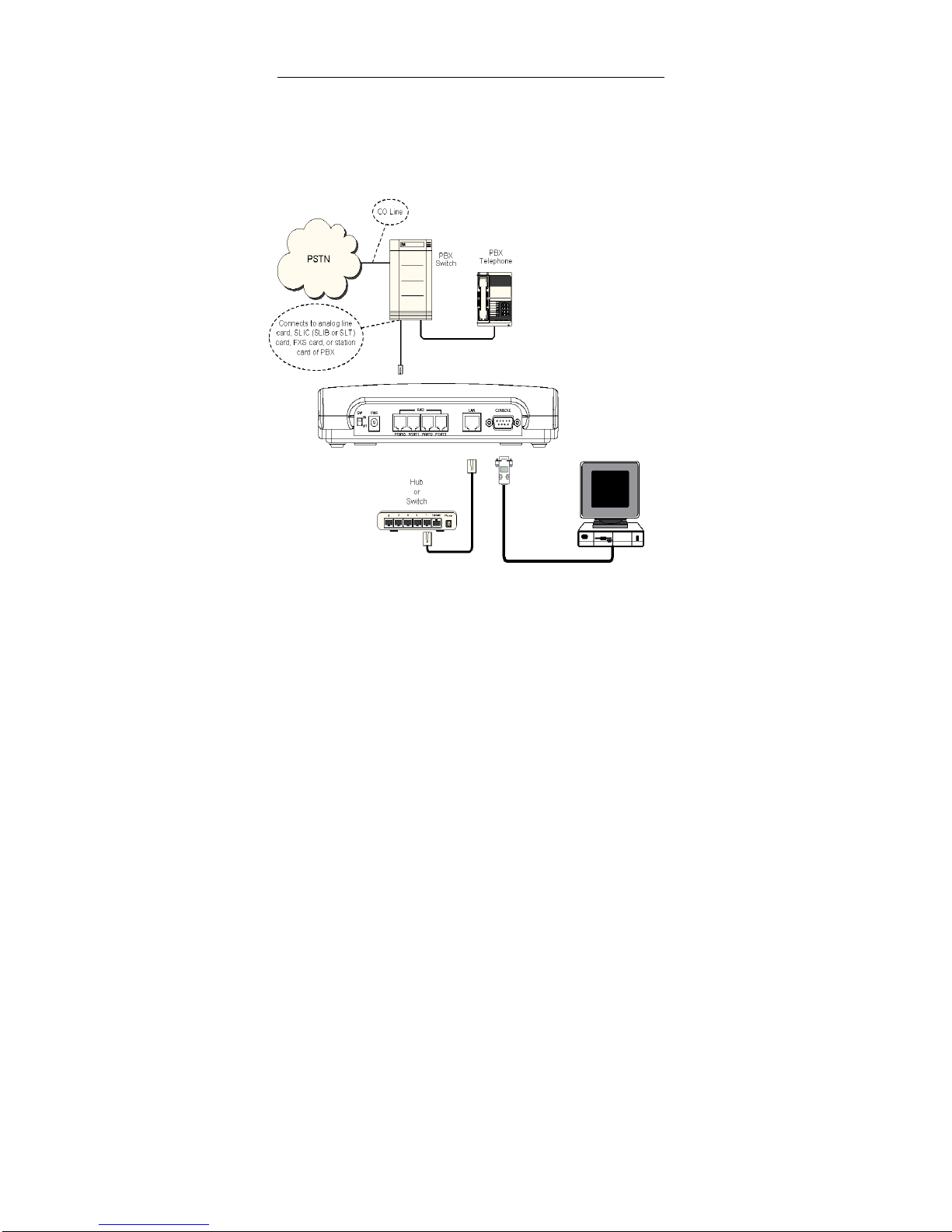

1.6.1 Connecting the Max 410’s FXO Ports to a
PBX
COIC/COIB: Central Office Interface Card or Board
PBX: Private Branch Exchange
PSTN: Public Switched Telephone Network
Trunk or CO Line: line from Central Office switch
Figure 3
