NetApp BES-53248 User manual

Broadcom-supported
BES-53248 Cluster Switch
Installation Guide
215-14867_A0

SAFETY & REGULATORY INFORMATION
About the Manual
This installation guide is meant for network administrators with in-depth
knowledge in network management.
To avoid personal injury or property damage, before you begin installing the product,
read, observe, and adhere to all the following safety instructions and information.
The following symbols are used throughout the guide to highlight important information
and may be marked on the product and / or the product packaging.
NOTE
WARNING
CAUTION
Indicates useful information.
Indicates safety information that if ignored may cause the system
to malfunction or damage other equipment.
Indicates safety information that if ignored may cause personal
injury or death.
Intended Application Uses
This product was evaluated as Information Technology Equipment (ITE). which may be
installed in offices, schools, computer rooms, and similar commercial type locations.
The suitability of this product for other product categories and environments (such as
medical, industrial, residential, alarm systems, and test equipment), other than an ITE
application, may require further evaluation.
Safety Information
Switch Safety Information
To reduce the risk of body injury, electrical shock, fire, and equipment damage, read
this document and observe all warnings and precautions before installing or maintaining
your switch.
In the event of a conflict between the information in this document and the
information provided with the product or on the website of a particular product, the
product documentation takes precedence.
The switch should be integrated and serviced only by technically qualified persons.
You must adhere to the guidelines in this guide and the assembly instructions in the
switch manuals to ensure and maintain compliance with existing product certifications
and approvals. Use only the described, regulated components specified in this guide. Use
of other products / components will void the UL Listing and other regulatory approvals of
the product and may result in noncompliance with product regulations in the region(s) in
which the product is sold.
Follow the safety guidelines below to ensure personal safety and protect the system
and the working environment from potential damage.
1Network Switch Installation Guide

CAUTION
•The power supplies in the system may produce high voltages and energy
hazards which can cause bodily harm. Do not remove the covers and
access any of the components inside the system.
•To reduce the risk of electrical shock, disconnect all power supply
cables before servicing the system.
•Do not use the mounted equipment as a shelf or a workspace.
•Restricted Access Location: The switch is intended for installation only in
aServer Room or Computer Room where both these conditions apply:
√access can only be gained by SERVICE PERSONS or by USERS who have
been instructed about the reasons for the restrictions applied to the
location and about any precautions that shall be taken; and
√access is by a TOOL or lock and key, or other means of security, and is
controlled by the authority responsible for the location.
WARNING
When a power supply needs replacement, replace the power supply only
with the same or equivalent type recommended by the manufacturer.
Replacing with an incorrect power supply may cause explosion.
•Observe and follow service markings. Do not service the product yourself. Components
inside the system should only be serviced by trained service technician.
•If any of the following conditions occur, unplug the equipment from the
electrical outlet and replace the part or contact a trained service technician:
√The power cable, extension cable, or plug is damaged
√The equipment has been exposed to water
√The equipment has been dropped or damaged
√The equipment does not operate correctly when you follow the
operating instructions
•Do not spill food or liquid on the equipment.
•Never operate the equipment in a wet environment.
•Do not push any objects into the opening of the equipment. Doing so may short
internal components and cause fire or electric shock.
•Use the system only with approved equipment.
•Allow the product to cool before removing any peripherals.
•Operate the equipment only from the type of external power source indicated on the
electrical ratings label. If you are unsure of the type of power source required, consult
your local power company.
•Use only approved power cable(s).
•To help prevent electric shock, plug the system and peripheral power cables into
properly grounded electrical outlets. Do not use adapter plugs or remove the
grounding prong from a cable. If you must use an extension cable, use an
extension cable with properly grounded plugs.
•Observe and follow service markings. Do not service the product yourself. Components
inside the system should only be serviced by trained service technician.
•If any of the following conditions occur, unplug the equipment from the
electrical outlet and replace the part or contact a trained service technician:
√The power cable, extension cable, or plug is damaged
√The equipment has been exposed to water
Network Switch Installation Guide 2

√The equipment has been dropped or damaged
√The equipment does not operate correctly when you follow the
operating instructions
•Do not spill food or liquid on the equipment.
•Never operate the equipment in a wet environment.
•Do not push any objects into the opening of the equipment. Doing so may short
internal components and cause fire or electric shock.
•Use the system only with approved equipment.
•Allow the product to cool before removing any peripherals.
•Operate the equipment only from the type of external power source indicated on the
electrical ratings label. If you are unsure of the type of power source required,
consult your local power company.
•Use only approved power cable(s).
•To help prevent electric shock, plug the system and peripheral power cables into
properly grounded electrical outlets. Do not use adapter plugs or remove the
grounding prong from a cable. If you must use an extension cable, use an
extension cable with properly grounded plugs.
•Observe extension cable and power strip ratings. Ensure that the total ampere rating
of all products plugged into the extension cable or power strip does not exceed 80% of
the ampere ratings limit for the extension cable or power strip.
•To protect the equipment from sudden, transient increase or decrease in
electrical power, use a surge suppressor, line conditioner, or uninterruptible
power supply (UPS).
•Do not modify power cables or plugs. Consult a licensed electrician or your power
company for site modifications. Always follow your local/national wiring rules.
•To avoid possible damage to the system board, wait 5 seconds after turning off
the system before removing a component from the system board or disconnecting
a peripheral device.
•When connecting or disconnecting power to the hot-pluggable power supply units,
observe the following guidelines:
√Unplug the power cable before removing the power supply.
√Install the power supply to the system before connecting the power cable to
the power supply.
√If the system has multiple sources of power, disconnect power from the system
by unplugging all power cables from the power supplies.
•When disconnecting a cable, pull on its connector or on its strain-relief loop, and
not on the cable itself.
3Network Switch Installation Guide

Installation Assembly Safety Instructions
•The power supply in this product contains no user-serviceable parts. Refer servicing
only to qualified personnel.
•Do not attempt to modify or use the supplied AC power cord if it is not the exact type
required. A product with more than one power supply will have a separate AC power
cord for each supply.
•To remove the AC power from the system, you must unplug each AC power cord from
the wall outlet or power supply. The power cord(s) is considered the disconnect device
to the main (AC) power. The socket outlet that the system plugs into shall be installed
near the equipment and shall be easily accessible.
•A microprocessor and heat sink may be hot if the system has been running. Also,
there may be sharp pins and edges on some board and chassis parts. Contact should
be made with care. Consider wearing protective gloves.
•Danger of explosion if the battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the equipment manufacturer. Dispose of
used batteries according to manufacturer’s instructions.
•The system is safety certified as rack-mounted equipment for use in a server room or
computer room, using the customer rack kit. The rail racks are designed to carry only
the weight of the system. Do not place additional load onto any rail-mounted
equipment. System rack kits are intended to be installed in a rack by trained service
technicians.
Site Selection
The system is designed to operate in a typical office environment. Choose a site that is:
•Clean and free of airborne particles (other than normal room dust).
•Well ventilated and away from sources of heat including direct sunlight and radiators.
•Away from sources of vibration or physical shock.
•Isolated from strong electromagnetic fields produced by electrical devices.
•In regions that are susceptible to electrical storms, we recommend you plug your
system into a surge suppressor and disconnect telecommunication lines to your
modem during an electrical storm.
•Provided with a properly grounded wall outlet.
•Provided with enough space to access the power supply cord(s), because they serve
as the product’s main power disconnect.
•Provided with either two independent AC power sources or two independent
phases from a single source.
Equipment Handling Practices
Reduce the risk of personal injury or equipment damage:
•Conform to local occupational health and safety requirements when moving and
lifting equipment.
•Use mechanical assistance or other suitable assistance when moving and lifting the
equipment.
•To reduce the weight for easier handling, remove any easily detachable components.
Power and Electrical Warnings
CAUTION
Network Switch Installation Guide 4

•The power is active whenever the system is plugged in. To remove power
from the system, you must unplug the AC power cord from the wall outlet.
Your system may use more than one AC power cord. Make sure all AC power
cords are unplugged. Make sure the AC power cord(s) is/are unplugged before
you open the chassis or add or remove any non hot-plug components.
•Do not attempt to modify or use an AC power cord if it is not the exact type
required. A separate AC cord is required for each system power supply.
•The power supply in this product contains no user-serviceable parts. Do
not open the power supply. Hazardous voltage, current and energy levels
are present inside the power supply. Return to manufacturer for servicing.
•When replacing a hot-plug power supply, unplug the power cord to the power
supply being replaced before removing it from the switch.
Power Cord Warnings
If an AC power cord was not provided with your product, purchase one that is
approved for use in your country.
CAUTION
•To avoid electrical shock or fire, check the power cord(s) that will be used with
the product as follows:
√access can only be gained by SERVICE PERSONS or by USERS who
have been instructed about the reasons for the restrictions applied to
the location and about any precautions that shall be taken; and
√access is by a TOOL or lock and key, or other means of security, and is
controlled by the authority responsible for the location.
•The power cord must have safety ground pin or contact that is suitable for
the electrical outlet.
•The power supply cord(s) is/are the main disconnect device to AC power. The
socket outlet(s) must be near the equipment and readily accessible for
disconnection.
•The power supply cord(s) must be plugged into socket outlet(s) that is/are
provided with a suitable earth ground.
5Network Switch Installation Guide

System Access Warnings
CAUTION
•To avoid personal injury or property damage, the following safety instructions
apply whenever accessing the inside of the product:
√Turn off all peripheral devices connected to this product.
√Disconnect the AC power by unplugging all AC power cords from the
system or wall outlet.
√Disconnect all cables and telecommunication lines that are connected
to the system.
√Retain all screws or other fasteners when removing access cover(s).
Upon completion of accessing inside the product, refasten access cover
with original screws or fasteners.
√Do not access the inside of the power supply. There are no serviceable
parts in the power supply. Return to the manufacturer for servicing.
√Power down the switch and disconnect all power cords before adding
or replacing any non hot-plug component.
√When replacing a hot-plug power supply, unplug the power cord to the
power supply being replaced before removing the power supply from
the switch.
•Unless you are adding or removing a hot-plug component, allow the system to
cool before opening the covers. To avoid the possibility of coming into contact
with hot component(s) during a hot-plug installation, be careful when
removing or installing the hot-plug component(s).
•To avoid injury do not contact moving fan blades. If your system is supplied
with a guard over the fan, do not operate the system without the fan guard in
place.
Rack Mount Warnings
The following installation guidelines are required by UL for maintaining safety
compliance when installing your switch into a rack.
•The equipment rack must be anchored to an unmovable support to prevent it from
tipping when a server or piece of equipment is extended from it. The equipment
rack must be installed according to the rack manufacturer’s instructions.
•Install equipment in the rack from the bottom up, with the heaviest equipment at the
bottom of the rack.
•Extend only one piece of equipment from the rack at a time.
•You are responsible for installing a main power disconnect for the entire rack unit
This main disconnect must be readily accessible, and it must be labeled as controlling
power to the entire unit, not just to the server(s).
•To avoid risk of potential electric shock, a proper safety ground must be implemented
for the rack and each piece of equipment installed in it.
•Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the
operating ambient temperature of the rack environment may be greater than the
room ambient. Therefore, consideration should be given to installing the equipment in
an environment compatible with the maximum ambient temperature (Tma) specified
by the manufacturer.
•Reduced Air Flow - Installation of the equipment in a rack should be such that the
amount of air flow required for safe operation of the equipment is not compromised.
•Mechanical Loading - Mounting of the equipment in the rack should be such that a
hazardous condition is not achieved due to uneven mechanical loading.
Network Switch Installation Guide 6

•Circuit Overloading - Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits might
have on overcurrent protection and supply wiring. Appropriate consideration of
equipment nameplate ratings should be used when addressing this concern.
•Reliable Earthing - Reliable earthing of rack-mounted equipment should be
maintained.
•Particular attention should be given to supply connections other than direct
connections to the branch circuit (e.g. use of power strips).
Other Hazards
Battery Replacement
CAUTION
•There is the danger of explosion if the battery is incorrectly replaced.
When replacing the battery, use only the battery recommended by the
equipment manufacturer.
•Dispose of batteries according to local ordinances and regulations.
•Do not attempt to recharge a battery.
•Do not attempt to disassemble, puncture, or otherwise damage a battery.
Cooling and Airflow
CAUTION
•Carefully route cables as directed to minimize airflow blockage and cooling
problems. For proper cooling and airflow, operate the system only with the
chassis covers installed. Operating the system without the covers in place
can damage system parts. To install the covers:
√Check first to make sure you have not left loose tools or parts inside
the system.
√Check that cables, add-in cards, and other components are properly
installed.
√Attach the covers to the chassis according to the product instructions.
Laser Peripherals or Devices
CAUTION
•To avoid risk of radiation exposure and/or personal injury:
√Do not open the enclosure of any laser peripheral or device.
√Laser peripherals or devices are not serviceable.
√Return to the manufacturer for servicing.
√Use certified Optical Fiber Transceiver Class 1 Laser Product.
Regulatory and Compliance Information
Electromagnetic Compatibility Notices
FCC Verification Statement (USA) 1.5.1.1
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
7Network Switch Installation Guide

may accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment to an outlet on a circuit other than the one to which
the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the grantee of this device
could void the user’s authority to operate the equipment. The customer is responsible
for ensuring the compliance of the modified product.
Only peripherals (computer input/output devices, terminals, printers, etc.) that comply
with FCC Class A or B limits may be attached to this computer product. Operation with
noncompliant peripherals is likely to result in interference to radio and TV reception.
All cables used to connect to peripherals must be shielded and grounded. Operation
with cables, connected to peripherals, that are not shielded and grounded may result in
interference to radio and TV reception.
Europe (CE Declaration of Conformity) 1.5.1.2
This product has been tested in accordance with and complies with the Low Voltage
Directive (73/23/EEC) and EMC Directive (89/336/EEC). The product has been
marked with the CE Mark to illustrate its compliance.

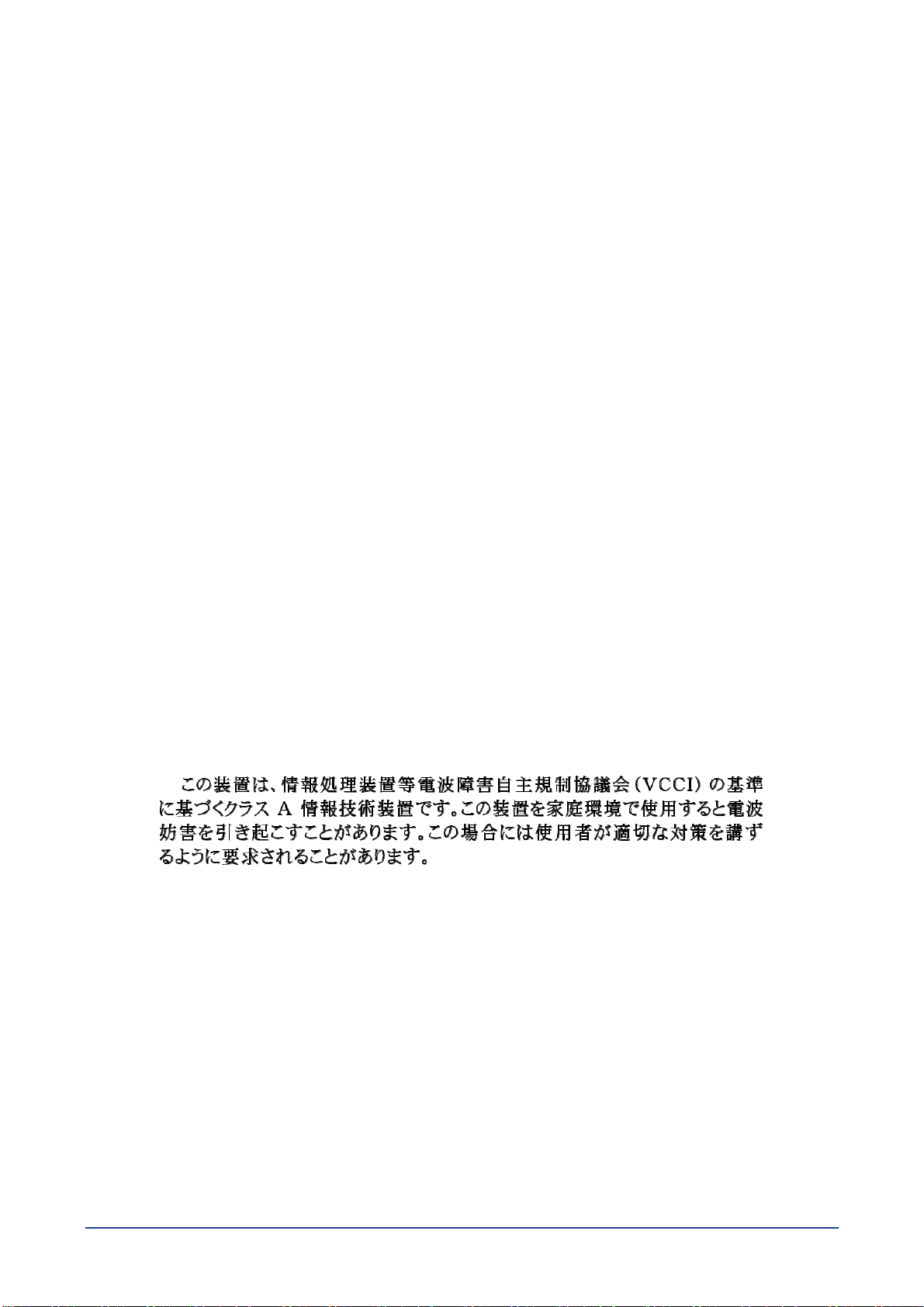

VCCI (Japan)
English translation of the notice above:
This is a Class A product based on the standard of the Voluntary Control Council for
Interference (VCCI) from Information Technology Equipment. If this is used near a radio
or television receiver in a domestic environment, it may cause radio interference. Install
and use the equipment according to the instruction manual.
CCC Statement
声明
此为 A 级产品，在生活环境中，该产品可能会造成无线电干扰
在这种情况下，可能需要用户对其干扰采取切实可行的措施
English translation of the notice above:
This is a Class A information technology equipment of China Compulsory Certification
(CCC). When used in a residential environment, it may cause radio frequency
Network Switch Installation Guide 8

disturbance. Under such conditions, users will be required to take certain
appropriate countermeasures.
BSMI (Taiwan)
聲明: 此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，在此種形況下，使用者會
被要求採取某些適當的對策
English translation of the notice above:
This is a Class A information technology equipment of Bureau of Standards, Metrology
and Inspection (BSMI). When used in a residential environment, it may cause radio
frequency disturbance. Under such conditions, users will be required to take certain
appropriate countermeasures.
報檢義務人
商品報驗資訊
商品名稱： 三層交換機 (Network Switch)
報驗義務人名稱：廣達電腦股份有限公司
報驗義務人地址：桃園市龜山區文化里文化二路 188 號
限用物質含有情況標示聲明書
限用物質及其化學符號
鉛
汞
鎘
六價鉻
多溴聯苯
多溴二苯醚
單元(Units)
Hexavalent
Polybrominate
d
Polybrominate
d
Lead
Mercury
Cadmium
diphenyl
chromium
biphenyls
ethers (PBDE)
(Pb)
(Hg)
(Cd)
(Cr
+6
)
(PBB)
(PBDB)
印刷電路板
○
○
○
○
○
○
(PCB)
風扇
－
○
○
○
○
○
(Fan)
電纜及其組件
(Cables & Cable
○
○
○
○
○
○
Assemblies)
金屬部件
○
○
○
○
○
○
(Metal Parts)
晶片電阻
－
○
○
○
○
○
(Chips)
電源供應器
－
○
○
○
○
○
(Power Supply)
塑料及聚合物部件
(Plastic and Polymeric
○
○
○
○
○
○
parts)
備考 1.〝超出 0.1 wt %〞及〝超出 0.01
wt %〞係指限用物質之百分比含量超出百分比含量基準值
備考 2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
備考 3.〝－〞係指該項限用物質為排除項目。
9Network Switch Installation Guide

Regulated Specified Components
To maintain the UL listing and compliance to other regulatory certifications and/or
declarations, the following regulated components must be used, and conditions
adhered to. Interchanging or use of other component will void the UL listing and other
product certifications and approvals.
•Add-in cards: must have a printed wiring board flammability rating of minimum
UL94V-1.
•Add-in cards containing external power connectors and/or lithium batteries must be
UL recognized or UL listed. Any add-in card containing modem telecommunication
circuitry must be UL listed. In addition, the modem must have the appropriate
telecommunications, safety, and EMC approvals for the region in which it is sold.
•Peripheral Storage Devices: must be UL recognized or UL listed accessory and TUV and
VDE licensed. Maximum power rating of any one device is 19 watts. Total server
configuration is not to exceed the maximum loading conditions of the power supply.
Restriction of Hazardous Substances (RoHS) Compliance
This product is manufactured by Quanta®Computer Inc. Quanta®Computer Inc. has a
system in place to restrict the use of banned substances in accordance with the
European Directive 2002/95/EC. Compliance is based on declaration that materials
banned in the RoHS Directive are either (1) below all applicable threshold limits or (2) an
approved / pending RoHS exemption applies.
RoHS implementation details are not fully defined and may change.
Threshold limits and banned substances are noted below:
•Quantity limit of 0.1% by mass (1000 PPM) for:
√Lead
√Mercury
√Hexavalent Chromium
√Polybrominated Biphenyls Diphenyl Ethers (PBDE)
√Quantity limit of 0.01% by mass (100 PPM) for:
√Cadmium
End of Life / Product Recycling
Product recycling and end-of-life take-back systems and requirements vary by country.
Contact the retailer or distributor of this product for information about product
recycling and/or take-back.
Network Switch Installation Guide 10

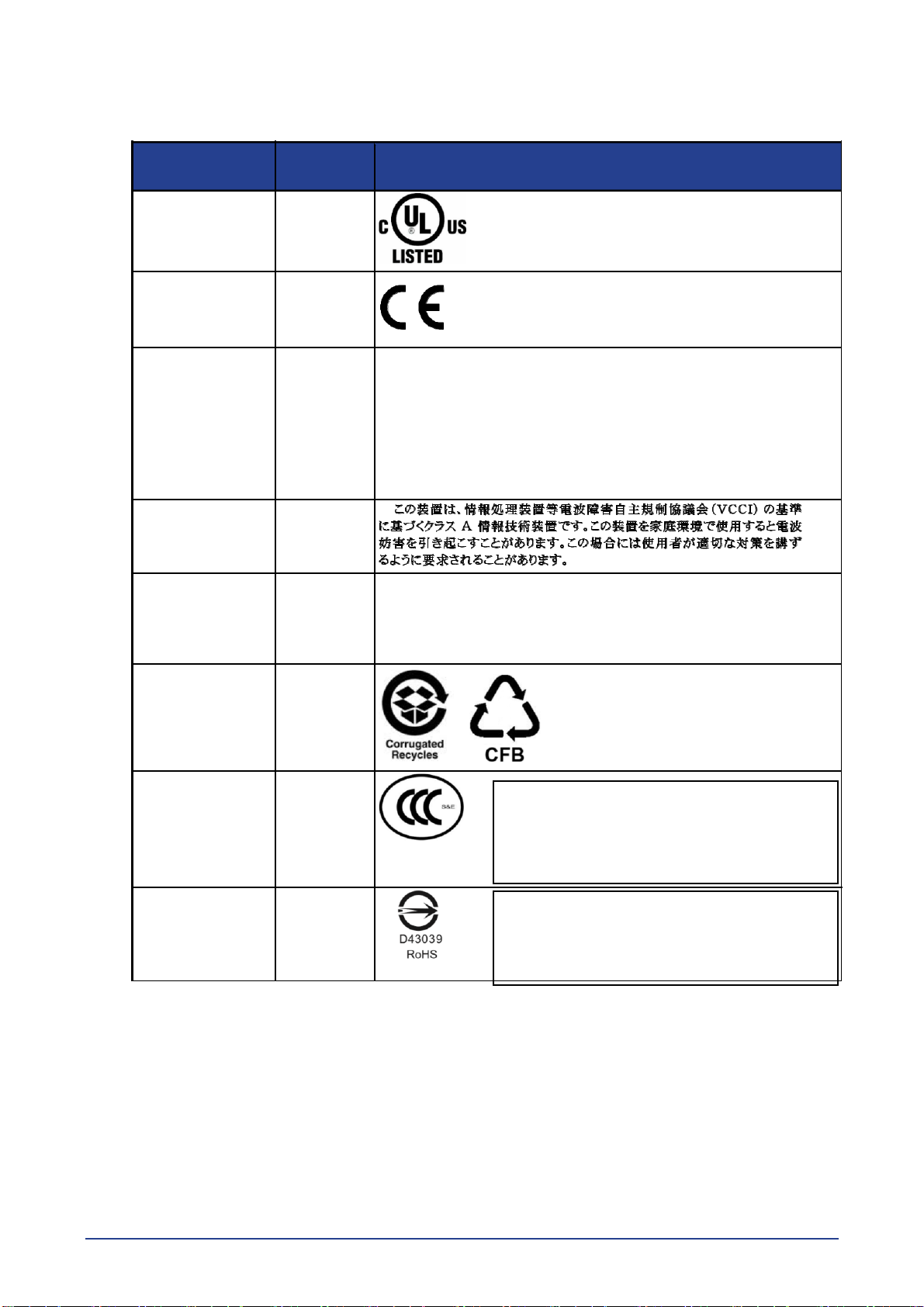

Product Regulatory Compliance Markings
This product is marked with the following product certification markings:
Regulatory
Region
Marking
Compliance
cULus Listing
USA /
Marks
Canada
CE Mark
Europe
FCC Marking
USA
This device complies with Part 15 of the FCC Rules.
(Class A)
Operation of this device is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
VCCI Marking
Japan
(Class A)
ICES
Canada
This Class A digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe A est conforme à la
norme NMB-003 du Canada.
Recycling
Other than
Package Mark
China
CCC
China
声明
此为 A 级产品，在生活环境中，该产品可能会
造成无线电干扰。在这种情况下，可能需要用
户对其干扰采取切实可行的措施。
BSMI
Taiwan
聲明
此為甲類資訊技術設備，於居住環境中使用
時，可能會造成射頻擾動，在此種形況下，使
用者會被要求採取某些適當的對策
11 Network Switch Installation Guide

Table of Contents
SAFETY & REGULATORY INFORMATION ...................................... 1
Table of Contents...................................................................... 12
BES-53248 Series Switch .......................................................... 13
Chassis for BES-53248 Series Switch................................................................
13
LED Indicators of BES-53248 Series Switch.......................................................13
Ports of BES-53248 Series Switch ....................................................................16
Data Port Connection......................................................................................17
Fan Tray of BES-53248 Series .........................................................................19
Power Supply of BES-53248 Series Switch ........................................................20
Airflow Direction ............................................................................................21
Hardware Installation............................................................... 22
Unpacking the Hardware ..................................................................................
22
Package Contents ..........................................................................................22
Installing the Switch ........................................................................................
22
Site Survey ...................................................................................................22
Positioning the Switch.....................................................................................23
Rack Mounting the Switch ...............................................................................23
Connecting to the Console Port.........................................................................
30
Connecting to the Management Port.................................................................31
Connecting the Power.......................................................................................
32
AC Power Supply............................................................................................32
Components Replacement......................................................... 33
Troubleshooting ...............................................................................................
33
Diagnostic Switch Indicator .............................................................................33
Power and Cooling Problems............................................................................33
Installation....................................................................................................33
In-Band Access..............................................................................................34
Replacing the Power Supply .............................................................................
34
Replacing the Fan Tray .....................................................................................35
Customer Support.............................................................................................
35
12 Network Switch Installation Guide

BES-53248 Series Switch
BES-53248 Switch supports 48-port 25G SFP28 & 8-port 100G QSFP28 ports.
Chassis for BES-53248 Series Switch
Front panel
No.
Item
No.
Item
1
USB Port
8
System info. LED
2
Console Port
9
Power LED
3
Link/Activity LED
10
BMC LED
4
Management Port
11
SFP28 Port LEDs
5
PSU1 LED
12
SFP28 Ports
6
Fan LED
13
QSFP28 Port LEDs
7
PSU2 LED
14
QSFP28 Ports
Rear panel
No.
Item
No.
Item
1
AC Power Connector (with Plug
6
PSU2
Retainer)
2
Earth Grounding (M4 screw)
7
Hot-swappable Fan Modules
3
PSU Warning LED
8
Fan LEDs
4
PSU DC LED
9
PSU1
5
PSU AC LED
View from rear panel, the power supply in the left is PSU2, the power supply in the
right is PSU1. The fan modules in sequence from the left to the right are FAN6, FAN5, …
and FAN1 view from rear panel.
LED Indicators of BES-53248 Series Switch
System
Network Switch Installation Guide 13

LED
State
Description
PSU1 & PSU2 LED
LED number
One per system on the front panel
(bi-color – green & red)
Off
The unit is non-operational
Red (Solid)
Any one of PSUs is operating abnormally
Red (Blinking)
None
Green (Solid)
Both PSUs are operating normally
Green (Blinking)
None
FAN LED
LED number
One per system on the front panel
(bi-color – green & red)
Off
None
Red (Solid)
Any one of fans is operating abnormally
Red (Blinking)
None
Green (Solid)
All fans are operating normally
Green (Blinking)
None
System LED
LED number
One per system on the front panel
(bi-color – green &
Off
The unit is non-operational
amber)
Amber (Solid)
The system is booting
Amber (Blinking)
Equipment Event
Green (Solid)
The switch has loaded the agent software
code and is operating normally
Green (Blinking)
The switch is loading the agent software
code
PWR LED
LED number
One per system on the front panel
(single-color – green)
Off
The unit is non-operational, or the system
is
powered failed
Green (Solid)
Power is provided to the switch
Green (Blinking)
None
BMC LED
LED number
One per system on the front panel
(bi-color – blue &
Off
The unit is non-operational
amber)
Blue (Slow
BMC is operating normally
Blinking)
Blue (Fast
Show switch location via BMC
Blinking)
Green (Solid)
The switch has loaded the agent software
code and is operating normally
Green (Blinking)
The switch is loading the agent software
code
Network Switch Installation Guide 14

LED
State
Description
Management Port Link/
LED number
One per unit on the front panel
Activity LED
Off
No link
(single-color – green)
Green (Solid)
The port is linked
Green (Blinking)
The port is linked and there is data activity
LED on fan tray
LED number
One per fan tray
(bi-color –green-red)
Off
The fan is not powered on
Green (Solid)
The fan is working normally
Red (Solid)
The fan is working abnormally or fan failed
LED on PSU
LED number
One per PSU
(bi-color –green-amber)
Off
No AC input to PSU or AC input power
failed
Green (Solid)
Power supply is working normally
Amber (Solid)
PSU power/thermal/FAN are abnormal
Data Port
LED
State
Description
25G SFP28 Port Speed
LED number
One per SFP28 port
LED (bi-color – amber-
Off
No link
green)
Amber (Solid)
The port is linked at 25G speeds
Amber (Blinking)
The port is linked at 25G speed and there
is data activity at 25G speed
Green (Solid)
The port is linked at 10G or 1G speeds
Green (Blinking)
The port is linked at 10G or 1G speed and
there is data activity at 10G or 1G speed
100G QSFP28 Port
LED number
One per QSFP28 port
Speed LED (bi-color –
Off
No link
white-blue)
White (Solid)
The port is linked at 100G speed
White (Blinking)
The port is linked, and there is data activity
at 100G speed
Blue (Solid)
The port is linked at 40G speeds
Blue (Blinking)
The port is linked at 40G speed and there
is data activity at 40G speed
15 Network Switch Installation Guide

There are 4 LEDs for each 100G QSFP28 port to show the fan-out port status. Here are
LED definitions for 100G QSFP28 fan-out use cases.
QSFP28 Mode
LED
Description
10G Mode
Each LED is in green
The 100G
QSFP28 is fan-out to four ports and
operating at 10G port speed
25G Mode
Each LED is in amber
The 100G
QSFP28 is fan-out to four 25G ports
and operating at 25G port speed
50G Mode
The 2
nd
and 4
th
LEDs
are in yellow
The 100G QSFP28 is fan-out and operating
to two 50G ports
Ports of BES-53248 Series Switch
The switch chassis is equipped with the following ports:
•48 SFP28 ports (10/25GbE)
•8 QSFP28 ports (10/25/40/50/100GbE speed)
•1 Management port
•1 Console port
•1 USB port
The chassis has 48 SFP28 and 8 QSFP28 ports. Each of these ports uses an optical
transceiver, active optical cables, or direct-attached cable to connect the SFP28 or
QSFP28 port to servers and other Ethernet switches. For more information on obtaining
the appropriate SFP28 or QSFP28 modules, refer to “Supported Cables and Transceivers”.
One management port enables you to manage the switch operation using an RJ-45
Ethernet cable.
One console port enables you to perform the initial configuration by connecting to a
PC with the RJ-45 to DB-9 serial adapter cable.
One USB port provides the flexibility and possibility to install switch runtime image
or configuration.
Network Switch Installation Guide 16

Data Port Connection
Supported Cables and Transceivers
See the following table for the list of supported cables and transceivers.
Supported
Description
Note
Distance
1m
1G Direct Attach Cooper (DAC) cable
SFP to SFP
1G Active Optical Cable (AOC)
SFP to SFP
10G
Direct Attach Cooper (DAC) cable
SFP+ to SFP+
10G
Active Optical Cable (AOC)
SFP+ to SFP+
25G
Direct Attach Cooper (DAC) cable
SFP28 to SFP28
25G
Active Optical Cable (AOC)
SFP28 to SFP28
40G
Direct Attach Copper (DAC) cable
QSFP+ to QSFP+
40G
DAC fan out cable (to 4 x 10G)
QSFP+ to 4 SFP+
100G
Direct Attach Cooper (DAC) cable
QSFP28 to QSFP28
100G
Active Optical Cable (AOC)
QSFP28 to QSFP28
3m
1G Direct Attach Cooper (DAC) cable
SFP to SFP
1G Active Optical Cable (AOC)
SFP to SFP
10G
Direct Attach Cooper (DAC) cable
SFP+ to SFP+
10G
Active Optical Cable (AOC)
SFP+ to SFP+
25G
Direct Attach Cooper (DAC) cable
SFP28 to SFP28
25G
Active Optical Cable (AOC)
SFP28 to SFP28
40G
Direct Attach Copper (DAC) cable
QSFP+ to QSFP+
40G
DAC fan out cable (to 4 x 10G)
QSFP+ to 4 SFP+
100G
Direct Attach Cooper (DAC) cable
QSFP28 to QSFP28
3m
100G
DAC fan out cable (to 4 x 25G)
QSFP28 to SFP28
100G
Active Optical Cable (AOC)
QSFP28 to QSFP28
5m
1G Direct Attach Cooper (DAC) cable
SFP to SFP
1G Active Optical Cable (AOC)
SFP to SFP
10G
Direct Attach Cooper (DAC) cable
SFP+ to SFP+
10G
Active Optical Cable (AOC)
SFP+ to SFP+
25G
Direct Attach Cooper (DAC) cable
SFP28 to SFP28
25G
Active Optical Cable (AOC)
SFP28 to SFP28
40G
Direct Attach Copper (DAC) cable
QSFP+ to QSFP+
40G
DAC fan out cable (to 4 x 10G)
QSFP+ to 4 SFP+
100G
Direct Attach Cooper (DAC) cable
QSFP28 to QSFP28
100G
Active Optical Cable (AOC)
QSFP28 to QSFP28
10m
40G
Active Optical Cable (AOC)
QSFP+ to QSFP+
100G
Active Optical Cable (AOC)
QSFP28 to QSFP28
17 Network Switch Installation Guide

Supported
Description
Note
Distance
20m
40G Active Optical Cable (AOC)
QSFP+ to QSFP+
> 20m
10GBASE-SR SFP+ Transceiver Optic
SFP+
25GBASE-SR SFP28 Transceiver Optic
SFP28
40GBASE-SR4 QSFP+ Transceiver Optic
QSFP+
(MPO)
100GBASE-SR4 QSFP28 Transceiver Optic
QSFP28
(MPO)
Up to 10km
40GBASE-LR4 QSFP+ Transceiver Optic
QSFP+
(LC)
100GBASE-LR4 QSFP28 Transceiver Optic
QSFP28
(LC)
SFP28 Port Connection
The switch is equipped with 48 SFP28 ports. The SFP28 ports support 10/25GbE
IEEE 802.3by Ethernet for fiber mediums.
The SFP28 ports are numbered and have corresponding SFP28 port LEDs.
To install an SFP28 module, do the following:
1Slide the SFP28 module into an SFP28 port.
NOTE:
•Ensure the SFP28 module is positioned correctly before installing it into the port.
2Push completely until the module locks into place.
3Repeat the above procedures to install additional SFP28 modules.
For more information about the SFP28 port LED behavior when the network link is
established, refer to “LED Indicators of BES-53248 Series Switch”.
Network Switch Installation Guide 18
