USER MANUAL
Jabra SPEAK™510

1
ENGLISH
JABRA SPEAK 510
CONTENTS
WELCOME ..................................................2
JABRA SPEAK 510 OVERVIEW ...............................3
CONNECTING ..............................................5
HOW TO USE THE JABRA SPEAK 510 ........................8
SUPPORT..................................................11
TECHNICAL SPECIFICATIONS ..............................12

2
ENGLISH
JABRA SPEAK 510
welcome
Thank you for purchasing the Jabra Speak 510. We hope you will
enjoy it!
jabra speak 510 features
•Answer, end, reject and mute calls.
•Connect wirelessly to a PC or mobile device via Bluetooth.
•Connect to PC via USB.
•Portable.
•Omni-directional microphone.
•Wideband (HD) audio for exceptional sound quality.
•Call waiting (requires supported softphone with call waiting
functionality).
•LED, audio indicators and voice guidance .

3
ENGLISH
JABRA SPEAK 510

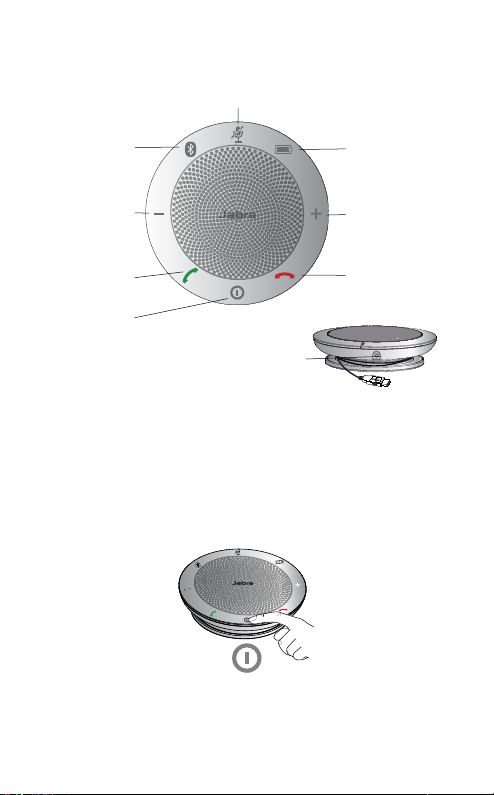

jabra speak 510 oVerVIew
turn on the jabra speak 510
•Plug the Jabra Speak 510 USB cable into any available USB port
on your PC, or
•Press and hold (2 secs) the On/O button to turn the Jabra
Speak 510 on or o.
On/O
Answer call
Volume
down
Bluetooth
USB cable
Headset port
End/reject call
Volume up
Battery level
Mute microphone

4
ENGLISH
JABRA SPEAK 510
chargIng the jabra speak 510
Plug the Jabra Speak 510 USB cable into any available USB port
on your PC to charge the battery. The battery light is red when
charging, and green (1 minute) when fully charged.

5
ENGLISH
JABRA SPEAK 510
connectIng

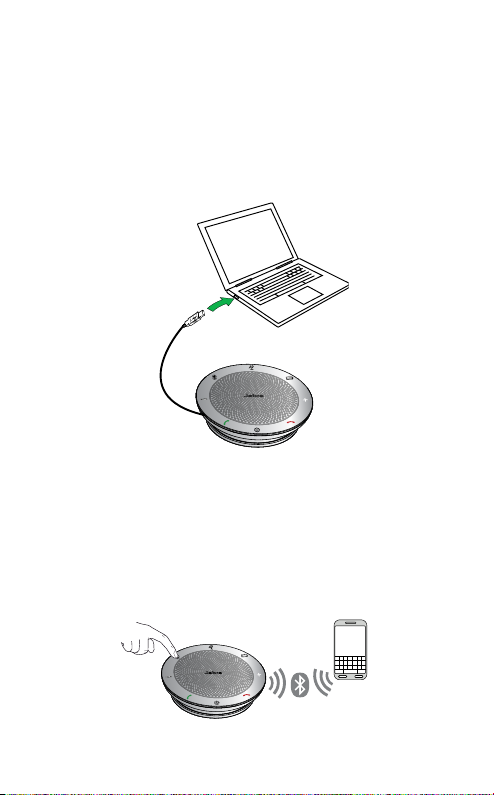

connect to pc (usb)
1. Plug the Jabra Speak 510 USB cable into any available USB port
on your PC.
2. Select the Jabra Speak 510 as the default audio device in
Windows control panel, and in your softphone settings.
connect to mobIle deVIce (bluetooth)
1. Press and hold (2 secs) the Bluetooth button on the Jabra
Speak 510 until the Bluetooth light ashes blue. Release the
button when you hear the connection instructions.
2. Enable Bluetooth on your mobile device, and select the Jabra
Speak 510 from the list of available Bluetooth devices. If
prompted for a password enter 0000.

6
ENGLISH
JABRA SPEAK 510
connect to jabra lInk 360
1. Press and hold (2 secs) the Bluetooth button on the Jabra
Speak 510 until the Bluetooth light ashes blue. Release the
button when you hear the connection instructions.
2. Plug the Jabra Link 360 into any available USB port on your PC.
3. The connection is established when the light turns solid blue.
Note: ensure that all Bluetooth devices previously connected to
the Jabra Link 360 are switched o.
connect to corded headset
Plug a corded headset into the Jabra Speak 510 headset port.
L
R
jabra
jabra
jabra

7
ENGLISH
JABRA SPEAK 510
connect to bluetooth headset
1. Plug the Jabra Speak 510 into any available USB port on your
PC.
2. Put the Bluetooth headset into pairing mode (refer to your
headset manual for instructions).
3. Press and hold (8 secs) the Bluetooth button on the Jabra
Speak 510 until the Bluetooth light ashes blue and then
ashes green. Release the button when you hear‘Connect to
headset’.
4. The connection is established when the light turns solid blue.
All audio on the PC will transfer to the Bluetooth headset.

8
ENGLISH
JABRA SPEAK 510

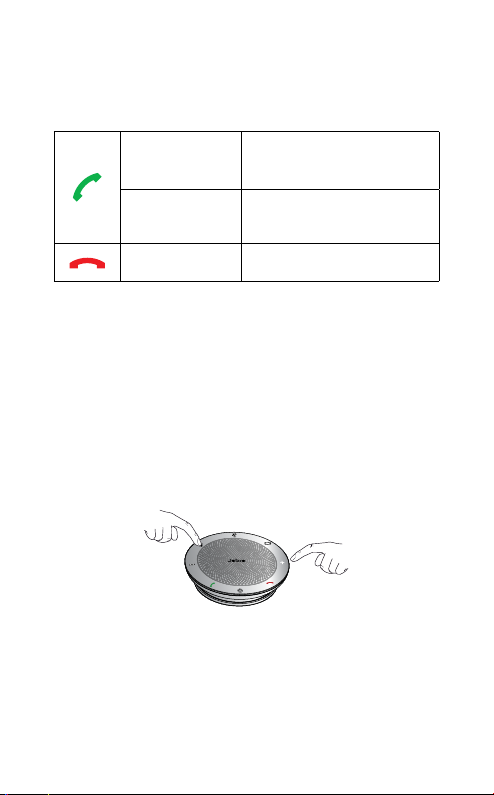

how to use the jabra speak 510
On/O Press and hold (2 secs) the On/
O button until the lights ash
Answer call Tap the Answer call button
End call Tap the End/reject call button
Reject call Tap the End/reject call button
Speaker volume Tap the Volume up or
Volume down button
Battery status Tap the Battery status button to
display the current battery level
Connect with
new Bluetooth
device
Press and hold (2 secs) the
Bluetooth button to connect
with a new Bluetooth device
Reconnect/
disconnect
with Bluetooth
device
Tap the Bluetooth button to
reconnect/disconnect with a
Bluetooth device
Mute
microphone
Tap the Mute microphone
button
End/reject
call
Volume up
Battery level
Volume
down
Bluetooth
Answer
call
Mute microphone
On/O

9
ENGLISH
JABRA SPEAK 510
multIple call handlIng
The Jabra Speak 510 can accept and handle multiple calls
simultaneously.
Put current call on
hold and answer
incoming call
Tap the Answer call button
Switch between
held call and
active call
Tap the Answer call button
Reject incoming
call Tap the End/reject call button
swItch between bluetooth deVIces
1. Press and hold the Bluetooth button and tap the Volume
up or Volume down button to cycle between the connected
devices. The connected devices will be announced.
2. Release the Bluetooth button when the correct device is
announced. The Jabra Speak 510 will establish a connection
with the device. When a connection has been established the
device will be announced.

10
ENGLISH
JABRA SPEAK 510
what the VoIce guIdance means
What you hear Description
Go to the Bluetooth menu on your mobile
device and connect to Jabra Speak 510
Connect to Mobile device
Connect to Jabra Link 360
Connect to Headset
Connected to mobile device
Connected to Jabra Link 360
Connected to headset
Voice guidance on
Voice guidance o
Connect to headset. Put your headset in
pairing mode and wait for a connection to
be established

11
ENGLISH
JABRA SPEAK 510
support
faq
Q I hear crackling noises
A Bluetooth is a radio technology that is sensitive to objects
between the Jabra Speak 510 and the connected device.
Ensure the Jabra Speak 510 and the connected device are
within range (up to 100 meters or 330 feet).
Q I cannot hear anything
A - Increase the speaker volume.
-
Ensure that the Jabra Speak 510 is connected to a device.
Q I am having Bluetooth connection problems
A Check your mobile device’s Bluetooth menu and delete/
forget the Jabra Speak 510. Re-connect the Jabra Speak 510
to your Bluetooth device following the Bluetooth connection
instructions.
Q Will the Jabra Speak 510 support other Bluetooth equipment?
A The Jabra Speak 510 is designed to work with Bluetooth
mobile devices. It can also support other Bluetooth devices
that can support a headset, hands-free and/or advance audio
distribution profile.
how to care for your jabra speak 510
•Always store the Jabra Speak 510 with the power o and safely
protected.
•Avoid storage at extreme temperatures (above 70°C/158°F or
below -40°C/-40°F). This can shorten battery life and may aect
operation. High temperatures may also degrade performance.
•Do not expose the Jabra Speak 510 to rain or other liquids.

12
ENGLISH
JABRA SPEAK 510
technIcal specIfIcatIons
Weight:
195g
Dimensions:
L 120mm x W 120mm x H 33mm
Microphone:
Omni-directional
Speaker:
Dynamic, 50mm
Operating range:
Up to 100m (330 feet)
Bluetooth version:
Bluetooth version 3.0
Paired devices:
Up to 8 trusted devices
Supported Bluetooth proles:
A2DP, Hands Free Prole (v1.6), Headset prole
Talk time:
Up to 15 hours
Operating temperature:
-20°C to 45°C (-4°F to 113°F)
Storage temperature:
-40°C to 70°C (-40°F to 158°F)
Pairing passkey or PIN:
0000
