NetComm Jabra SPEAK 510 User manual

jabra.com/speak510
User Manual
JABRA SPEAK 510™

© 2013 GN Netcom A/S. All rights reserved. Jabra®is a registered
trademark of GN Netcom A/S. All other trademarks included herein
are the property of their respective owners. The Bluetooth®word
mark and logos are owned by the Bluetooth SIG, Inc. and any use
of such marks by GN Netcom A/S is under license. (Design and
specifications subject to change without notice).
Declaration of Conformity can be found on
www.jabra.com/CP/US/declarations-of-conformity
Made in China
MODEL: JABRA SPEAK 510

3
ENGLISH
CONTENTS
1. WELCOME.......................................... 4
2. SPEAKER OVERVIEW......................... 5
2.1 TURN ON THE JABRA SPEAK 510
2.2 CHARGING THE JABRA SPEAK 510
3. CONNECTING .................................... 7
3.1 CONNECT TO JABRA LINK 360
3.2 CONNECT TO MOBILE DEVICE BLUETOOTH
3.3 CONNECT TO BLUETOOTH HEADSET
3.4 CONNECT TO CORDED HEADSET
4. HOW TO USE THE JABRA SPEAK
510....................................................12
4.1 MULTIPLE CALL HANDLING
4.2 SWITCH BETWEEN BLUETOOTH DEVICES
4.3 VOICE GUIDANCE ON/OFF
4.4 VOICE GUIDANCE
5. SOFTWARE .......................................16
5.1 JABRA PC SUITE
5.2 UPDATE JABRA SPEAK 510 FIRMWARE
6. SUPPORT..........................................17
6.1 FAQ
6.2 HOW TO CARE FOR YOUR JABRA SPEAK 510
7. TECHNICAL SPECIFICATIONS ...........19

4
ENGLISH
1. WELCOME
Thank you for purchasing the Jabra Speak 510. We
hope you will enjoy it!
JABRA SPEAK 510 FEATURES
Answer, end, reject and mute calls.
Connect to PC via USB or Jabra Link 360.
Connect wirelessly to mobile device via
Bluetooth.
Portable.
Omni-directional microphone.
Wideband audio for exceptional sound quality.
LED, audio indicators and voice guidance.

5
ENGLISH

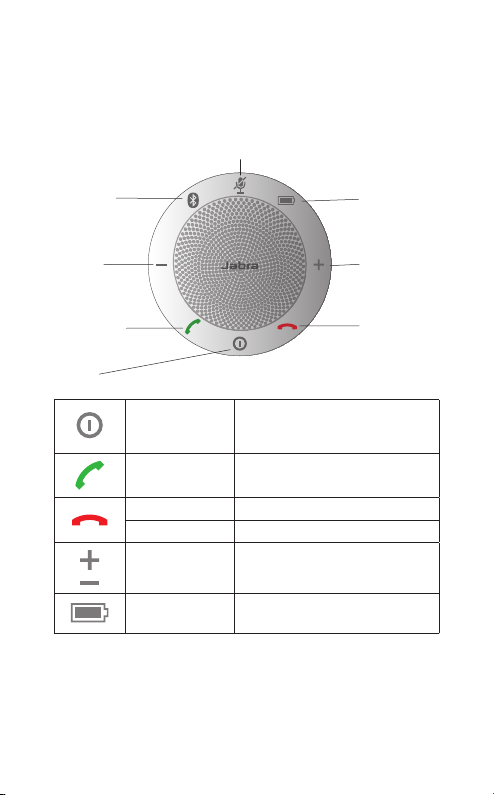

2. SPEAKER OVERVIEW
On/Off
Answer call
Volume
down
Bluetooth
USB cable
Headset port
End/reject call
Volume up
Battery level
Mute microphone
Supplied with
Jabra Speak 510+ only
Jabra Link 360

6
ENGLISH
2.1 TURN ON THE JABRA SPEAK 510
Plug the Jabra Speak 510 USB cable into any
available USB port on your PC, or
Press and hold (2 secs) the On/Off button to turn
the Jabra Speak 510 on or off.
2.2 CHARGING THE JABRA SPEAK 510
Plug the Jabra Speak 510 USB cable into any
available USB port on your PC to charge the battery.
The battery light is red when charging, and green
for 1 minute when fully charged.

7
ENGLISH
3. CONNECTING

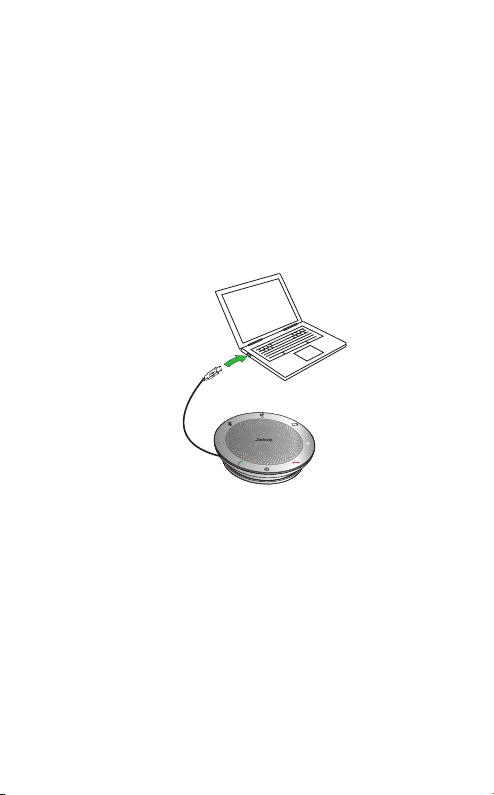

1. Plug the Jabra Speak 510 USB cable into any
available USB port on your PC.
2. Select the Jabra Speak 510 as the default audio
device in Windows Control Panel sound settings,
and in your softphone audio settings.

8
ENGLISH
3.1 CONNECT TO JABRA LINK 360
The speakerphone and Jabra Link 360 are pre-
paired and ready to use out of the box (Jabra speak
510+ only).

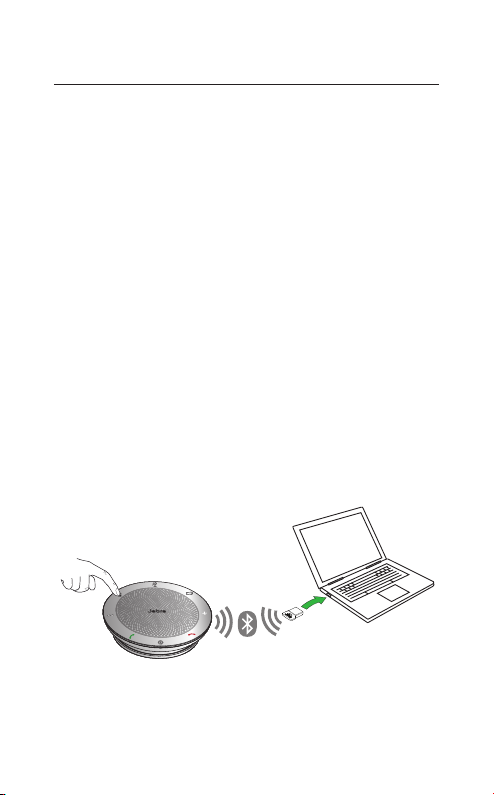

TO CONNECT THE SPEAKER AND JABRA LINK 360:
1. Press and hold (2 secs) the Bluetooth button on
the Jabra Speak 510 until the Bluetooth light
flashes blue. Release the button when you hear
the connection instructions.
2. Plug the Jabra Link 360 into any available USB
port on your PC.
3. The connection is established when the light
turns solid blue.
NOTE: Ensure that all Bluetooth devices previously connected to
the Jabra Link 360 are switched off.

9
ENGLISH
3.2 CONNECT TO MOBILE DEVICE
BLUETOOTH

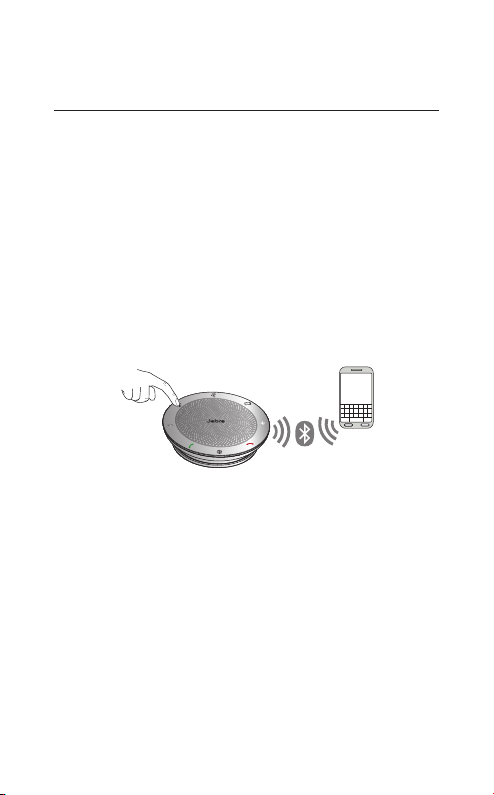

1. Press and hold (2 secs) the Bluetooth button on
the Jabra Speak 510 until the Bluetooth light
flashes blue. Release the button when you hear
the connection instructions.
2. Enable Bluetooth on your mobile device, and
select the Jabra Speak 510 from the list of
available Bluetooth devices. If prompted for a
password enter 0000.

10
ENGLISH
3.3 CONNECT TO BLUETOOTH HEADSET
For privacy, a bluetooth headset can be connected
to the Jabra Speak 510.
1. Plug the Jabra Speak 510 into any available USB
port on your PC.
2. Put the Bluetooth headset into pairing mode
(refer to your headset manual for instructions).
3. Press and hold (8 secs) the Bluetooth button on
the Jabra Speak 510 until the Bluetooth light
flashes blue and then flashes green. Release the
button when you hear ‘Connect to headset’.
4. The connection is established when the light
turns solid blue.

11
ENGLISH
3.4 CONNECT TO CORDED HEADSET
For privacy, a corded headset can be plugged into
the Jabra Speak 510 headset port.
L
R
jabra
jabra
jabra

12
ENGLISH
4. HOW TO USE THE
JABRA SPEAK 510
End/reject call
Volume up
Battery level
Volume
down
Bluetooth
Answer call
Mute microphone
On/Off
On/Off Press and hold (2 secs) the On/
Off button until the lights flash
Answer call Tap the Answer call button
End call Tap the End/reject call button
Reject call Tap the End/reject call button
Speaker volume Tap the Volume up or
Volume down button
Battery status Tap the Battery status button to
display the current battery level

13
ENGLISH
Connect with
new Bluetooth
device
Press and hold (2 secs) the
Bluetooth button to connect
with a new Bluetooth device
Reconnect/
disconnect
with Bluetooth
device
Tap the Bluetooth button to
reconnect/disconnect with a
Bluetooth device
Mute
microphone
Tap the Mute microphone
button
4.1 MULTIPLE CALL HANDLING
The Jabra Speak 510 can accept and handle multiple
calls simultaneously.
Put current call on
hold and answer
incoming call
Tap the Answer call button
Switch between
held call and
active call
Tap the Answer call button
Reject incoming
call Tap the End/reject call button

14
ENGLISH
4.2 SWITCH BETWEEN BLUETOOTH DEVICES
1. Press and hold the Bluetooth button and tap the
Volume up or Volume down button to cycle
between the connected devices. The connected
devices will be announced.
2. Release the Bluetooth button when the correct
device is announced. The Jabra Speak 510 will
establish a connection with the device(s). When
a connection has been established the device(s)
will be announced.
4.3 VOICE GUIDANCE ON/OFF
To turn voice guidance on/off, press and hold
(8 secs) the Mute button until you hear ‘Voice
guidance off’ or ‘Voice guidance on’.
NOTE: Not all voice prompts will be disabled when voice
guidance is turned off.

15
ENGLISH
4.4 VOICE GUIDANCE
CLICK TO LISTEN WHAT YOU HEAR
Go to the Bluetooth menu on your mobile
device and connect to Jabra Speak 510
Connect to mobile device
Connect to Jabra Link 360
Connect to headset
Connect to two mobile devices
Connect to both Jabra Link 360 and mobile
device
Connected to mobile device
Connected to Jabra Link 360
Connected to headset
Connected to two mobile devices
No device found
Voice guidance on
Voice guidance off
Connect to headset. Put your headset in
pairing mode and wait for a connection to
be established
Disconnected from Jabra Link 360
Disconnected from mobile device

16
ENGLISH
5. SOFTWARE
5.1 JABRA PC SUITE
Jabra PC Suite is a collection of software designed
to support, manage and enable optimal
functionality for Jabra devices. It is highly
recommended to download and install Jabra PC
Suite.
Download the latest version - jabra.com/pcsuite
5.2 UPDATE JABRA SPEAK 510 FIRMWARE
Firmware updates improve performance or add
new functionality to Jabra devices.
TO UPDATE FIRMWARE:
Launch the Jabra Firmware Updater installed with
Jabra PC Suite, and follow the firmware updater
wizard.
NOTE: The speakerphone must be connected to the PC via USB.

17
ENGLISH
6. SUPPORT
6.1 FAQ
Q I hear crackling noises
A Bluetooth is a radio technology that is sensitive to ob-
jects between the Jabra Speak 510 and the connected
device. Ensure the Jabra Speak 510 and the connected
device are within range (up to 100 meters or 300
feet).
Q I cannot hear anything
A - Increase the speaker volume.
- Ensure that the Jabra Speak 510 is connected to a
device.
Q I am having Bluetooth connection problems
A Check your mobile device’s Bluetooth menu and
delete/forget the Jabra Speak 510. Re-connect the
Jabra Speak 510 to your Bluetooth device following the
Bluetooth connection instructions.
Q Will the Jabra Speak 510 support other Bluetooth
equipment?
A The Jabra Speak 510 is designed to work with Blue-
tooth mobile devices. It can also support other Blue-
tooth devices that can support a headset, hands-free
and/or advance audio distribution profile (A2DP).

18
ENGLISH
6.2 HOW TO CARE FOR YOUR JABRA
SPEAK 510
Always store the Jabra Speak 510 with the
power off and safely protected.
Avoid storage at extreme temperatures (above
70°C/158°F or below -40°C/-40°F). This can
shorten battery life and may affect operation.
High temperatures may also degrade
performance.
Do not expose the Jabra Speak 510 to rain or
other liquids.

19
ENGLISH
7. TECHNICAL
SPECIFICATIONS
JABRA SPEAK 510 SPECIFICATION
Weight 195 g
Dimensions D 120 mm x H 33 mm
Microphones Omni-directional
Speaker Dynamic, 50 mm
Bluetooth range Up to 100 m (300 ft), Class 1
Up to 10 m (30 ft), Class 2
Bluetooth version 3.0
Paired devices Up to 8 trusted devices
Supported Bluetooth
profiles
A2DP (v 1.2), Hands Free Prole
(v1.6), Headset prole
Talk time Up to 15 hours
Operating temperature 5°C to 40°C (41°F to 104°F)
Storage temperature -5°C to 45°C (23°F to 113°F)
Simultaneous Bluetooth
connections 2
Bluetooth audio
bandwidth Wideband, A2DP
Pairing passkey or PIN 0000

20
ENGLISH
JABRA LINK 360 DESCRIPTION
Dimensions W 15.8 mm x L 21.2 mm x H
4.7 mm
Bluetooth range Up to 100 m (300 ft), Class 1
Up to 10 m (30 ft), Class 2
Bluetooth version 3.0
Paired devices Up to 8 trusted devices
Supported Bluetooth
profiles
A2DP (v 1.2), Hands free profile
(v 1.6)
Operating temperature 5°C to 40°C (41°F to 104°F)
Storage temperature -5°C to 45°C (23°F to 113°F)
Simultaneous Bluetooth
connections 1
Bluetooth audio
bandwidth Wideband, A2DP
PC connection USB 2.0
