NETGEAR Powerline Adaptor Kit Quick start guide

ITS
GDY
WLEN
H O
UYR
NT
APR
N TE
THE INCREDIBLY EASY GUIDE TO
CONNECTING YOUR NEW POWERLINE
ADAPTOR TO YOUR SET TOP BOX

G LO ATE
B ETHERNET CABLE E ETHERNET CABLE

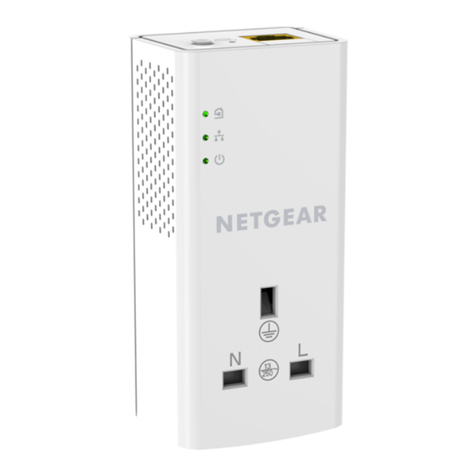

A WHITE ADAPTOR C BLACK ADAPTOR
(Note this is not a modem)
D POWER CORD
TO VIEW A VIDEO OF THIS INSTALLATION,
VISIT OPTUS.COM.AU/OPTUSTV/PLCINSTALL
OR CHECK OUT THE FULL USER GUIDE AVAILABLE
AT OPTUS.COM.AU/OPTUSTV/HELP
T WO N
GTEU
The Powerline Adaptor Kit lets you connect your Optus TV with Fetch Set Top Box to your
broadband internet through the electricity wires in your home. It’s an alternative to using a
direct ethernet connection or wireless.
And since you are dealing with electricity, there are some things you need to check
before you get going:
• If you are using power boards, refer to the power board notes in Step 1 and Step 2.
• Identify a power point near your modem to plug the White Adaptor (A) into.
• Identify a power point near your Optus TV Set Top Box to plug the Black Adaptor (C) into.
• Ensure you have easy access to the power points and existing modem for setup.
SAFETY TIP: Turn power points off before you plug in any new devices or unplug any existing devices.
THE THINGS YOU’LL USE IN THE
ROOM WITH YOUR MODEM
THE THINGS YOU’LL USE IN THE ROOM WITH
YOUR SET TOP BOX AND TV

SP CNTHWT
APRO D
BITS YOU’LL NEED: AWHITE ADAPTOR BETHERNET CABLE
Go to the room with your existing modem.
Plug one end of the Ethernet Cable (B) into the Ethernet port located
at the top of the White Adaptor (A).
Plug the other end into a spare Ethernet port on your existing modem.
Plug the White Adaptor (A) into a power point near your existing modem.
IF YOU’RE USING POWER BOARDS
DO plug the power board into the White Adaptor (A).
DON’T plug the White Adaptor (A) directly into a power board unless it is plugged
into the 1st power socket closest to the cord.
DON’T plug the White Adaptor (A) directly into a surge-protected power board.
(A)
(A)
(A)
(B)
YOUR MODEM
WALL POWER POINT
POWER BOARD
POWER BOARD

SP HKPH
BCAPRO
T EOB
BITS YOU’LL NEED:  BLACK ADAPTOR D POWER CORD E ETHERNET CABLE
Go to the room with your Set Top Box and TV.
Plug one end of the Ethernet Cable (E) into the port labelled ‘1’ (dark green colour) on
the Black Adaptor (C).
Plug the other end into the port labelled ‘RJ45’ on the back of the Optus TV Set Top Box.
Plug the Power Cord (D) into the Black Adaptor (C). Plug the other end into a power
point near the Set Top Box.
IF YOU’RE USING POWER BOARDS
DON’T plug the Power Cord (D) directly into a power board unless it is plugged into the
1st power socket closest to the cord.
DON’T plug the Power Cord (D) directly into a surge-protected power board.
(D)
POWER BOARD
RJ45
(E)
(D)
(C)
SET TOP BOX

SP
IO
PEU
Turn on the power points for both the White Adaptor (A) and the Black Adaptor (C).
Check that the Power and Powerline lights on both the White Adaptor (A) and the Black
Adaptor (C) flash and then turn a solid colour.
The Ethernet light on the White Adaptor (A) should turn to a solid green (the Ethernet light
on the Black Adaptor (C) won’t turn green until the Set Top Box is fully set up).
RU E
S POGD
If all of the above have been checked, your internet connection should be set up correctly.
Go back to Step 2 in your Set Top Box Quick Install Guide to finish setting up Optus TV.
(A) (C)
1 1 Ethernet light
2 Powerline light
3 Power light
12 23 3
WHAT DO THE LIGHTS MEAN?
Ethernet
Solid on: the Ethernet
port is linked, but there
is no activity.
Blinking: there is traffic
between an Ethernet
port and the Powerline
network.
Off: there is no
Ethernet connection.
Powerline
Solid on: the
Adaptor is connected to
a Powerline network.
Blinking: the Adaptor is
sending or receiving data.
Off: the Adaptor has
not found any other
compatible Powerline
devices.
Power
Solid on: the electrical
power is switched on.
Blinking: the Adaptor is
in the process of resetting,
power saving mode, or
security setup.
Off: there is no
electrical power.

ISU O
SEI KTIS
BITS YOU’LL NEED:  WHITE ADAPTOR B ETHERNET CABLE C BLACK ADAPTOR
D POWER CORD E ETHERNET CABLE
(E)
(D)
(C)
(A)(B)
SET TOP BOX
YOUR MODEM
INTERNET DELIVERED
THROUGH YOUR
POWER LINES
THE ROOM WITH YOUR MODEM THE ROOM WITH YOUR SET TOP BOX AND TV

Q. What if I don’t have a spare Ethernet port
on my modem?
A. You will need to unplug an existing device
from your modem to free up a port to connect
your White Adaptor.
Q. What if the Power light is off?
A. Make sure that power is supplied to the
electrical outlet, and that the Powerline devices
are not plugged into an extension cord, power
strip, or surge protector.
Q. The Powerline light is off. What can I try?
A. Move the Powerline device to a closer location.
Reset the devices to factory default settings. Refer
to the full Netgear User Guide for instructions at
netgear.com/support
Q. Why does the Powerline light on my device
appear to be yellow or red in colour?
A. A yellow or red Powerline light indicates that the
device has successfully connected to the Powerline
network, however it is currently connected at a
lower speed – below 60Mbps (yellow) or below
40Mbps (red).
Make sure both Powerline devices are plugged
directly into a power socket and not into a power
board or extension cord. If available, try moving one
of the Powerline devices to a different power socket.
Q. What if the Ethernet light is off?
A. Make sure that your router and modem are on
and working correctly. Make sure that the Ethernet
cables are working and securely plugged into
the devices. Reset the devices to factory default
settings. Refer to the full Netgear User Guide for
instructions at netgear.com/support
WTIE L
GOT ANY ISSUES, PROBLEMS
OR HEAD-SCRATCHERS?

WE HAVE FAITH THAT YOU CARRIED OUT YOUR
TASK SPLENDIDLY.
BUT, IN CASE YOU NEED A LITTLE HELP, PLEASE
CONTACT OUR OPTUS TV TECHNICAL SUPPORT AT
133 937 OR VISIT OPTUS.COM.AU/OPTUSTV/PLCINSTALL
ERHG
Y’ OE
SOF S
L I
ME
OPTUS16702/1400330 (08/13)
