Neue IDSH451W User manual

User manual
Dishwasher
IDSH451W

Contents
Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2
Product description _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Control panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Programmes _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
Options _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
Before first use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Hints and tips _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8
Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 9
Troubleshooting _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 10
Technical information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 12
Environment concerns _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 12
Subject to change without notice.
Safety instructions
Before the installation and use of the appliance, careful-
ly read the supplied instructions. The manufacturer is
not responsible if an incorrect installation and use cau-
ses injuries and damages. Always keep the instructions
with the appliance for future reference.
Children and vulnerable people safety
Warning! Risk of suffocation, injury or permanent
disability.
• Do not let persons, children included, with reduced
physical sensory, reduced mental functions or lack of
experience and knowledge use the appliance. They
must have supervision or instruction for the operation
of the appliance by a person who is responsible for
their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door
when it is open.
Installation
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temper-
ature is less than 0 °C.
• Obey the installation instruction supplied with the ap-
pliance.
• Make sure that the appliance is installed below and
adjacent to safe structures.
Electrical connection
Warning! Risk of fire and electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information on the rating
plate agrees with the power supply. If not, contact an
electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug
and to the mains cable. Should the appliance power
supply cable need to be replaced, this must be car-
ried out by our Service Centre.
• Connect the mains plug to the mains socket only at
the end of the installation. Make sure that there is ac-
cess to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appli-
ance. Always pull the mains plug.
• Do not touch the mains cable or the mains plug with
wet hands.
•Only for UK and Ireland. The appliance has a 13
amp mains plug. If it is necessary to change the fuse
in the mains plug, use a 13 amp ASTA (BS 1362)
fuse.
• This appliance complies with the E.E.C. Directives.
Water connection
• Make sure not to cause damage to the water hoses.
• The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets
must not be reused.
• Before you connect the appliance to new pipes or
pipes not used for a long time, let the water flow until
it is clean.
• The first time you use the appliance, make sure that
there is no leakage.
2

Use
• This appliance is intended to be used in household
and similar applications such as:
– Staff kitchen areas in shops, offices and other
working environments
– Farm houses
– By clients in hotels, motels and other residential
type environments
– Bed and breakfast type environments.
Warning! Risk of injury, burns, electrical shock or
fire.
• Do not change the specification of this appliance.
• Put knives and cutlery with sharp points in the cutlery
basket with the points down or in a horizontal posi-
tion.
• Do not keep the appliance door open without supervi-
sion to prevent to fall on it.
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous. Obey the
safety instructions on the detergent packaging.
• Do not drink and play with the water in the appliance.
• Do not remove the dishes from the appliance until the
programme is completed. There can be detergent on
the dishes.
• The appliance can release hot steam if you open the
door while a programme operates.
• Do not put flammable products or items that are wet
with flammable products in, near or on the appliance.
• Do not use water spray and steam to clean the appli-
ance.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets
to get closed in the appliance.

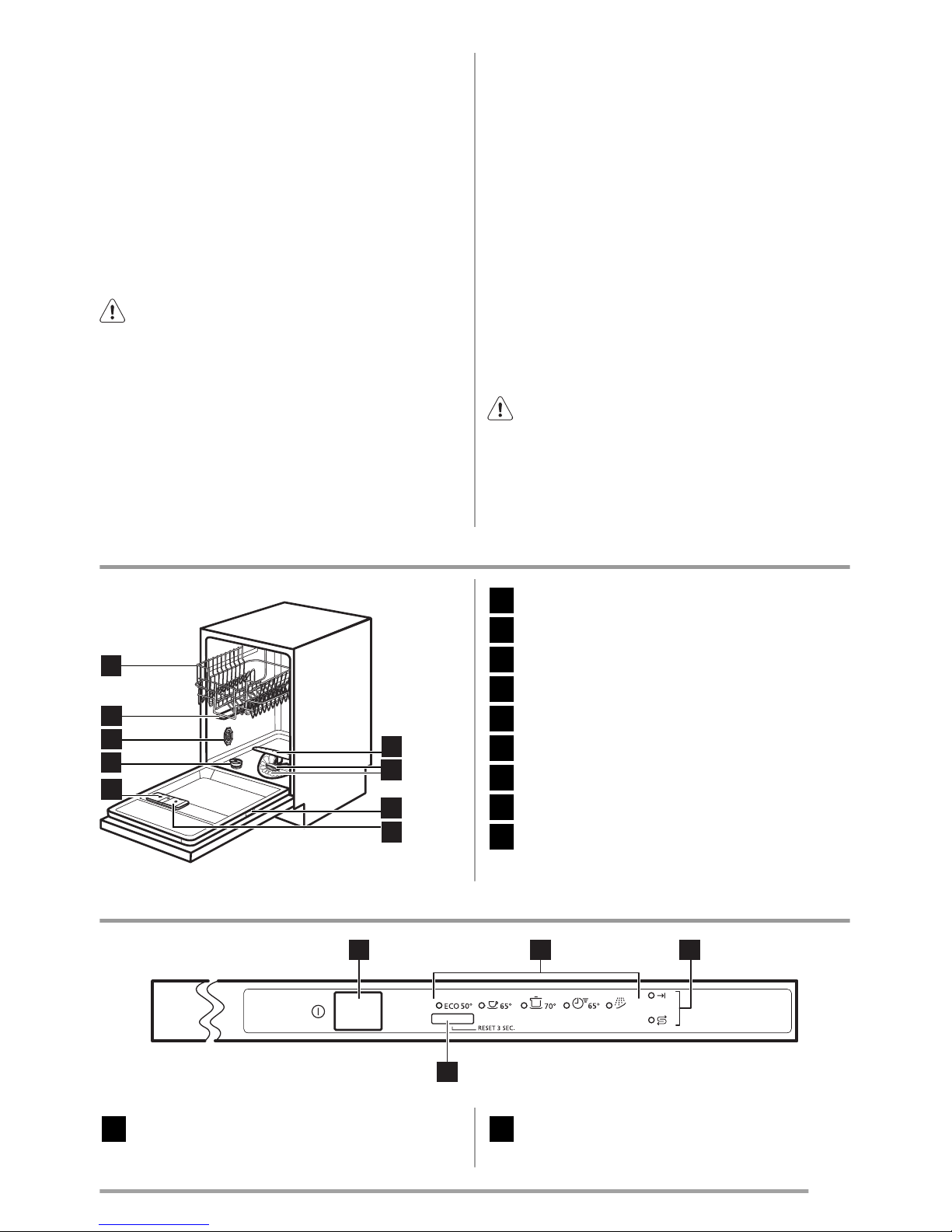

Product description
1
2
3
4
9
8
6
7
5
1Lower spray arm
2Filters
3Rating plate
4Rinse aid dispenser
5Detergent dispenser
6Salt container
7Air vent
8Upper spray arm
9Upper basket
Control panel
4
2
13
1On/off button 2Programme indicators
3

3Indicators 4Programme button.
Indicators Description
End indicator.
Salt indicator. This indicator is off while the programme operates.
Programmes
Programme
1)
Degree of soil
Type of load
Programme
phases
Duration
(min)
Energy
(kWh)
Water
(l)
2)
Normal soil
Crockery and cutlery
Prewash
Wash 50 °C
Rinses
Dry
123 0.86 13
Normal soil
Crockery and cutlery
Wash 65 °C
Rinses
Dry
105 - 115 1.6 - 1.9 18 - 20
Heavy soil
Crockery, cutlery,
pots and pans
Prewash
Wash 70 °C
Rinses
Dry
130 - 140 1.9 - 2.1 18 - 20
3)
Fresh soil
Crockery and cutlery
Wash 65 °C
Rinse
30 0.8 9
4)
All Prewash 12 0.1 5
1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can
change the programme duration and the consumption values.
2) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil.
(This is the standard programme for test institutes).
3) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
4) Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on the dishes and bad odours to come
out from the appliance.
Do not use detergent with this programme.
Information for test institutes
For all the necessary information for test performance. send an email to:
[e-mail]
Write down the product number (PNC) that is on the rating plate.
Options
Acoustic signals
The acoustic signals operate when the programme is
completed and when the appliance has a malfunction.
By default, the acoustic signals are on, but it is possible
to deactivate them.
4

How to deactivate the acoustic signals
1. Press the on/off button to activate the appliance.
Make sure that the appliance is in setting mode, re-
fer to “Setting and starting a programme”.
2. Press and hold the programme button until the indi-
cator flashes and the indicator
comes on.
3. Press immediately the programme button.
•The indicator comes on with a
fixed light.
•The indicator starts to flash.
4. Wait until the indicator goes off and
the end indicator comes on (the indicator
continues to flash).
• The acoustic signals are on.
5. Press the programme button. The end indicator
goes off.
• The acoustic signals are off.
6. Press the on/off button to deactivate the appliance
and to confirm the setting.
How to activate again the acoustic signals
1. Refer to ’How to deactivate the acoustic signals’
and follow the procedure from step (1) to step (5).
The end indicator is off.
2. Press the programme button. The end indicator
comes on.
• The acoustic signals are on.
3. Press the on/off button to deactivate the appliance
and to confirm the setting.

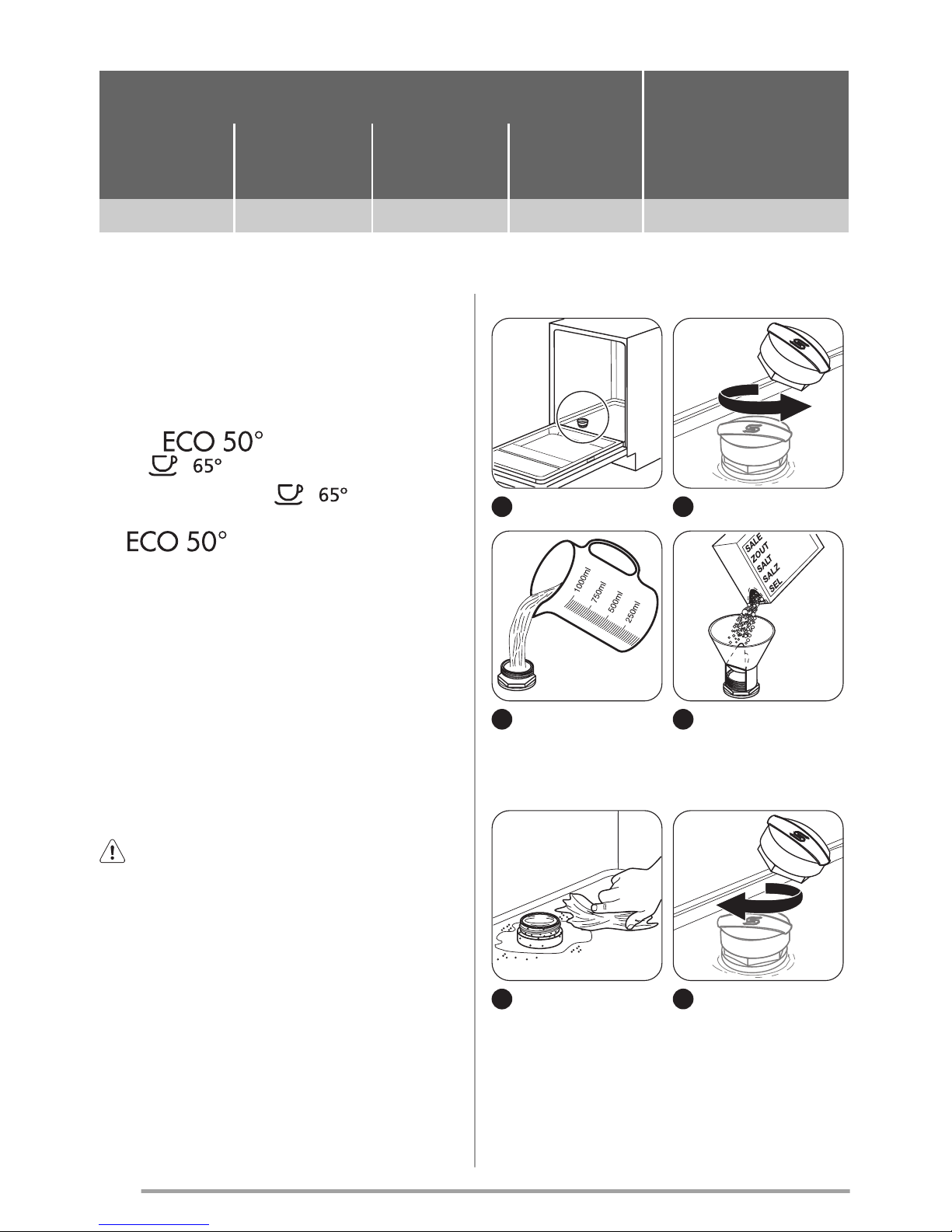

Before first use
1. Make sure that the set level of the water softener
agrees with the water hardness in your area. If not,
adjust the water softener. Contact your local water
authority to know the water hardness in your area.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Processing residues can stay in the appliance. Start
a programme to remove them. Do not use detergent
and do not load the baskets.
Adjusting the water softener
Water hardness Water softener
adjustment
German
degrees
(°dH)
French
degrees
(°fH)
mmol/l Clarke
degrees
Level
47 - 50 84 - 90 8.4. - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5
1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
5
