New Age 66958 Operating instructions

IM-GLE.09A-02
INSTALLATION AND OPERATION GUIDE
ATTENTION:Is your Grill Cart damaged?
Need help or spare parts? For fastest service,
contact NewAge Products at 1-877-306-8930;
or suppor[email protected].
Do not return to the retailer.
STOP
Use two or more people to move, assemble, or install the grill cart to avoid
back injury. Do not leave children unattended near the grill or cabinets.
THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER ASSEMBLY AND SAFE USE OF
THE APPLIANCE.
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS BEFORE ASSEMBLING AND USING THE APPLIANCE.
FOLLOW ALL WARNINGS AND INSTRUCTIONS WHEN USING THE APPLIANCE. FAILURE TO OPERATE THIS PRODUCT IN A WELL
VENTILATED AREA CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH.
Warning: Excessive weight hazard!
!
NEWAGE
GRILL CARTS
SKU#66958 - NewAge 33” Grill Cart
SKU#66959 - NewAge 36” Grill Cart
SKU#66960 - NewAge 40” Grill Cart
For the online installation manual and videos regarding this product, please check out our support hub via:
https://newageproducts.com/support-hub/

Index
Unpacking 4
Product Inspection 4
Tools Needed 4
Product Specications 5
Parts Supplied 6
Installing the Casters 8
Installing the Side Panels 9
Installing the Rear Panel 10
Installing Support Beam & Top Panel 11
Installing the Cart Doors 14
Installing the Cart Shelf 16
Adjusting The Door Hinges 17
Installing the RH Side Table Assembly 18
Installing the LH Side Table Assembly 20
Attaching two Appliance Carts (Optional) 22
Installing Grill on NewAge Grill Cart 27
Spare Parts List 30

3
Scan this QR code with the camera
on your mobile device to visit the
NewAge Products Support Hub
www.newageproducts.com/support-hub/
NEWAGE PRODUCTS INC. GRILL CART
MANUFACTURER WARRANTY
PROOF OF PURCHASE IS REQUIRED
TO OBTAIN WARRANTY SERVICE.
Please have the following information available when you call our
customer service team:
• Name, address and telephone number
• Product Name / SKU Number
• A clear, detailed description of the problem
• Proof of purchase including order number
Register your NewAge Products purchase online for quicker customer
assistance and access to exclusive benefits
Visit www.newageproducts.com/register/
Warranty Claim
For warranty service please contact NewAge Products at
1-877-306-8930; or [email protected]
Please review all warranty details below, prior to contacting NewAge Products for a claim.
Scan the QR code on the right to access our support page or
visit www.newageproducts.com/contact-us/
The 304 stainless steel material used in the construction of NewAge Outdoor Kitchen Cabinets is highly rust resistant, however, chlorine in the air from swimming
pools or the salt from sea air may cause surface rust to appear and even create some pitting corrosion if left on the product. We suggest cleaning all stainless steel
surfaces at least every two weeks to keep your cabinets in prime condition. The chemical reaction from salt is easy to prevent however it is more dicult when left
on the surface.
WHAT IS COVERED
When this product is installed, operated and maintained according to the instructions attached to or furnished with the product, NewAge Products Inc. will replace
the defective product or parts if the part fails as a result of defective materials or workmanship for the warranty duration from the purchase date of the product.
1. Service calls to correct the installation of any NewAge products or to instruct you how to use or install them.
2. Damage resulting from products caused by accident, misuse, abuse, fire, flood, improper installation, acts of God, neglect, modification or
mishandling.
3. Products damaged by improperly loading beyond the specified maximum weight capacity outlined in the instructions provided with the product.
4. Repairs or replacement when your product is used in other than normal, residential use, such as a commercial environment, or handled in anyway
inconsistent with the installation instructions included with the product.
5. Cosmetic damage that occurs after customer purchasing the product, including scratches, dings, dents, corrosion, or stains in the material that does
not aect the structural or functional capability of the product.
6. Surfaces damaged due to improper use of chemicals, and detergents.
7. Discoloration due to the high heat, for example beside a grill, is a trait of stainless steel.
8. Surface rust
9. Resulting from acid rain or environmental chemicals
10. Replacement parts for NewAge products outside Canada and the United States.
11. Loss due to theft.
12. Damage resulting from use of the product contrary and not in accordance to the instruction manual.
13. Any labor costs during the warranty period.
WHAT IS NOT COVERED
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED
TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD
ALLOWED BY LAW. THIS WARRANTY IS LIMITED TO THE ORIGINAL BUYER. Some states and provinces do not allow limitations on the duration of implied warranties of
merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to
state or province to province.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AT OUR DISCRETION AS PROVIDED HEREIN.
NEWAGE SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or
consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary
from state to state or province to province.
5 Years
2 Years Casters and Hinges
Cart overall construction
Warranty Covered ItemsLength of Warranty Cost to NewAge Cost to Customer
LIMITED WARRANTY
NewAge is proud to oer a complete product warranty for a period of (Five Years from the date of purchase.) Subject to the limitations and disclaimers set forth
below or in other product documentation, NewAge Provides the following additional warranties to the initial customer;
Materials
Materials
Shipping
Shipping

4

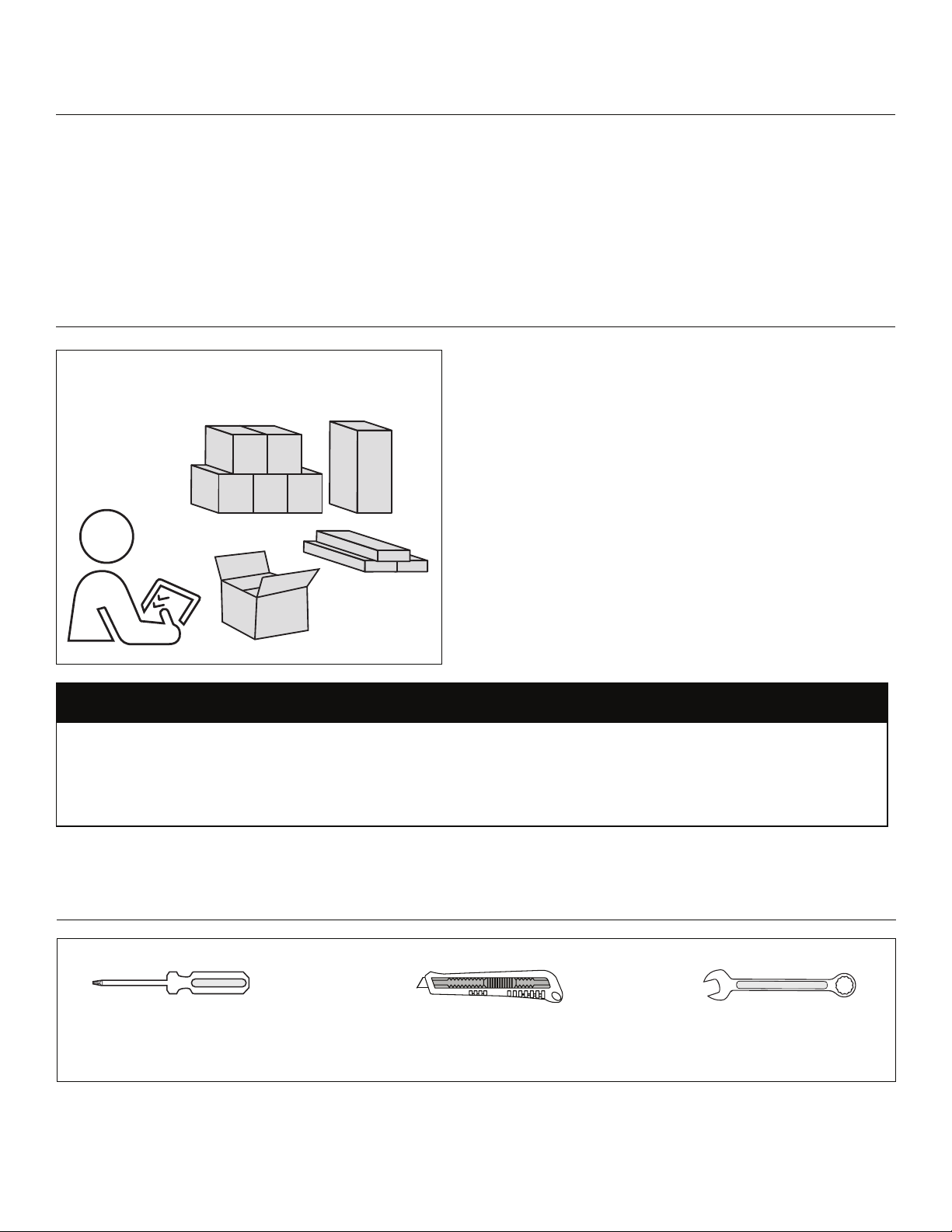

Unpacking
• Begin by placing the package on a covered at surface.
• Remove all cardboard, foam packaging material and nylon bags.
• Dispose / recycle all packaging materials.
• Verify all the contents in the box and gather the required tools. See “Tools Needed” in the list on
next pages.
Product Inspection
• Check to see all parts are received as per the
order placed.
• Contact NewAge Products at 1-877-306-8930;
for any missing parts.
• Inspect the products for any damages before
starting the installation.
• Go through the installation instructions carefully
before starting the installation.
• Two or more persons are required to install the appliance Carts shown in this Installation Manual.
• The illustrations shown in this Install Manual are for representation purpose only. Actual sizes of
the parts supplied in the package can be slightly dierent by appearance. Appearance of
hardware sizes are enlarged for ease of understanding for the customer.
IMPORTANT NOTES
Tools Needed
1 x Box Cutter
2 x 6mm
Open Wrench
1 x #2 Phillips head
screwdriver

5

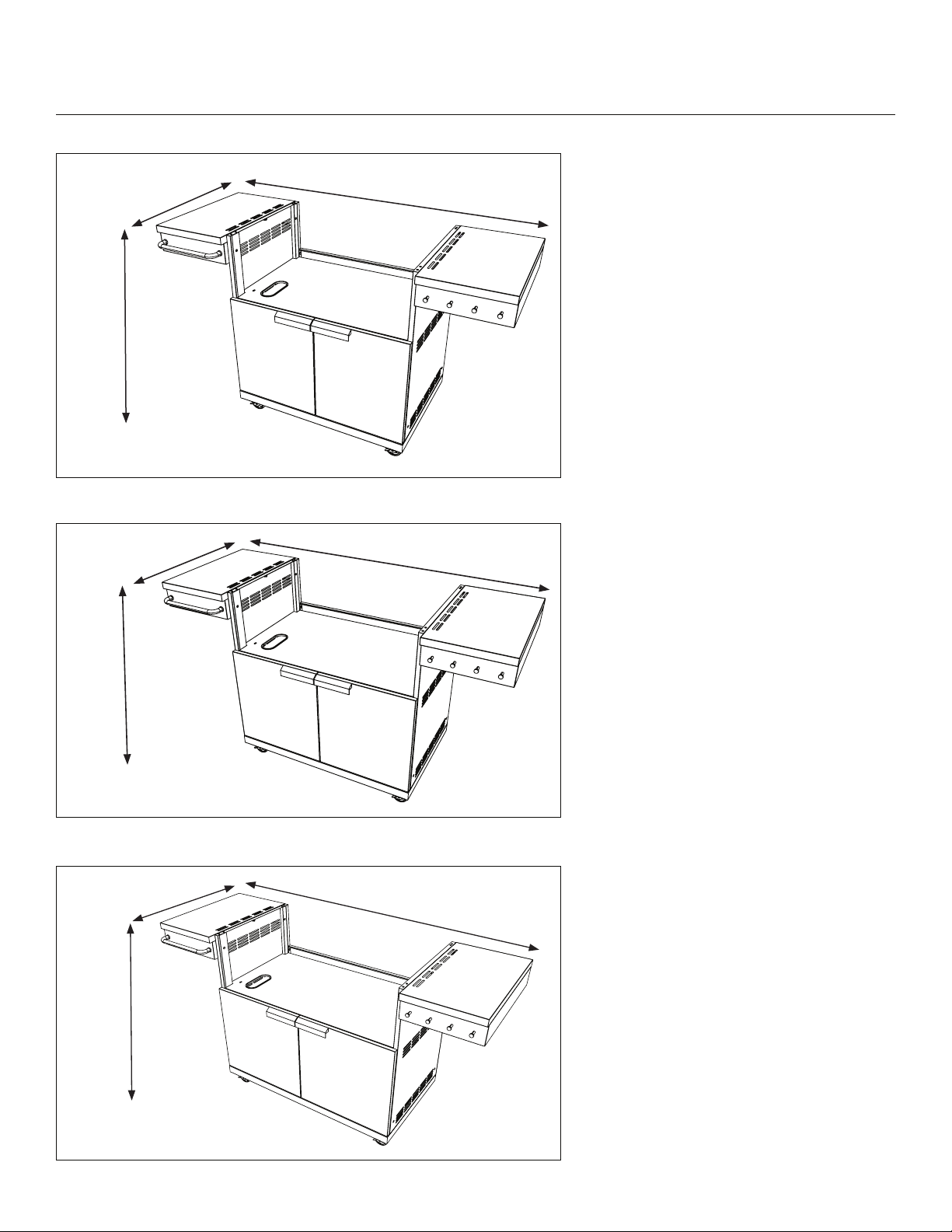

Product Specications
NewAge 33”Grill Cart
NewAge 36”Grill Cart
63.56”25.26”
35.44”
25.26” 60.56”
35.44”
NewAge 40”Grill Cart
25.26” 67.56”
35.44”

6
Parts Supplied
Type Description Qty
NewAge 33”
Cart
NewAge 36”
Cart
NewAge 40”
Cart
Included
Components
Cart wheel (With Lock) 2 2 2
Cart wheel (Without Lock) 2 2 2
Door Magnet Lock 2 2 2
Door Magnet Lock Plate 2 2 2
Cable Grommet 1 1 1
Rubber Gasket 1 1 1
Platform Handle 1 1 1
Platform Handle Sleeve 2 2 2
Utensil Peg 4 4 4
Door Hinge 4 4 4
Door Handle LH 1 1 1
Door Handle RH 1 1 1
Support Lock Plate 1 1 1

7
44x Phillips Head
Screw - M6x15L
4x M6 Flanged Nut 46x Phillips Head
Screw - M4x10L
Hardwares
Parts Supplied
1x Towel
Handle
2x Towel
Handle Base
4x Utensil Pegs
4x Door Hinge2x Cart wheel
(Without Lock)
2x Cart wheel
(With Lock)
16x Split Washer M6 16x Plain Washer M6
1x Wing Head Thumb
Screw-M6 with Stop
(Pre-installed)
2x Hex Head Screw
-M6x12L

8

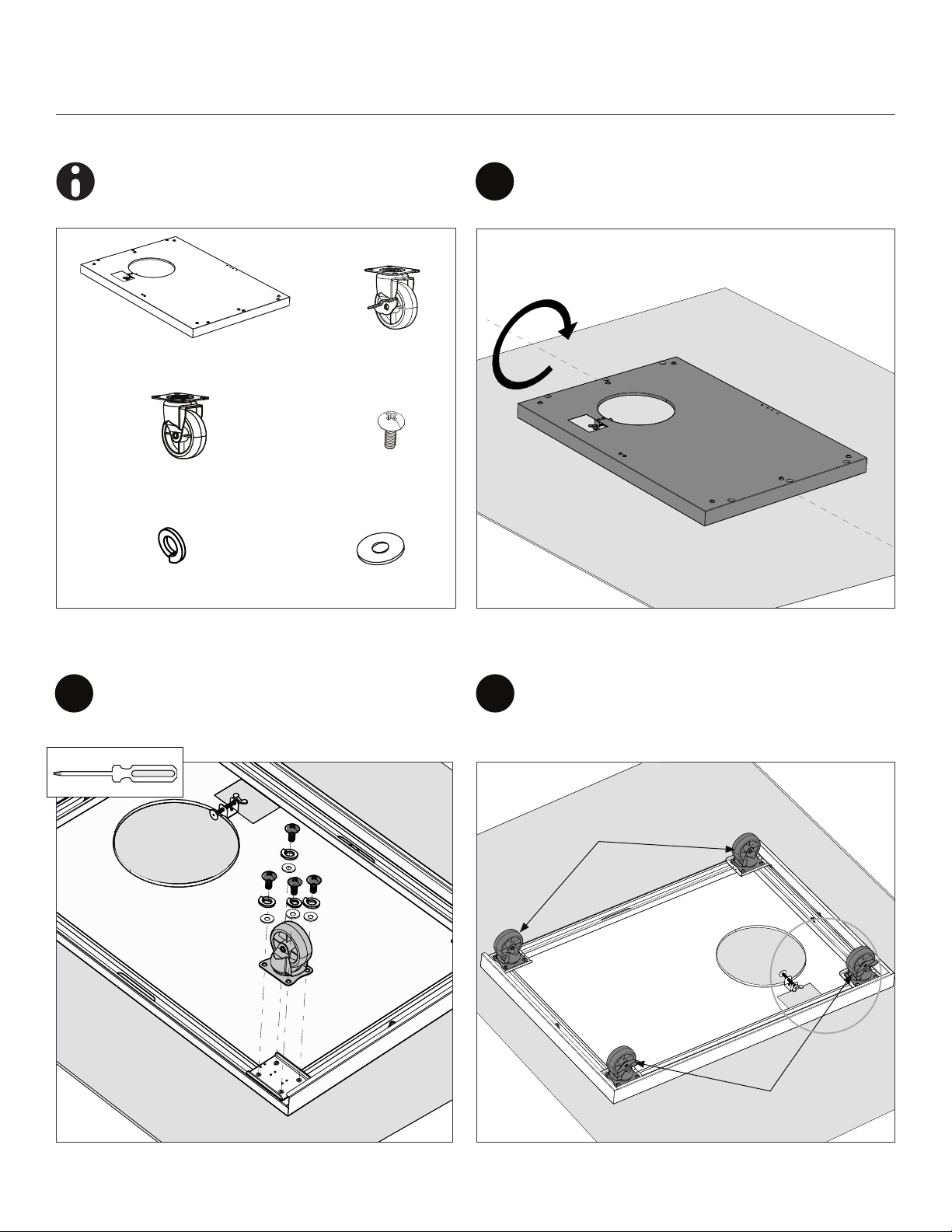

Installing the Casters
Begin by placing the Base Panel Assembly
on a covered at surface (i.e, Cardboard).
Rotate the Base Panel Cover Frame
Assembly.
Using a screw driver, tighten the Plain
Washer, Split Washer & Phillips Head Screw
as shown.
Repeat and install the Casters onto all
the given pre-installed plates on the Base
frame Support.
NOTE: Casters (with Lock) should be
installed on front plates located near to
Wing Head Thumb Screw.
1
2 3
Parts required.
1x Base Panel Assembly 2x Casters
(With Lock)
2x Casters
(Without Lock)
16x Phillips Head
Screw - M6x15L
Casters (with Lock)
Casters (without Lock)
16x Split Washer M6 16x Plain Washer M6

9
Installing the Side Panels
Rotate the Base Panel assembly to the
position shown.
Now place the Side Panel LH Assembly
screw holes onto the Rivet nuts of Base
Frame Cover Panel Assembly.
Tighten three Phillips Head Screw as
shown. Repeat the similar steps and install
the Side Panel RH Assembly.
1
2 3
Parts required.
1x Side Panel LH
6x Phillips Head
Screw- M6X15L
1x Side Panel RH

10
Installing the Rear Panel
Place the Back Panel Assembly onto the
Base Frame, and in between the Side
Panels.
Match the holes with LH Side Panel, and
tighten three Phillips Head Screw-M6 as
shown. Repeat the similar steps and install
the Phillips Head Screw into Side Panel RH
Assembly.
Now tighten two Phillips Head Screw-M4
onto the bottom ange of the Back Panel.
1
23
Parts required.
1x Back Panel
2x Phillips Head
Screw- M4X10L
6x Phillips Head
Screw - M6X15L

11

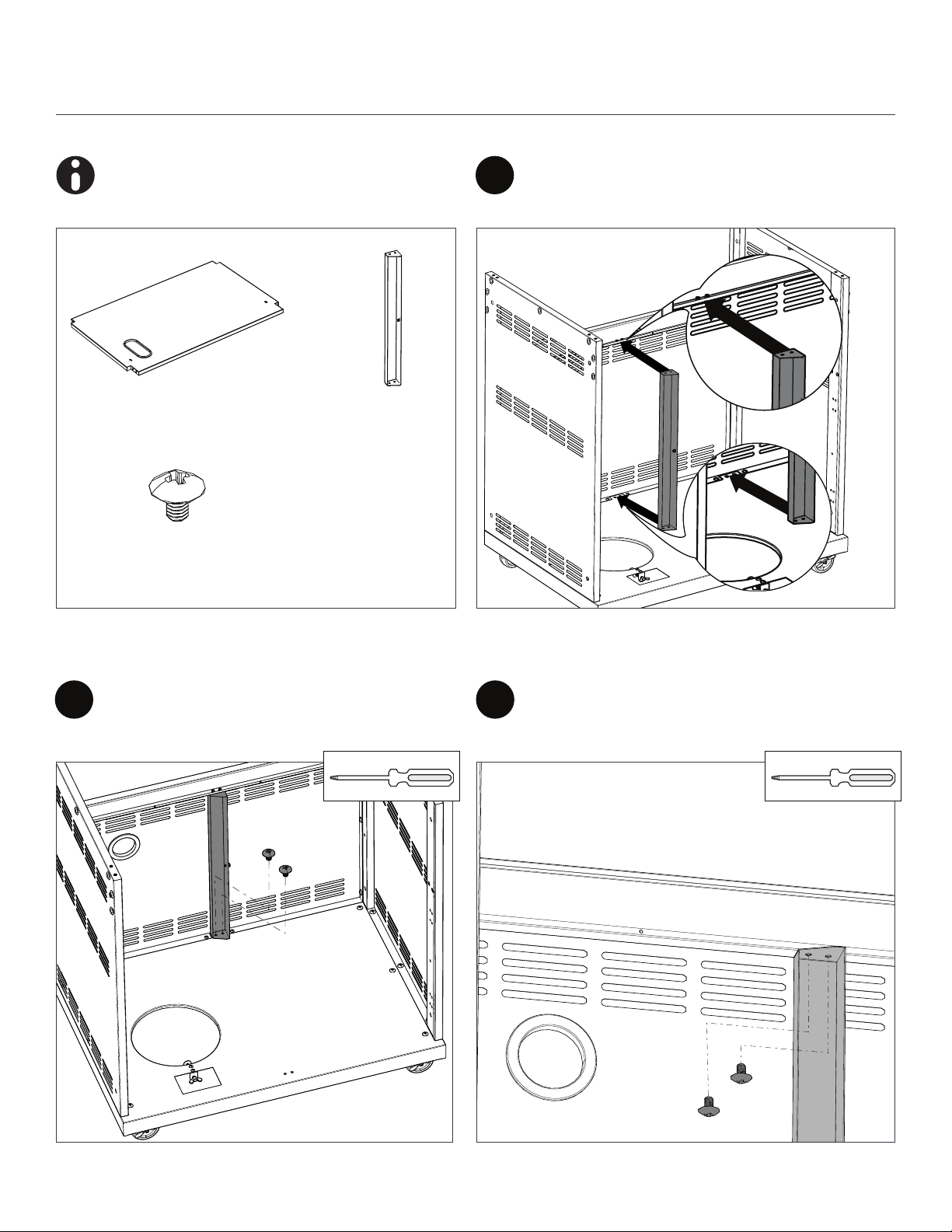

Installing Support Beam & Top Panel
Place the Vertical Support Beam - rear
as shown below. Then align the Support
Beam - rear with respect to top and
bottom rivet nuts.
Match the holes with rivet nut on Base
Frame, and tighten two Phillips Head
Screw - M4 as shown.
Similarly, tighten two Phillips Head Screw -
M4 in the rivet nuts into the back panel as
shown.
1
2 3
Parts required.
1x Top Panel 2x Vertical
Posts
16x Phillips Head
Screw - M4X10L

12
Then ip it back and rotate it so that the
Vertical Support Beam is facing towards
you.
Place the assembly in position as shown
below.
TIP: Make sure the back of the Top Panel
is resting on the Vertical Support Beam -
rear.
Align the holes and screw the Vertical
Support Beam-rear in place using two
Phillips Head Screw - M4.
54
6
TOP PANEL
7
Flip the Top Panel over and attach the
Vertical Support Beam - front onto it using
two Phillips Head Screw - M4.
Installing Support Beam & Top Panel

13
Fix the Top Panel in the place on Back
Panel with provided Phillips Head Screw -
M4 as shown below.
Repeat step 9 for screwing the RH Side
Panel Assembly and Top Panal Assembly
together.
11
98 Tighten two Phillips Head Screw - M4
underneath near door opening of LH Side
Panel and Top Panel Assembly as shown.
Fix the Top Panel in the place on Back
Panel with provided Phillips Head Screw -
M4 as shown below.
10
Installing Support Beam & Top Panel

14
Installing the Cart Doors
Flip the RH door over. Put the Hinges in
the designated cutout and screw them in
place using Phillips Head Screw.
Align the RH door with the provided holes
on the RH side panel. Tighten four Phillips Head Screw per
Hinge as shown.
1
2 3
Parts required.
1x Door LH 1x Door RH
4x Door Hinge 24x Phillips Head
Screw - M4X10L

15
Installing the Cart Doors
Install the LH Door following similar steps.
NOTE: Both the doors should be ushed
with the Top Panel upper edge and
alignement should remain straight.
4

16
Installing the Cart Shelf
Open right-side Door. Then Diagonally
tilt the Shelf from either front or back and
insert from RH Door opening.
1
Parts required.
4x Phillips Head
Screw- M4X10L
1x Shelf
Now hold the shelf, keep it aligned with
the slots provided on shelf. Then insert
and tighten the Phillips Head Screw as
shown below.
2
Shelf
Front Vertical Post
(Middle)
Front View

17
1
Using a Philips screwdriver, the doors can be adjusted: Left, right, forwards and backwards.
To adjust the doors left or right, turn the screw (A) clockwise or counterclockwise.
To adjust the gap between the doors and frame, turn the screw (B) clockwise or counter-clockwise.
2
B
Adjusting The Door Hinges
A

18

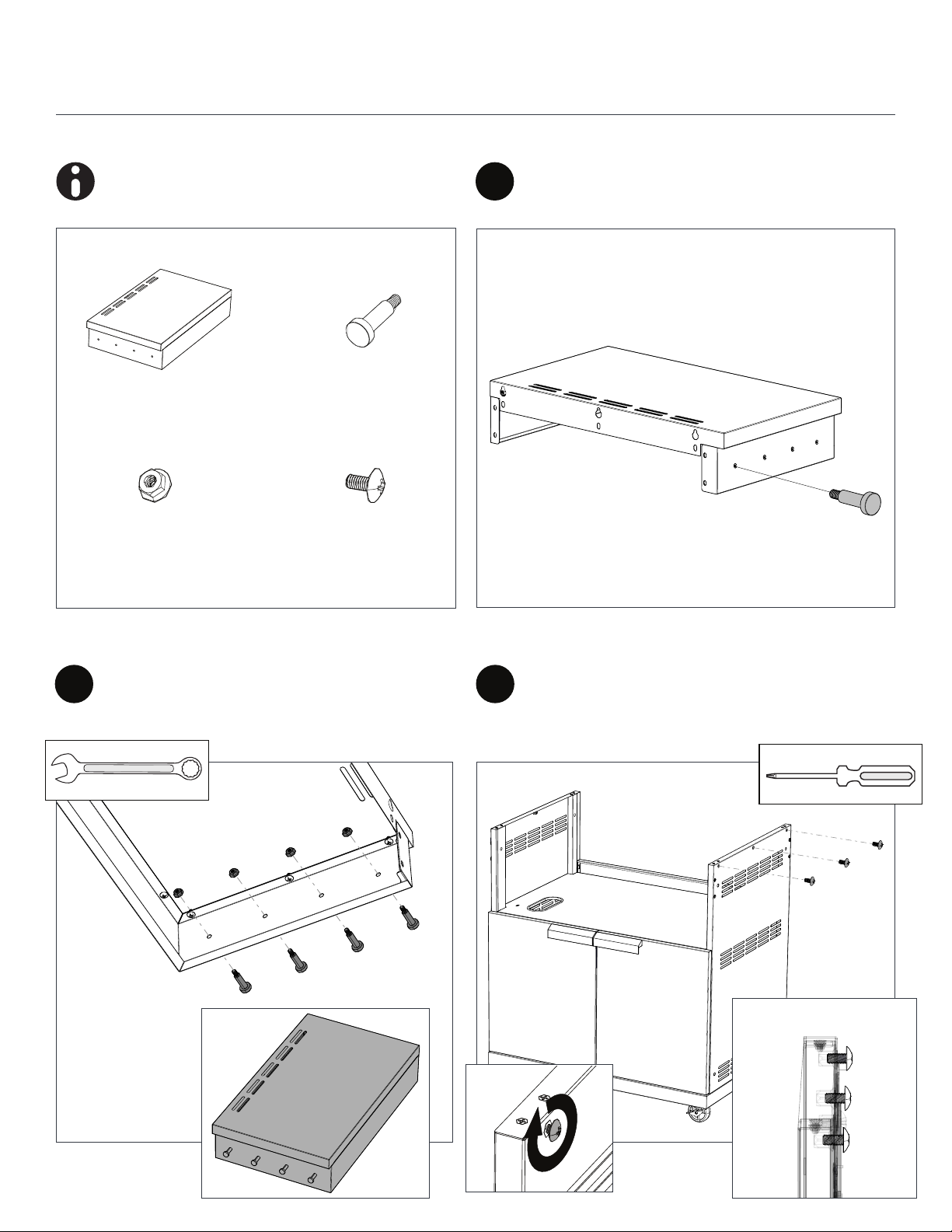

Installing the RH Side Table Assembly
Start with tting the Utensil Peg into the
RH Side table assembly as shown.
Using a Wrench, tighten the Nuts on
the Utensil Pegs thread prole from
underneath.
Pre-tighten the Phillips Head Screw into
the RH Side Panel, allow enough clearance
to mount the RH Side table.
1
2 3
Parts required.
4x M6
Flanged Nut
1x RH Side table
assembly
4x Utensil Pegs
7x Phillips Head
Screw- M6X15L
Bottom view Front view

19
Installing the RH Side Table Assembly
Tighten the top three Phillips Head Screw
and x the RH Side table assembly.Then
install four Phillips Head Screw as shown.
54 Mount the RH Side table as shown, then
tighten the Phillips Head Screw to provide
the required grip.
Front View

20
Installing the LH Side Table Assembly
Install the Handle with Sleeve onto the LH
side table assembly using two Phillips Head
Screw M6.
Pre-tighten the Phillips Head Screw - M6
onto the Main Assembly as shown.
NOTE: allow enough clearance to mount
the LH side table assembly.
Mount the LH side table assembly.
1
2 3
Parts required.
9x Phillips Head
Screw- M6X15L
1x Towel
Handle
2x Towel
Handle Base
1x LH side table
assembly
