New Braunfels 10301601 User manual

Product Guide
Model 10301601
Estimated Assembly Time: 1 Hour
Tools needed for assembly:
Phillips Screwdriver
Flat Head Screwdriver
Two adjustable wrenches
Hammer
FOR OUTDOOR USE ONLY
CAUTION:
Read and follow all safety statements, assembly instructions,
and use and care directions before attempting to assemble
and cook.
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
WARNING:
Failure to follow all manufacturer’s instructions could
result in serious personal injury and/or property
damage.
CAUTION:
Some parts may contain sharp edges – especially as
noted in the manual! Wear protective gloves if
necessary.
WARNING:
CARBON MONOXIDE HAZARD
Burning charcoal inside can kill you. It gives off carbon
monoxide, which has no odor. NEVER burn charcoal inside
homes, vehicles, or tents.
CAUTION:
THIS UNIT IS HEAVY! DO NOT attempt to
assemble without a helper.
If you have questions or need assistance during assembly, please call .
To insure your satisfaction and for follow-up service, register your appliance online at www.charbroil.com/register
1-800-241-7548
42804556 - 12/18/09
Serial Number
Date Purchased
IMPORTANT: Fill out the product record information below.
The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Caldera®; Charcoal2Go®; Char-Broil®;America's Legendary Barbeque Company®;American
Gourmet®; Bandera®; Brush Hawg®; CB 940®; Char-Diamonds®; Char-Broil Charcoal/Gas®; Everybody Grills®; Everybody Outside®; FastStart®; Grill 2 Go®; Grill 2 Go® Express®; Grill Lovers®;
Infrared Grilling That’sAllAbout U®; Keepers of the Flame®; New Braunfels Smoker Company®; Patio Bistro®; Patio Caddie®; Patio Kitchen®; Pro-Sear®; RED®; Quantum®; Santa Fe®; Sear and
Grill®;Sierra®;SignatureSeries®;Sure2Burn®;TheBigEasy®;Trentino®;U®; WildWestTradition®;andthefollowingmarks:
® ®
Protected under one or more of the following U.S. Patents: 5,421,319; 5,458,309; 5,579,755; 5,996,573; 6,135,104; 6,279,566; 6,331,108; 6,484,900; 6,526,876; 6,595,197; 6,640,799; 6,640,803; 6,729,873; 6,739,473; 6,749,424; 6,792,935;
6,951,213;7,047,590;7,516,693;D364,535;D372,637;D373,701;D377,735;D383,035;D397,910;D405,643;D406,005;D406,009;D413,043;D413,229;D414,982;D415,388;D416,164;D416,441;D417,587;D417,588;D422,516;D423,274;
D423,876;D428,303;D430,772;D435,396; D436,004;D438,059;D438,060;D438,427; D439,110;D442,505; D443,179;D443,354;D443,464;D447,384;D447,385;D447,909;D448,610; D448,614;D448,615;D448,616;D448,975; D449,492;
D450,544;D451,759; D454,028;D454,031;D455,205; D455,206;D456,202;D456,222;D456,223; D457,789;D458,520;D458,760; D458,802;D459,088;D459,148D459,149; D459,161;D459,163;D459,586; D459,943;D460,312;D460,313;
D460,318;D461,359;D465,123;D465,693;D466,307; D466,439;D466,752;D473,414;D474,371; D477,498;D477,501;D477,504;D477,506; D477,746;D478,471;D478,472;D480,914;D491,410;D494,009;D494,413; D498,523;D500,359;
D504,048;D530,098;D535,000;Canada:D97,504;D99,355;D102,037;D104,200;D108,377;2,315,567;France:D010,231;D010,422;D010,590;D010,849;1,089,646;SouthKorea:384,565;UnitedKingdom:2,099,402.OtherPatentsPending.
©2009W.C.BradleyCompany
The following are trademarks of W.C. Bradley Co.: Advantage Series™; Auto-Clean™;Chef Tested™; Commercial Series™; Designer Series™;; Diamond Flame™; Double Chef™; Fireball™;
Firenzy™; FlavorMaster™;Front Avenue™; Grill 2 Go® Advantage™; Hog and Yard Bird™; H20 Smoker™; Infrared. Grilling’s Juicy Little Secret™; Incredible Taste. Infallible Results™; Infrared
Inside™;Insure™;Let’sGrillSomethingTogether™;Lev-Alert™;Longhorn™;Magneto™;PrecisionFlame™;Quick2Burn™;QuickSet™;ReadyWhenYouAre™;Season,Set,AndSavor™;SizzleOn
TheGrill™;SignatureSeries™;SureFire™;TheMinuteGrill™;Torchfork™;UniversalGrillParts™;YouBringtheParty™ TEC™isatrademarkofTecInfraredGrills.
TM REVISION 04
®
Combo Charcoal
Grill/Smoker

DANGER
Safety Symbols
The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout
the manual.
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING
WARNING: Indicates an potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION
CAUTION: Indicates a potentially hazardous situation or
unsafe practice which, if not avoided, may result in minor
or moderate injury.
CAUTION
For residential use only. Do not use for commercial
cooking.
This instruction manual contains important
information necessary for the proper
assembly and safe use of the appliance.
Follow all warnings and instructions when
using the appliance.
ProductRecordInformation............................1
PreparingtouseyourGrill.............................3
LimitedWarranty.....................................6
SafetySymbols......................................2
GrillMaintenance....................................3
CookingTips......................................4-5
PartsList/PartsDiagram..............................7

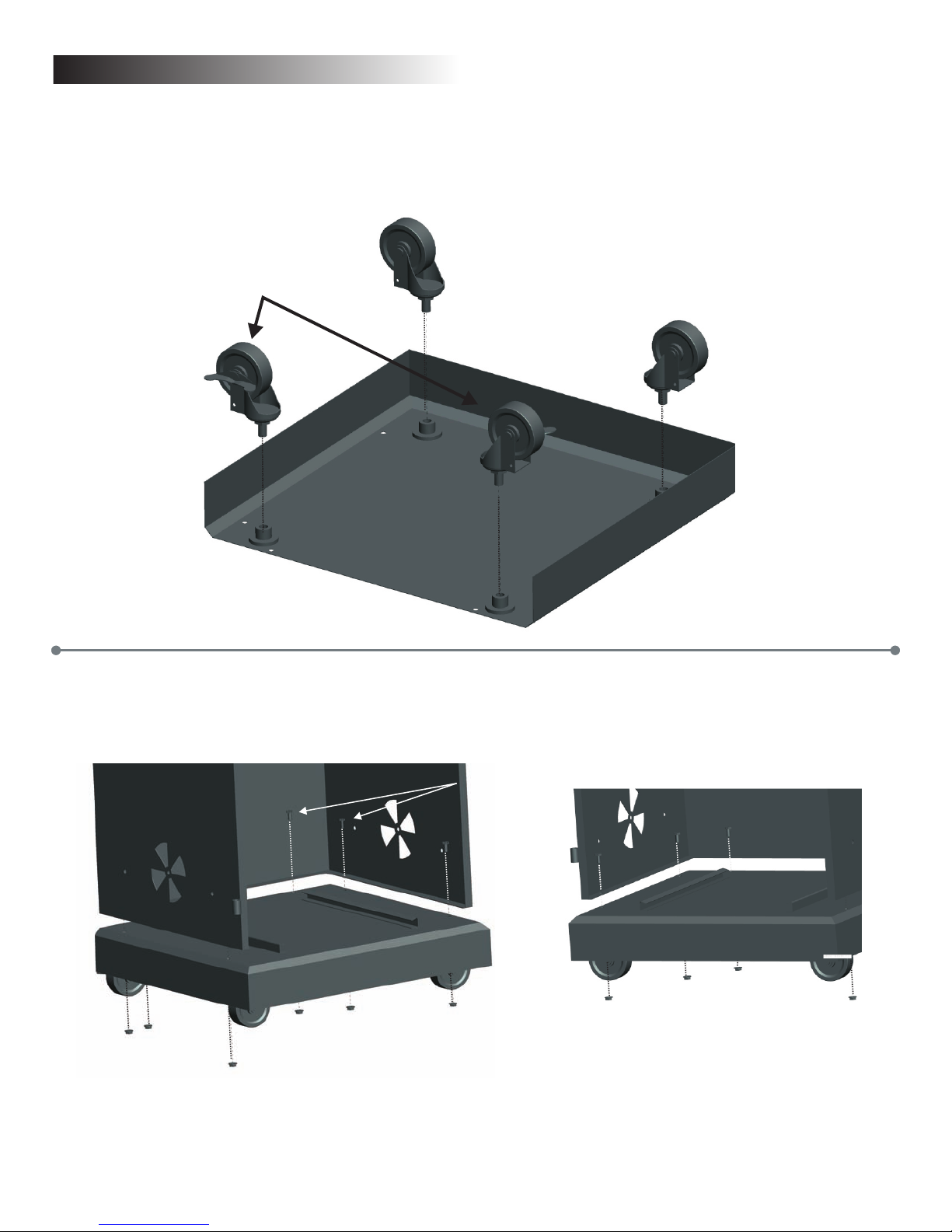

Assembly........................................8-16

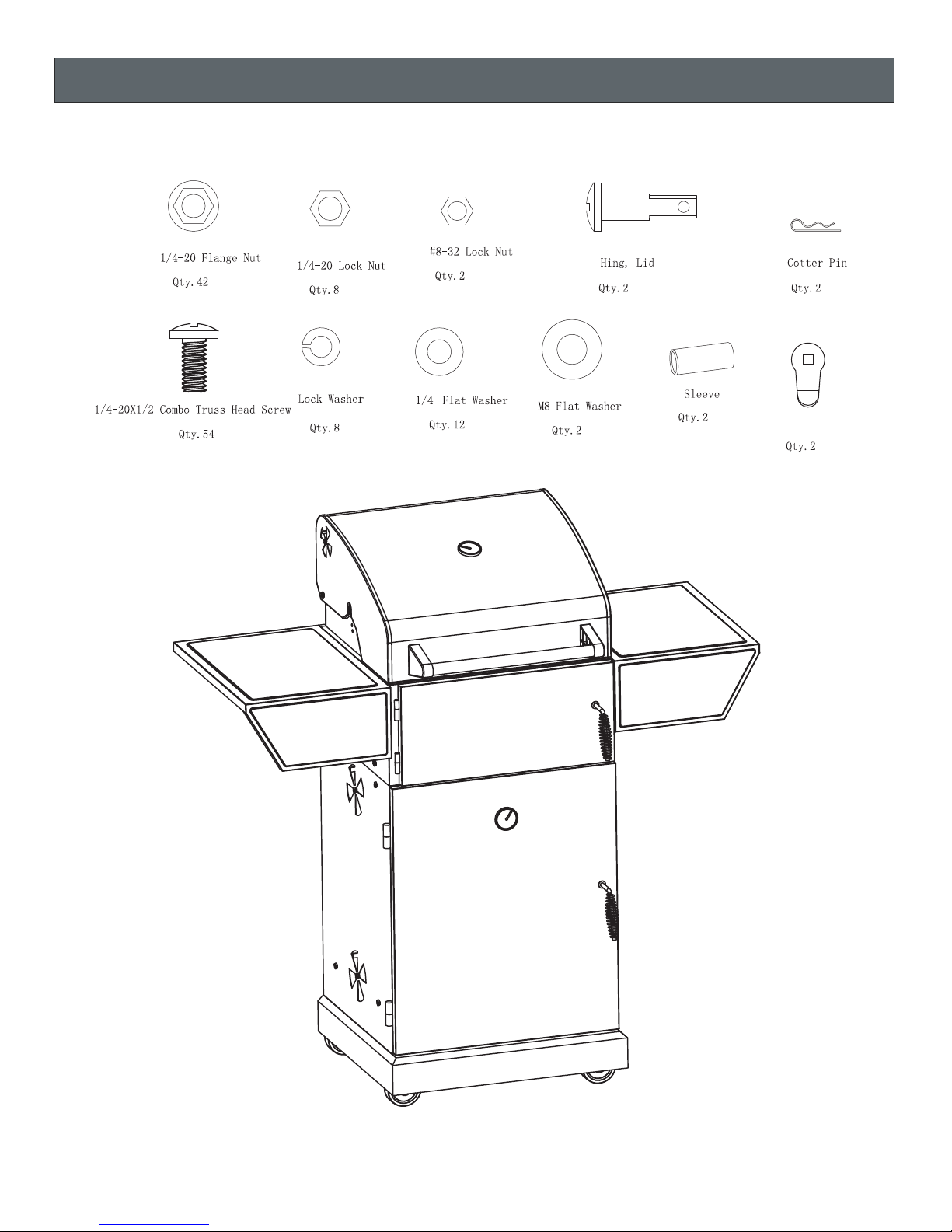

HardwareList......................................17
RegistrationCard...................................20
TABLE OF CONTENTS
WARNING
CALIFORNIA PROPOSITION 65
1. Combustible by-products produced when using
this product contains chemicals known to the State
of California to cause cancer, birth defects, or
other reproductive harm.
2. This product contains chemicals, including lead
and lead compounds, known to the State of
California to cause cancer, birth defects or
other reproductive harm.
Wash your hands after handling this product.
WARNING
All surfaces can be hot during use. Use protection
as required to prevent burning.
Do not use this unit on or near combustible surfaces
or structures such as wood decks, dry leaves or
grass, vinyl or wood siding, etc.
SEE OWNERS MANUAL FOR IMPORTANT SAFETY
INFORMATION.
WARNING
FAILURE TO READ AND FOLLOW INSTRUCTIONS FOR
LIGHTING CHARCOAL MAY RESULT IN SERIOUS PERSONAL
INJURY AND OR PROPERTY DAMAGE.
WARNING
• Most surfaces on this unit are hot when in use.
Use extreme caution. Keep others away from
unit. Always wear protective clothing to prevent
injury.
• Keep children and pets away.
• Do not move this unit during operation.
• Never substitute gasoline, kerosene or alcohol
for charcoal starter. In some states, the use of
charcoal starter is prohibited by law. In this
case, paraffin-based starter cubes can be
substituted for charcoal starter. Never use
charcoal starter fluid with an electric starter.
Page 2

GRILL MAINTENANCE
Frequency of clean up is determined by how often the grill is used. Make sure coals are completely extinguished before
cleaning inside of the unit. Thoroughly rinse with water and allow to air dry before using again. Wipe out the interior of the
unit with a cloth or paper towels.
When finished cooking, and the unit has adequately cooled, clean out all remaining ashes.Ashes collect moisture, which
can lead to premature rusting and decay. Periodically coating the interior surfaces with vegetable oil will aid in the protection
of your unit.Also, occasional touch up of the exterior paint will be required. Black, high-temperature spray paint is
recommended. NEVER PAINT THE INTERIOR OFTHE UNIT.
Cooking Surface: If a bristle brush is used to clean any of the grill cooking surfaces, ensure no loose bristles remain on
cooking surfaces prior to grilling. It is not recommended to clean cooking surfaces while grill is hot.
WARNING
• Most surfaces on this unit are hot when in use.
Use extreme caution. Keep others away from
unit. Always wear protective clothing to prevent
injury.
• Keep children and pets away.
• Do not move this unit during operation.
• Never substitute gasoline, kerosene or alcohol
for charcoal starter. In some states, the use of
charcoal starter is prohibited by law. In this
case, paraffin-based starter cubes can be
substituted for charcoal starter. Never use
charcoal starter fluid with an electric starter.
PREPARING TO USE YOUR GRILL
Before cooking with your grill, the following steps should be closely followed to both cure the finish and season the interior
steel. Failure to properly follow these steps may damage the finish and/or impart metallic flavors to your first foods.
?Brush all interior surfaces including grills and grates with vegetable cooking oil.
?Build a small fire on the ash pan, being sure not to lay coals against the walls.
?Close lid, position butterfly dampers at approximately one quarter turn open. This burn should be sustained for at least
two hours. Begin increasing the temperature by opening the butterfly dampers halfway and adding more charcoal. Your
grill is now ready for use.
Rust can appear on the inside of your grill. Maintaining a light coat of vegetable oil on the interior surfaces will aid in the
protection of your grill. Exterior surfaces of the grill may need occasional touch up. We recommend the use of
commercially available black high temperature spray paint. NEVER PAINT THE INTERIOR OFTHE GRILL!
GRILLING
Charcoal is recommended, however, wood or a combination of both may be used as the fuel source for grilling with the
fuel source placed and ignited on the ash pan. Do not build too large of a fire. We recommend starting a fire with no more
than 4 pounds of charcoal (approximately 50-60 briquettes) and adding more as needed during cooking.After allowing
the fire to burn down, place the cooking grate on the unit. Failure to read and follow instructions for lighting charcoal may
result in serious personal injury and/or property damage.
Page 3

Building Your Fire
1.) Stack charcoal briquettes or wood into a pyramid-shaped pile on top of the charcoal grate
or ash pan. We recommend using 4 pounds (approximately 50 - 60 briquettes) to start your
fire, adding more as needed.
2.) If using lighter fluid, saturate the charcoal briquettes with lighter fluid and let it soak in for
approximately 5 minutes. If using a chimney starter, electric starter, or other type of fire
starter, light your fire according to the manufacturer's instructions.
3.) After allowing the lighter fluid to properly soak in, light the pile of briquettes in several
locations to ensure an even burn. Always light the fire with the grill lid open.
Leave lid open until briquettes are fully lit. Failure to do this could trap fumes from charcoal
lighter fluid in grill and may result in a flash fire when lid is opened.
4.) Never add charcoal lighter fluid to hot or warm coals as flashbacks may occur causing
injury.
5.) You are ready to begin cooking when the pile of briquettes ashes over and produces a red
glow (approximately 12 – 15 minutes).
6.) Depending on your cooking method, either leave the briquettes in a pile or spread evenly
across the charcoal grate using a long-handled poker.
*Always use caution when handling hot coals to prevent injury.
Know When Your Fire is Ready
Successful charcoal grilling depends on a good fire. The general rule for knowing when your coals
are ready for grilling is to make sure that 80 percent or more of the coals are ashy gray. If you
have less than that, the coals are not ready, and if all of them are glowing red hot, the fire is
probably too hot. Here are a few steps you can take to adjust the temperature of your fire:
- If it is too hot, spread the coals out a bit more, which makes the fire less intense.
- Raise or lower the adjustable charcoal grate.
- Partially close the vents in the grill, which reduces the amount of oxygen that feeds the fire.
- Use the indirect grilling method, with coals to either side of a drip pan and the food over the
pan rather than directly over the coals.
- In the event of a severe flare-up, spray the flames with water from a squirt bottle. Be
careful, spraying with water tends to blow ashes around and make a mess.
- Add briquettes 2 or 3 at a time to increase the burn time. Allow 10 minutes for coals to ash
over before adding more.
COOKING TIPS
Page 4

Direct and Indirect Grilling
Direct Grilling - For most grilling, the ignited coals are spread in a single layer under the food. This
is called direct grilling and is appropriate for relatively quick-cooking items such as hamburgers,
steaks and most seafood. The single layer of coals emits even, steady heat, whether the grill lid is
open or closed, and represents the way most people grill. For more control, pile some of the coals
on one side of the grill where they will emit intense heat. You can move the food around on the grill,
setting it over the very hot coals when you want to sear it or when a thick piece needs to cook a
little more quickly. You can also use the adjustable charcoal grate and dampers to control the
temperature in your grill.
Indirect Grilling - For items that take longer to cook, you will want to use indirect grilling. This
method is for long, slow cooking in a covered grill. For indirect cooking, the coals are piled two or
three coals deep on one side of the grill, or divided and piled on two sides. This leaves an empty
space next to the coals or between them. Food cooked over indirect heat is often started over
direct heat and then moved to the cooler (empty) part of the grill for even, slow cooking. To make
the heat as even as possible, construct two piles of coals. It is common to place a metal drip pan in
the empty space beside or between the coals, which is filled with water, wine, beer, broth, or a
combination. Place the food directly over the drip pan. This injects a little extra moisture into the
cooking environment and also catches dripping juices, which makes clean-up a little easier and
reduces the possibility of flare-ups. (Remember to keep a spray bottle filled with water on hand to
extinguish any flare-ups.) Once you get used to the indirect method, you may prefer to use it for
more grilling tasks. Although it may take a little longer, it is an excellent cooking method and a sure
way to prevent the food from burning and to promote even cooking.
Grilling with Wood Chips/Wood Chunks
For a more robust smoke flavor while using charcoal briquettes or lump charcoal, try adding wood
chips or several wood chunks to the fire. Wood chunks are available in a variety of natural flavors,
and can be used alone or in addition to charcoal. As a general rule, any hardwood that bears a fruit
or nut is suitable for cooking. However, different woods have very different tastes. Experiment with
different woods to determine your personal favorite, and always use well-seasoned wood. Green or
fresh-cut wood can turn food black, and tastes bitter.
Mild Flavor Medium Flavor Heavy Flavor
Pecan Hickory Mesquite
Apple White Oak Blackjack Oak
Peach Cherry Red Oak
USDA Recommended
Internal Cooking Temperatures
Ground Meat
Beef, Pork, Veal, Lamb......................................160°F
Turkey, Chicken.................................................165°F
Fresh Beef, Veal, Lamb
Medium Rare.......................................................145°F
Medium................................................................160°F
Well Done............................................................170°F
Poultry
Chicken & Turkey, whole.....................................165°F
Poultry Parts.......................................................165°F
Duck & Goose....................................................165°F
Fresh Pork
Medium..............................................................160°F
Well Done..........................................................170°F
Page 5
