NEW WIDETECH WDH-122H-16RA User manual

DEHUMIDIFIER
WARNING/CAUTION ‧‧‧ ‧‧‧ 0
DESCRIPTION OF COMPONENTS
OPERATING INSTRUCTIONS 1
OPERATION ‧‧‧‧‧ ‧ ‧ ‧‧‧2
CONTINUOUS DRAINAGE ‧‧‧‧‧‧‧‧‧‧‧ 3
CAUTIONS ‧ ‧‧ ‧‧ ‧‧ ‧‧ ‧‧ ‧‧ ‧‧ ‧‧ ‧ 4
MAINTENANCE/EMERGENCY ‧‧‧‧‧‧‧‧‧‧ 5
SPECIFICATION ‧ ‧‧‧‧‧‧‧‧ LAST PAGE
‧‧ ‧‧ ‧ ‧ ‧
‧‧ ‧‧ ‧ ‧ ‧
‧‧‧‧‧‧‧‧
‧
‧
CONTENTS
THANKS FOR YOUR CHOOSING NEW WIDETECH'S DEHUMIDIFIER.
BEFORE USING IT , PLEASE READ THOROUGHLY OF THIS INSTRUCTION MANUAL.
USER'S MANUAL
VOLTAGE：220-240V~50Hz
NEW WIDETECH
WDH-122H-16RA

- 0 -

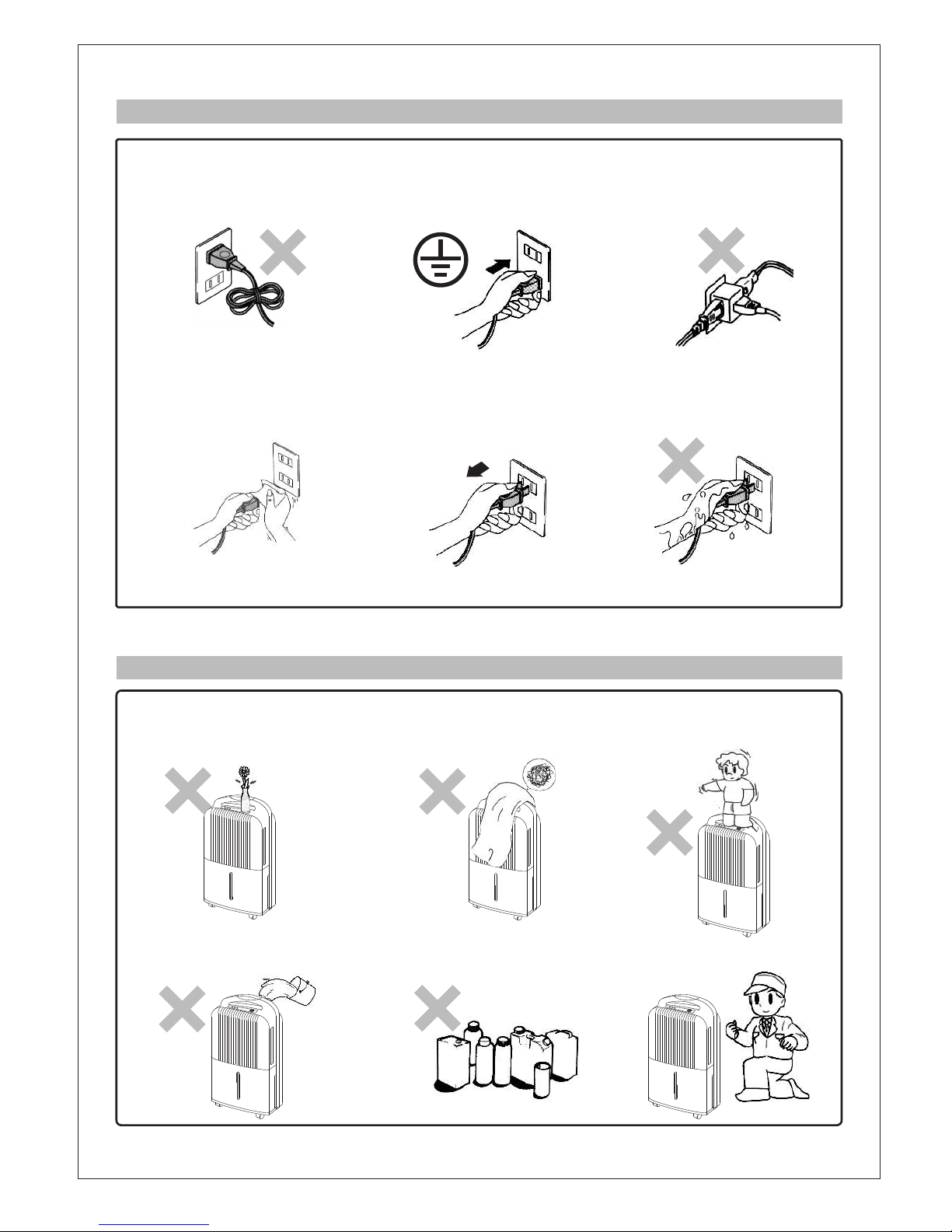

WARNING
● Do not fold the power cord as shown ● Make sure the plug is firmly plugged in ● Do not use multiple socket as
below！ properly！ shown below！
● Make sure the plug is clean！ ● When turning off the dehumidifier, please un ● Do not plug in the power plug
plug the power plug first. with wet hands！
CAUTION
● Do not place anything on top of the ● Do not cover all the air outlets of the machine！ ● Stop children from playing or
control panel！ climbing the machine！
● Do not wet the machine or the control ● Keep the flammable gas/oil away from the ● Ask professionals to do the
panel！ mechine！ serving！

- 1 -
電源線掛勾
OPERATING INSTRUCTIONS

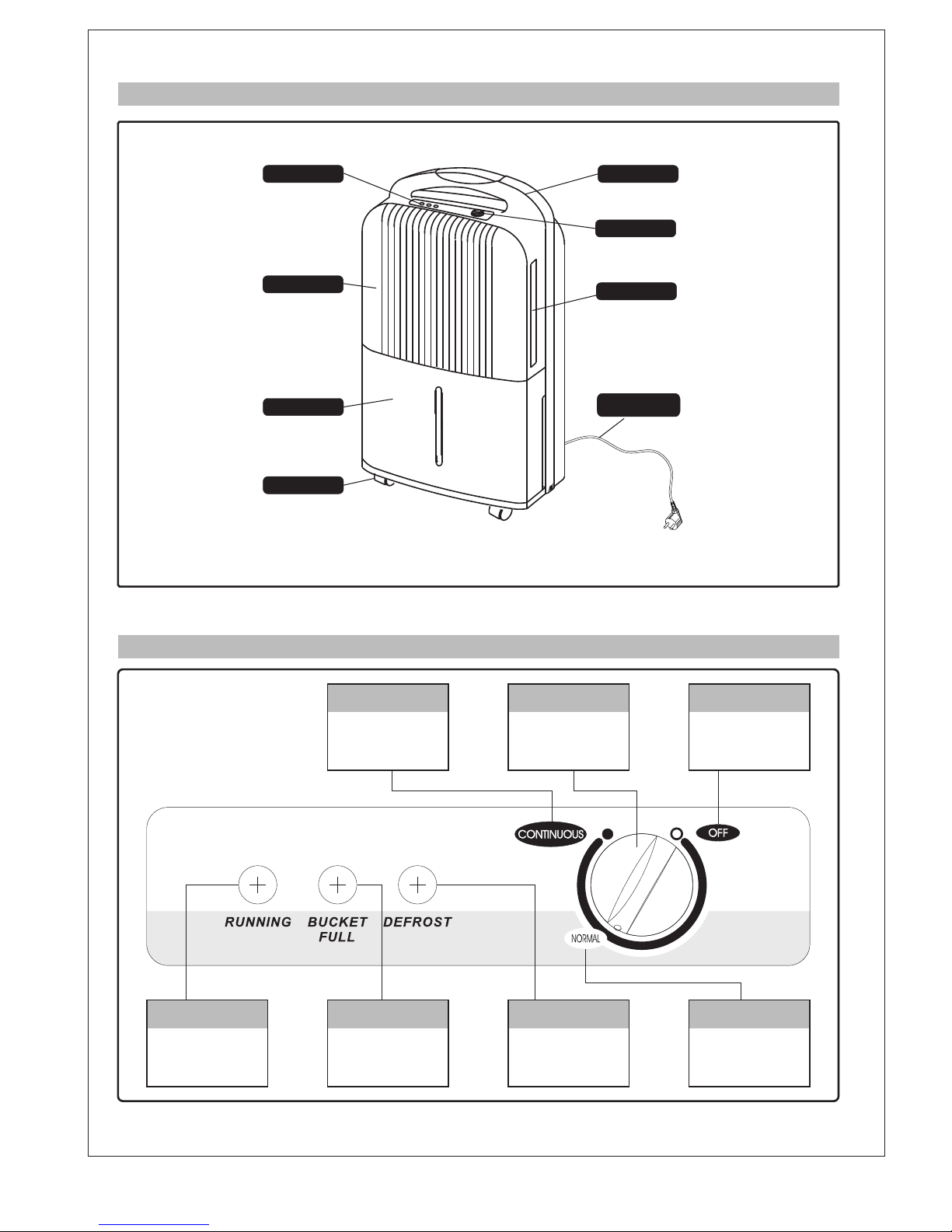

DESCRIPTION OF COMPONENTS
TURING WHEEL
HANDLE
KNOB
FRONT PANEL AIR FILTER
POWER SUPPLY
CORD COMPLETE
CONTROL PANEL
DRAIN BUCKET
When the lamp lights up
which means
dehumidifier is
operating.
RUNNING LAMP
When the water tank is
full the full tank lamp will
light up, the dehumidifier
will stop operating
immediately.
TANK FULL LAMP
When operating under low
temperature for a short
period, the dehumidifier will
starting defrost process, the
indicating lamp will light up.
DEFROST LAMP
Dehumidifier stop
removing moisture.
OFF
Dehumidifier
continuously
removing moisture.
CONTINUOUS
Humidity control
between
50%~60%
NORMAL
Use for control the
operation and the on and
off function of the
dehumidifier.
HUMIDITY CONTROL
KNOB

-2-
Operating Instructions
● Start Operation
1) Make sure the water tank is placed in proper position. (After plug on the mechine for the first time,
if the full tank lamp light up, just pull out the water tank then push it back to the proper position.)
2) Make sure the plug is firmly plugged on in the socket.
3) Turn the control knob to the suitable humidity(usually at normal position). If the humidity indoor
is over the set humidity, then the machine will start removing moisture.
4) When the humidity in the room reached the set humidity then the machine will stop operating.
5) When the humidity in the room is over the set humidity then the machine will start removing
moisture again.
6) The circulation between point 3). 4). 5) is controlled by the set humidity.

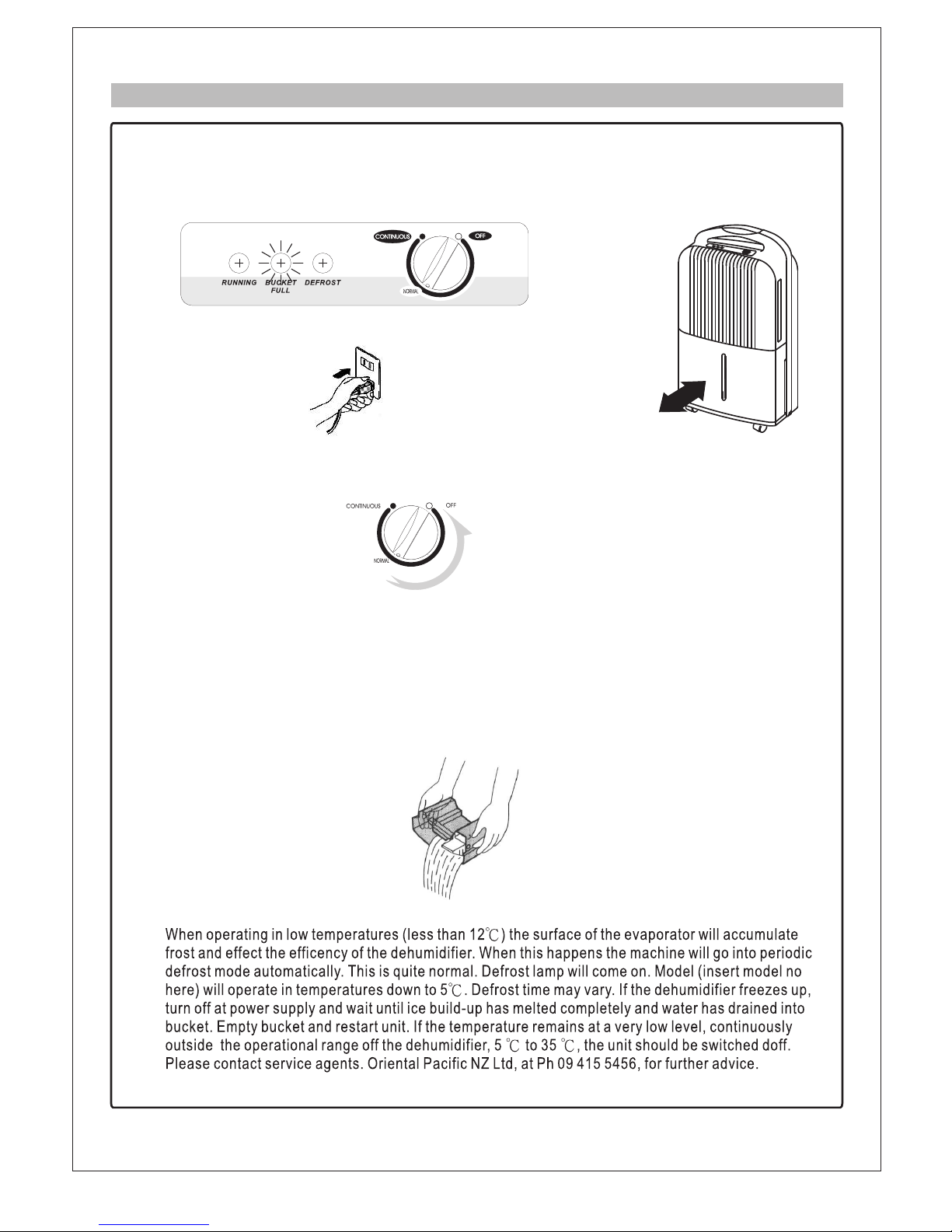

● When Full Tank Lamp Is On
When the water tank is full, the indication lamp will light up, the dehumidifier will stop operating.
Remove the water in the tank, then place the water tank back to it's proper position the machine
will start operating again.
Remove the water in the water
tank with two hands
DEFROST

-3-
Externer Wasserablauf
Continuous drainage hole
Rearview
PVC hose

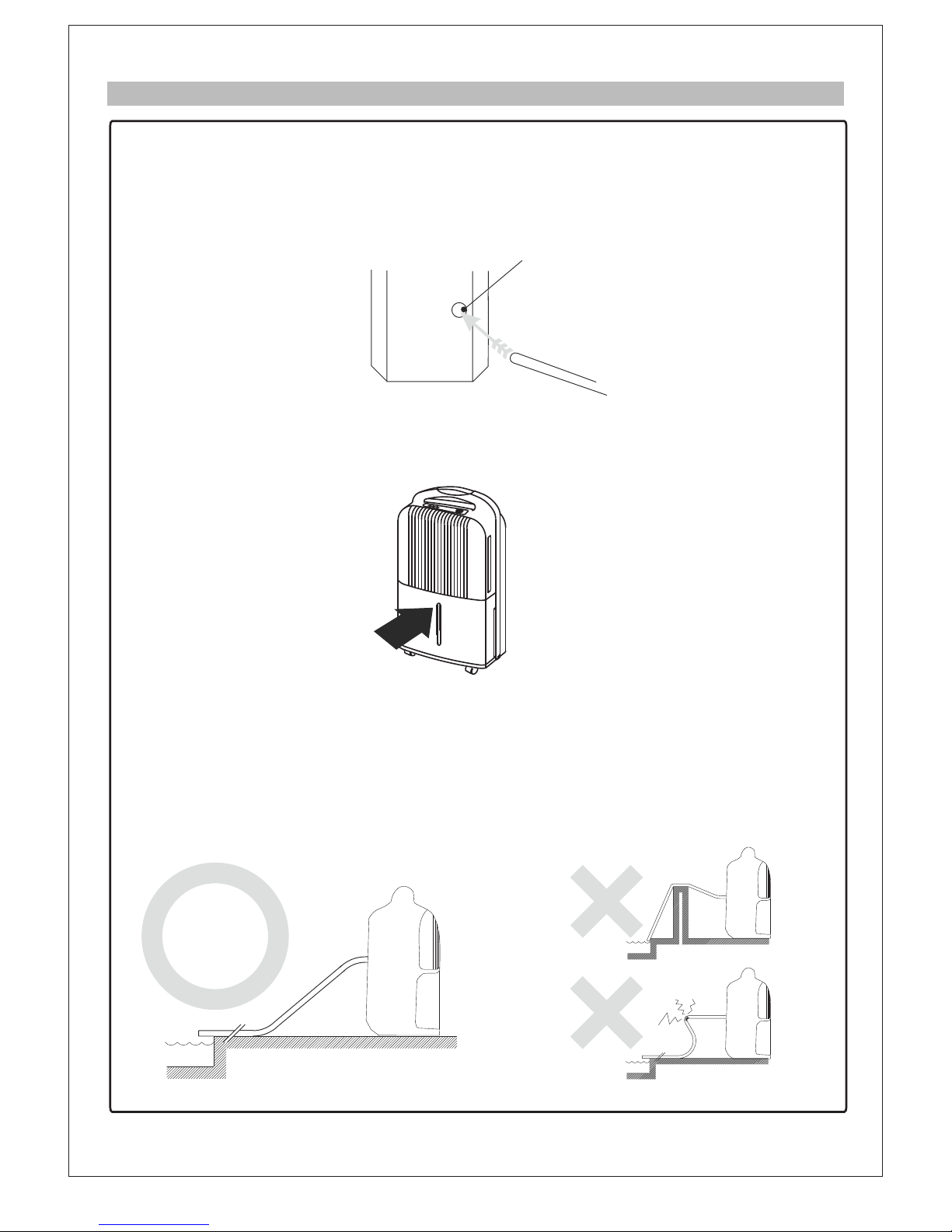

●Continuous Drainage Under Good Condition
1) Ready to drain out the water using PVC hose (inside dia.13mm).
2) Take out the water tank and use tool to open the closed hole at the back of the
machine to put in the hose.
2) Put in the PVC hose into the back of the closed hole, the nconnect the PVC hose to
the front.
4) Put the water tank back, do according to the instructed way.
● The Proper Way To Place The Water Drainage PVC Hose
When using continuous drainage, the PVC hose most be placed below the drainage hole. Most avoid
uneven ground and over folded hose.

50cm
-4-
CAUTION
● Do not pull the power cord to avoid broken ● Do not use insect, oil or paint spray around the
cord, which lead to danger. Machine, it might cause damage to the plastic
parts or start a fire.
● Do not place the machine on an uneven ● This model can be placed close to the wall and
ground, to avoid shaking, noise and leakage you may hang the clothing at least 50 cm above
of water. the machine.
● It is dangerous to put anything into the ● Close all the open windows to reach the maximum
machine. possible efficiency of removing moisture.
● Keep the machine away from any type of heat ● When moving or put in storage, do not place the
sources. dehumidifier on side way or upside down and
avoid violent shaking.

- 5 -
MAINTENANCE
Please make sure the dehumidifier is unplugged before serving or
cleaning the machine, for safety reasons!
1) Clean the Shell：
A. Wipe the shell using soft and clean cloth.
B. If the dehumidifier is very dirty, please use mild detergent then wipe off the detergent with half dried
cloth.
C. Do not wash the machine with a hose, it will cause leakage of electricity.
2) Clean the Air Filter：
The propose of the air filter is to filter the dust or unclean material in the air. If the filter is blocked by the
dust the usage of the electricity will be greater than normal, For the best more efficient of removing
moisture, please clean the filter once in two weeks.

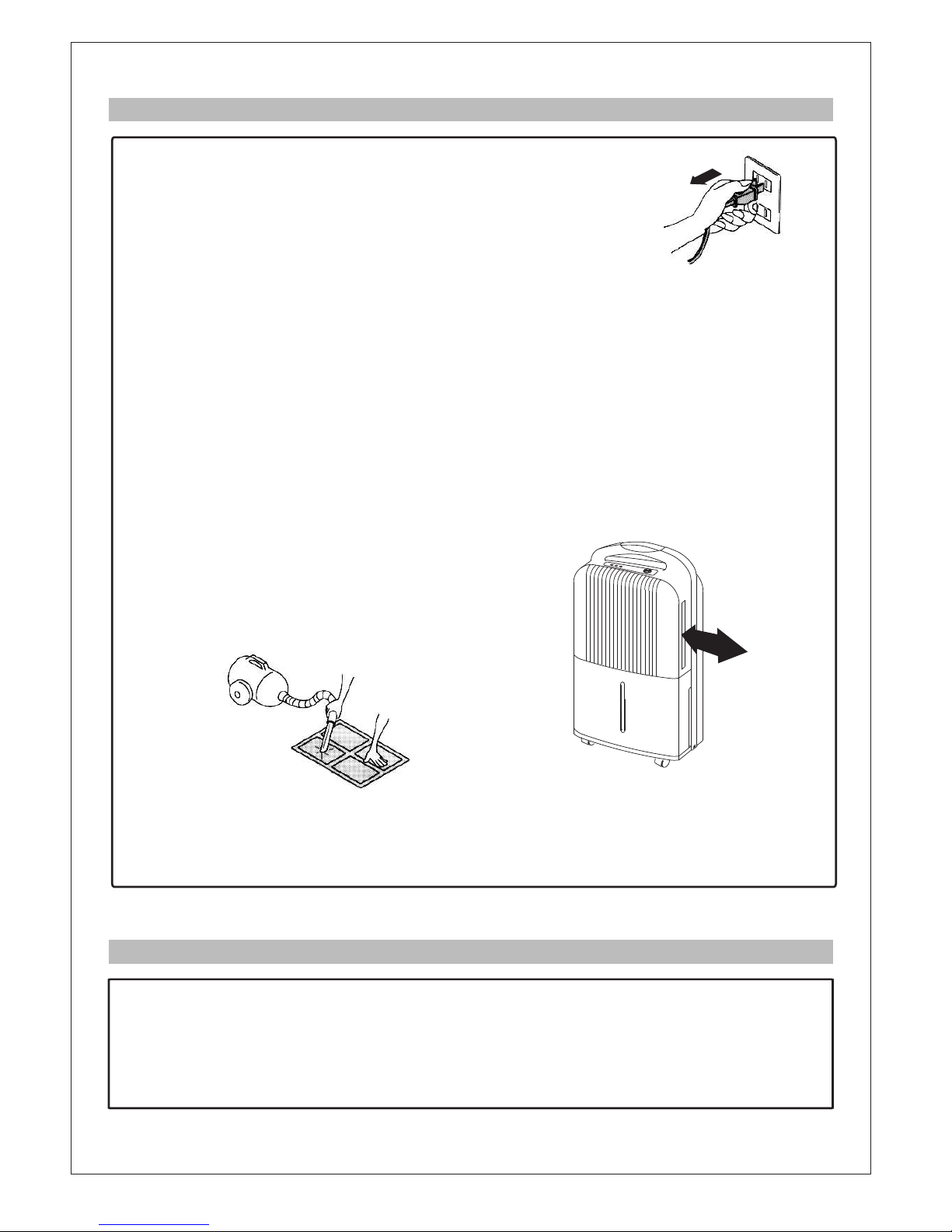

● Cleaning Steps：
A. Pull out the filter gently.
B. Clean the filter by vacuum cleaner or washing with clean water then dry the filter using dry cloth.
C. Place the filter back to it's position.
EMERGENCY
Please unplugged the machine when there is sometime wrong. Contact the serving
department immediately. Do not disassemble the dehumidifier yourself！

5°C ~ 35 °C
WDH-122H-16RA
220-240V ~50Hz
O
16L/D (30 C 80%RH)
260W
320 * 570 230 mm *
11.2 kg
SPECIFICATION
MODEL
POWER
MOISTURE REMOVAL
POWER INPUT
SIZE OF SHELL
( H W D )× ×
WEIGHT
OPERATING
TEMPERATURE
"If the Supply cord is damaged, it must be replaced by the manufacturer or
its Service agent or a similarly qualified person in order to avoid a hazard"
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer
for recycling advice.
(EC) No. 842/2006:
Do not vent R-134a into atmosphere: 134a is a fluorinated greenhouse gas, covered by
Kyoto Protocol, with a Global Warming Potential (GWP) = 1300.
