New World 70 Chim Hood Operating instructions

Chimney Hood
User & Installation Instructions

Thank you for choosing this appliance.
Should you need any information or assistance, please call the number below
and the Customer Care Centre staff will be pleased to help in any way they can.
0870 458 9662
When you dial this number you will hear a recorded message and be given a
number of options. This indicates that your call has been accepted and is being
held in a queue. Calls are answered in strict rotation as the Customer Care
Representatives become available.
When calling please have to hand you appliances model and serial numbers.
These numbers help us to quickly identify your product and enable the Customer
Care team to provide you with the most up to date advice and support.
Outside the UK and Northern Ireland, refer to your local supplier.
Customer Care

User’s Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 5
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Parts Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Using the Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 10
Regulations and standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Ventilation & Mounting height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Method 1: Re-circulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Method 2: Extraction through an outside wall . . . . . . . . . . . . . . . . . . . . . . . . . 8
Wall Fixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation Illustrations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hood Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

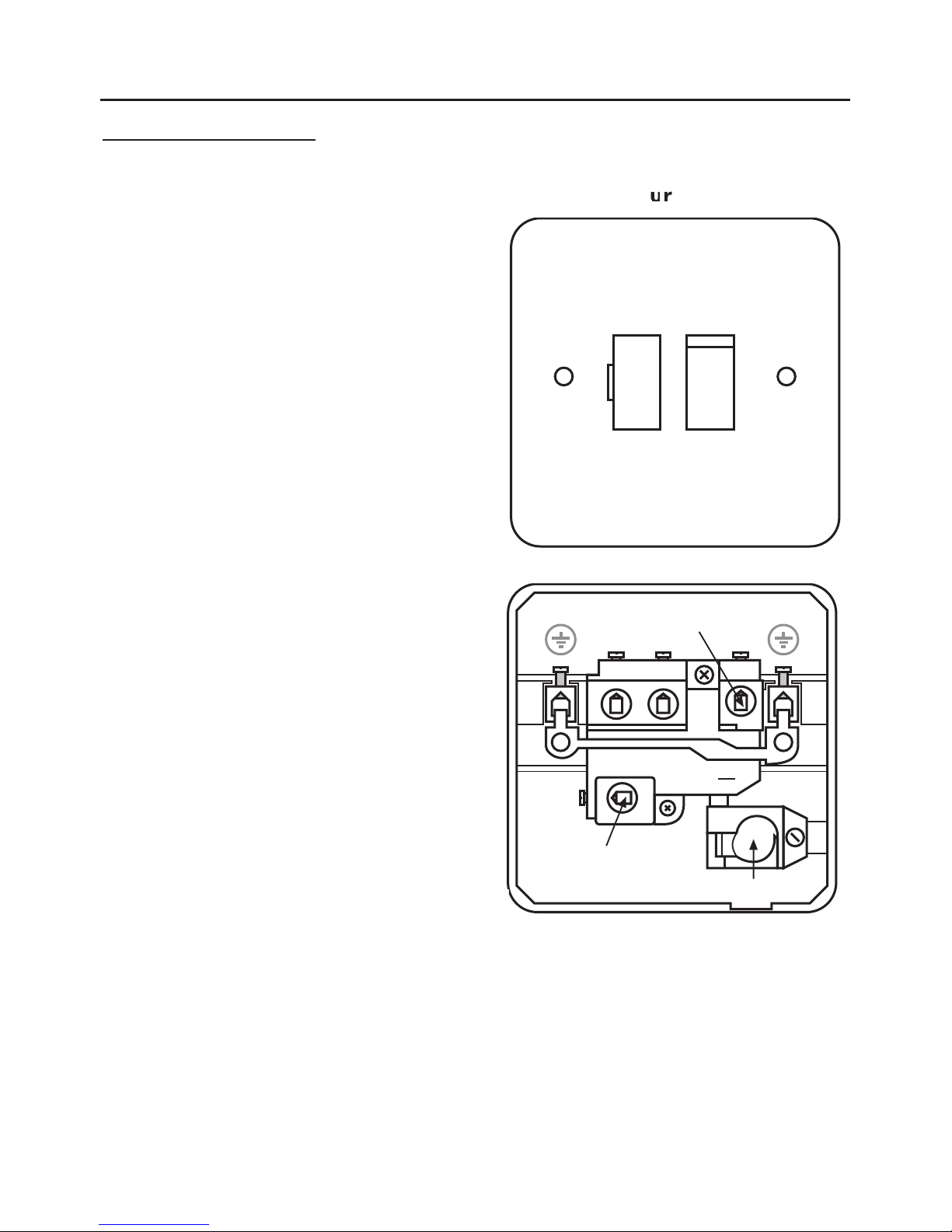

Electrical Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Customer Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1
Contents

Thank you for buying this hood, we hope
that it makes an attractive and useful addi-
tion to your kitchen.
This handbook contains information
which will help you to install and use your
new hood, and we recommend that you
read it fully before you start.
This handbook is for the following hoods:
60 Chim Hood
70 Chim Hood
90 Chim Hood
100 Chim Hood
110 Chim Hood
Our policy is one of constant development
and improvement. Strict accuracy of
illustrations and specifications is not
guaranteed. Modification to design
and materials may be necessary
subsequent to publication.
Before using the appliance for the
first time, remove all packaging and
protective polythene film.
Your first year Guarantee
To fulfil the conditions of your guarantee,
this appliance must be correctly
installed and operated, in accordance
with these instructions, and only be
used for normal domestic purposes.
Please refer to your guarantee card for
further details.
Please note that the guarantee, and
Service availability, only apply to the
UK and Republic of Ireland.
Installation
This appliance has been designed for
use as an exhausting (air evacuation
to the outside) or filtering (indoor air
re-cycling) hood.
Note: If you wish to install the hood
for extraction through an outside wall,
a compatible ducting kit should be
obtained.
Because of the complexity and weight
of the appliance, it is recommended
that the installation be carried out by
specialist personnel.
The manufacturer declines all responsibility
for damage caused by improper or
unworkmanlike installation.
Please read this handbook carefully
and keep it for future reference.
Before installing this appliance, you
may need to contact our Customer
Care Centre in order to purchase cer-
tain parts. Please see the details in the
Customer Service section of this hand-
book.
2
Introduction

3

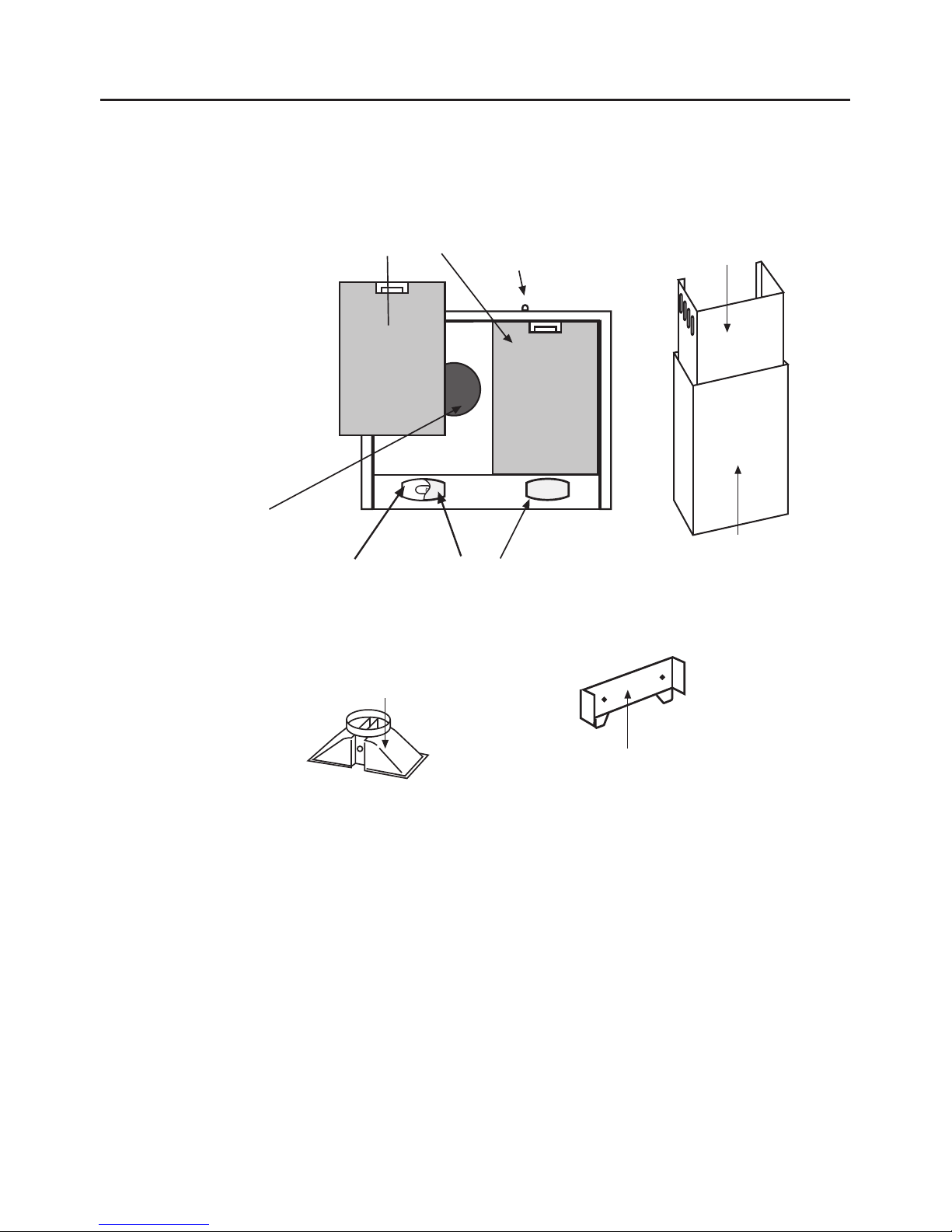

Figure 1
Parts Identification
Viewed from
underneath
Outlet
adaptor
inner chimney
extension piece
outer chimney
extension piece
wall
bracket
adjustable
slider
lamp covers
removable
grease filters
motor
light
bulb
Please note:
The lights on the Chimney hood may
located either at the front of the
hood, or at the rear, depending on
the model and size.
Not all models will have an outlet
adaptor, certain models have a
150mm outlet with a 150/120mm
reducer supplied.

Figure 2A: hood controls:
The controls work as follows:
A - Neon light
B - Off
C - Position 1
D - Position 2
E - Position 3
F - Light switch
Figure 2B: hood controls:
The controls work as follows:
A - Neon light (if fitted)
B - Off
C - Position 1
D - Position 2
E - Position 3
We recommend that you switch on the
hood for a few minutes before you
start cooking, and then leave it running
for approximately 15 minutes after-
wards to ensure that all odours are
extracted.
To illuminate the cooking area under-
neath the hood, push the light control
button in to the “on” position. To
switch off, press again to return to the
“off” position.
To operate the hood, press the button
for the required speed - select: 1low,
2 medium, or 3high speed. The
neon indicator light (if fitted) will light
up to show when the fan is operating.
To switch off, press the “off” button.
Important safety notes
• Keep hob rings covered with pans
when switched on to avoid dam-
aging the hood. The use of an
unprotected flame can cause a fire
hazard.
•Do not flambé food underneath
the hood.
• When frying foods, take care to
avoid cooking oil flares.
• Wash the grease filters regularly -
refer to the cleaning section.
•Do not check filters while the hood
is in use.
•Do not touch the lamps after
prolonged use of the appliance.
Re-circulation method only:
• Keep the air ducting vents clear of
obstruction.
• Change the carbon filters every 4
month.
4
0123
ABC ED F
T
Using the Hood

Before cleaning or maintenance,
switch off the electricity supply.
Replacing a light bulb
1. Switch off the electricity supply.
2. Remove the grease filters from the
hood.
3. Unscrew the bulb from the holder.
Replacement bulbs can be
obtained from your supplier or
local hardware store.
4. Fit the new bulb, ensuring it is
screwed securely into the holder.
5. Refit the grease filters.
Light bulbs are not covered by
the warranty
To avoid any fire risk, the following
cleaning instructions must be followed:
Grease filters - aluminium
The grease filters absorb grease and
dust from cooking fumes, which would
otherwise damage the inside of the hood.
The grease filter should be removed
and cleaned regularly - with normal
use, this should be every 2 months.
Important: Frequent washing is
essential to prevent a build up of
grease in the filters which could
become a fire hazard.
1. Remove the filters from the hood.
2. Carefully wash the grease filters in
hot soapy water and dry with a
clean towel.
3. Refit the clean filters.
4. Aluminium grease filters are
supplied with this appliance.
Outer casing - Stainless Steel
All external parts of the outer casing
and visor can be safely cleaned with a
clean cloth wrung out in hot soapy
water.
Do not use caustic pastes, abrasive
cleaning powders, wire wool and
hard implements, as they will damage
the surfaces.
Carbon filters not supplied.
The carbon filters absorb cooking
odours and need renewing after about
4 months of normal use. A replace-
ment carbon filter can be obtained
from your supplier.
Saturation of the activated charcoal in
the filter will depend on how often the
hood is used, the type of kitchen and
the regularity of cleaning the grease filter.
The carbon filters cannot be
washed - renew every 4 months.
1. Remove the grease filters from the
hood.
2. Release the old carbon filters by
twisting them in either direction by a
quarter turn (90˚) until they disengage.
3. Fit the new carbon filters by
engaging them onto the pegs in
the centre of the fan grille and
twisting by a quarter turn until they
are gripped securely.
4. Refit the grease filters.
5
Care & Maintenance

Regulations and standards
Before you start please read instructions
carefully. All installations, service and
repair work must be in accordance
with local standards and regulations.
In the UK the regulations and standards
are as follows:-
1. Building regulations.
2. The current I.E.E. wiring regulations.
3. Electricity at work regulations.
4. Installation and servicing instructions
for this appliance.
Ventilation
Adequate ventilation, in accordance
with the Gas Safety Regulations
(Installation and Use), and the relevant
building regulations must be provided
when the hood extracts air from a
room with a flued gas burning
appliance, which is not of the
“balanced flue” type.
Mounting height
The cooker hood must be fitted at least
650 mm above a gas or electric hob.
If cooker / hob instructions give a
different figure to that given above,
then the higher measurement should
be followed.
To prevent possible hood cut-out, a
clearance of 650 mm is recommended
above gas hobs where possible.
Select method of operation
The cooker hood has two possible
methods of operation:
Method 1: Re-circulation requires
carbon filters.
Installation with dual filtration to clean
the air before it is re-circulated into the
room.
Method 2: Extraction through an
outside wall requires a ducting kit.
The hood can be installed with a duct
to extract cooking fumes through an
outside wall.
Dimensions
Please note that all dimensions and
sizes are nominal, some variation is to
be expected.
6
Installation

Method 1: Re-circulation (dual
filtration)
The fan draws cooking fumes through
the washable grease filters into the
underside of the hood, then through
the carbon filter, to remove odours
before returning clean air to the
kitchen via the air ducting vents.
If a cooker hood and any non
electrically powered appliances
extract fumes at the same time, then
the room must be suitably ventilated.
When selecting the best position for
the hood, ensure that air flow from the
air ducting vents is not obstructed by
cupboards, shelves, etc.
Do not vent into enclosed cupboard
space.
This method may require you to pur-
chase carbon filters, these are avail-
able from Customer Care Centre.
Please see the Customer Care section
of this handbook for further details.
Assembly
1. Remove the grease filters.
2. Fit the carbon filter (if supplied -
may be packed separately) by
engaging it onto the peg in the
centre of the fan grille and twisting
in either direction by a quarter turn
(90˚) until it is gripped securely.
3. Discard the outlet adaptor as it is
not required when installing the
cooker hood as a re-circulation filter.
7
Installation

Method 2: Extraction through
an outside wall
The fan draws cooking fumes through
the washable grease filter into the
underside of the hood, then the fumes
are expelled through a duct or directly
through an outside wall.
This method may require you to con-
tact the Customer Care Centre to pur-
chase a ducting kit. You may howev-
er prefer to use your existing ducting,
if it is appropriate.
Figure 3
Assembly
1. Remove the grease filters.
2. Remove the carbon filter (if fitted)
and discard, as this is not required
when installing the cooker hood as
an extractor fan.
3. Connect the discharging pipe to
the ducting outlet adaptor, and
route the pipe through a 130 mm
hole in the rear wall.
Wall vent kit and ducting
• For connecting the hood outlet
adaptor to the outside wall, we
recommend that a wall vent kit is
purchased from your supplier or
local hardware store.
• Use a 125 mm diameter ducting
kit and connect to the ducting
outlet adaptor.
• Horizontal duct runs should be
avoided. A slope of 5˚ or more
upwards from the hood to the wall
outlet will assist the flow of air.
• The ducting pipe and any connecting
pieces should be coupled to the
preceding piece by pushing into
and never over it - the upper part
must be fitted over the lower part.
• The outlet from the hood must not
be ducted into a wall cavity,
through a ventilator shaft or
through a chimney. It must not be
ducted through a flue used by a
non-electrically powered appliance.
• Adequate ventilation must be
provided if a cooker hood extracts
fumes from the room at the same
time as an appliance powered by
a fuel other than electricity (such
as a gas appliance) is operated.
The extractor hood removes air
from the room which the burner is
dependant on for combustion.
8
outlet
adaptor
Installation

Wall fixing (figures 4 & 5A / 5B)
• Drill 8 mm diameter holes as shown.
• Using the screws and dowels
supplied with the appliance, fasten
the wall bracket to the wall.
• Ensure that they are suitable for the
type of wall where the cooker
hood is to be mounted.
• Fig 5A :Locate and fasten the
hood to the wall through holes C,
and secure through holes D.
• Fig 5B: Drill holes A in the wall,
making sure that they are in line
with the distances quoted.
• Locate the 2 junction pieces as
shown. Secure the top junction
piece to the wall bracket through
the side holes using the screws
provided.
• In some cases it may be necessary
to adjust the length of one or both
of the chimney sections. Cut the
bottom of each section so that the
cut is hidden using suitable cutting
implements. Please take care not
to obstruct the ducting vents used
in the re-circulation method.
Re-circulation mode only
• Since the side vents are located in
the upper chimney section, no
L-shaped air flow directing piece is
required.
9
Installation
20 mm
260
mm
A
C
235 mm
Figure 4
Figure 5A
A
C
492 mm
D
wall bracket
adjustable
40
mm
Figure 5B

Hood Measurements
The below table shows the various
hood measurements for this hood:
The dimensions of the chimney piece
(including the hood body) are as fol-
lows:
250mm x 183mm x 590-960mm
This is W x D x H.
Installation
Body of hood
Hood Name Width mm Depth mm Height mm
60cm Chimney Hood 600 485 190
70cm Chimney Hood 700 485 190
90cm Chimney Hood 900 500 260
100cm Chimney
Hood 1000 500 260
110cm Chimney
Hood 1100 485 190
10

Installation
Electrical connection
This appliance is double insulated for
safety and therefore does not require
an earth connection to the mains inlet.
The wires in the mains lead are
coloured in accordance with the
following code:
Blue = neutral, Brown = live.
As the colours of the wires in the
mains lead for the appliance may not
correspond with the coloured markings
identifying the terminals in your spur
box, proceed as follows:
1. The wire which is coloured blue
must be connected to the terminal
marked N(neutral) LOAD, or
coloured black.
2. The wire which is coloured brown
must be connected to the terminal
marked L (live) LOAD, or coloured
red.
The fused spur socket should be
positioned where is is easily accessible
so you can switch off the supply to the
hood when renewing the light bulb.
Figure 6
11
ON
FUSE
Use a 3 amp fuse
Typical example of a double
pole fused spur outlet
NL
SUPPLYLOAD L
~
NLOAD 13
250
Neutral
Live
Cable

Electricity supply
230 - 240V ~ 50Hz
Classification
class II metal encased
Noise level (External Venting)
Position 3 56 dBA
Position 2 49 dBA
Position 1 42 dBA
Noise Level (Internal Venting)
Position 3 59 dBA
Position 2 54 dBA
Position 1 47 dBA
Light bulbs
2 x 40 W.
Candle lamp, small edison screw fitting.
Note: If the hood is to be used for
display purposes only, we recommend
the use of 25 W lamps.
Motor rating
120W
Carbon filters
x 2 - available as Spares
Grease filters
x 2 metal filters
Extraction Rate (External)
Position 3 350m3/H
Position 2 310m3/H
Position 1 225m3/H
Extraction Rate (Internal)
Position 3 270m3/H
Position 2 205m3/H
Position 1 170m3/H
12
Technical Data

Customer Care & Service
Please keep this handbook in a safe place as the information inside may be of
use should you sell, or pass on the appliance. Please fill in the model number
and serial number in the spaces provided below as they will assist us should you
need to call.
0870 458 9662
When you dial this number you will hear a recorded message and be given a
number of options. This indicates that your call has been accepted and is being
held in a queue. Calls are answered in strict rotation as Customer Care
Representatives become available.
Enter appliance numbers here for future reference:
Please ensure you have the above details (Model No and Serial No) to hand
when calling Customer Care. They are essential to booking your call, or ordering
any spare parts.
Spares for this appliance:
Carbon Filters - 082620630
Ducting Kit 1m - 082611309
Ducting Kit 3m - 082611310
Outside the UK and Northern Ireland, refer to your local supplier.
Model No
Serial No
13

14
Care & Cleaning
Do not use caustic pastes, abrasive clean-
ing powders, products containing bleach,
coarse wire wool or any hard implements,
as they will damage the surfaces.
Stainless steel backplates
Only use a clean cloth wrung out in hot
soapy water, and dry with a soft cloth.
Stubborn marks can be removed using a
stainless steel cleaner. We recommend
that you clean the whole of the stainless
steel area to maintain a uniform finish.
Do not use undiluted bleach or any prod-
ucts containing chlorides as they can per-
manently damage the steel. Sharp objects
can mark the surface of stainless steel, but
will become less noticeable with time.
Extra care should be taken when cooking
food in salted water. Some foods are cor-
rosive - eg; vinegar, fruit juices and espe-
cially salt - they can mark or damage
stainless steel if they are left on the surface.
Wipe any splashes immediately.
To maintain the finish of the stainless steel,
or to remove any greasy marks, rub the
stainless steel surface sparingly with a
minimum amount of Baby Oil. Do not use
cooking oils, as these may contain salt
which can damage the stainless steel sur-
face.
Installation
1. Fix the 2 top hanging screws to the dimensions indicated.
2. Hang the backplate on the 2 top hanging screws.
3. Secure the backplate with screws through the bottom 2 fixing holes.
Note: If a cooker hood is fitted above the backplate, it may be necessary to fit the filler strip,
to cover any gap which may occur between backplate and hood. Some dimensions may not
apply
695mm - 900BP
795mm - 1000BP
100
mm 100
mm
700mm
895mm - 900BP
995mm - 1000BP,
worktop /
cooker top
694mm
6mm
Backplate
Filler strip
(if required)
Stainless Steel Backplate (IF PURCHASED)

15

GLEN DIMPLEX HOME APPLIANCES
STONEY LANE, PRESCOT, MERSEYSIDE, L35 2XW
08 27136 01 © 08.2004
3LI0D2D302.5 D3
