NewLine NewEye NE-C2201 User manual

NewEye
NE-C2201 Professional Conferencing Camera
Instruction Manual
Please read carefully before using the product, and keep it for future reference!
Be advised that the actual product may differ slightly from the instructions.

Introduction
Thank you for purchasing our product. Please carefully read this manual
for proper installation and optimal performance experience. This
product is a 1080p USB webcam. It supports automatic color correction
and white balance. Its built-in automatic noise-cancelling microphone
can pick up sounds from multiple angles within a distance of 3 meters,
with excellent audio quality. It is compatible with most major operating
systems such as Windows®7 and above, Mac OS® 10.10 and above, etc.
It works with widely used conferencing platforms (such as Zoom, Meet,
Teams, etc.) and streaming platforms, enabling video conferencing and
live streaming.
Features
Supports MJPG, YUY2 and H.264 video compression formats,
compatible with most application platforms
Supports video specifications up to 1080p @ 30 Hz, excellent noise
reduction algorithm and automatic white balance for high-quality
streaming
85° field of view HD lens for an excellent imaging experience
Fixed focal length lens with depth of field ranging from 0.3 meters to
5 meters, which can continuously output stable and high-quality
images
Built-in automatic noise reduction microphone, which can pick up
sound from multiple angles within a distance of 3 meters, with
excellent audio quality
Supports conferencing platforms such as Zoom, Meet, Teams, etc.
Compatible with Windows7® and above, Mac OS ®10.10 and above,
etc.
Equipped with physical privacy protection cover
Equipped with a multi-functional bracket, suitable for laptops and
monitors; equipped with M12 standard tripod threaded hole
USB-A (or prepacked USB-A to USB-C adapter) connector, driver-free
plug and play
Packing List
USB camera (with lens cap) x 1
USB-A to USB-C adapter x 1
Instruction manual x 1

Installation
Mounting on a monitor
1. Install the camera on a computer, notebook or monitor according to
the required angle.
2. Adjust the camera so that the horizontal support of the mounting clip
is flush with the back of the device.
3. Manually adjust the camera pan/tilt angle to find the best shooting
position.
Mounting on a tripod
1. Identify the M12 threaded hole on the camera bracket.
2. Align the camera's M12 threaded hole with the tripod's M12 screw
thread, and then fasten the camera on the tripod.
3. You can place your camera anywhere to shoot.
Note:
A tripod is not included in the packing list.
The camera works best when it is mounted no more than 100 cm above the
desktop.

For more information, please visit our website.
If you need help, feel free to contact us through our official support
channels.
Website: www.newline-work.com
Customer Service: [e-mail]
Hotline: [phone]

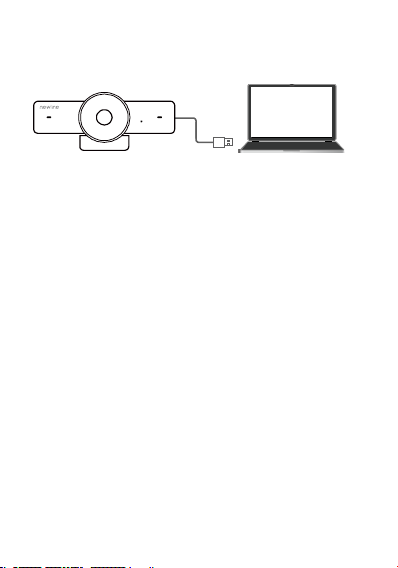

Connecting
Plug the connector of the camera's USB cable into a USB port on your
Computer.
Once the camera is successfully connected, the status indicator will
intermittently flash in green and turn off after 6 seconds. While the
camera is in use, the status light will persistently remain solid green.
Connect via USB-A interface (or via the prepacked USB-A to USB-C
adapter) for driver-free plug and play.
Note: After the USB camera is connected to the computer, the system
and certain types of applications can detect the camera and the
microphone; their specific identifiers are as follows:
Camera ID: NewEye Microphone ID: NewEye

Specifications
Physical parameters
Operating temperature 0°C ~ 40°C (32°F to 104°F )
Storage temperature -20°C ~ 60°C (-4°F to 140°F)
Input voltage 5 V (USB port power supply)
Power consumption (max) 1.5 W
Dimensions (with bracket) 140.3 mm x 62 mm x 74.2 mm
Weight (with bracket) 0.16 kg
Lens
Sensor CMOS, 2.0 MP
Scan mode Progressive Scan
Diagonal angle of view 85°
Horizontal rotation range Left: 30°
Vertical rotation range Right: 30°
White balance Up: 10°
Digital noise reduction Down: 60°
Backlight compensation Supported

USB Features
OS compatibility Windows® 7, Mac OS® 10.10 and above
Color compression MJPEG (default) / YUY2 / H.264
Resolution

MJPEG: 640 x 480, 160 x 120, 176 x 144,
320 x 180, 320 x 240, 352 x 288,
424 x 240, 480 x 272, 640 x 360,
720 x 576, 800 x 448, 800 x 600,
848 x 480, 960 x 540, 1024 x 576,
1024 x 768, 1280 x 720,
1600 x 896, 1920 x 1080 (default)
YUY2: 640 x 480
H.264: 640 x 480, 320 x 180, 320 x 240,
352 x 288, 480 x 272, 640 x 360,
720 x 576, 800 x 448, 800 x 600,
848 x 480, 960 x 540, 1024 x 576,
1024 x 768, 1280 x 720,
1600 x 896, 1920 x 1080 (default)
Note: All the above resolutions support a
frame rate of 30 Hz.
USB communication UVC 1.0
Built-in microphone Dual array microphone
USB cable length 1.5 m USB-A 2.0

Panel Description
Troubleshooting
1. What should be done whenever the camera stream is not clear?
Wipe the lens with a cleaning cloth to remove stains from it.
Microphon
e
Lens
Status indicator
USB-A cable
1
2
1
3
4
